YAMAHA TDR 125 2000 Owners Manual

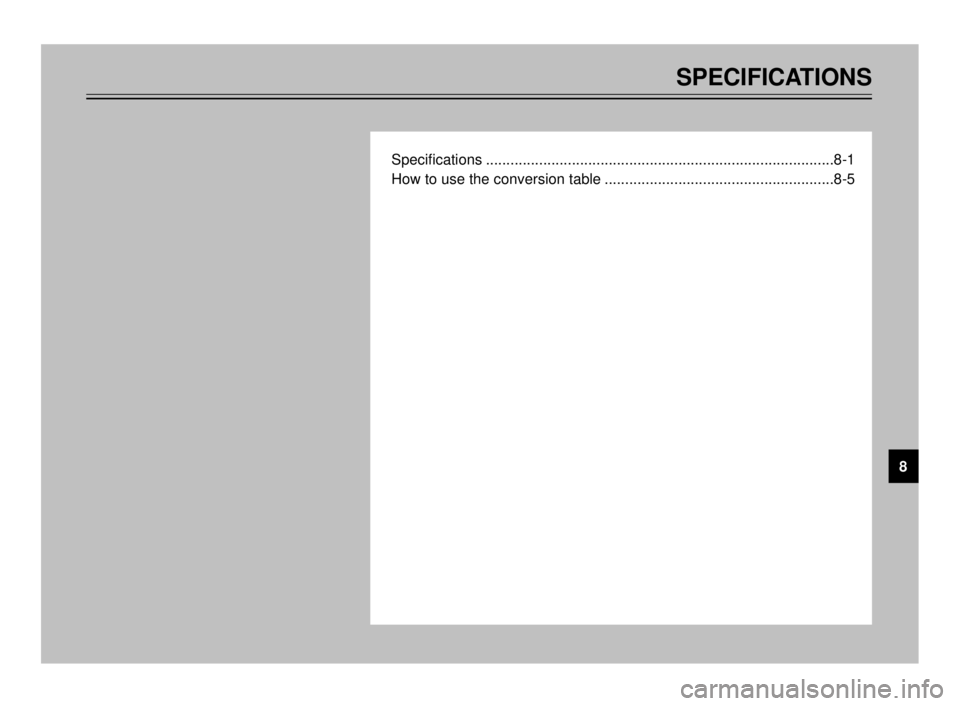

SPECIFICATIONS
Specifications .....................................................................................8-1
How to use the conversion table ........................................................8-5
8
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 89

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
Specifications
Model TDR125
Dimensions
Overall length 2,120 mm
(F, GB, IRL, B, P, GR, E)
2,185 mm (S, SF, D, CH, A)
Overall width 840 mm
Overall height 1,295 mm
Seat height 850 mm
Wheel base 1,405 mm
Ground clearance 270 mm
Minimum turning radius 2,200 mm
Basic weight (with oil and full
fuel tank)135 kg
136 kg (CH, A)
Engine
Engine type Liquid cooled 2-stroke,
gasoline
Cylinder arrangement Forward inclined single
cylinder
Displacement 125 cm
3
Bore ´Stroke 56.0 ´50.7 mm
Compression ratio 6.6:1
Starting system Electric starter
Lubrication system Separate lubrication
(Yamaha Autolube)Engine oil (2-cycle)
Type Yamaha oil 2T or equivalent
2-stroke engine oil
Capacity
Total amount 1.2 L
Transmission oil
Type SAE 10W30 SE motor oil
Capacity
Periodic oil change 0.75 L
Total amount 0.8 L
Radiator capacity
(Including all routes) 1.05 L
Air filterWet type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 11 L
Reserve amount 2.2 L
Carburetor
Type/quantity TM28SS/1
Manufacturer MIKUNI
EAU01038
SPECIFICATIONS
8-1
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 90

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
8-2 Spark plug
Type/Manufacturer BR9ES/NGK
Spark plug gap 0.7 ~ 0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Helical gear
Primary reduction ratio 71/22 (3.227)
Secondary reduction system Chain drive
Secondary reduction ratio 57/16 (3.563)
Transmission type Constant mesh 6-speed
Operation Left foot operation
Gear ratio 1st 2.833
2nd 1.875
3rd 1.412
4th 1.143
5th 0.957
6th 0.818
Chassis
Frame type Semi double cradle
Caster angle 26°
Trail 116 mmTire
Type Tubeless
Front
Size 100/90-18 56P
Manufacturer/ BRIDGESTONE/TW53
model DUNLOP/D602F
Rear
Size 130/80-17 65P
Manufacturer/ BRIDGESTONE/TW54
model DUNLOP/D602
Maximum load* 180 kg
179 kg (CH, A)
Air pressure (cold tire)
up to 90 kg load*
Front 175 kPa (1.75 kg/cm
2, 1.75 bar)
Rear 200 kPa (2.00 kg/cm
2, 2.00 bar)
90 kg load ~ Maximum
load*
Front 175 kPa (1.75 kg/cm
2, 1.75 bar)
Rear 225 kPa (2.25 kg/cm
2, 2.25 bar)
* Load is total weight of cargo, rider, passenger and
accessories.
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 91

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
Wheels
Front
Type Cast wheel
Size 18 ´MT2.15
Rear
Type Cast wheel
Size 17 ´MT2.50
Brakes
Front
Type Single disc brake
Operation Right hand operation
Fluid DOT 3 or DOT 4
Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Front
Type Telescopic fork
Rear
Type Swingarm (Monocross)Shock absorber
Front
Type Coil spring/oil damper
Rear
Type Coil-gas spring/oil damper
Wheel travel
Front 180 mm
Rear 180 mm
Electrical
Ignition system C.D.I.
Charging system
Type C.D.I. magneto
Standard output 14 V, 12A @5,000 r/min
Battery
Type YTX5L-BS
Voltage, capacity 12 V, 4 AH
Headlight bulb typeHalogen bulb
Bulb voltage, wattage ´quantity
Headlight 12 V, 60/55W ´2
12 V, 35/35W ´2 (GB, IRL only)
8-3
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 92

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
8-4 Stop/tail light 12 V, 21/5W ´2
Front flasher light 12 V, 21W ´2
Rear flasher light 12 V, 21W ´2
Auxiliary light 12 V, 4W ´2
12 V, 3.4W ´2 (GB, IRL only)
Meter light 12 V, 3.4W ´3
Neutral indicator light 12 V, 3.4W ´1
High beam indicator light 12 V, 3.4W ´1
Oil level indicator light 12 V, 3.4W ´1
Turn indicator light 12 V, 3.4W ´1
Fuse
Main 20A
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 93

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
8-5
EAU01064
HOW TO USE THE CONVERSION TABLE
All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to
IMPERIAL unit data.
Ex.
METRIC MULTIPLIER IMPERIAL
** mm´0.03937 = ** in
2 mm´0.03937 = 0.08 inMETRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
m • kg 7.233 ft• lb
Torquem • kg 86.794 in• lb
cm • kg 0.0723 ft • lb
cm • kg 0.8679 in • lb
Weightkg 2.205 lb
g 0.03527 oz
Speed km/hr 0.6214 mph
km 0.6214 mi
m 3.281 ft
Distance m 1.094 yd
cm 0.3937 in
mm 0.03937 in
cc (cm3) 0.03527 oz (IMP liq.)
Volume/ cc (cm3) 0.06102 cu • in
Capacity lt (liter) 0.8799 qt (IMP liq.)
lt (liter) 0.2199 gal (IMP liq.)
kg/mm 55.997 lb/in
Misc. kg/cm2 14.2234 psi (lb/in2)
Centigrade(°C)9/5 + 32Fahrenheit(°F)
CONVERSION TABLE
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 94

9

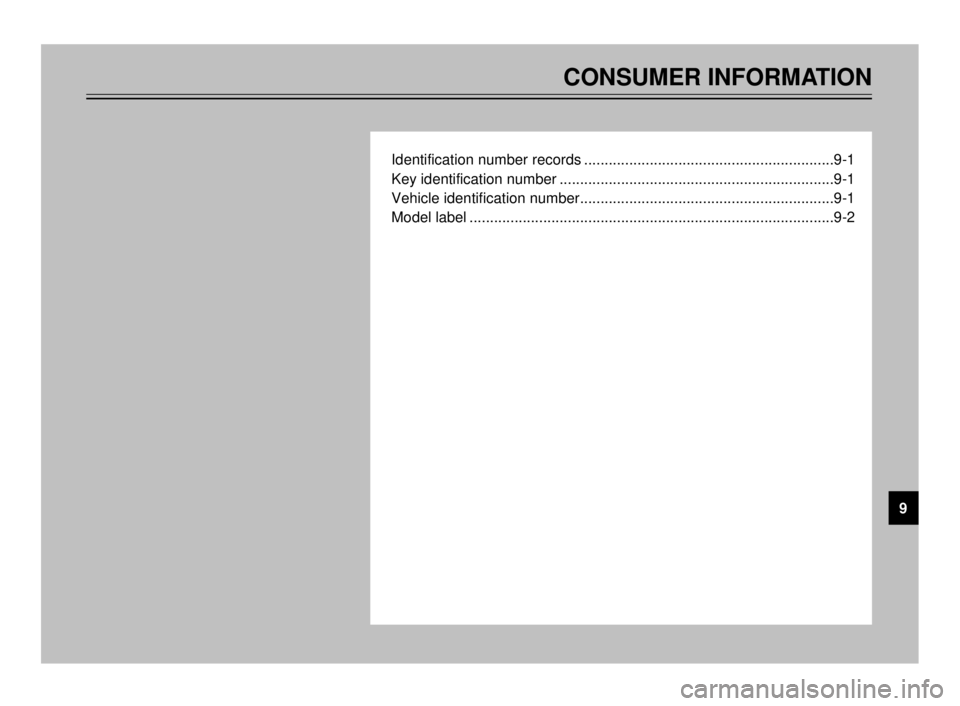

CONSUMER INFORMATION
Identification number records .............................................................9-1
Key identification number ...................................................................9-1
Vehicle identification number..............................................................9-1
Model label .........................................................................................9-2
9
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 95

1
2
3
4
5
6
7
8
9
11
EAU02944
Identification number
records
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided for assistance when order-
ing spare parts from a Yamaha deal-
er or for reference in case the vehicle
is stolen.
1. KEY IDENTIFICATION
NUMBER:
2. VEHICLE IDENTIFICATION
NUMBER:
3. MODEL LABEL INFORMATION:
EAU01041
Key identification number
The key identification number is
stamped on the key tag.
Record this number in the space pro-
vided and use it for reference when
obtaining a new key.
EAU01043
Vehicle identification
number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your state.
1. Key identification number 1. Vehicle identification number
9-1
EAU01039
CONSUMER INFORMATION
1
6
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 96

1
2
3
4
5
6
7
8
9
9
9-2
CONSUMER INFORMATION
9
1
EAU01050Model label
The model label is affixed to the
frame under the seat. (See page
3-13 for seat removal procedures.)
Record the information on this label
in the space provided. This informa-
tion will be needed to order spare
parts from your Yamaha dealer.
1. Model label
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 97

INDEX
Engine stop switch ..................................3-7
Engine temperature gauge ......................3-5
F
Front brake lever .....................................3-8
Front brake lever free play
adjustment ..........................................6-20
Front fork inspection ..............................6-28
Front wheel installation..........................6-34
Front wheel removal ..............................6-33
Fuel .......................................................3-10
Fuel cock ...............................................3-12
Fuel tank cap ...........................................3-9
Fuse replacement..................................6-30
H
Handlebar switches .................................3-5
Dimmer switch ......................................3-5
Engine stop switch ................................3-7
Headlight beam variation ......................3-6
Horn switch ...........................................3-5
Lights switch .........................................3-5
Start switch ...........................................3-7
Turn signal switch .................................3-5
Headlight beam variation.........................3-6
Headlight bulb replacement...................6-31
Helmet holder ........................................3-14
High beam indicator light .........................3-2
Horn switch..............................................3-5
How to use the conversion table .............8-5
I
Identification number records ..................9-1
Idle speed adjustment ...........................6-15
Indicator lights .........................................3-2
High beam indicator light ......................3-2Neutral indicator light ............................3-2
Oil level indicator light ...........................3-2
Turn indicator light ................................3-2
Inspecting the brake fluid level ..............6-22
K
Key identification number ........................9-1
L
Lights switch ............................................3-5
Left view ..................................................2-1
M
Main switch/Steering lock ........................3-1
Model lavel ..............................................9-2
N
Neutral indicator light...............................3-2
Note on handling of the Yamaha
Energy Induction System (Y.E.I.S.) ....3-15
O
Oil level indicator circuit check ................3-3
Oil level indicator light .............................3-2
P
Panel A ....................................................6-7
Parking ....................................................5-6
Periodic maintenance and
lubrication .............................................6-3
Pre-operation check list ...........................4-1
R
Rear brake pedal .....................................3-9
Rear brake pedal height adjustment .....6-20
Rear shock absorber adjustment ..........3-14
Rear suspension lubrication ..................6-27
Rear wheel installation ..........................6-35
Rear wheel removal ..............................6-34A
Air filter ..................................................6-13
Autolube pump adjustment....................6-26
B
Battery ...................................................6-29
Brake and clutch lever lubrication .........6-27
Brake and shift pedal lubrication ...........6-26
Brake fluid replacement.........................6-23
Brake light switch adjustment ................6-21
C
Cable inspection and lubrication ...........6-25
Carburetor adjustment...........................6-15
Care.........................................................7-1
Catalyzer
(for Switzerland and Austria) ..............3-11
Checking the front and rear brake
pads ....................................................6-21
Clutch lever .............................................3-8
Clutch lever free play adjustment ..........6-19
Controls/Instruments ...............................2-3
Cooling system ......................................6-11
Cowling A, B ............................................6-7
Cowling and panel removal and
installation .............................................6-6
D
Description ..............................................2-1
Dimmer switch .........................................3-5
Drive chain lubrication ...........................6-25
Drive chain slack adjustment.................6-24
Drive chain slack check .........................6-23
E
Engine break-in .......................................5-5
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 98
