95GJ-9-EV 5/26/01 11:04 AM Page 80

SCOOTER CARE AND STORAGE
Care ....................................................................................................7-1
Storage ...............................................................................................7-4
7
5GJ-9-EV 5/26/01 11:04 AM Page 81

7-1
CareWhile the open design of a scooter
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go
unnoticed on a car, however, it
detracts from the overall appearance
of a scooter. Frequent and proper
care does not only comply with the
terms of the warranty, but it will also
keep your scooter looking good,
extend its life and optimize its perfor-
mance.Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and cov-
ers as well as all electrical cou-
plers and connectors, including
the spark plug cap, are tightly
installed.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such
products onto seals, gaskets and
wheel axles. Always rinse the dirt
and degreaser off with water.Cleaning
ECA00011
cC8Avoid using strong acidic
wheel cleaners, especially on
spoked wheels. If such prod-
ucts are used on hard-to-
remove dirt, do not leave the
cleaner on the affected area
any longer than instructed.
Also, thoroughly rinse the area
off with water, immediately dry
it, and then apply a corrosion
protection spray.
8Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use
only a soft, clean cloth or
sponge with mild detergent
and water to clean plastic.
EAU03873
SCOOTER CARE AND STORAGE
1
2
3
4
5
67
8
95GJ-9-EV 5/26/01 11:04 AM Page 82

7-2
SCOOTER CARE AND STORAGE
1
2
3
4
5
67
8

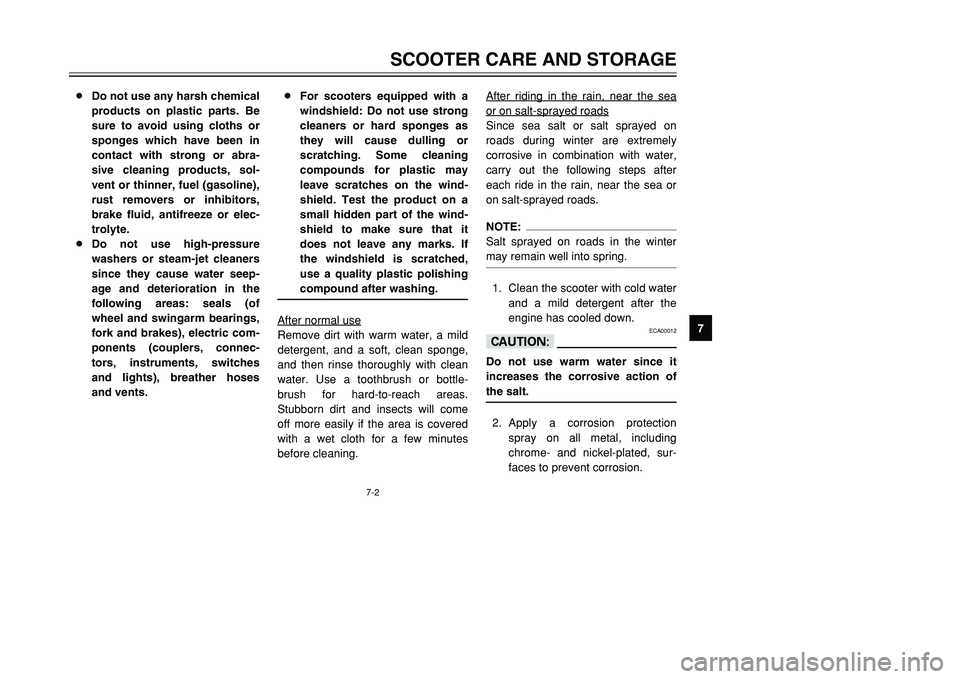

9 8Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abra-
sive cleaning products, sol-
vent or thinner, fuel (gasoline),
rust removers or inhibitors,
brake fluid, antifreeze or elec-
trolyte.
8Do not use high-pressure
washers or steam-jet cleaners
since they cause water seep-
age and deterioration in the
following areas: seals (of
wheel and swingarm bearings,
fork and brakes), electric com-
ponents (couplers, connec-
tors, instruments, switches
and lights), breather hoses
and vents.8For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning
compounds for plastic may
leave scratches on the wind-
shield. Test the product on a
small hidden part of the wind-
shield to make sure that it
does not leave any marks. If
the windshield is scratched,
use a quality plastic polishing
compound after washing.
After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottle-
brush for hard-to-reach areas.
Stubborn dirt and insects will come
off more easily if the area is covered
with a wet cloth for a few minutes
before cleaning.After riding in the rain, near the sea
or on salt-sprayed roadsSince sea salt or salt sprayed on
roads during winter are extremely
corrosive in combination with water,
carry out the following steps after
each ride in the rain, near the sea or
on salt-sprayed roads.NOTE:
Salt sprayed on roads in the winter
may remain well into spring.1. Clean the scooter with cold water
and a mild detergent after the
engine has cooled down.
ECA00012
cCDo not use warm water since it
increases the corrosive action of
the salt.2. Apply a corrosion protection
spray on all metal, including
chrome- and nickel-plated, sur-
faces to prevent corrosion.
5GJ-9-EV 5/26/01 11:04 AM Page 83

7-3
SCOOTER CARE AND STORAGE
1
2
3
4
5
67
8

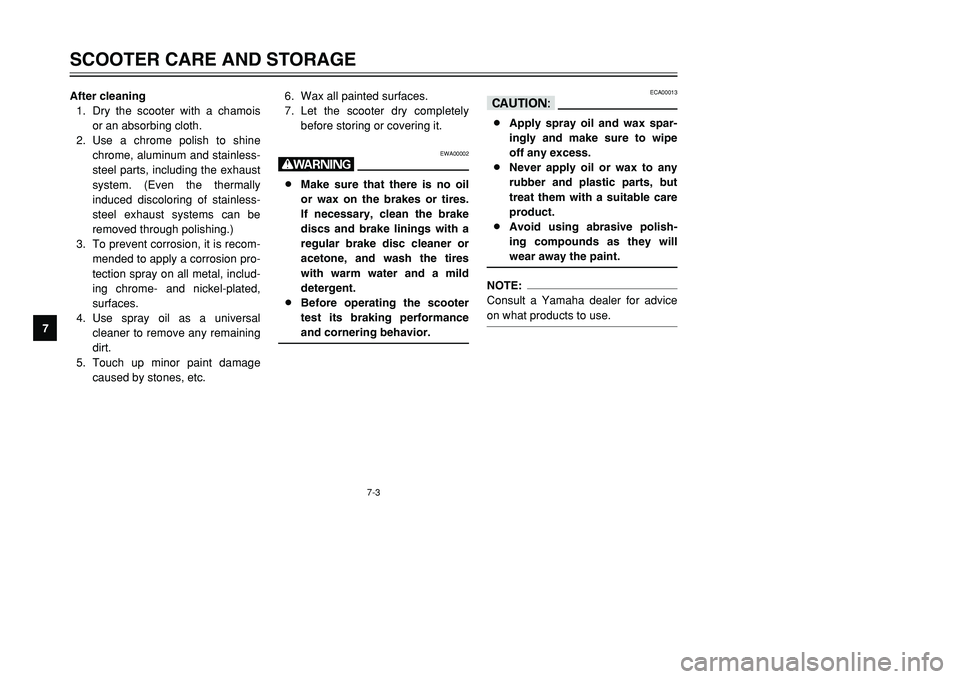

9After cleaning
1. Dry the scooter with a chamois
or an absorbing cloth.
2. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally
induced discoloring of stainless-
steel exhaust systems can be
removed through polishing.)
3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal, includ-
ing chrome- and nickel-plated,
surfaces.
4. Use spray oil as a universal
cleaner to remove any remaining
dirt.
5. Touch up minor paint damage
caused by stones, etc.6. Wax all painted surfaces.
7. Let the scooter dry completely
before storing or covering it.
EWA00002
w8Make sure that there is no oil
or wax on the brakes or tires.
If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or
acetone, and wash the tires
with warm water and a mild
detergent.
8Before operating the scooter
test its braking performance
and cornering behavior.
ECA00013
cC8Apply spray oil and wax spar-
ingly and make sure to wipe
off any excess.
8Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
8Avoid using abrasive polish-
ing compounds as they will
wear away the paint.NOTE:
Consult a Yamaha dealer for advice
on what products to use.
5GJ-9-EV 5/26/01 11:04 AM Page 84

7
SCOOTER CARE AND STORAGE
7-4

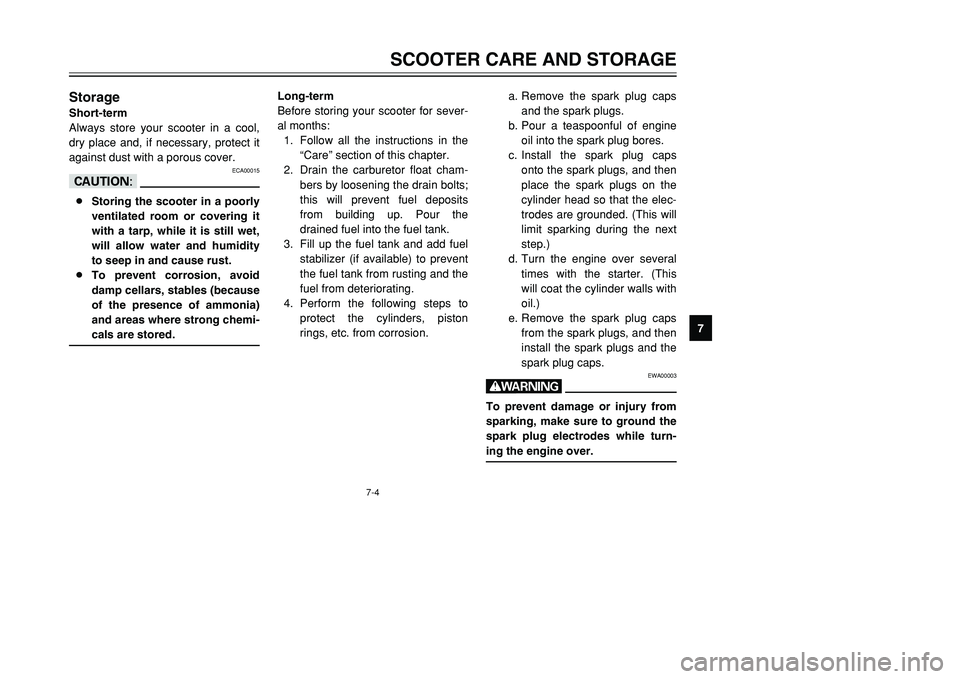

StorageShort-term
Always store your scooter in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00015
cC8Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity
to seep in and cause rust.
8To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your scooter for sever-
al months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-
bers by loosening the drain bolts;
this will prevent fuel deposits
from building up. Pour the
drained fuel into the fuel tank.
3. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
4. Perform the following steps to
protect the cylinders, piston
rings, etc. from corrosion.a. Remove the spark plug caps
and the spark plugs.
b. Pour a teaspoonful of engine
oil into the spark plug bores.
c. Install the spark plug caps
onto the spark plugs, and then
place the spark plugs on the
cylinder head so that the elec-
trodes are grounded. (This will
limit sparking during the next
step.)
d. Turn the engine over several
times with the starter. (This
will coat the cylinder walls with
oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
EWA00003
wTo prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turn-
ing the engine over.
5GJ-9-EV 5/26/01 11:04 AM Page 85

7-5
SCOOTER CARE AND STORAGE
1
2
3
4
5
67
8

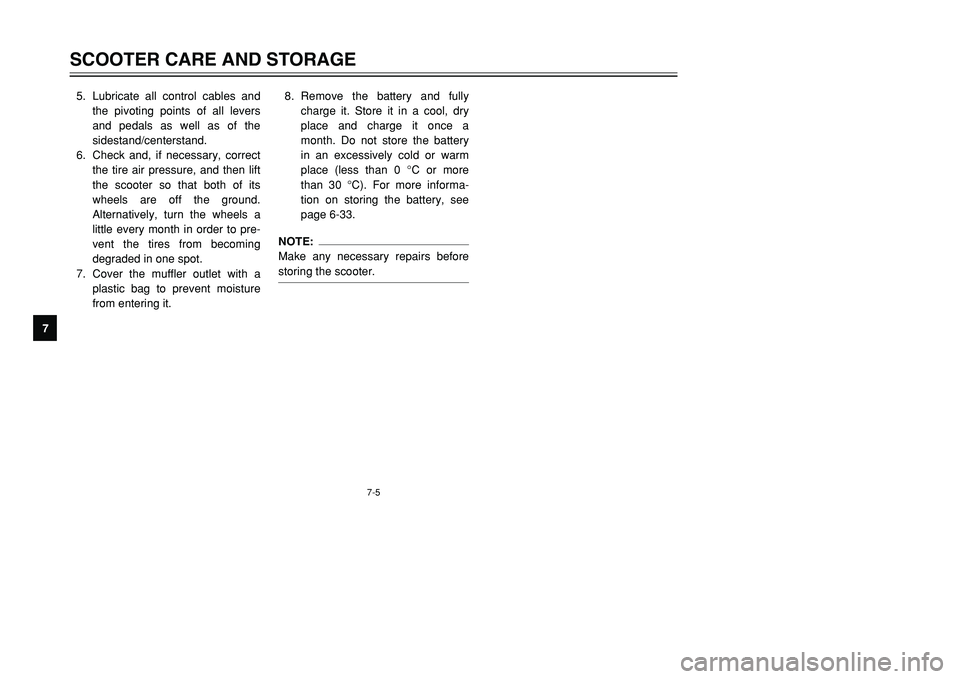

95. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
6. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground.
Alternatively, turn the wheels a
little every month in order to pre-
vent the tires from becoming
degraded in one spot.
7. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.8. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery
in an excessively cold or warm
place (less than 0 °C or more
than 30 °C). For more informa-
tion on storing the battery, see
page 6-33.
NOTE:
Make any necessary repairs before
storing the scooter.
5GJ-9-EV 5/26/01 11:04 AM Page 86

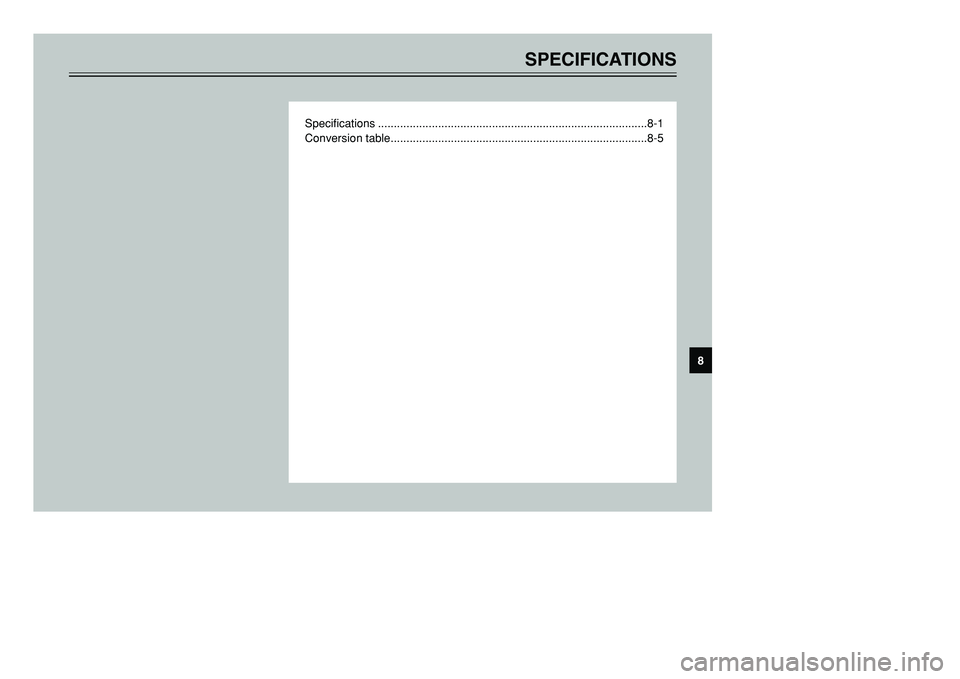

SPECIFICATIONS
Specifications .....................................................................................8-1
Conversion table.................................................................................8-5
8
5GJ-9-EV 5/26/01 11:04 AM Page 87

Specifications
Model XP500
Dimensions
Overall length 2,235 mm
Overall width 775 mm
Overall height 1,410 mm
Seat height 795 mm
Wheelbase 1,575 mm
Ground clearance 130 mm
Minimum turning radius 2,800 mm
Basic weight (with oil and full
fuel tank)217 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward inclined 2–cylinder
Displacement 499 cm
3
Bore ×Stroke 66.0 ×73.0 mm
Compression ratio 10:1
Starting system Electric starter
Lubrication system Dry sump
EAU01038
SPECIFICATIONS
1
2
3
4
5
6
78
9
8-1
Engine oil
Type SAE 10W-30 or 10W-40
Recommended engine oil
classification API Service SE, SF, SG
type or highercCBe sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled “ENERGY
CONSERVING”) contain anti-friction additives which will
cause clutch and/or starter clutch slippage, resulting in
reduced component life and poor engine performance.
Quantity
Without oil filter cartridge
replacement 2.8 L
With oil filter cartridge
replacement 2.9 L
Total amount (dry engine) 3.6 L
Chain drive oil
Type SAE 80API “GL-4” hypoid
gear oil
Total amount 0.7 L
5GJ-9-EV 5/26/01 11:04 AM Page 88

8-2
SPECIFICATIONS
1
2
3
4
5
6
78
9
Radiator capacity
(including all routes)1.5 L
Air filterDry element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 14 L
Carburetor
Manufacturer MIKUNI
Model × quantity BS30 × 2
Spark plug
Manufacturer/model × quantity NGK / CR7E × 2
Spark plug gap 0.7–0.8 mm
Clutch typeWet, multiple-disc automatic
Transmission
Primary reduction system Helical gear/spur gear
Primary reduction ratio 52/32 ×36/22 (2.659)
Secondary reduction system Chain drive
Secondary reduction ratio 41/25 ×40/29 (2.262)
Transmission type V-belt automatic
Operation Centrifugal automatic clutchChassis
Frame type Diamond
Caster angle 28°
Trail 95 mm
Tires
Front
Type Tubeless
Size 120/70-14M/C 55S
Manufacturer/ DUNLOP / D305FA
model BRIDGESTONE / HOOP B03
Rear
Type Tubeless
Size 150/70-14M/C 66S
Manufacturer/ DUNLOP / D305
model BRIDGESTONE / HOOP B02
Maximum load* 183 kg
Air pressure (cold tire)
up to 90 kg load*
Front 200 kPa (2.00 kg/cm
2, 2.00 bar)
Rear 225 kPa (2.25 kg/cm2, 2.25 bar)
90 kg load–maximum
load*
Front 225 kPa (2.25 kg/cm2, 2.25 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
