EAU51921
Cast wheels
To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
After repairing or replacing the
front tire, tighten the valve stem nut
and locknut to the specified
torques.

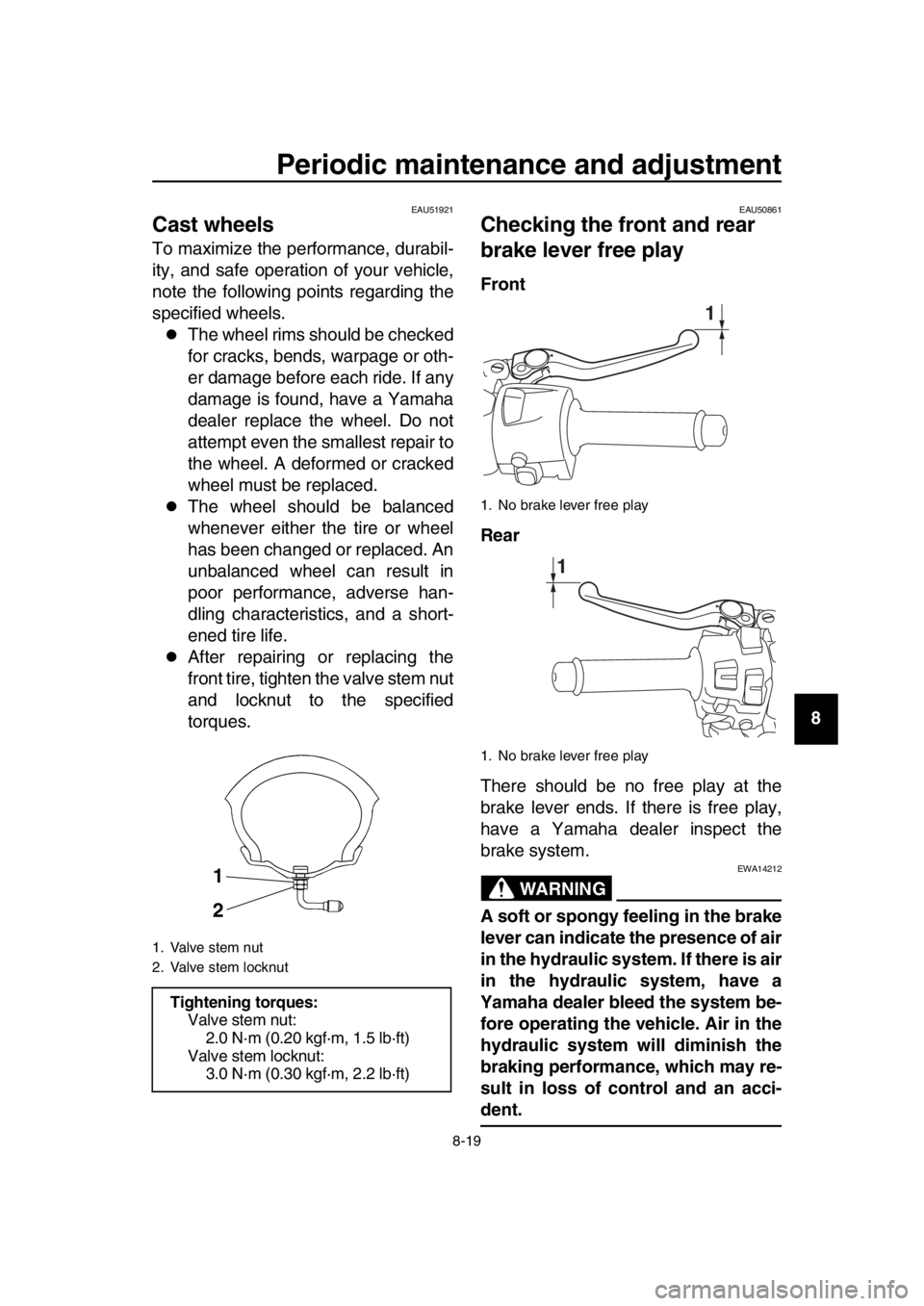

EAU50861
Checking the front and rear
brake lever free play
Front
Rear
There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
sult in loss of control and an acci-
dent.
1. Valve stem nut
2. Valve stem locknut
Tightening torques: Valve stem nut:
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
Valve stem locknut: 3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
1
2
1. No brake lever free play
1. No brake lever free play
1
1
UBV1E1_1.book 19 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-20
1
2
3
4
5
6
7
8
9
10
11
12
13
14

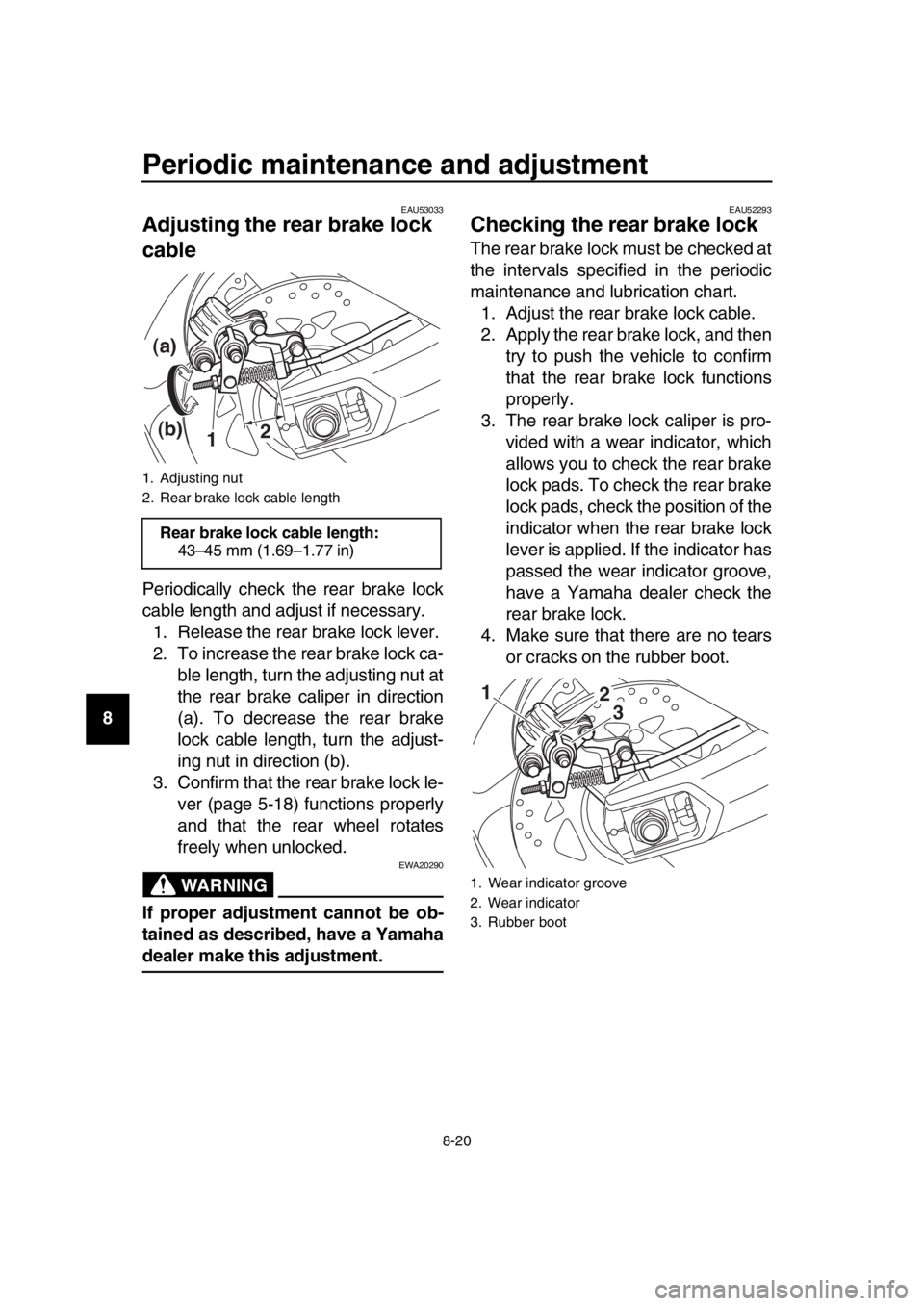

EAU53033
Adjusting the rear brake lock
cable
Periodically check the rear brake lock
cable length and adjust if necessary. 1. Release the rear brake lock lever.
2. To increase the rear brake lock ca- ble length, turn the adjusting nut at
the rear brake caliper in direction
(a). To decrease the rear brake
lock cable length, turn the adjust-
ing nut in direction (b).
3. Confirm that the rear brake lock le- ver (page 5-18) functions properly
and that the rear wheel rotates
freely when unlocked.
WARNING
EWA20290
If proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
EAU52293
Checking the rear brake lock
The rear brake lock must be checked at
the intervals specified in the periodic
maintenance and lubrication chart.1. Adjust the rear brake lock cable.
2. Apply the rear brake lock, and then try to push the vehicle to confirm
that the rear brake lock functions
properly.
3. The rear brake lock caliper is pro- vided with a wear indicator, which
allows you to check the rear brake
lock pads. To check the rear brake
lock pads, check the position of the
indicator when the rear brake lock
lever is applied. If the indicator has
passed the wear indicator groove,
have a Yamaha dealer check the
rear brake lock.
4. Make sure that there are no tears or cracks on the rubber boot.
1. Adjusting nut
2. Rear brake lock cable length
Rear brake lock cable length:43–45 mm (1.69–1.77 in)
12
(a)
(b)
1. Wear indicator groove
2. Wear indicator
3. Rubber boot
2 31
UBV1E1_1.book 20 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-21
1
2
3
4
5
6
7
8
9
10
11
12
13
14

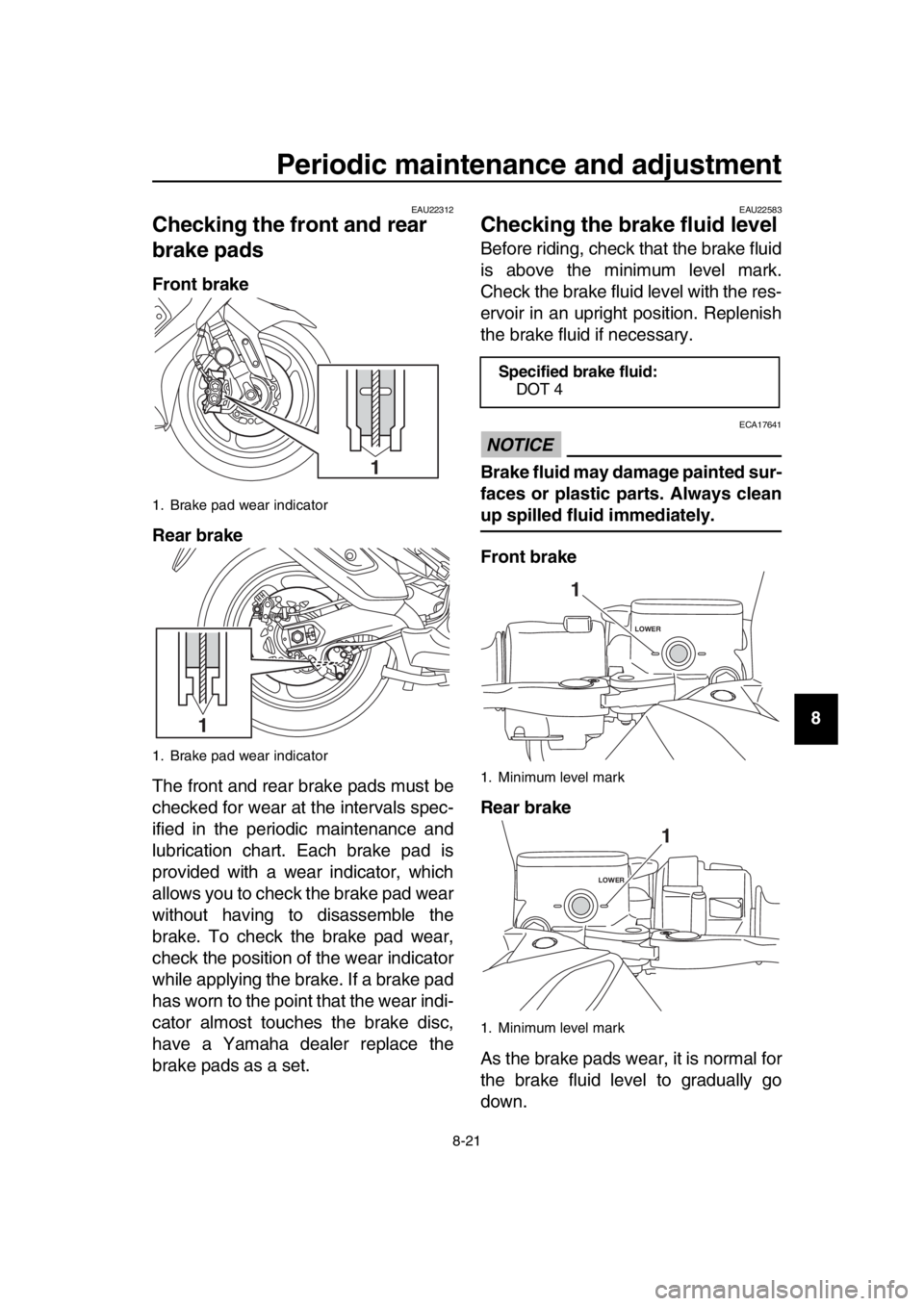

EAU22312
Checking the fr ont and rear
brake pads
Front brake
Rear brake
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. Each brake pad is
provided with a wear indicator, which
allows you to check the brake pad wear
without having to disassemble the
brake. To check the brake pad wear,
check the position of the wear indicator
while applying the brake. If a brake pad
has worn to the point that the wear indi-
cator almost touches the brake disc,
have a Yamaha dealer replace the
brake pads as a set.
EAU22583
Checking the brake fluid level
Before riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the res-
ervoir in an upright position. Replenish
the brake fluid if necessary.
NOTICE
ECA17641
Brake fluid may damage painted sur-
faces or plastic parts. Always clean
up spilled fluid immediately.
Front brake
Rear brake
As the brake pads wear, it is normal for
the brake fluid level to gradually go
down.1. Brake pad wear indicator
1. Brake pad wear indicator
1
1
Specified brake fluid: DOT 4
1. Minimum level mark
1. Minimum level mark
1
LOWER
1
LOWER
UBV1E1_1.book 21 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A low brake fluid level may indicate
worn brake pads or brake system
leakage; therefore, be sure to
check the brake pads for wear and
the brake system for leakage.
If the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause before further rid-
ing.
WARNING
EWA15991
Improper maintenance can result in
loss of braking ability. Observe
these precautions:
Insufficient brake fluid may al-
low air to enter the brake sys-
tem, reducing braking
performance.
Clean the filler cap before re-
moving. Use only DOT 4 brake
fluid from a sealed container.
Use only the specified brake flu-
id; otherwise, the rubber seals
may deteriorate, causing leak-
age.
Refill with the same type of
brake fluid. Adding a brake fluid
other than DOT 4 may result in a
harmful chemical reaction.
Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vapor
lock.
EAU22734
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid every 2 years. In addition,
have the seals of the master cylinders
and brake calipers, as well as the brake
hoses replaced at the intervals listed
below or sooner if they are damaged or
leaking.
Brake seals: every 2 years
Brake hoses: every 4 years
UBV1E1_1.book 22 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU51991
Drive belt slack
The drive belt slack should be checked
and adjusted by a Yamaha dealer at
the intervals specified in the periodic
maintenance and lubrication chart.
EAU23098
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
housing of cables may result in in-
ternal rusting and cause interfer-
ence with cable movement. Replace
damaged cables as soon as possi-
ble to prevent unsafe condi-
tions.
[EWA10712]
Recommended lubricant: Yamaha cable lubricant or other suit-
able cable lubricant
UBV1E1_1.book 23 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU23115
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from water
entry. Therefore, use care not to pour
water directly onto the cover or cable
when washing the vehicle. If the cable
or cover becomes dirty, wipe clean with
a moist cloth.

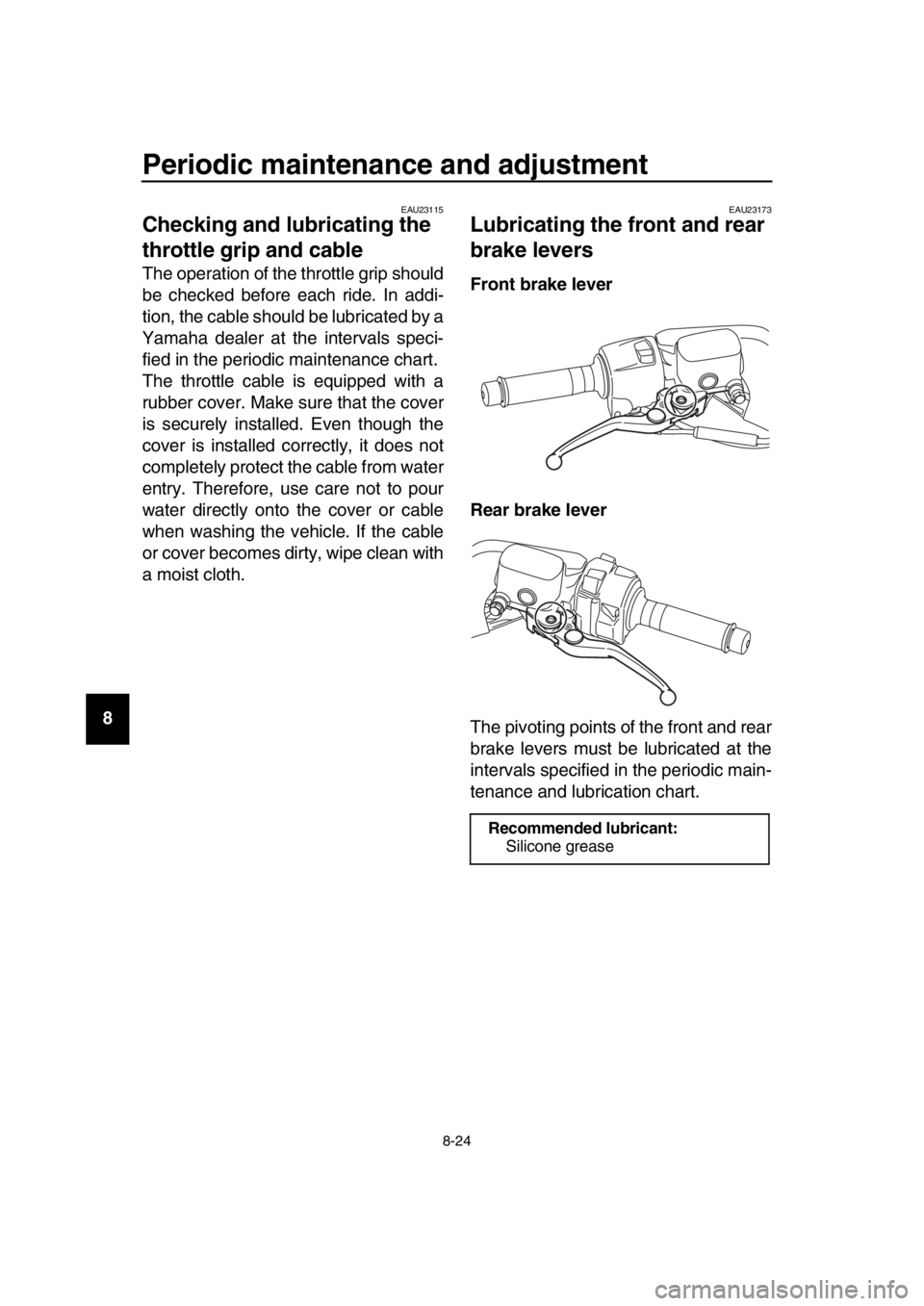

EAU23173
Lubricating the fr ont and rear
brake levers
Front brake lever
Rear brake lever
The pivoting points of the front and rear
brake levers must be lubricated at the
intervals specified in the periodic main-
tenance and lubrication chart.
Recommended lubricant: Silicone grease
UBV1E1_1.book 24 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-25
1
2
3
4
5
6
7
8
9
10
11
12
13
14

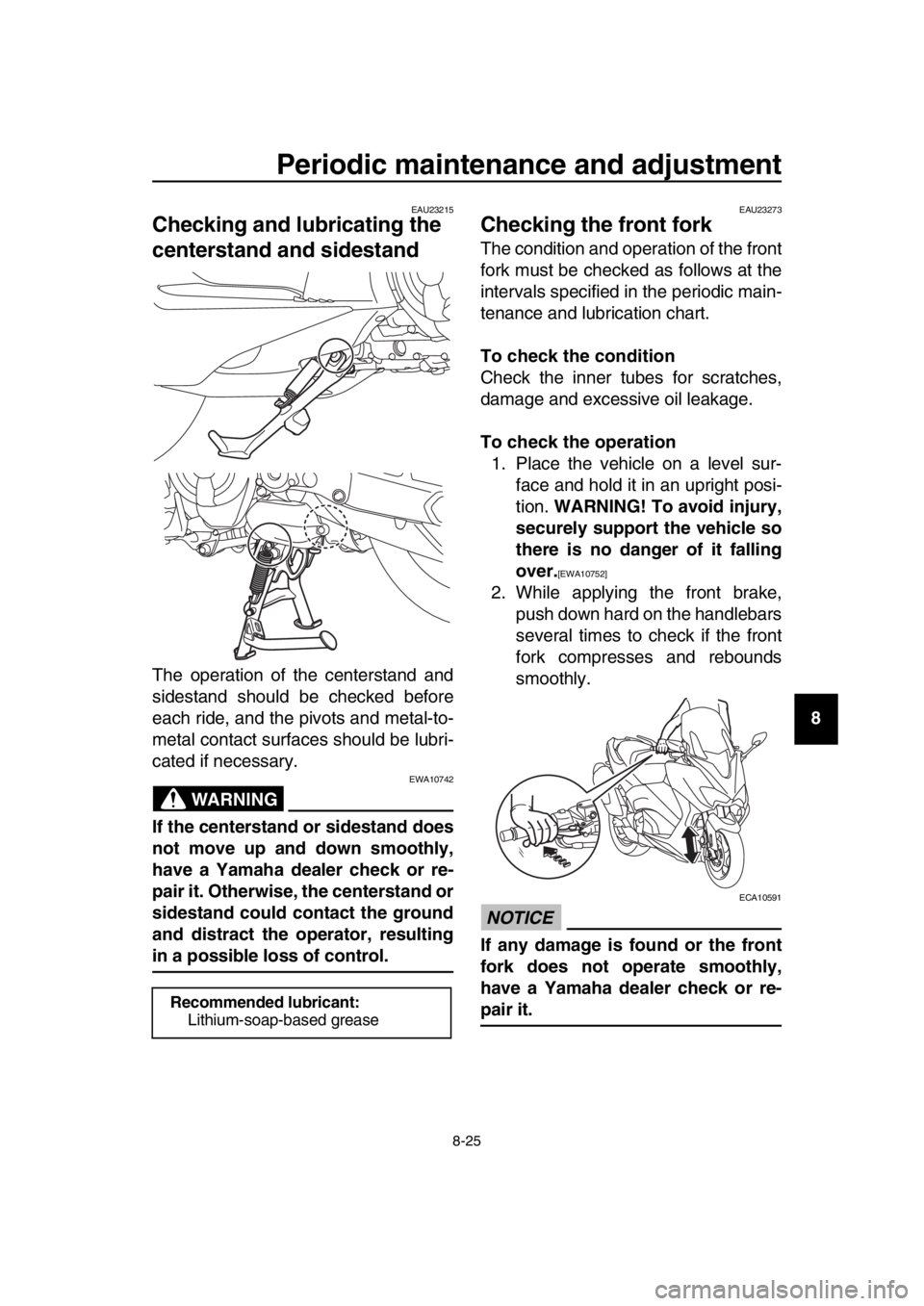

EAU23215
Checking and l ubricating the
centerstand and sidestand
The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-to-
metal contact surfaces should be lubri-
cated if necessary.
WARNING
EWA10742
If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-
pair it. Otherwise, the centerstand or
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
EAU23273
Checking the front fork
The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10752]
2. While applying the front brake, push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
NOTICE
ECA10591
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.Recommended lubricant:Lithium-soap-based grease
UBV1E1_1.book 25 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU45512
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart. 1. Place the vehicle on the center- stand. WARNING! To avoid inju-
ry, securely support the vehicle
so there is no danger of it falling
over.
[EWA10752]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23292
Checking the wheel bearings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
UBV1E1_1.book 26 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-27
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU77780
Battery
The battery is located under panel B.
(See page 8-7.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWA10761
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID. EXTERNAL: Flush with plenty of water.
INTERNAL: Drink large quan- tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15 minutes and seek prompt
medical attention.
Batteries produce explosive hy- drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16522
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery.
To store the battery 1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure turn the vehicle
power off, then disconnect the
negative lead before discon-
necting the positive lead.
[ECA21900]
2. If the battery will be stored for morethan two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in- stallation. NOTICE: When install-

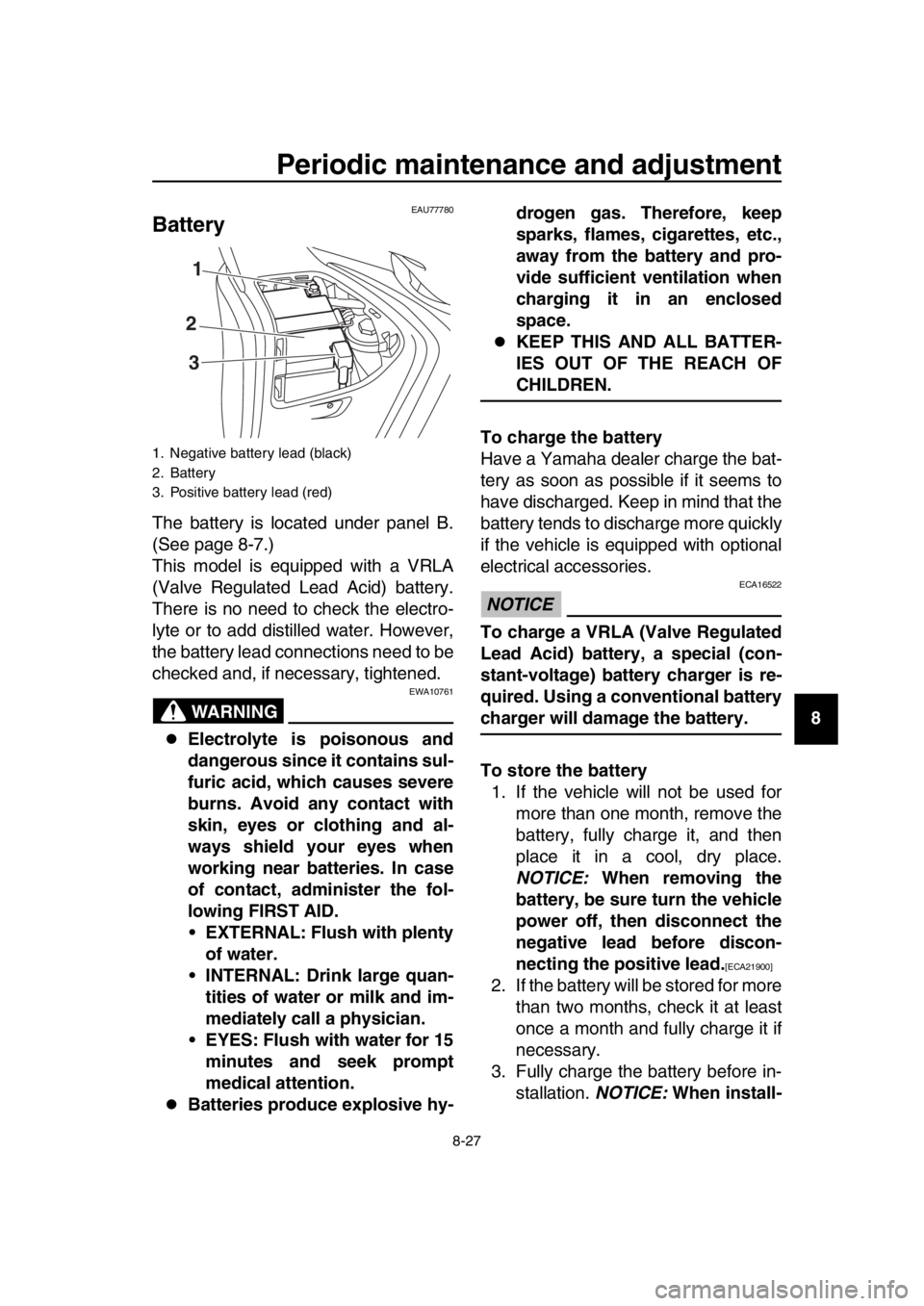

1. Negative battery lead (black)
2. Battery
3. Positive battery lead (red)
1
2 3
UBV1E1_1.book 27 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Periodic maintenance and adjustment
8-28
1
2
3
4
5
6
7
8
9
10
11
12
13
14 ing the battery, connect the
positive lead before connecting
the negative lead.
[ECA21910]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16531
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU77694
Replacing the fuses
The main fuse box and the fuse box,
which contains the fuses for the individ-
ual circuits, are located under panel A.
(See page 8-7.)
If a fuse is blown, replace it as follows.1. Turn the vehicle power off.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
(XP530E-A, XP530-A)
(XP530D-A)

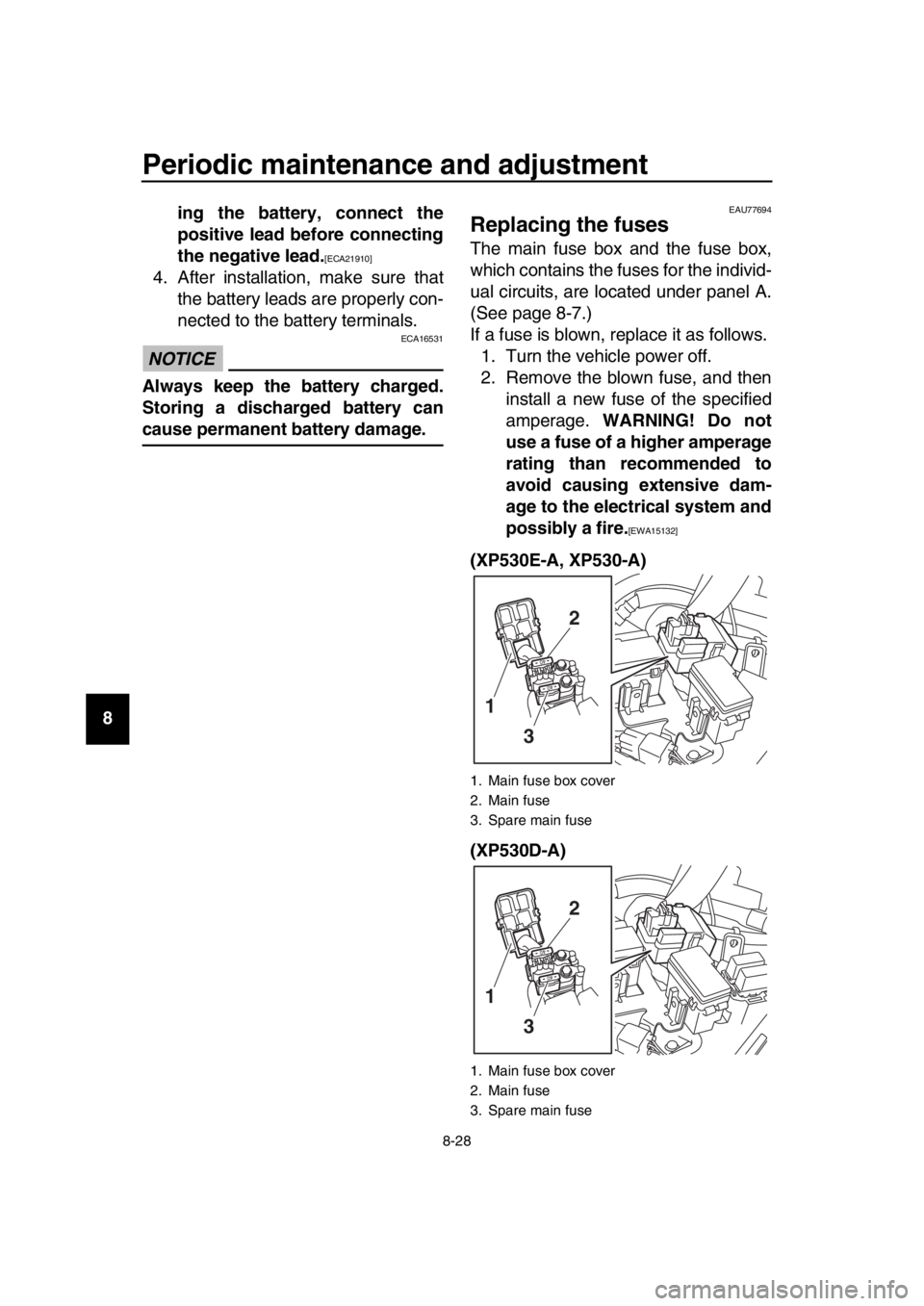

1. Main fuse box cover
2. Main fuse
3. Spare main fuse
1. Main fuse box cover
2. Main fuse
3. Spare main fuse
3
1
2
3
1
2
UBV1E1_1.book 28 ページ ２０１８年４月２７日　金曜日　午後４時４１分
