YAMAHA TMAX 2018 Owners Manual

Scooter care and storage
9-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.
Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse
off any detergent residue using
plenty of water, as it is harmful
to plastic parts.
Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.
Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.
For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com- pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea or
on salt-sprayed roads
Since sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.
TIP
Salt sprayed on roads in the winter may
remain well into spring. 1. Clean the scooter with cold water and a mild detergent after the en-
gine has cooled down. NOTICE:
Do not use warm water since it
increases the corrosive action
of the salt.
[ECA10792]
2. Apply a corrosion protection spray on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
UBV1E1_1.book 2 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Scooter care and storage
9-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14 Cleaning the windshield
Avoid using any alkaline or strong acid
cleaner, gasoline, brake fluid, or any
other solvent. Clean the windshield with
a cloth or sponge dampened with a mild
detergent, and then wash it off thor-
oughly with water. For additional clean-
ing, use Yamaha Windshield Cleaner
or another high-quality windshield
cleaner. Some cleaning compounds for
plastics may leave scratches on the
windshield. Before using such clean-
ers, test an area of the windshield
which does not affect your visibility and
which cannot be easily recognized.
After cleaning
1. Dry the scooter with a chamois or an absorbing cloth.
2. Use a chrome polish to shine chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
3. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean- er to remove any remaining dirt.
5. Touch up minor paint damage caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely be- fore storing or covering it.
WARNING
EWA10943
Contaminants on the brakes or tires
can cause loss of control.
Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent.
Before operating the scooter
test its braking performance
and cornering behavior.
NOTICE
ECA10801
Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP
Consult a Yamaha dealer for ad-
vice on what products to use.
Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
UBV1E1_1.book 3 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Scooter care and storage
9-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU36554
Storage
Short-term
Always store your scooter in a cool, dry
place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the scoot-
er.
NOTICE
ECA10821
Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your scooter for several
months: 1. Follow all the instructions in the “Care” section of this chapter.
2. Fill up the fuel tank and add fuel stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro- tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps and the spark plugs.
b. Pour a teaspoonful of engine oil into the spark plug bores.
c. Install the spark plug caps onto the spark plugs, and then place
the spark plugs on the cylinder head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps from the spark plugs, and then
install the spark plugs and the
spark plug caps. WARNING!
To prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10952]
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the sides-
tand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0  C (30 F) or more than 30
 C (90 F)]. For more information
on storing the battery, see page
8-27.
TIP
Make any necessary repairs before
storing the scooter.
UBV1E1_1.book 4 ページ ２０１８年４月２７日　金曜日　午後４時４１分

10-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Specifications
EAU6999CDimensions:
Overall length:2200 mm (86.6 in)
Overall width: 765 mm (30.1 in)
Overall height:
1420/1475 mm (55.9/58.1 in) (XP530-A,
XP530E-A)
1420/1555 mm (55.9/61.2 in) (XP530D-A)
Seat height: 800 mm (31.5 in)
Wheelbase:
1575 mm (62.0 in)
Ground clearance: 125 mm (4.92 in)
Minimum turning radius: 2.8 m (9.19 ft)
Weight:
Curb weight:213 kg (470 lb) (XP530-A, XP530E-A)
216 kg (476 lb) (XP530D-A)
Engine:
Combustion cycle:
4-stroke
Cooling system:
Liquid cooled
Valve train: DOHC
Cylinder arrangement: Inline
Number of cylinders:
2-cylinder
Displacement: 530 cm
3
Bore  stroke:
68.0  73.0 mm (2.68  2.87 in)
Compression ratio:
10.9 : 1
Starting system: Electric starter
Lubrication system: Dry sump
Engine oil:
Recommended brand:YAMALUBE
SAE viscosity grades:
10W-40
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA Engine oil quantity:
Oil change:2.60 L (2.75 US qt, 2.29 Imp.qt)
With oil filter removal:
2.90 L (3.07 US qt, 2.55 Imp.qt)
Coolant quantity:
Coolant reservoir (up to the maximum level
mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.67 L (1.77 US qt, 1.47 Imp.qt)
Air filter:
Air filter element:Oil-coated paper element
Fuel:
Recommended fuel:
Premium unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity:
15 L (4.0 US gal, 3.3 Imp.gal)
Fuel reserve amount: 3.0 L (0.79 US gal, 0.66 Imp.gal)
Fuel injection:
Throttle body:
ID mark:BC31 00
Spark plug(s):
Manufacturer/model: NGK/CR7E
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:Wet, centrifugal, multiple-disc
Drivetrain:
Primary reduction ratio:
1.000
Final drive: Belt
Secondary reduction ratio: 6.034 (52/32 x 36/22 x 59/26)
Transmission type: V-belt automatic
Chassis:
Frame type:
Diamond
Caster angle: 26.0 
Trail: 98 mm (3.9 in)
UBV1E1_1.book 1 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Specifications
10-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Front tire:
Type:Tubeless
Size: 120/70R15M/C(56H)
Manufacturer/model:
BRIDGESTONE/BATTLAXSCF (XP530-A,
XP530E-A)
DUNLOP/ROADSMART3 (XP530D-A)
Rear tire:
Type:Tubeless
Size: 160/60R15M/C(67H)
Manufacturer/model: BRIDGESTONE/BATTLAXSCR (XP530-
A, XP530E-A)
DUNLOP/ROADSMART3 (XP530D-A)
Loading:
Maximum load:199 kg (439 lb) (XP530D-A)
202 kg (445 lb) (XP530-A, XP530E-A)
* (Total weight of rider, passenger, cargo and accessories)
Tire air pressure (measured on cold
tires):
1 person:Front:225 kPa (2.25 kgf/cm
2, 33 psi)
Rear: 250 kPa (2.50 kgf/cm
2, 36 psi)
2 persons:
Front:225 kPa (2.25 kgf/cm
2, 33 psi)
Rear:
280 kPa (2.80 kgf/cm
2, 41 psi)
Front wheel:
Wheel type: Cast wheel
Rim size: 15M/C x MT3.5
Rear wheel:
Wheel type:
Cast wheel
Rim size: 15M/C x MT4.5
Front brake:
Type:
Hydraulic dual disc brake Specified brake fluid:
DOT 4
Rear brake:
Type:Hydraulic single disc brake
Specified brake fluid:
DOT 4
Front suspension:
Type:Telescopic fork
Spring:
Coil spring
Shock absorber: Hydraulic damper
Wheel travel: 120 mm (4.7 in)
Rear suspension:
Type:Swingarm (link suspension)
Spring: Coil spring
Shock absorber:
Gas-hydraulic damper
Wheel travel: 117 mm (4.6 in)
Electrical system:
System voltage:
12 V
Ignition system: TCI
Charging system: AC magneto
Battery:
Model:YTZ12S
Voltage, capacity: 12 V, 11.0 Ah (10 HR)
Bulb wattage:
Headlight:LED
Brake/tail light:
LED
Front turn signal light: 21.0 W
Rear turn signal light: LED
Auxiliary light:
LED
License plate light: 5.0 W
UBV1E1_1.book 2 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Specifications
10-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Meter lighting:LED
High beam indicator light: LED
Turn signal indicator light: LED
Engine trouble warning light:
LED
ABS warning light: LED
Cruise control “SET” indicator light: LED (XP530D-A)
Cruise control “ON” indicator light:
LED (XP530D-A)
Smart key system indicator light: LED
Traction control system indicator light: LED
Fuse(s):
Main fuse:40.0 A
Seat lock fuse: 7.5 A (XP530-A, XP530E-A)
Headlight fuse:
7.5 A
Taillight fuse: 7.5 A
Brake light fuse: 1.0 A (XP530D-A)
Signaling system fuse:
7.5 A
Ignition fuse: 7.5 A
Radiator fan motor fuse: 15.0 A
Fuel injection system fuse:
7.5 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse: 15.0 A
Cruise control fuse: 1.0 A (XP530D-A)
Auxiliary DC jack fuse:
2.0 A
Backup fuse: 15.0 A
Windshield motor fuse: 20.0 A (XP530D-A) Electronic throttle valve fuse:
7.5 A
UBV1E1_1.book 3 ページ ２０１８年４月２７日　金曜日　午後４時４１分

11-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14

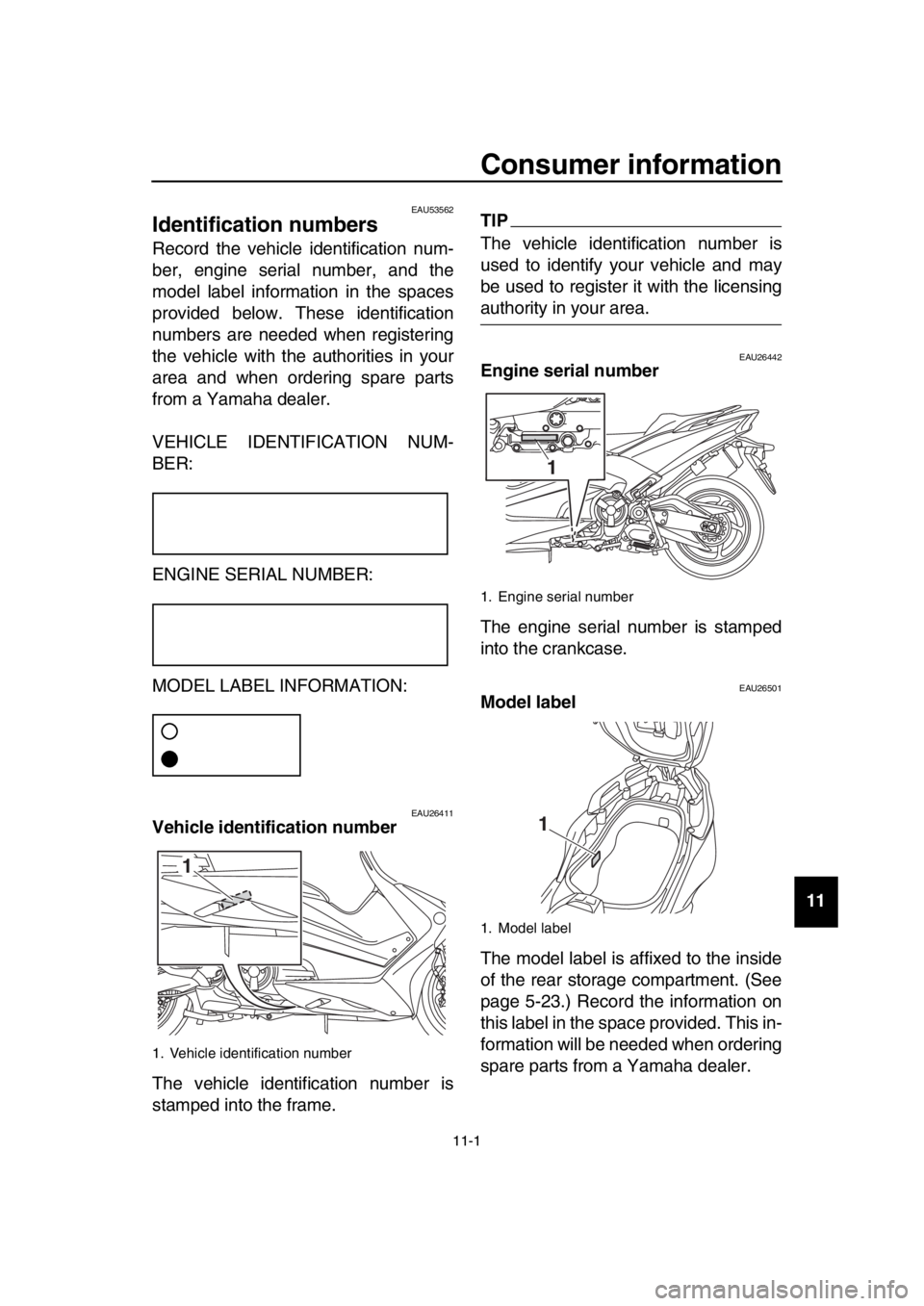

Consumer information
EAU53562
Identification numbers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUM-
BER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26411Vehicle identification number
The vehicle identification number is
stamped into the frame.
TIP
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
EAU26442Engine serial number
The engine serial number is stamped
into the crankcase.
EAU26501Model label
The model label is affixed to the inside
of the rear storage compartment. (See
page 5-23.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
UBV1E1_1.book 1 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Consumer information
11-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU69910
Diagnostic connector
The diagnostic connector is located as
shown.
EAU74702
Vehicle data recording
This model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research and de-
velopment purposes. This data will be
uploaded only when a special Yamaha
diagnostic tool is attached to the vehi-
cle, such as when maintenance checks
or service procedures are performed.
Although the sensors and recorded
data will vary by model, the main data
points are:
Vehicle status and engine perfor-
mance data
Fuel-injection and emission-relat-
ed data
Yamaha will not disclose this data to a
third party except:
With the consent of the vehicle
owner
Where obligated by law
For use by Yamaha in litigation
For general Yamaha-conducted
research purposes when the data
is not related to an individual vehi-
cle nor owner
1. Diagnostic connector
1
UBV1E1_1.book 2 ページ ２０１８年４月２７日　金曜日　午後４時４１分

12-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Index
A
Acceleration and deceleration .................7-3
Air filter element, engine........................8-14
Anti-lock brake system (ABS)................5-19
Anti-lock brake system warning light .......5-3
Auxiliary DC jack ...................................5-28
B
Battery ...................................................8-27
Brake fluid, changing .............................8-22
Brake fluid level, checking .....................8-21
Brake lever, front ...................................5-17
Brake lever, rear ....................................5-18
Brake levers, lubricating ........................8-24
Braking ....................................................7-4
C
Cables, checking and lubricating...........8-23
Canister .................................................8-10
Care.........................................................9-1
Catalytic converter.................................5-23
Centerstand and sidestand, checking and lubricating.....................................8-25
Coolant ..................................................8-13
Cruise control indicator lights ..................5-2
Cruise control switches ...........................5-2
Cruise control system (XP530D-A) .........4-1
D
Data recording, vehicle..........................11-2
Diagnostic connector .............................11-2
Dimmer/Pass switch ................................5-1
D-mode (drive mode) (XP530-A,
XP530D-A) ............................................4-3
Drive belt slack ......................................8-23
Drive mode switch ...................................5-2
E
Emergency mode ..................................8-36
Engine break-in .......................................7-5
Engine idling speed, checking ...............8-15
Engine oil and oil filter cartridge ............8-10
Engine serial number ............................11-1
Engine stop switch ..................................5-1
Engine trouble warning light ....................5-2
F
Front and rear brake lever free play, checking ..............................................8-19
Front and rear brake pads, checking.....8-21
Front fork, checking ...............................8-25
Fuel .......................................................5-21
Fuel consumption, tips for reducing ........7-5
Fuel tank cap .........................................5-20
Fuel tank overflow hose ........................5-22 Fuses, replacing.................................... 8-28
H
Handlebar switches................................. 5-1
Hazard switch ......................................... 5-1
High beam indicator light ........................ 5-2
Horn switch ............................................. 5-1
How to lock the centerstand.................. 3-10
How to lock the steering........................ 3-10
I
Identification numbers ........................... 11-1
Ignition circuit cut-off system................. 5-30
Indicator lights and warning lights ........... 5-2
K
Key, handling of smart and mechanical
key ........................................................ 3-3
L
License plate light bulb, replacing ......... 8-32
M
Maintenance and lubrication, periodic .... 8-4
Maintenance, emission control system ... 8-3
Matte color, caution................................. 9-1
Menu switch ............................................ 5-2
Model label............................................ 11-1
Multi-function display .............................. 5-5
O
ON/Start switch ....................................... 5-1
Operating range of the smart key system .................................................. 3-2
P
Panels, removing and installing .............. 8-7
Parking .................................................... 7-6
Parking mode ........................................ 3-13
Part locations .......................................... 2-1
Powering off the vehicle .......................... 3-9
Powering on the vehicle .......................... 3-8
R
Rear brake lock cable, adjusting ........... 8-20
Rear brake lock, checking..................... 8-20
Rear brake lock lever ............................ 5-18
Rear view mirrors .................................. 5-26
S
Safe-riding points .................................... 1-5
Safety information ................................... 1-1
Select switch ........................................... 5-2
Shock absorber assembly..................... 5-27
Sidestand .............................................. 5-29
Smart key ................................................ 3-5
Smart key battery, replacing ................... 3-6
Smart key system ................................... 3-1
Smart key system indicator light ............. 5-3
UBV1E1_1.book 1 ページ ２０１８年４月２７日　金曜日　午後４時４１分

Index
12-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Smart key system, troubleshooting ....... 8-33
Spark plugs, checking ............................. 8-9
Special features ...................................... 4-1
Specifications ........................................ 10-1
Speedometer .......................................... 5-4
Starting off............................................... 7-3
Starting the engine .................................. 7-2
Steering, checking ................................ 8-26
Storage ................................................... 9-4
Storage compartment and fuel tank access ................................................ 3-11
Storage compartments.......................... 5-23
T
Tachometer ............................................. 5-5
Throttle grip and cable, checking and lubricating ........................................... 8-24
Throttle grip free play, checking ............ 8-16
Tires ...................................................... 8-17
Tool kit .................................................... 8-2
Traction control system ........................... 4-4
Traction control system indicator light..... 5-3
Troubleshooting .................................... 8-33
Troubleshooting charts ......................... 8-34
Turn signal indicator lights ...................... 5-2
Turn signal light bulb (front), replacing ............................................. 8-31
Turn signal switch ................................... 5-1
V
Valve clearance .................................... 8-16
Vehicle identification number ................ 11-1
Vehicle lights ......................................... 8-31
W
Wheel bearings, checking ..................... 8-26
Wheels .................................................. 8-19
Windshield (XP530E-A, XP530-A) ........ 5-25
UBV1E1_1.book 2 ページ ２０１８年４月２７日　金曜日　午後４時４１分
