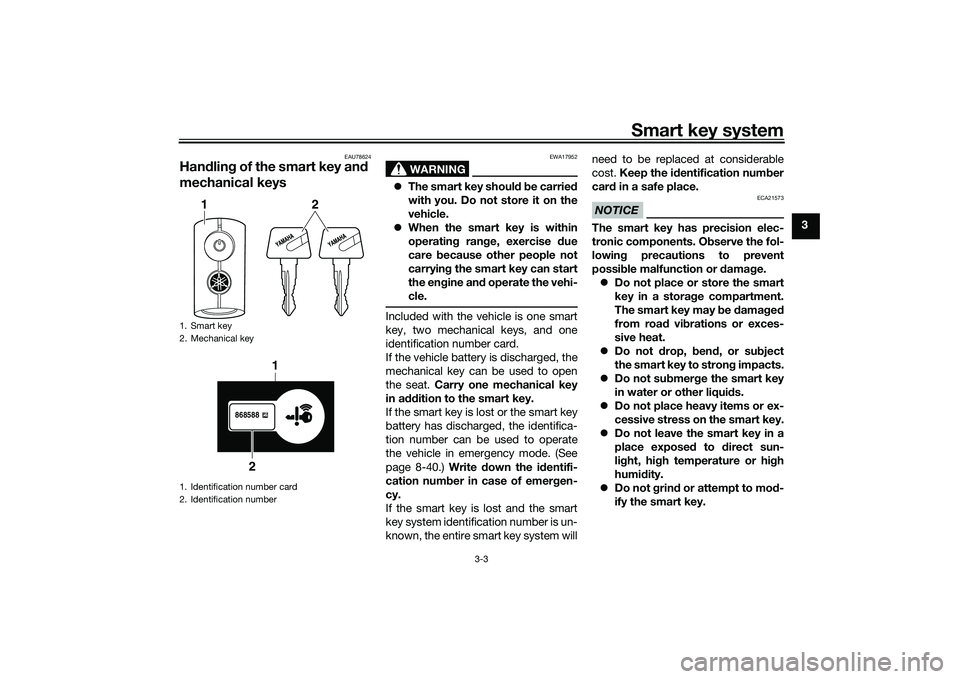

Page 21 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-3
3
EAU78624
Handlin g of the smart key an d
mechanical keys
WARNING
EWA17952
 The smart key shoul d b e carried
with you. Do not store it on the
vehicle.
 When the smart key

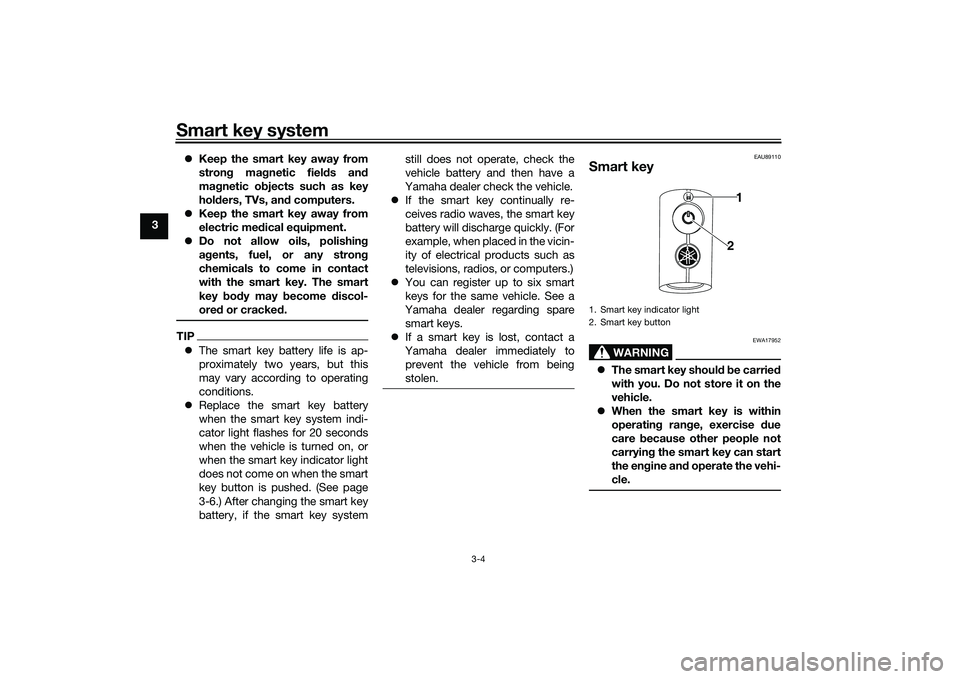

Page 22 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-4
3
Keep the smart key away from
stron g ma gnetic fiel ds an d
ma gnetic o bjects such as key
hol ders, TVs, an d computers.
 Keep the smart key away from
electric me dical e

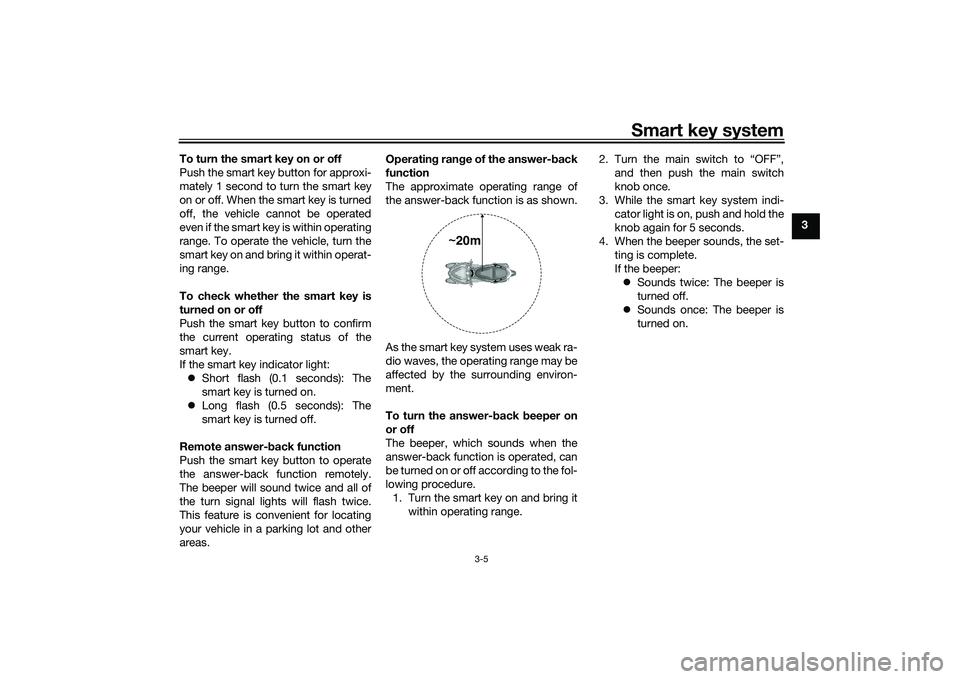

Page 23 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-5
3
To turn the smart key on or off
Push the smart key button for approxi-
mately 1 second to turn the smart key
on or off. When the smart key is turned
off, the vehicle cannot be o

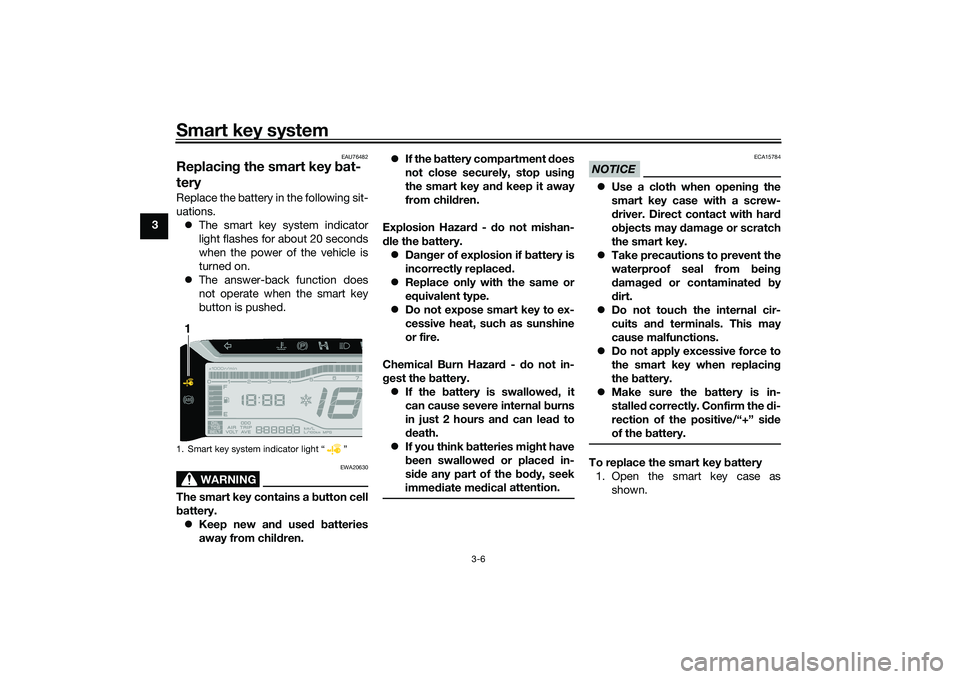

Page 24 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-6
3
EAU76482
Replacing the smart key  bat-
teryReplace the battery in the following sit-
uations.
 The smart key system indicator
light flashes for about 20 seconds
when the powe

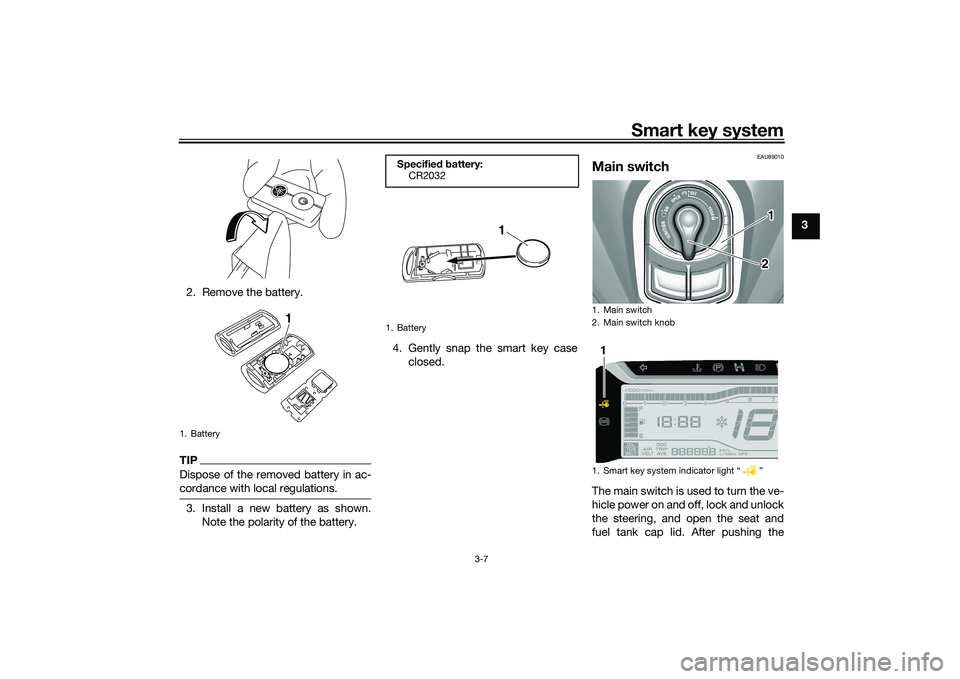

Page 25 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-7
3
2. Remove the battery.
TIPDispose of the removed battery in ac-
cordance with local regulations.3. Install a new battery as shown. Note the polarity of the battery. 4. Gently sn

Page 26 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-8

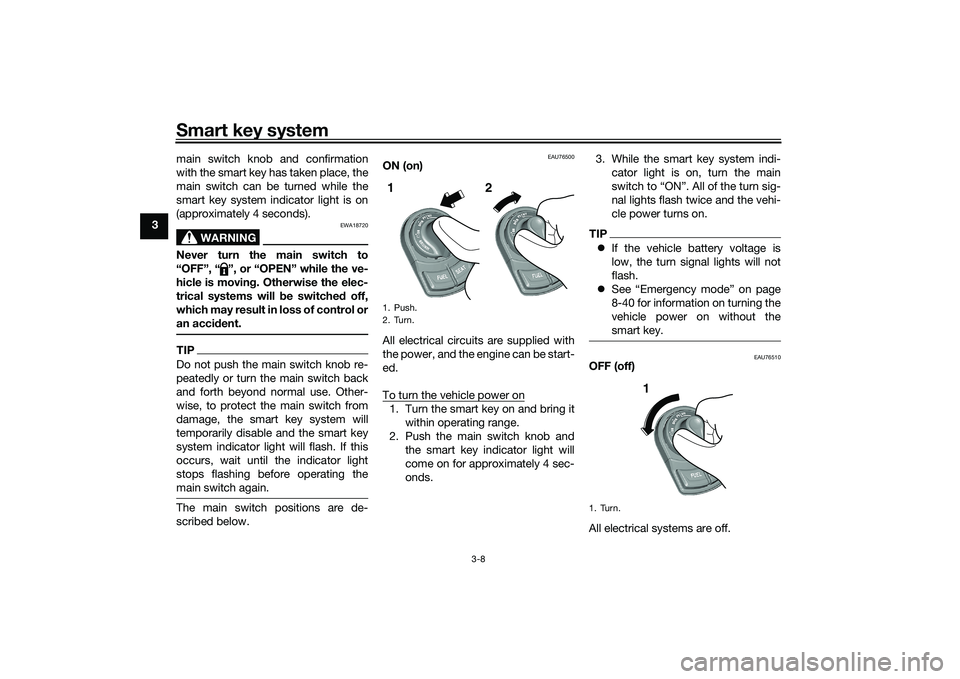

3main switch knob and confirmation
with the smart key has taken place, the
main switch can be turned while the
smart key system indicator light is on
(approximately 4 seconds).
WA

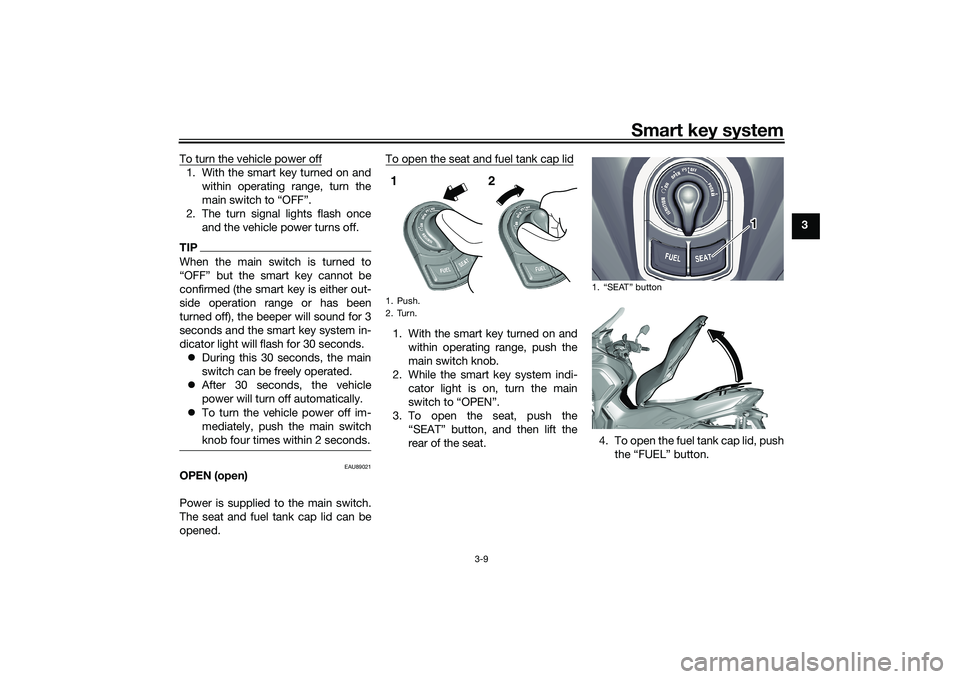

Page 27 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-9
3
To turn the vehicle power off
1. With the smart key turned on and
within operating range, turn the
main switch to “OFF”.
2. The turn signal lights flash once and the vehicle

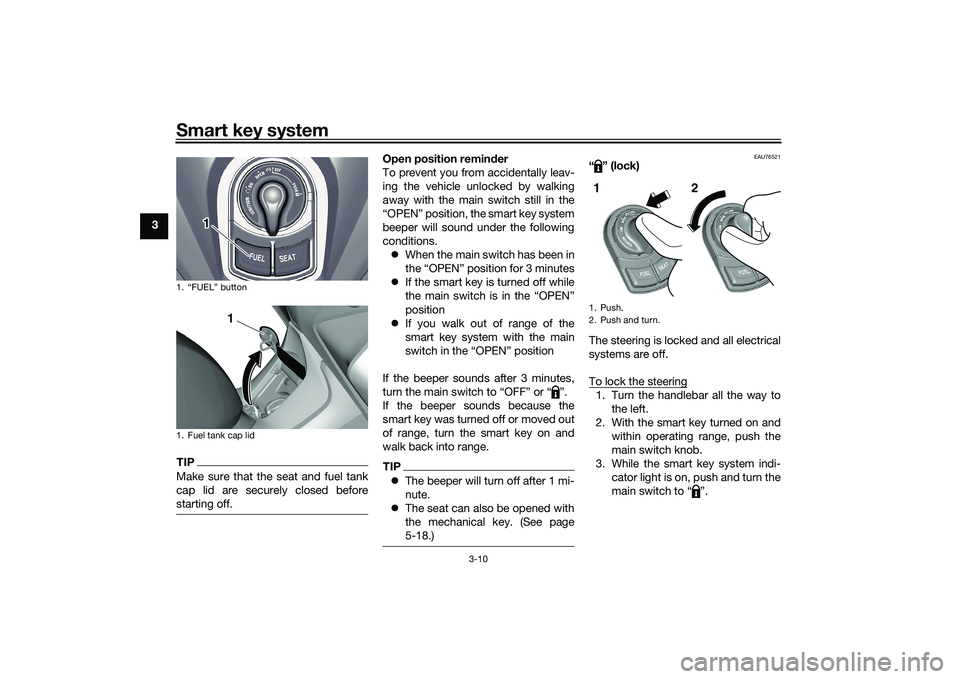

Page 28 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-10
3
TIPMake sure that the seat and fuel tank
cap lid are securely closed before
starting off.
Open position reminder
To prevent you from accidentally leav-
ing the vehicle unlocked

Page 29 of 114

YAMAHA TRICITY 300 2020 Owners Manual Smart key system
3-11
3

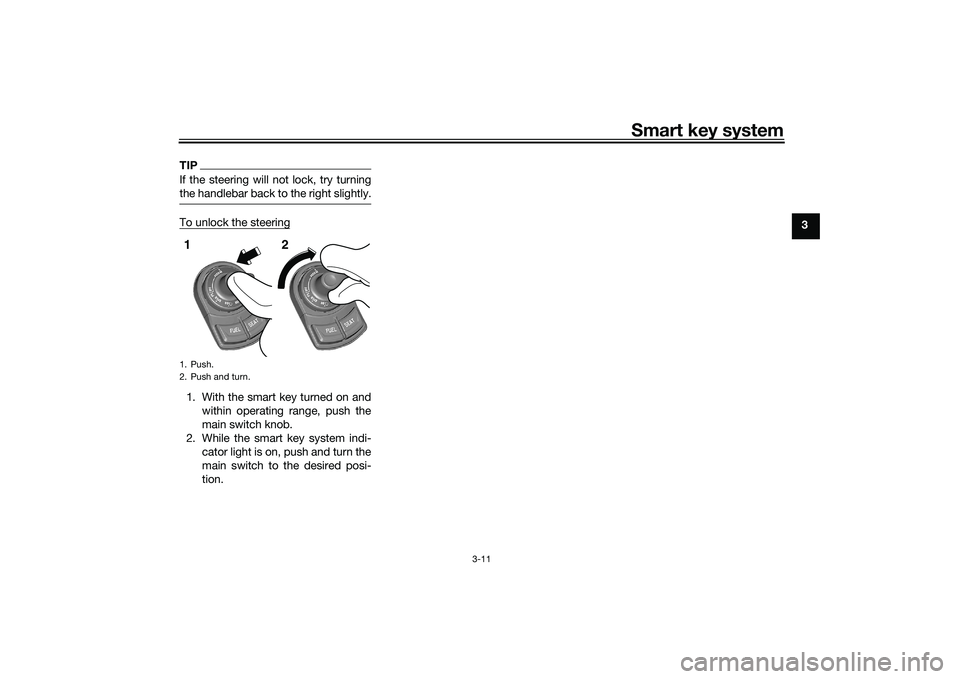

TIPIf the steering will not lock, try turning
the handlebar back to the right slightly.To unlock the steering1. With the smart key turned on andwithin operating range, push the

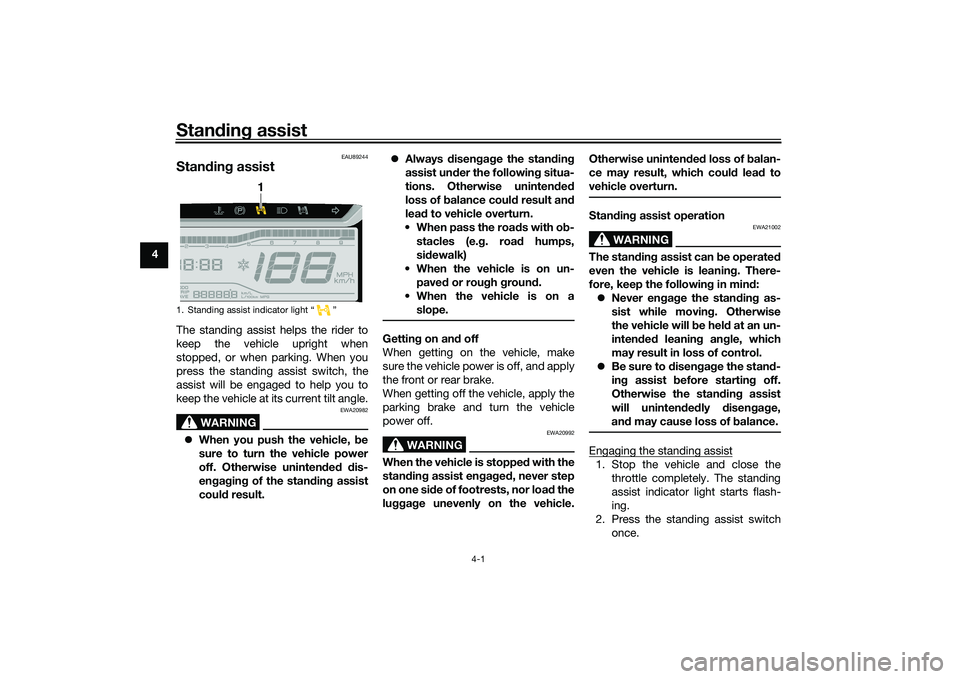

Page 30 of 114

YAMAHA TRICITY 300 2020 Owners Manual Standin g assist
4-1
4
EAU89244
Stan din g assistThe standing assist helps the rider to
keep the vehicle upright when
stopped, or when parking. When you
press the standing assist switch, the
assist wi
