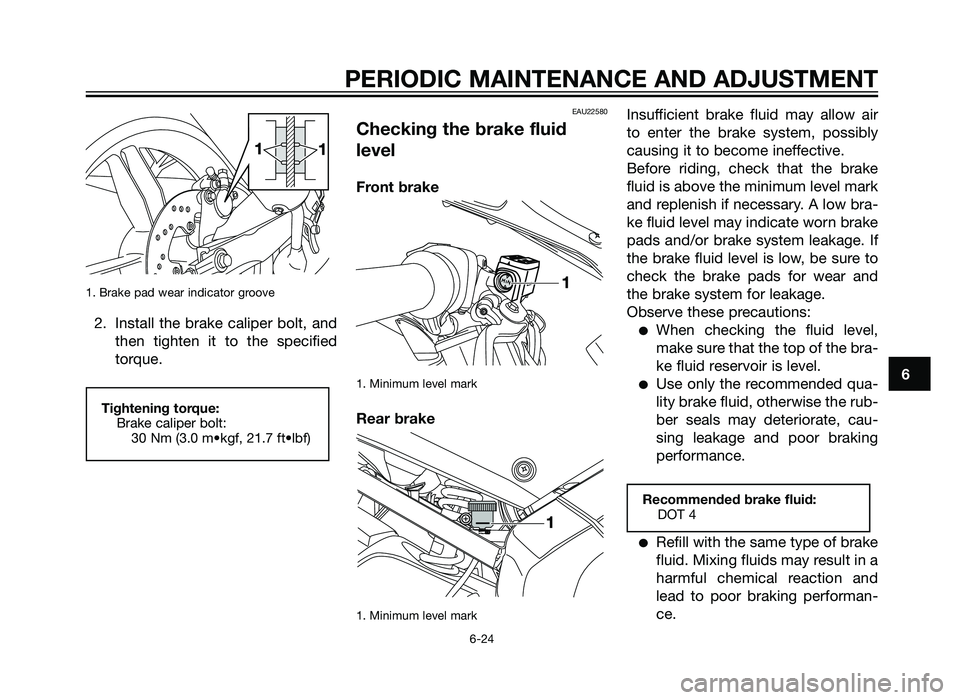

1. Brake pad wear indicator groove
2. Install the brake caliper bolt, andthen tighten it to the specified
torque.
EAU22580
Checking the brake fluid
level
Front brake
1. Minimum level mark
Rear brake
1. Minimum level mark
Insufficient brake fluid may allow air
to enter the brake system, possibly
causing it to become ineffective.
Before riding, check that the brake
fluid is above the minimum level mark
and replenish if necessary. A low bra-
ke fluid level may indicate worn brake
pads and/or brake system leakage. If
the brake fluid level is low, be sure to
check the brake pads for wear and
the brake system for leakage.
Observe these precautions:
When checking the fluid level,
make sure that the top of the bra-
ke fluid reservoir is level.
Use only the recommended qua-
lity brake fluid, otherwise the rub-
ber seals may deteriorate, cau-
sing leakage and poor braking
performance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performan-
ce.
Recommended brake fluid:DOT 4
Tightening torque:Brake caliper bolt: 30 Nm (3.0 m•kgf, 21.7 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6
1HD-F819D-E0 7/3/11 20:27 Página 61
2AS-F819D-E0.indd 6131/07/12 10:09

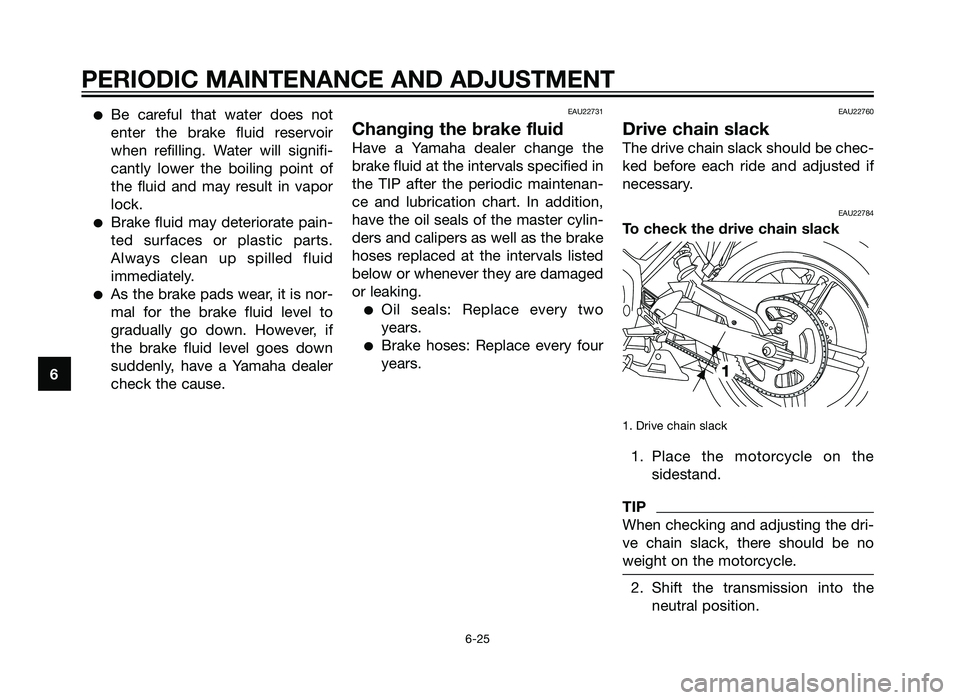

Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vapor
lock.
Brake fluid may deteriorate pain-
ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
EAU22731
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenan-
ce and lubrication chart. In addition,
have the oil seals of the master cylin-
ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake hoses: Replace every four
years.
EAU22760
Drive chain slack
The drive chain slack should be chec-
ked before each ride and adjusted if
necessary.
EAU22784
To check the drive chain slack
1. Drive chain slack
1. Place the motorcycle on thesidestand.
TIP
When checking and adjusting the dri-
ve chain slack, there should be no
weight on the motorcycle.
2. Shift the transmission into theneutral position.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
1HD-F819D-E0 7/3/11 20:27 Página 62
2AS-F819D-E0.indd 6231/07/12 10:09

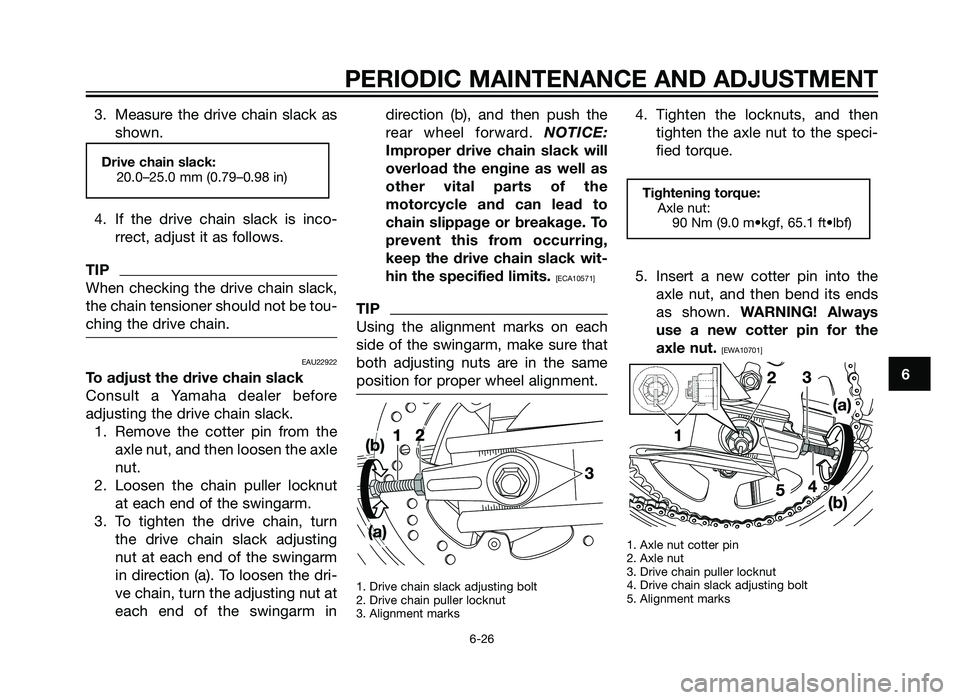

3. Measure the drive chain slack asshown.
4. If the drive chain slack is inco- rrect, adjust it as follows.
TIP
When checking the drive chain slack,
the chain tensioner should not be tou-
ching the drive chain.
EAU22922
To adjust the drive chain slack
Consult a Yamaha dealer before
adjusting the drive chain slack.1. Remove the cotter pin from the axle nut, and then loosen the axle
nut.
2. Loosen the chain puller locknut at each end of the swingarm.
3. To tighten the drive chain, turn the drive chain slack adjusting
nut at each end of the swingarm
in direction (a). To loosen the dri-
ve chain, turn the adjusting nut at
each end of the swingarm in direction (b), and then push the
rear wheel forward.
NOTICE:
Improper drive chain slack will
overload the engine as well as
other vital parts of the
motorcycle and can lead to
chain slippage or breakage. To
prevent this from occurring,
keep the drive chain slack wit-
hin the specified limits.
[ECA10571]
TIP
Using the alignment marks on each
side of the swingarm, make sure that
both adjusting nuts are in the same
position for proper wheel alignment.
1. Drive chain slack adjusting bolt
2. Drive chain puller locknut
3. Alignment marks
4. Tighten the locknuts, and then tighten the axle nut to the speci-
fied torque.
5. Insert a new cotter pin into the axle nut, and then bend its ends
as shown. WARNING! Always
use a new cotter pin for the
axle nut.
[EWA10701]
1. Axle nut cotter pin
2. Axle nut
3. Drive chain puller locknut
4. Drive chain slack adjusting bolt
5. Alignment marks
Tightening torque:Axle nut: 90 Nm (9.0 m•kgf, 65.1 ft•lbf)
Drive chain slack:20.0–25.0 mm (0.79–0.98 in)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
1HD-F819D-E0 7/3/11 20:27 Página 63
2AS-F819D-E0.indd 6331/07/12 10:09

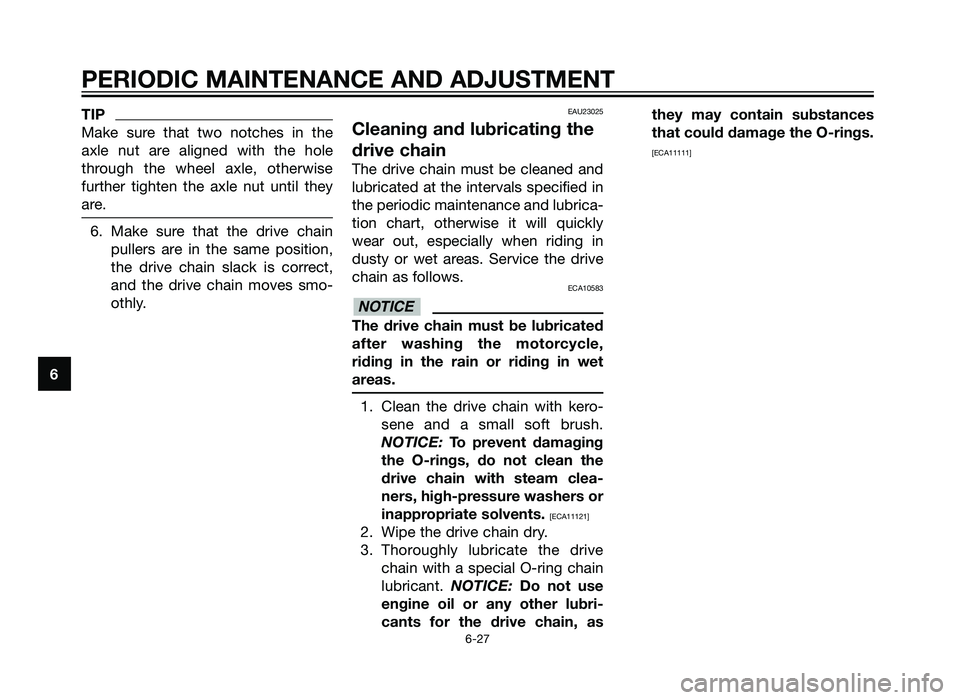

TIP
Make sure that two notches in the
axle nut are aligned with the hole
through the wheel axle, otherwise
further tighten the axle nut until they
are.
6. Make sure that the drive chainpullers are in the same position,
the drive chain slack is correct,
and the drive chain moves smo-
othly.
EAU23025
Cleaning and lubricating the
drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly
wear out, especially when riding in
dusty or wet areas. Service the drive
chain as follows.
ECA10583
The drive chain must be lubricated
after washing the motorcycle,
riding in the rain or riding in wet
areas.
1. Clean the drive chain with kero-sene and a small soft brush.
NOTICE: To prevent damaging
the O-rings, do not clean the
drive chain with steam clea-
ners, high-pressure washers or
inappropriate solvents.
[ECA11121]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubri-
cants for the drive chain, as they may contain substances
that could damage the O-rings.
[ECA11111]
NOTICE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
1HD-F819D-E0 7/3/11 20:27 Página 64
2AS-F819D-E0.indd 6431/07/12 10:09

EAU23095

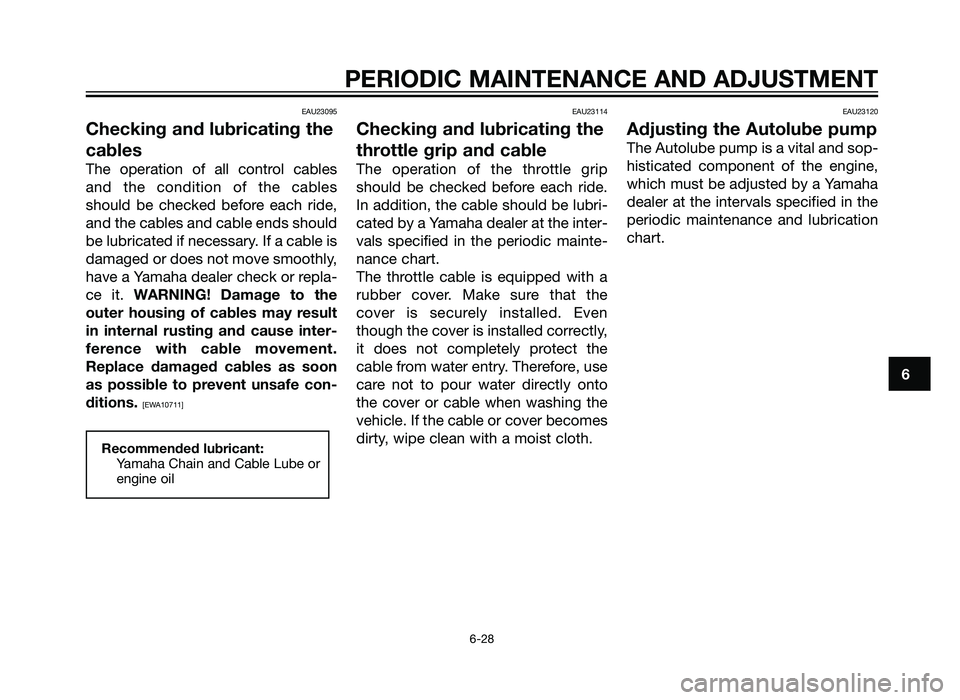

Checking and lubricating the
cables
The operation of all control cables
and the condition of the cables
should be checked before each ride,
and the cables and cable ends should
be lubricated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or repla-
ce it. WARNING! Damage to the
outer housing of cables may result
in internal rusting and cause inter-
ference with cable movement.
Replace damaged cables as soon
as possible to prevent unsafe con-
ditions.
[EWA10711]EAU23114
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated by a Yamaha dealer at the inter-
vals specified in the periodic mainte-
nance chart.
The throttle cable is equipped with a
rubber cover. Make sure that the
cover is securely installed. Even
though the cover is installed correctly,
it does not completely protect the
cable from water entry. Therefore, use
care not to pour water directly onto
the cover or cable when washing the
vehicle. If the cable or cover becomes
dirty, wipe clean with a moist cloth.
EAU23120
Adjusting the Autolube pump
The Autolube pump is a vital and sop-
histicated component of the engine,
which must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
Recommended lubricant:
Yamaha Chain and Cable Lube or
engine oil
PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
1HD-F819D-E0 7/3/11 20:27 Página 65
2AS-F819D-E0.indd 6531/07/12 10:09

EAU44272
Checking and lubricating the
brake and shift pedals
Brake pedal
Shift pedalThe operation of the brake and shift
pedals should be checked before
each ride, and the pedal pivots
should be lubricated if necessary.
EAU23142
Checking and lubricating the
brake and clutch levers
Brake lever
Clutch lever
Recommended lubricant:
Lithium-soap-based grease
PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
1HD-F819D-E0 7/3/11 20:27 Página 66
2AS-F819D-E0.indd 6631/07/12 10:09

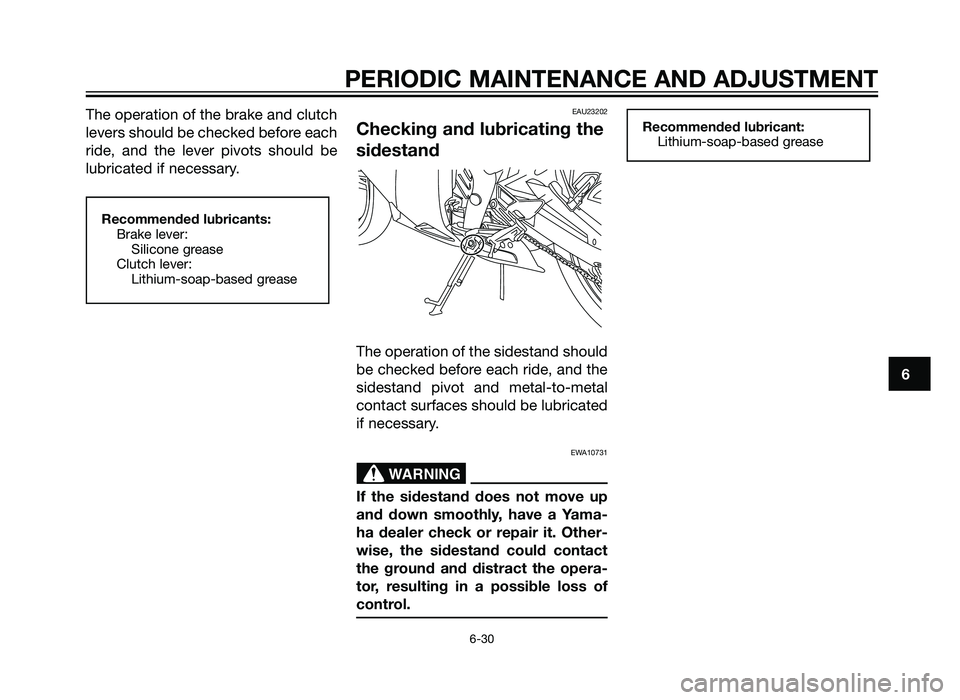

The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be
lubricated if necessary.EAU23202
Checking and lubricating the
sidestand
The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
EWA10731
If the sidestand does not move up
and down smoothly, have a Yama-
ha dealer check or repair it. Other-
wise, the sidestand could contact
the ground and distract the opera-
tor, resulting in a possible loss of
control.
Recommended lubricant:Lithium-soap-based grease
WARNING
Recommended lubricants:Brake lever: Silicone grease
Clutch lever: Lithium-soap-based grease
PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
1HD-F819D-E0 7/3/11 20:27 Página 67
2AS-F819D-E0.indd 6731/07/12 10:09

EAU23272

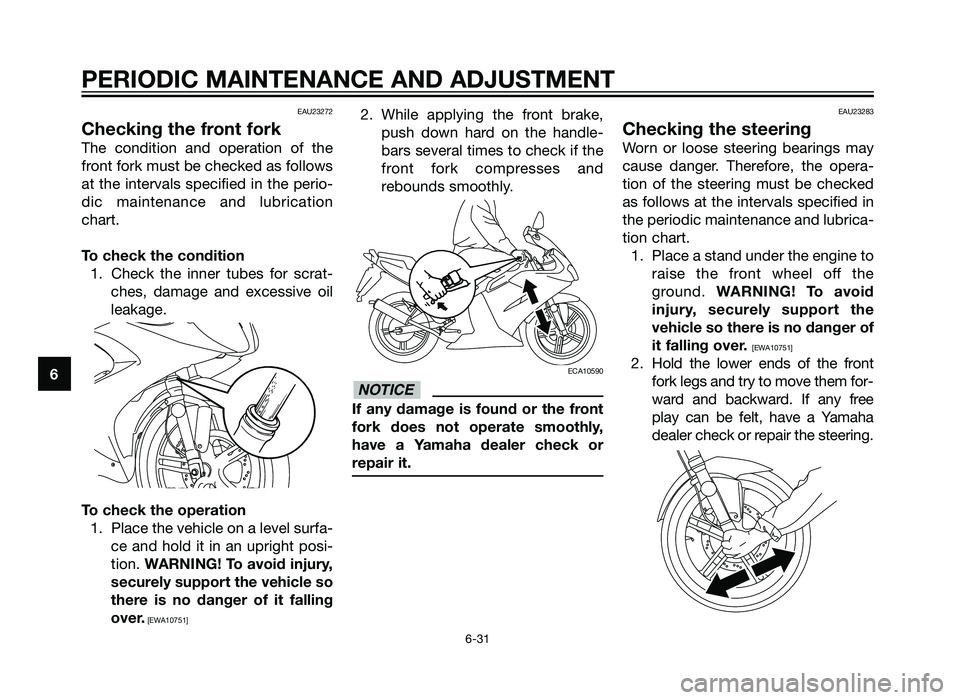

Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition1. Check the inner tubes for scrat- ches, damage and excessive oil
leakage.
To check the operation 1. Place the vehicle on a level surfa- ce and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake, push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.
EAU23283
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.1. Place a stand under the engine to raise the front wheel off the
ground. WARNING! To avoid
injury, securely support the
vehicle so there is no danger of
it falling over.
[EWA10751]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
NOTICE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
1HD-F819D-E0 7/3/11 20:27 Página 68
2AS-F819D-E0.indd 6831/07/12 10:09

EAU23291

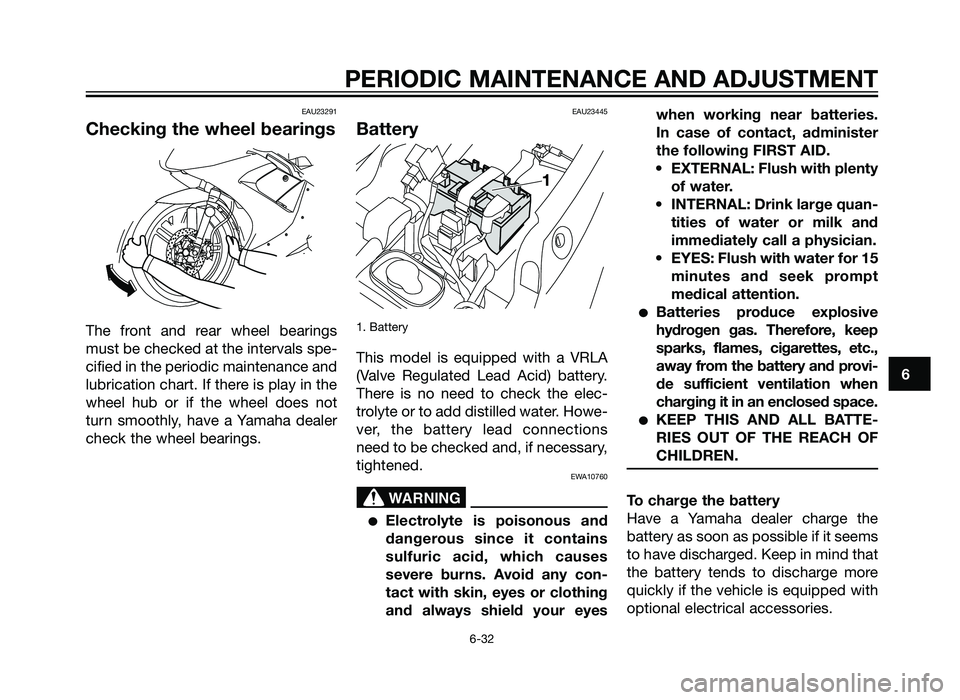

Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spe-
cified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.
EAU23445
Battery
1. Battery
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the elec-
trolyte or to add distilled water. Howe-
ver, the battery lead connections
need to be checked and, if necessary,
tightened.
EWA10760
Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyeswhen working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty of water.
• INTERNAL: Drink large quan- tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15 minutes and seek prompt
medical attention.
Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and provi-
de sufficient ventilation when
charging it in an enclosed space.
KEEP THIS AND ALL BATTE-
RIES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the
battery as soon as possible if it seems
to have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
1HD-F819D-E0 7/3/11 20:27 Página 69
2AS-F819D-E0.indd 6931/07/12 10:09

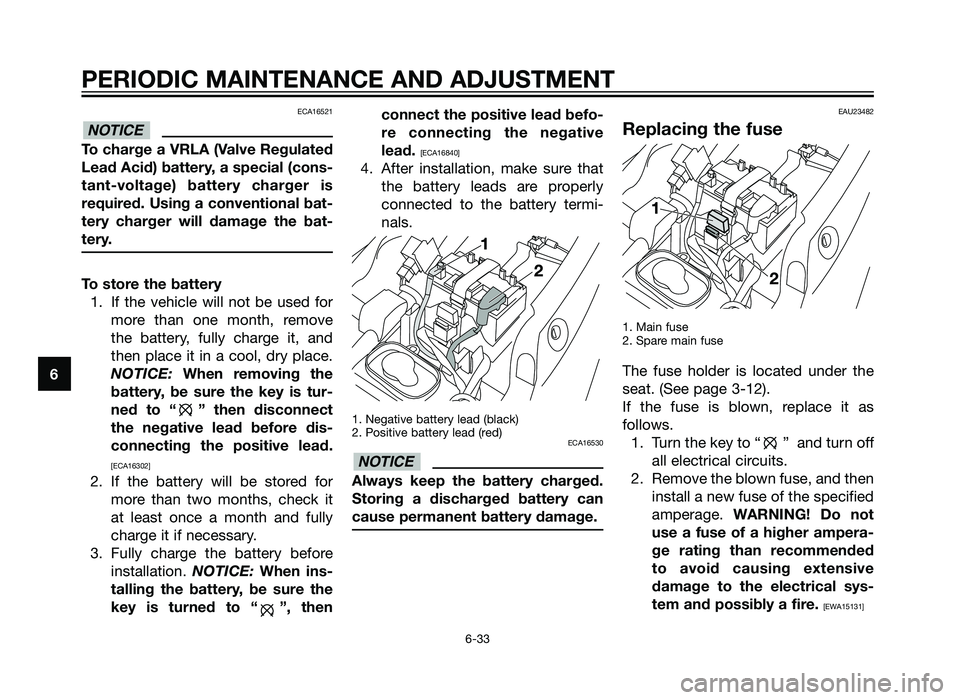

ECA16521
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (cons-
tant-voltage) battery charger is
required. Using a conventional bat-
tery charger will damage the bat-
tery.
To store the battery1. If the vehicle will not be used for more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is tur-
ned to “ ” then disconnect
the negative lead before dis-
connecting the positive lead.
[ECA16302]
2. If the battery will be stored for more than two months, check it
at least once a month and fully
charge it if necessary.
3. Fully charge the battery before installation. NOTICE: When ins-
talling the battery, be sure the
key is turned to “ ”, then connect the positive lead befo-
re connecting the negative
lead.
[ECA16840]
4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals.
1. Negative battery lead (black)
2. Positive battery lead (red)
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU23482
Replacing the fuse
1. Main fuse
2. Spare main fuse
The fuse holder is located under the
seat. (See page 3-12).
If the fuse is blown, replace it as
follows.1. Turn the key to “ ” and turn off all electrical circuits.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher ampera-
ge rating than recommended
to avoid causing extensive
damage to the electrical sys-
tem and possibly a fire.
[EWA15131]
NOTICE
NOTICE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
1HD-F819D-E0 7/3/11 20:27 Página 70
2AS-F819D-E0.indd 7031/07/12 10:09
