YAMAHA TZR50 2012 Manual Online

Dimensions:Overall length:2202 mm (86.7 in)
Overall width: 689 mm (27.1 in)
Overall height: 1175 mm (46.3 in)
Seat height: 820 mm (32.3 in)
Wheelbase: 1341 mm (52.8 in)
Ground clearance: 151 mm (5.94 in)
Minimum turning radius: 2900 mm (114.2 in)
Weight:Curb weight:124 kg (273 lb)
Engine:Engine type:Liquid cooled 2-stroke
Cylinder arrangement: Single cylinder
Displacement: 49 cm
3
Bore x stroke:40.3 x 39.0 mm (1.59 x 1.54 in)
Compression ratio: 11.50 : 1
Starting system: Electric starter
Lubrication system: Wet sump
Engine oil:Type:YAMALUBE 2S or 2-stroke engine oil
(JASO FC grade) or (ISO EG-C or EG-D
grade)
Engine oil quantity:Quantity: 1.40 L (1.48 US qt, 1.23 Imp.qt)
Transmission oil:Transmission oil change quantity:0.75 L (0.79 US qt, 0.66 Im.qt)
Type: SAE10W-30 type SE motor oil
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):0.29 L (0.31 US qt, 0.26 Imp.qt)
Radiator capacity (including all routes): 0.70 L (0.74 US qt, 0.62 Imp.qt)
Air filter:Air filter element:Wet element
Fuel:Recommended fuel:Premium unleaded gasoline only
Fuel tank capacity: 13.8 L (3.65 US gal, 3.04 Imp.gal)
Fuel reserve amount: 2.2 L (0.58 US gal, 0.48 Imp.gal)
Carburetor:Manufacturer:DELL’ORTO
Type x quantity: PHBN 16 / DELL’ORTO x1
Spark plug(s):Manufacturer/model:NGK / BR9 ES
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)
Clutch type: Wet, multiple-disc
Transmission:Primary reduction ratio:71/20 (3.55)
Secondary reduction ratio: 60/11 (5.45)
Final drive: Chain
Transmission type: Constant mesh 6-speed
Operation: Left foot operation
Gear ratio:1st:36/12 (3.00)
2nd: 33/16 (2.062)
3rd: 29/19 (1.526)
4th: 32/24 (1.227)
5th: 25/24 (1.041)
6th: 24/25 (0.960)
Chassis:Frame type:Double cradle
SPECIFICATIONS
8-1
8
1HD-F819D-E0 7/3/11 20:27 Página 81
2AS-F819D-E0.indd 8131/07/12 10:09

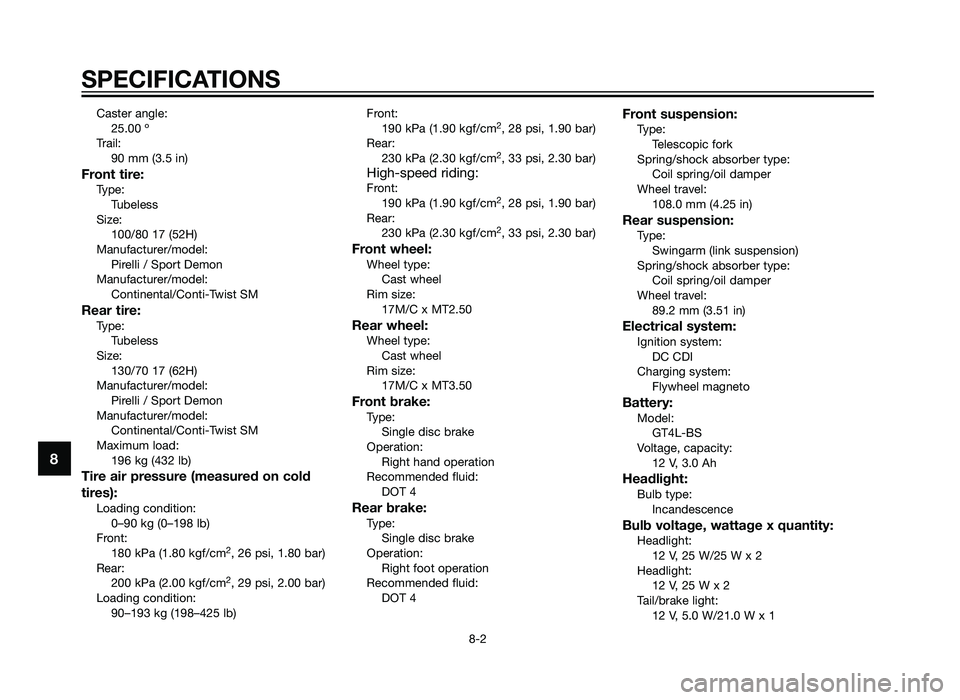

Caster angle:25.00 º
Trail: 90 mm (3.5 in)
Front tire:Type:Tubeless
Size: 100/80 17 (52H)
Manufacturer/model: Pirelli / Sport Demon
Manufacturer/model: Continental/Conti-Twist SM
Rear tire:Type:Tubeless
Size: 130/70 17 (62H)
Manufacturer/model: Pirelli / Sport Demon
Manufacturer/model: Continental/Conti-Twist SM
Maximum load: 196 kg (432 lb)
Tire air pressure (measured on cold
tires):
Loading condition:0–90 kg (0–198 lb)
Front: 180 kPa (1.80 kgf/cm
2, 26 psi, 1.80 bar)
Rear: 200 kPa (2.00 kgf/cm
2, 29 psi, 2.00 bar)
Loading condition: 90–193 kg (198–425 lb) Front:
190 kPa (1.90 kgf/cm
2, 28 psi, 1.90 bar)
Rear: 230 kPa (2.30 kgf/cm
2, 33 psi, 2.30 bar)High-speed riding:Front:190 kPa (1.90 kgf/cm2, 28 psi, 1.90 bar)
Rear: 230 kPa (2.30 kgf/cm
2, 33 psi, 2.30 bar)
Front wheel:Wheel type:Cast wheel
Rim size: 17M/C x MT2.50
Rear wheel:Wheel type:Cast wheel
Rim size: 17M/C x MT3.50
Front brake:Type:Single disc brake
Operation: Right hand operation
Recommended fluid: DOT 4
Rear brake:Type:Single disc brake
Operation: Right foot operation
Recommended fluid: DOT 4
Front suspension:Type:Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 108.0 mm (4.25 in)
Rear suspension:Type:Swingarm (link suspension)
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 89.2 mm (3.51 in)
Electrical system:Ignition system:DC CDI
Charging system: Flywheel magneto
Battery:Model:GT4L-BS
Voltage, capacity: 12 V, 3.0 Ah
Headlight:Bulb type:Incandescence
Bulb voltage, wattage x quantity:Headlight:12 V, 25 W/25 W x 2
Headlight: 12 V, 25 W x 2
Tail/brake light: 12 V, 5.0 W/21.0 W x 1
SPECIFICATIONS
8-2
8
1HD-F819D-E0 7/3/11 20:27 Página 82
2AS-F819D-E0.indd 8231/07/12 10:09

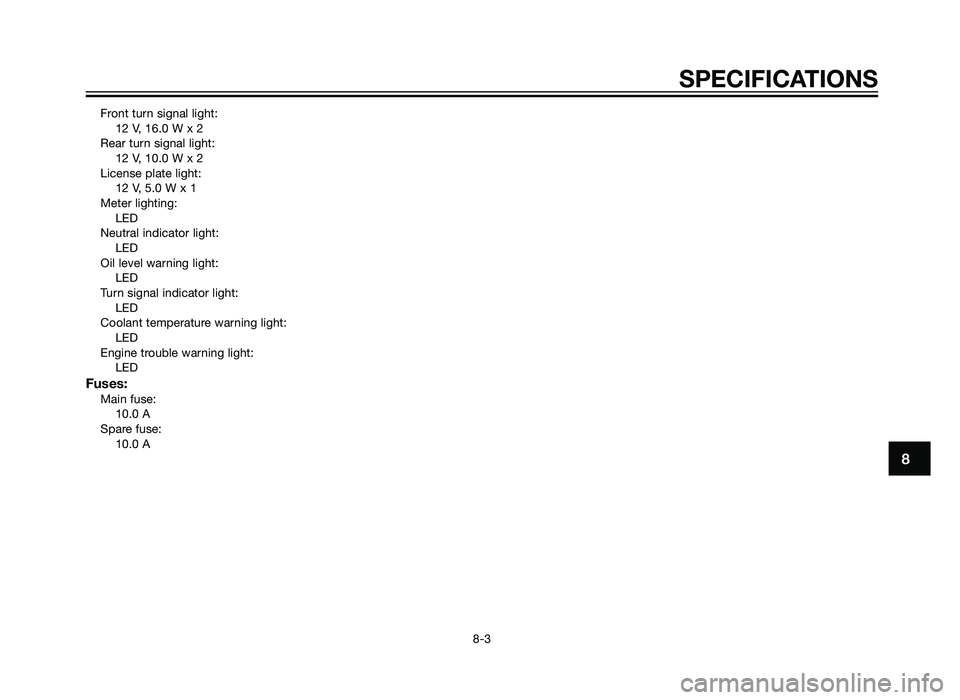

Front turn signal light:12 V, 16.0 W x 2
Rear turn signal light: 12 V, 10.0 W x 2
License plate light: 12 V, 5.0 W x 1
Meter lighting: LED
Neutral indicator light: LED
Oil level warning light: LED
Turn signal indicator light: LED
Coolant temperature warning light: LED
Engine trouble warning light: LED
Fuses:Main fuse:10.0 A
Spare fuse: 10.0 A
SPECIFICATIONS
8-3
8
1HD-F819D-E0 7/3/11 20:27 Página 83
2AS-F819D-E0.indd 8331/07/12 10:09

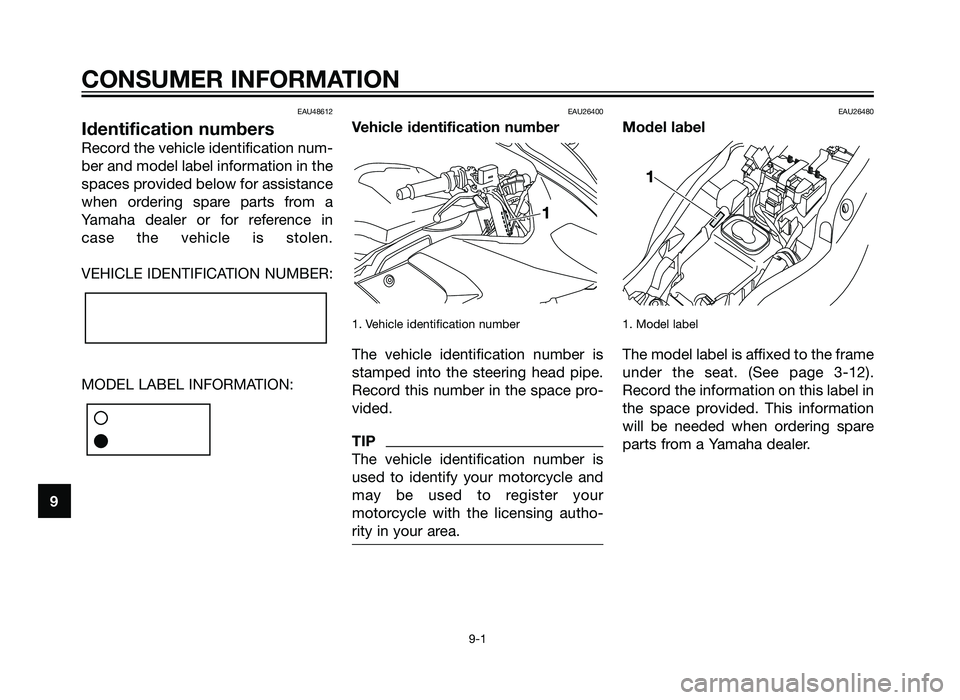

EAU48612
Identification numbers
Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in
case the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your
motorcycle with the licensing autho-
rity in your area.
EAU26480
Model label
1. Model label
The model label is affixed to the frame
under the seat. (See page 3-12).
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
CONSUMER INFORMATION
9-1
9
1HD-F819D-E0 7/3/11 20:27 Página 84
2AS-F819D-E0.indd 8431/07/12 10:09

AAir filter element .......................................6-17
Anti-theft device housing .........................3-13
Autolube pump, adjusting........................6-28
BBattery......................................................6-32
Brake and clutch levers, checking andlubricating ..............................................6-29
Brake and shift pedals, checking and lubricating ..............................................6-29
Brake fluid level, checking .......................6-24
Brake fluid, changing ...............................6-25
Brake lever .................................................3-6
Brake light switches .................................6-23
Brake pedal ................................................3-6
Brake pedal free play, adjusting ..............6-22
CCables, checking and lubricating ............6-28
Carburetor, adjusting ...............................6-17
Care............................................................7-1
Catalytic converter .....................................3-9
Clutch lever ................................................3-5
Clutch lever free play, adjusting...............6-21
Coolant.....................................................6-14
Coolant temperature warning light ............3-3
Cowlings and panels, removing and installing ...................................................6-8
DDimmer switch ...........................................3-5
Drive chain slack ......................................6-25
Drive chain, cleaning and lubricating.......6-27
EEngine break-in ..........................................5-3
Engine idling speed .................................6-18 Engine oil .................................................3-10
Engine stop switch ....................................3-5
Engine trouble warning light ......................3-3
Engine, starting a warm .............................5-2
FFront and rear brake pads, checking ......6-23
Front brake lever free play, checking.......6-22
Front fork, checking .................................6-31
Fuel ............................................................3-8
Fuel cock..................................................3-11
Fuel consumption, tips for reducing ..........5-3
Fuel tank breather/overflow hose ..............3-9
Fuel tank cap .............................................3-7
Fuse, replacing.........................................6-33
HHandlebar switches ...................................3-4
Headlight bulb, replacing .........................6-34
Horn switch ................................................3-5
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-14
Indicator and warning lights ......................3-2
LLicense plate light bulb, replacing ...........6-36
MMain switch/steering lock ..........................3-1
Maintenance and lubrication, periodic ......6-4
Maintenance, emission control system .....6-3
Matte color, caution ...................................7-1
Model label ................................................9-1
NNeutral indicator light.................................3-2
OOil level warning light .................................3-2
PParking .......................................................5-4
Part locations .............................................2-1
Pass switch ................................................3-5
RRear view mirrors .....................................3-13
SSafety information ......................................1-1
Seat ..........................................................3-12
Shift pedal ..................................................3-6
Shift pedal position, adjusting .................6-22
Shifting .......................................................5-2
Sidestand .................................................3-14
Sidestand, checking and lubricating .......6-30
Spark plug, checking ...............................6-11
Specifications.............................................8-1
Speedometer unit ......................................3-3
Start switch ................................................3-5
Starter (choke) lever .................................3-12
Starting a cold engine ................................5-1
Steering, checking ...................................6-31
Storage.......................................................7-3
TTachometer ................................................3-4
Tail/brake light bulb, replacing .................6-35
Throttle grip and cable, checking
and lubricating .......................................6-28
Throttle grip free play, adjusting ..............6-18
Tires .........................................................6-19
Tool kit ........................................................6-1
Transmission oil .......................................6-13
Troubleshooting .......................................6-37
Troubleshooting charts ............................6-38
Turn signal indicator light ...........................3-2
INDEX
1HD-F819D-E0 7/3/11 20:27 Página 85
2AS-F819D-E0.indd 8531/07/12 10:09

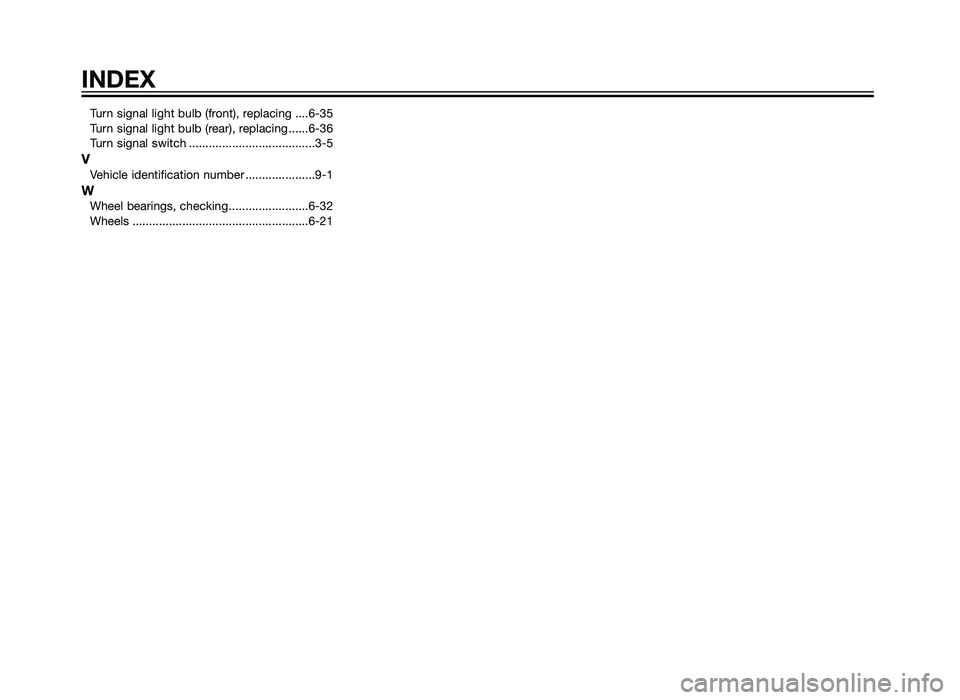

Turn signal light bulb (front), replacing ....6-35
Turn signal light bulb (rear), replacing......6-36
Turn signal switch ......................................3-5
VVehicle identification number .....................9-1
WWheel bearings, checking........................6-32
Wheels .....................................................6-21
INDEX
