FUEL INJECTION SYSTEM
9-31
ECU detects an abnormal signal from a sensor
If the ECU detects an abnormal signal from a sensor while the vehicle is being driven, the ECU illu-
minates the engine trouble warning light and provides the engine with alternate operating instructions
that are appropriate for the type of malfunction.
When an abnormal signal is received from a sensor, the ECU processes the specified values that are
programmed for each sensor in order to provide the engine with alternate operating instructions that
enable the engine to continue operating or stop operating, depending on the conditions.
EAS2GC1376TROUBLESHOOTING METHOD
The engine operation is not normal and the engine trouble warning light comes on.
1. Check: • Fault code number
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the Yamaha diagnostic tool. Refer to “YAMAHA DIAGNOSTIC TOOL” on page 9-32.
b. Check the fault code number disp layed on the Yamaha diagnostic tool.
c. Identify the faulty system with the fault code number.
d. Identify the probable cause of the malfunction.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Check and repair the probable cause of the malfunction.
3. Perform the reinstatement action for the fuel injection system. Refer to “Confirmation of service
completion” in the appropriate table in “TROUBLESHOOTING DETAILS” on page 9-35.
4. After pushing the engine stop switch, push the start switch to check whether the fault code no. is
displayed.
TIP
If another fault code number is displayed, repeat steps (1) to (4) until no fault code number is dis-
played.
5. Erase the malfunction history in the diagnostic mode. Refer to “SENSOR OPERATION TABLE”
(Diagnostic code No.62).
TIP
Turning off the meter light will not erase the malfunction history.
The engine operation is not normal, but the engine trouble warning light does not come on.
1. Check the operation of the following sensors an d actuators in the diagnostic mode. Refer to
“TROUBLESHOOTING DETAILS” on page 9-35.
If a malfunction is detected in the sensors or ac tuators, repair or replace all faulty parts.
If no malfunction is detected in the sensors and ac tuators, check and repair the inner parts of the
engine. Fault code No. No fault code No.
Check and repair. Refer to “TROUBLESHOOT-
ING DETAILS” on page 9-35.
Monitor the operation of the sensors and actua-
tors in the diagnostic mode. Refer to “TROU-
BLESHOOTING DETAILS” on page 9-35 and
“LIST OF SELF-DIAGNOSTIC AND FAIL-SAFE
ACTIONS” on page 10-5. Check and repair.
01: Throttle position sensor signal (throttle angle)
30: Ignition coil
36: Injector
Page 362 of 426
FUEL INJECTION SYSTEM
9-32
EAS2GC1377YAMAHA DIAGNOSTIC TOOL
This model uses the Yamaha diagnostic tool to identify malfunctions.
For information about using the Yamaha diagnostic tool, refer to the operation manual that is included
with the tool.
FEATURES OF THE YAMAHA DIAGNOSTIC TOOL
A diagnosis can be made more quickly than traditional methods with the Yamaha diagnostic tool.
Using this software, ECU and sensor data, as well as fault diagnosis, vehicle maintenance, and any
necessary information can be recorded and disp layed on your computer screen through a USB
adapter connected to the computer interface with a communication cable connected to the vehicle’s
ECU.
Data obtained in various functions can be saved as vehicle history, and can be accumulated.
FUNCTIONS OF THE YAMAHA DIAGNOSTIC TOOL
However, the diagnostic tool cannot be used to freely change the basic vehicle functions, such as
adjusting the ignition timing.
CONNECTING THE YAMAHA DIAGNOSTIC TOOL
1. Remove the coupler for connecting setting tool. Yamaha diagnostic tool
90890-03231
Yamaha diagnostic tool (US) 90890-03234
Fault diagnosis mode Fault codes recorded on the ECU are read, and the con- tents are displayed.
Function diagnostic mode Check the operation of the output value of each sensor
and actuator.
Inspection mode Determine whether each s ensor or actuator is functioning
properly.
CO adjustment mode Adjust the concentration of CO admissions during idling.
Monitoring mode Displays a graph of sensor output values for actual oper-
ating conditions.
Logging mode Records and saves the sensor output value in actual driv-
ing conditions.
View log Displays the logging data.
ECU rewrite If necessary, the ECU is rewritten using the ECU rewrite
data provided by Yamaha. Ignition timing adjustment, etc.
cannot be changed from the vehicle’s original state.
Page 363 of 426
FUEL INJECTION SYSTEM
9-33
2. Connect the FI diagnostic tool sub-lead.
ECA
NOTICE
In order to avoid short circuit, insulate the battery connection terminals of the FI diagnostic
tool sub-lead.
TIP
For information on how to connect and use the Yamaha diagnostic tool, refer to “YAMAHA DIGNO-
STIC TOOL OPERATION MANUAL”.FI diagnostic tool sub–lead
90890-03212
FI diagnostic tool sub–lead YU-03212

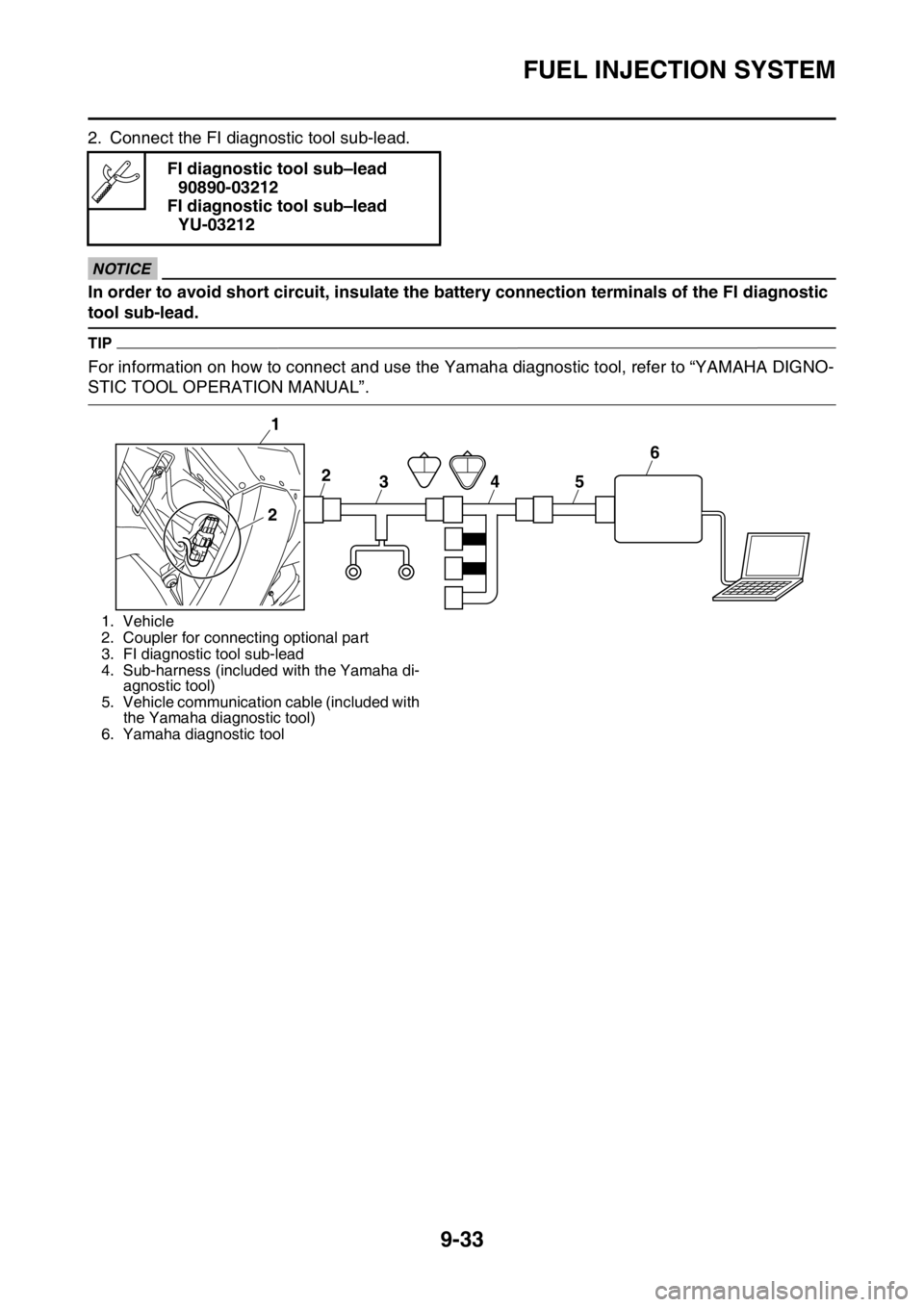

1. Vehicle
2. Coupler for connecting optional part
3. FI diagnostic tool sub-lead
4. Sub-harness (included with the Yamaha di- agnostic tool)
5. Vehicle communication cable (included with the Yamaha diagnostic tool)
6. Yamaha diagnostic tool
1
2
3
2
456
Page 364 of 426
FUEL INJECTION SYSTEM
9-34

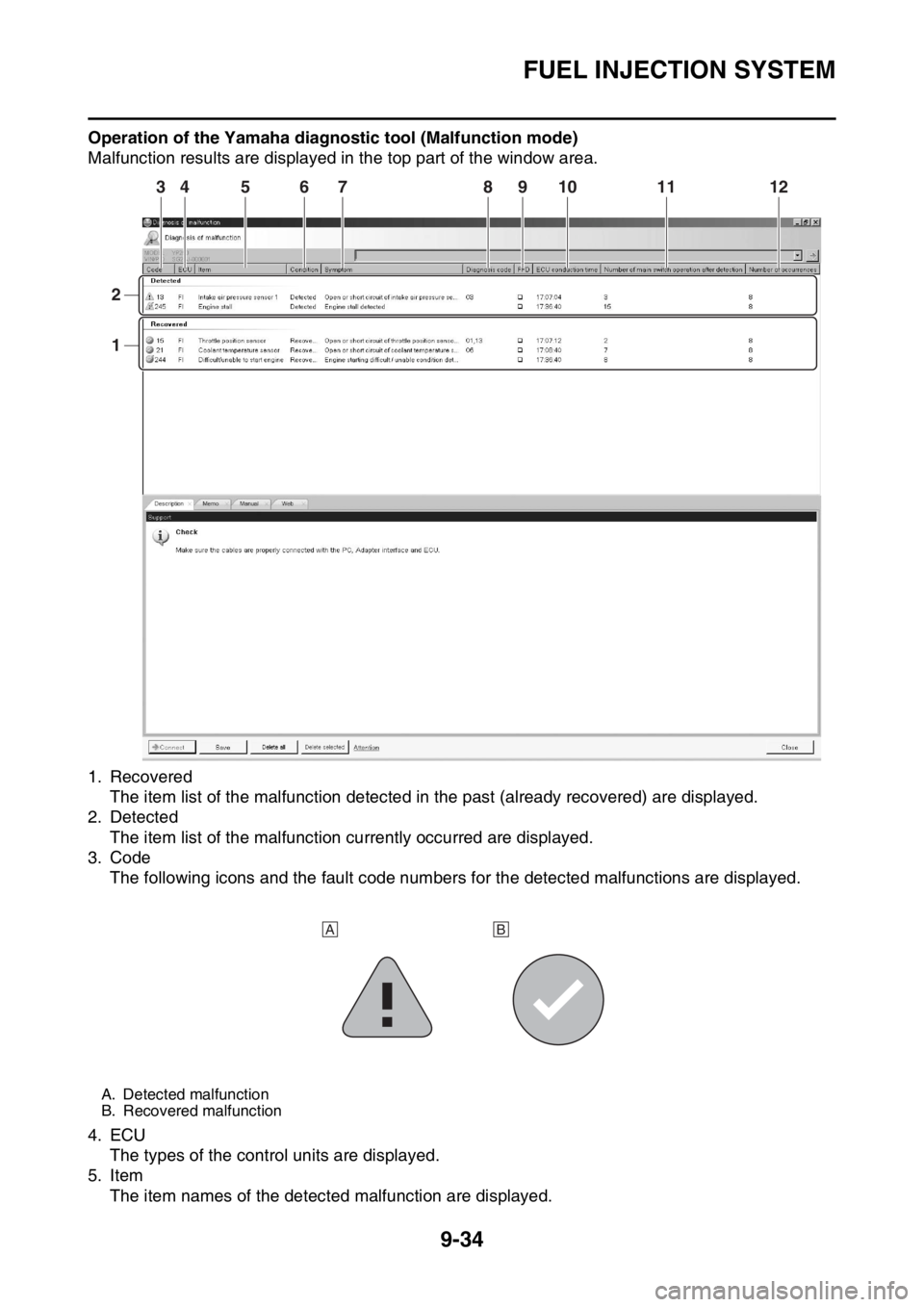

Operation of the Yamaha diagnostic tool (Malfunction mode)
Malfunction results are displayed in the top part of the window area.
1. RecoveredThe item list of the malfunction detected in the past (already recovered) are displayed.
2. Detected The item list of the malfunction currently occurred are displayed.
3. Code
The following icons and the fault code numbers for the detected malfunctions are displayed.
4. ECU The types of the control units are displayed.
5. Item
The item names of the detected malfunction are displayed.
A. Detected malfunction
B. Recovered malfunction
2 3
1
456789101112
AB
Page 365 of 426
FUEL INJECTION SYSTEM
9-35
6. ConditionThe current conditions are displayed. (Detected/Recovered)
7. Symptom
The symptoms of the detected malfunction are displayed.
8. Diagnosis code The diagnosis codes related to the detected malfunction are displayed.
9. FFD (only for models that can display freeze frame data) The mark “ ” is displayed when the freeze frame data is available.
10.ECU conduction time (hour: minute: second)
The total ECU conduction time (total hours the vehicle’s start switch was ON) when the malfunc-
tion was detected is displayed.
11.Number of main switch operation after detection
The number of times the meter light comes on by pushing the start switch between the malfunction
detection and code reading is displayed.
12.Number of occurrences The number of malfunction occurrences between th e malfunction detection and code reading is
displayed.
EAS2GC1378TROUBLESHOOTING DETAILS
This section describes the measures per fault c ode number displayed on the diagnostic tool. Check
and service the items or components that are the probable cause of the malfunction following the or-
der given.
After the check and service of the malfunctioning part have been completed, reset the diagnostic tool
display according to the reinstatement method.
Fault code No.:
Fault code number displayed on the diagnostic tool when the engine failed to work normally.
Diagnostic code No.:
Diagnostic code number to be used when the diagnostic mode is operated.
Fault code No. 12
Item Crankshaft position sensor: no normal signals are received
from the crankshaft position sensor.
Fail-safe system Unable to start engine
Unable to drive vehicle
Diagnostic code No. —
Diagnostic tool display —
Procedure —
Item Probable cause of malfunc-
tion and check Maintenance jobConfirmation of service
completion
1 Connection of crankshaft po- sition sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins). Improperly connected
Connect the coupler securely
or repair/replace the wire har-
ness. Crank the engine.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 2.
Page 366 of 426
FUEL INJECTION SYSTEM
9-36
2 Connection of wire harness ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins). Improperly connected
Connect the coupler securely
or repair/replace the wire har-
ness. Crank the engine.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 3.
3 Wire harness continuity. Open or short circuit Re-
place the wire harness.
Between the crankshaft posi-
tion sensor coupler and ECU
coupler.
black/blue–black/blue
gray–gray Crank the engine.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 4.
4 Installed condition of crank- shaft position sensor.
Check for looseness or
pinching.
Check the gap between the
crankshaft position sensor
and the pickup rotor. Improperly installed sensor
Reinstall or replace the
sensor.
Refer to “GENERATOR AND
STARTER CLUTCH” on
page 6-63. Crank the engine.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 5.
5 Defective crankshaft position sensor. Check the crankshaft position
sensor.
Refer to “CHECKING THE
CRANKSHAFT POSITION
SENSOR” on page 9-74. Crank the engine.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 6.
6 Malfunction in ECU. Replace the ECU. Fault code No. 12
Item Crankshaft position sensor: no normal signals are received
from the crankshaft position sensor.
Page 367 of 426
FUEL INJECTION SYSTEM
9-37
TIP
• If fault code Nos. 13 and 14 are both displayed, perform the checks and maintenance jobs for fault
code No. 13 first.
• Before troubleshooting, disconnect the star ter motor lead from the starter relay.
Fault code No. 13
Item Intake air pressure sensor: open or short circuit detected.
Fail-safe system Able to start engine
Able to drive vehicle
Diagnostic code No. 03
Diagnostic tool display Displays the intake air pressure.
Procedure Operate the throttle while pushing the start switch.(If the display
value changes, the performance is OK.)
Item Probable cause of malfunc-
tion and check Maintenance jobConfirmation of service
completion
1 Connection of intake air pres- sure sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins). Improperly connected
Connect the coupler securely
or repair/replace the wire har-
ness. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 2.
2 Connection of wire harness ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins). Improperly connected
Connect the coupler securely
or repair/replace the wire har-
ness. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 3.
3 Wire harness continuity. Open or short circuit Re-
place the wire harness.
Between intake air pressure
sensor coupler and ECU cou-
pler.
black/blue–black/blue
pink–pink
blue–blue Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 4.
4 Installed condition of intake air pressure sensor.
Check for looseness or
pinching. Improperly installed sensor
Reinstall or replace the
sensor. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 5.
Page 368 of 426
FUEL INJECTION SYSTEM
9-38
TIP
• If fault code Nos. 13 and 14 are both displayed, perform the checks and maintenance jobs for fault
code No. 13 first.
• Before troubleshooting, disconnect the star ter motor lead from the starter relay.
5 Defective intake air pressure
sensor. Execute the diagnostic mode.
(Code No. 03)
When engine is stopped:
Atmospheric pressure at the
current altitude and weather
conditions is indicated.
At sea level: Approx. 101 kPa
1000 m above sea level: Ap-
prox. 90 kPa
2000 m above sea level: Ap-
prox. 80 kPa
3000 m above sea level: Ap-
prox. 70 kPa
When engine is cranking:
Make sure that the indication
value changes.
The value does not change
when engine is cranking.
Check the intake air pressure
sensor.
Replace if defective.
Refer to “CHECKING THE
INTAKE AIR PRESSURE
SENSOR” on page 9-80. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 6.
6 Malfunction in ECU. Replace the ECU.
Fault code No. 14
Item Intake air pressure sensor: hose system malfunction (clogged
or detached hose).
Fail-safe system Able to start engine
Able to drive vehicle
Diagnostic code No. 03
Diagnostic tool display Displays the intake air pressure.
Procedure Operate the throttle while pushing the start switch.(If the display
value changes, the performance is OK.)
Item Probable cause of malfunc-
tion and check Maintenance jobConfirmation of service
completion
1 The intake air pressure sen- sor hose is damaged, discon-
nected, clogged, twisted or
bent. Repair or replace the sensor
hose.
Start the engine and let it idle
for approximately 5 seconds.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 2.
Fault code No. 13
Item Intake air pressure sensor: open or short circuit detected.
Page 369 of 426
FUEL INJECTION SYSTEM
9-39
TIP
Before troubleshooting, disconnect the starter motor lead from the starter relay.
2 Defective intake air pressure
sensor. Execute the diagnostic mode.
(Code No. 03)
When engine is stopped:
Atmospheric pressure at the
current altitude and weather
conditions is indicated.
At sea level: Approx. 101 kPa
1000 m above sea level: Ap-
prox. 90 kPa
2000 m above sea level: Ap-
prox. 80 kPa
3000 m above sea level: Ap-
prox. 70 kPa
When engine is cranking:
Make sure that the indication
value changes.
The value does not change
when engine is cranking.
Check the intake air pressure
sensor.
Replace if defective.
Refer to “CHECKING THE
INTAKE AIR PRESSURE
SENSOR” on page 9-80.
Fault code No. 15
Item Throttle position sensor: open or short circuit detected.
Fail-safe system Able to start engine
Able to drive vehicle
Diagnostic code No. 01
Diagnostic tool display Throttle position sensor signal
• 11–14 (fully closed position)
• 109–116 (fully open position)
Procedure • Check with throttle valve fully closed.
• Check with throttle valve fully open.
Item Probable cause of malfunc-
tion and check Maintenance jobConfirmation of service
completion
1 Connection of throttle posi- tion sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins). Improperly connected
Connect the coupler securely
or repair/replace the wire har-
ness. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 2.
Fault code No.
14
Item Intake air pressure sensor: hose system malfunction (clogged
or detached hose).
Page 370 of 426
FUEL INJECTION SYSTEM
9-40
2 Connection of wire harness ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins). Improperly connected
Connect the coupler securely
or repair/replace the wire har-
ness. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 3.
3 Wire harness continuity. Open or short circuit Re-
place the wire harness.
Between throttle position
sensor coupler and ECU cou-
pler.
black/blue–black/blue
yellow–yellow
blue–blue Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 4.
4 Installed condition of throttle position sensor.
Check for looseness or
pinching. Improperly installed sensor
Reinstall or replace the
sensor.
Refer to “ADJUSTING THE
THROTTLE POSITION SEN-
SOR” on page 8-11. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 5.
5 Applied voltage of throttle po- sition sensor lead. Check the applied voltage.
(black/blue–blue)
Refer to “CHECKING THE
THROTTLE POSITION SEN-
SOR” on page 9-79. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 6.
Location of discon-
nected lead Output
voltage
Disconnected
ground lead 5V
Disconnected out-
put lead 0V
Disconnected
power supply lead 0V
6 Defective throttle position sensor. Check throttle position sen-
sor signal.
Execute the diagnostic mode.
(Code No. 01)
When the throttle valve is fully
closed:
A value of 11–14 is indicated.
When throttle valve is fully
open:
A value of 109–116 is indicat-
ed.
An indicated value is out of
the specified range.
Re-
place the throttle position
sensor. Push the start switch.
Fault code number is not dis-
played
Service is finished.
Fault code number is dis-
played Go to item 7.
Fault code No. 15
Item
Throttle position sensor: open or short circuit detected.
