YAMAHA XT600E 2000 User Guide

EAU00026
DESCRIPTION
12
3
4
5
6
7
8
9
2-1
1.Headlight (page 6-29)
2.Fuel cock (page 3-7)
3.Battery (page 6-28)
4.Tool kit (page 6-1)
5.Helmet holder (page 3-9)6.Rear shock absorber spring preload
adjusting nut (page 3-10)
7.Fuse (page 6-28)
8.Starter (choke) (page 3-8)
9.Shift pedal (page 3-5)
1
2
3
45
6
7 8 9

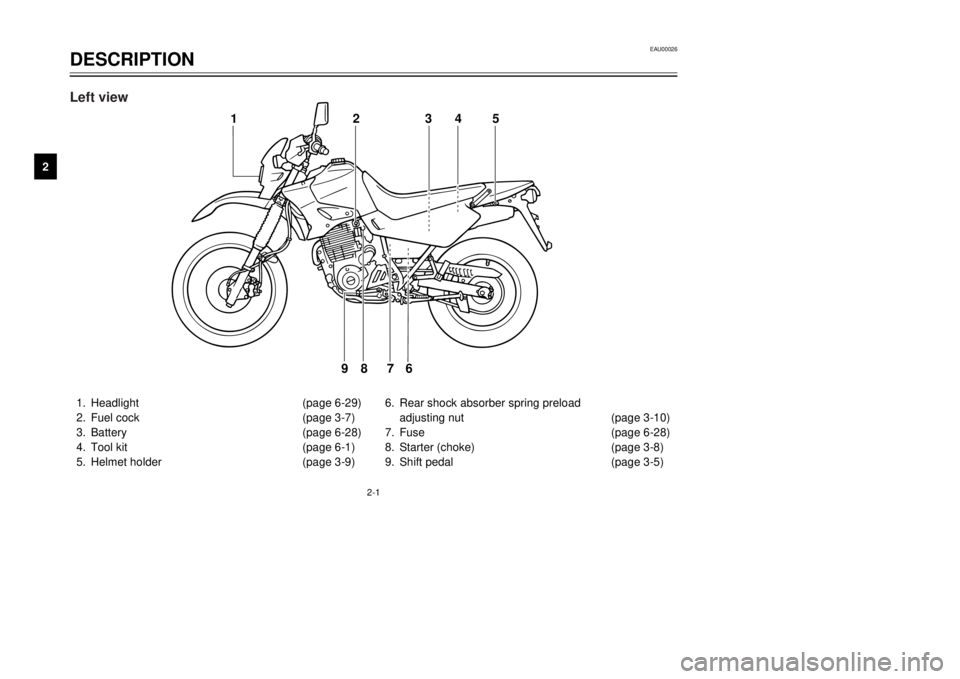

Left view
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 10

DESCRIPTION
12
3
4
5
6
7
8
9
2-2
10.Air filter (page 6-12)
11.Oil filter (page 6-11)
12.Engine oil dipstick(page 6-10)
13.Rear brake pedal (page 3-5, 6-19)
10
11
13
12
Right view
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 11

12
3
4
5
6
7
8
9
EAU00026
DESCRIPTION
2-3
14.Clutch lever (page 3-4, 6-18)
15.Left handlebar switches (page 3-3)
16.Speedometer (page 3-2)
17.Main switch/steering lock (page 3-1)
18.Tachometer (page 3-3)19.Right handlebar switches (page 3-4)
20.Front brake lever (page 3-5, 6-18)
21.Throttle grip (page 6-24)
22.Fuel tank cap (page 3-6)
14
15161718
1920
21 22

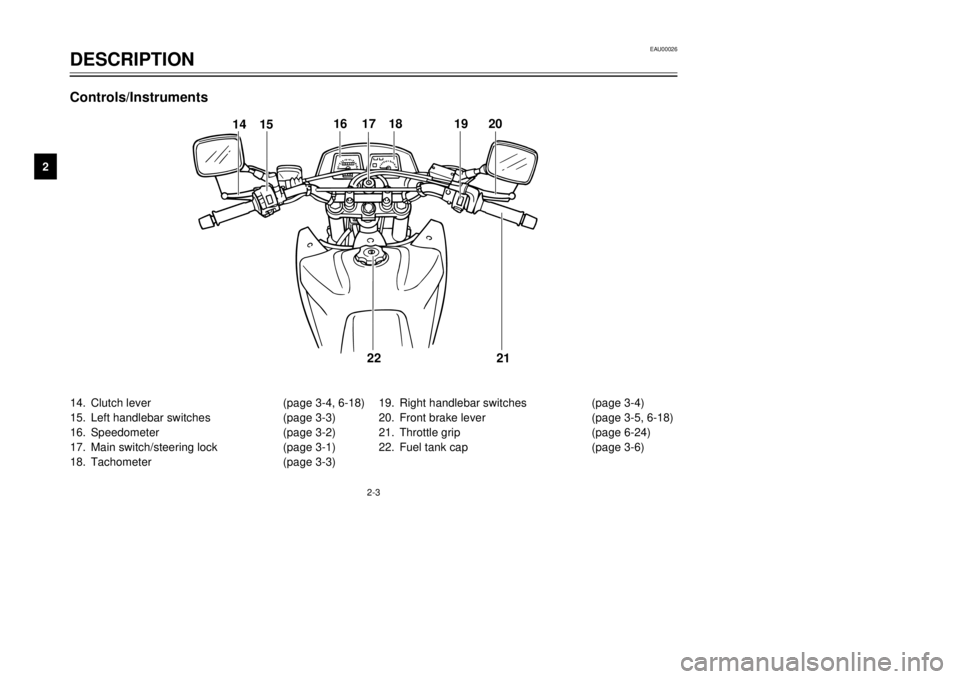

Controls/Instruments
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 12

INSTRUMENT AND CONTROL FUNCTIONSMain switch/steering lock.......................................................................3-1
Indicator lights.......................................................................................3-2
Speedometer.........................................................................................3-2
Tachometer...........................................................................................3-3
Handlebar switches...............................................................................3-3
Clutch lever............................................................................................3-4
Shift pedal..............................................................................................3-5
Front brake lever...................................................................................3-5
Rear brake pedal...................................................................................3-5
Fuel tank cap.........................................................................................3-6
Fuel........................................................................................................3-6
Fuel cock...............................................................................................3-7
Starter (choke) Ò
1Ó...............................................................................3-8
Seat.......................................................................................................3-9
Helmet holder........................................................................................3-9
Rear shock absorber adjustment.........................................................3-10
Sidestand.............................................................................................3-11
Sidestand/clutch switch operation check.............................................3-12
3
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 13

3-1
ON
OFF
LOCK
P
EAU00029
Main switch/steering lockThe main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on.
The engine can be started. The key
cannot be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00042
LOCK
The steering is locked in this position
and all electrical circuits are switched
off.
The key can be removed in this posi-
tion.
To lock the steering, turn the handle-
bars all the way to the left. With the
key at ÒOFFÓ, push it into the main
switch and release it, turn it counter-
clockwise to ÒLOCKÓ and remove it.
To release the lock, turn the key to
"OFF".
EW000016
wNever turn the key to ÒOFFÓ or
ÒLOCKÓ when the motorcycle is
moving. The electrical circuits will
be switched off which may result
in loss of control or an accident.
Be sure the motorcycle is stopped
before turning the key to ÒOFFÓ or
ÒLOCKÓ.
EAU01590
. .
(Parking)
The steering is locked in this position,
and the taillight and auxiliary light
come on but all other circuits are off.
The key can be removed in this posi-
tion.
To use the parking position, first lock
the steering, then turn the key to Ò
.
Ó.
Do not use this position for an
extended length of time as the bat-
tery may discharge.
EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
12
1. Push2.Turn
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 14

3-2
12
3&
5
N
EAU00056
Indicator lights
EAU00057
Turn indicator light
Ò5Ó
This indicator flashes when the turn
switch is moved to the left or right.
EAU00061
Neutral indicator light ÒNÓ
This indicator comes on when the
transmission is in neutral.
EAU00063
High beam indicator light Ò&Ó
This indicator comes on when the
headlight high beam is used.
EAU00095

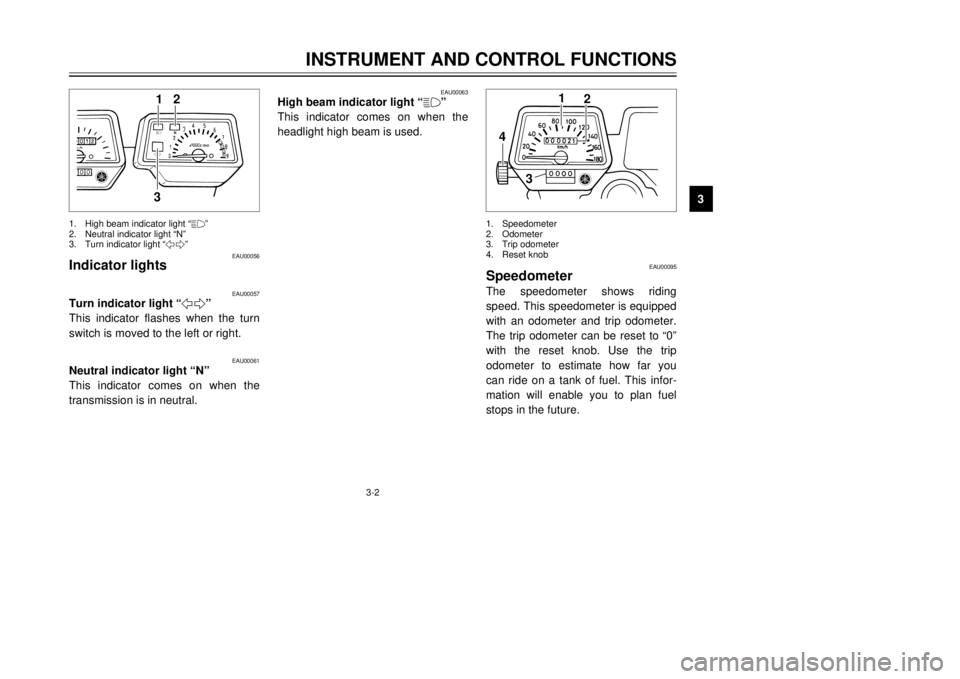

SpeedometerThe speedometer shows riding
speed. This speedometer is equipped
with an odometer and trip odometer.
The trip odometer can be reset to Ò0Ó
with the reset knob. Use the trip
odometer to estimate how far you
can ride on a tank of fuel. This infor-
mation will enable you to plan fuel
stops in the future.
1.High beam indicator light Ò&Ó
2.Neutral indicator light ÒNÓ
3.Turn indicator light Ò5Ó
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
1
2
4
3
1.Speedometer
2.Odometer
3.Trip odometer
4.Reset knob
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 15

3-3
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
2 1
5&
N
EAU00102
TachometerThis model is equipped with a
tachometer so the rider can monitor
the engine speed and keep it within
the ideal power range.
EC000003
cCDo not operate in the red zone.
Red zone: 7,000 r/min and above1.Tachometer
2.Red zone
EAU00118
Handlebar switches
EAU00134
Lights switch
Turning the light switch to Ò
'
Ó,
turns on the auxiliary light, meter
lights and taillight. Turning the light
switch to Ò:Ó, turns the headlight on
also.
EAU00119
Pass switch Ò&Ó
Press the switch to operate the pass-
ing light.
EAU00121
Dimmer switch
Turn the switch to Ò&Ó for the high
beam and to Ò%Ó for the low beam.
EAU00127
Turn signal switch
To signal a right-hand turn, push the
switch to Ò)Ó. To signal a left-hand
turn, push the switch to Ò(Ó. Once
the switch is released it will return to
the center position. To cancel the sig-
nal, push the switch in after it has
returned to the center position.
EAU00129
Horn switch Ò*Ó
Press the switch to sound the horn.
4 5 123*
1.Lights switch
2.Pass switch Ò&Ó
3.Dimmer switch
4.Turn signal switch
5.Horn switch Ò*Ó
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 16

3-4
1
2
,
EAU00138
Engine stop switch
The engine stop switch is a safety
device for use in an emergency such
as when the motorcycle overturns or
if trouble occurs in the throttle sys-
tem. Turn the switch to Ò#Ó to start
the engine.
In case of emergency, turn the switch
to Ò$Ó to stop the engine.1.Engine stop switch
2.Start switch Ò,Ó
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
EAU00143
Start switch Ò,Ó
The starter motor cranks the engine
when pushing the start switch.
EC000005
cCSee starting instructions prior to
starting the engine.
EAU00152
Clutch leverThe clutch lever is located on the left
handlebar, and the ignition circuit cut-
off system is incorporated in the
clutch lever holder. Pull the clutch
lever to the handlebar to disengage
the clutch, and release the lever to
engage the clutch. The lever should
be pulled rapidly and released slowly
for smooth clutch operation. (Refer to
the engine starting procedures for a
description of the ignition circuit cut-
off system.)
1
1.Clutch lever
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 17

3-5
1
5
4
3
2
N
1
1.Shift pedal
N.Neutral
EAU00157
Shift pedalThis motorcycle is equipped with a
constant-mesh 5-speed transmission.
The shift pedal is located on the left
side of the engine and is used in
combination with the clutch when
shifting.INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
1
EAU00158
Front brake leverThe front brake lever is located on
the right handlebar. Pull it toward the
handlebar to apply the front brake.
EAU00162
Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down
on the brake pedal to apply the rear
brake.
1.Front brake lever
1
1.Rear brake pedal
4PT-9-E6 (ENG) 1~5 12/27/00 1:28 PM Page 18

3-6
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
2
1
EAU00177
Fuel tank capTo open
Insert the key and turn it 1/4 turn
counterclockwise. Turn the cap 1/3
turn counterclockwise and remove it
from the tank.
To close
Put the cap in the filler neck and turn
it 1/3 turn clockwise. Lock the cap by
turning the key 1/4 turn clockwise,
and remove the key.1.Unlock
2.Open
NOTE:
The tank cap cannot be reinstalled
unless it is unlocked. The key must
remain in the cap until the cap is
properly installed and locked onto the
fuel tank.
EW000023
wBe sure the cap is properly
installed and locked in place
before riding the motorcycle.
2
1
1.Filler tube
2.Fuel level
EAU01183
FuelMake sure there is sufficient fuel in
the tank. Fill the fuel tank to the bot-
tom of the filler tube as shown in the
illustration.
EW000130
wDo not overfill the fuel tank. Avoid
spilling fuel on the hot engine. Do
not fill the fuel tank above the bot-
tom of the filler tube or it may
overflow when the fuel heats up
later and expands.
