INSTRUMENT AND CONTROL FUNCTIONS
4-3
To unlock the steering
1. Push
2. Turn
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
EAU10941
F(Parking)
The steering is locked, and the tail-
light, license plate light and auxiliary
lights are on. The hazard lights and
turn signal lights can be turned on, but
all other electrical systems are off. The
key can be removed.
The steering must be locked before
the key can be turned to “F”.
ECA11020NOTICE
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11004
Indicator and warning lights
1. Immobilizer system indicator light “ ”
2. Neutral indicator light “N”
3. Turn signal indicator light “y”
4. High beam indicator light “1”
5. Engine trouble warning light “U”
6. Coolant temperature warning light “u”
EAUB1510
Turn signal indicator light “y”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
The electrical circuit of the turn signal
indicator light can be checked by turn-
ing the key to "ON".
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
XT660Z 04-04 ING-AUS:MY03 01-03 ING 11-05-2009 9:54 Pagina 4-3

INSTRUMENT AND CONTROL FUNCTIONS
4-4
1
2
3
4
5
6
7
8
9
10
EAUB1520
Neutral indicator light “ N”
This indicator light comes on when the
transmission is in the neutral position.
The electrical circuit of the neutral indi-
cator light can be checked by turning
the key to "ON". If the indicator light
does not come on for a few seconds,
then go off, have a Yamaha dealer
check the electrical circuit.
EAUB1530
High beam indicator light “1”
This indicator light comes on when the
high beam of the headlight is switched
on. The electrical circuit of the high
beam indicator light can be checked
by turning the key to "ON". If the indi-
cator light does not come on for a few
seconds, then go off, have a Yamaha
dealer check the electrical circuit.
EAU11444
Coolant temperature warning
light “u”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool. The electrical circuit of the
warning light can be checked by turn-
ing the key to "ON". The warning light
should come on for a few seconds,and then go off. If the warning light
does not come on initially when the
key is turned to "ON", or if the warning
light remains on, have a Yamaha deal-
er check the electrical circuit.
ECA10021
NOTICE
Do not continue to operate the en-
gine if it is overheating.
TIP
●For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
●If the engine overheats, see page
7-41 for further instructions.
EAU11534
Engine trouble warning light “U”
This warning light comes on or flashes
if a problem is detected in the electri-
cal circuit monitoring the engine. If this
occurs, have a Yamaha dealer check
the self-diagnosis system. (See page
4-8 for an explanation of the self-diag-
nosis device.) The electrical circuit of
the warning light can be checked byturning the key to "ON". The warning
light should come on for a few seconds,
and then go off. If the warning light does
not come on initially when the key is
turned to "ON", or if the warning light re-
mains on, have a Yamaha dealer check
the electrical circuit.
EAU26876
Immobilizer system indicator
light “ ”
The electrical circuit of the indicator
light can be checked by turning the
key to "ON". The indicator light should
come on for a few seconds, and then
go off. If the indicator light does not
come on initially when the key is
turned to "ON", or if the indicator light
remains on, have a Yamaha dealer
check the electrical circuit.
When the key is turned to "OFF" and
30 seconds have passed, the indicator
light will start flashing indicating the
immobilizer system is enabled. After
24 hours have passed, the indicator
light will stop flashing, however the im-
mobilizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobi-
lizer system. (See page 4-8 for an ex-
planation of the self-diagnosis device.)
XT660Z 04-04 ING-AUS:MY03 01-03 ING 11-05-2009 9:54 Pagina 4-4

INSTRUMENT AND CONTROL FUNCTIONS
4-8
1
2
3
4
5
6
7
8
9
10
Self-diagnosis devices
1. Engine trouble warning light “U”
2. Immobilizer system indicator light “ ”
This model is equipped with a self-di-
agnosis device for various electrical
circuits.
If any of those circuits are defective,
the engine trouble warning light will
start flashing. If this occurs, have a
Yamaha dealer check the vehicle.
This model is also equipped with a
self-diagnosis device for the immobi-
lizer system.
If any of the immobilizer system cir-
cuits are defective, the immobilizer
system indicator light will start flash-
ing.
If this occurs, have a Yamaha dealer
check the vehicle.
TIP
If the indicator light slowly flashes five
times, and then quickly flashes two
times repeatedly, this error could be
caused by transponder interference. If
this occurs, try the following.
1. Use the code re-registering key to
start the engine.
TIP
Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobiliz-
er key on the same key ring! Immobi-
lizer system keys may cause signal in-
terference, which may prevent the
engine from starting.2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the
standard keys re-registered.
If the immobilizer system indicator
light continues to flash, have a Yama-
ha dealer check the vehicle.
XT660Z 04-04 ING-AUS:MY03 01-03 ING 11-05-2009 9:54 Pagina 4-8

1
2
3
4
5
6
7
8
9
10
INSTRUMENT AND CONTROL FUNCTIONS
4-13
your skin, wash with soap and wa-
ter. If gasoline spills on your cloth-
ing, change your clothes.
EAU13390EAU13412
Fuel tank breather hose
1. Fuel tank breather hose
2. Clamp
Before operating the motorcycle:
●Check the fuel tank breather hose
connection.
●Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.
●Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
ECA11400
NOTICE
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use premium unleaded
gasoline with a research octane num-
ber of 95 or higher. If knocking (or
pinging) occurs, use a gasoline of a
different brand. Use of unleaded fuel
will extend spark plug life and reduce
maintenance costs.
Recommended fuel:
PREMIUM UNLEADED
GASOLINE ONLY
Fuel tank capacity:
23.0 L (6.07 US gal) (5.05 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
6.7 L (1.77 US gal) (1.47 Imp.gal)
EAU13433
Catalytic converter
This model is equipped with a catalyt-
ic converter in the exhaust system.
EWA10862
WARNING0
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
●Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
●Make sure that the exhaust
system has cooled down be-
fore doing any maintenance
work.
●Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
XT660Z 04-04 ING-AUS:MY03 01-03 ING 11-05-2009 9:54 Pagina 4-13

OPERATION AND IMPORTANT RIDING POINTS
3. Start the engine by pushing the
start switch.
TIP
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt.
ECA11040
NOTICE
For maximum engine life, never ac-
celerate hard when the engine is
cold!
TIP
The engine is warm when it quickly re-
sponds to the throttle.
EAU16671
Shifting
1. Shift pedal
N. Neutral position
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing
hills, etc.
The gear positions are shown in the il-
lustration.
TIP
To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
6-2
1
2
3
4
5
6
7
8
9
10
ECAB0070
NOTICE
The following warning lights and in-
dicator lights should come on for a
few seconds, then go off.
●Neutral indicator light
●Turn signal indicator light
●High beam indicator light
●Engine trouble warning light
●Coolant temperature warning
light
●Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 4-3 for the cor-
responding warning and indicator
light circuit check.
2. Shift the transmission into the
neutral position.
TIP
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a Yama-
ha dealer check the electrical circuit.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 6

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-57-5

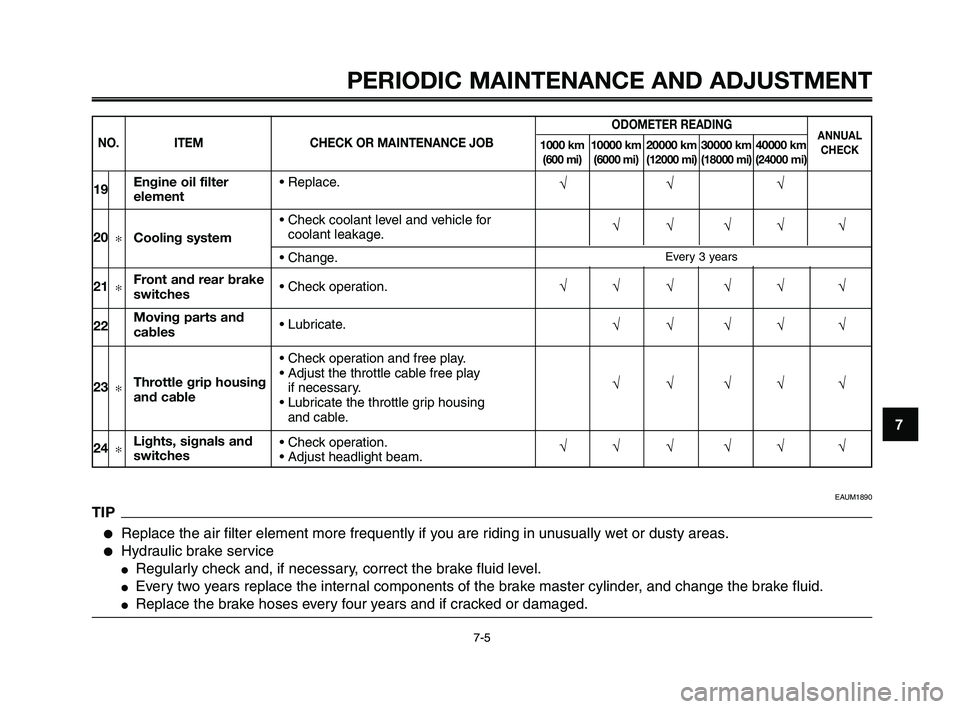

EAUM1890
TIP
●Replace the air filter element more frequently if you are riding in unusually wet or dusty areas.
●Hydraulic brake service
●Regularly check and, if necessary, correct the brake fluid level.
●Every two years replace the internal components of the brake master cylinder, and change the brake fluid.
●Replace the brake hoses every four years and if cracked or damaged.
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
1000 km 10000 km 20000 km 30000 km 40000 km(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
ANNUAL
CHECK
√√ √
√√ √√ √
√√√ √√ √
√√ √√ √
√√ √√ √
√√√ √√ √ Replace.
Check coolant level and vehicle for coolant leakage.
Change.
Check operation.
Lubricate.
Check operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.
Check operation.
Adjust headlight beam. Engine oil filter
element
Cooling system
Front and rear brake
switches
Moving parts and
cables
Throttle grip housing
and cable
Lights, signals and
switches
Every 3 years
19
22 20
✻
21✻
24✻
23✻
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 7-5

PERIODIC MAINTENANCE AND ADJUSTMENT
7-8
1
2
3
4
5
6
7
8
9
10
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light
tan (the ideal color when the vehi-
cle is ridden normally).
TIP
If the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to di-
agnose such problems yourself.
Instead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for elec-
trode erosion and excessive car-
bon or other deposits, and re-
place it if necessary.
Specified spark plug:
CR7E (NGK)
Spark plug gap:
0.7-0.8 mm (0.028-0.032 in)
To install the spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to
specification.
1. Spark plug gap
2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.

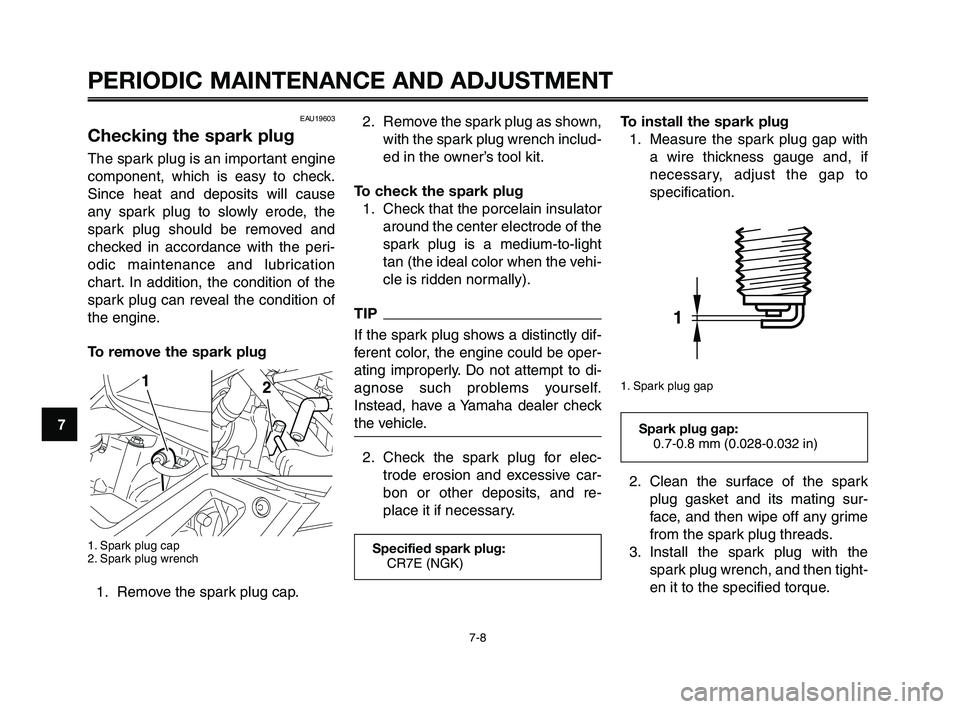

EAU19603
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the peri-
odic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
To remove the spark plug
1. Spark plug cap
2. Spark plug wrench
1. Remove the spark plug cap.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 7-8

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-9

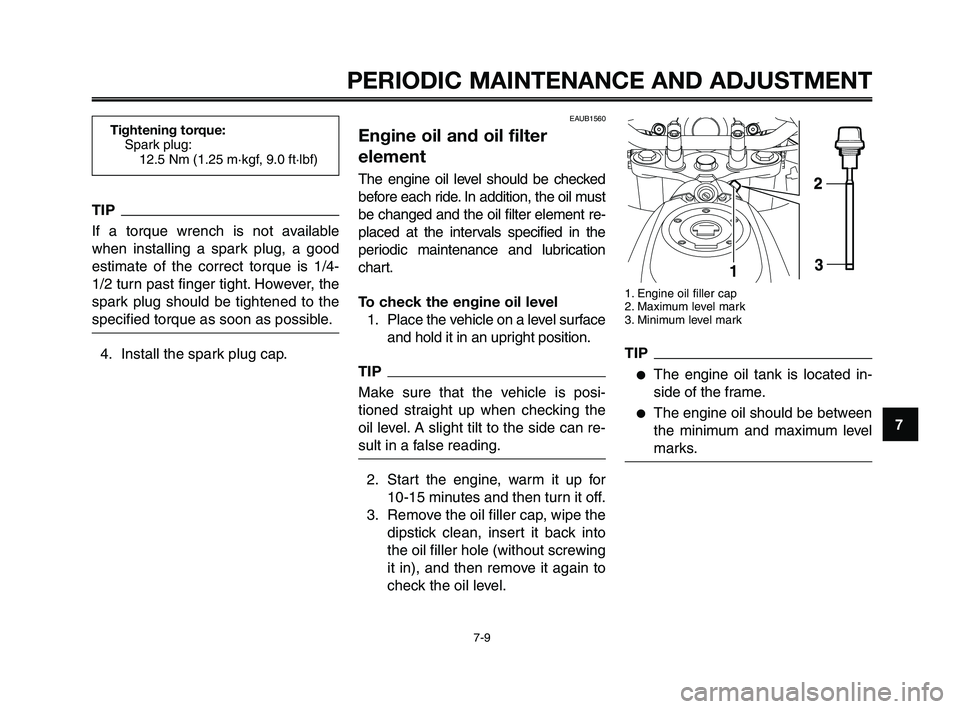

EAUB1560
Engine oil and oil filter
element
The engine oil level should be checked
before each ride. In addition, the oil must
be changed and the oil filter element re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the vehicle on a level surface
and hold it in an upright position.
TIP
Make sure that the vehicle is posi-
tioned straight up when checking the
oil level. A slight tilt to the side can re-
sult in a false reading.
2. Start the engine, warm it up for
10-15 minutes and then turn it off.
3. Remove the oil filler cap, wipe the
dipstick clean, insert it back into
the oil filler hole (without screwing
it in), and then remove it again to
check the oil level.
1. Engine oil filler cap
2. Maximum level mark
3. Minimum level mark
TIP
●The engine oil tank is located in-
side of the frame.
●The engine oil should be between
the minimum and maximum level
marks.
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4-
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
4. Install the spark plug cap.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:09 Pagina 7-9

ECAM1060CAUTION:
The engine oil tank must be filled in
2 steps. First, fill the engine oil tank
with 1.90 L (2.0 US qt) (1.67 Imp.qt)
of the recommended engine oil.
Then, start the engine, race it 5 or 6
times, turn it off, and then add the
remainder of the engine oil.
NOTE:
Be sure to wipe off spilled oil on any
parts after the engine and exhaust
system have cooled down.
ECA11620CAUTION:  In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a
higher quality than specified. In
addition, do not use oils la-
beled “ENERGY CONSERVING
II” or higher.
 Make sure that no foreign ma-
terial enters the crankcase.
14. Start the engine, and then let it idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the en-
gine off and check for the cause.
15. Turn the engine off, and then check the oil level and correct it if
necessary.
16. Install the engine guard by in- stalling the screws.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the
coolant must be changed at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
EAU20253
To check the coolant level1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.
NOTE:
The coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the coolant reservoir.
Recommended engine oil:See page 8-1.
Oil quantity: Without oil filter element
replacement:2.50 L (2.64 US qt) (2.19 Imp.qt)
With oil filter element replacement: 2.60 L (2.73 US qt) (2.26 Imp.qt)
PERIODIC MAINTENANCE AND ADJUSTMENT
7-12
7
03 ingles -australia 3/5/10 06:00 Página 54
