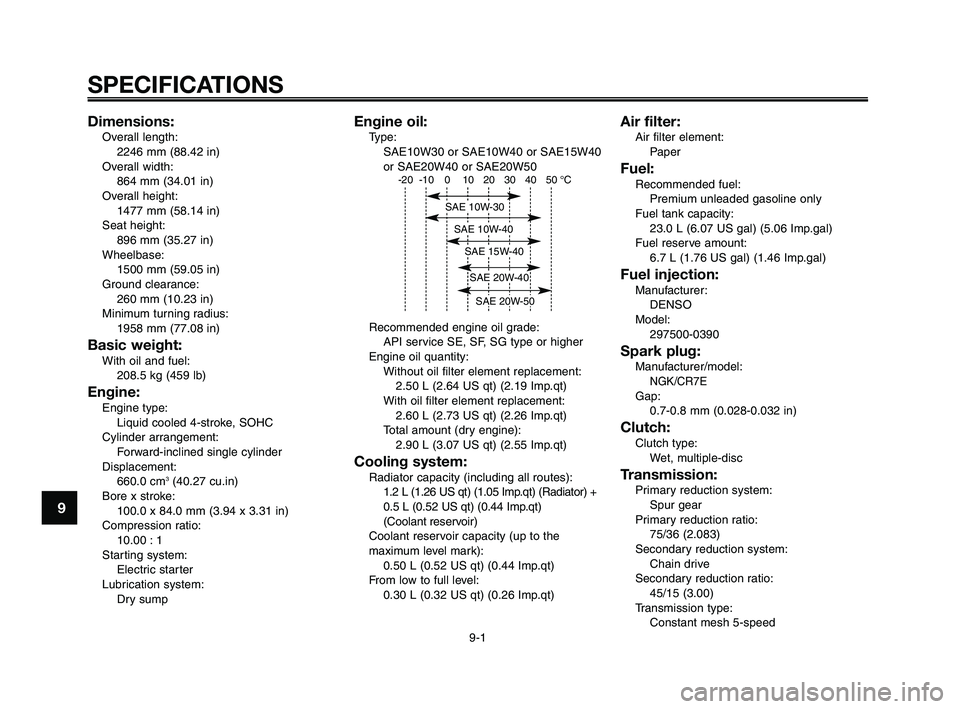

SPECIFICATIONS
9-1
1
2
3
4
5
6
7
8
9
10
Engine oil:Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter element replacement:
2.50 L (2.64 US qt) (2.19 Imp.qt)
With oil filter element replacement:
2.60 L (2.73 US qt) (2.26 Imp.qt)
Total amount (dry engine):
2.90 L (3.07 US qt) (2.55 Imp.qt)
Cooling system:Radiator capacity (including all routes):
1.2 L (1.26 US qt) (1.05 Imp.qt) (Radiator) +
0.5 L (0.52 US qt) (0.44 Imp.qt)
(Coolant reservoir)
Coolant reservoir capacity (up to the
maximum level mark):
0.50 L (0.52 US qt) (0.44 Imp.qt)
From low to full level:
0.30 L (0.32 US qt) (0.26 Imp.qt)
Air filter:Air filter element:
Paper
Fuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
23.0 L (6.07 US gal) (5.06 Imp.gal)
Fuel reserve amount:
6.7 L (1.76 US gal) (1.46 Imp.gal)
Fuel injection:Manufacturer:
DENSO
Model:
297500-0390
Spark plug:Manufacturer/model:NGK/CR7EGap:
0.7-0.8 mm (0.028-0.032 in)
Clutch:Clutch type:
Wet, multiple-disc
Transmission:Primary reduction system:
Spur gear
Primary reduction ratio:
75/36 (2.083)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
45/15 (3.00)
Transmission type:
Constant mesh 5-speed
Dimensions:Overall length:
2246 mm (88.42 in)
Overall width:
864 mm (34.01 in)
Overall height:
1477 mm (58.14 in)
Seat height:
896 mm (35.27 in)
Wheelbase:
1500 mm (59.05 in)
Ground clearance:
260 mm (10.23 in)
Minimum turning radius:
1958 mm (77.08 in)
Basic weight:With oil and fuel:
208.5 kg (459 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
660.0 cm
3(40.27 cu.in)
Bore x stroke:
100.0 x 84.0 mm (3.94 x 3.31 in)
Compression ratio:
10.00 : 1
Starting system:
Electric starter
Lubrication system:
Dry sump
-20-10 0 1020304050°C
SAE 10W-30
SAE 10W-40
SAE 20W-40
SAE 20W-50
SAE 15W-40
