YAMAHA YXZ1000R 2016 Owners Manual

8-33
8
EBU35110CoolantCheck the coolant level prior to each time you
operate the vehicle, and have a Yamaha deal-
er change the coolant every two years.
Checking the coolant level1. Park the vehicle on a level surface.
2. Remove the hood. (See page 8-10.)
3. Check the coolant level when the engine is cold (the coolant level will vary with en-
gine temperature).TIPThe coolant level in the coolant reservoir
should be between the minimum and maxi-
mum level marks.
4. If the coolant level is at or below the mini-mum level mark, remove the coolant res-
ervoir cap and add coolant to the
maximum level mark. NOTICE: If cool-
ant is not available, use distilled water
or soft tap water instead. Do not use
hard water or salt water since they are
harmful to the engine. If water has
been used instead of coolant, replace
it with coolant as soon as possible,
otherwise the cooling system will not1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1
32
U2HC7LE0.book Page 33 Wednesday, October 7, 2015 12:09 PM

8-34
8
be protected against frost and corro-
sion. If water has been added to the
coolant, have a Yamaha dealer check
the antifreeze content of the coolant
as soon as possible, otherwise the ef-
fectiveness of the coolant will be re-
duced.
[ECB01012]
5. Install the reservoir cap.
6. Install the hood when finished servicingthe vehicle.TIPThe radiator fan automatically switches on
or off according to the temperature of the
coolant in the radiator.
 If the engine overheats, see page 8-66 for
instructions.
EBU32400Axle bootsCheck the axle boots for holes or tears.
If any damage is found, have them replaced
by a Yamaha dealer.
Coolant reservoir capacity
(up to the maximum level mark):
0.31 L (0.33 US qt, 0.28 Imp.qt)
1. Front axle boot
1
1
U2HC7LE0.book Page 34 Wednesday, October 7, 2015 12:09 PM

8-35
8
EBU35121Checking the spark plugsThe spark plug is an important engine com-
ponent which should be periodically
checked, preferably by a Yamaha dealer.
Since heat and deposits will cause any spark
plug to slowly erode, the spark plugs should
be removed and checked in accordance with
the periodic maintenance chart for the emis-
sion control system. In addition, the condition
of the spark plugs can reveal the condition of
the engine.The porcelain insulator around the center
electrode of each spark plug should be a me-
dium-to-light tan color (the ideal color when
the vehicle is ridden normally), and all spark
plugs installed in the engine should have a
similar color. If any spark plug shows a dis-
tinctly different color,
the engine could be op-
erating improperly. Do not attempt to
diagnose such problems yourself. Instead,
have a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode ero-
sion and excessive carbon or other deposits,
it should be replaced.
Before installing a spark plug, the spark plug
gap should be measured with a wire thick-
ness gauge and, if necessary, adjusted to
specification.1. Rear axle boot
1
1
Specified spark plug: NGK/CR9EB
U2HC7LE0.book Page 35 Wednesday, October 7, 2015 12:09 PM

8-36
8
Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
TIPIf a torque wrench is not available when in-
stalling the spark plug, a good estimate of the
correct torque is 1/4–1/2 turn past finger tight.
However, the spark plug should be tightened
to the specified torque as soon as possible. NOTICEECB02900Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler may be damaged. The spark
plug cap may be difficult to remove be-
cause the rubber seal on the end of the cap
fits tightly. To remove the spark plug cap,
simply twist it back and forth while pulling
it out; to install it, twist it back and forth
while pushing it in.
1. Spark plug gapSpark plug gap:0.7–0.8 mm (0.028–0.031 in)
Tightening torque: Spark plug:13 Nm (1.3 m·kgf, 9.4 ft·lbf)
1
U2HC7LE0.book Page 36 Wednesday, October 7, 2015 12:09 PM

8-37
8
EBU35423Air filter maintenanceThis model is equipped with two air filter ele-
ments, a primary foam-type air filter and a
secondary paper-type air filter.
The primary air filter is easily accessed and
should be cleaned and oiled every 300–600
km (200–400 mi).
The secondary air filter is more difficult to ac-
cess, cannot be cleaned, and should be re-
placed by a Yamaha dealer every 2000–5000
km (1200–3000 mi).
TIPService the air filters more frequently when
operating in wet or dusy environments. Whenever air filter maintenance is performed:
check the air inlet for obstructions and the
air filter case for dirt and foreign matter.
 check the air filter case check hoses for dirt
or water and clean as necessary.
 check the air filter case joints and the rub-
ber joints to and from the throttle body for
proper fit and sealing.
 tighten all fittings securely to avoid the pos-
sibility of unfiltered air entering the engine.NOTICEECB02270Never operate the engine with the air filter
element removed. Doing so would allow
unfiltered air to enter, causing rapid en-
gine wear and possible engine damage.
1. Primary air filter
2. Secondary air filter
1
2
U2HC7LE0.book Page 37 Wednesday, October 7, 2015 12:09 PM

8-38
8
Additionally, the fuel injection system
would be affected, resulting in poor engine
performance and possible overheating. Clean the primary air filter as follows.1. Remove panel C (page 8-10).
2. Remove the air filter case cover by turn- ing the air filter case cover lock counter-
clockwise.TIPMake sure that the match mark on the cover
lock is aligned with the open match mark on
the air filter case cover.
3. Remove the foam air filter.1. Air filter case cover
2. Air filter case cover lock
3. Match mark
2 1
3
U2HC7LE0.book Page 38 Wednesday, October 7, 2015 12:09 PM

8-39
8
4. Remove the foam air filter element fromthe air filter frame. 5. Wash the foam material gently but thor-
oughly in parts cleaning solvent.
WARNING! Using gasoline or other flammable solvents to clean the air fil-
ter element can cause a fire or explo-
sion, which could lead to serious
injury.
[EWB03360]
6. Squeeze out the excess solvent. NOTICE: Do not twist the foam materi-
al when squeezing it.
[ECB02970]

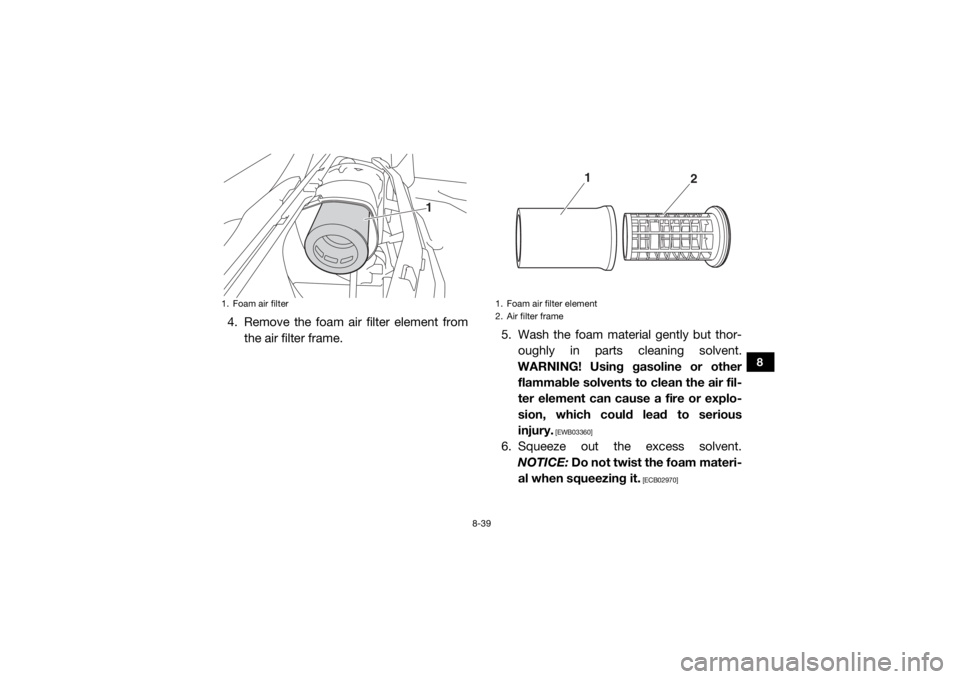

1. Foam air filter
1
1. Foam air filter element
2. Air filter frame
1
2
U2HC7LE0.book Page 39 Wednesday, October 7, 2015 12:09 PM

8-40
8
7. Wash the foam material in warm soapywater to remove remaining solvent, then
rinse thoroughly with plain warm water.
8. Squeeze out the excess water. NOTICE:
Do not twist the foam material when
squeezing it.
[ECB02970]
9. Allow the foam air filter to dry thoroughly. Inspect for wear and tear and replace if
damaged or heavily worn. 10. Thoroughly apply Yamalube foam air fil-
ter oil (or other quality liquid foam air fil-
ter—do not use a spray-type product) to
the foam material. The foam air filter ele-
ment should be wet but not dripping.
11. Pull the foam air filter element over its frame.
12. Install the air filter.
13. Install the air filter case cover and lock it
into place by turning the air filter case
cover lock clockwise.U2HC7LE0.book Page 40 Wednesday, October 7, 2015 12:09 PM

8-41
8

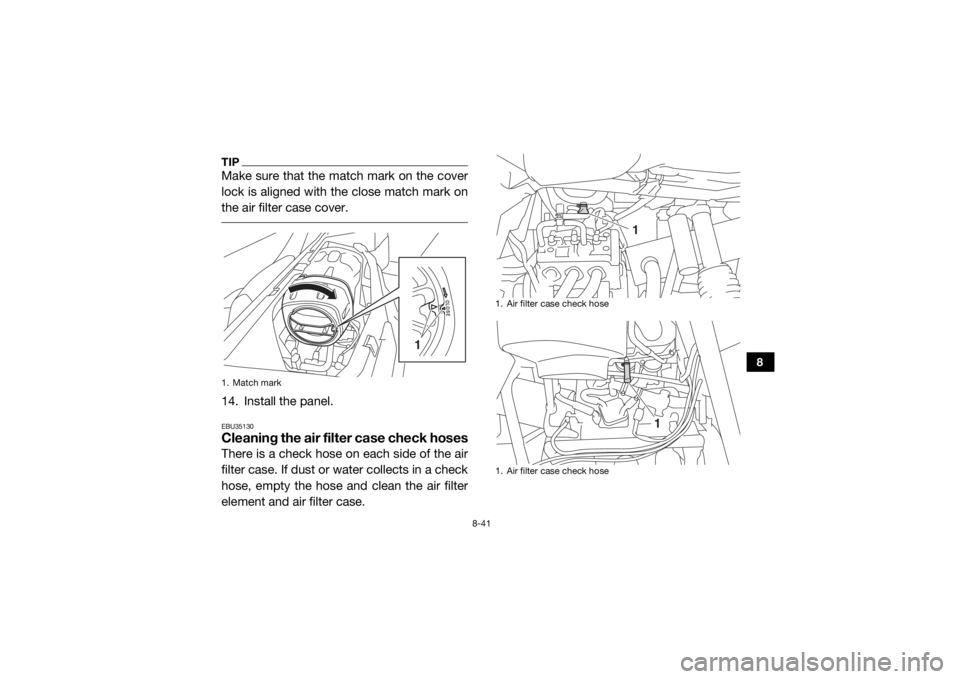

TIPMake sure that the match mark on the cover
lock is aligned with the close match mark on
the air filter case cover. 14. Install the panel.EBU35130Cleaning the air filter case check hosesThere is a check hose on each side of the air
filter case. If dust or water collects in a check
hose, empty the hose and clean the air filter
element and air filter case.1. Match mark
1
1. Air filter case check hose
1. Air filter case check hose
1
1
U2HC7LE0.book Page 41 Wednesday, October 7, 2015 12:09 PM

8-42
8
EBU35140Cleaning the spark arrester
WARNING
EWB03370Hot exhaust system may cause burns. To
avoid burns or fires, make sure that the en-
gine is stopped and the exhaust system is
cool before cleaning the spark arrester. Do
not start the engine while cleaning the ex-
haust system. 1. Remove the tailpipe cover by removingthe bolts. 2. Remove the tailpipe bolts.
3. Remove the tailpipe by pulling it out of
the muffler, and then remove the gasket.
4. Tap the tailpipe lightly, and then use a wire brush to remove any carbon depos-
its from the spark arrester portion of the
tailpipe and inside of the tailpipe housing.1. Tailpipe cover
2. Bolt
1
2
2
1. Tailpipe bolt
1
1
U2HC7LE0.book Page 42 Wednesday, October 7, 2015 12:09 PM
