EBU32590Rear knuckle upper and lower pivot lu-
brication (left and right)Lubricate the knuckle upper and lower pivots
with a grease gun.EBU35220Drive shaft universal joint lubricationLubricate the drive shaft universal joint with a
grease gun.
EBU32600Steering shaft lubricationLubricate the pivot points.
Recommended lubricant:Lithium-soap-based grease
Recommended lubricant:Lithium-soap-based grease
Recommended lubricant: Lithium-soap-based grease
U2HC7LE0.book Page 53 Wednesday, October 7, 2015 12:09 PM

8-54
8
EBU32610Wheel removal1. Loosen the wheel nuts.
2. Elevate the vehicle and place a suitablestand under the frame.
3. Remove the nuts from the wheel.
4. Remove the wheel.
EBU32620Tire replacementAlways use the same size and type of tires
recommended in this owner’s manual. The
tires that came with your Yamaha YXZ1000R
were designed to match the performance ca-
pabilities and to provide the best combination
of handling, braking, and comfort. It is best to
replace all four tires at the same time. If that is

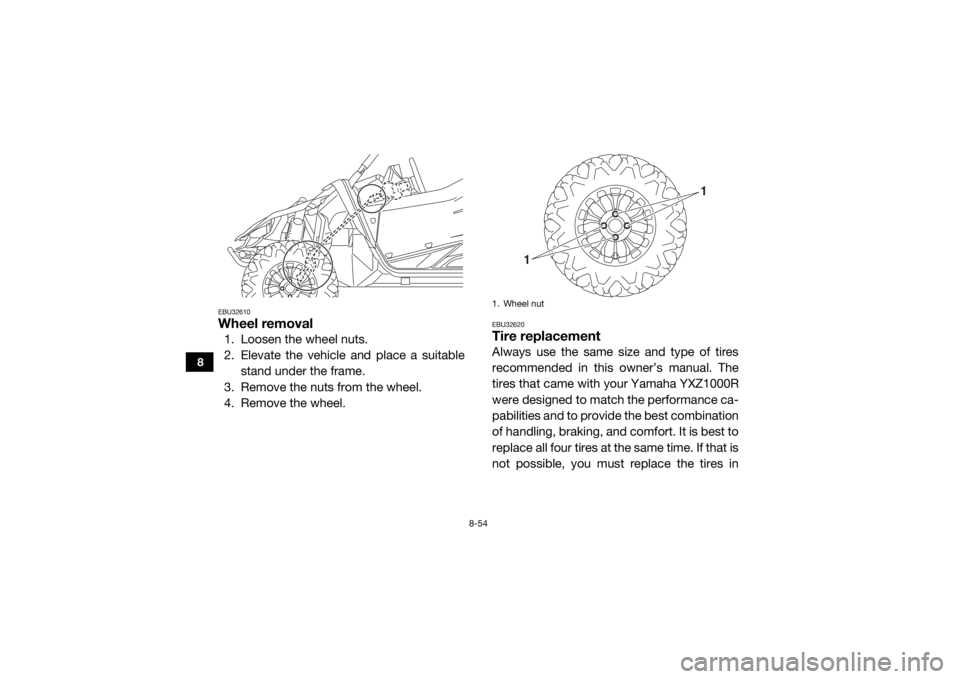

not possible, you must replace the tires in1. Wheel nut
1 1
U2HC7LE0.book Page 54 Wednesday, October 7, 2015 12:09 PM

8-55
8
pairs (front or rear) with tires of the same size
and type as the originals. Never replace just
one tire.
WARNING
EWB03390Installing improper tires on your Yamaha
YXZ1000R can affect handling and stabili-
ty. This can cause a loss of control. The tires listed below have been approved by
Yamaha Motor Manufacturing Corporation of
America for this model.
EBU33090Wheel installation1. Install the wheel and the nuts.
2. Lower the vehicle so that the wheel is on the ground.
3. Tighten the wheel nuts in a crisscross pattern to the specified torque.
WARNING
EWB03400Do not reverse the rims on your Yamaha
YXZ1000R to widen the track width. In-
stalling wheels improperly increases the
risk of wheel failure and accidents. EBU35230BatteryThe battery is located under panel A. (See
page 8-10.)
Front tire:Size:27 x 9.00R-14NHS
Manufacturer/model: MAXXIS/MU09
Rear tire: Size:27 x 11.00R-14NHS
Manufacturer/model: MAXXIS/MU10
Tightening torques: Front wheel nut:75 Nm (7.5 m·kgf, 54 ft·lbf)
Rear wheel nut: 75 Nm (7.5 m·kgf, 54 ft·lbf)
U2HC7LE0.book Page 55 Wednesday, October 7, 2015 12:09 PM

8-56
8
This model is equipped with a VRLA (Valve
Regulated Lead Acid) battery. There is no
need to check the electrolyte or to add dis-
tilled water. However, the battery lead con-
nections need to be checked and, if
necessary, tightened.
WARNING
EWB03410Avoid battery contact with skin, eyes, or
clothing. Shield eyes when working near
batteries. Keep out of reach of children.
You could be poisoned or severely burned
by the sulfuric acid in battery electrolyte. In
case of accidental contact with battery
electrolyte:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Get prompt
medical attention.
EYES: Flush with water for 15 minutes and
get prompt medical attention.
WARNING
EWB03420Batteries may produce explosive gases.
Ventilate when charging or using in a
closed space. Keep batteries away from
sparks, flames, cigarettes, or other sourc-
es of ignition. To remove the battery
1. Turn the key to “ ” (off).
2. Remove panel A. (See page 8-10.)
3. Remove the battery holding plate by re- moving the bolts.
U2HC7LE0.book Page 56 Wednesday, October 7, 2015 12:09 PM

8-57
8
4. Disconnect the negative battery lead first,then the positive battery lead by remov-
ing their bolt. NOTICE: When removing
the battery, the main switch must be
off, and the negative lead must be dis-
connected before the positive lead.
[ECB01002]
5. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as
soon as possible if it seems to have dis-
charged. Keep in mind that the battery tends
to discharge more quickly if the vehicle is
equipped with optional electrical accessories.

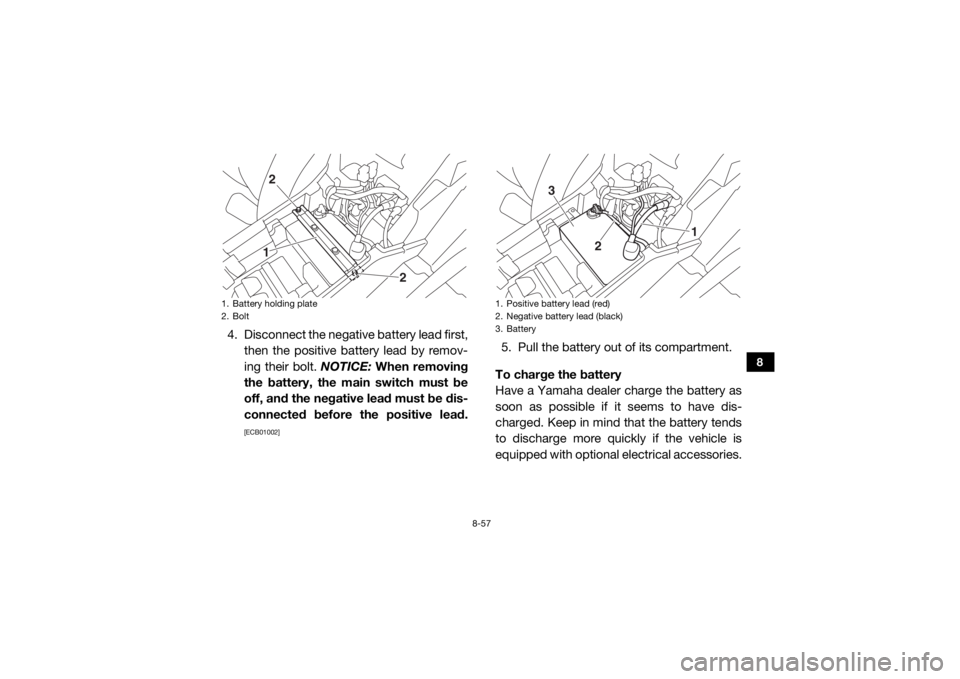

1. Battery holding plate
2. Bolt
1 2
2

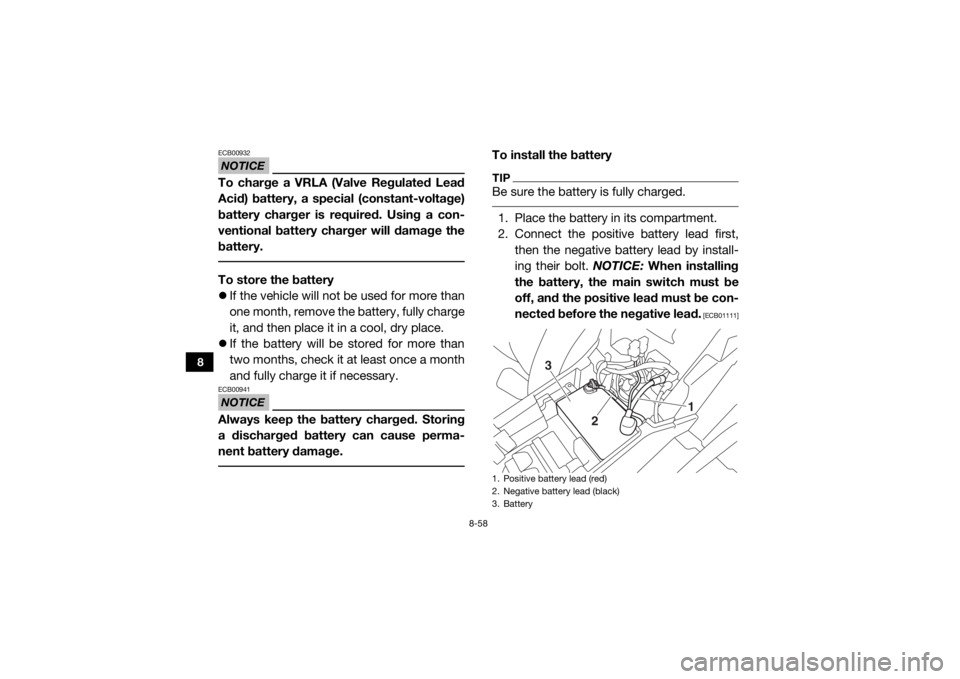

1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery
1
2
3
U2HC7LE0.book Page 57 Wednesday, October 7, 2015 12:09 PM

8-58
8
NOTICEECB00932To charge a VRLA (Valve Regulated Lead
Acid) battery, a special (constant-voltage)
battery charger is required. Using a con-
ventional battery charger will damage the
battery. To store the battery
If the vehicle will not be used for more than
one month, remove the battery, fully charge
it, and then place it in a cool, dry place.
 If the battery will be stored for more than
two months, check it at least once a month
and fully charge it if necessary.NOTICEECB00941Always keep the battery charged. Storing
a discharged battery can cause perma-
nent battery damage.
To install the batteryTIPBe sure the battery is fully charged. 1. Place the battery in its compartment.
2. Connect the positive battery lead first,
then the negative battery lead by install-
ing their bolt. NOTICE: When installing
the battery, the main switch must be
off, and the positive lead must be con-
nected before the negative lead.
[ECB01111]
1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery
1
2
3
U2HC7LE0.book Page 58 Wednesday, October 7, 2015 12:09 PM

8-59
8
3. Install the battery holding plate by install-
ing the bolts.
4. Install the panel.EBU35243Jump-startingJump-starting the vehicle should be avoided.
The battery should be removed and charged
instead.
WARNING
EWB03430To avoid battery explosion and/or serious
damage to the electrical system:
 Do not connect the negative lead of the
jumper cable to the negative terminal of
the battery.
 Do not touch the positive lead of the
jumper cable to the negative lead.
 Do not reverse the polarity of the jumper
cables when connecting to the batteries. However, if the vehicle must be jump-started,
proceed as follows.
1. Turn the key to “ ” (off). 2. Remove panel A. (See page 8-10.)
3. Remove the passenger seat cushion.
(See page 4-20.)
4. Using a charged 12-volt battery, connect the positive lead of the jumper cable to
the positive terminal of the battery in the
YXZ1000R and the other end of the pos-
itive lead to the positive terminal of the
charged battery.
5. Connect the negative lead of the jumper cable to the negative terminal of the
charged battery and the other end of the
1. Jumper cable positive lead
1
U2HC7LE0.book Page 59 Wednesday, October 7, 2015 12:09 PM

8-60
8
negative lead to an unpainted metal sur-
face of the passenger seat frame near the
center console in the YXZ1000R.
6. Start the engine. (Refer to “Starting the engine” on page 6-2.)
7. After the engine starts, disconnect the
negative lead of the jumper cable from
the seat frame and charged battery, and
then disconnect the positive lead of the
jumper cable from the charged battery
and the battery in the YXZ1000R.
8. Install the seat cushion and the panel.
EBU35250Fuse replacementThe main fuse, the fuel injection system fuse,
the EPS fuse, and the fuse box are located
under panel A. (See page 8-10.)
1. Jumper cable negative lead
1
1. Main fuse
2. EPS fuse
3. Fuse box
4. Fuel injection system fuse
5. Fuel injection system spare fuse
1 2
3
4
5
U2HC7LE0.book Page 60 Wednesday, October 7, 2015 12:09 PM

8-61
8
If a fuse is blown, replace it as follows.1. Turn the key to “ ” (off) and turn off the
electrical circuit in question.
NOTICEECB00641To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse. 2. Remove panel A. (See page 8-10.)
3. Remove the blown fuse, and then install anew fuse of the specified amperage.
WARNING! Always use a fuse of the specified amperage. Never use any
material in place of the proper fuse.
Using an improper fuse can cause
damage to the electrical system and
may lead to a fire.
[EWB03440]
1. Headlight fuse “HEAD”
2. Signaling system fuse “SIGNAL”
3. Four-wheel-drive motor fuse “DIFF”
4. Backup fuse “BACK UP” (for clock)
5. Ignition fuse “IGNITION”
6. Radiator fan motor fuse “FAN”
7. Spare fuse
8. Auxiliary DC jack fuse “TERMINAL”
1 234
5
6
7
8
U2HC7LE0.book Page 61 Wednesday, October 7, 2015 12:09 PM

8-62
8
4. Turn the key to “ ” (on) and turn on theelectrical circuit in question to check if
the device operates. If the fuse blows
again immediately, have a Yamaha dealer
check the electrical system.
5. Install the panel.EBU35261HeadlightsThis model is equipped with LED headlights.
There are no user replaceable bulbs. If one or
more headlights do not come on, check for a
loose connection, check the headlight fuse,
and then have a Yamaha dealer check the ve-
hicle.TIP When the headlights are set to low beam,
only the top half of each lamp will illuminate.
 When the headlights are set to high beam,
both halves of each lamp will illuminate.
Specified fuses:
Main fuse:40.0 A
Fuel injection system fuse: 15.0 A
Headlight fuse: 15.0 A
Ignition fuse: 15.0 A
Auxiliary DC jack fuse: 10.0 A
Signaling system fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Radiator fan motor fuse: 30.0 A
Backup fuse: 10.0 A
EPS fuse: 40.0 A
