YAMAHA YXZ1000R 2016 Owners Manual

8-43
8
5. Install the gasket, and then insert the tail-pipe into the muffler and align the bolt
holes.
6. Install the tailpipe bolts and tighten them
to the specified torque.
7. Install the tailpipe cover. 8. Install the bolts and tighten them to the
specified torque.
EBU32460Valve clearanceThe correct valve clearance changes with
use, resulting in improper fuel/air supply or
engine noise. To prevent this, the valve clear-
ance must be adjusted regularly. This adjust-
ment however, should be left to a
professional Yamaha service technician.EBU32470BrakesReplacement of brake components requires
professional knowledge. Brake service
should be performed by a Yamaha dealer.
1. Gasket
2. Spark arrester
3. TailpipeTightening torque:Tailpipe bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
2
1
3
Tightening torque:
Tailpipe cover bolt:8 Nm (0.8 m·kgf, 5.8 ft·lbf)
U2HC7LE0.book Page 43 Wednesday, October 7, 2015 12:09 PM

8-44
8
WARNING
EWB02572Operating with improperly serviced or ad-
justed brakes could lead to a loss in brak-
ing ability and an accident. EBU35150Checking the front and rear brake padsCheck each brake pad for damage and mea-
sure the lining thickness. If a brake pad is
damaged or if the lining thickness is less than
1.0 mm (0.04 in), have a Yamaha dealer re-
place the brake pads as a set.
The wheels need to be removed to check the
brake pads. (See pages 8-54, 8-55 for wheel
removal and installation procedures.)
EBU32490Checking the parking brake padsEach brake pad is provided with a wear indi-
cator groove, which allows you to check the
brake pad wear without having to disassem-
ble the brake. If a brake pad has worn to the
point that the wear indicator groove has al-
most disappeared, have a Yamaha dealer re-
place the brake pads as a set.1. Lining thickness
1
U2HC7LE0.book Page 44 Wednesday, October 7, 2015 12:09 PM

8-45
8
EBU35160Checking the brake and clutch fluid
levelsBefore starting off, check that the brake and
clutch fluids are above the minimum level
marks. Replenish the brake and clutch fluids
if necessary.
TIPThe brake and clutch fluid reservoirs are lo-
cated under the hood (page 8-10).
 For an accurate reading, make sure the ve-
hicle is parked on a level surface.
1. Parking brake pad wear indicator groove
1
1. Brake fluid reservoir
2. Clutch fluid reservoir
3. Minimum level markSpecified fluid for brake and clutch systems:
DOT 4 brake fluid
3
3 12
U2HC7LE0.book Page 45 Wednesday, October 7, 2015 12:09 PM

8-46
8
WARNING
EWB03910Improper maintenance can result in loss of
braking ability or clutch operation. Ob-
serve these precautions:
 Insufficient brake or clutch fluid may al-
low air to enter the brake or clutch sys-
tem, reducing braking or clutch
performance.
 Clean the filler caps before removing.
Use only DOT 4 brake fluid from a sealed
container.
 Use only the specified brake fluid; other-
wise, the rubber seals may deteriorate,
causing leakage.
 Refill with the same type of brake fluid.
Adding a brake fluid other than DOT 4
may result in a harmful chemical reac-
tion. 
Be careful that water or dust does not
enter the brake or clutch fluid reservoir
when refilling. Water will significantly
lower the boiling point of the fluid and
may result in vapor lock.
NOTICEECB01161Brake fluid may damage painted surfaces
or plastic parts. Always clean up spilled
fluid immediately. As the brake pads wear, it is normal for the
brake fluid level to gradually go down. A low
brake fluid level may indicate worn brake
pads or brake system leakage; therefore, be
sure to check the brake pads for wear and the
brake system for leakage. A low clutch fluid
level may indicate clutch system leakage;
therefore, be sure to check the clutch system
for leakage. If the brake or clutch fluid level
goes down suddenly, have a Yamaha dealer
check and repair the vehicle before any fur-
ther operation.
U2HC7LE0.book Page 46 Wednesday, October 7, 2015 12:09 PM

8-47
8
EBU35170Brake and clutch fluid replacementComplete fluid replacement should be done
only by trained Yamaha service personnel.
Have a Yamaha dealer replace the following
components during periodic maintenance or
when they are damaged or leaking.
 Replace the oil seals every two years.
 Replace the brake and clutch hoses every
four years.EBU35181Checking the clutch pedalThe clutch pedal should operate smoothly
and spring back to position when released.
When depressed, it should offer resistance
before reaching the floorboard. If the pedal
offers little resistance when depressed, or if
the transmission grinds gears when shifting,
have a Yamaha dealer check the vehicle.
TIPDon’t forget to have your Yamaha dealer
check the clutch and transmission as a whole
at the intervals specified in the general main-
tenance and lubrication chart. EBU32530Checking the brake pedalHave a Yamaha dealer check the brakes at
the intervals specified in the periodic mainte-
nance and lubrication chart. There should be1. Clutch pedal
2. No clutch pedal free play
1
2
U2HC7LE0.book Page 47 Wednesday, October 7, 2015 12:09 PM

8-48
8
no free play in the brake pedal. The brakes
should operate smoothly and there should be
no brake drag. If the brakes feel soft or
spongy, this could indicate air in the brake
system. Have a Yamaha dealer check the
brake system if necessary.
EBU35820Checking the accelerator pedalThe accelerator pedal should operate
smoothly and spring back to position when
released. If the pedal free play is out of spec-
ification, have a Yamaha dealer adjust or re-
place the throttle wire.
1. Brake pedal
2. No brake pedal free play
1
2
Accelerator pedal free play:10.0-25.0 mm (0.39-0.98 in)1. Accelerator pedal
2. Accelerator pedal free play
2
1
U2HC7LE0.book Page 48 Wednesday, October 7, 2015 12:09 PM

8-49
8
EBU35191Parking brake lever free play adjust-
mentPeriodically check the parking brake lever
free play and adjust it if necessary.1. Shift the transmission into first gear.
2. Check the parking brake lever free play. The maximum free play is equal to one
click of the parking brake lever. If neces-
sary, adjust the free play as follows.
3. Remove panel B. (See page 8-10.)
4. Release the parking brake lever. 5. Slide the rubber cover back on the park-
ing brake cable.
6. Loosen the locknut.
7. Turn the adjusting nut in direction (a) to increase the free play or in direction (b) to
decrease the free play.
8. Tighten the locknut, and then slide the
rubber cover to its original position.
9. Install the panel.1. Parking brake lever free play
1
1. Rubber cover
2. Adjusting nut
3. Locknut
1
(b)
(a)
3
2
U2HC7LE0.book Page 49 Wednesday, October 7, 2015 12:09 PM

8-50
8
EBU32550Brake light switch adjustmentThe brake light switch, which is activated by
the brake pedal, is properly adjusted when
the brake light comes on just before braking
takes effect. If necessary, adjust the brake
light switch as follows.
Turn the adjusting nut while holding the brake
light switch in place. To make the brake light
come on earlier, turn the adjusting nut in di-
rection (a). To make the brake light come on
later, turn the adjusting nut in direction (b).
EBU35930Cable inspection and lubrication
WARNING
EWB03380Damaged cables could restrict operation,
which may cause an accident or injury. In-
spect control cables frequently and re-
place damaged cables. Corrosion can
result when the outer covering of control
cables becomes damaged. Cables can
also become frayed or kinked. Lubricate the cable ends. If the cables do not
operate smoothly, ask a Yamaha dealer to re-
place them.
1. Brake light switch
2. Adjusting nut
1
2
(b) (a)
Recommended lubricant:
Yamalube LubezAll (synthetic lubricant
spray with PTFE)
U2HC7LE0.book Page 50 Wednesday, October 7, 2015 12:09 PM

8-51
8
EBU35200Pedal lubricationThe pivoting parts of the brake, clutch, and
accelerator pedals should be lubricated peri-
odically to prevent rust and ensure smooth
operation.

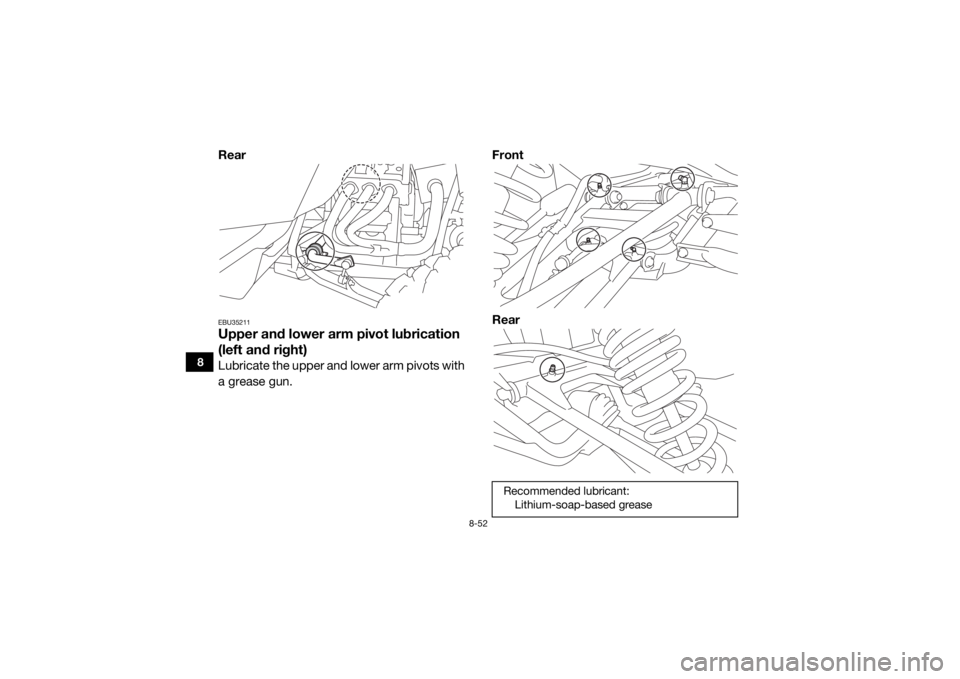

EBU32582Checking the stabilizer bushesThe stabilizer bushes must be checked for
cracks or damage at the intervals specified in
the periodic maintenance and lubrication
chart.
Have a Yamaha dealer replace the stabilizer
bushes if necessary.
Front
Recommended lubricant: Lithium-soap-based grease
U2HC7LE0.book Page 51 Wednesday, October 7, 2015 12:09 PM

8-52
8
RearEBU35211Upper and lower arm pivot lubrication
(left and right)Lubricate the upper and lower arm pivots with
a grease gun.Front
Rear
Recommended lubricant:
Lithium-soap-based grease
U2HC7LE0.book Page 52 Wednesday, October 7, 2015 12:09 PM
