YAMAHA YXZ1000R 2016 Owner's Manual

1-12
1
YAMAHA2MB-F1568-10
AVERTISSEMENT
PILOTE DEPILOTE DEMOINS DEMOINS DE1616PILOTE DE
MOINS DE16
Lire le Manuel du propriétaire.
Lire le Guide de conseils à l’intention du conducteur du véhicule récréatif hors route. Suivre toutes les directives et tous les avertissements.L’utilisation négligente d’un véhicule hors route
peut causer de graves blessures, voire la mort.
Les roulades ont déjà causé des
blessures graves et la mort, même
sur terrain plat et sans obstacles.
Utilisation vigilante du véhicule
Faire sa part pour prévenir les blessures : Ne pas permettre la conduite acrobatique ou imprudente.

S’assurer que le conducteur est âgé d’au moins 16 ans
et qu’il est titulaire d’un permis de conduire valide.

Ne permettre à personne de conduire le véhicule ou
d’y prendre place après avoir consommé alcool ou drogues.

Ne pas permettre la conduite du véhicule sur les chemins
publics (à moins que les véhicules hors route y soient
autorisés) – les collisions avec voitures et camions arrivent en un clin d’œil.

Ne pas dépasser le nombre de places disponibles : 1 passager.
Être préparé
Attacher la ceinture de sécurité.Porter un casque homologué, une protection pour les yeux et une tenue de protection.Le conducteur doit pouvoir rejoindre aisément toutes les commandes alors qu’il est en
position assise, son dos contre le dossier du siège.Les occupants doivent pouvoir rejoindre la poignée de maintien centrale alors que leurs
pieds reposent à plat sur le plancher et qu’ils sont assis le dos \
contre le dossier du siège.Demeurer entièrement dans l’habitacle du véhicule.
Conduire de façon responsable
Prévenir la perte de contrôle ou les roulades :
Éviter les manœuvres subites, glissements latéraux,
dérapages, queues de poisson et
zigzags; ne jamais tenter d’acrobaties.

Ralentir avant d’entamer un virage.

Éviter d’accélérer brusquement dans les virages,
même à partir de l’arrêt.

Être prêt pour pentes, terrains inhospitaliers,
ornières, aspérités du terrain et autres facteurs
réduisant la traction. Éviter les surfaces asphaltées.

Ne pas conduire sur le flanc des pentes.

Ne permettre à personne de prendre place dans la caisse de chargement.

Être prévoyant, être prêt
Si une roulade ou un capotage semble imminent, réduire le risque de blessures :Agripper fermement le volant ou la poignée de maintien et se préparer à encaisser le c\
hoc.
Ne mettre aucune partie du corps hors du véhicule, pour quelque raison que ce soit.
23
U2HC7LE0.book Page 12 Wednesday, October 7, 2015 12:09 PM

1-13
1

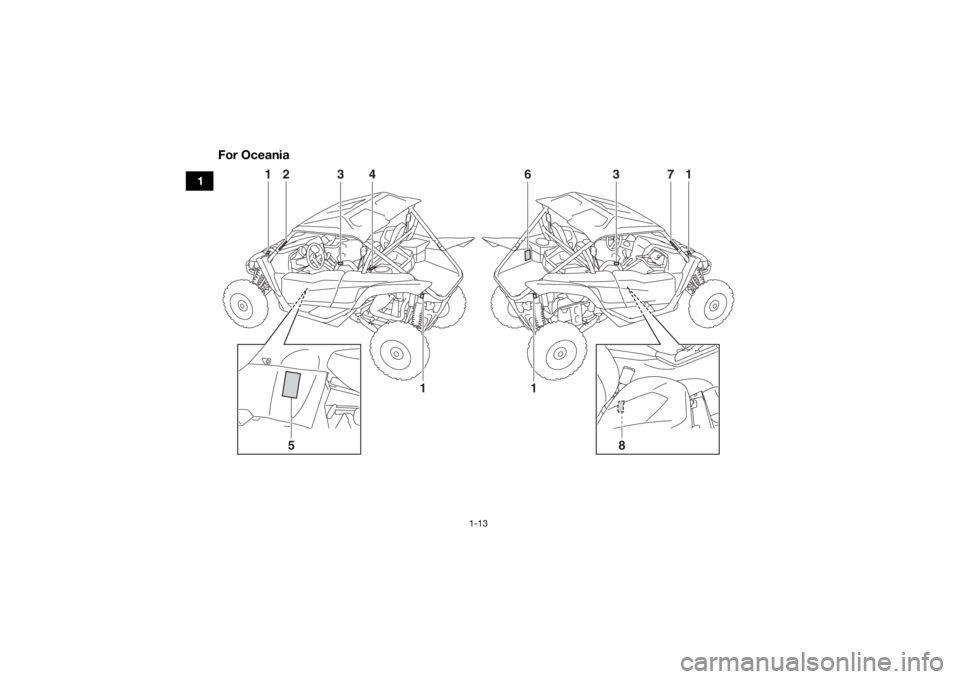

For Oceania
1
2
3
4
1
1
7
3
61
5
8
U2HC7LE0.book Page 13 Wednesday, October 7, 2015 12:09 PM

1-14
1
10
911
U2HC7LE0.book Page 14 Wednesday, October 7, 2015 12:09 PM

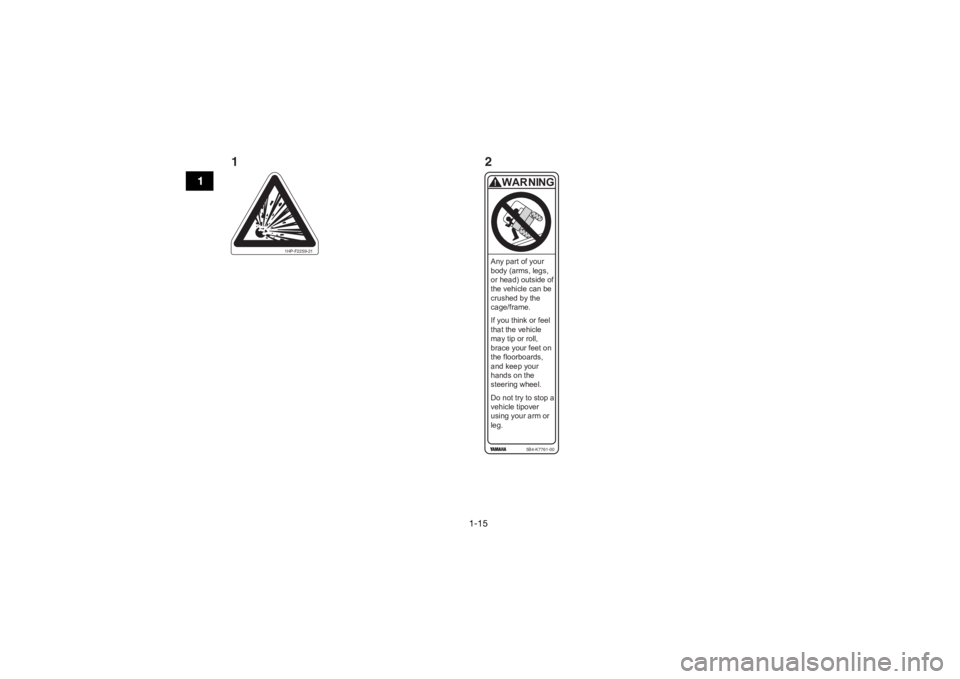

1-15
1
Any part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on
the floorboards,
and keep your
hands on the
steering wheel.
Do not try to stop a
vehicle tipover
using your arm or
leg.
5B4-K7761-00
WARNING!
1HP-F2259-21
2
1
U2HC7LE0.book Page 15 Wednesday, October 7, 2015 12:09 PM

1-16
1

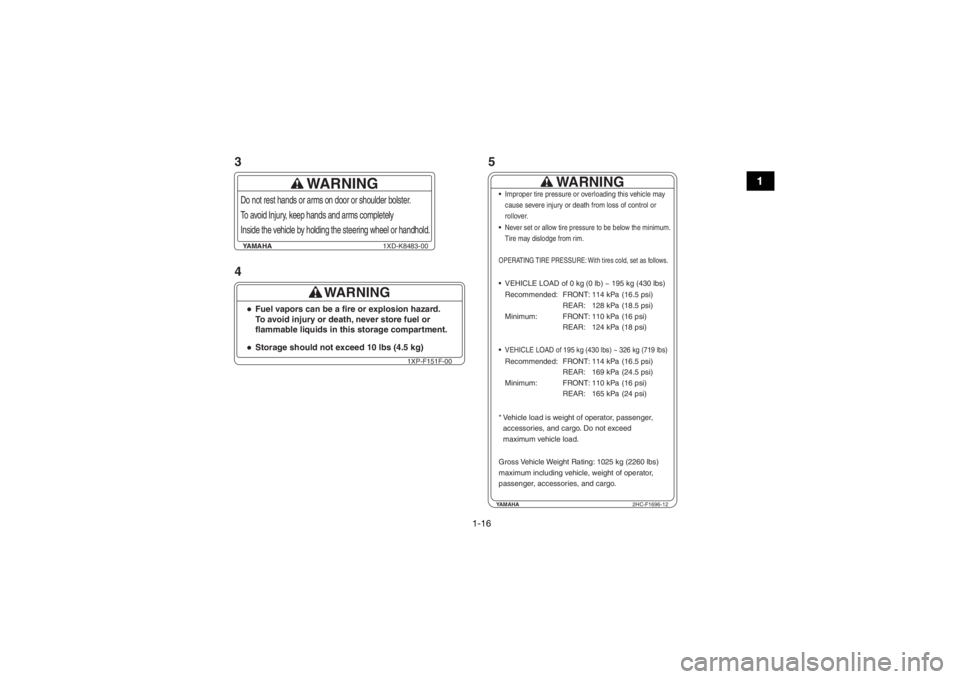

YAMAHA1XD-K8483-00
WARNING
Do not rest hands or arms on door or shoulder bolster.
To avoid Injury, keep hands and arms completely
Inside the vehicle by holding the steering wheel or handhold.
WARNING
Storage should not exceed 10 lbs (4.5 kg)Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this storage compartment.
1XP-F151F-00
YAMAHA 2HC-F1696-12
WARNING
Improper tire pressure or overloading this vehicle may
cause severe injury or death from loss of control or
rollover.Never set or allow tire pressure to be below the minimum.
Tire may dislodge from rim. VEHICLE LOAD of 0 kg (0 lb) ~ 195 kg (430 lbs)
Recommended: FRONT: REAR:
Minimum: FRONT: REAR:114 kPa
128 kPa
110 kPa
124 kPa
VEHICLE LOAD of 195 kg (430 lbs) ~ 326 kg (719 lbs)Recommended: FRONT: REAR:
Minimum: FRONT: REAR:114 kPa
169 kPa
110 kPa
165 kPa (16.5 psi)
(18.5 psi)
(16 psi)
(18 psi)
(16.5 psi)
(24.5 psi)
(16 psi)
(24 psi)
* Vehicle load is weight of operator, passenger, accessories, and cargo. Do not exceed
maximum vehicle load.
Gross Vehicle Weight Rating: 1025 kg (2260 lbs)
maximum including vehicle, weight of operator,
passenger, accessories, and cargo.OPERATING TIRE PRESSURE: With tires cold, set as follows.
3
4 5
U2HC7LE0.book Page 16 Wednesday, October 7, 2015 12:09 PM

1-17
1
YAMAHA2HC-F4897-02
WARNING
Load may affect handling and stability.
Do not exceed the maximum load ratings for thecargo bed, or vehicle.
When loaded with cargo: Reduce speed and allow more room to stop.
Turn gradually and slowly.
Avoid hills and rough terrain. Secure cargo so that it will not shift - a loose loadcould change handling unexpectedly or be thrown
forward and strike occupants.
Keep weight in the cargo bed centered side to side and as low as possible. Top-heavy loads increase the risk of a
rollover.
Read Owner’s Manual before loading cargo bed. Improper use of cargo bed or
cage/frame can result
in severe injury or
death from loss of
control, overturn or
other accidents.
Maximum Load in Cargo Bed: 300 lbs (136 kg)
Maximum Vehicle Load: 719 lbs (326 kg) Never carry
passengers
in cargo bed.
Any part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on
the floorboards,
and keep your
hands on the
handholds.
Do not try to stop a
vehicle tipover
using your arm or
leg.
5B4-K7762-00
WARNING!
WARNING
AVERTISSEMENT
Moving parts can crush
and cut.
Do not operate engine
with guard removed.
2HC-77762-00
Les pièces mobiles
peuvent entrainer des
coupures et des blessures
par écrasement.
Ne pas faire fonctionner le
moteur si le carter de
protection est déposé.
78
6
U2HC7LE0.book Page 17 Wednesday, October 7, 2015 12:09 PM

1-18
1
YAMAHA2MB-F1568-00
WARNING
DRIVERDRIVERUNDERUNDER1616DRIVER
UNDER16
Improper Use of Off-Highway Vehicle Can Cause Severe Injury or Death
Read Owner’s Manual
Read Tips Guide for the Recreational Off-Highway Vehicle Driver Follow All Instruction and Warnings
Be Prepared
Drive Responsibly
If you think or feel the vehicle may tip or roll,
reduce your risk to injury: Pay Attention and Plan Ahead
Do not allow careless or reckless driving.
Do your part to prevent injuries: Require Proper Use of Your Vehicle
Rollovers have caused
severe injuries and death,
even on flat, open areas.
Stay completely inside the vehicle.
Passenger must be able to reach the handhold while
keeping feet flat on floor and sitting upright with
back against seat.
Driver must be able to comfortably reach all controls
while sitting upright with back against seat.
Wear an approved helmet, eye protection and protective gear.
Fasten seat belts.

Do not allow anyone to ride in the cargo bed.
Avoid side hilling (riding across slopes).
Plan for hills, rough terrain, ruts, and other changes
in traction and terrain. Avoid paved surfaces.
Avoid hard acceleration when turning, even from a stop.
Slow down before entering a turn.
Avoid abrupt maneuvers, sideways sliding, skidding,
or fishtailing, and never do donuts.
Avoid loss of control and rollovers: Do not put any part of your body outside of
the vehicle for any reason.
Keep a firm grip on the steering wheel
or handhold and brace yourself.

Do not exceed seating capacity: 1 passenger.
Do not allow operation on public roads
(unless designated for off-highway vehicle access)
— collisions with cars and trucks can occur.
Do not let people drive or ride
after using alcohol or drugs.
Make sure operators are 16 or older
with valid driver’s license.

1XD-F8446-00
Be Prepared
Adjust, lock and never remove handhold.
Always use handhold, Never hold cage.
Always wear seatbelt and helmet.
Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.HandsInside vehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.
9
10
11
U2HC7LE0.book Page 18 Wednesday, October 7, 2015 12:09 PM

2-1
2
EBU31150
SAFETY INFORMATION
SAFETY INFORMATION
EBU35581Be a responsible owner
As the vehicle’s owner, you are responsible for the safe and proper operation of your Yamaha
YXZ1000R. While understanding all parts of this manual are important for vehicle ownership, be
sure to read this chapter an d the instructions in Chapter 7 before operating your Yamaha
YXZ1000R. Also use these two chapters and the labels on the vehicle to instruct new operators
and passengers. Do not allow anyone else to operate your vehicle or ride as a passenger if you
are unsure whether he or she is willing and able to follow these instructions.
Get to know your vehicle
This off-road vehicle will handle and maneuver differently from cars, ATVs, go-carts, golf-cars
and grounds-keeping vehicles. Follow these instructions to reduce your risk of an accident and
to reduce the risk of serious injury or death in the event of an accident.U2HC7LE0.book Page 1 Wednesday, October 7, 2015 12:09 PM

2-2
2
Before you operate your Yamaha YXZ1000R
 Prepare yourself and your passenger:
• This vehicle is intended for use only by an op erator 16 or older with a valid motor vehicle li-
cense. Check country laws fo r minimum age requirements.
• This vehicle is designed to carry the driver and one passenger. Never carry passengers in the cargo bed.
• Both driver and passenger shou ld wear seat belts properly.
• Both driver and passenger must be able to put both feet flat on the floorboard while seated
upright with their backs against the backrests. Passenger must be able to reach and hold
the passenger handhold in front of them.
• Both driver and passenger should wear an appr oved motorcycle helmet that fits properly.
Both driver and passenger should also wear eye protection (goggles or a face shield), gloves,
over-the-ankle boots, long-sleeved shirt or jacket, and long pants.
DRIVER
UNDER
16
U2HC7LE0.book Page 2 Wednesday, October 7, 2015 12:09 PM

2-3
2
• Do not drive or ride as passenger after using drugs or alcohol.
Prepare your vehicle
Perform the pre-operation checks each time you use the vehicle to make sure it is in safe oper-
ating condition. Failure to inspect or maintain th e vehicle properly increases the possibility of an
accident or equipment damage. See page 5-1 for a list of pre-operation checks.
Prepare your load
Carrying heavy or over-sized loads can affect hand ling, stability, and cause the risk of overturns
or other accidents.
 Read “Loading” on page 6-9 before loading the cargo bed.
 Do not overload the vehicle or cargo bed.
 Refer to the labels on the vehicle for specific loading limits and recommended tire air pressure.
 Keep heavier objects and the load in general cent ered side to side, and as low and as far for-
ward in the cargo bed as possible.
 Secure cargo so that it will not shift – a loose load could change handling unexpectedly or be
thrown forward and strike occupants.
 This vehicle is not designed to tow or pull objects. Towing a trailer or pulling another vehicle or
other object will affect handling, stability, an d increase the risk of overturns and accidents.
Towing or pulling can also cause frame and vehicle damage.
U2HC7LE0.book Page 3 Wednesday, October 7, 2015 12:09 PM
