TIPAdjust the steering wheel position before
starting off. EBU33470Seat beltsThis vehicle is equipped with three-point seat
belts for the driver and passenger. Always
wear the seat belts properly while riding in the
vehicle. See page 7-5 for more information.
EBU31501Glove compartmentThis vehicle is equipped with a glove com-
partment.
When storing any documents in the glove
compartment, be sure to wrap them in a plas-
tic bag so that they will not get wet. When
washing the vehicle, be careful not to let any
water enter the glove compartment.

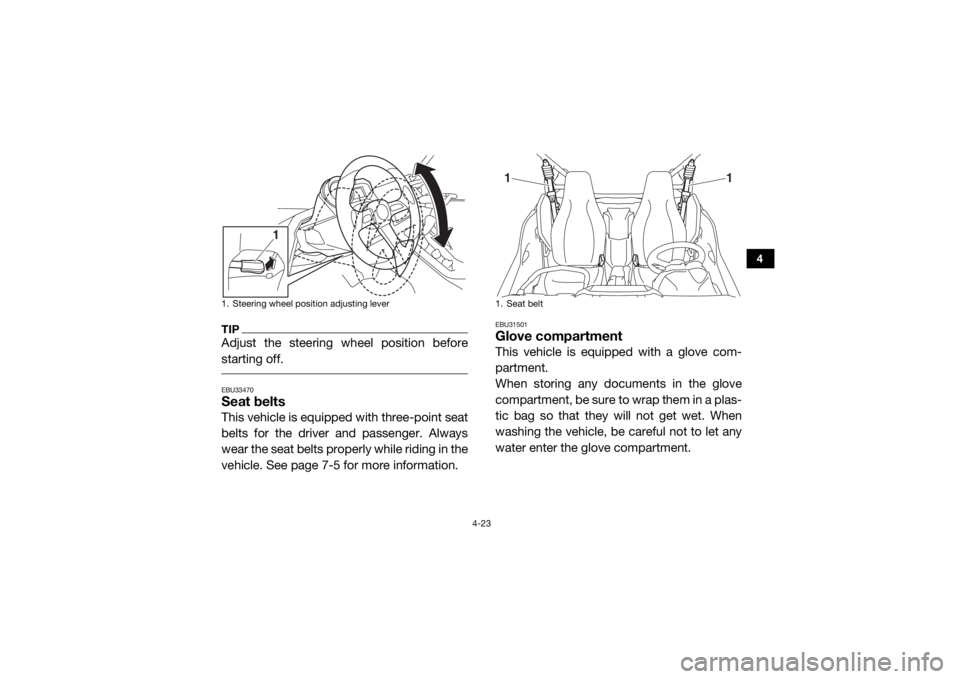

1. Steering wheel position adjusting lever
1
1. Seat belt
1
1
U2HC7LE0.book Page 23 Wednesday, October 7, 2015 12:09 PM

4-24
4
NOTICEECB02071To protect from damage, do not put metal
items, like tools, or sharply edged items di-
rectly in the glove compartment. If they
must be stored, wrap them in appropriate
cushioning material.

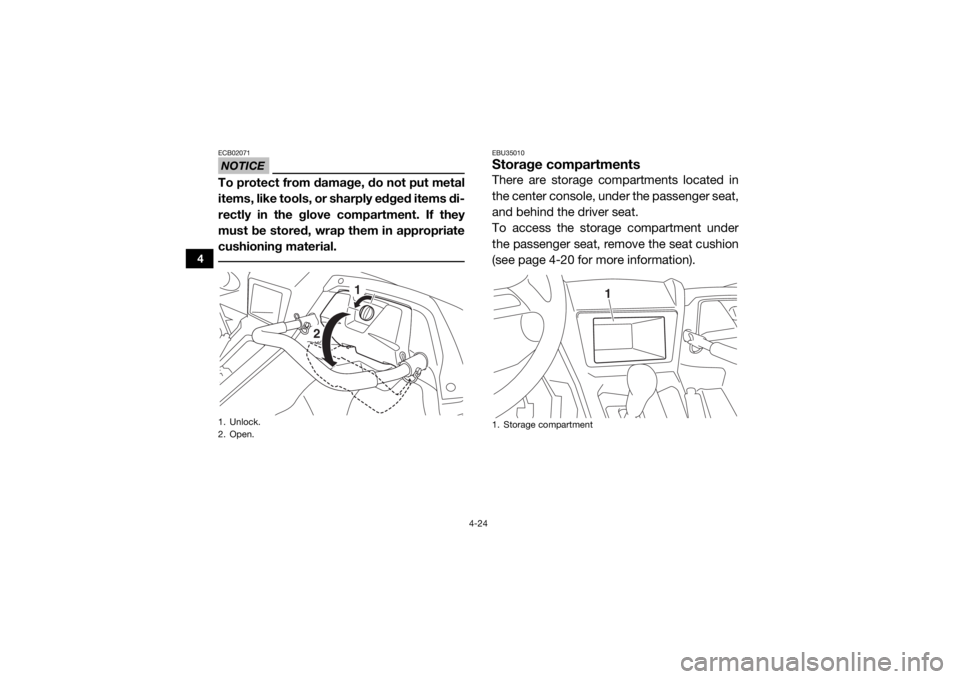

EBU35010Storage compartmentsThere are storage compartments located in
the center console, under the passenger seat,
and behind the driver seat.
To access the storage compartment under
the passenger seat, remove the seat cushion
(see page 4-20 for more information).
1. Unlock.
2. Open.
1
2
1. Storage compartment
1
U2HC7LE0.book Page 24 Wednesday, October 7, 2015 12:09 PM

4-25
4

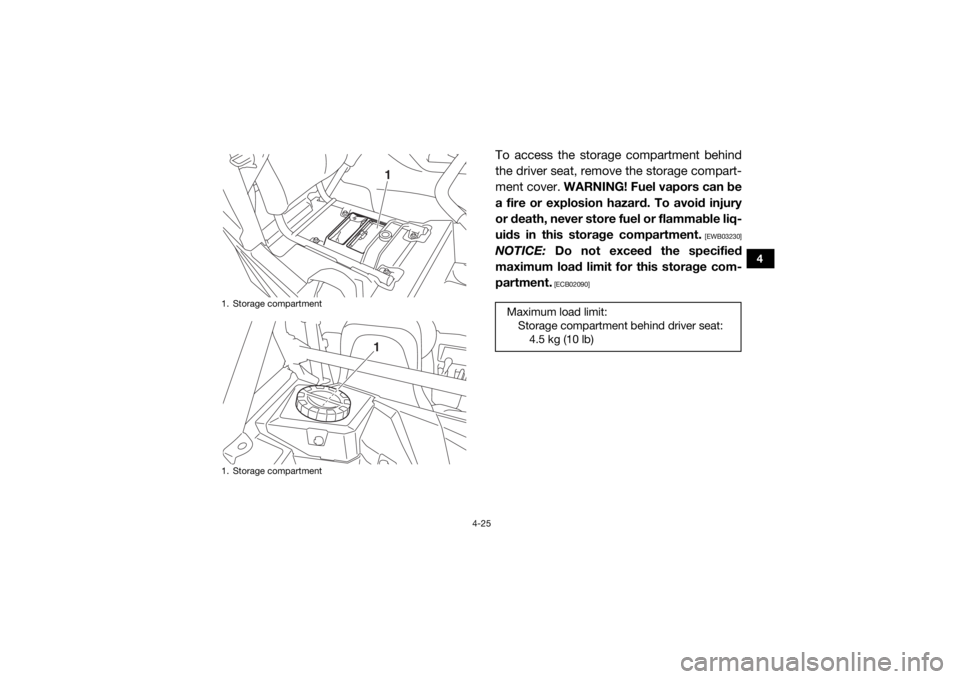

To access the storage compartment behind
the driver seat, remove the storage compart-
ment cover. WARNING! Fuel vapors can be
a fire or explosion hazard. To avoid injury
or death, never store fuel or flammable liq-
uids in this storage compartment.
[EWB03230]
NOTICE: Do not exceed the specified
maximum load limit for this storage com-
partment.
[ECB02090]
1. Storage compartment
1. Storage compartment
11
Maximum load limit: Storage compartment behind driver seat:4.5 kg (10 lb)
U2HC7LE0.book Page 25 Wednesday, October 7, 2015 12:09 PM

4-26
4

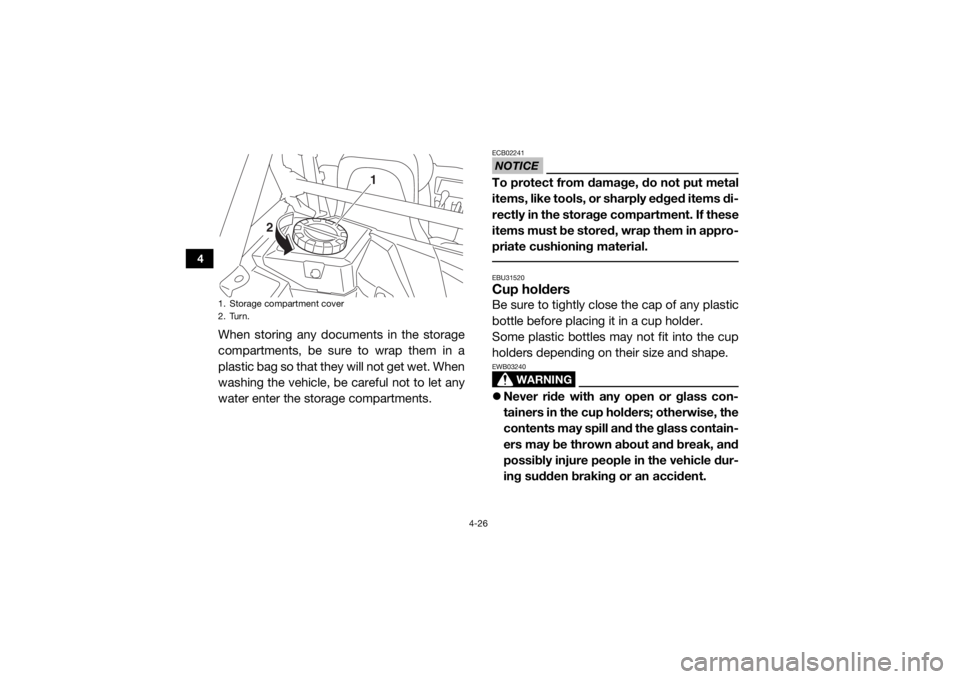

When storing any documents in the storage
compartments, be sure to wrap them in a
plastic bag so that they will not get wet. When
washing the vehicle, be careful not to let any
water enter the storage compartments.
NOTICEECB02241To protect from damage, do not put metal
items, like tools, or sharply edged items di-
rectly in the storage compartment. If these
items must be stored, wrap them in appro-

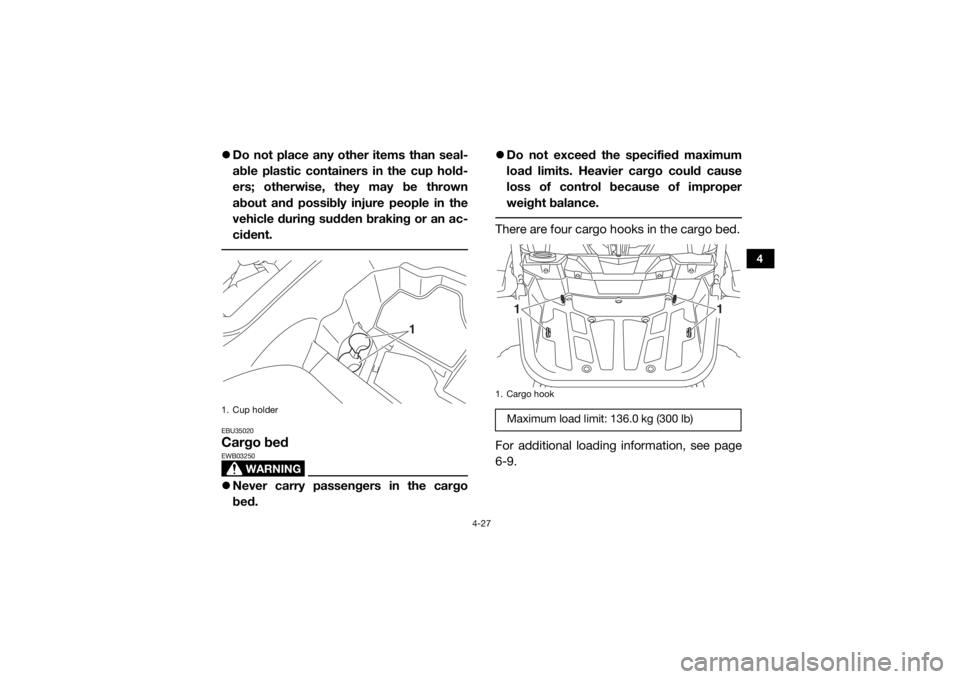

priate cushioning material. EBU31520Cup holdersBe sure to tightly close the cap of any plastic
bottle before placing it in a cup holder.
Some plastic bottles may not fit into the cup
holders depending on their size and shape.
WARNING
EWB03240 Never ride with any open or glass con-
tainers in the cup holders; otherwise, the
contents may spill and the glass contain-
ers may be thrown about and break, and
possibly injure people in the vehicle dur-
ing sudden braking or an accident.
1. Storage compartment cover
2. Turn.
1
2
U2HC7LE0.book Page 26 Wednesday, October 7, 2015 12:09 PM

4-27
4
Do not place any other items than seal-
able plastic containers in the cup hold-
ers; otherwise, they may be thrown
about and possibly injure people in the
vehicle during sudden braking or an ac-
cident. EBU35020Cargo bed
WARNING
EWB03250Never carry passengers in the cargo
bed. 
Do not exceed the specified maximum
load limits. Heavier cargo could cause
loss of control because of improper
weight balance.
There are four cargo hooks in the cargo bed.
For additional loading information, see page
6-9.
1. Cup holder
1
1. Cargo hookMaximum load limit: 136.0 kg (300 lb)
1
1
U2HC7LE0.book Page 27 Wednesday, October 7, 2015 12:09 PM

4-28
4
EBU35660Flag pole bracketThis model is equipped with a flag pole brack-
et.NOTICEECB03010Do not use the flag pole bracket as a cargo
hook.
EBU35031Adjusting the front shock absorber as-
sembliesThe shock absorber assemblies are equipped
with a spring preload adjusting nut, a rebound
damping force adjusting screw, a high speed
compression damping force adjusting bolt,
and a low speed compression damping force
adjusting screw.
WARNING
EWB02492Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
adjusting screw or the oil reservoir with
your bare hand or skin until suspension
components have cooled.
 Always adjust the shock absorber as-
semblies on the left and right side to the
same setting. Uneven adjustment can
cause poor handling and loss of stability,
which could lead to an accident.
1. Flag pole bracket
1
1
U2HC7LE0.book Page 28 Wednesday, October 7, 2015 12:09 PM

4-29
4
NOTICEECB00091Never turn an adjusting mechanism be-
yond the minimum and maximum settings. TIPAlthough the total number of clicks or turns of
a damping force adjusting mechanism may
not exactly match the following specifications
due to small differences in production, the ac-
tual number of clicks or turns always repre-
sents the entire adjusting range. To obtain a
precise adjustment, it would be advisable to
check the number of clicks or turns of each
damping force adjusting mechanism and to

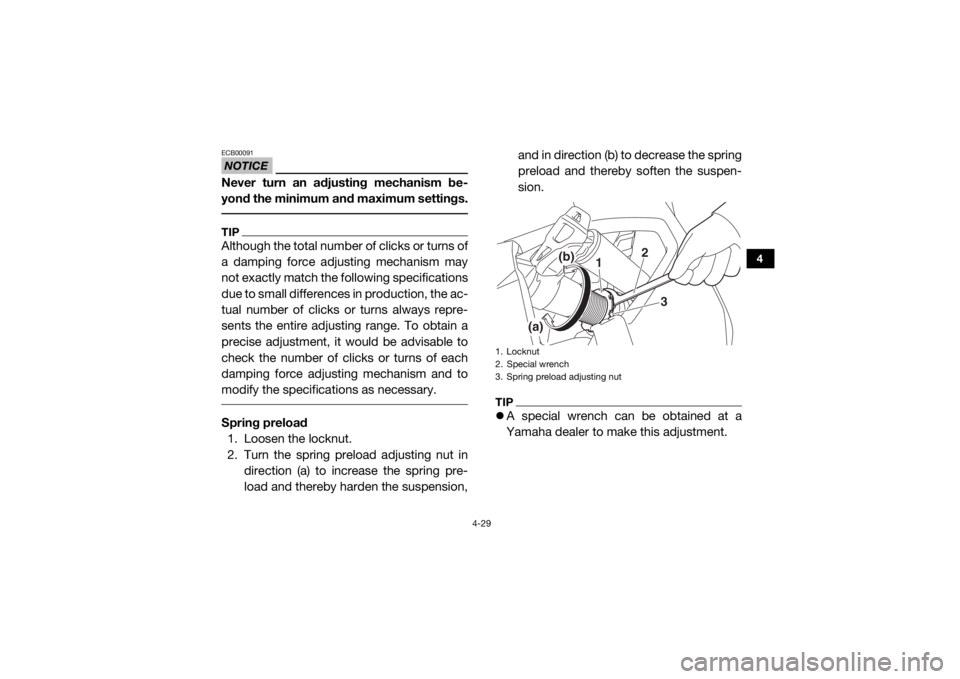

modify the specifications as necessary. Spring preload1. Loosen the locknut.
2. Turn the spring preload adjusting nut in
direction (a) to increase the spring pre-
load and thereby harden the suspension, and in direction (b) to decrease the spring
preload and thereby soften the suspen-
sion.
TIP
A special wrench can be obtained at a
Yamaha dealer to make this adjustment.1. Locknut
2. Special wrench
3. Spring preload adjusting nut
2
1
3
(a)
(b)
U2HC7LE0.book Page 29 Wednesday, October 7, 2015 12:09 PM

4-30
4
The spring preload setting is determined by
measuring distance A, shown in the illustra-
tion. The shorter distance A is, the higher
the spring preload; the longer distance A is,
the lower the spring preload.
3. Tighten the locknut to the specified
torque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]
Spring preload setting: Minimum (soft):Distance A = 428.2 mm (16.86 in)
Standard: Distance A = 415.5 mm (16.36 in)
Maximum (hard): Distance A = 402.8 mm (15.86 in)
1. Distance ATightening torque:Locknut:41 Nm (4.1 m·kgf, 30 ft·lbf)
1
U2HC7LE0.book Page 30 Wednesday, October 7, 2015 12:09 PM

4-31
4

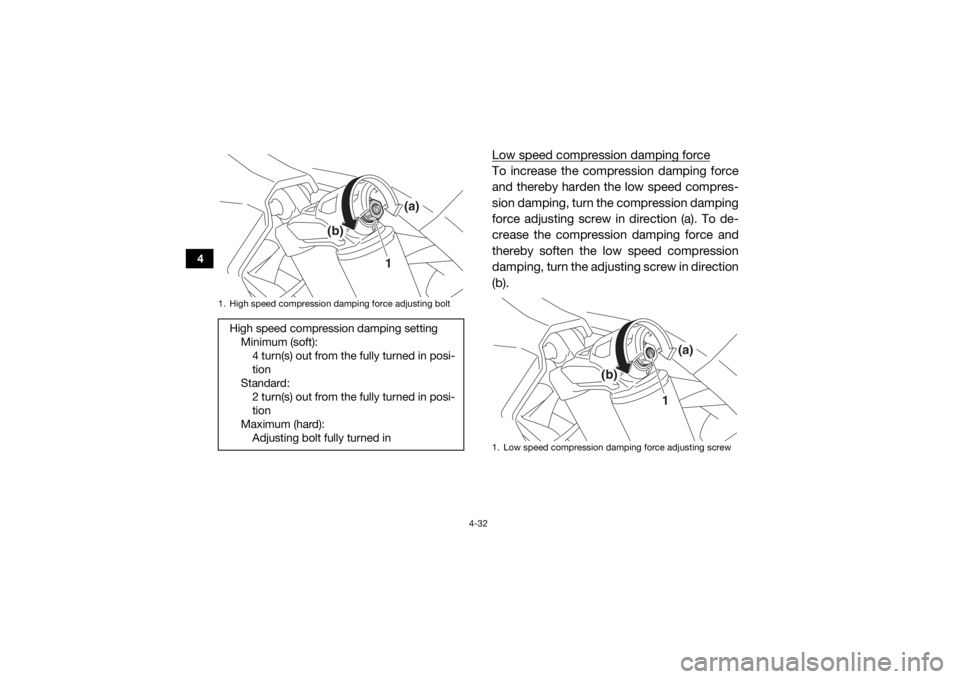

Rebound damping force
Turn the rebound damping force adjusting
screw in direction (a) to increase the rebound
damping force and thereby harden the damp-
ing, and in direction (b) to decrease the re-
bound damping force and thereby soften the
damping.Compression damping force
High speed compression damping force
To increase the compression damping force
and thereby harden the high speed compres-
sion damping, turn the compression damping
force adjusting bolt in direction (a). To de-
crease the compression damping force and
thereby soften the high speed compression
damping, turn the adjusting bolt in direction
(b).
1. Rebound damping force adjusting screw
1
(a)(b)
Rebound damping setting:Minimum (soft):26 click(s) in direction (b)*
Standard: 12 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
U2HC7LE0.book Page 31 Wednesday, October 7, 2015 12:09 PM

4-32
4

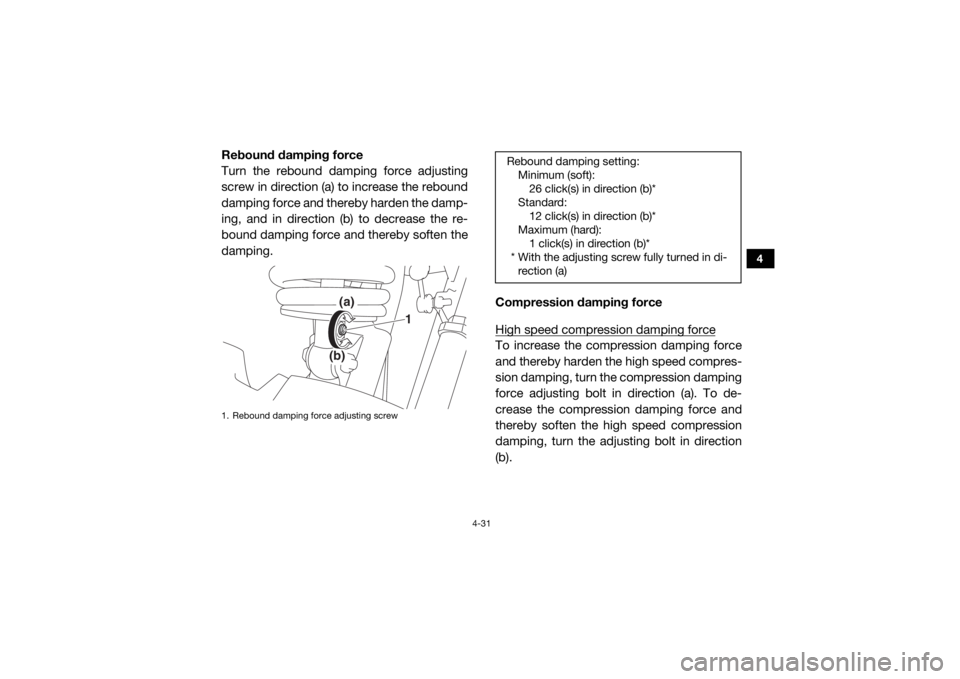

Low speed compression damping forceTo increase the compression damping force
and thereby harden the low speed compres-
sion damping, turn the compression damping
force adjusting screw in direction (a). To de-
crease the compression damping force and
thereby soften the low speed compression
damping, turn the adjusting screw in direction
(b).
1. High speed compression damping force adjusting boltHigh speed compression damping settingMinimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting bolt fully turned in
1
(a)
(b)
1. Low speed compression damping force adjusting screw
1
(a)
(b)
