Page 241 of 644

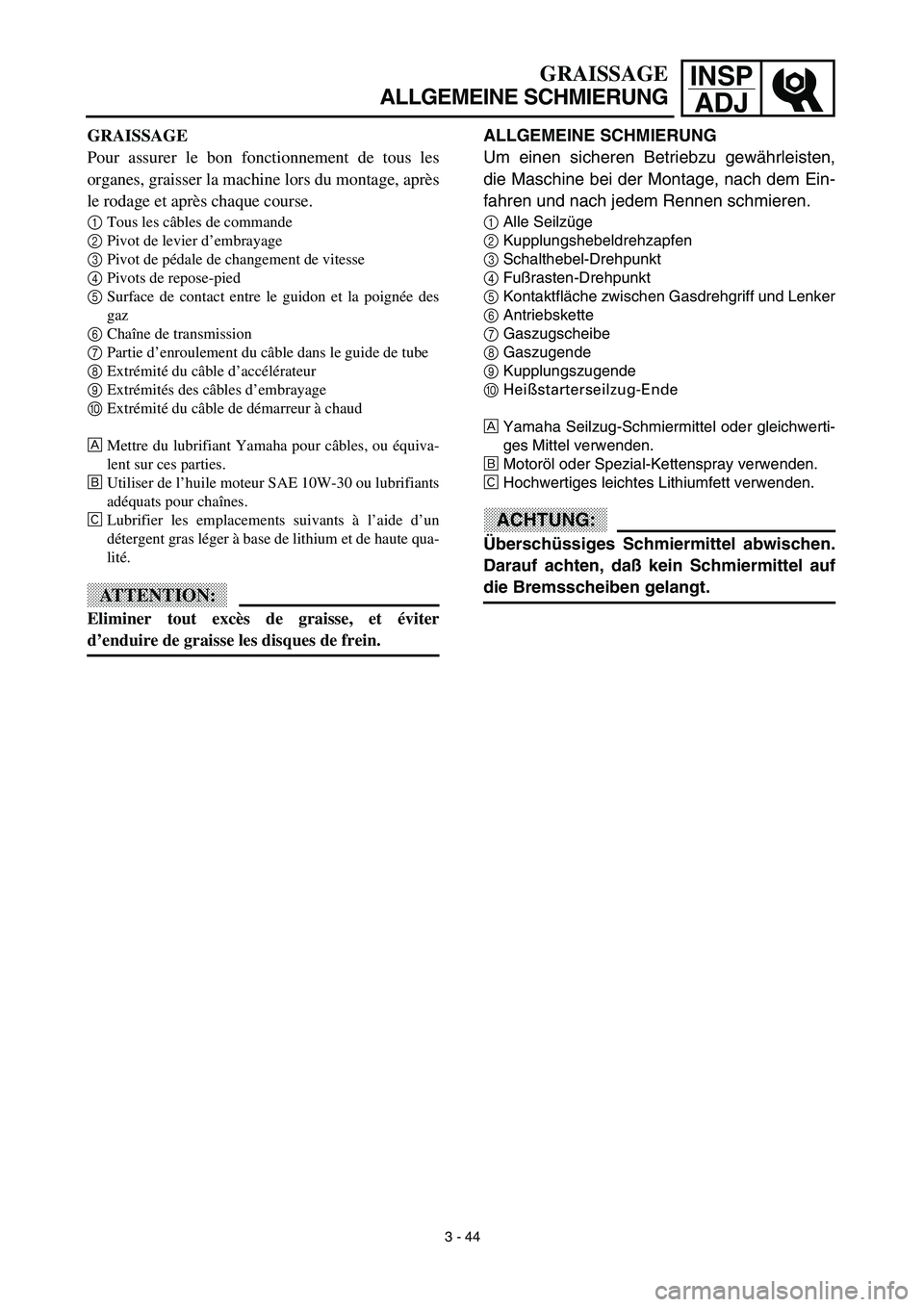

YAMAHA YZ450F 2003  Notices Demploi (in French) INSP
ADJGRAISSAGE
ALLGEMEINE SCHMIERUNG
ALLGEMEINE SCHMIERUNG
Um einen sicheren Betriebzu gewährleisten,
die Maschine bei der Montage, nach dem Ein-
fahren und nach jedem Rennen schmieren.
1Alle Seil

Page 242 of 644

YAMAHA YZ450F 2003  Notices Demploi (in French) 3 - 45
INSP
ADJ
ELECTRICAL/SPARK PLUG INSPECTION
EC370000
ELECTRICAL
EC371001
SPARK PLUG INSPECTION
1. Remove:
Spark plug
2. Inspect:
Electrode 1
Wear/damage → Replace.
Insulator color 2
Normal

Page 243 of 644

YAMAHA YZ450F 2003  Notices Demploi (in French) INSP
ADJ
PARTIE ELECTRIQUE
CONTROLE DE LA BOUGIE
1. Déposer:
Bougie
2. Contrôler:
Electrode 1
Usure/endommagement → Changer.
Couleur de l’isolateur 2
Une teinte légèrement brunâtre corre

Page 244 of 644

YAMAHA YZ450F 2003  Notices Demploi (in French) 3 - 46
INSP
ADJ
IGNITION TIMING CHECK
IGNITION TIMING CHECK
1. Remove:
Timing plug 1
2. Attach:
Timing light
Inductive tachometer
To the spark plug lead.
3. Check:
Ignition timing
Timing light:

Page 245 of 644

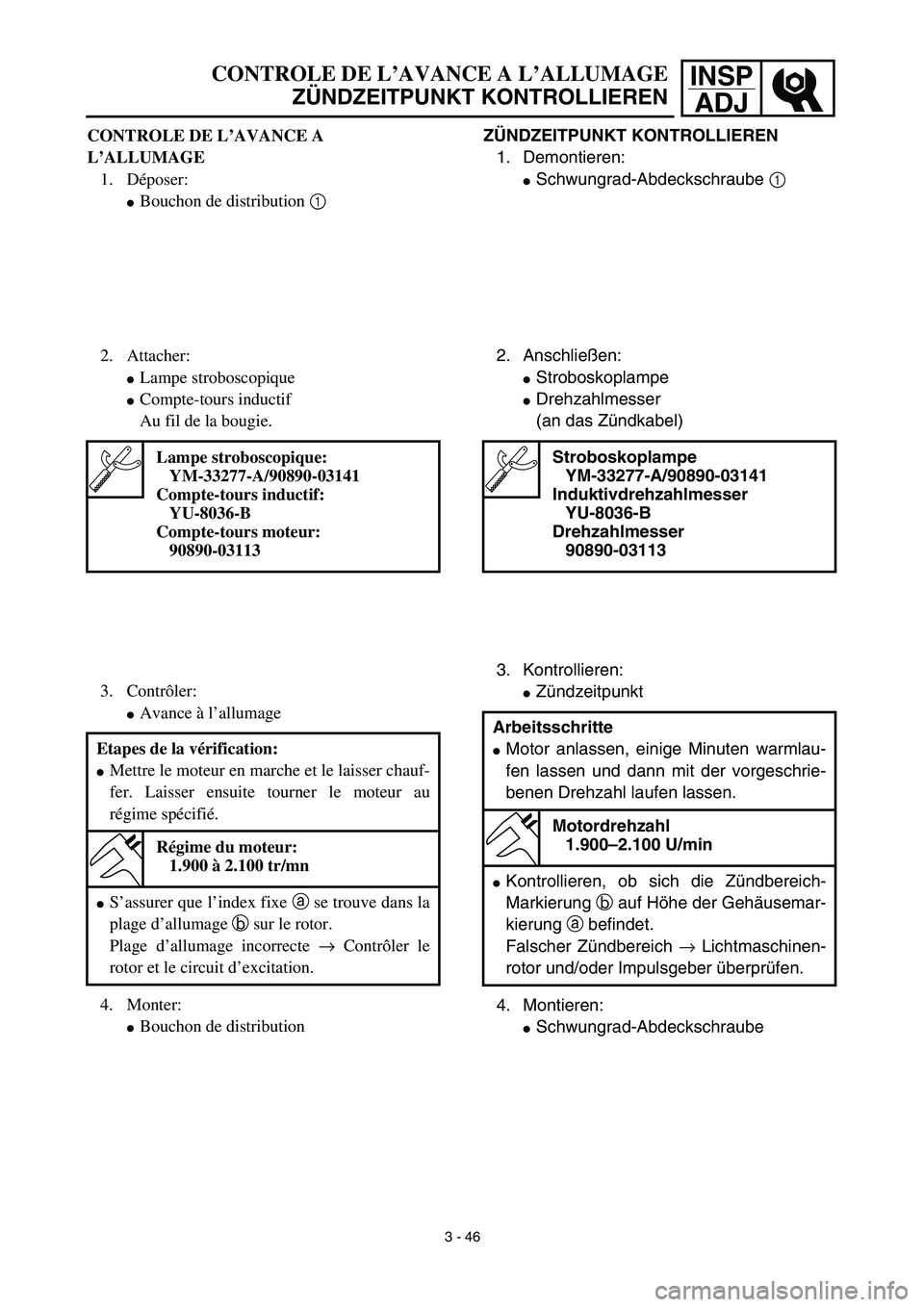

YAMAHA YZ450F 2003  Notices Demploi (in French) INSP
ADJ
ZÜNDZEITPUNKT KONTROLLIEREN
1. Demontieren:
Schwungrad-Abdeckschraube 1
2. Anschließen:
Stroboskoplampe
Drehzahlmesser
(an das Zündkabel)
3. Kontrollieren:
Zündzeitpunkt
4. Montiere

Page 246 of 644

YAMAHA YZ450F 2003  Notices Demploi (in French)
4 - 1
ENG

EC400000
ENGINE
EC4R0000
SEAT, FUEL TANK AND SIDE COVERS
Extent of removal:
1
 Seat removal
2
 Fuel tank removal
3
 Side covers removal
4
 Number plate removal
Extent

Page 247 of 644

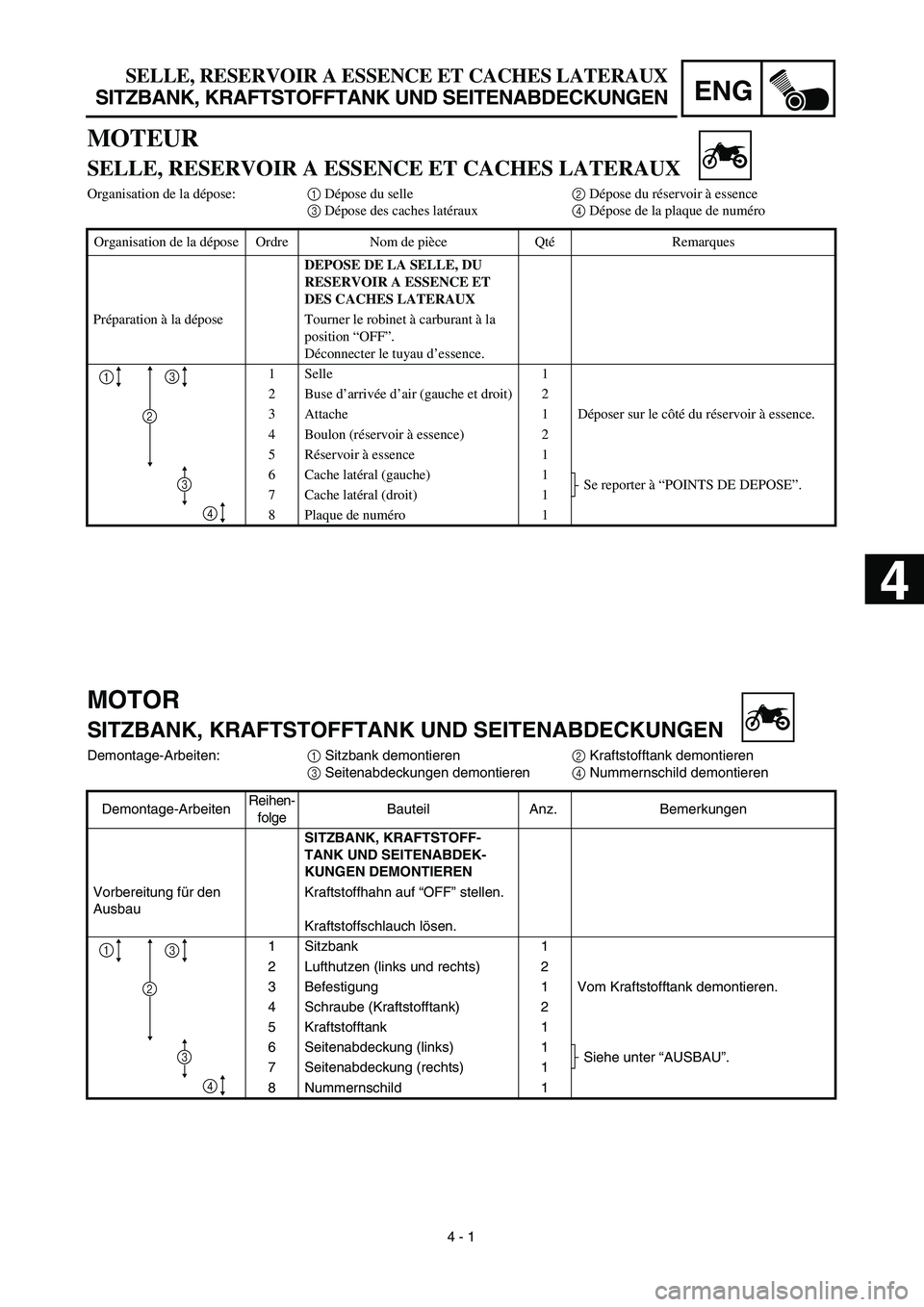

YAMAHA YZ450F 2003  Notices Demploi (in French) ENG

4 - 1
MOTOR
SITZBANK, KRAFTSTOFFTANK UND SEITENABDECKUNGEN
Demontage-Arbeiten:
1
 Sitzbank demontieren
2
 Kraftstofftank demontieren
3
 Seitenabdeckungen demontieren
4
 Nummer

Page 248 of 644

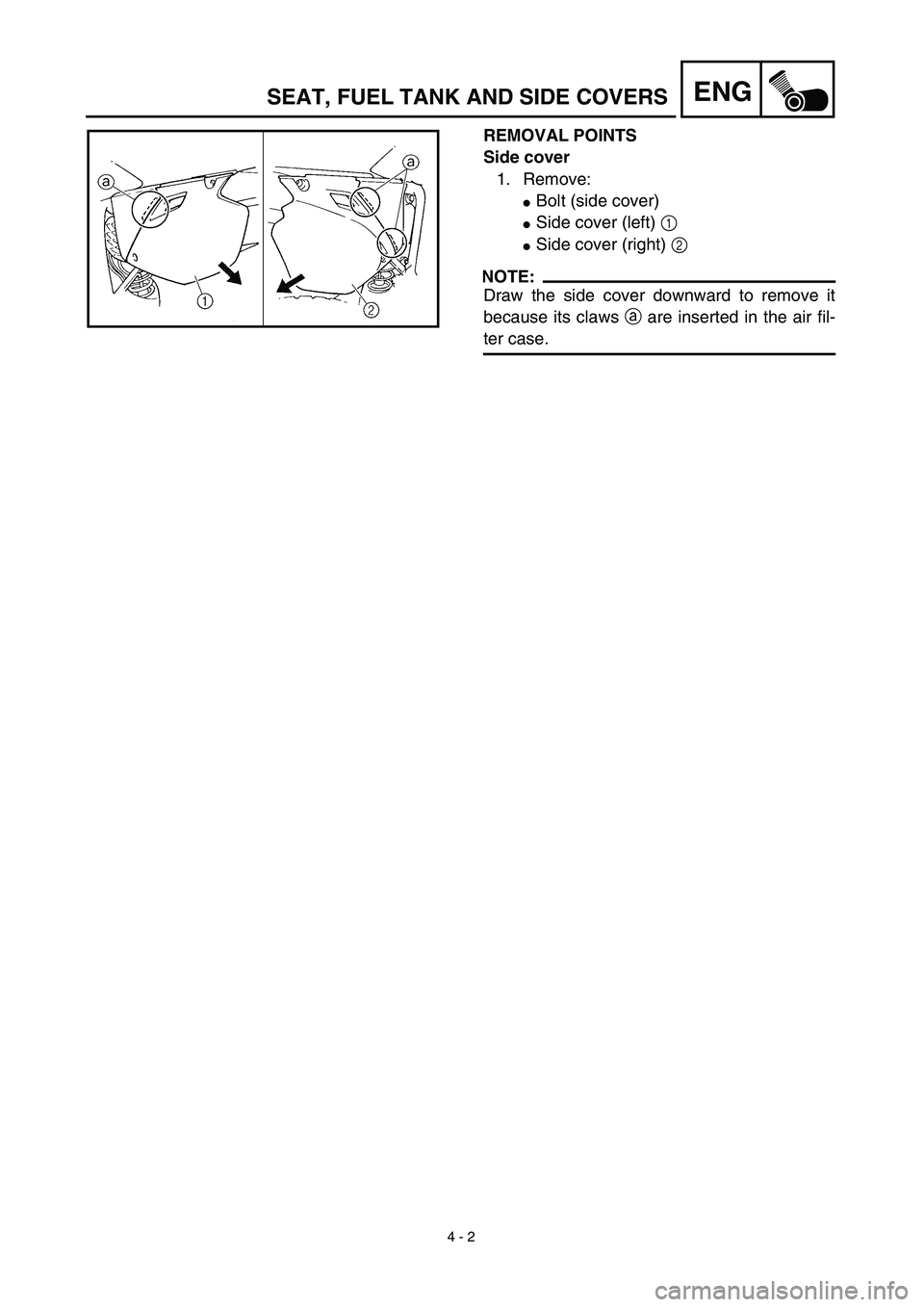

YAMAHA YZ450F 2003  Notices Demploi (in French)
4 - 2
ENG

REMOVAL POINTS
Side cover
1. Remove:

Bolt (side cover)

Side cover (left)
1

Side cover (right)
2
NOTE:

Draw the side cover downward to remove it
because its claws

Page 249 of 644

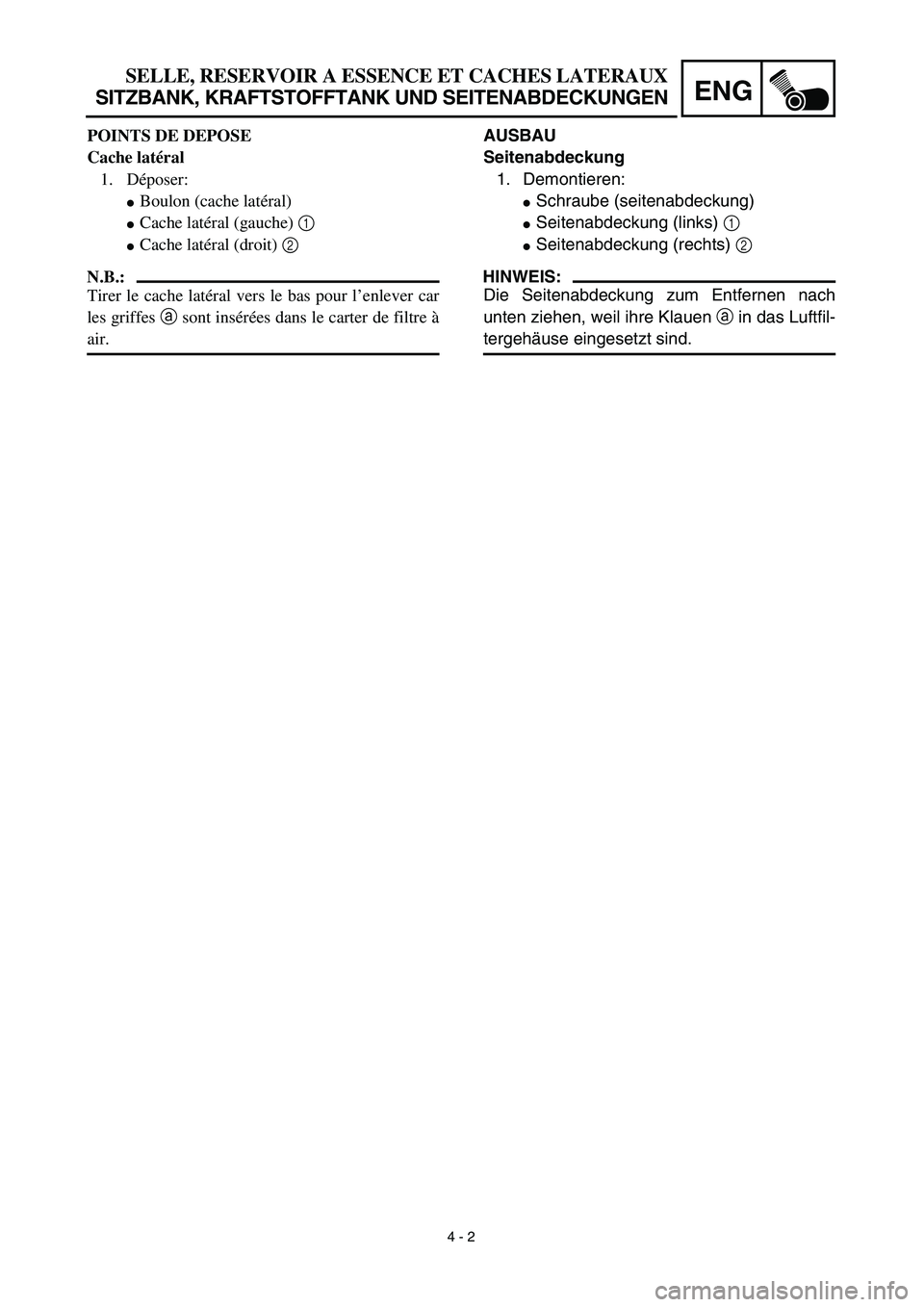

YAMAHA YZ450F 2003  Notices Demploi (in French)
4 - 2
ENG

AUSBAU
Seitenabdeckung
1. Demontieren:

Schraube (seitenabdeckung)

Seitenabdeckung (links)
1


Seitenabdeckung (rechts)
2

HINWEIS:

Die Seitenabdeckung zum Entf

Page 250 of 644

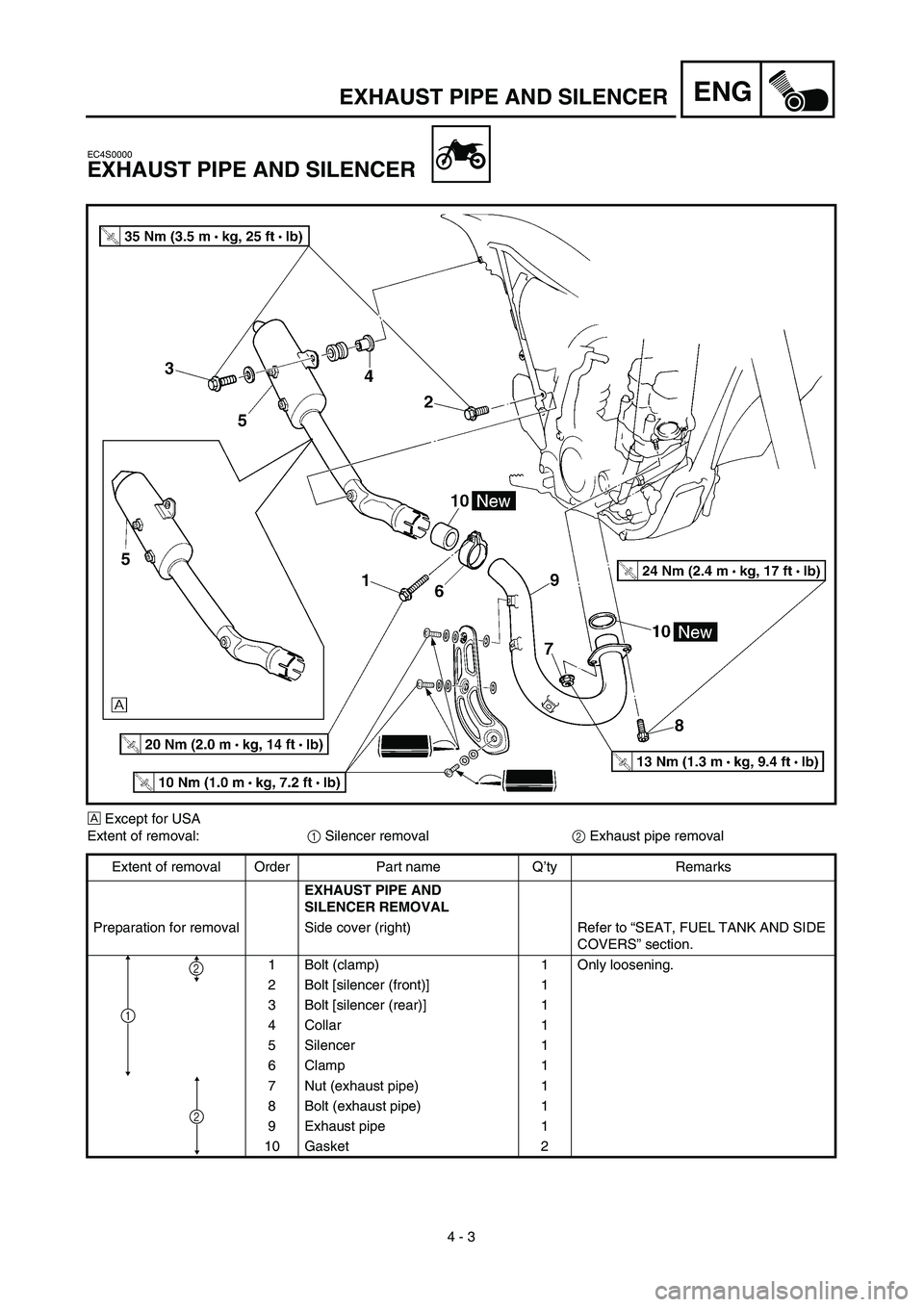

YAMAHA YZ450F 2003  Notices Demploi (in French)
4 - 3
ENG

EXHAUST PIPE AND SILENCER
EC4S0000
EXHAUST PIPE AND SILENCER
Å
 Except for USA
Extent of removal:
1
 Silencer removal
2
 Exhaust pipe removal
Extent of removal Order Part nam
