ACURA CSX 2006 Service Repair Manual


Seat Cushion
20-133
Fastener Location:Bolt,1
8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
A 6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
A B
Fastener Location
:Bolt,1
7. Remove the seat cushion and seat side bolster.
8. Remove the bolt, then remove the pivot bracket (A).
9. Install the seat-back in the reverse order of removal, and note these items:
 Guide the belt over the front of the seat-back as you install the seat-back.
 Before attaching the rear seat-back, make sure there are no twists or kinks in the rear center seat
belt. NOTE: Take care not to scratch the body or tear the seat
covers.
1. Remove the bolt between the seat-back (A) and the seat cushion (B).
(cont’d)
08/08/21 15:04:03 61SNR030_200_0135
ProCarManuals.com
DYNOMITE -2009-

Î

Seat Side Bolster
20-134Seats
Rear Seat Removal/Installation (cont’d)
C
D
E
C C
F
B
A
Fastener Location
:Bolt,1
6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
2. While pushing down on the seat cushion (A), pullthe seat hook handles (B) to release the hooks (C).
3. Pull back the seat cushion to release the center seat belt (D) and seat belt buckles (E) from their slits (F),
and remove it.
4. Install the seat cushion in the reverse order of removal, and note these items:
 Before attaching the seat cushion, make sure there are no twists or kinks in the seat belts.
 When installing the seat cushion, slip the seat belt buckles through the slits in the seat cushion. NOTE: Take care not to scratch the body or tear the seat
covers.
1. Remove the seat cushion.
2. Remove the bolt.
08/08/21 15:04:03 61SNR030_200_0136
ProCarManuals.com
DYNOMITE -2009-




(#'

 )

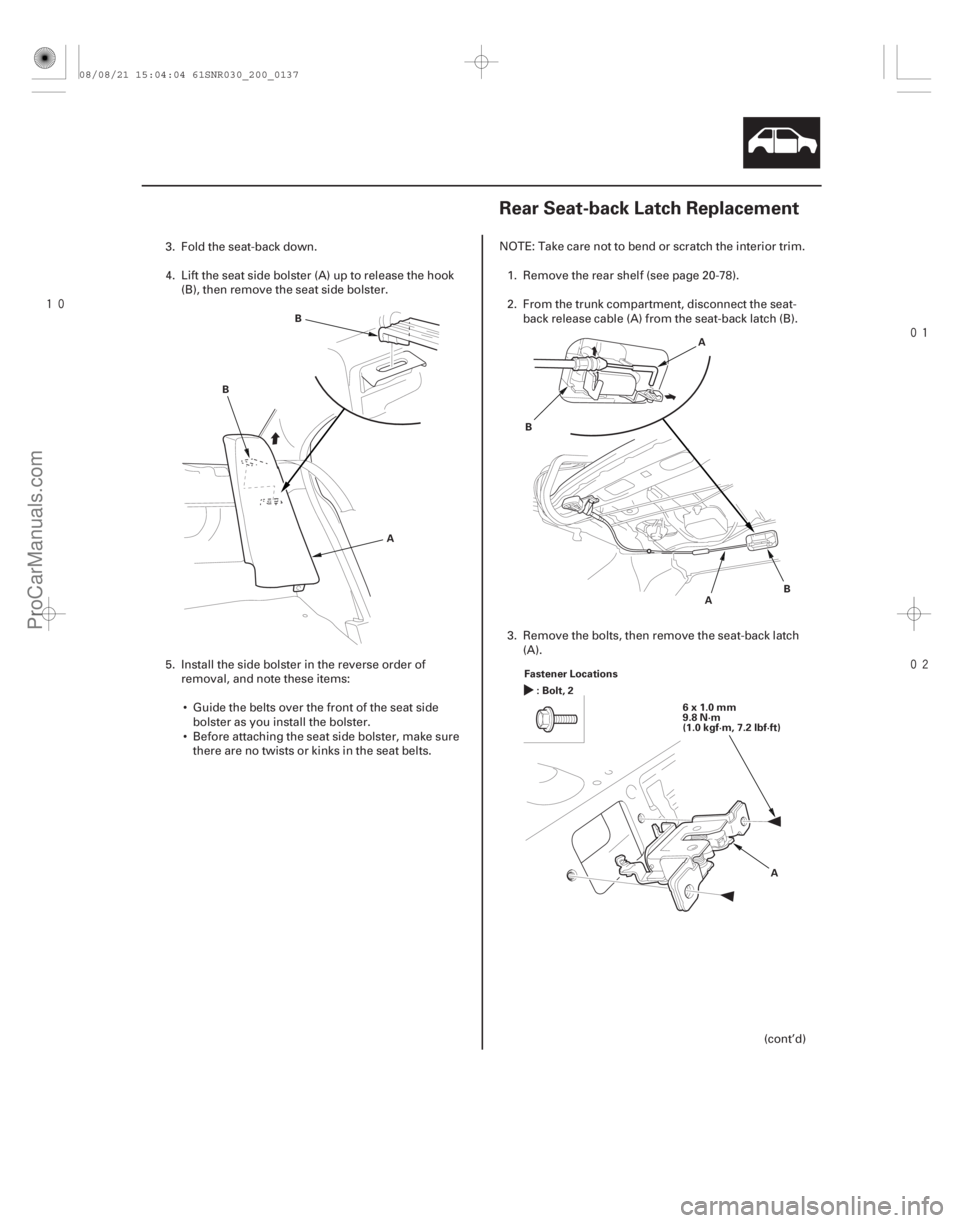

20-13520-135
Rear Seat-back Latch Replacement
A
B
B
A
B
A
B
Fastener Locations
A
:Bolt,2
6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
3. Fold the seat-back down.
4. Lift the seat side bolster (A) up to release the hook(B), then remove the seat side bolster.
5. Install the side bolster in the reverse order of removal, and note these items:
 Guide the belts over the front of the seat side bolster as you install the bolster.
 Before attaching the seat side bolster, make sure there are no twists or kinks in the seat belts. NOTE: Take care not to bend or scratch the interior trim.
1. Remove the rear shelf (see page 20-78).
2. From the trunk compartment, disconnect the seat- back release cable (A) from the seat-back latch (B).
3. Remove the bolts, then remove the seat-back latch (A).
(cont’d)
08/08/21 15:04:04 61SNR030_200_0137
ProCarManuals.com
DYNOMITE -2009-




(#'

 )
20-13520-135
Rear Seat-back Latch Replacement
A
B
B
A
B
A
B
Fastener Locations
A
:Bolt,2
6x1.0mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
3. Fold the seat-back down.
4. Lift the seat side bolster (A) up to release the hook(B), then remove the seat side bolster.
5. Install the side bolster in the reverse order of removal, and note these items:
 Guide the belts over the front of the seat side bolster as you install the bolster.
 Before attaching the seat side bolster, make sure there are no twists or kinks in the seat belts. NOTE: Take care not to bend or scratch the interior trim.
1. Remove the rear shelf (see page 20-78).
2. From the trunk compartment, disconnect the seat- back release cable (A) from the seat-back latch (B).
3. Remove the bolts, then remove the seat-back latch (A).
(cont’d)
08/08/21 15:04:04 61SNR030_200_0137
ProCarManuals.com
DYNOMITE -2009-



(#'
 )

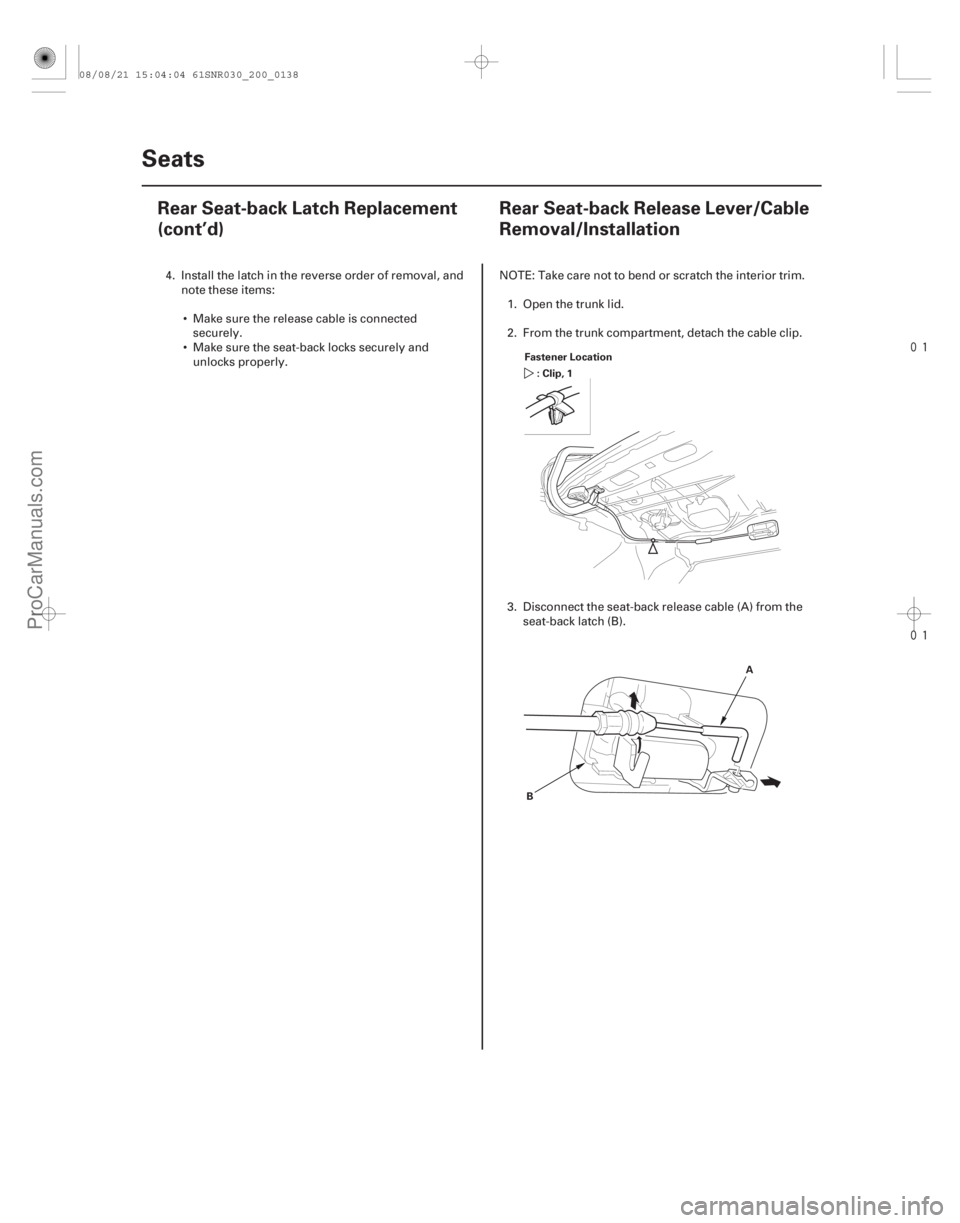

20-13620-136 Seats
Rear Seat-back Latch Replacement
(cont’d)
Rear Seat-back Release Lever/Cable
Removal/Installation
Fastener Location
:Clip,1
A
B
4. Install the latch in the reverse order of removal, and note these items:
 Make sure the release cable is connected securely.
 Make sure the seat-back locks securely and unlocks properly. NOTE: Take care not to bend or scratch the interior trim.
1. Open the trunk lid.
2. From the trunk compartment, detach the cable clip.
3. Disconnect the seat-back release cable (A) from the seat-back latch (B).
08/08/21 15:04:04 61SNR030_200_0138
ProCarManuals.com
DYNOMITE -2009-



(#'
 )
20-13620-136 Seats
Rear Seat-back Latch Replacement
(cont’d)
Rear Seat-back Release Lever/Cable
Removal/Installation
Fastener Location
:Clip,1
A
B
4. Install the latch in the reverse order of removal, and note these items:
 Make sure the release cable is connected securely.
 Make sure the seat-back locks securely and unlocks properly. NOTE: Take care not to bend or scratch the interior trim.
1. Open the trunk lid.
2. From the trunk compartment, detach the cable clip.
3. Disconnect the seat-back release cable (A) from the seat-back latch (B).
08/08/21 15:04:04 61SNR030_200_0138
ProCarManuals.com
DYNOMITE -2009-



(#'

 )
Special Tools Required
20-13720-137
Rear Seat Armrest Beverage Holder
Replacement
A B
C
D
D
AB
C
D
4. Push the tab (A) to release the hook (B), and rotate the seat-back release lever (C) clockwise to release
the hook (D).
5. Install the release lever/cable in the reverse order of removal, and note these items:
 Make sure the release cable is connected securely.
 Make sure the seat-back locks securely and unlocks properly. KTC trim tool set SOJATP2014
NOTE:
 Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
 Take care not to tear or damage the seat covers.
1. Using a trim tool, push on the bottom ribs (A) of the rear hooks (B) to pull up the beverage holder (C),
then release the hooks from the wire (D).
(cont’d)
08/08/21 15:04:05 61SNR030_200_0139
ProCarManuals.com
DYNOMITE -2009-



(#'

 )
Special Tools Required
20-13720-137
Rear Seat Armrest Beverage Holder
Replacement
A B
C
D
D
AB
C
D
4. Push the tab (A) to release the hook (B), and rotate the seat-back release lever (C) clockwise to release
the hook (D).
5. Install the release lever/cable in the reverse order of removal, and note these items:
 Make sure the release cable is connected securely.
 Make sure the seat-back locks securely and unlocks properly. KTC trim tool set SOJATP2014
NOTE:
 Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
 Take care not to tear or damage the seat covers.
1. Using a trim tool, push on the bottom ribs (A) of the rear hooks (B) to pull up the beverage holder (C),
then release the hooks from the wire (D).
(cont’d)
08/08/21 15:04:05 61SNR030_200_0139
ProCarManuals.com
DYNOMITE -2009-



(#'

 )

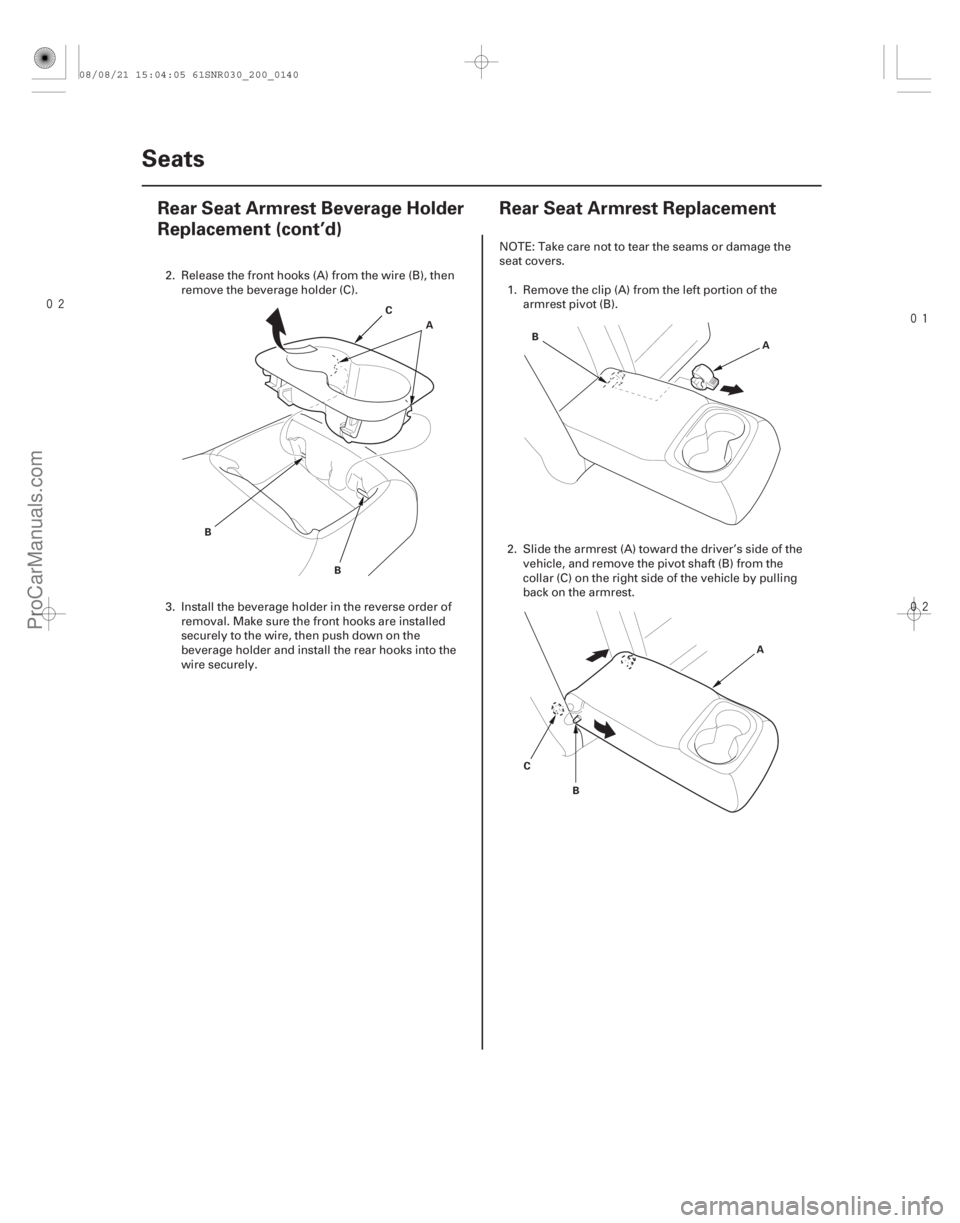

20-13820-138 Seats
Rear Seat Armrest Beverage Holder
Replacement (cont’d)
Rear Seat Armrest Replacement
A
B C
B A
B
A
B
C
2. Release the front hooks (A) from the wire (B), then
remove the beverage holder (C).
3. Install the beverage holder in the reverse order of removal. Make sure the front hooks are installed
securely to the wire, then push down on the
beverage holder and install the rear hooks into the
wire securely. NOTE: Take care not to tear the seams or damage the
seat covers.
1. Remove the clip (A) from the left portion of the armrest pivot (B).
2. Slide the armrest (A) toward the driver’s side of the vehicle, and remove the pivot shaft (B) from the
collar (C) on the right side of the vehicle by pulling
back on the armrest.
08/08/21 15:04:05 61SNR030_200_0140
ProCarManuals.com
DYNOMITE -2009-



(#'

 )
20-13820-138 Seats
Rear Seat Armrest Beverage Holder
Replacement (cont’d)
Rear Seat Armrest Replacement
A
B C
B A
B
A
B
C
2. Release the front hooks (A) from the wire (B), then
remove the beverage holder (C).
3. Install the beverage holder in the reverse order of removal. Make sure the front hooks are installed
securely to the wire, then push down on the
beverage holder and install the rear hooks into the
wire securely. NOTE: Take care not to tear the seams or damage the
seat covers.
1. Remove the clip (A) from the left portion of the armrest pivot (B).
2. Slide the armrest (A) toward the driver’s side of the vehicle, and remove the pivot shaft (B) from the
collar (C) on the right side of the vehicle by pulling
back on the armrest.
08/08/21 15:04:05 61SNR030_200_0140
