ACURA CSX 2006 Service Repair Manual



(#'

 )
Seat-back
20-13920-139
Rear Seat-back Cover Replacement
A B
C
A B Fastener Location
A
:Screw,1

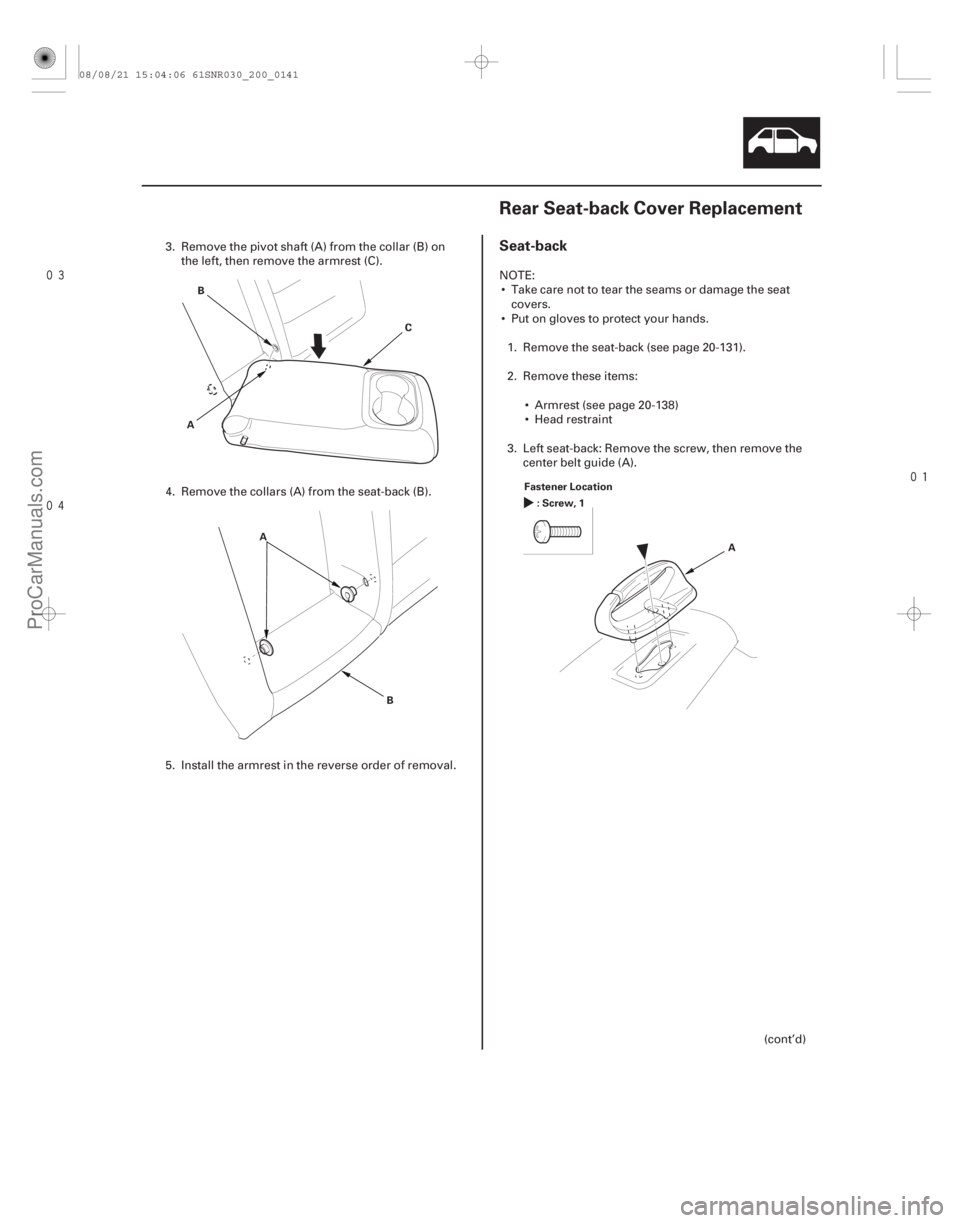

3. Remove the pivot shaft (A) from the collar (B) on
the left, then remove the armrest (C).
4. Remove the collars (A) from the seat-back (B).
5. Install the armrest in the reverse order of removal. NOTE:
 Take care not to tear the seams or damage the seat covers.
 Put on gloves to protect your hands.
1. Remove the seat-back (see page 20-131).
2. Remove these items:
 Armrest (see page 20-138)
 Head restraint
3. Left seat-back: Remove the screw, then remove the center belt guide (A).
(cont’d)
08/08/21 15:04:06 61SNR030_200_0141
ProCarManuals.com
DYNOMITE -2009-



(#'

 )
Seat-back
20-13920-139
Rear Seat-back Cover Replacement
A B
C
A B Fastener Location
A
:Screw,1
3. Remove the pivot shaft (A) from the collar (B) on
the left, then remove the armrest (C).
4. Remove the collars (A) from the seat-back (B).
5. Install the armrest in the reverse order of removal. NOTE:
 Take care not to tear the seams or damage the seat covers.
 Put on gloves to protect your hands.
1. Remove the seat-back (see page 20-131).
2. Remove these items:
 Armrest (see page 20-138)
 Head restraint
3. Left seat-back: Remove the screw, then remove the center belt guide (A).
(cont’d)
08/08/21 15:04:06 61SNR030_200_0141
ProCarManuals.com
DYNOMITE -2009-



20-140Seats
Rear Seat-back Cover Replacement (cont’d)
A
A
A B
C
A A
B C
Fastener Locations
:Clip,2
B : Clip, 2 C
Left seat-back C
B
Right seat-back B
C B
C A

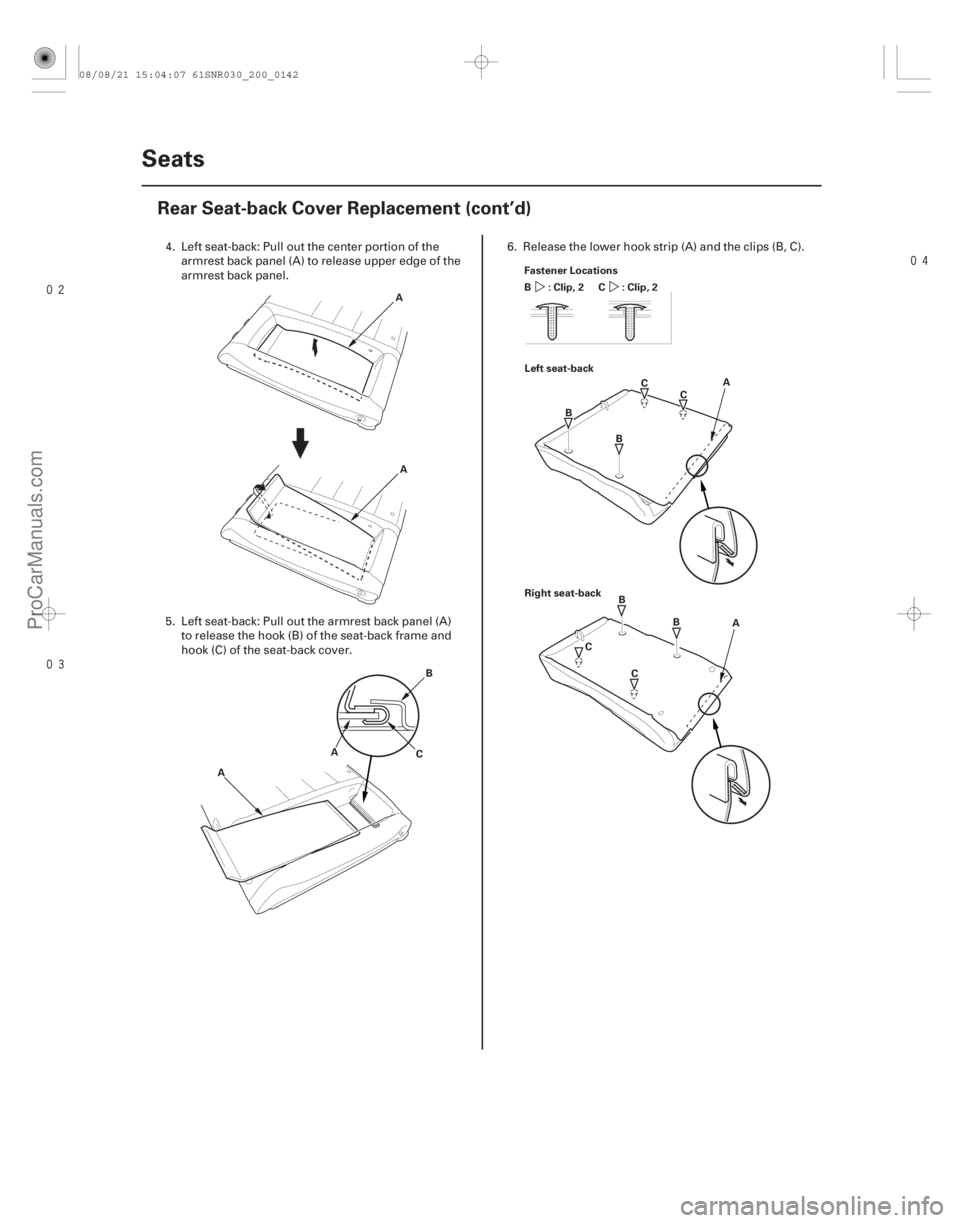

4. Left seat-back: Pull out the center portion of the
armrest back panel (A) to release upper edge of the
armrest back panel.
5. Left seat-back: Pull out the armrest back panel (A) to release the hook (B) of the seat-back frame and
hook (C) of the seat-back cover. 6. Release the lower hook strip (A) and the clips (B, C).
08/08/21 15:04:07 61SNR030_200_0142
ProCarManuals.com
DYNOMITE -2009-




Left seat-back
Right seat-back
20-141
A
B
B
B
A B
B A
B
C
C
7. Pull back the seat-back cover (A), then release the

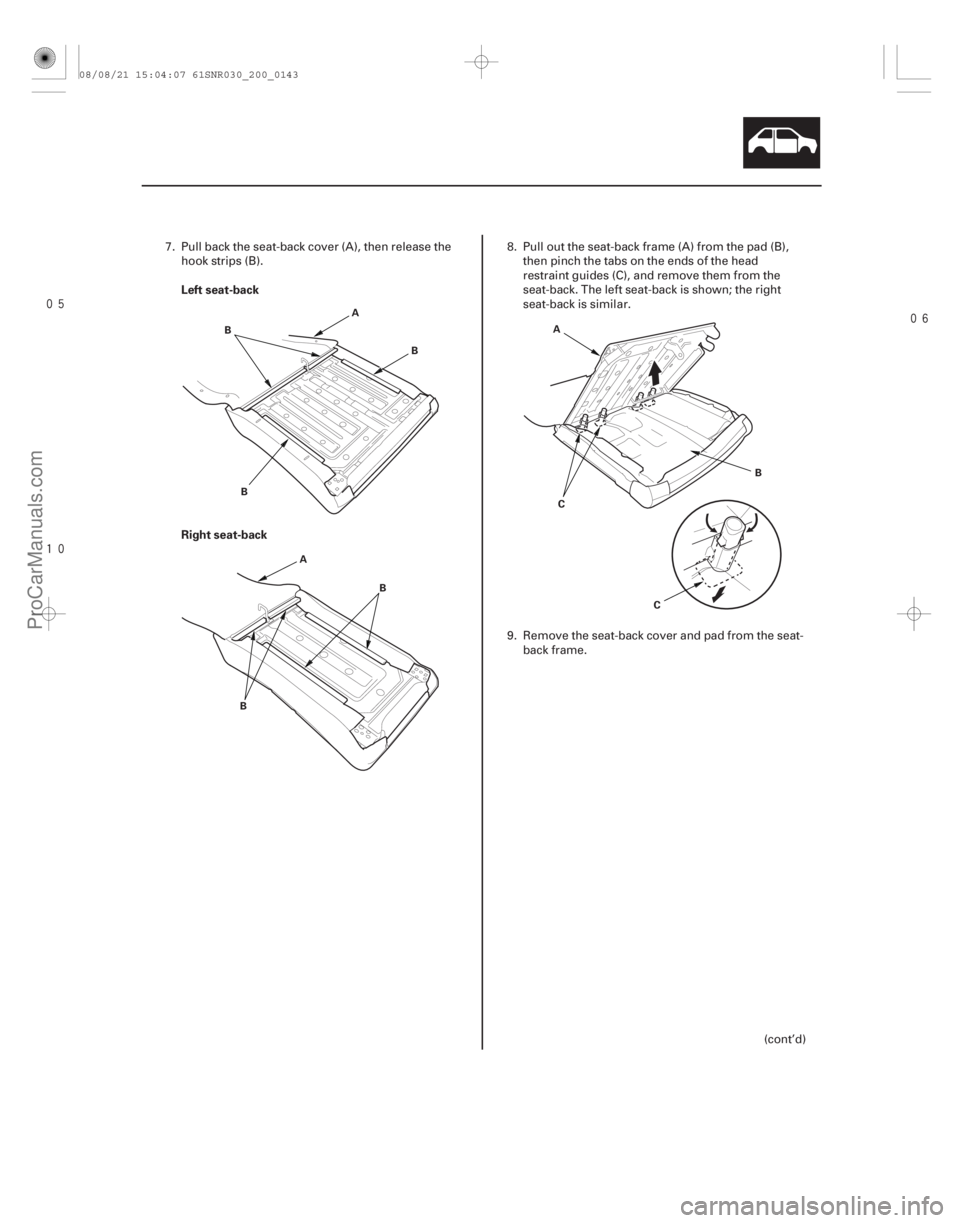

hook strips (B). 8. Pull out the seat-back frame (A) from the pad (B),
then pinch the tabs on the ends of the head
restraint guides (C), and remove them from the
seat-back. The left seat-back is shown; the right
seat-back is similar.
9. Remove the seat-back cover and pad from the seat- back frame.
(cont’d)
08/08/21 15:04:07 61SNR030_200_0143
ProCarManuals.com
DYNOMITE -2009-


Î
Left seat-back
Right seat-back
20-142 Seats
Rear Seat-back Cover Replacement (cont’d)
A
B
A B
D
B
C
A

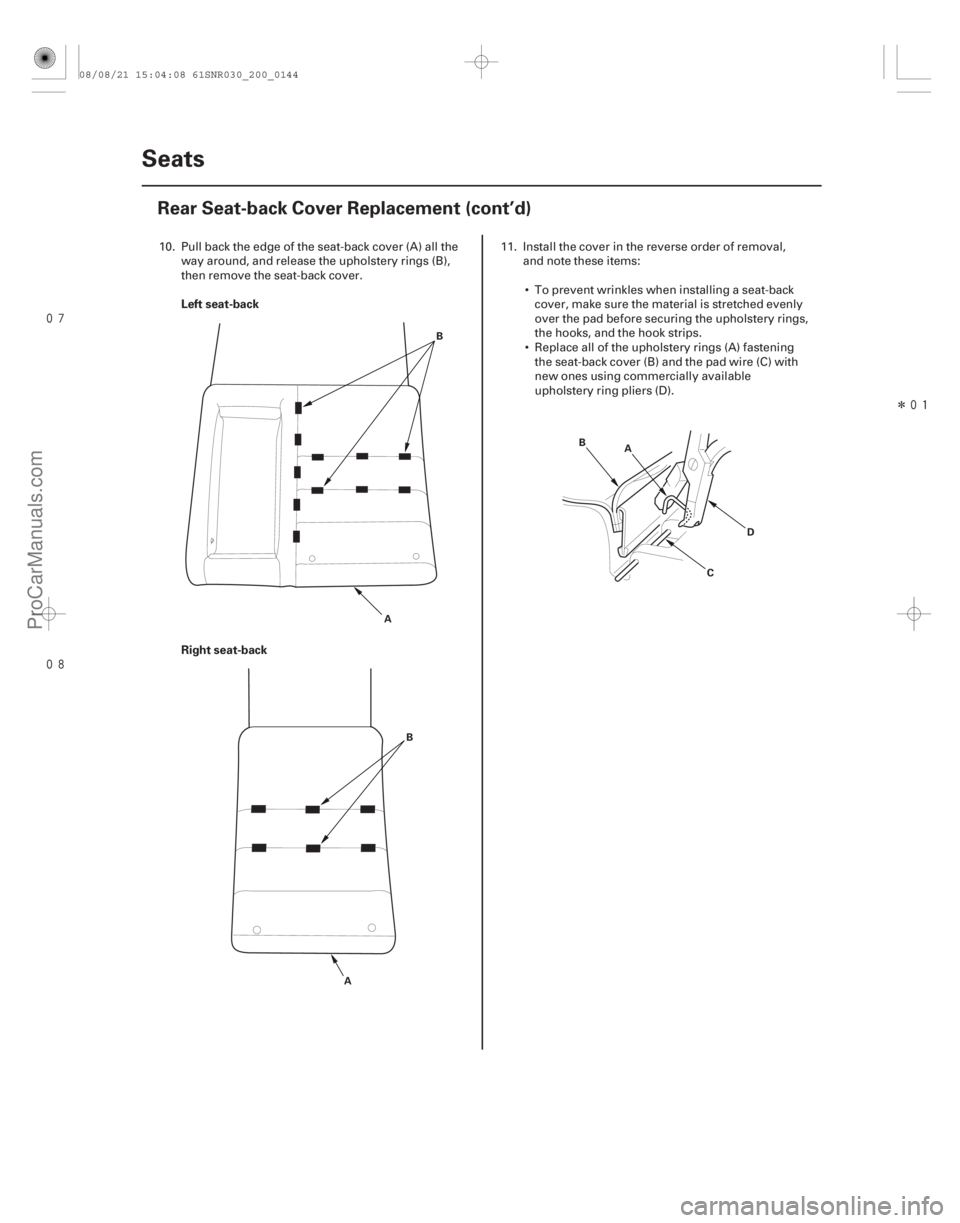

10. Pull back the edge of the seat-back cover (A) all the
way around, and release the upholstery rings (B),
then remove the seat-back cover. 11. Install the cover in the reverse order of removal,
and note these items:
 To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly
over the pad before securing the upholstery rings,
the hooks, and the hook strips.
 Replace all of the upholstery rings (A) fastening the seat-back cover (B) and the pad wire (C) with
new ones using commercially available
upholstery ring pliers (D).
08/08/21 15:04:08 61SNR030_200_0144
ProCarManuals.com
DYNOMITE -2009-

Î
(#'

 ) 

(#'
 )
20-14320-143
Rear Seat Side Bolster Cover
Replacement Rear Seat Cushion Cover
Replacement
A
C
A
C C
B
A
B
AB
NOTE: Take care not to tear or damage the seat covers.
1. Remove the seat side bolster (see page 20-134).

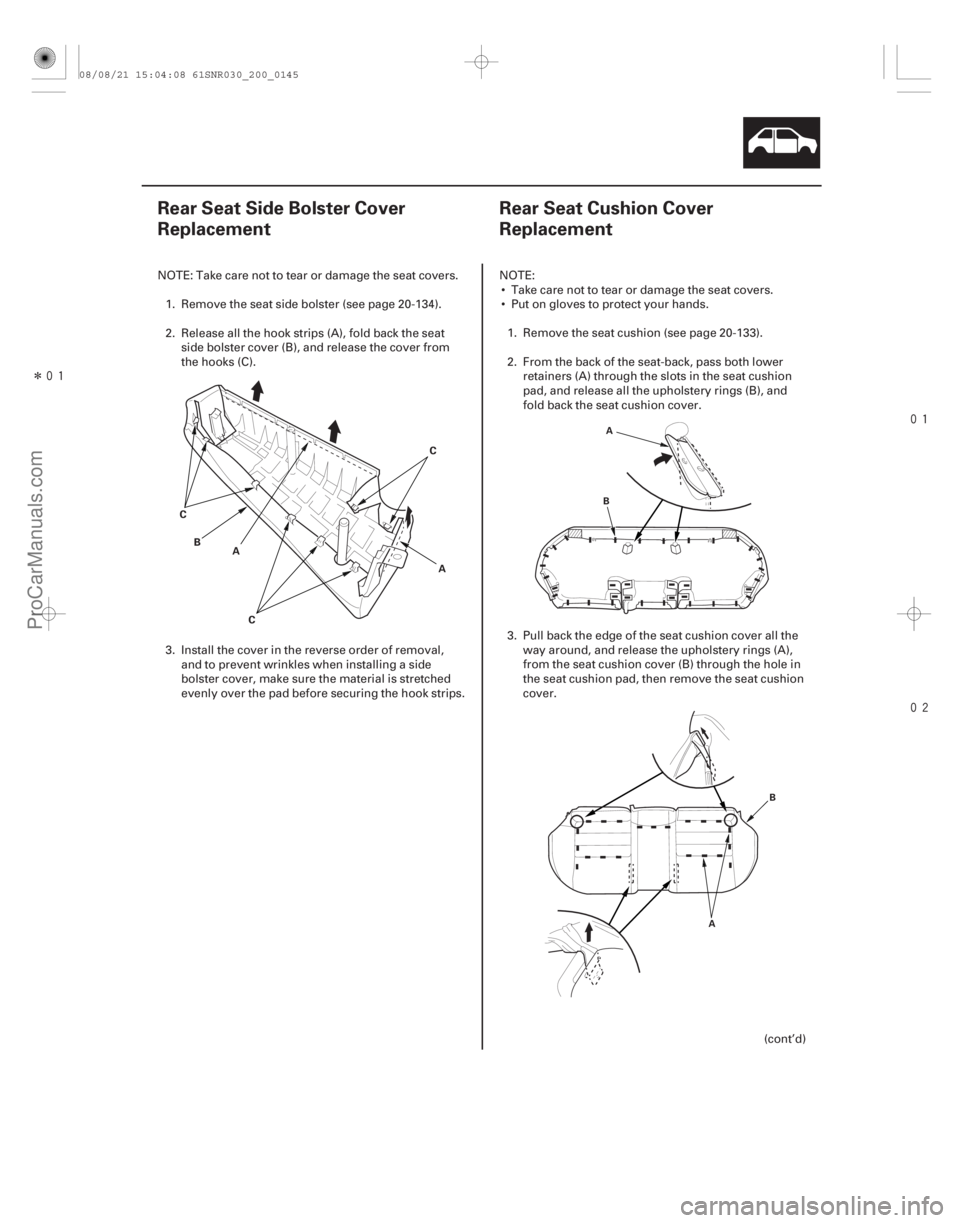

2. Release all the hook strips (A), fold back the seat side bolster cover (B), and release the cover from
the hooks (C).
3. Install the cover in the reverse order of removal, and to prevent wrinkles when installing a side
bolster cover, make sure the material is stretched
evenly over the pad before securing the hook strips.NOTE:
 Take care not to tear or damage the seat covers.
 Put on gloves to protect your hands.
1. Remove the seat cushion (see page 20-133).
2. From the back of the seat-back, pass both lower retainers (A) through the slots in the seat cushion
pad, and release all the upholstery rings (B), and
fold back the seat cushion cover.
3. Pull back the edge of the seat cushion cover all the way around, and release the upholstery rings (A),
from the seat cushion cover (B) through the hole in
the seat cushion pad, then remove the seat cushion
cover.
(cont’d)
08/08/21 15:04:08 61SNR030_200_0145
ProCarManuals.com
DYNOMITE -2009-

Î
Î
(#'

 )
20-14420-144 Seats
Rear Seat Cushion Cover
Replacement (cont’d)
Rear Seat Armrest Cover
Replacement
D
B
C
A
A
B C
4. Install the cover in the reverse order of removal,
and note these items:
 To prevent wrinkles when installing a seat cushion cover, make sure the material is
stretched evenly over the pad before securing
the retainers and upholstery rings.
 Replace all of the upholstery rings (A) fastening the seat-back cover (B) and the pad wire (C) with
new ones using commercially available
upholstery ring pliers (D). NOTE: Take care not to tear or damage the seat covers.
1. Remove the armrest from the seat-back (see page 20-138).
2. Remove the armrest beverage holder from the armrest (see page 20-137).

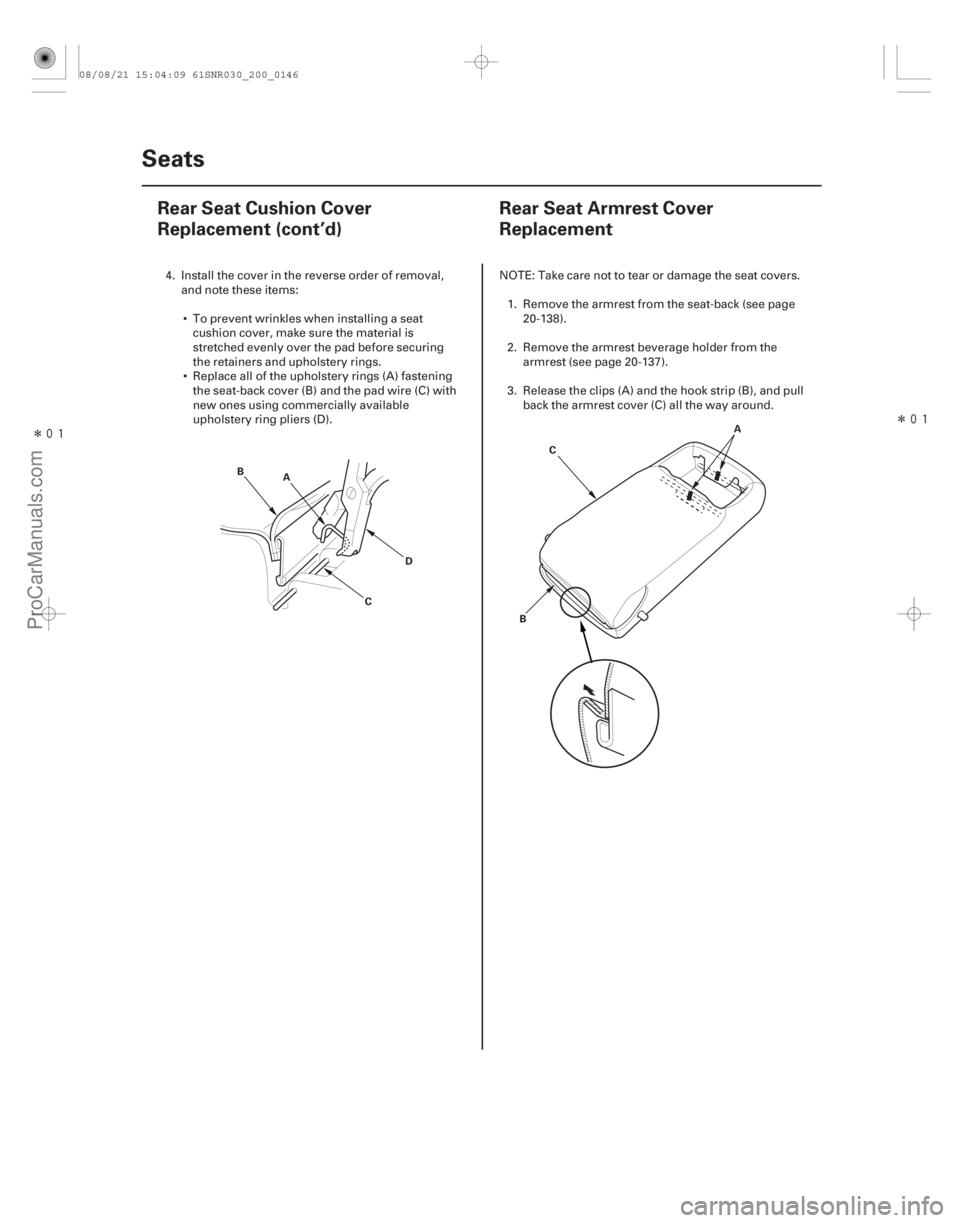

3. Release the clips (A) and the hook strip (B), and pull back the armrest cover (C) all the way around.
08/08/21 15:04:09 61SNR030_200_0146
ProCarManuals.com
DYNOMITE -2009-

Î
Î
(#'

 )
20-14420-144 Seats
Rear Seat Cushion Cover
Replacement (cont’d)
Rear Seat Armrest Cover
Replacement
D
B
C
A
A
B C
4. Install the cover in the reverse order of removal,
and note these items:
 To prevent wrinkles when installing a seat cushion cover, make sure the material is
stretched evenly over the pad before securing
the retainers and upholstery rings.
 Replace all of the upholstery rings (A) fastening the seat-back cover (B) and the pad wire (C) with
new ones using commercially available
upholstery ring pliers (D). NOTE: Take care not to tear or damage the seat covers.
1. Remove the armrest from the seat-back (see page 20-138).
2. Remove the armrest beverage holder from the armrest (see page 20-137).
3. Release the clips (A) and the hook strip (B), and pull back the armrest cover (C) all the way around.
08/08/21 15:04:09 61SNR030_200_0146
ProCarManuals.com
DYNOMITE -2009-


20-145
AB A

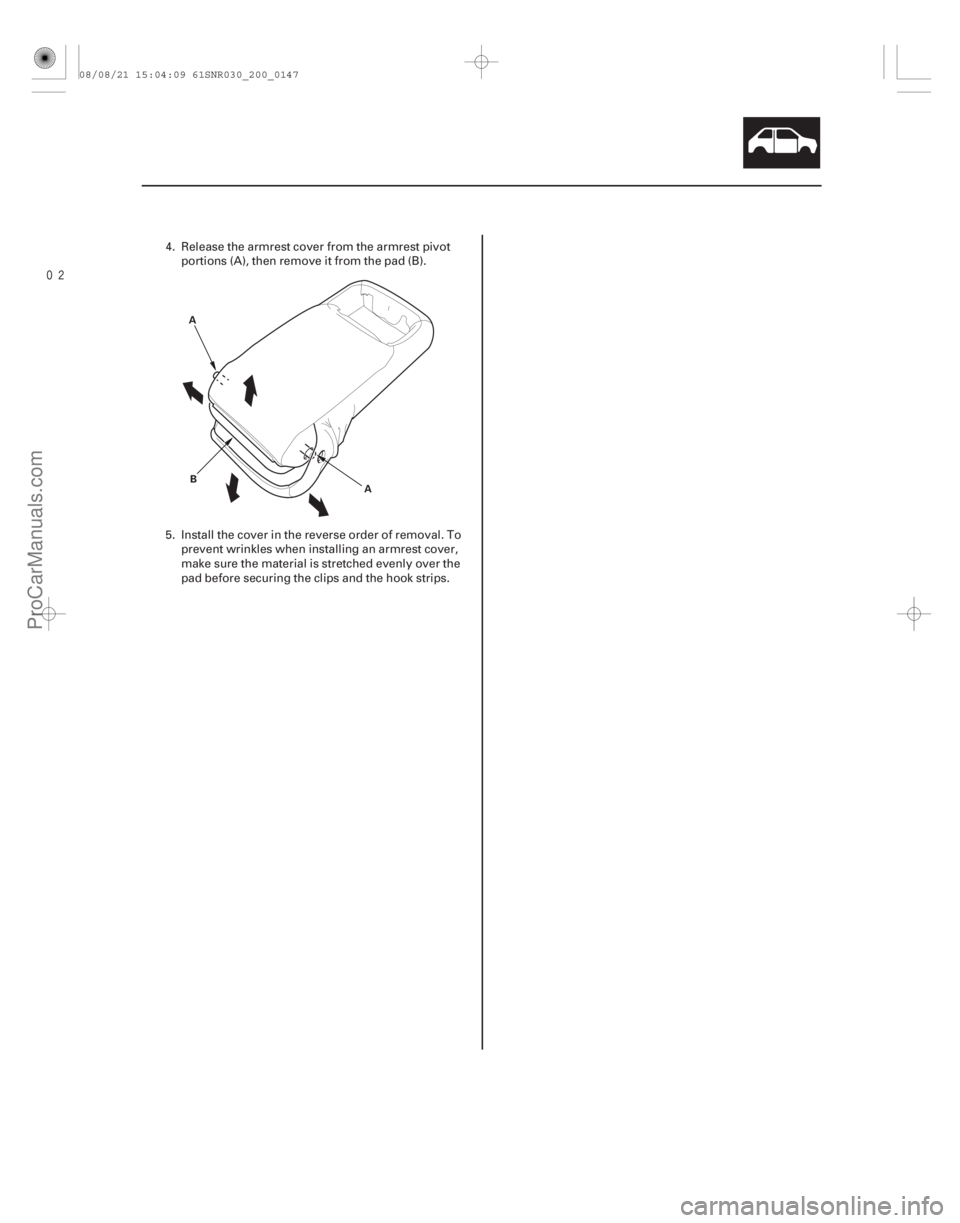

4. Release the armrest cover from the armrest pivot
portions (A), then remove it from the pad (B).
5. Install the cover in the reverse order of removal. To prevent wrinkles when installing an armrest cover,
make sure the material is stretched evenly over the
pad before securing the clips and the hook strips.
08/08/21 15:04:09 61SNR030_200_0147
ProCarManuals.com
DYNOMITE -2009-


Î

(#'




 )
’06-08 models
’09 model
20-146Bumpers
Front Bumper Removal/Installation
Fastener Locations
:Screw,2
A : Clip, 2 B:Clip,6C
A B
C
D E
E
C CC
C C
B A
E
E Fastener Locations
:Screw,2
A : Clip, 10
C
C
A A
C
C
C
C
C
C
C
C
C
D E
E
A B
C
NOTE:  Have an assistant help you when removing and installing the front bumper.
 Take care not to scratch the front bumper and body.
 Put on gloves to protect your hands.
1. Remove these items:  Front fender trim (see page 20-162)
 Front grille cover (see page 20-163)

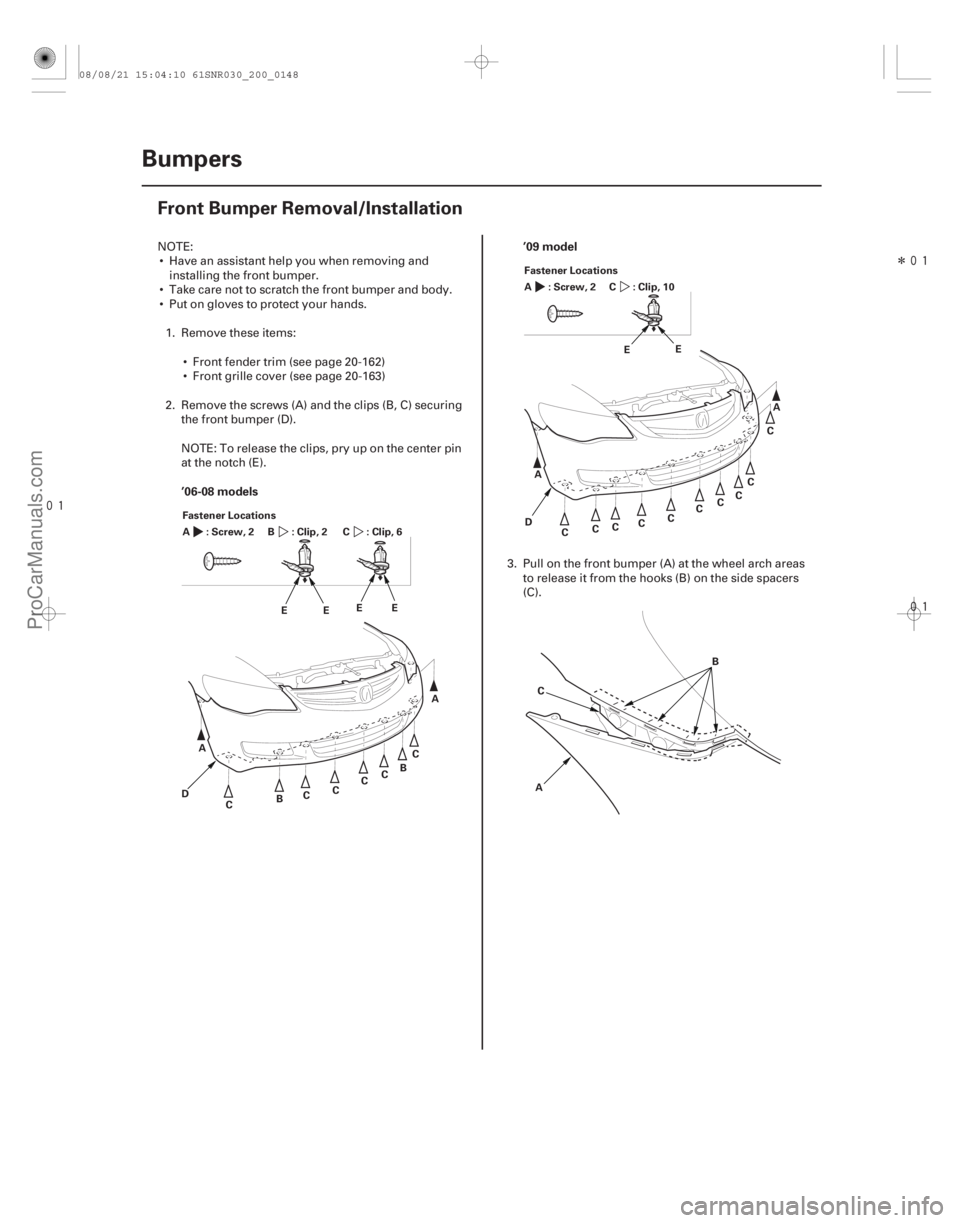

2. Remove the screws (A) and the clips (B, C) securing the front bumper (D).
NOTE: To release the clips, pry up on the center pin
at the notch (E).
3. Pull on the front bumper (A) at the wheel arch areasto release it from the hooks (B) on the side spacers
(C).
08/08/21 15:04:10 61SNR030_200_0148
ProCarManuals.com
DYNOMITE -2009-
