ACURA CSX 2006 Service Repair Manual







13-10Manual Transmission
Transmission Removal (cont’d)
A
B
B
B
A
B A
B
C
DB
14. Remove the under-hood fuse/relay box (A) by
lifting up on the lock tabs (B), then move it aside.
15. Remove the engine control module (ECM) bracket (A), then move it aside. Remove the clutch pipe
clamp (B). 16. Disconnect the ground cable (A), then remove the
transmission mount bracket bolts (B) and nuts (C).
Remove the transmission mount bracket (D).
17. Raise the vehicle on a lift.
18. Remove the splash shield.
19. Drain the MTF. Reinstall the drain plug with a new sealing washer (see page 13-5).
20. Separate the lower arm (see step 5 on page 16-4).
08/08/21 14:44:22 61SNR030_130_0012
ProCarManuals.com
DYNOMITE -2009-




Î


13-11
A B
C
A
B A
B
A

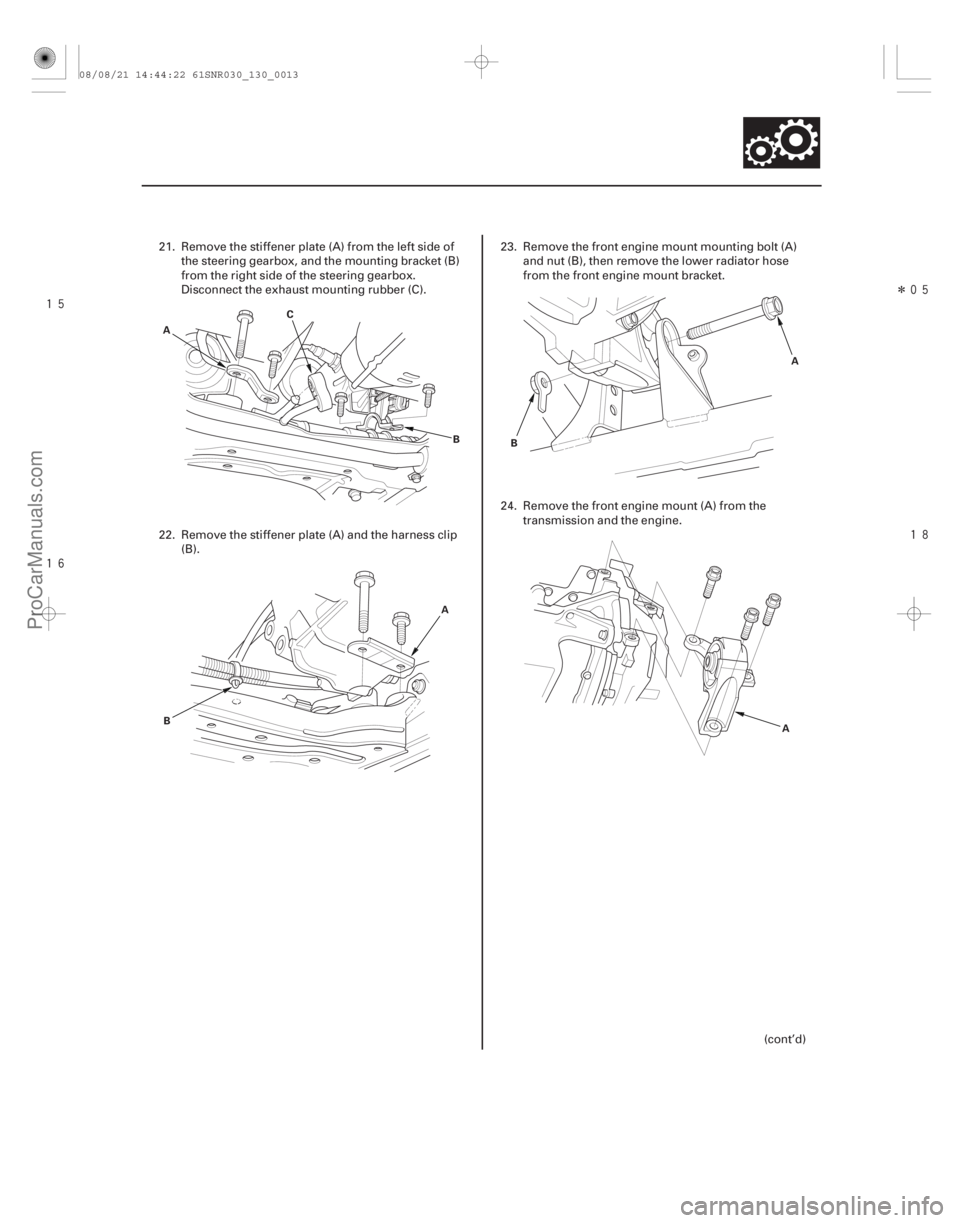

21. Remove the stiffener plate (A) from the left side ofthe steering gearbox, and the mounting bracket (B)
from the right side of the steering gearbox.
Disconnect the exhaust mounting rubber (C).
22. Remove the stiffener plate (A) and the harness clip (B). 23. Remove the front engine mount mounting bolt (A)
and nut (B), then remove the lower radiator hose
from the front engine mount bracket.
24. Remove the front engine mount (A) from the transmission and the engine.
(cont’d)
08/08/21 14:44:22 61SNR030_130_0013
ProCarManuals.com
DYNOMITE -2009-




Î

13-12Manual Transmission
Transmission Removal (cont’d)
A
A
BB
A B
C VSB02C000016
A
AB
A
A

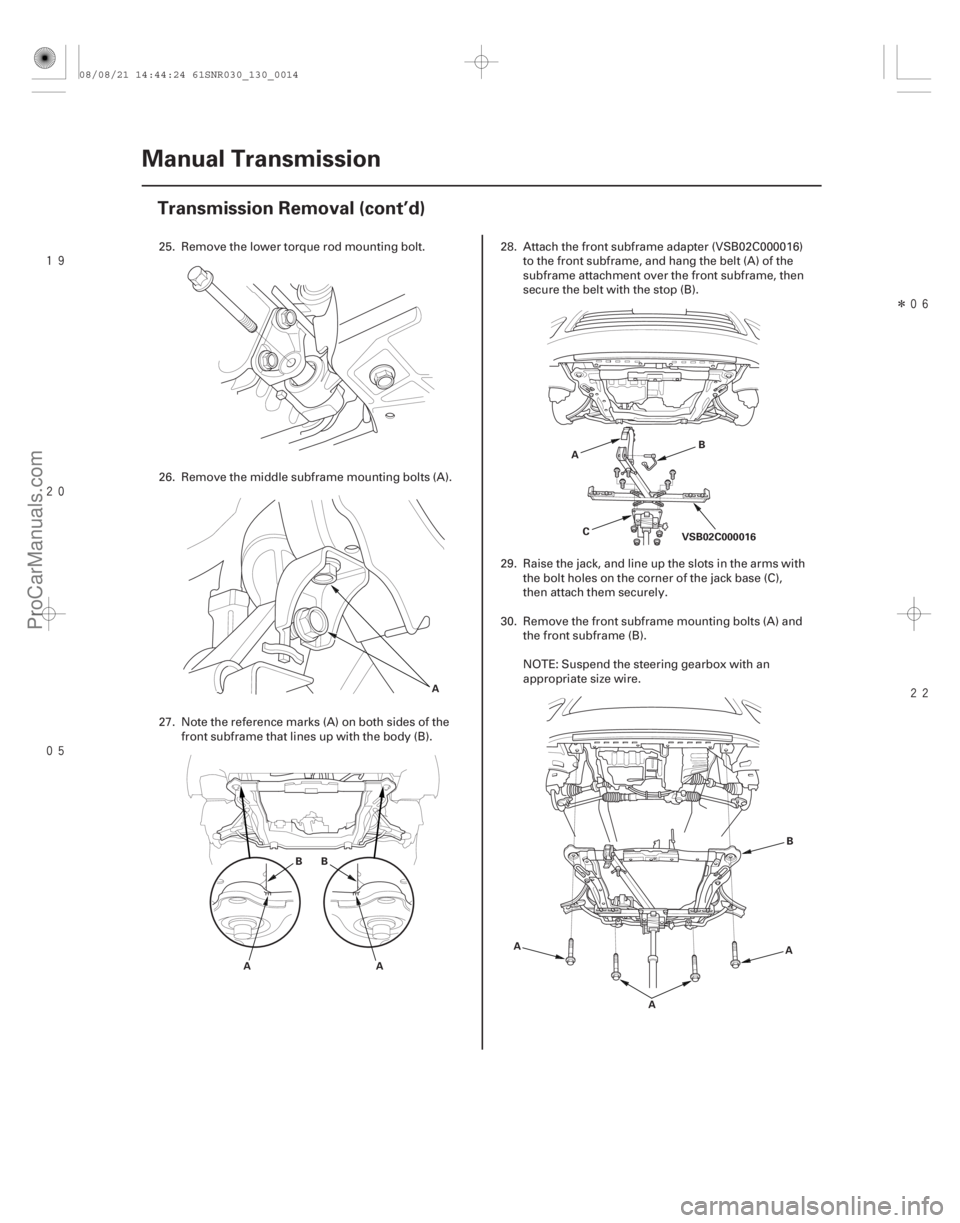

25. Remove the lower torque rod mounting bolt.
26. Remove the middle subframe mounting bolts (A).
27. Note the reference marks (A) on both sides of the
front subframe that lines up with the body (B). 28. Attach the front subframe adapter (VSB02C000016)
to the front subframe, and hang the belt (A) of the
subframe attachment over the front subframe, then
secure the belt with the stop (B).
29. Raise the jack, and line up the slots in the arms with the bolt holes on the corner of the jack base (C),
then attach them securely.
30. Remove the front subframe mounting bolts (A) and the front subframe (B).
NOTE: Suspend the steering gearbox with an
appropriate size wire.
08/08/21 14:44:24 61SNR030_130_0014
ProCarManuals.com
DYNOMITE -2009-

Î
Î
13-13

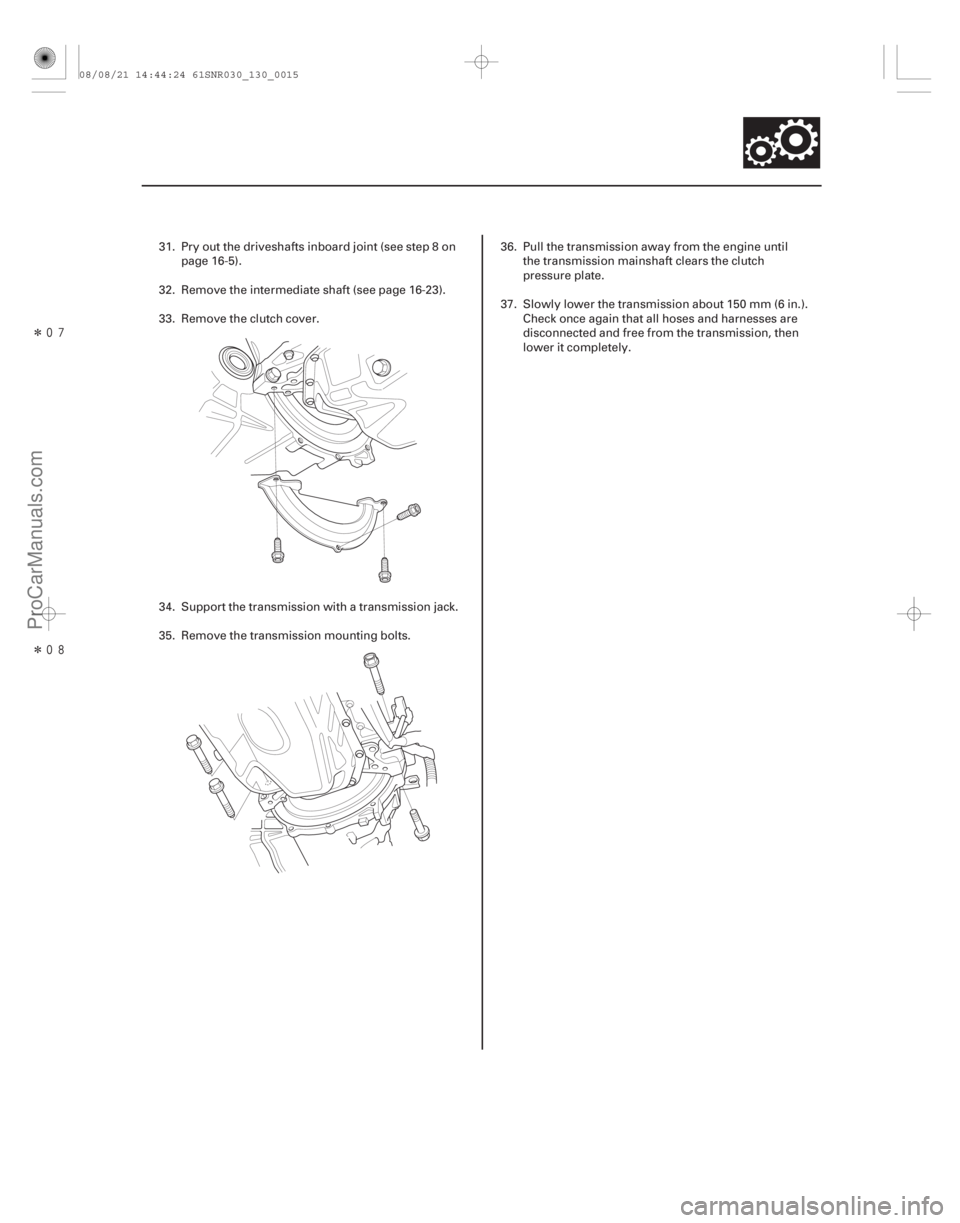

31. Pry out the driveshafts inboard joint (see step 8 onpage 16-5).
32. Remove the intermediate shaft (see page 16-23).
33. Remove the clutch cover.
34. Support the transmission with a transmission jack.
35. Remove the transmission mounting bolts. 36. Pull the transmission away from the engine until
the transmission mainshaft clears the clutch
pressure plate.
37. Slowly lower the transmission about 150 mm (6 in.). Check once again that all hoses and harnesses are
disconnected and free from the transmission, then
lower it completely.
08/08/21 14:44:24 61SNR030_130_0015
ProCarManuals.com
DYNOMITE -2009-

Ì
Ï

Î
Î
Î
(#'

 )
Special Tools Required
13-14
Manual Transmission
Transmission Installation
A
A
A 12x1.25mm
64N·m(6.5kgf·m,47lbf·ft)
12x1.25mm
64N·m(6.5kgf·m,47lbf·ft)
6x1.0mm
12 N·m (1.2 kgf·m, 9 lbf·ft)
 Engine hanger adapter VSB02C000015
 2006 Civic engine hanger VSB02C000025
 Engine support hanger, A and Reds AAR-T 1256
 Front subframe adapter VSB02C000016
These special tools are available through the Acura
Canada Technical Tools Department; FAX
866-398-8665/e-mail: ch_technicaltools ch.honda.com
NOTE: Use fender covers to avoid damaging painted
surfaces.

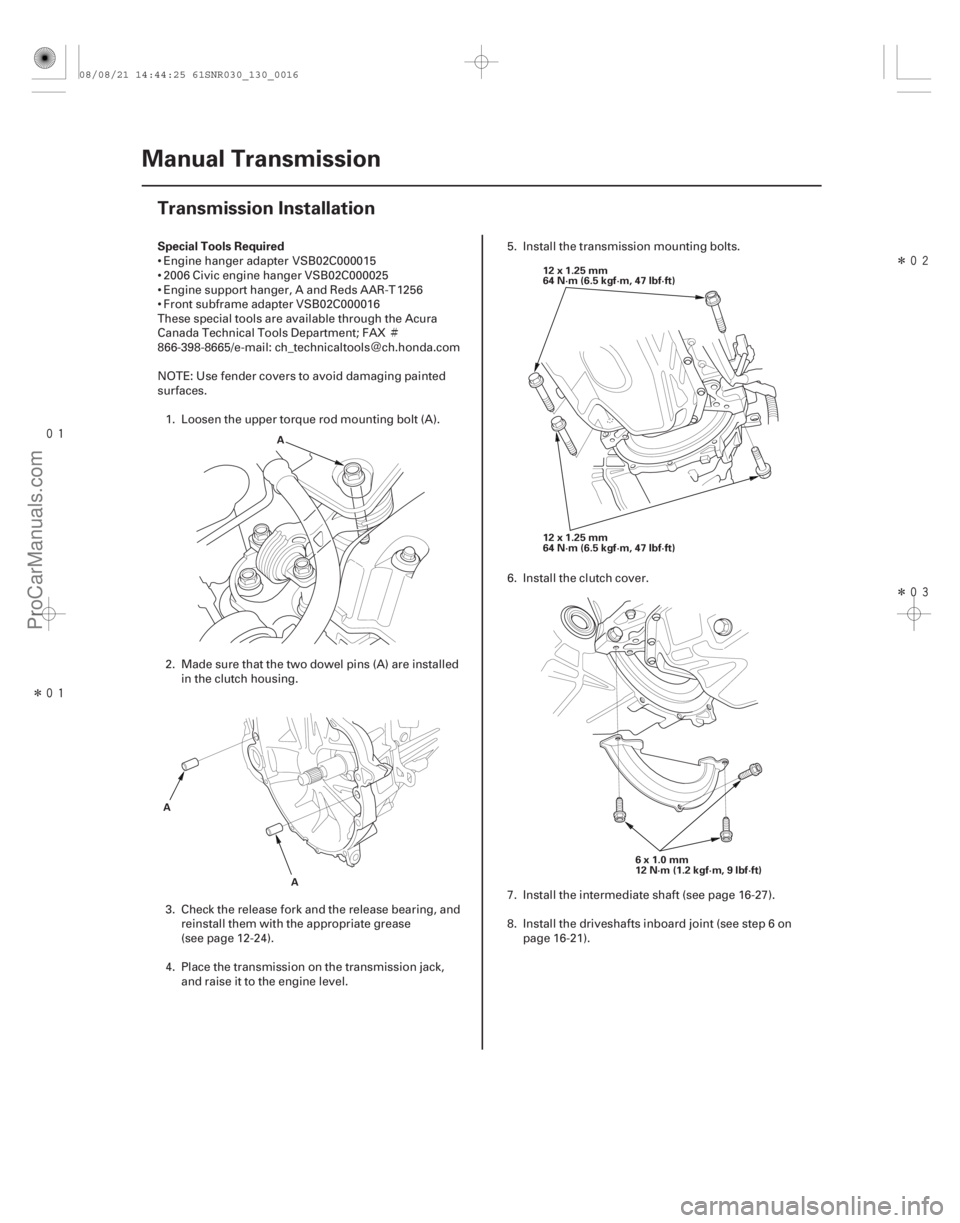

1. Loosen the upper torque rod mounting bolt (A).
2. Made sure that the two dowel pins (A) are installed in the clutch housing.
3. Check the release fork and the release bearing, and reinstall them with the appropriate grease
(see page 12-24).
4. Place the transmission on the transmission jack, and raise it to the engine level. 5. Install the transmission mounting bolts.
6. Install the clutch cover.
7. Install the intermediate shaft (see page 16-27).
8. Install the driveshafts inboard joint (see step 6 on
page 16-21).
08/08/21 14:44:25 61SNR030_130_0016
ProCarManuals.com
DYNOMITE -2009-



13-15
VSB02C000016
B
14x1.5mm
103 N·m
(10.5kgf·m,76lbf·ft)B
14x1.5mm
103 N·m
(10.5kgf·m,76lbf·ft)A
A
BB
A

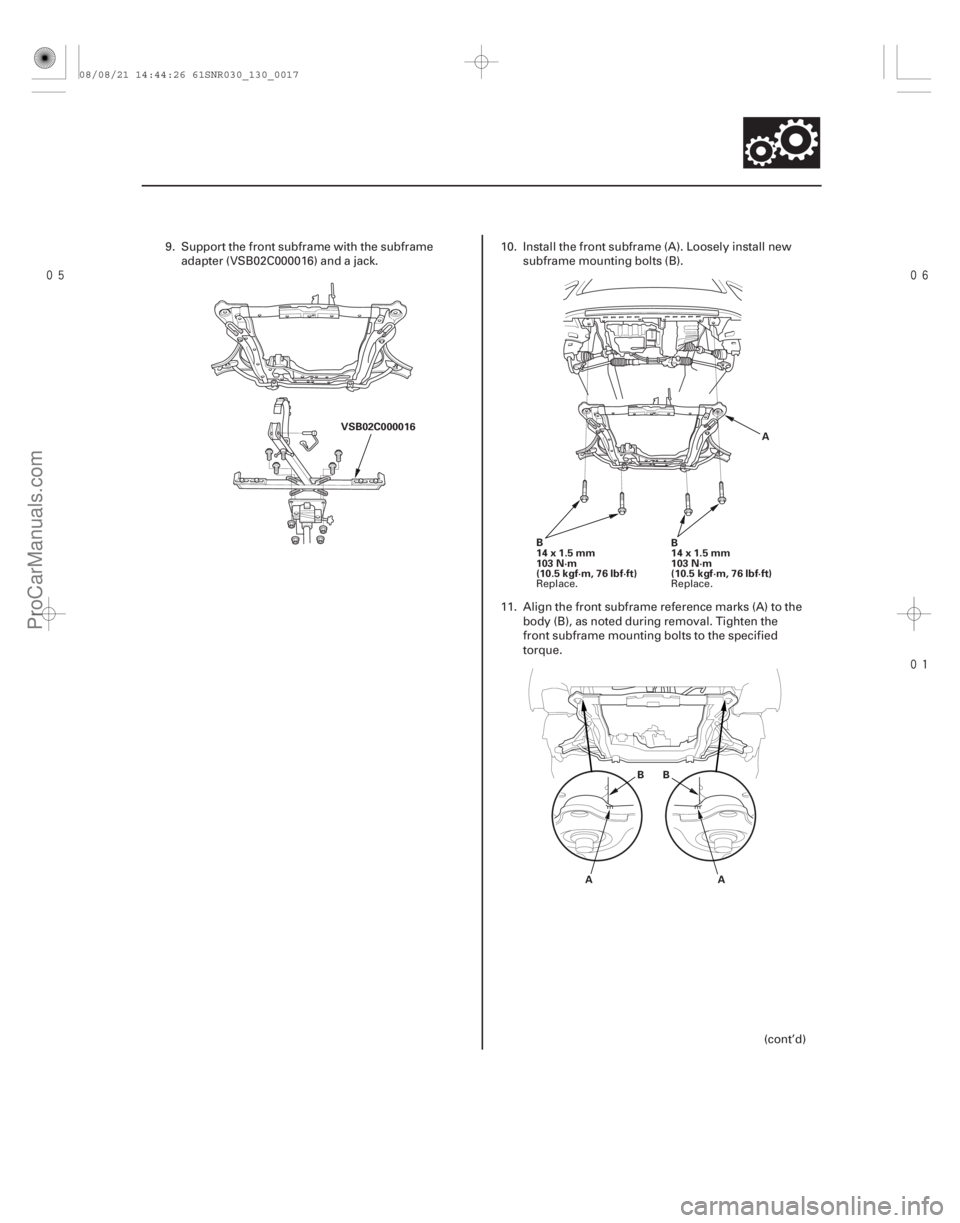

9. Support the front subframe with the subframe adapter (VSB02C000016) and a jack. 10. Install the front subframe (A). Loosely install new
subframe mounting bolts (B).
11. Align the front subframe reference marks (A) to the body (B), as noted during removal. Tighten the
front subframe mounting bolts to the specified
torque.
(cont’d)
Replace.Replace.
08/08/21 14:44:26 61SNR030_130_0017
ProCarManuals.com
DYNOMITE -2009-




13-16Manual Transmission
Transmission Installation (cont’d)
14x1.5mm
88 N·m
(9.0 kgf·m,
65 lbf·ft)
12x1.25mm
74 N·m
(7.5 kgf·m, 55 lbf·ft)
A A
12 x 1.25 mm
64 N·m
(6.5 kgf·m, 47 lbf·ft)

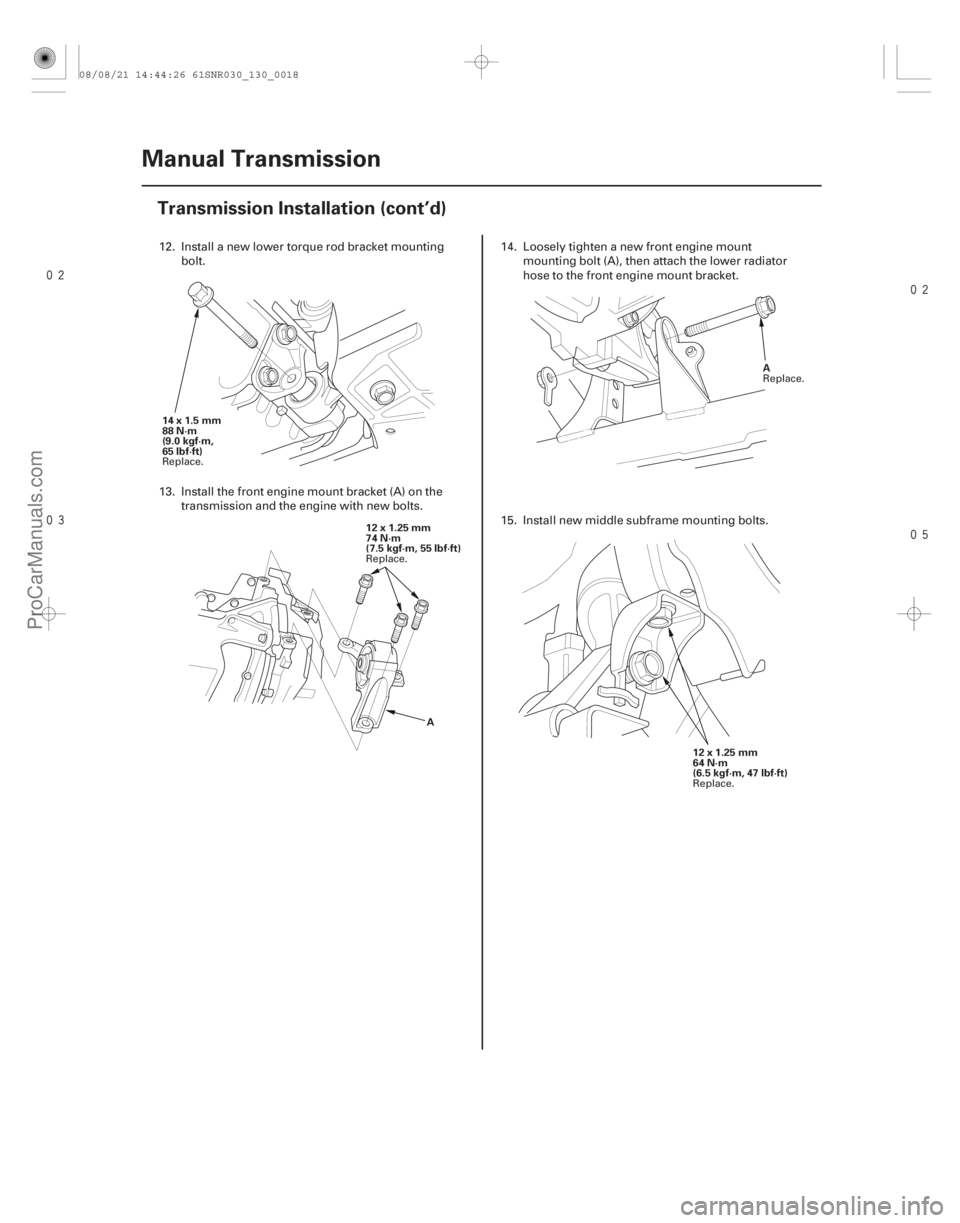

12. Install a new lower torque rod bracket mounting bolt.
13. Install the front engine mount bracket (A) on the transmission and the engine with new bolts. 14. Loosely tighten a new front engine mount
mounting bolt (A), then attach the lower radiator
hose to the front engine mount bracket.
15. Install new middle subframe mounting bolts.
Replace. Replace. Replace.
Replace.
08/08/21 14:44:26 61SNR030_130_0018
ProCarManuals.com
DYNOMITE -2009-




Î
Î
13-17
A
B 10x1.25mm
54 N·m
(5.5 kgf·m,
40 lbf·ft)
10x1.25mm
59 N·m (6.0 kgf·m, 43 lbf·ft)
A B
C
10x1.25mm
59 N·m
(6.0 kgf·m, 43 lbf·ft)
10x1.25mm
54 N·m
(5.5 kgf·m,
40 lbf·ft)10 x 1.25 mm
38 N·m
(3.9 kgf·m,
28 lbf·ft) 12x1.25mm
74 N·m
(7.5 kgf·m,
55 lbf·ft)
6x1.0mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)
12x1.25mm
74 N·m
(7.5 kgf·m,
55 lbf·ft)
12x1.25mm
74 N·m
(7.5 kgf·m, 55 lbf·ft) B
A
A
14x1.5mm
93 N·m
(9.5 kgf·m,
69 lbf·ft)

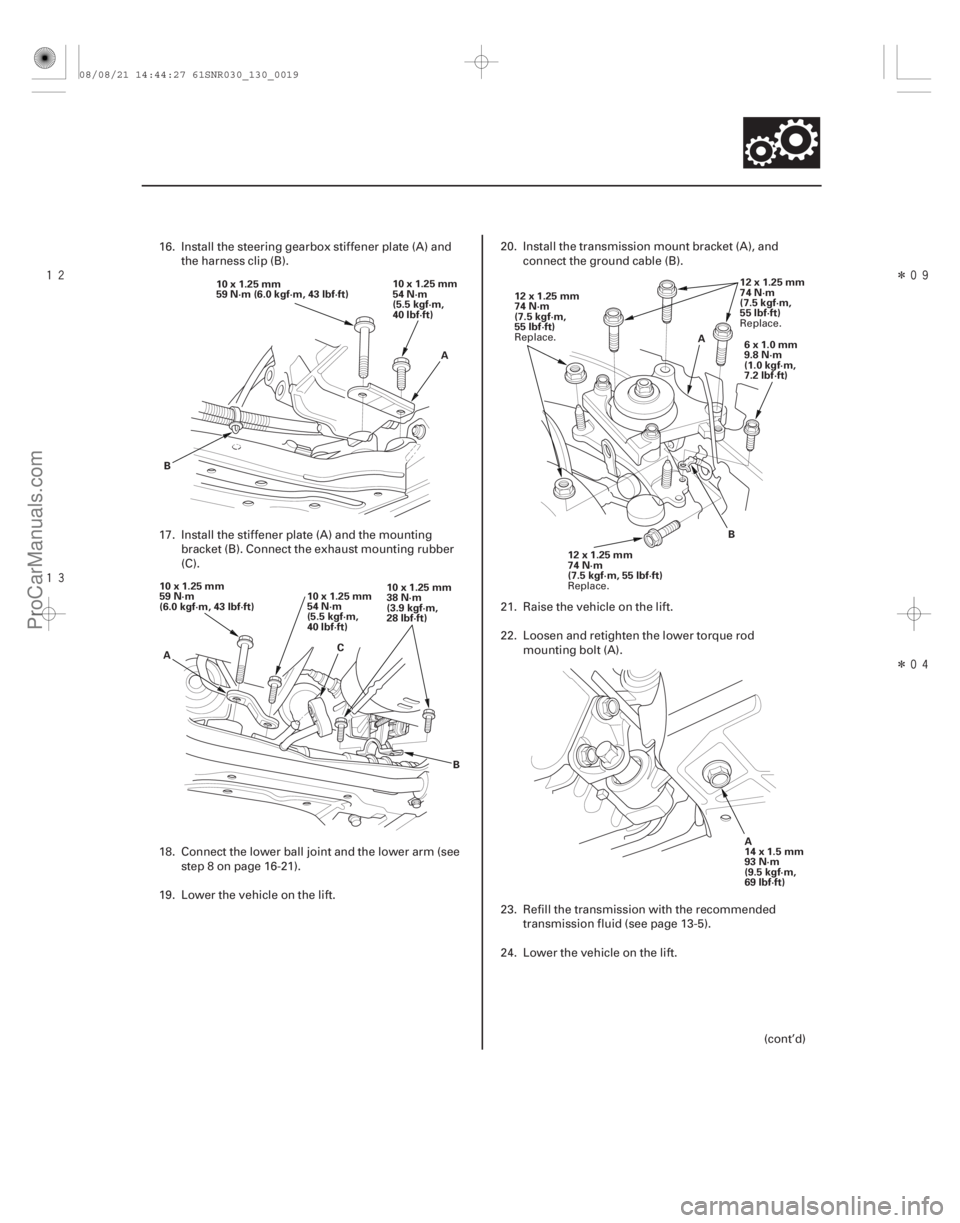

16. Install the steering gearbox stiffener plate (A) andthe harness clip (B).
17. Install the stiffener plate (A) and the mounting bracket (B). Connect the exhaust mounting rubber
(C).
18. Connect the lower ball joint and the lower arm (see step 8 on page 16-21).
19. Lower the vehicle on the lift. 20. Install the transmission mount bracket (A), and
connect the ground cable (B).
21. Raise the vehicle on the lift.
22. Loosen and retighten the lower torque rod mounting bolt (A).
23. Refill the transmission with the recommended transmission fluid (see page 13-5).
24. Lower the vehicle on the lift.
(cont’d)
Replace.Replace.
Replace.
08/08/21 14:44:27 61SNR030_130_0019
ProCarManuals.com
DYNOMITE -2009-

Î
Î


13-18Manual Transmission
Transmission Installation (cont’d)
A
12x1.25mm
64N·m(6.5kgf·m,47lbf·ft)
A
12x1.25m
64 N·m
(6.5 kgf·m,
47 lbf·ft) A
B 10x1.25mm
38 N·m
(3.9 kgf·m,
28 lbf·ft)

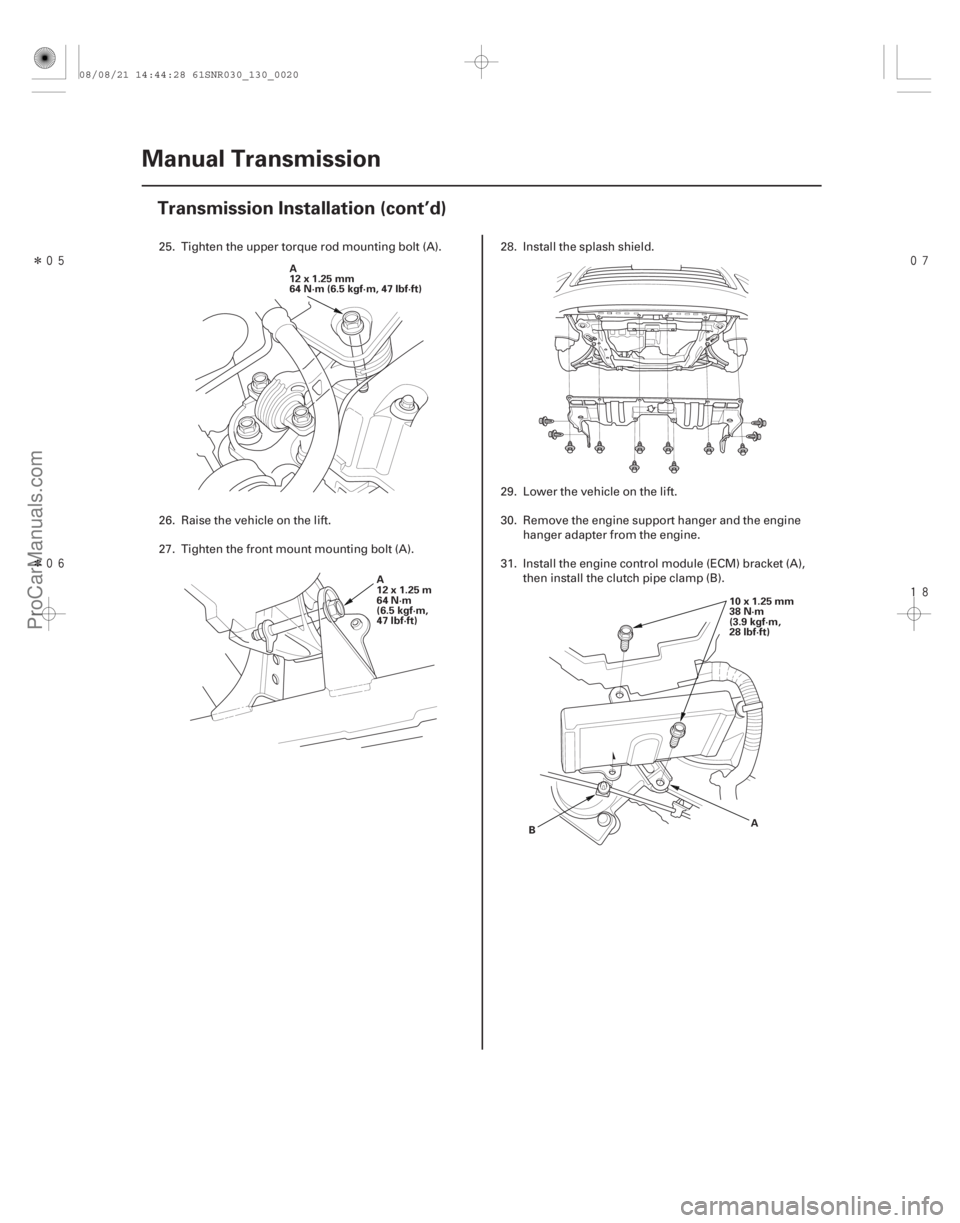

25. Tighten the upper torque rod mounting bolt (A).
26. Raise the vehicle on the lift.
27. Tighten the front mount mounting bolt (A). 28. Install the splash shield.
29. Lower the vehicle on the lift.
30. Remove the engine support hanger and the engine
hanger adapter from the engine.
31. Install the engine control module (ECM) bracket (A), then install the clutch pipe clamp (B).
08/08/21 14:44:28 61SNR030_130_0020
ProCarManuals.com
DYNOMITE -2009-





13-19
A
12 x 1.25 mm
64N·m(6.5kgf·m,47lbf·ft) A
6x1.0mm
12 N·m (1.2 kgf·m, 9 lbf·ft)
32. Install the under-food fuse/relay box (A) on the under-hood fuse/relay bracket.
33. Install the two upper transmission mounting bolts. 34. Install the engine harness cover (A).
