ACURA CSX 2006 Service Repair Manual

Î

(#'
!)
Exploded View
13-36Manual Transmission
Mainshaft Reassembly
5TH SYNCHRO SLEEVE
5TH SYNCHRO HUB TAPERED CONE RING
MBS DISTANCE COLLAR
NEEDLE BEARING
SYNCHRO RING
4TH/5TH GEAR DISTANCE COLLAR
SYNCHRO
SPRING
SYNCHRO SPRING ANGULAR BALL BEARING
SYNCHRO SPRING
MAINSHAFT SYNCHRO RING
3RD/4TH
SYNCHRO SLEEVE
3RD/4TH
SYNCHRO HUB
NEEDLE BEARING
4TH GEAR
SYNCHRO RING
3RD GEAR
SYNCHRO RING
5TH GEAR
SYNCHRO SPRING Note the direction of
installation.
Check for wear and operation. Check for wear and operation.
Note the direction
of installation.
Note the direction
of installation.
Note the direction
of installation.
Check for wear and operation.
08/08/21 14:45:05 61SNR030_130_0038
ProCarManuals.com
DYNOMITE -2009-

Î

Î

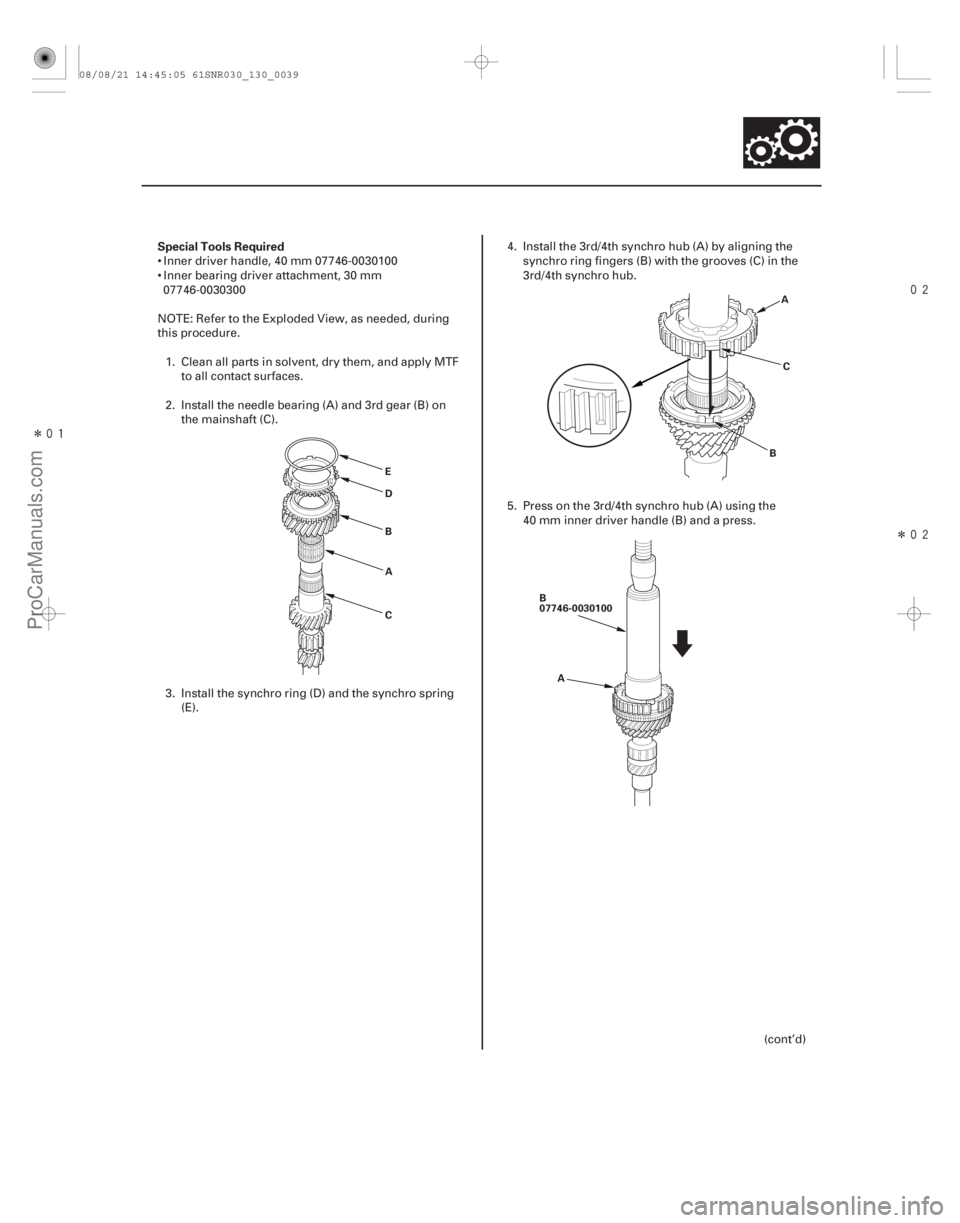

Special Tools Required
13-37
A D E
B
C A
B C
B
07746-0030100 A
 Inner driver handle, 40 mm 07746-0030100
 Inner bearing driver attachment, 30 mm07746-0030300
NOTE: Refer to the Exploded View, as needed, during
this procedure. 1. Clean all parts in solvent, dry them, and apply MTF to all contact surfaces.
2. Install the needle bearing (A) and 3rd gear (B) on the mainshaft (C).
3. Install the synchro ring (D) and the synchro spring (E). 4. Install the 3rd/4th synchro hub (A) by aligning the
synchro ring fingers (B) with the grooves (C) in the
3rd/4th synchro hub.
5. Press on the 3rd/4th synchro hub (A) using the 40 mm inner driver handle (B) and a press.
(cont’d)
08/08/21 14:45:05 61SNR030_130_0039
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ

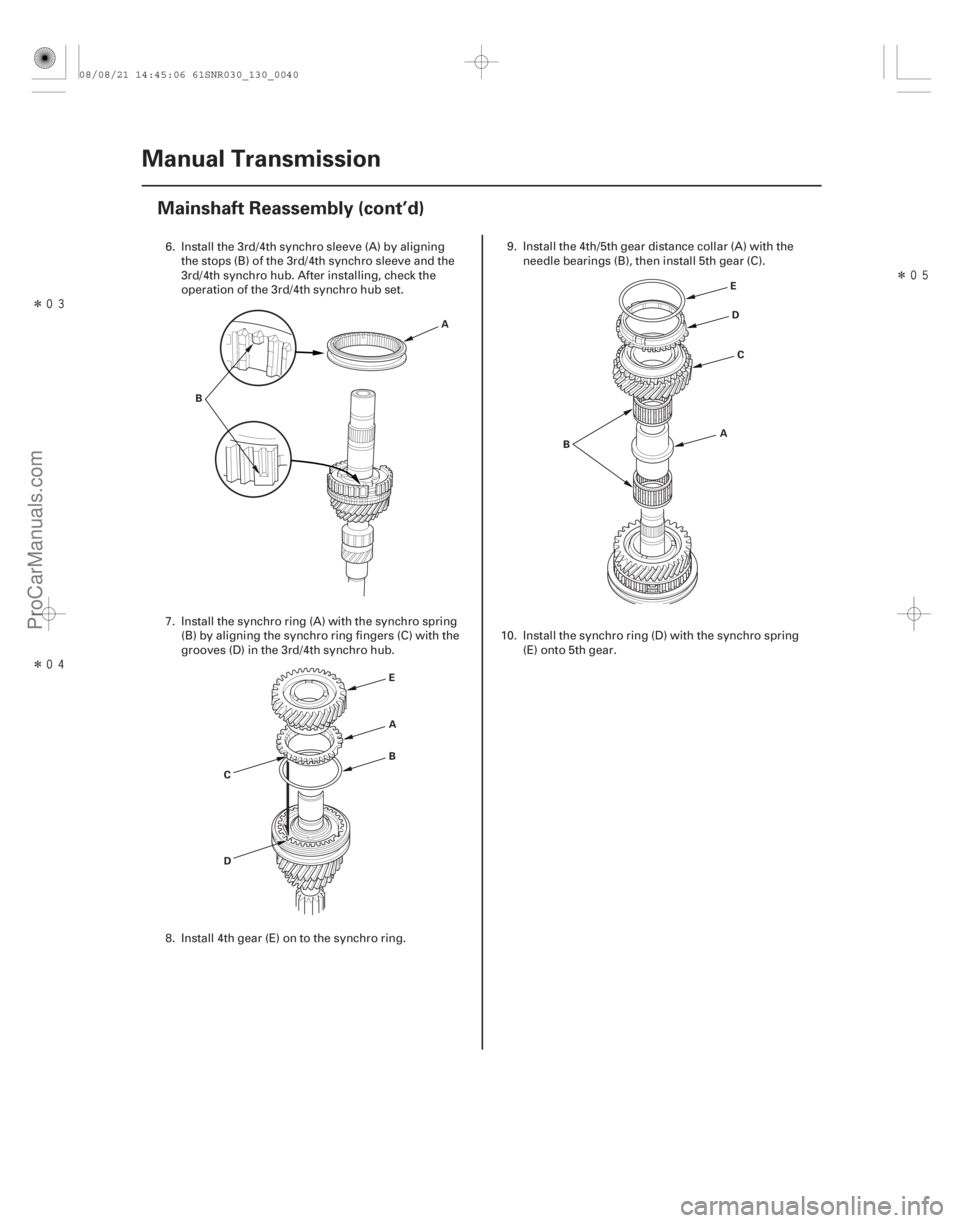

13-38Manual Transmission
Mainshaft Reassembly (cont’d)
B
A
A
D E
B
C B
C
A D
E
6. Install the 3rd/4th synchro sleeve (A) by aligning
the stops (B) of the 3rd/4th synchro sleeve and the
3rd/4th synchro hub. After installing, check the
operation of the 3rd/4th synchro hub set.
7. Install the synchro ring (A) with the synchro spring (B) by aligning the synchro ring fingers (C) with the
grooves (D) in the 3rd/4th synchro hub.
8. Install 4th gear (E) on to the synchro ring. 9. Install the 4th/5th gear distance collar (A) with the
needle bearings (B), then install 5th gear (C).
10. Install the synchro ring (D) with the synchro spring (E) onto 5th gear.
08/08/21 14:45:06 61SNR030_130_0040
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ
13-39
B
C
A
B
07746-0030100 A C
07746-0030300 B
A

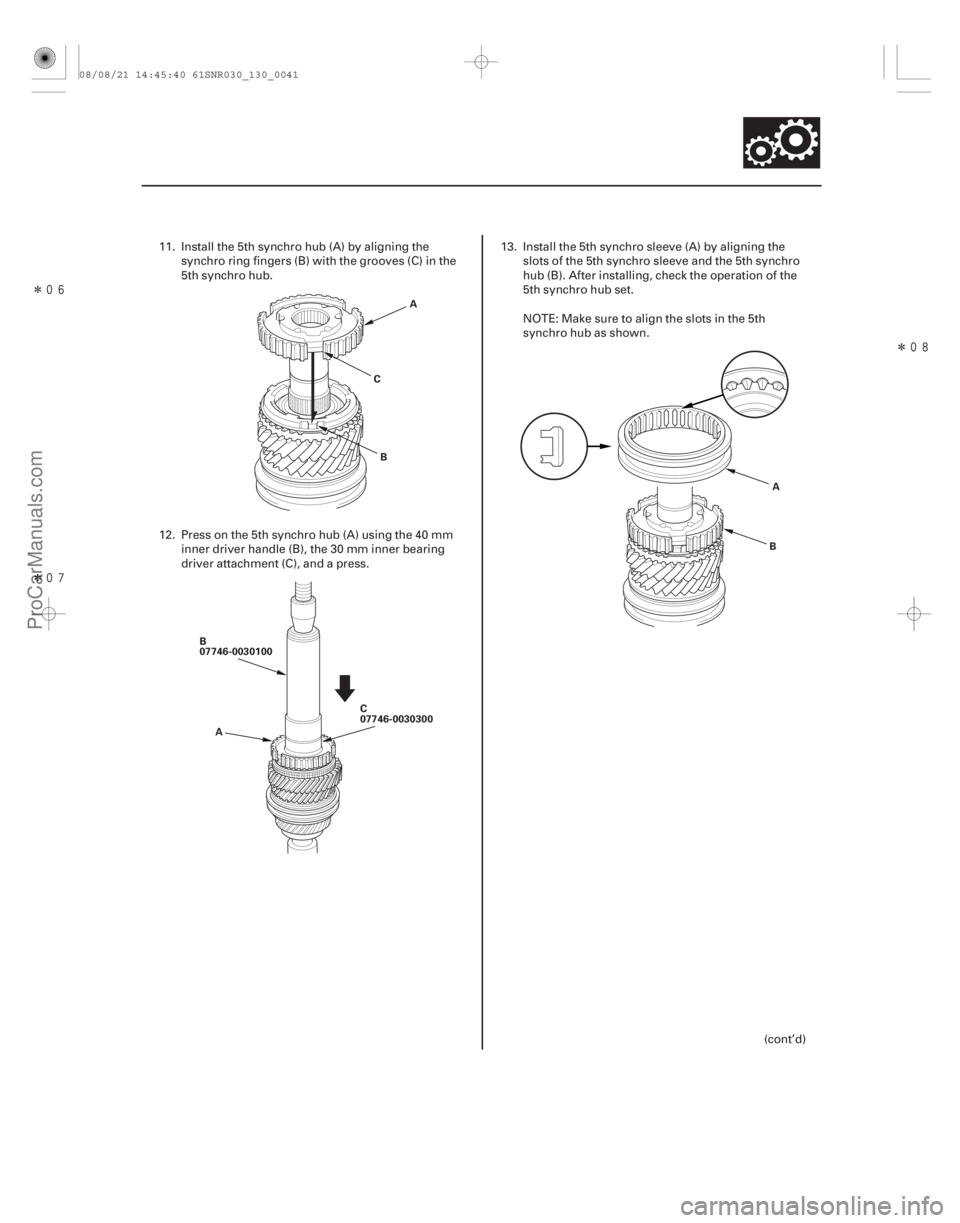

11. Install the 5th synchro hub (A) by aligning the
synchro ring fingers (B) with the grooves (C) in the
5th synchro hub.
12. Press on the 5th synchro hub (A) using the 40 mm inner driver handle (B), the 30 mm inner bearing
driver attachment (C), and a press. 13. Install the 5th synchro sleeve (A) by aligning the
slots of the 5th synchro sleeve and the 5th synchro
hub (B). After installing, check the operation of the
5th synchro hub set.
NOTE: Make sure to align the slots in the 5th
synchro hub as shown.
(cont’d)
08/08/21 14:45:40 61SNR030_130_0041
ProCarManuals.com
DYNOMITE -2009-

ÎÎ

13-40Manual Transmission

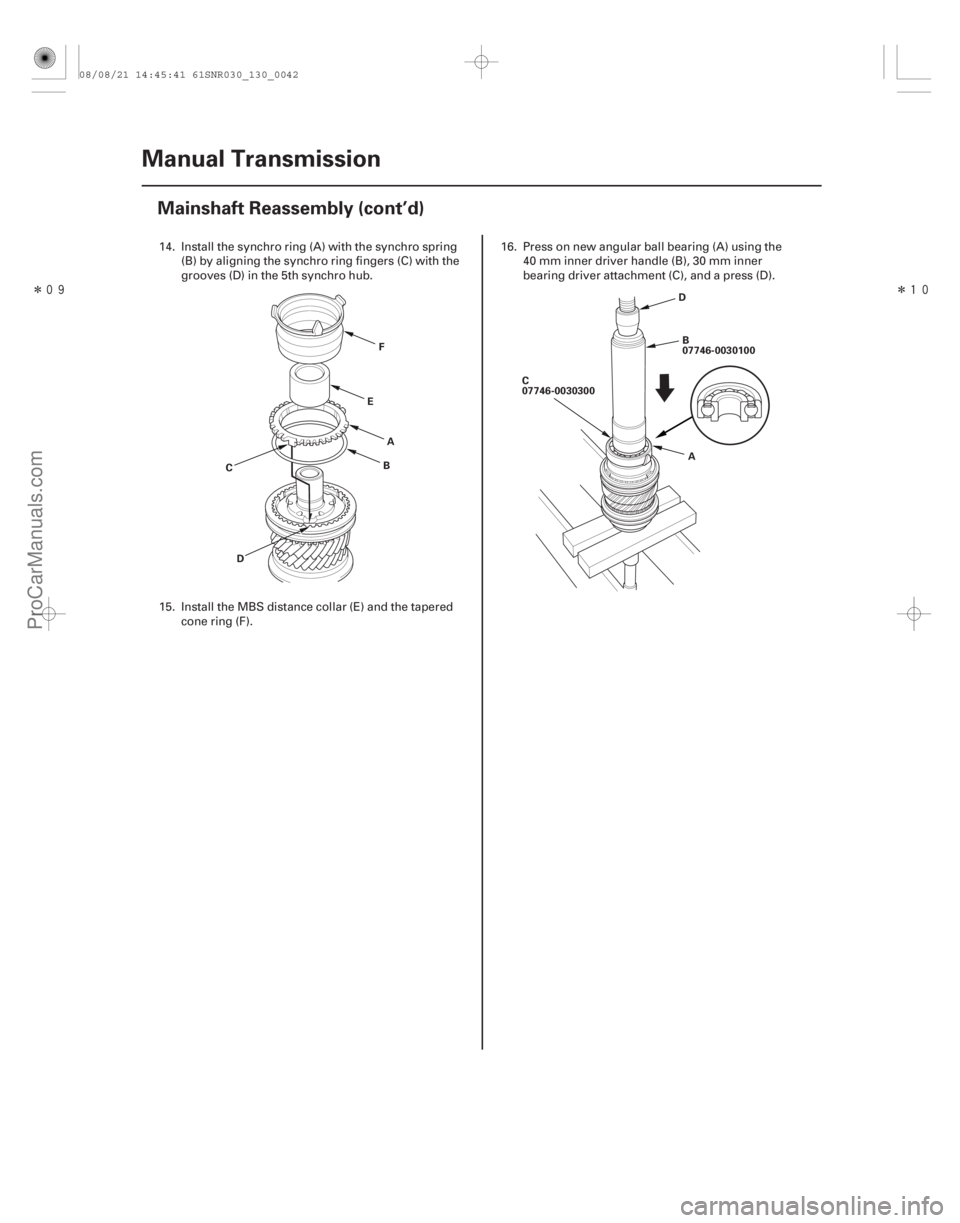

Mainshaft Reassembly (cont’d)
A
D E
B
C F
B
07746-0030100
C
07746-0030300
A
D
14. Install the synchro ring (A) with the synchro spring
(B) by aligning the synchro ring fingers (C) with the
grooves (D) in the 5th synchro hub.
15. Install the MBS distance collar (E) and the tapered cone ring (F). 16. Press on new angular ball bearing (A) using the
40 mm inner driver handle (B), 30 mm inner
bearing driver attachment (C), and a press (D).
08/08/21 14:45:41 61SNR030_130_0042
ProCarManuals.com
DYNOMITE -2009-


Î


(#'
")

µµ
µµ µµ
µµ
Standard: 0.06 0.16 mm (0.002 0.006 in.)
Service Limit: 0.25 mm (0.010 in.)
Standard: 23.03 23.08 mm (0.907 0.909 in.) Standard: 22.92 22.97 mm (0.902 0.904 in.)
Service Limit: 22.87 mm (0.900 in.)
Standard: 0.06 0.16 mm (0.002 0.006 in.)
Service Limit: 0.25 mm (0.010 in.)
13-41

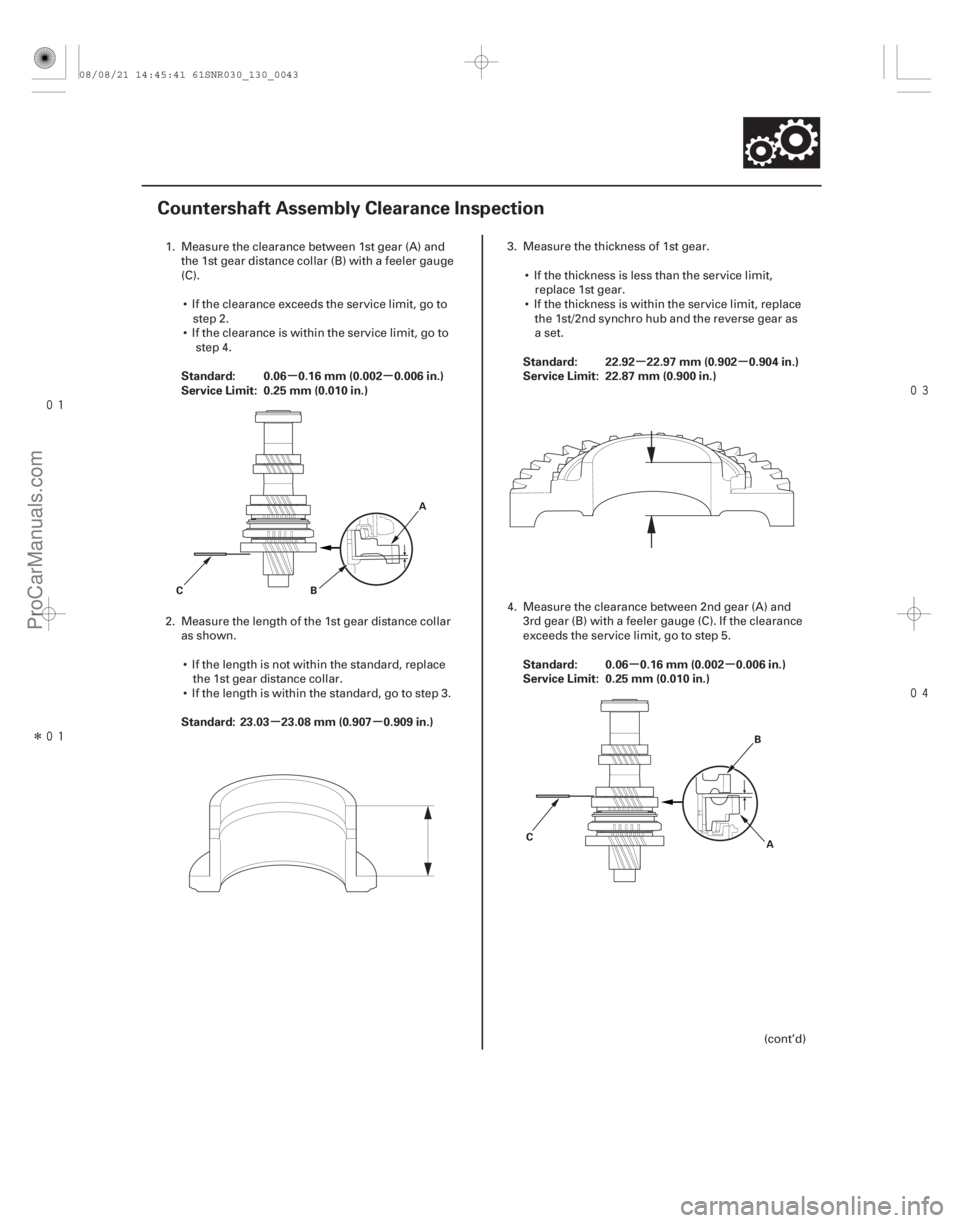

Countershaft Assembly Clearance Inspection
C
BA
BA
C
1. Measure the clearance between 1st gear (A) and
the 1st gear distance collar (B) with a feeler gauge
(C).
 If the clearance exceeds the service limit, go to step 2.
 If the clearance is within the service limit, go to step 4.
2. Measure the length of the 1st gear distance collar as shown.
 If the length is not within the standard, replace the 1st gear distance collar.
 If the length is within the standard, go to step 3. 3. Measure the thickness of 1st gear.
 If the thickness is less than the service limit,replace 1st gear.
 If the thickness is within the service limit, replace the 1st/2nd synchro hub and the reverse gear as
aset.
4. Measure the clearance between 2nd gear (A) and 3rd gear (B) with a feeler gauge (C). If the clearance
exceedstheservicelimit,gotostep5.
(cont’d)
08/08/21 14:45:41 61SNR030_130_0043
ProCarManuals.com
DYNOMITE -2009-



Î
(#'
!)
µµ
µµ
Standard: 28.03 28.08 mm (1.104 1.106 in.)
Standard: 27.92 27.97 mm (1.099 1.101 in.)
Service Limit: 27.87 mm (1.097 in.)
13-4213-42 Manual Transmission

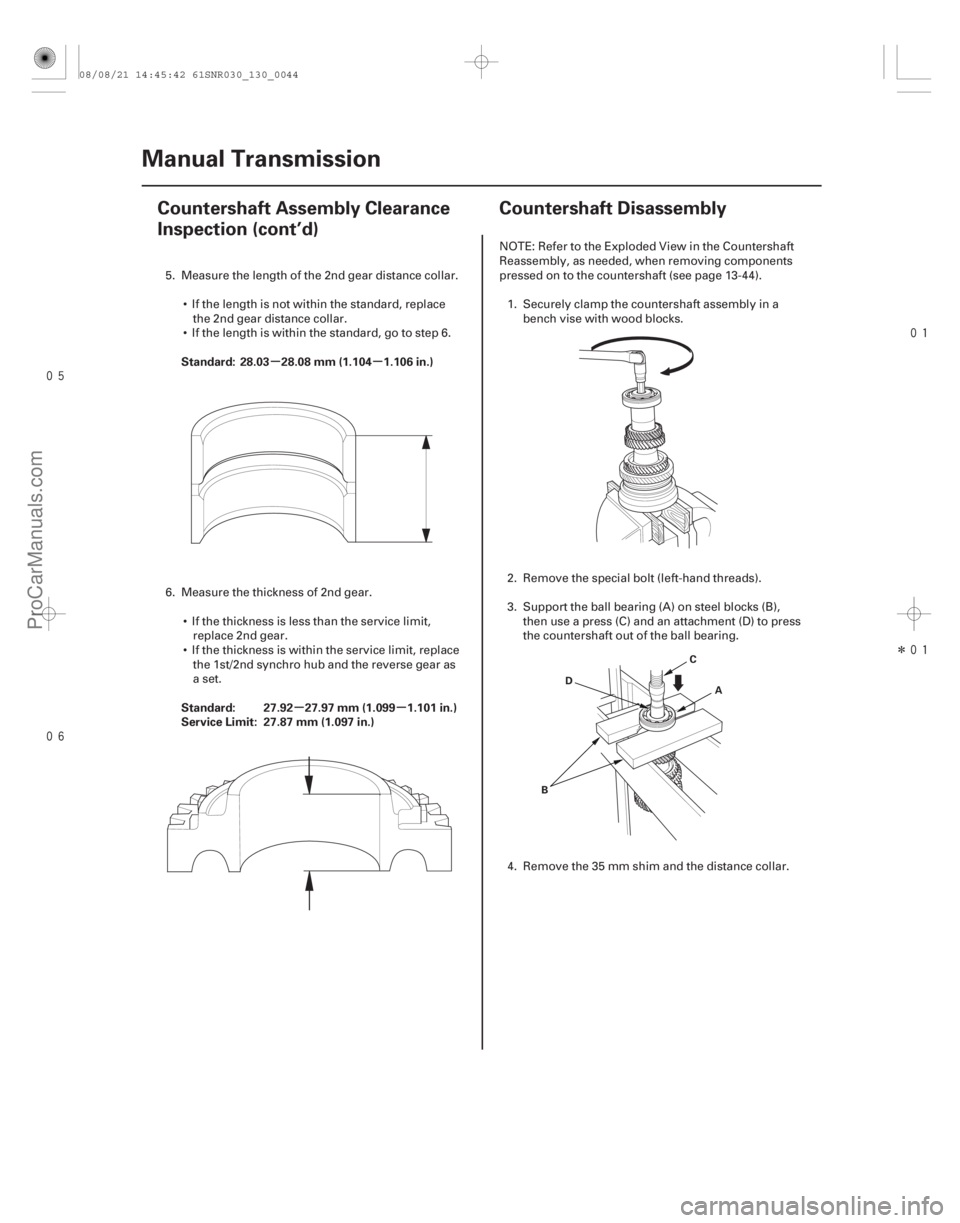

Countershaft Assembly Clearance
Inspection (cont’d)
Countershaft Disassembly
A
C
D
B
5. Measure the length of the 2nd gear distance collar.  If the length is not within the standard, replacethe 2nd gear distance collar.
 If the length is within the standard, go to step 6.
6. Measure the thickness of 2nd gear.  If the thickness is less than the service limit,replace 2nd gear.
 If the thickness is within the service limit, replace the 1st/2nd synchro hub and the reverse gear as
aset. NOTE: Refer to the Exploded View in the Countershaft
Reassembly, as needed, when removing components
pressed on to the countershaft (see page 13-44).
1. Securely clamp the countershaft assembly in a bench vise with wood blocks.
2. Remove the special bolt (left-hand threads).
3. Support the ball bearing (A) on steel blocks (B), then use a press (C) and an attachment (D) to press
the countershaft out of the ball bearing.
4. Removethe35mmshimandthedistancecollar.
08/08/21 14:45:42 61SNR030_130_0044
ProCarManuals.com
DYNOMITE -2009-



Î
(#'
!)
µµ
µµ
Standard: 28.03 28.08 mm (1.104 1.106 in.)
Standard: 27.92 27.97 mm (1.099 1.101 in.)
Service Limit: 27.87 mm (1.097 in.)
13-4213-42 Manual Transmission
Countershaft Assembly Clearance
Inspection (cont’d)
Countershaft Disassembly
A
C
D
B
5. Measure the length of the 2nd gear distance collar.  If the length is not within the standard, replacethe 2nd gear distance collar.
 If the length is within the standard, go to step 6.
6. Measure the thickness of 2nd gear.  If the thickness is less than the service limit,replace 2nd gear.
 If the thickness is within the service limit, replace the 1st/2nd synchro hub and the reverse gear as
aset. NOTE: Refer to the Exploded View in the Countershaft
Reassembly, as needed, when removing components
pressed on to the countershaft (see page 13-44).
1. Securely clamp the countershaft assembly in a bench vise with wood blocks.
2. Remove the special bolt (left-hand threads).
3. Support the ball bearing (A) on steel blocks (B), then use a press (C) and an attachment (D) to press
the countershaft out of the ball bearing.
4. Removethe35mmshimandthedistancecollar.
08/08/21 14:45:42 61SNR030_130_0044
ProCarManuals.com
DYNOMITE -2009-




(#'
") µµ
µµ
µµ
Standard:
A Ball Bearing Contact Area (transmission housing
side):30.020 30.033 mm (1.1819 1.1824 in.)
B 1st Gear Distance Collar Contact Area: 39.937 39.950 mm (1.5723 1.5728 in.)
C Needle Bearing Contact Area (clutch housing side):40.000 40.015 mm (1.5748 1.5754 in.)
Service Limit:
A: 29.97 mm (1.180 in.)
B: 39.88 mm (1.570 in.)
C: 39.95 mm (1.573 in.)
Standard: 0.02 mm (0.001 in.) max.
Service Limit: 0.05 mm (0.002 in.)
13-4313-43

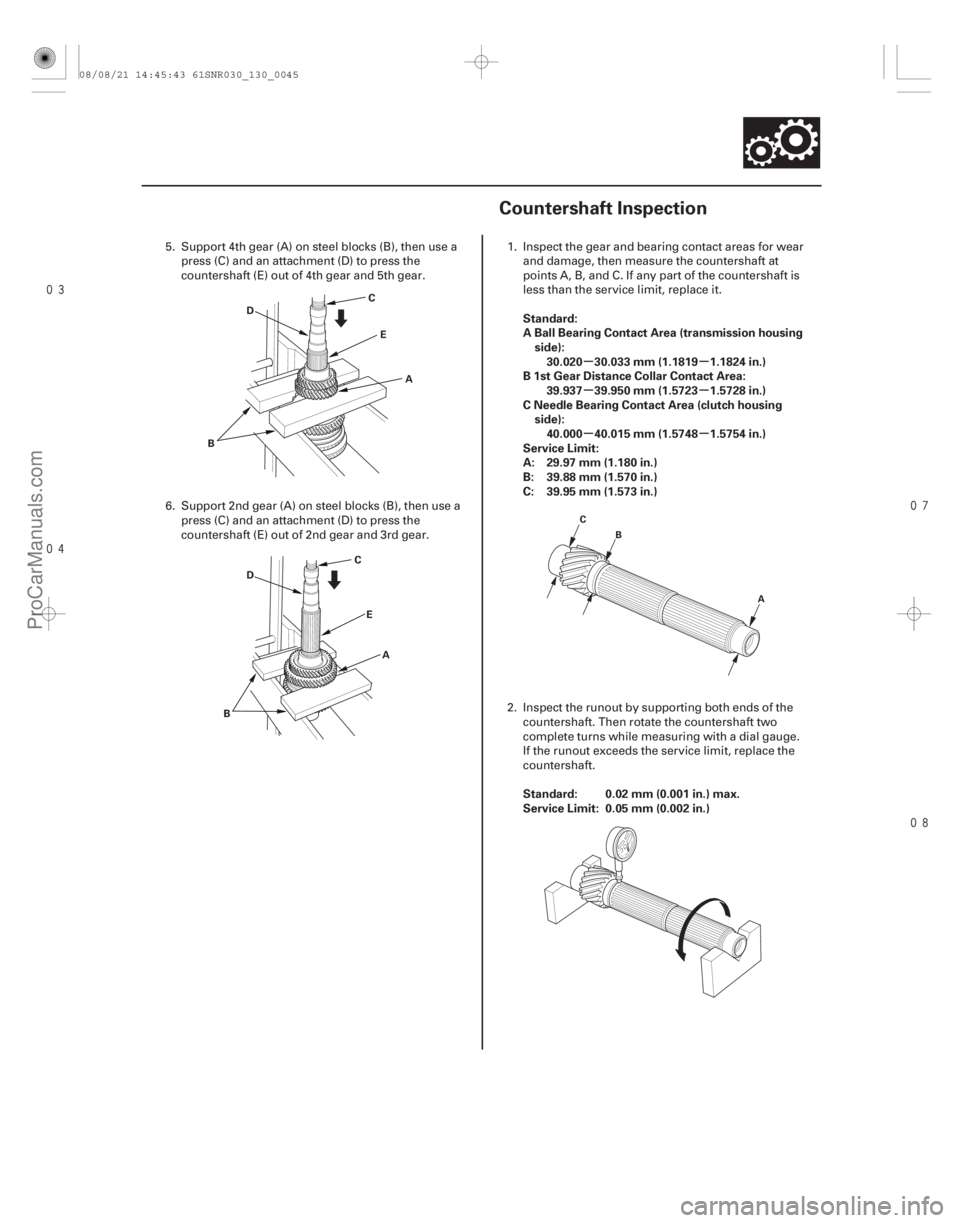

Countershaft Inspection
E
A
D
C
B
EA
D
C
B
C B
A
5. Support 4th gear (A) on steel blocks (B), then use apress (C) and an attachment (D) to press the
countershaft (E) out of 4th gear and 5th gear.
6. Support 2nd gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the
countershaft (E) out of 2nd gear and 3rd gear. 1. Inspect the gear and bearing contact areas for wear
and damage, then measure the countershaft at
points A, B, and C. If any part of the countershaft is
less than the service limit, replace it.
2. Inspect the runout by supporting both ends of the countershaft. Then rotate the countershaft two
complete turns while measuring with a dial gauge.
If the runout exceeds the service limit, replace the
countershaft.
08/08/21 14:45:43 61SNR030_130_0045
ProCarManuals.com
DYNOMITE -2009-

Î
(#'
!)

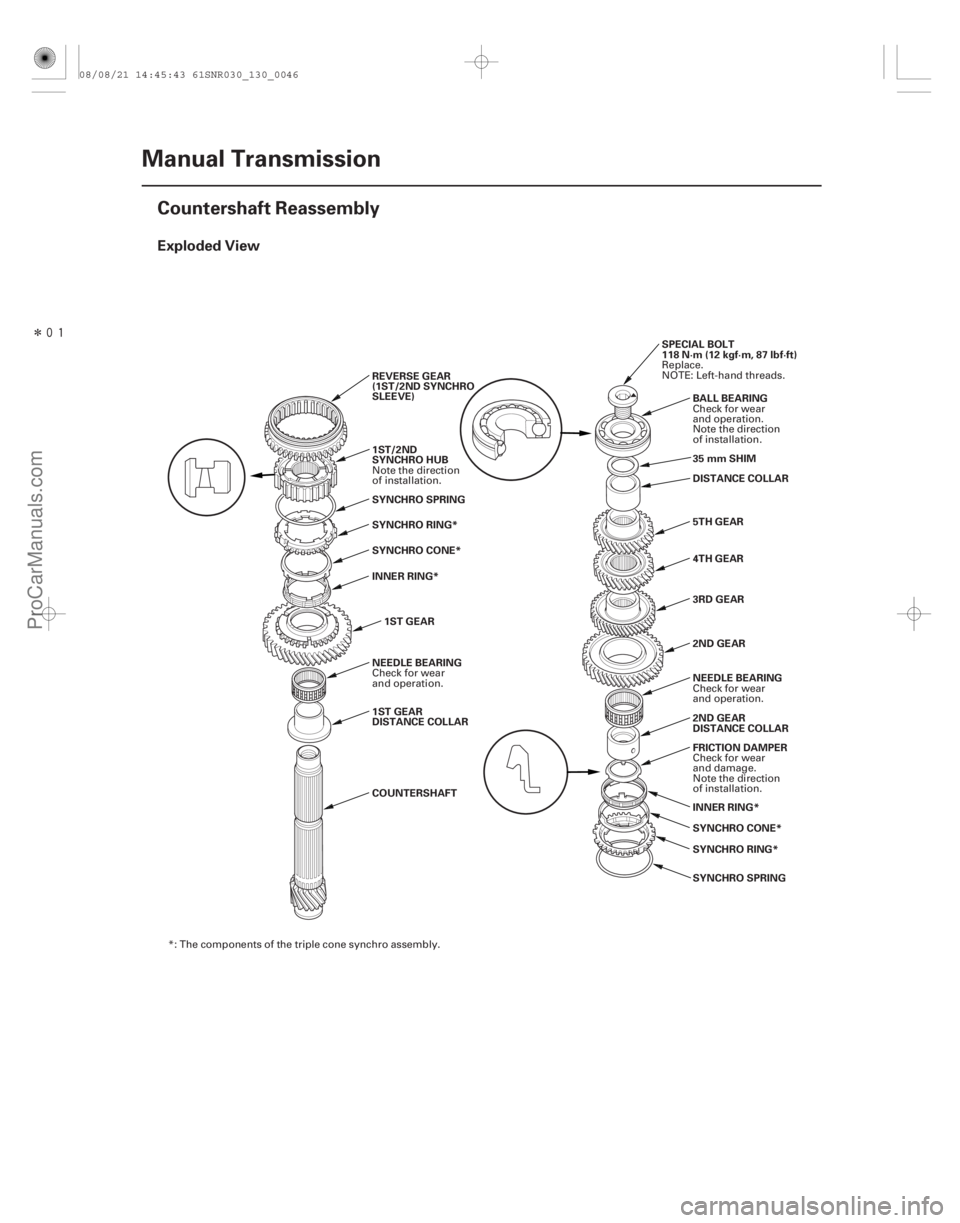

Exploded View
13-44Manual Transmission
Countershaft Reassembly
COUNTERSHAFT
3RD GEAR
NEEDLE BEARING 4TH GEAR 5TH GEAR
NEEDLE BEARING 35 mm SHIM
DISTANCE COLLAR
REVERSE GEAR
(1ST/2ND SYNCHRO
SLEEVE)
1ST GEAR
SYNCHRO SPRING
1ST GEAR
DISTANCE COLLAR
2ND GEAR
SYNCHRO CONE*
SYNCHRO RING* INNER RING*
SYNCHRO SPRING FRICTION DAMPER 2ND GEAR
DISTANCE COLLAR
SPECIAL BOLT
118 N·m (12 kgf·m, 87 lbf·ft)
1ST/2ND
SYNCHRO HUB
SYNCHRO CONE* SYNCHRO RING*
INNER RING* BALL BEARING
Check for wear
and operation. Check for wear
and operation.
*: The components of the triple cone synchro assembly. Check for wear
and damage.
Note the direction
of installation.
Replace.
NOTE: Left-hand threads.
Note the direction
of installation. Check for wear
and operation.
Note the direction
of installation.
08/08/21 14:45:43 61SNR030_130_0046
