Acura ILX 2014 Navigation Manual

100
Map MenuGuidance Menu
Navigation
HENTER button (on map)  Guidance Menu  Guidance Mode
Select the display mode during route guidance: single-screen mode (default) or split-
screen mode.
Rotate i to select an option. Press
u .
The following options are available:
• Single Screen: Displays the map and guidance screens on separate screens.
■Guidance Mode1 Guidance Mode
The guidance mode can also be selected from
the System Setup menu.
2 Routing & Guidance P. 48
Map screen Press the
MAP/GUIDE
button
Guidance screen

101
Map MenuGuidance Menu
Navigation
•Split Screen: Displays the map and guidance information simultaneously on the
map screen.1 Guidance Mode
Next guidance point
The next guidance point (the pop-up window) is
displayed on the map screen as you approach a
guidance point in the single-screen mode.
Next guidance point Press the
MAP/GUIDE
button
Guidance direction list

102
Map MenuMap Information
Navigation

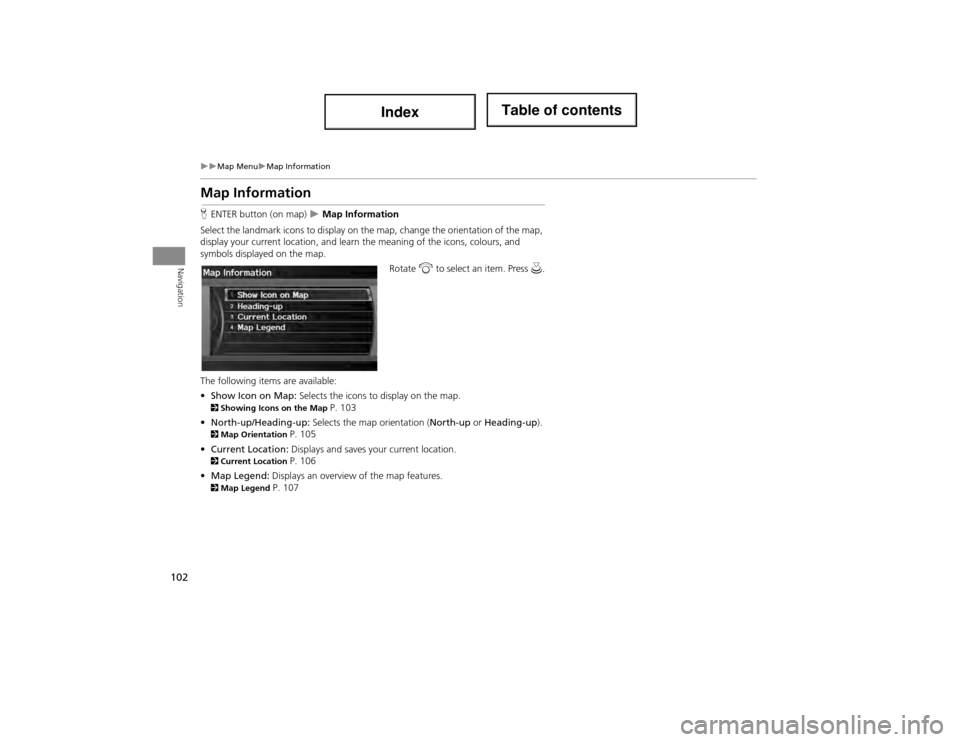

Map Information
HENTER button (on map)  Map Information
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colours, and
symbols displayed on the map.
Rotate i to select an item. Press u.
The following items are available:
• Show Icon on Map: Selects the icons to display on the map.
2Showing Icons on the Map P. 103
• North-up/Heading-up: Selects the map orientation ( North-up or Heading-up ).
2Map Orientation P. 105
• Current Location: Displays and saves your current location.
2Current Location P. 106
• Map Legend: Displays an overview of the map features.
2Map Legend P. 107

103
Map MenuMap Information
Navigation

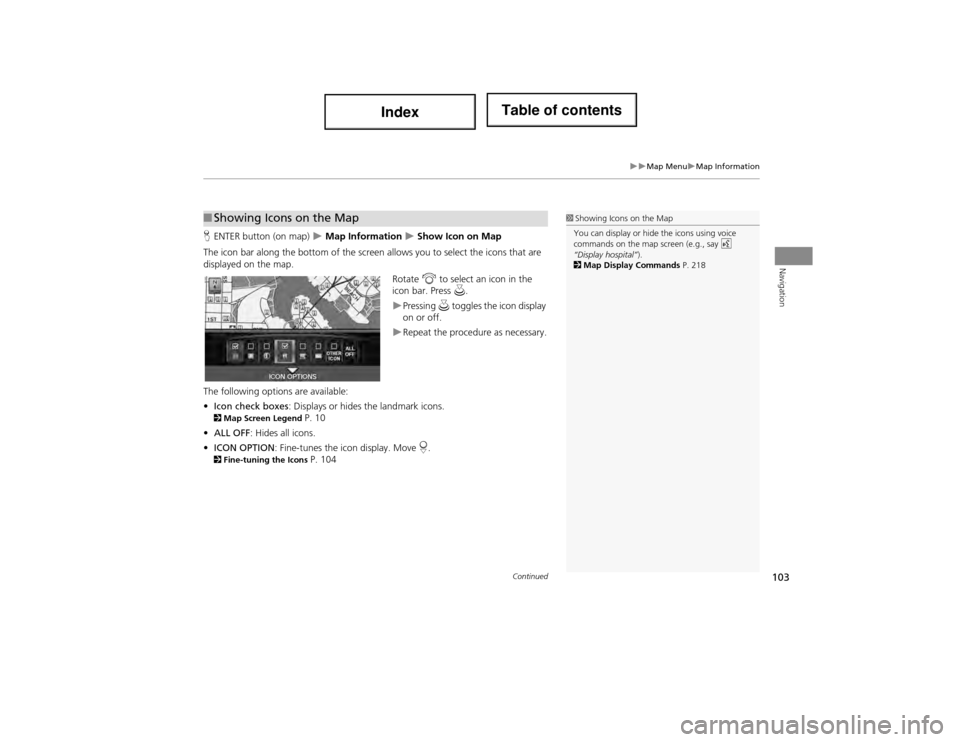

HENTER button (on map)  Map Information  Show Icon on Map
The icon bar along the bottom of the screen allows you to select the icons that are
displayed on the map.
Rotate i to select an icon in the
icon bar. Press u.
Pressing u toggles the icon display
on or off.
Repeat the procedure as necessary.
The following options are available:
• Icon check boxes : Displays or hides the landmark icons.
2Map Screen Legend P. 10
• ALL OFF: Hides all icons.
• ICON OPTION : Fine-tunes the icon display. Move r.
2 Fine-tuning the Icons P. 104
■Showing Icons on the Map1 Showing Icons on the Map
You can display or hide the icons using voice
commands on the map screen (e.g., say d
“Display hospital” ).
2 Map Display Commands P. 218
Continued

104
Map MenuMap Information
Navigation

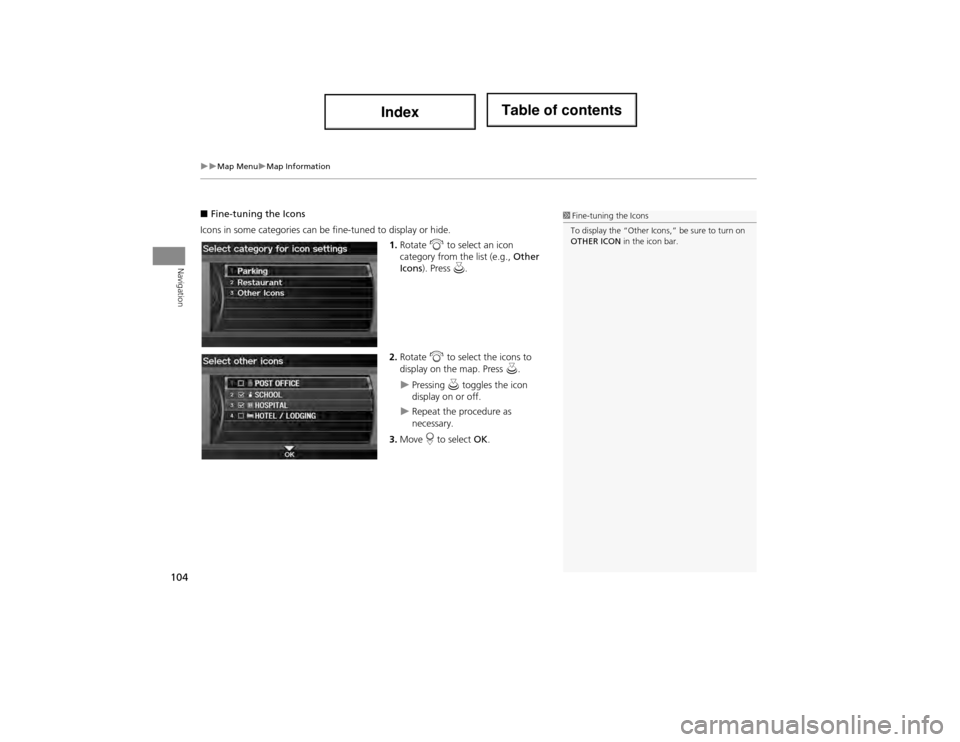

■Fine-tuning the Icons
Icons in some categories can be fine-tuned to display or hide. 1.Rotate i to select an icon
category from the list (e.g., Other
Icons ). Press u.
2. Rotate i to select the icons to
display on the map. Press u.
Pressing u toggles the icon
display on or off.
Repeat the procedure as
necessary.
3. Move r to select OK.
1Fine-tuning the Icons
To display the “Other Icons ,” be sure to turn on
OTHER ICON in the icon bar.

105
Map MenuMap Information
Navigation
HENTER button (on map)  Map Information
Select the map orientation. Rotate i to select North-up or
Heading-up . Press u.
The system changes the map
orientation and displays the map
screen.
The following options are available:
• North-up: Displays the map with North always pointing up.
• Heading-up : Displays the map so that the dire ction you are travelling is always
pointing up.
■ Map Orientation1 Map Orientation
d “Display Heading-up” (on map screen), d
“Display North-up” (on map screen)
The red arrow in the symbol always points North.
On scales greater than 1.6 km, North-up mode is
always used.
Continued

106
Map MenuMap Information
Navigation
HENTER button (on map)  Map Information  Current Location
Display and save your current location for future use as a destination. The address,
latitude, longitude, and elevation of your current location are displayed.
■ To save your current location in the address book:
1.Rotate i to select Save. Press u .
2. Edit the name, phone number, and
category.
2 Address Book P. 37
3. Move r to select OK.
■Current Location1 Current Location
d “Display Current Location” (on map screen)
You can also save the current location by saying
d “Register the Current Location” .
If you have PIN-protected your address book,
enter your PIN when prompted. Move r to
select OK. PINs are optional.
2 PIN Numbers P. 42
The elevation is not displayed if the system is
receiving insufficient GPS information. When
elevation is displayed, it may differ with roadside
elevation signs by ±100 feet or more.
Saving your current locati on does not change or
cancel your current route.

107
Map MenuMap Information
Navigation
HENTER button (on map)  Map Information  Map Legend
See an overview of the map lines, areas, routes, and navigation icons.
Rotate to i select an item.
The system displays the map
legend.
■Map Legend1 Map Legend
A visual guide helps you see the map legend.
2 Map Screen Legend P. 10
Continued

108
Map MenuMap Information
Navigation
The functions that are available from the map screen depend on the map scale.

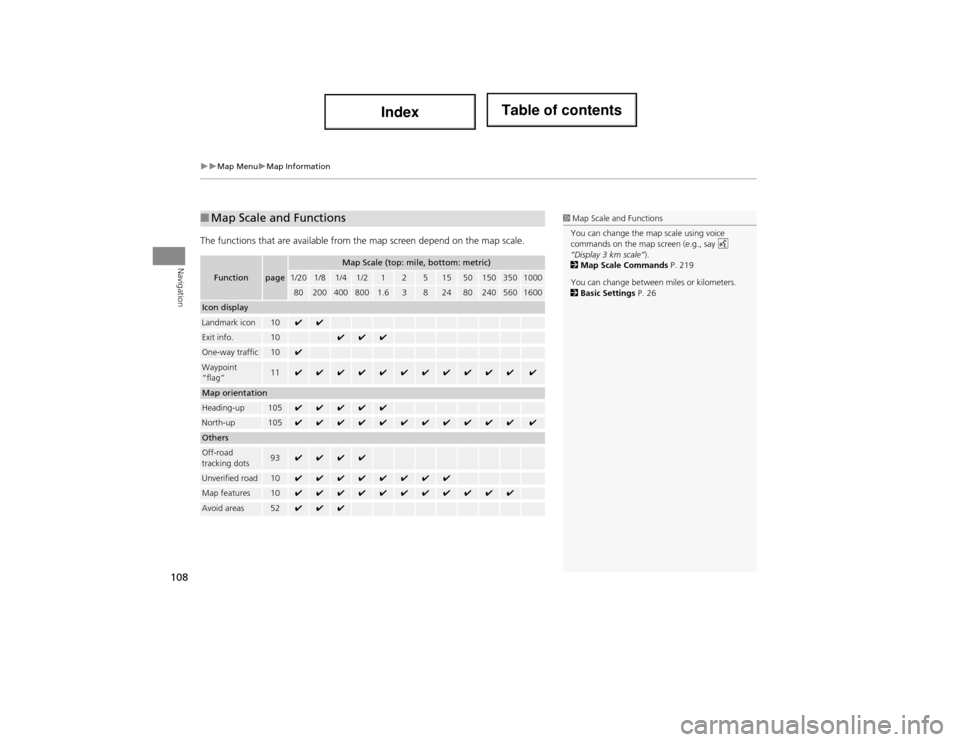

■Map Scale and Functions
Functionpage
Map Scale (top: mile, bottom: metric)
1/201/81/41/212515501503501000
802004008001.63824802405601600
Icon display
Landmark icon10✔✔
Exit info.10✔✔✔
One-way traffic10✔
Waypoint
“flag”11✔✔✔✔✔✔✔✔✔✔✔✔
Map orientation
Heading-up105✔✔✔✔✔
North-up105✔✔✔✔✔✔✔✔✔✔✔✔
Others
Off-road
tracking dots93✔✔✔✔
Unverified road10✔✔✔✔✔✔✔✔
Map features10✔✔✔✔✔✔✔✔✔✔✔
Avoid areas52✔✔✔
1 Map Scale and Functions
You can change the map scale using voice
commands on the map screen (e.g., say d
“Display 3 km scale” ).
2 Map Scale Commands P. 219
You can change between miles or kilometers.
2 Basic Settings P. 26

109
Map MenuMap Information
Navigation
Display or hide all icons on the map screen, with the exception of Honda/Acura
Dealer icons which are always shown.
■Landmark icon
■Map Icons and Functions
Type Icon display
control Icon
selectable Icon
searchable
Honda/Acura dealerAlways onYesYes
Hospital Yes Yes Yes
SchoolYesYesYes
ATM Yes Yes Yes
Gas stationYesYesYes
Restaurants Yes Yes Yes
Post officeYesYesYes
Grocery store Yes Yes Yes
Hotel/LodgingYesYesYes
Police station No icon No Yes
Shopping, Tourist attraction, BankNo iconNoYes
Parking garage Yes Yes Yes
Parking lotYesYesYes
Highway exit info. Yes Yes No
1 Map Icons and Functions
You can display or hide the icons using voice
commands on the map screen (e.g., say d
“Display hospital” ).
2 Map Display Commands P. 218
Some icons, like police st ations, are not shown,
but you can still locate th e nearest one with the
Find Nearest voice command (e.g., say d “Find
nearest police station” ).
2 Find Place Commands P. 219
Icon display control
Icons that can be displayed or hidden using the
Interface Dial or voice command.
Icon selectable
Icons that can be selected as a destination using
the Interface Dial.
Icon searchable
Icons that can be searched using the d Find
Nearest voice command.
