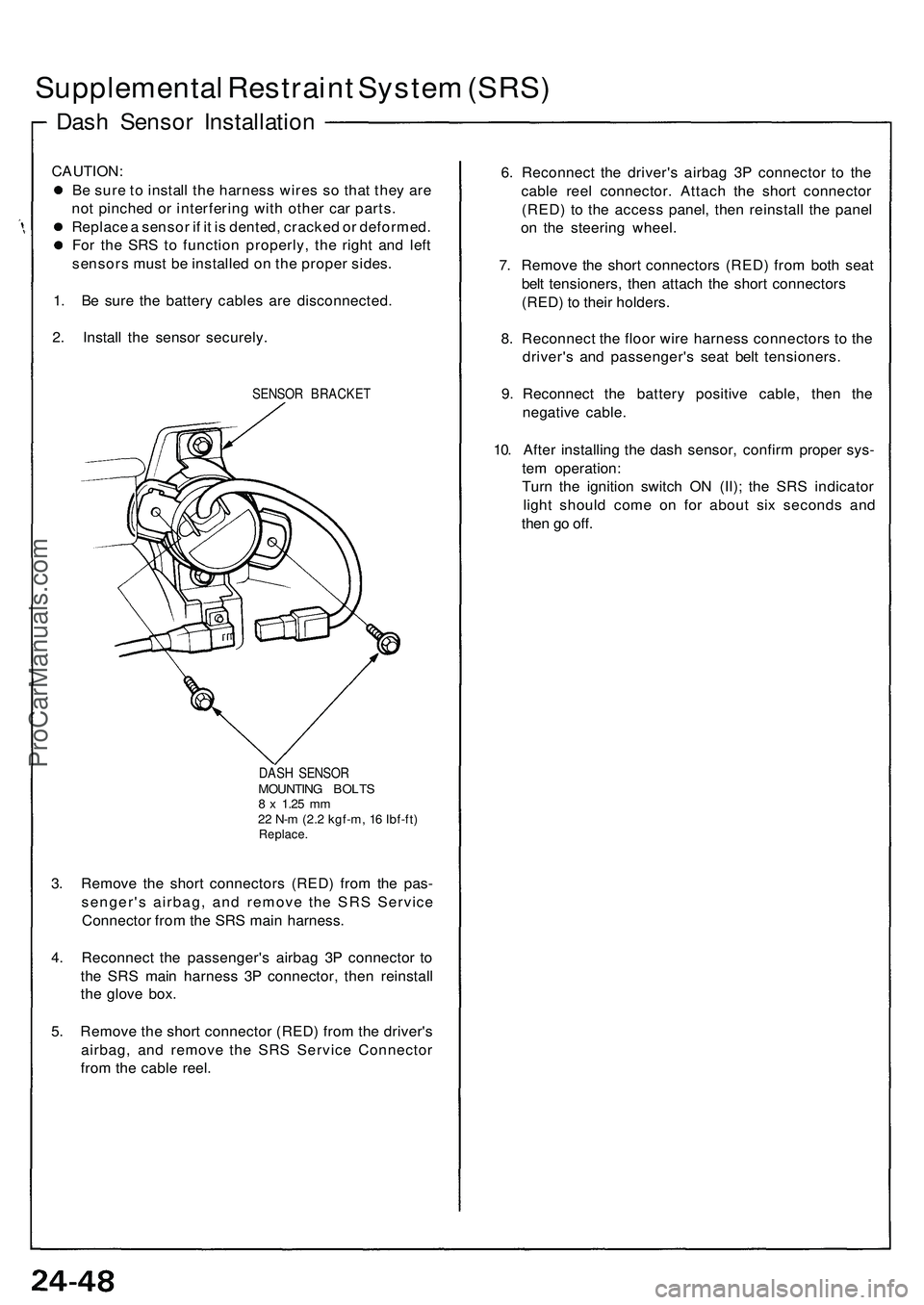

Supplemental Restrain t Syste m (SRS )
Dash Senso r Installatio n
CAUTION:
B e sur e t o instal l the harnes s wire s s o tha t the y ar e
no t pinche d o r interferin g wit h othe r ca r parts .
Replac e a senso r i f i t i s dented , cracke d o r deformed .
Fo r th e SR S t o functio n properly , th e righ t an d lef t
sensor s mus t b e installe d o n th e prope r sides .
1 . B e sur e th e batter y cable s ar e disconnected .
2 . Instal l th e senso r securely .
SENSOR BRACKE T
DAS H SENSO R
MOUNTIN G BOLT S8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )Replace .
3. Remov e th e shor t connector s (RED ) fro m th e pas -
senger' s airbag , an d remov e th e SR S Servic e
Connecto r fro m th e SR S mai n harness .
4 . Reconnec t th e passenger' s airba g 3 P connecto r t o
th e SR S mai n harnes s 3 P connector , the n reinstal l
th e glov e box .
5 . Remov e th e shor t connecto r (RED ) fro m th e driver' s
airbag , an d remov e th e SR S Servic e Connecto r
fro m th e cabl e reel . 6
. Reconnec t th e driver' s airba g 3 P connecto r t o th e
cabl e ree l connector . Attac h th e shor t connecto r
(RED ) t o th e acces s panel , the n reinstal l th e pane l
o n th e steerin g wheel .
7 . Remov e th e shor t connector s (RED ) fro m bot h sea t
bel t tensioners , the n attac h th e shor t connector s
(RED ) t o their holders .
8 . Reconnec t th e floo r wir e harnes s connector s t o th e
driver' s an d passenger' s sea t bel t tensioners .
9 . Reconnec t th e batter y positiv e cable , the n th e
negativ e cable .
10 . Afte r installin g th e das h sensor , confir m prope r sys -
te m operation :
Tur n th e ignitio n switc h O N (II) ; th e SR S indicato r
ligh t shoul d com e o n fo r abou t si x second s an d
the n g o off .
