navigation Acura TLX 2019 Navigation Manual

58
System Setup
Guidance
HSETTINGS buttonuNavigation Settings uGuidance
Choose various settings that determine th e navigation system functionality during
route guidance.
Rotate to select an item. Press
.
The following items are available:
• Default : Restores the factory default settings.
• Guidance Volume : Adjusts the navigation system volume level.
2Guidance Volume : P. 27
•Guidance Mode : Sets whether to display only the map screen or a split map-
guidance screen.
2 Guidance Mode P. 59
•Street Name Guidance (US models): Sets whether to read out the street names
during voice guidance.
2 Street Name Guidance P. 61
•Non-map Screens: Sets whether the guidance screen interrupts the screen display.
2Non-map Screens P. 62
•Guidance Point : Sets whether to display the guidance information to the
destination or the next waypoint.
2 Guidance Point P. 63
•Estimated Time : Sets whether to display the remaining time or arrival time to
the guidance point.
2 Estimated Time P. 64
1Guidance
The navigation setti ngs can also be selected from the
navigation menu. Press from the map screen.
Move or to select Destination or Map/
Route . Rotate to select Navigation Settings.
19 ACURA TLX NAVI-31TZ38400.book 58 ページ ２０１８年３月７日　水曜日　午後４時２３分

59
uuGuidance uGuidance Mode
Continued
System Setup
Guidance Mode
H SETTINGS buttonuNavigation Settings uGuidance uGuidance mode
Select the display mode for the map and guidance screens. Rotate to select an option. Press .
The following options are available:
• Map (factory default): Displays only th e map screen. When you approach a
guidance point, the next guidance point appears.1 Guidance Mode
Press the NAV button to switch between the map,
next guidance direction, and a list of guidance
directions.
Turn-by-Turn Directions
The next guidance point appears on the multi-
information display. 2 Turn-by-Turn Directions P. 10
You can turn this feature on or off using the multi-
information display. See the Owner’s Manual for
instructions.
Map screen
Near the next
guidance pointNext Maneuver screen
Next guidance point
19 ACURA TLX NAVI-31TZ38400.book 59 ページ ２０１８年３月７日　水曜日　午後４時２３分

61
uuGuidance uStreet Name Guidance
System Setup
Street Name Guidance
H SETTINGS buttonuNavigation Settings uGuidance uStreet Name
Guidance
The navigation system includes the street names during voice guidance (e.g., “Turn
right on Main Street”). Rotate to select an option. Press .
The following options are available:
• On (factory default): Voice guidan ce includes the street names.
• Off : Disables the feature.1Street Name Guidance
This feature is only available when the system
language is set to English.
This feature may not be available in non-English
speaking areas.
This function is available on U.S. models only.
19 ACURA TLX NAVI-31TZ38400.book 61 ページ ２０１８年３月７日　水曜日　午後４時２３分

62
uuGuidance uNon-map Screens
System Setup
Non-map Screens
H SETTINGS buttonuNavigation Settings uGuidance uNon-map Screens
The navigation system temporarily interrupts the screen display to view the guidance
screen as you approach a guidance point. Rotate to select an option. Press .
The following options are available:
• On : The guidance screen interrupts other mo de screens (e.g., audio, phone, etc.,
except the rear view camera mode).
• Off (factory default): Disables the feature.
19 ACURA TLX NAVI-31TZ38400.book 62 ページ ２０１８年３月７日　水曜日　午後４時２３分

63
uuGuidance uGuidance Point
System Setup
Guidance Point
H SETTINGS buttonuNavigation Settings uGuidance uGuidance Point
Set the guidance point to display on the map screen. Rotate to select an option. Press .
The following options are available:
• Destination (factory default): Disp lays the remaining/arriva l time and distance to
the destination.
• Next Point : Displays the remaining/arrival time and distance to the next
waypoint.
19 ACURA TLX NAVI-31TZ38400.book 63 ページ ２０１８年３月７日　水曜日　午後４時２３分

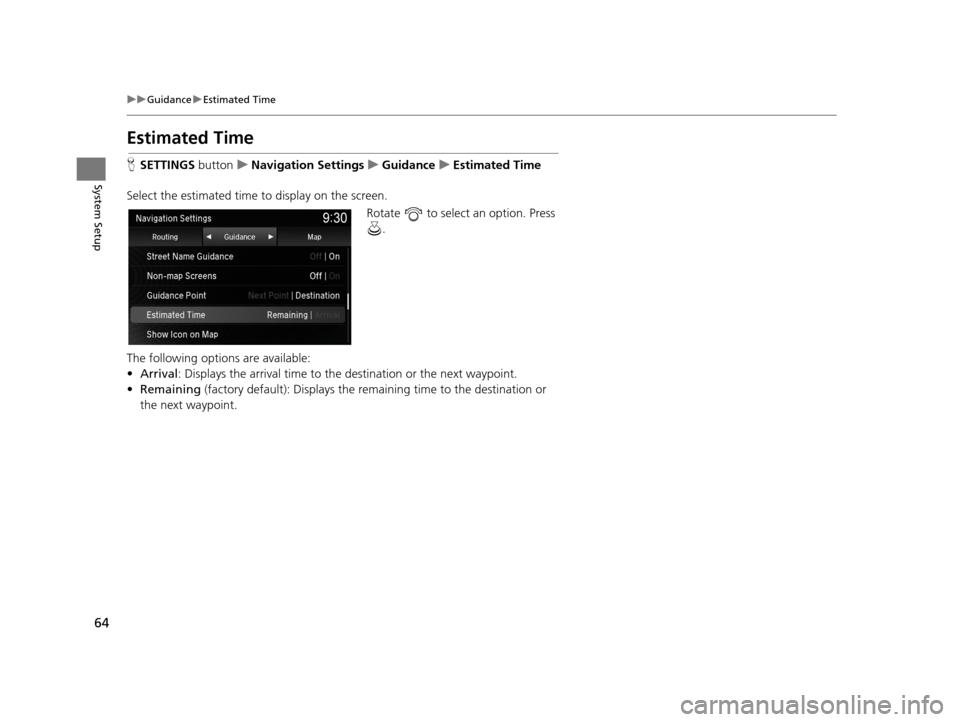

64
uuGuidance uEstimated Time
System Setup
Estimated Time
H SETTINGS buttonuNavigation Settings uGuidance uEstimated Time
Select the estimated time to display on the screen. Rotate to select an option. Press .
The following options are available:
• Arrival : Displays the arrival time to the destination or the next waypoint.
• Remaining (factory default): Disp lays the remaining time to the destination or
the next waypoint.
19 ACURA TLX NAVI-31TZ38400.book 64 ページ ２０１８年３月７日　水曜日　午後４時２３分

65Continued
System Setup
Map
HSETTINGS buttonuNavigation Settings uMap
Select the landmark icons to display on the map, select the color of the map, change
the orientation of the map, or adjust the current position of the vehicle as displayed
on the map. Rotate to select an item. Press .
The following items are available:
• Default: Restores the factory default settings.
• Show Icon on Map : Selects the icons to display on the map.
2Showing Icons on Map P. 67
•Color (Day) : Selects the color of the map for the Day mode.
2Color P. 69
•Color (Night) : Selects the color of the map for the Night mode.
2Color P. 69
•View : Selects the map orientation ( North-up, Heading-up , or 3D map).
2View (Map Orientation) P. 72
•3D Angle Adjustment : Adjusts the viewing angle for the 3D map.
23D Angle Adjustment P. 73
•Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 74
1Map
The navigation setti ngs can also be selected from the
navigation menu. Press from the map screen.
Move or to select Destination or Map/
Route . Rotate to select Navigation Settings.
19 ACURA TLX NAVI-31TZ38400.book 65 ページ ２０１８年３月７日　水曜日　午後４時２３分

67
uuMap uShowing Icons on Map
Continued
System Setup
Showing Icons on Map
H SETTINGS buttonuNavigation Settings uMap uShow Icon on Map
Select the icons that ar e displayed on the map.
1.Rotate to select an item. Press
.
u If the selected item has no sub
categories, pressing toggles
the setting between On and
Off .
u If the selected item has sub
categories, proceed to the next
step.
2. Rotate to select an option.
Press .
u Repeat step 1 and 2 as
necessary.
The following options are available:
• All On : Displays the landmark icons for all the sub categories.
2Map Screen Legend P. 9
•Custom : Fine-tunes the icon display.
2Fine-tuning the Icons P. 68
•Off : Hides the landmark icons for all the sub categories.
1Showing Icons on Map
If you have PIN-protecte d your address book, enter
your PIN when prompted. Move to select OK. PINs
are optional. 2 PIN Numbers P. 45
19 ACURA TLX NAVI-31TZ38400.book 67 ページ ２０１８年３月７日　水曜日　午後４時２３分

69
uuMap uColor
Continued
System Setup
Color
Set separate map colors for Day and Night modes.
H SETTINGS buttonuNavigation Settings uMap uColor (Day)
Rotate to select a color for the
Day mode. Press .
H SETTINGS buttonuNavigation Settings uMap uColor (Night)
Rotate to select a color for the
Night mode. Press .
■ Color (Day)1
Color (Day)
The factory default is set to Beige.
■Color (Night)1
Color (Night)
The factory default is set to Blue.
19 ACURA TLX NAVI-31TZ38400.book 69 ページ ２０１８年３月７日　水曜日　午後４時２３分

72
uuMap uView (Map Orientation)
System Setup
View (Map Orientation)
H SETTINGS buttonuNavigation Settings uMap uView
Select the map orientation. Rotate to select an option. Press .
The following options are available:
• North-up (factory default) : Displays the map with North always pointing up.
• Heading-up : Displays the map so that the di rection you are traveling is always
pointing up.
• 3D Map : Displays the bird’s eye view map.1View (Map Orientation)
The red arrow in the symbol always points North.
Heading-up and 3D map view switch to the North-up
view on the maximum map scale.
The bird’s eye view map switches to the Heading-up
map while scrolling the map.
The viewing angle for the bird’s eye view can be
adjusted. 2 3D Angle Adjustment P. 73
19 ACURA TLX NAVI-31TZ38400.book 72 ページ ２０１８年３月７日　水曜日　午後４時２３分
