Acura ZDX 2012 Owner's Manual

149
uuAdjusting the Seats uRear Seats
Controls
Rear Seats
1. Store the center seat belt buckle into the
pocket in the rear seat-back.
2. Lower the head restrain ts to their lowest
positions.
3. Pull the release lever and fold down the
seat-back.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier it ems in the cargo area.
Never drive with the seat-back folded down and the
tailgate open. 2 Exhaust Gas Hazard P. 64
To lock the seat-back uprig ht, push it backwards until
it locks.
When returning the seat-back to its original position,
push it firmly back. Also, ma ke sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 47
Make sure all items in th e cargo area or items
extending to th e rear seats are properly
secured. Loose items can fly forward if you have
to brake hard.
Pocket
Release
Lever

150
uuAdjusting the Seats uArmrest
Controls

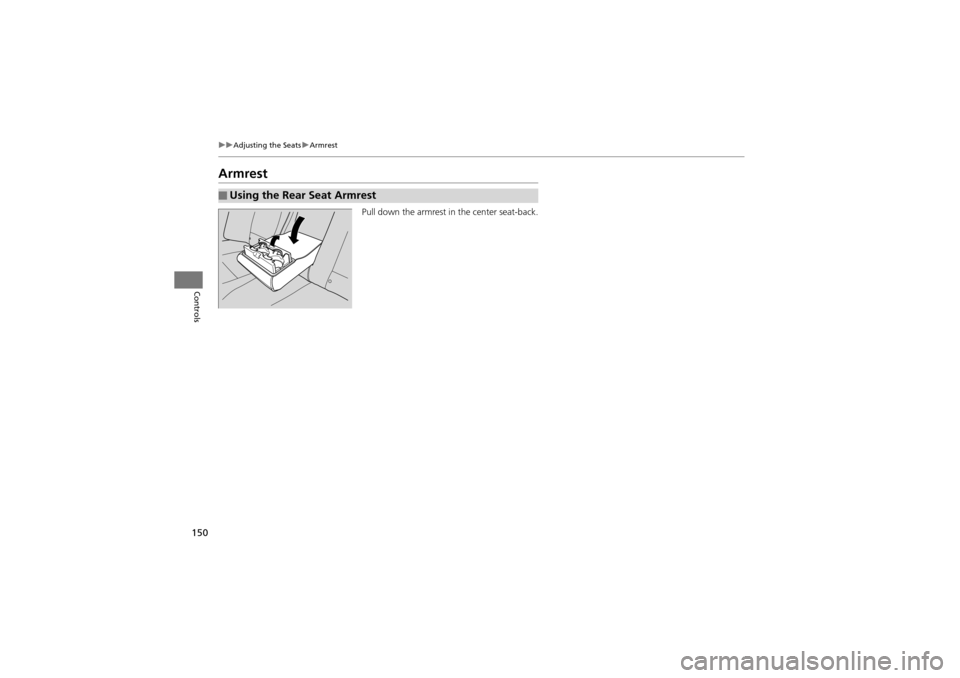

Armrest
Pull down the armrest in the center seat-back.
■Using the Rear Seat Armrest

151Continued
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The map lights come on regardless of whether
the doors or the tailgate is open or closed.
■Door activated
The map lights come on in the following
situations:
• When any of the doors or the tailgate is
opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
*1
•When any of the door s and the tailgate are
closed, then you press each (map light)
button.
■OFF
The front map lights can be turned on and off
by pressing each (map light) button.
The rear map lights remain off regardless of
whether the doors or the tailgate is open or
closed.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ig nition switch.
■Interior Light Switches1Interior Light Switches
In the door activated position, the map lights fade
out and go off about 30 seconds after the doors and
the tailgate are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open
it.
•When you remove the key*1 from the ignition
switch*1 but do not open a door.
You can change the interior lights dimming time.
2 Customized Features P. 94
The map lights go off immediately in the following
situations:
•When you lock the driver’s door.•When you close the driver’s door with the key in
the ignition switch or ACCESSORY mode*.•When you turn the ignition switch to ON (w*1.
If you leave any of the do ors or the tailgate open
without the key in the ignition switch, the interior
lights go off after about 15 minutes.
Door Activated
Position Off
On
* Not available on all models

uuInterior Lights/Interior Convenience Items uInterior Lights
152
Controls
The map lights can be turned on and off by
pressing the (map light) button.
■ON
The light comes on regardless of whether the
tailgate is open or closed.
■Door activated
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Map Lights1 Map Lights
When the ceiling light switch is in the door activated
position and any door is open, the map light will not
go off when you press the (map light) button.
Front
Rear
■Cargo Area Light
Door Activated
Position
Off On

153
uuInterior Lights/Inter ior Convenience Items uInterior Convenience Items
Continued
Controls

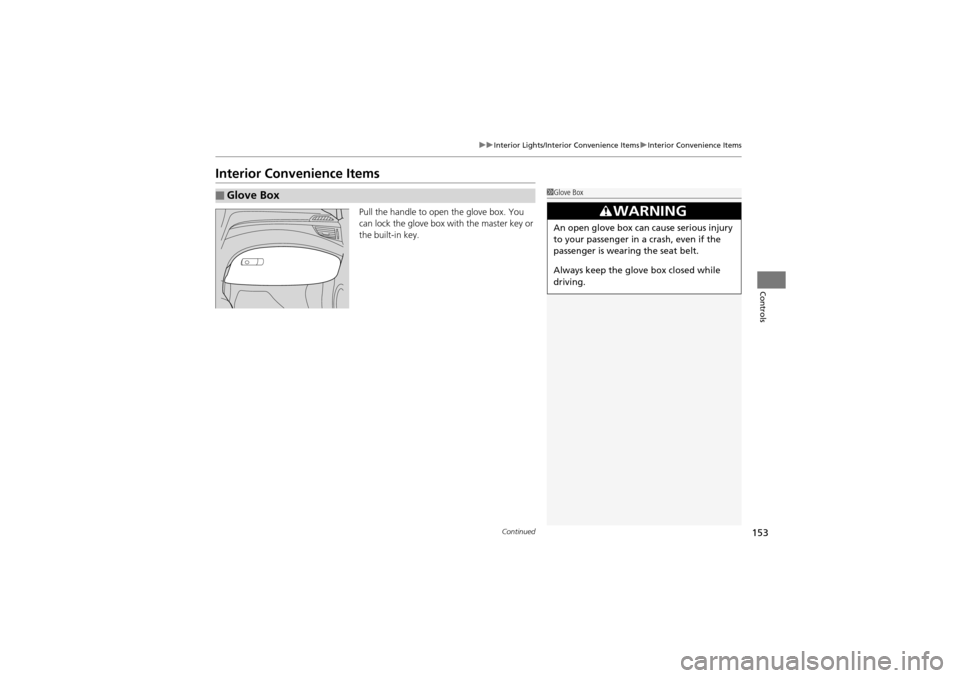

Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key or
the built-in key.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
154
Controls

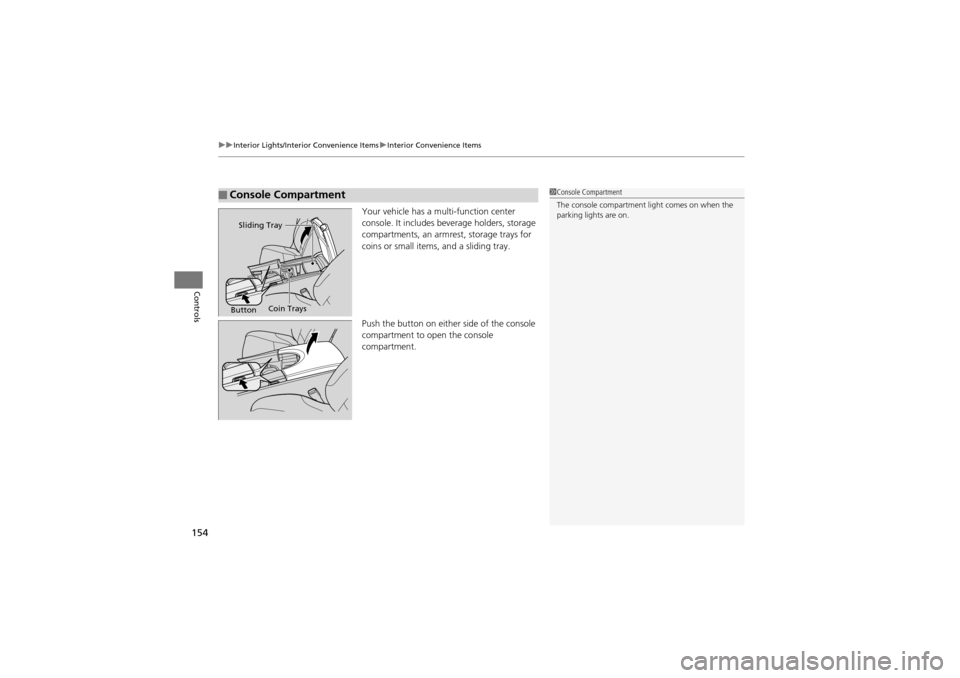

Your vehicle has a multi-function center
console. It includes beverage holders, storage
compartments, an armrest, storage trays for
coins or small items, and a sliding tray.
Push the button on either side of the console
compartment to op en the console
compartment.
■Console Compartment1 Console Compartment
The console compartment light comes on when the
parking lights are on.
Sliding Tray
Button Coin Trays

155
uuInterior Lights/Inter ior Convenience Items uInterior Convenience Items
Continued
Controls

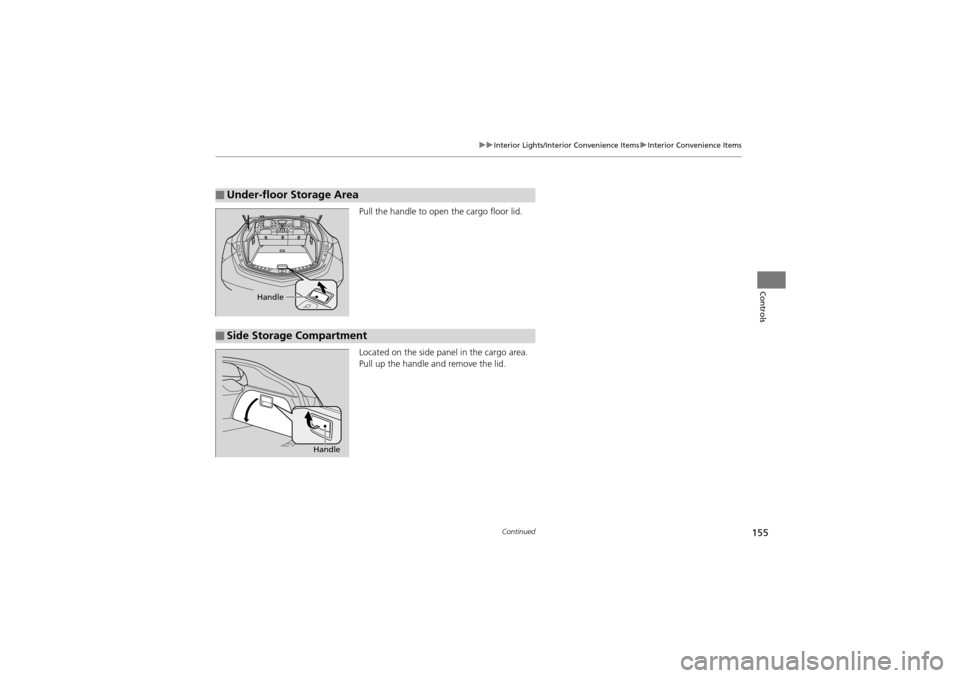

Pull the handle to open the cargo floor lid.
Located on the side panel in the cargo area.
Pull up the handle and remove the lid.
■Under-floor Storage Area
Handle
■Side Storage Compartment
Handle

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
156
Controls

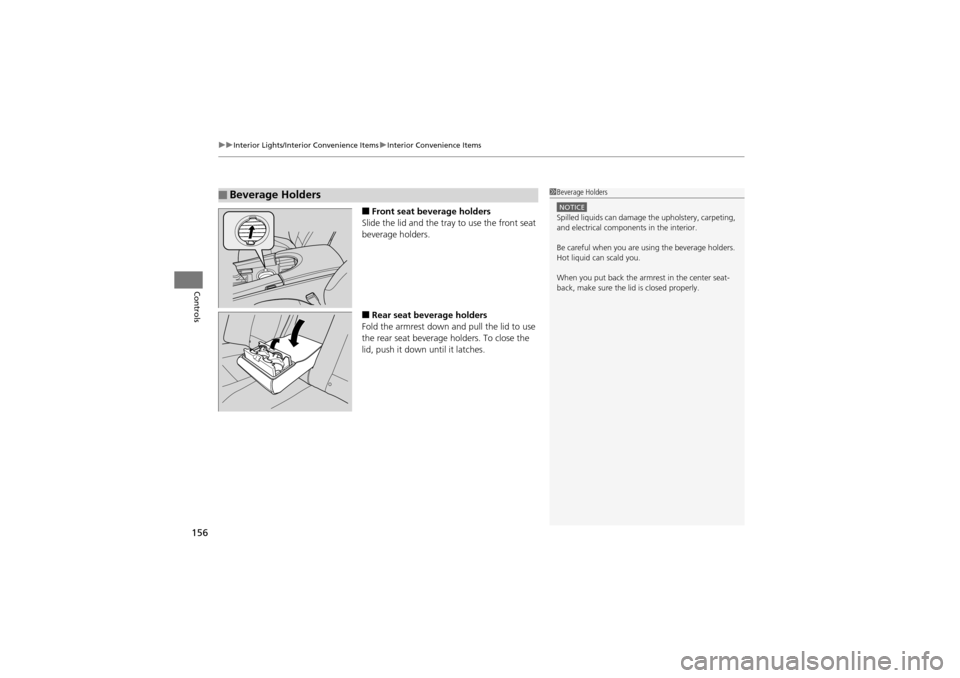

■Front seat beverage holders
Slide the lid and the tray to use the front seat
beverage holders.
■Rear seat beverage holders
Fold the armrest down and pull the lid to use
the rear seat beverage holders. To close the
lid, push it down until it latches.
■Beverage Holders1 Beverage Holders
NOTICESpilled liquids can damage th e upholstery, carpeting,
and electrical components in the interior.
Be careful when you are using the beverage holders.
Hot liquid can scald you.
When you put back the armrest in the center seat-
back, make sure the lid is closed properly.

Continued157
uuInterior Lights/Inter ior Convenience Items uInterior Convenience Items
Controls
The accessory power sockets can be used when the ignition switch is in ACCESSORY
q or ON w*1.
■Accessory power socket (next to the
shift lever)
Slide the lid forward until it latches to use it.
■Accessory power socket (console
compartment)
Open the console lid and the cover to use it.
*1: Models with the keyless access system have an ENGINE START/STOP button
instead of an ig nition switch.
■Accessory Power Sockets1Accessory Power Sockets
NOTICEDo not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC accessories that are rated 120
watts or less (10 amps).
When both sockets are being used, the combined
power rating of the accessories should not exceed
120 watts (10 amps).
To prevent battery drain, only use the power socket
with the engine running.

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
158
Controls

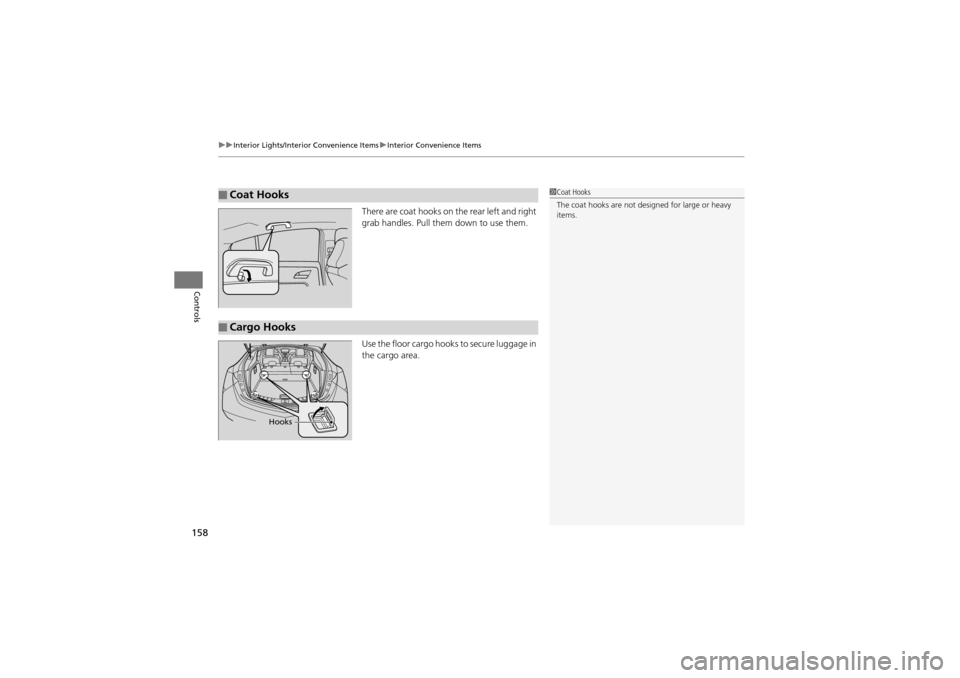

There are coat hooks on the rear left and right
grab handles. Pull them down to use them.
Use the floor cargo hooks to secure luggage in
the cargo area.
■Coat Hooks1Coat Hooks
The coat hooks are not designed for large or heavy
items.
■Cargo Hooks
Hooks
