AUDI A5 CABRIOLET 2017 Owners Manual

-Be sure to observe all safety, environmental
and other regulations if the vehicle or indi­
v idual parts of the system, particularly the
safety be lt or airbag, are to be disposed. We
recommend you have your author ized Audi
dealer perform this serv ice for you.
Service and disposal of safety belt preten­
sioner
The safety belt pretens ione rs are parts of the
safety be lts on yo ur Audi. Installing, removing,
servicing or repairing of belt pretensioners can
damage the safety belt system and prevent it
from work ing correctly in a collision .
There are some important things you have to
know to make sure that the effectiveness of the
system wi ll not be impaired and that discarded
components do not cause injury or poll ute the
environment.
A WARNING
Improper care, serv icing and repa ir proce­
dures can increase the r isk of personal injury
and death by preventing a safety be lt preten­
sioner from activating when needed or acti­
vating i t unexpectedly:
- The be lt pretensione r system can be act ivat­
ed only once.
If belt pretensione rs have
been ac tiva ted, the system must be re­
placed.
- Never repair, adjust, or change any parts of
the s afety be lt system.
- Safe ty bel t systems in cl ud ing safe ty belt
pretens ioners cannot be repaired. Specia l
procedu res are req uired for removal, insta l­
lat ion and disposa l of this system.
- For any wor k on the safety belt system, we
strongly recommend that you see your au ­
thorized Aud i dea ler o r qualified technician
who has an Audi approved repair manual,
train ing and special equ ipment necessary.
@ For the sake of the environment
gi Undep loyed ai rbag modu les and pretension -
;:::: ers might be classified as Perch lorate Materi-
r--.
~ al -special handling may apply, see 0
fi:' www.dtsc.ca.gov/hazardouswaste/perchlo-oo
S afet y be lts
rate. When the vehicle or parts of the re­
straint system including airbag modu les safe­
ty belts with pretensioners are scrapped, all
applicable laws and regu lations must be ob­
served. Your authorized Audi dealer is familiar
with these requirements and we recommend
that you have your dealer perform this service
for you.
129

Airbag syste m
Airbag system
Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints . For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop ­
er seating position.
For your safety and the safety of your passen­
ge rs , before driving off, always :
"' Adjust the driver's seat and steering wheel
properly ¢
page 112,
"'Adjust the front passenge r's seat properly
¢ page 58,
"'Wear safety belts p roperly ¢ page 124 ,
"'Always properly use the proper child restraint
to protect children
¢ page 150.
In a coll is io n airbags must inflate wi thin the b link
of an eye and with cons iderable force . The sup­
p lemental airbags can cause injuries if the driver
or the front seat passenger is not seated proper·
Ly. T herefore in order to help the airbag to do its
job, it is important, both as a dr iver and as a pas­
senger to sit properly at all t imes .
By keeping room between your body and the
steering whee l and the front of the passenger
compartment, the a irbag can inflate fully and
completely and provide supplemental protect ion
in certain frontal collisions
¢ page 112, Correct
passenger seating positions .
For details on the
operation of the seat adjustment con trols
¢ page 58.
It's especially important that children are proper ­
ly restra ined
¢ page 150 .
There is a lot that the driver and the passengers
can and must do to help the ind iv idual safety fea­
tures installed in your Audi work together as a
system .
Proper seating posit ion is important so that the
front airbag on the drive r side can do its job. If
you have a physical impairment or cond ition that
prevents you from s itting properly on the driver
seat with the safety be lt properly fastened and
130 reaching the peda
ls, special modifications to
your vehicle may be necessary.
Contact yo ur aut ho rized Aud i dea le r, or call A udi
C u stomer Rela tions a t 1-800-822-2834.
When the airbag sys tem dep loys, a gas generator
will fill the a irbags, b reak open the padded cov­
e rs, and inflate betwee n the steering wheel and
the driver and between the inst rument pa nel and
the front passenger . The a irbags w ill deflate im­
mediate ly after dep loyment so t hat the front oc­
cupants can see th ro u gh the windsh ie ld again
without interruption.
A ll of th is takes p lace in the blink of an eye, so
fast that many people don't even rea lize that the
airbags have deployed. The airbags a lso inflate
with a great deal of force and nothing should be i n the ir way when they deploy. Front airbags in
combination with properly worn safety belts slow
down and lim it t he occupant's forward move­
ment . T ogether they he lp to prevent the driver
and front sea t passenger from h itti ng pa rts of
t h e i nside the veh icle w hile reducing the fo rces
acti ng on the occupant dur ing the cras h. In th is
way they help to reduce the risk of inju ry to the
head and uppe r body i n the crash. Airbags do not
protect the arms or the lower parts of the body.
Both front airbags will not infla te in all frontal
collisions . The trigge ring of the airbag system de ­
pends on the vehicle deceleration rate caused by
the coll is ion and registered by the electronic con­
tro l unit . If this rate is be low the reference value
programmed into the contro l unit, the airbags
will not be triggered, even though the car may be badly damaged as a resu lt of the co llision. Vehi­
cle damage, repa ir costs or even the lack of vehi­
cl e damage is not ne cessari ly an indication of
whethe r an a irbag should infla te o r not.
It is not possib le to define a range of vehicle
speeds that w ill cove r every possible k ind and an­
gle of impa ct that will always tr igger the airbags ,
s in ce the circumst ances w ill vary cons iderably be ­
tween one collision and anot her. Important fac­
tors include, for examp le, the natu re (hard or
soft) of the object which the car hits, t he angle of
i mpact, vehicle speed, etc . The front airbags will ..,_

a:,
a:,
...... N r--. N ...... 0
0
LL 00
also not inflate in side or rear collisions, or in
ro ll-overs.
A lwa ys rememb er: Airbags will deploy only o nce,
and on ly in certain kinds of coll is ions. Your safety
be lts are always there to offer protection in those
situations in which airbags are not supposed to
deploy, or when they have a lready deployed; for
examp le, when your vehicle str ikes or is struck by
another after the first collis ion.
This is just one of the reasons why an airbag is a
supp lementary restraint and is not a substitute
for a safety belt. The airbag system works most effect ively when used with the safety belts.
Therefore, always properly wear your safety belts
r:::;,page 122.
A WARNING
Sitting too close to the steer ing whee l or in­
st rument panel will decrease the effect ive­
ness of the airbags and will inc rease the risk
o f persona l injury in a co llision.
- Never sit closer than 10 inches (25 cm) to
the steering wheel or instrument panel.
- If you cannot sit mo re than 10 inches
( 2 5 cm) from the steering wheel, inves ti­
gate whethe r adaptive equipment may be
available to help you reach the pedals and
increase your seating distance from the
steering wheel.
- If you are unrest rained, leaning forward, s it­
ting s ideways or out of position in any way,
your risk of in jury is much h igher.
- Yo u will also receive serious injur ies and
cou ld even be killed if you are up against the
airbag or too close to it when it inf lates -
even with an Advanced Airbag.
- To reduce the risk of in jury when an airbag
inflates, a lways wear safety belts p roperly
i=> page 125, Safety belts .
-Always make certain that ch ild ren age 12 or
younger always ride in the rear seat. If chil­ dren are not properly restra ined, they may
be severe ly injured o r kill ed when an airbag
inflates .
- Never let children ride unrestrained or im­ prope rly restrained in the veh icle. Adjust the
fro nt sea ts properly.
-
Airb ag sys tem
-Never ride with the back rest recl ined.
-Always sit as fa r as possible from the steer-
ing wheel o r the instrument panel
r:::;,page 112.
-Always sit upright with your back against
the backrest of your seat.
- Never p lace your feet on the instrument
panel or on the seat. Always keep both feet
on the floor in front of the seat to help pre­
vent ser ious injuries to the legs and hips if
the airbag inflates.
- Never recline the front passenger's seat to transpo rt objects. Items can also move into
the area of the s ide a irbag or the front air­
bag during braking or in a sudden maneu­
ver. Objects nea r the airbags can become
p roje ct il es and cause injury when an airbag
inflates.
A WARNING
A irbags tha t h ave deployed in a cr ash m ust be
r e p laced.
- Use o nly orig inal equipment airbags ap ­
p roved by A udi a nd insta lled by a trained
technici an who has the necessary tools and
diagnostic equipment to properly replace
any airbag in yo ur vehicle and assu re system
effect iveness in a crash.
- Never permit salvaged or recycled airbags to
be installed in you r vehicle .
Child restraints on the front seat - some
important things to know
.,. Be sure to read the important i nformat ion and
head the WARNINGS for important deta ils
about ch ildren and Advanced A irbags
r:::;, page 150.
Even though your veh icle is equipped wit h an Ad ­
vanced Airbag System, make certa in that a ll chil­
dre n, espec ia lly those 1 2 yea rs and yo unger, al­
ways r ide in the back se at prope rly res train ed fo r
their age and size. The ai rbag on t he p asse nger
s ide makes t he fron t seat a potentia lly dange rous
place for a child to ride. The front seat is not the
sa fest p lace for a child in a forward-facing child .,.
131

Airbag syste m
safety seat. It can be a very dangerous p lace for
an infant or a child in a rearward-facing seat.
The Advanced Airbag System i n your veh icle has
been ce rt ified to comp ly with the requirements
of United States Federal Motor Vehicle Safety
Standard (FMVSS)
208, as well as Canada Motor
Veh icle Safety Standard (CMVSS)
208 as applica ­
b le at the time your vehicle was manufactured.
According to requirements, the front Advanced
Airbag System on the passenger s ide has been
certified for "suppression " for infants of about
12 month old and younger and for "low risk de­
p loyment " for children aged
3 to 6 years o ld (as
defined in the standard).
The
PA SSENGER AIR BAG OFF light in the instru­
ment panel tells you when the front Advanced
Ai rbag on the passenger side has been tu rned off
by the elect ronic cont rol unit.
Each t ime you tur n on the ignit ion , the
PASSEN­
GER AIR BAG OFF
light will come on fo r a few
seconds and :
- will stay on if the front passenger seat is not
occupied,
- will s tay on if there is a small c hild or child re­
straint on the front passenger seat,
- will go off if the front passenger seat is occu­
pied by an adult as reg istered by the weight ­
sensing mat¢
page 140 , Monitoring the Ad­
vanced Airbag System .

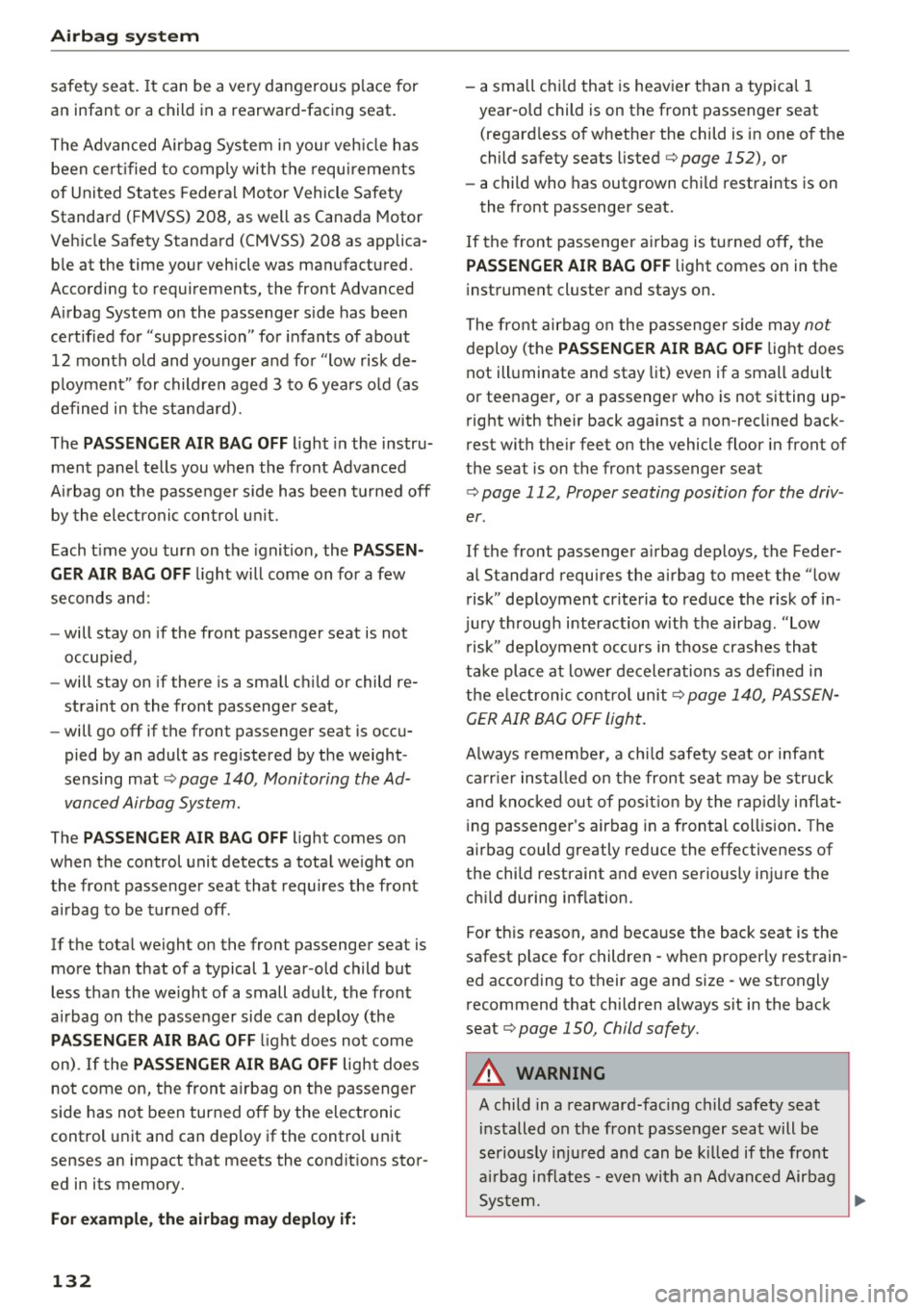

The PAS SENGER AIR BAG O FF light comes on
when the control unit detects a total we ight on
the front passenger seat that requires the front
airbag to be turned off.
If the tota l weight on the front passenger seat is
more than that of a typical 1 year -old child but
less than the we ight of a small adult, the front
a irbag on the passenger side can deploy (the
PAS SENGER AIR BAG OFF light does not come
on) .
If the PAS SENGER AIR BAG OFF light does
not come on, the front a irbag on the passenger
side has not been turned off by the electronic
control unit and can deploy if the control unit
senses an impact that meets the condit ions stor ­
ed in its memory.
For e xample, the airbag may deploy if:
132
- a small chi ld that is heavier than a typica l 1
year-o ld child is on th e front passenger seat
(regard less of whether the child is in one of the
child safety seats listed¢
page 152), or
- a child who has outgrown c hild restraints is on
the front passenger seat.
If the front passenger a irbag is t urned off, the
PASSENGER AIR BAG OFF light comes on in the
instrument cluster and stays on.
The fro nt airbag on the passenge r side may
not
deploy (the PAS SENGER AIR BAG OFF light does
not ill uminate and stay lit) even if a small adu lt
or teenager, or a passenger who is not sitting up­
right with thei r back against a non-recl ined back­
rest with the ir fee t on the vehicle floor in front of
the sea t is on the fron t passenger sea t
<=> page 112, Proper seating position for the driv ­
er .
If the front passenger a irbag deploys, the Feder­
al Standard requires the airbag to meet the "low
risk" deployment cr iteria to reduce the r isk of in ­
jury through interaction w ith the airbag . "low
risk " deployment occurs in those crashes that
take place at lowe r de cele rations as defined in
the e lec tronic co ntro l unit ¢
page 140, PASSEN­
GER AIR BAG OF F light.
Always remembe r, a chi ld safety seat or infant
c ar rie r ins talled on the front seat may be s truck
and knocked ou t of posit ion by t he rap idly i nflat­
i ng passenge r's airbag in a frontal coll is ion . The
airbag could greatly red uce the effectiveness of
the child restraint and even seriously injure the child during inflation.
Fo r th is reason, and beca use the back seat is the
safest place for children -when properly restrain ­
ed according to their age and size -we strongly
recommend that children always sit in the back
seat
c> page 150, Child safety .
A WARNING
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the front
a ir bag inflates - even with an Advanced Airbag
Sys tem.
Ill>

a:,
a:,
...... N r--. N ...... 0
0
LL 00
-The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and child
against the backrest, center armrest, door
or roof .
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat be­ cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immed iate ly install
the rear-fac ing ch ild safety seat in a rear
seating pos it ion and have the airbag system
inspected by your authorized Audi dea le r.
- Forward-fac ing ch ild safety seats installed
on the front passenger's seat may interfere
with the deployment of the airbag and
cause serious personal injury to the child.
~ WARNING
If, in except ional circumstances, you must in­
stall a forward-facing chi ld restraint on the
front passenger 's seat:
- Always ma ke sure the forward-fac ing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and s ide a irbag.
- Never put the forward-facing child restraint
up against or very near the instrument pan­
el.
-Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possib le befo re installing the for­
wa rd- facing child restra int. The bac krest
must be adjusted to an up right posit ion.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
A WARNING
To red uce the risk of serious in jury, make s ure
t hat the
PASSENGER AIR BAG OFF light w ill
be displayed wheneve r a child restraint is in­
stalled on t he front passenger seat and t he
ign ition is switched on .
Airb ag sys tem
-If the PASSENGER AIR BAG OFF light does
not stay on, perform the checks described
¢ page 140, Monitoring the Advanced Air­
bag System .
-Take the child restra int off the front passen­
ger seat and install it prope rly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspected by your
author ized Audi dealer immed iately .
- Always carefully follow instructions from
child restraint manufacture rs when instal ­
ling child restra ints .
A WARNING
-If, in exceptional c ircumstances, you must in-
stall a forward or rearward-facing child re­
stra int on t he fron t passenger 's seat:
- Imp roper installat ion of child res traints can
reduce the ir effectiveness or even prevent
them from provi ding any pro tect ion.
- An imprope rly installed child restra int can
interfere wi th the airbag as it deploys and
serio usly injure or even kil l the c hild -eve n
with an Advanced A irb ag Sys tem.
- Always carefully follow the manufacturer's
instr uctions provided wi th the child sa fe ty
seat or ca rr ie r.
- Never p lace add ition al it ems on the se at
that can increase the total weight registered
by the weight -sensing mat and can cause in ­
jury in a crash .
133

Airbag syste m
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants.
Fig. 146 Location of driver airbag: in steering whee l
Fig. 147 Location of front passenger's airbag: in the in­
strument panel
Your veh icle is equipped with an "Advanced Air­
bag System" in compliance with Un ited States
Federa l Motor Vehicle Safety Standard
(FMVSS)
208, as well as Canada Motor Vehicle
Safety Sta ndard (CMVSS)
208 as app licable at
the time your vehicle was manufactured. The
safety belts for the seats have "pretensioners"
that help to take slack out of the belt system.
The pretensioners are also activated by the elec­
tronic control unit for the airbag system.
The front safety be lts also have load limiters to
help reduce the forces applied to the body in a
crash.
The airbag for the driver is in the steering wheel
hub
<=>fig . 146 and the airbag for the front pas­
senger is in the instrument panel<=>
fig. 147. The
general location of the airbags is marked "AIR­
BAG".
1 34
There is a lot you need to know about the airbags
in your vehicle . We urge you to read the detailed
i nformation about airbags, safety belts and child
safety in this and the other chapters that make
up the owner's literature. Please be sure to heed
the WARNINGS -they are extremely important
for your safety and the safety of your passengers,
especially infants and small children .
.&_ WARNING -
Never rely on airbags alone for prote ct ion.
- Even when they deploy, airbags provide only supp lemental protection.
- Airbag work most effectively when used with properly worn safety be lts.
- Therefore, always wear your safety belts and make sure that everybody in your veh icle is
properly restrained .
.&_ WARNING
A person on the front passenger seat, espe­
cially infants and small ch ildren, wi ll receive
serious inju ries and can even be killed by be­
ing too close to the airbag when it inf lates.
- Although the Advanced Airbag System in
-
your vehicle is designed to turn off the front passenger airbag i f an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
- The Advanced Airbag System can deploy in
accordance with the "low risk" option under
the U.S. Federal Standard if a child that is
heav ier than the typical one-year old ch ild is
on the front passenger seat and the other
conditions for airbag deployment are met.
- Accident statistics have shown that children are generally safer in the rear seat area than
in the front seat ing pos ition.
- For their own safety, all chi ld ren, especially
12 years and younger, should always ride in
the back proper ly restrained for their age
and size .

a:,
a:,
...... N r--. N ...... 0
0
LL 00
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with Un ited States
F edera l Motor Vehicle Safety Standard 208, as
well as Canada Motor Vehicle Safety Standard
(CMVSS) 208 as applicable at the time your vehi­
cle was manufactured .
The front Advanced Airbag System supp lements
the safety belts to provide additional protection
for the driver 's and front passenger's heads and
upper bodies in frontal crashes . The airbags in­
f late only in frontal impacts when the veh icle de­
cele rat ion is high enough.
The front Advanced Airbag System for the front
seat occupants is not a substitute for your safety be lts . Rather, it is part of the overall occupant re­
s tra int system in your vehicle. Always remember
that the airbag system can on ly help to protect
you, if you are sitting upr ight, wear ing your safe­
ty belt and wear ing it prope rly . This is why you
and your passengers must always be prope rly re­
stra ined, not just beca use the law req uires yo u to
be .
The Advanced Airbag System in your veh icle has
been ce rtified to meet the "low r is k" requi re­
ments fo r 3 and 6 ye ar-old children o n the pas­
senger side and very sma ll adults on the drive r
side . The low risk dep loyment cr iteria are intend­
ed to help reduce the risk of injury through inter­
action with the front a irbag that can occur, for
examp le, by being too close to the steering wheel
and instrument panel when the airbag inflates .
In addition , the system has been certified to
comp ly with the "suppression" requi rements of
the Safety Standard, to turn off the front a irbag
for i nfants 12 months old and younger who are
restrained on the front passenger seat in child re ­
stra ints that are listed in the Standa rd
¢ page 152, Child restraints and Advanced Air­
bags.
"Suppress ion" requ ires the front a irbag on the
passenger side to be turned off if:
- a ch ild up to about one year of age is restra ined
on the front passenger seat in one of the rear­
facing or forward -fac ing infant restra ints listed
Airb ag sys tem
in Federal Motor Veh icle Safety Standard 208
with which the Advanced Airbag System in your
veh icle was certif ied. For a List ing of the child
restraints that were used to certify your vehi ­
cle's compliance with the US Safety Standard
¢ page 152,
-weight less than a threshold level stored in the
con trol un it is detected on the front passenger
seat .
When a person is detected on the front passen­ ger seat, weighing more than the total weight of
a chi ld that is about
1 year old restra ined in one
of the rear-facing or forward -fac ing infant re ­
straints (listed in Federal Motor Veh icle Safety
Standard 208 with w hich the Advanced A irbag
System in your veh icle was certified), the front
airbag on the passenge r side may o r may not de­
ploy .
T he
PAS SENGER AIR BAG OFF lig ht comes o n
whe n the elect ronic con trol uni t detects a tota l
weight on the fron t passenger sea t th at req uires
the front a irbag to be turned off . If the
PASSEN­
GER AIR BAG OFF
light does not come on, the
front airbag on the passenger side has not been
turned off by the control unit and can dep loy if
the control unit senses an impact that meets the
condit io ns stored in its memory .
If the total weight on the front passenger seat is
more than that of a typica l 1 year-old, but less
than the weight of a small adult, the front airbag
o n the passenger s ide may deploy (the
PAS SEN­
GER AIR BAG OFF
light does not come on) .
For example , the ai rb ag may deploy if :
- a small ch ild that is heav ier than a typ ica l 1
yea r-o ld child is on the front passenger seat
(regard less of whether the child is in one of the
child safety seats listed
¢ page 152),
- a child who has outgrown c hild restraints is on
the front passenger seat.
If the front passenge r a irbag is t urned off, the
PASSENGER AIR BAG OFF light in the center of
the instr ument pane l wi ll come on and stay on .
T he front airbag on the passenger s ide m ay
not
deploy (the PASSENGER AIR BAG OFF light does
not illuminate and stay lit) if: ..,.
135

Airbag syste m
-a small adu lt or teenager is on the front pas ­
senger seat
- a passenger who is not sitting upright with
their back against a non -reclined backrest with
their feet on the vehicle floor in front of the
seat is on the front passenger seat.
I f the front passenger airbag dep loys, the Feder ­
al Standard requires the airbag to meet the "low
risk" deployment criteria to help reduce the risk
of injury through interaction with the airbag.
"Low risk" deployment occurs in those crashes
that take place at lower decelerations as def ined
in the electronic control unit.¢
page 140
Alway s remember: Even though your vehicle is
equ ipped w ith Advanced Airbags, the safest place
for children is properly restrained on the back
seat . Please be sure to read the important infor­
mat ion in the sections that follow and be sure to
heed a ll of the WARN INGS.
A WARNING
To red uce the risk of inj ury when an ai rbag in­
fla tes, a lways wear safety bel ts p roperly.
- If you are unrestrained, leaning fo rwa rd, s it­
t ing s ideways or o ut of pos ition in any way,
yo ur risk of in jury is much h igher .
- Yo u will also re ceive serious injur ies and
could even be killed if you are up aga inst the
airbag or too close to it when it inflates -
even with an Advanced Airbag¢
page 130.
A WARNING
A child in a rearward-facing chi ld safety seat
installed on the front passenger seat wi ll be
ser iously injured and can be killed if the front
airbag inflates - even w ith an Advanced Airbag
System.
- Although the Advanced A irbag System in
your vehicle is designed to turn off the front
airbag when a rearward-facing child re­
straint has been installed on the front pas­
senger seat, nobody can absolutely g uaran­
tee that deployment is impossible in all con­
ceivable s ituations that may happen during
the usef ul life of your vehicle .
- The inflating a irbag w il l hit the child safety
seat or infant c arrier wi th great force and
136
w ill smash the child safety seat and child
aga inst the back rest, center armrest, door,
or roof.
- Always install rearward-facing child re­
straints in the back seat.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rea r-facing child safety seat in a rear
seating posi tion and have the ai rbag system
inspected by your au thori zed Au di dealer.
A WARNING
If, in exceptional ci rcums tances, you must in­
stall a forw ard-facing child res traint on the
front passenger's seat:
- Always make sure the forward-fa cing sea t
has been des igned and certified by its man ­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Never put the fo rward -facing child restraint
up against or very nea r the instrument pan ·
el.
-Always move the passenge r seat into its
rearmost position in the seat's fo re and aft
ad justment range, as far away from the a ir­
bag as poss ible, before install ing the for­
ward-facing chi ld restraint. The backrest
m ust be adjusted to an upr ight position.
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all t he time
wheneve r the ign it ion is switched on.
Advanced Airbag System components
The fro nt passenge r seat i n your veh icle has a lot
of ve ry important parts of the Advanced A irbag
System i n it. These parts incl ude t he weight­
sens ing mat, senso rs, wir ing, bracke ts, and
more . The f unction o f the system in the front
passenger seat is checked by the electro nic con­
tro l unit when the ignition is on . The control unit
monitors the Advanced Airbag System and turns
the airbag ind icator light on when a malfunction
i n the system components is detected. The func-
tion of the a irbag ind icator light is described in .,_

a:,
a:,
...... N r--. N ...... 0
0
LL 00
greater detail below. Because the front passen­
ger seat contains important parts of the Ad­
vanced A irbag System, you must take care to pre ­
vent it from being damaged. Damage to the seat
may prevent the Advanced Airbag for the front
passenger seat from doing its job in a crash .
The front Ad vanced Airb ag S ystem con sis ts
of the follo wing :
-Crash sensors in the front of the vehicle that
measure vehicle acceleration/decelerat io n to
provide information to the Advanced Airbag
System about the severity of the crash .
- An electronic control unit, with integrated
crash sensors for front and side impacts . The
contro l unit "decides" whether to fire the front
airbags based on the information received from
the crash sensors. The control unit also "de ­
cides" whether the safety be lt pretensioners
shou ld be activated.
- An Advanced Airbag with gas generator and
contro l valve for the driver inside the steering
whee l hub .
- An Advanced Airbag with gas generator and
contro l valve inside the instrument pane l for
the front passenger.
- A weight -sensing mat under the upho lstery
padding of the front passenger seat cushion
that measures the total weight on the seat . The
information registered is sent continuously to
the electron ic control unit to regulate deploy­
ment of the front Adva need A irbag on the pas­
senger side.
- An airbag monitoring system and indicator
light i n the instrument cluster
¢page 140.
-A sensor in each front seat registers the dis­
tance between the respective seat and the
steering wheel or instrument panel. The infor­
mation reg istered is sent cont inuous ly to the
electronic control unit to regulate deployment
of the fro nt Adv a need A irbags.
- T he
PASS EN GE R AIR BAG OFF light comes on
and stays on in the center of the instrument
pane l¢
page 140, fig . 149 and tells you when
the front Advanced Airbag on the passenge r
side has been turned off.
- A sensor below the safety belt latch fo r the
front seat passenger to meas ure the tension on
Airb ag sys tem
the sa fety belt. The tension on the safety belt
and the weight registered by the weight-sens­
ing mat help the control unit "decide" whether
the front airbag for the front passenger seat
should be turned off or not¢
page 131, Child
restraints on the front seat -some important
things to know.
- A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and
transmits this information to t he electronic
cont rol un it.
_& WARNING
Damage to the front passenge r seat can pre­
vent the front airbag from working properly.
- Imp roper repair or disassembly of the front
passenger and driver seat will p revent the
Advanced Airbag System from f unctioning
properly.
- Repairs to the front passenger seat must be
performed by qualified and properly trained
workshop personne l.
- Never remove the front passenger or driver
seat from the vehicle.
- Never remove the upholstery from the front
passenger seat.
- Never d isassemble o r remove par ts from the
seat o r disconnect w ires from it.
- Never carry sh arp objects in your pocke ts or
p lace them on the seat. If the weight-sens­
ing mat in the passenger seat is punctu red
it cannot work proper ly.
- Never carry things on your lap or carry ob­
jects on the passenger seat. S uch items can
increase the weight reg istered by the
weight-sensing mat and send the wrong in­
formation to the airbag control unit.
- Never store items under the front passenger
seat. Parts of the Advanced Airbag System
under the passenger seat could be dam­
aged, p reventing them and the airbag sys­
tem from working p roper ly.
- Never p lace seat covers or replacement up­
holstery that have not been specifically ap­
p roved by A udi on the front seats.
- Seat covers can prevent the Advanced A ir­
bag System from recognizing chi ld
137

Airbag syste m
restraints or occupants on the front passen­
ger seat and prevent the side airbag in the
seat backrest from deploying properly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat.
The additional padding will prevent the
weight-sens ing mat in the seat from accu­
rately reg istering the ch ild restraint or per­
son on the seat and prevent the Advanced
Airbag System from funct ioning prope rly.
- If you must use a child restraint on the front
passenge r seat and the child restraint man­
ufact urer's instructions require the use of a
towel, foam cushion or something else to properly position the chi ld restraint, make
certain that the
PASSENGER A IR BAG OFF
light comes on and stays on whenever the
child restraint is installed on the front pas­
senger seat.
- If the
PAS SENGER AIR BAG O FF light does
not come on and stay on, immediately in­
stall child restraint in a rear seating position and have the airbag system inspected by
you r authorized Aud i deale r.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side
ai rbags supplement the protection offered by the
front three-point safety belts with pretensioners and load limiters and the adjustable head re ­
stra ints to help reduce the r isk of injury in a wide
range of accident and crash situations. Be sure to
read the important information about safety and heed the WARNINGS in th is chapter .
Deployment of the Advanced Airbag System and
the activation of the safety belt pretensioners de­
pend on the deceleration measured by the crash
sensors and registered by the electronic control
unit . Crash severity depends on speed and decel­
eration as we ll as the mass and stiffness of the
vehicle or object involved in the crash.
On the passenger s ide, regardless of safety belt
use, the a irbag will be t urned off if the weight on
the passenge r seat is less than the amount p ro­
g rammed in the e lectron ic cont rol unit . T he front
1 38
airbag on the passenger side will also be turned
off if one of the child safety seats that has been
certified under Federal Motor Vehicle Safety
Standard 208 has been recogn ized on the seat.
The
PAS SEN GER AI R BA G OFF light comes on
and stays on to te ll you when the front Advanced
Airbag on the passenger side has been turned off
¢ page 131, Child restraints on the front seat ­
some important things to know .
.&_ WARNING
To reduce the risk of injury when an airbag in­
f lates, always wear safety belts properly.
- I f you are unrestrained, leaning forward, sit­
ting sideways or ou t of position in any way,
your ris k of injury is much highe r.
- You will a lso receive ser ious injuries and
could even be killed if yo u are up against the
airbag or too close to i t when it inflates -
even with an Advanced Airbag
r::!;>page 130.
More important things to know about front
airbags
Fig. 14 8 Inflated front a irbags
-,... N 0 :i: ;;i;
Safety be lts are important to help keep front
seat occupants in the proper seated position so
that airbags can unfo ld properly and prov ide sup­
plemental protection in a fronta l co llision.
The front airbags a re designed to provide addi­
tional protection for the chest and face of the driver and the front seat passenger when:
- safety belts are worn properly,
- t he seats have been positioned so that the oc-
cupant is properly seated as far as possib le
from the airbag,
Ill-
