ESP AUDI A8 2017 Owners Manual

Tech nical data
Dimensions
Length (in (mm )) Width (in (mm ))
Width across the Height at curb
mirrors (in (mm )) weight (in (mm ))
A8 L 207.3 (5,265) 76.7 (1,949) 83.l (2,111) 57.9 (1,471)
AB 202.2 (5,135) 76.7 (1,949) 83.1 (2,111) 57.5 (1,460)
58 202.6 (5,147) 76.7 (1,949) 83.l (2,111) 57.4 (1,458)
When driving on poor roads, by curbs and on
steep ramps, make sure that low-hanging com­ ponents such as the spoiler and exhaust system
do not come into contact w ith these or they could
Capacities
Fuel tank
Windshield and headlight washer system*
Weights
G ro ss Vehicl e Weight Rat ing
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for front
and rear are listed on a sticker on the door jamb
on the driver's side .
The Gross Vehicle Weight Rating includes the
weight of the basic vehicle p lus full fuel tank, oi l
and coolant, plus max imum load, which includes
passenger we ight (150 lbs/68 kg per designated
seating position) and luggage weight¢ ,&..
Gross A xle W eight Rating
The Gross Ax le Weight Rating is the maximum
load that can be applied at each axle of the vehi­
cle ¢,&. .
V ehicle capaci ty weight
The vehicle capacity we ight (max. load) is listed
either on the driver's side B-pillar or inside the
fue l filler flap .
A WARNING
- The actual Gross Axle Weight Rating at the front and rear axles shou ld not exceed the
permissible weights, and their comb inat ion
334
be damaged. This especially applies to vehicles
that are equipped w ith adapt ive air suspension
and when the vehicle is at full load .
Appro ximate capaci-
tie s
2 1. 7 gal (82.0
L)
5.3 qt (5.0 L)
must not exceed the Gross Vehicle Weight
Rating.
- Exceed ing permissible weight ratings can
result in vehicle damage, accidents and per­
sonal injury.
(D Note
- The veh icle capacity weight figures apply
when the load is d istr ibuted evenly in the
vehicle (passengers and luggage) . When
transport ing a heavy load in the luggage
compartment, carry the load as near to the
rea r axle as possib le so that the ve hicl e's
h and ling is no t impaired.
- Do not exceed the maximum pe rm iss ible
ax le loads or the maxim um gross vehicle
we igh t. A lways remember that the ve hicl e's
hand ling will be affected by the extra load.
T herefore, adjust your speed accordingly .
- Always observe local regula tions.

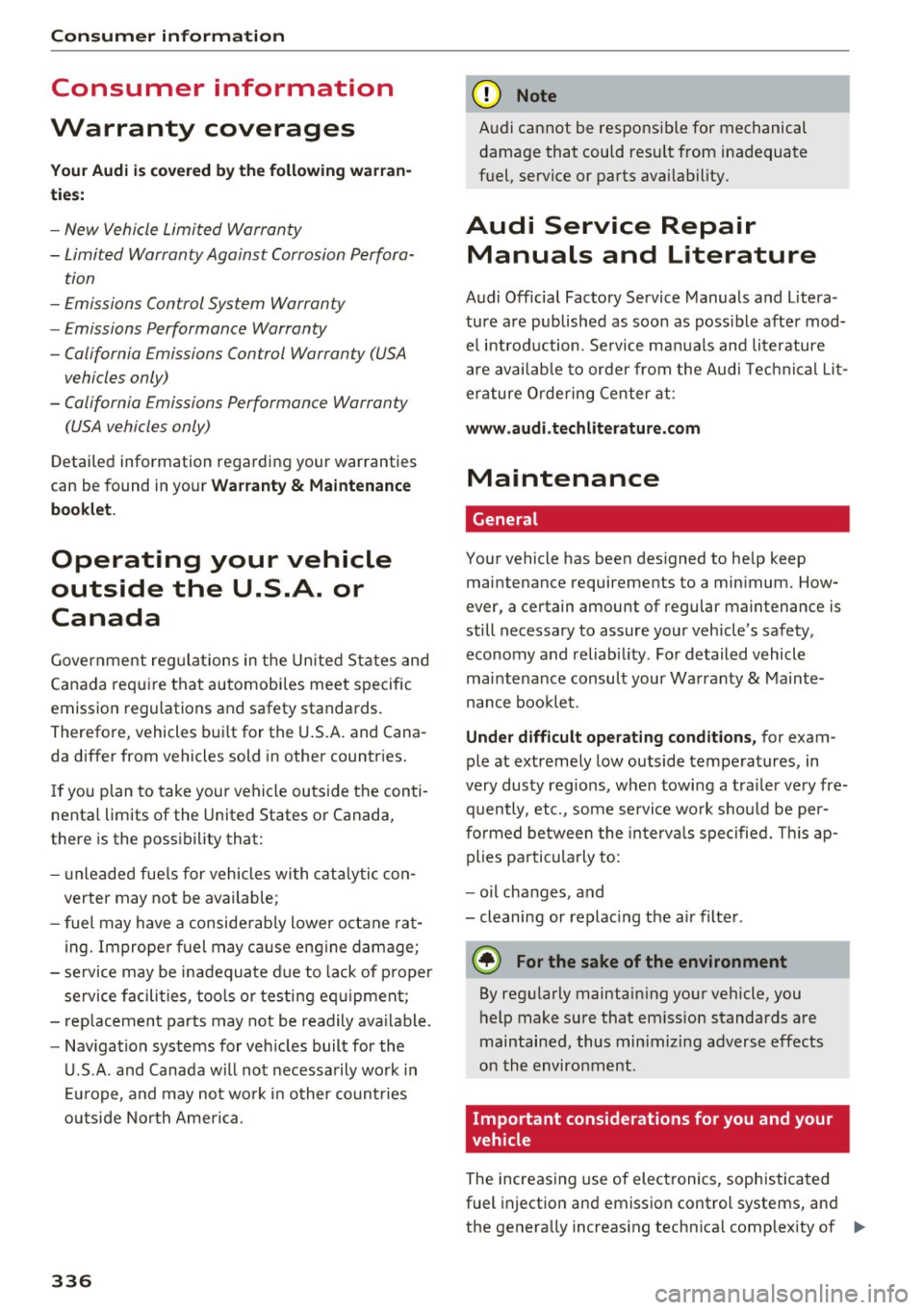

Consumer information
Consumer information
Warranty coverages
Your Audi is covered by the following warran­
ties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warranties
can be found in your
Warranty & Maintenance
booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulati ons in the United States and
Canada require that automobi les meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U.S.A. and Cana ­
da differ from vehicles sold in other countries.
If you plan to take your vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the poss ibility that:
- un leaded fue ls for vehicles with catalytic con­
verter may not be available;
- fuel may have a considerably lower octane rat­
ing . Improper fuel may cause engine damage;
- service may be inadequate due to lack of proper
service facilities, tools or testing equipment;
- r eplacement parts may not be readily available.
- Nav igation systems for veh icles built for the
U.S .A . and Canada will not necessarily work in
Europe, and may not work in other countries
outside North America.
336
(D Note
Audi cannot be responsib le for mechanical
damage that could result from inadequate
fuel, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and Litera ­
ture are published as soon as poss ible after mod­
el introduction . Service manuals and literature
are available to order from the Audi Technical Lit ­
erature Ordering Center at :
www.audi.techliterature .com
Maintenance
General '
Your vehicle has been designed to help keep
maintenance requirements to a minimum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your vehicle's safety,
economy and reliability . For detailed vehicle
maintenance consult your Warranty & Mainte­
nance booklet .
Under difficult operating conditions, for exam ­
ple at extremely low outside temperatures, in
very dusty regions, when towing a trailer very fre­
quently, etc., some service work should be per­
formed between the intervals specified. This ap­
plies particularly to:
- oil changes, and
- cleaning or replac ing the a ir filter .
'
@) For the sake of the environment
By regularly maintain ing your vehicle, you
help make sure that em iss ion standards are
maintained, thus minimizing adverse effects
on the environment .
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated
fuel injection and emission control systems, and
the generally increas ing technica l complexity of ..,_

0 co .... N ,..... N .... 0 0 :c ' today's automobiles, have steadily reduced the
scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safety and
environmental
concerns place very strict limits
on the nature of repairs and adjustments to en­
gine and transmission parts which an owner can perform .
Maintenance, adjustments and repairs usually re­
quire special tools, testing devices and other
equipment available to specially trained work ­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and
its many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty .
Therefore, proof of servicing in accordance with
the maintenance schedule may be a condition for upholding a possible warranty claim made within
the warranty period.
Above all , operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any servicing, have it done by
your authorized Audi dealer or any other properly equipped and qualified workshop. We strongly urge you to give your authorized Audi dealer the
opportunity to perform all scheduled mainte­ nance and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to keep your vehicle running properly .
Performing limited maintenance yourself
The following pages describe a limited number of
procedures which can be performed on your vehi­
cle with ordinary tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­ ly follow the instructions given . Always rigorously
observe the
WARNINGS provided .
Before you check anything in the engine com­
partment, always read and heed all WARNINGS
c::> .&. and c::> .&. in Working in the engine compart­
ment on page 271 .
Consumer information
A WARNING
-Serious personal injury may occur as a result
of improperly performed maintenance, ad ­
justments or repairs .
- Always be extremely careful when working
on the vehicle. Always follow commonly ac­
cepted safety practices and general com­
mon sense. Never risk personal injury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fully familiar with these
or other procedures with respect to the ve­ hicle, or are uncertain how to proceed.
- Do not do any work without the proper tools
and equipment. Have the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi­ cle is a potentially hazardous area. Never reach into the area around or touch the radi­
ator fan.
It is temperature controlled and
can switch on suddenly - even when the en­
gine is off . The radiator fan switches on au ­
tomatically when the coolant reaches a cer­
tain temperature and will continue to run
until the coolant temperature drops.
- Always switch off the ignition before anyone
gets under the vehicle .
-Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle . The jack supplied with the vehi­
cle is not adequate for this purpose and
could collapse causing serious personal in­
jury.
- If you must work underneath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
- Always make sure the transmission selector
lever (automatic transmission) is in "P"
(Park position) and the park brake is ap-
plied.
~
337

This will help ensure that vehicle function, per ­
formance and safety are not impaired¢& .
Attempting to work on e lectronic components
and the so ftware used with them can cause ma l­
f u nctions. Because of the way electronic compo­
nents are inte rconnected with each other, such
malfunct ions can also have an adve rse affect on
other systems that are not directly involved . This
means that you risk both a substantia l reduction
in the operationa l safety of your veh icle and an
in creased wea r of ve hicle parts¢ .&,.
Author iz ed Audi dealers w ill perform this work in
a profess ional and competent manner or, in spe­
cial cases, refer you to a professional company
that spec ializes in such modifications .
A WARNING
Improper repairs and mod ificat ions can
change the way veh icle systems work and
cause damage to the veh icle and ser ious per ­
sonal injury.
([) Note
If emerg ency r epairs must be pe rformed else­
where, have the vehicle examined by an au­
t hori zed A udi d ealer as soon as possib le.
Declaration of
Compliance, Telecom­ munication or Electronic
Systems
Radio Frequency Devices and Radiocommunica ­
tion Equipment User Manual Notice .
The manufacturer is not respo nsible for any radio
or TV inte rferen ce caused by unauthor ized modi­
fications to this equipment .
Devices
The follow ing devices each comp ly w ith FCC Part
15. 19, FCC 15.2 1 and RS S-Gen Issue
1:
- Adaptive cruise control
o -Audi s ide ass ist co ....
~ - Cell phone pac kage
N 8 -Convenience key
0 :c -Electron ic immobilizer ' Con sumer inf ormation
- Head phones
- Homelink u niversa l remo te cont rol
- Remote cont rol key
- S8 plus : tire pressure monitoring system
FCC Part 15 .19
This device complies with part 15 of the FCC
Rules. Ope ration is subject to the follow ing two
condit ions:
(1) This device may not ca use ha rmf ul interfer ­
ence, and
(2) this devi ce must accep t any inte rference re­
ceived, incl uding interference that may cause un­
desired ope ration.
FCC Part 15.21
CAU TION:
Changes or mod ificat io ns not express ly app roved
by the pa rty responsible fo r compliance could
vo id the user's a uth o rit y to ope rate the equ ip­
ment.
RSS-Gen Issue 1
Operat io n is subject to the following two cond i­
t ions:
(1) this device may not cause inte rference, and
(2) this device must accep t any inte rference, in ­
cluding interference that may cause undes ired
operation of the dev ice .
339
