AUDI Q5 2013 Owners Manual

Parking system
Audi parking system plus with rearview
camera
Introduction
App lies to vehicles: with Audi park ing system plus with
rea rview camera
Fi g. 13 9 Park ing mode 1: Backing into a parkin g space
Fig . 14 0 Park ing mode 2: pa rallel parking
Vehicles w it h the Audi park ing system p lus
with rearv iew camera a re eq uipped w ith a
rearview camera i n addit ion to the aco ust ic
and v isua l park ing system.
You ca n choose between parking modes to
he lp you whe n pa rking your vehicle. Use
"parking mode 1" when pa rking in a parking
space or garage
r::!;> fig. 139. If you a re go ing to
be p aralle l park ing, use "par king mode 2"
r::!;> fig . 140 .
Par king system 129
General Information
Applies to vehicles: wit h Aud i parking system plus with
rearv iew camera
@
F ig . 14 1 Area covered (!) and area not covered @by
the rea rv iew came ra.
Fi g. 142 Rea r lid : Locat ion o f the rearview came ra
Sensor s in the bumper
Sensors are located in the front and rear
bumpers. If these detect an obstacle , a udible
and visual signals warn you. The range at
wh ich the sensors begin to measu re is app rox­
i mately :
front side
3 ft (
0.90
m)
center 4 ft (1.20 m)
side 2 ft (0 .60 m)
rea r
center 5.2
ft (1.60 m)
The closer you get to the obstacle, the shorter
the interval between the aud ible signals . A
continuous to ne sounds when the obstacle is
less than app roximately 1 foot (0.30 meters)
away . Do no t con tinue dr iv ing f art her .
If the distance to an obstacle remains con ­
stant, the volume of th e distance warn ing
gradua lly drops after about fo ur se conds (this
d oes not apply in the cont inuo us tone range).
~

130 Parking system

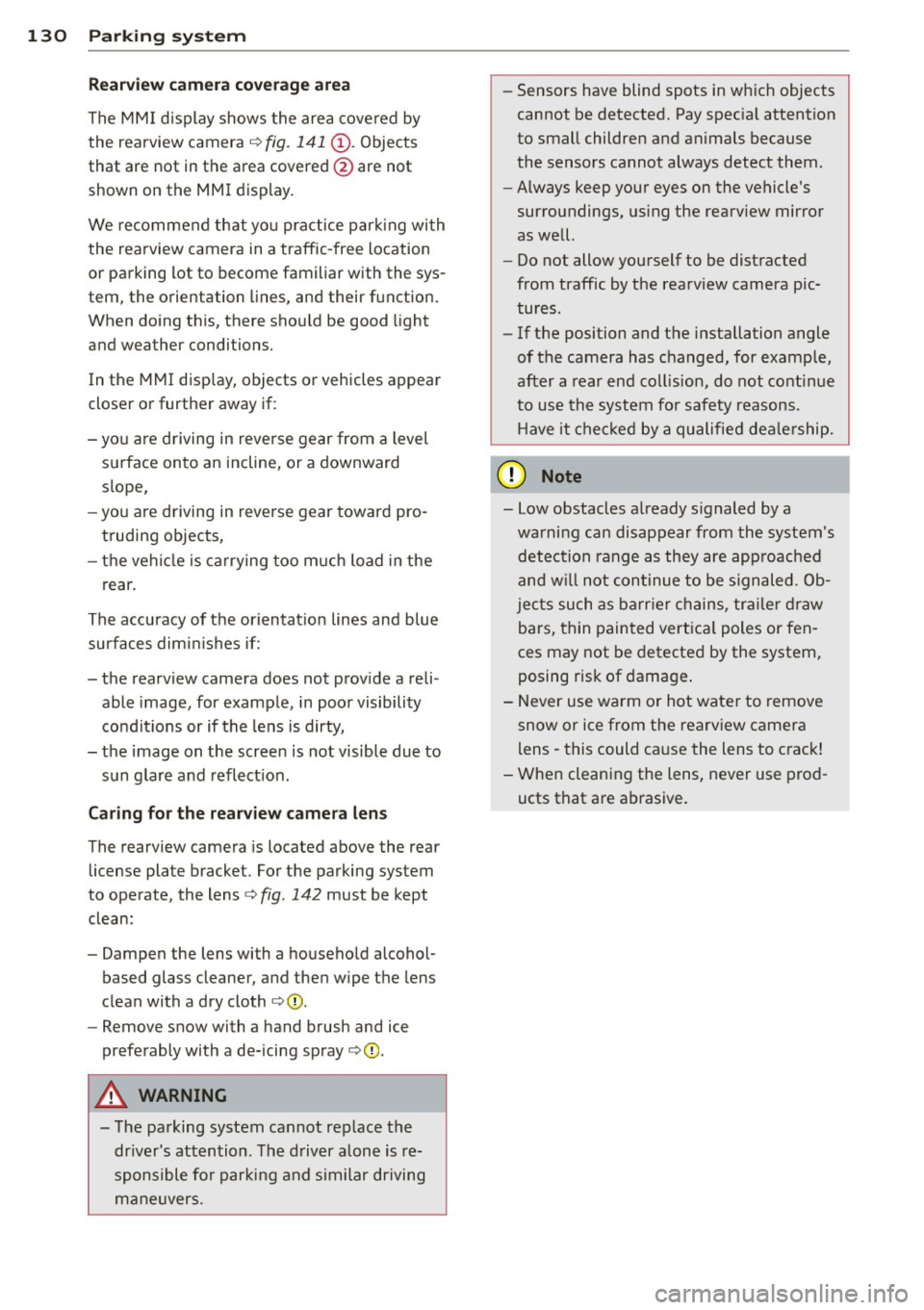

Rearv iew camer a coverage area
The MM I display shows the area cove red by
the rearview camera
r=> fig. 141 (D . Objects
that are not in the a rea covered @are not
shown on the MMI display .
We recommend that you p ractice park ing wi th
the rearview camera in a traffic-free location
or parking lot to become familiar with the sys ­
tem, the orientation lines, and their f unction.
When doing th is, there sho uld be good light
and weather conditions.
I n the MMI disp lay, objects or vehicles appear
closer or further away if:
- yo u are d riving in reverse gear from a level
s u rface on to an incline, or a downward
s lope,
- you are d riving in reverse gear toward pro ­
truding objects,
- the vehicle is carrying too much load in the
rear .
The accu racy of the orientat ion lines and b lue
surfaces dim inishes if:
- the rearview camera does not prov ide a reli ­
able image, for example, in poor visibility
condit io ns or if the lens is dirty,
- the image on t he screen is not visible due to
s u n glare and reflect ion .
Caring for the rear view came ra len s
The rearview camera is located above the rear
license plate bracket . For the parking system
to operate, the lens
r=> fig. 142 must be kept
clean:
- Dampen the lens with a househo ld alcoho l­
based glass cleaner, and then wipe the lens
clean with a dry cloth
r=> 0 .
- Remove snow with a hand brush and ice
prefe rably with a de-icing spray
r=> 0 .
A WARNING
-The parking system cannot rep lace the
dr iver's at tention. The d river alone is re­
sponsible fo r par kin g and similar dr iving
ma ne uvers .
-
-Sensors have blind spots in wh ich objects
cannot be detected. Pay spec ia l attention
to small childre n and an imals because
the sensors cannot always detect them .
- Always keep your eyes on the vehicle 's
sur roundings, us ing the rearv iew mir ror
as we ll.
- Do not allow yourself to be distracted
from traffic by the rea rv iew camera pic­
tures .
- If the position and the installation angle
of the camera has changed, for example,
after a rear end coll ision, do not conti nue
to use the system for safety reasons .
H ave it chec ked by a qualified dea le rship.
Q) Note
- Low obstacles a lready s ignaled by a
wa rning can disappear from the system's
detection rang e as they are app roached
and w ill no t cont inue to be signaled. Ob­
jec ts such as ba rr ier chains, tra iler draw
bars, thin painted vert ica l poles or fen­
ces may not be detecte d by the system,
posing ris k of damage .
- N ever use warm or hot water to remove
snow or ice from the rearv iew camera
lens -this could ca use the lens to crac k!
- W hen cleaning the lens, never use prod ­
ucts that a re a brasive.

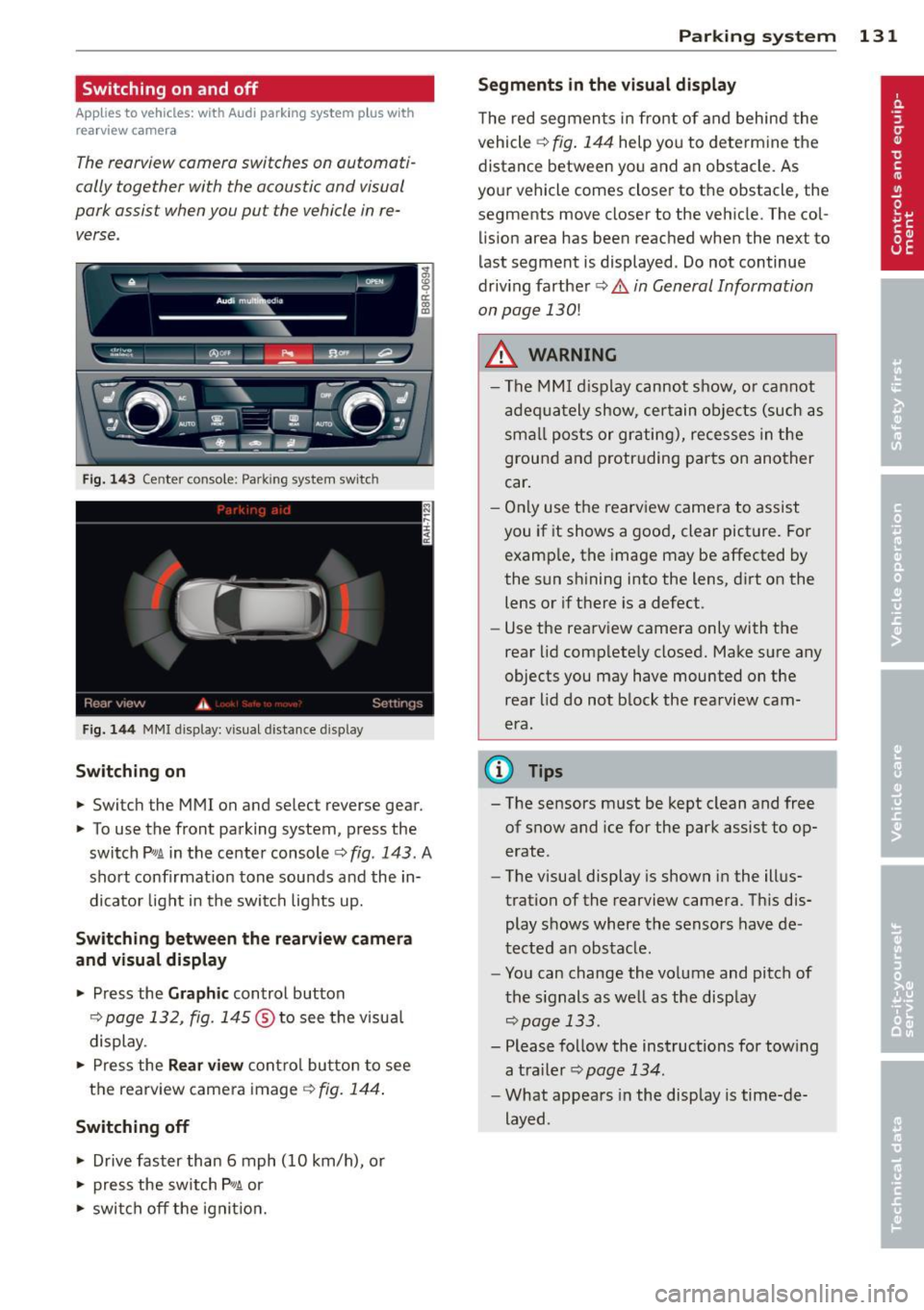

Switching on and off
Applies to vehicles: with Audi parking system p lus with
rea rview camera
The reorview camera switches on automati­
cally together with the acoustic and visual
pork assist when you put the vehicle in re­ verse .
Fig. 14 3 Center co nsole ; Pa rk ing syste m switc h
Fig. 144 MMI disp lay: visu al dista nce display
Switching on
.,. Switch the MMI on and select reverse gear.
.,. To use the front parking system, press the
switch
P w.A in the center console c> fig . 143. A
sho rt confirmat ion tone sounds and the in­
dicato r light in the switch lights up.
Switching between the rear view came ra
and visual display
.,. Press the Graphic control button
¢ page 132, fig . 145 ® to see the visua l
display.
.,. Press the
Rear view con trol bu tton to see
the rearview came ra image
¢ fig. 144 .
Switching off
.,. Drive faster than 6 mph (10 km/h), or
.,. press the sw itch
p ,q .A or
.,. swi tch off the ignit io n.
Par king system 131
Segm ents in the vi sual display
T he red segmen ts i n fro nt of and behind the
vehicle
c> fig . 144 help you to determ ine the
distance between yo u and an obstacle. As
you r vehicle comes close r to the obstacle, the
segments move closer to the vehicle. The col­ lision area has been reached when the next to
l ast segment is displayed . Do not continue
driv ing farther
c> .&. in General Information
on page
130!
A WARNING
- T he MMI display cannot s how, o r ca nnot
a dequa tely show, certain o bje cts (such as
smal l posts or gr ating), recesses in the
ground and p rotruding parts on another
car .
- On ly use the rearv iew came ra to assist
you if it shows a good, clear pict ure. For
examp le, the image may be affected by
the sun sh ining into the lens, d irt on the
lens or if there is a defect.
- Use the rearv iew camera only with the
rear lid comp lete ly closed. Make sure any
o bjects you may have mounted on the
rea r lid do not b lock the rearview cam­
era.
(D Tips
- The sensors m ust be kept clean and free
of snow and ice for the park assist to op­
erate .
- The visua l display is shown in the illus­
tration of the rearview camera. Th is dis­
play shows where the sensors have de­
tected an obstacle .
- You can change the vo lume and pitch of
t he s ignals as we ll as the disp lay
<=>page 133.
- Please fo llow the instructions for tow ing
a tra iler
c> page 134.
-What appears in the display is time-de­
layed .

132 Parking system

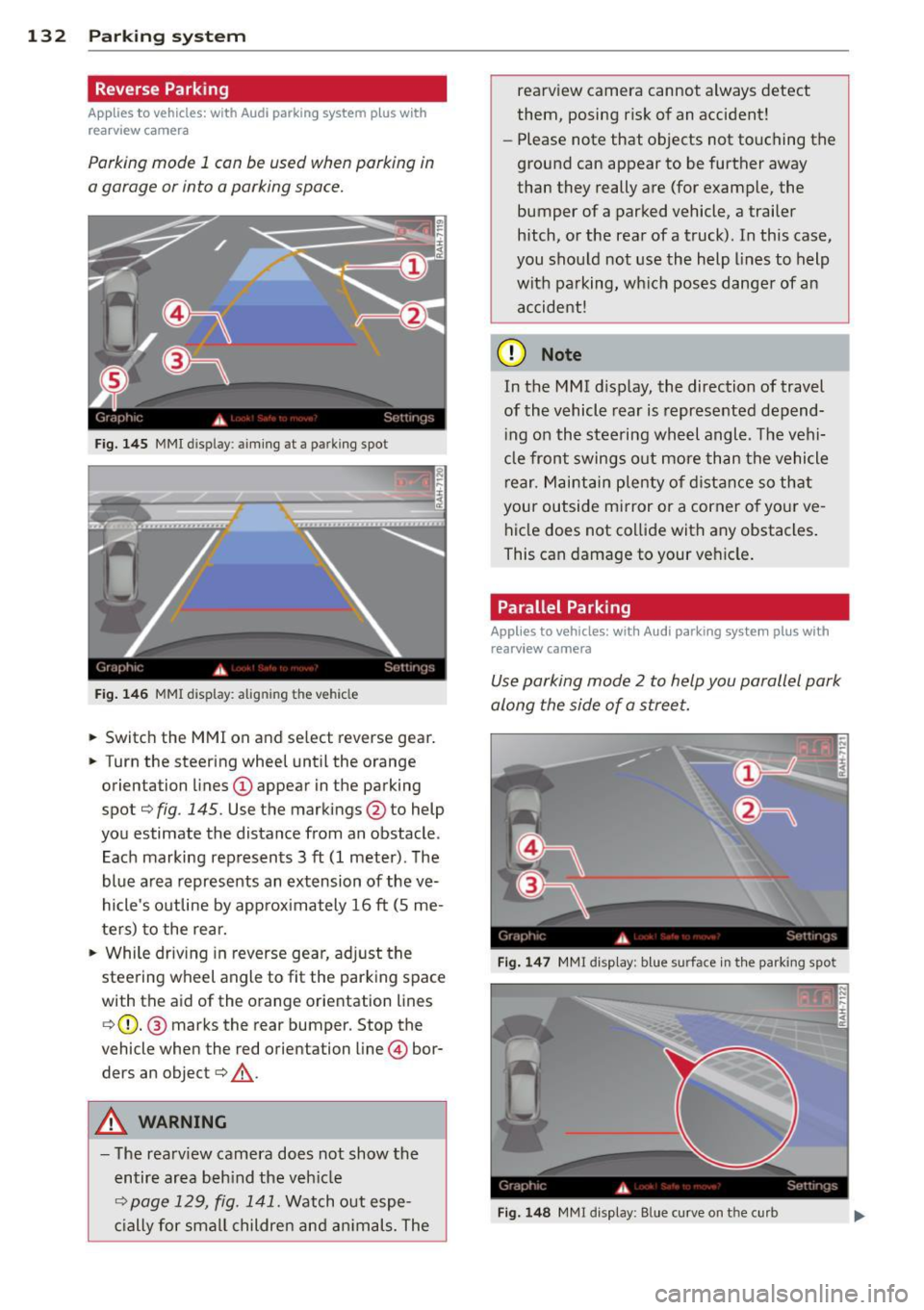

Reverse Parking
App lies to vehicles: with Audi parking system p lus w ith
rea rview camera
Parking mode 1 con be used when parking in
a garage or into a parking space.
Fig. 145 MMI disp lay : aiming at a pa rking spot
Fig. 146 MMI display: alig nin g th e veh icle
... Switch the MMI on and select reverse gear .
... Turn the steering wheel until the orange
orientation lines
(D appear in the parking
spot¢
fig . 145. Use the markings @to help
you estimate the distance from an obstacle .
Each marking represents 3
ft (1 meter). The
blue area represents an extension of the
ve­
hicle's outline by approximately 16 ft (5 me­
ters) to the rear.
"' While driving in reverse gear, adjust the
steering wheel angle to fit the parking space
with the aid of the orange orientation lines ¢ (D. @ marks the rear bumper. Stop the
vehicle when the red orientation line © bor­
ders an object¢ _&..
A WARNING
-The rearview camera does not show the
entire area behind the vehicle
¢ page 129, fig. 141. Watch out espe­
cially for small children and animals. The rearview camera cannot always detect
them, posing risk of an accident!
- Please note that objects not touching the
ground can appear to be further away
than they really are (for example, the
bumper of a parked vehicle, a trailer
hitch, or the rear of a truck). In this case,
you should not use the help lines to help
with parking, which poses danger of an accident!
(D Note
In the M MI dis play , the direction of travel
of the vehicle rear is represented depend­
ing on the steering wheel angle . The vehi­
cle front swings out more than the vehicle
rear. Maintain plenty of distance so that
your outside mirror or a corner of your
ve­
hicle does not collide with any obstacles.
This can damage to your vehicle.
Parallel Parking
Applies to vehicles: with Aud i parking system plus with
rearv i ew camera
Use parking mode 2 to help you parallel park
along the side of a street .
Fig. 147 MMI disp lay: blue surface in th e parking spot
Fig. 148 MM! display : B lue curve on th e curb

The following steps apply only when there is
no obstacle such as a wall near the parking
spot. Otherwise, please read the information
prov ided in the "Parking Next to Obstacles"
section.
~ Activate the turn signal.
~ Position your vehicle parallel to the edge of
the street, approxim ately 3 ft (1 meter)
from a parked vehicle .
~ Switch the MMI on and se lect reverse gear .
The parking aid tu rns o n and parking mode
1 appears on the display .
~ Press the contro l button (D ¢ fig. 147 on
the MMI contro l conso le. Parking mode
2
appea rs .
~ Back up and align yo ur vehicle so t he b lue
area @ borders on the rear end of the vehi­
cle or on the parking spot line. The bl ue area
represents an extension of the veh icle's out­
line by approximate ly
16 ft (S meters) to the
rear . The long side of the blue area should
be o n the curb . The entire blue area must fit
i nto the parking spot .
~ With the vehicle stopped, turn the steer ing
whee l to the right as far as it w ill go.
~ Back into the park ing spot until the blue
cu rve to uches the curb¢
fig. 148. Stop the
vehicle.
~ With the veh icle stopped, turn the steer ing
wheel to the left as far as it will go .
~ Continue to back into the park ing spot until
the vehicle is parked parallel to the curb .@
marks the rear bumper. Stop the vehicle
when the red orientation line@ borde rs an
object ¢.&, . Keep an eye o n the fron t of
yo ur vehicle while do ing this ¢Ci) .

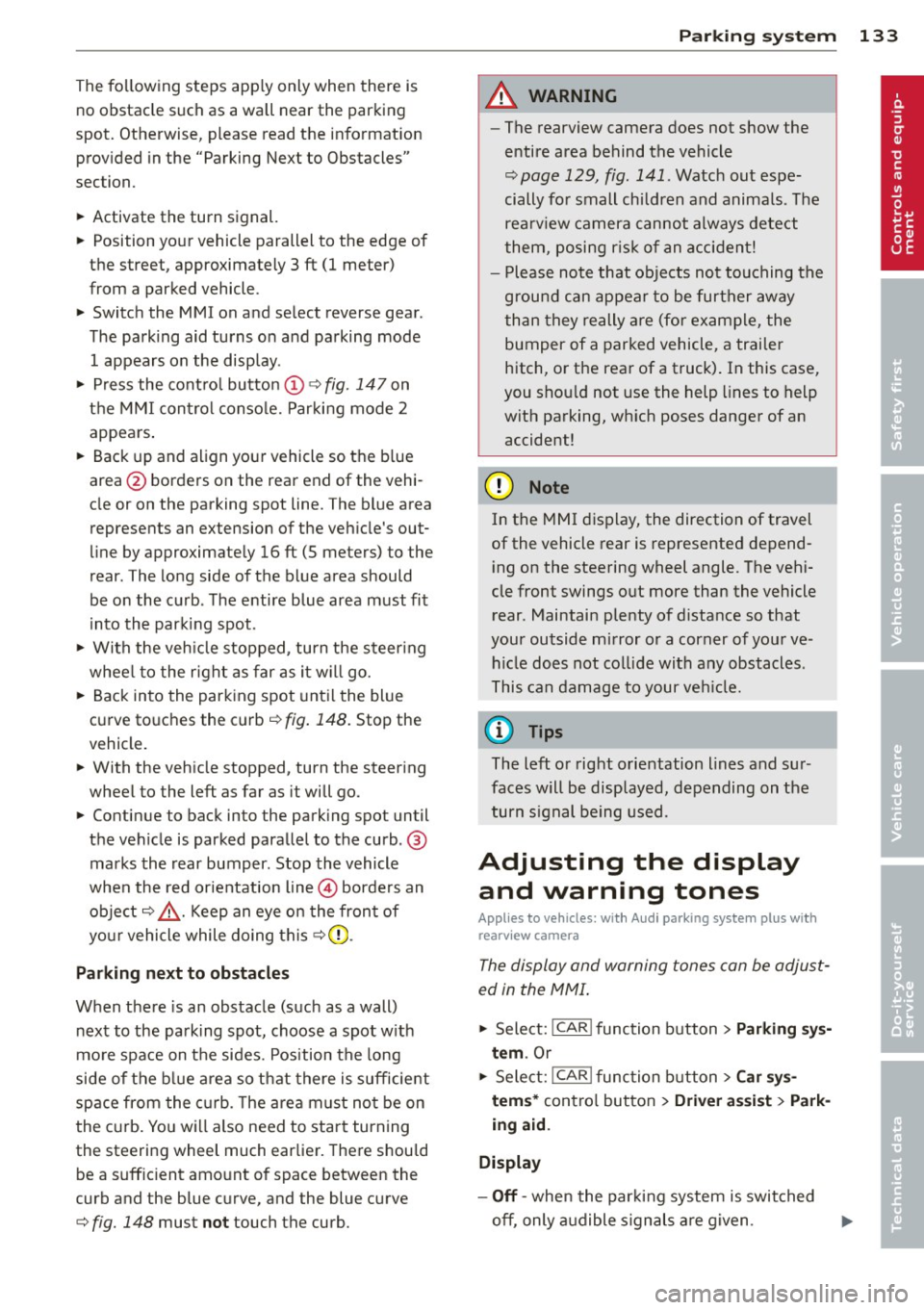

Parking n ext to obstacles
When t here is an obstacle (such as a wall)
next to the pa rking spot, choose a spot w ith
mo re space on t he sides. Position the long
side of the b lue a rea so that there is sufficient
space from the curb. The a rea m ust no t be on
the c urb. You w ill also need to start turn ing
the steering wheel much earlie r. T he re should
be a suffic ient amo unt of space between the
curb and the blue curve, and the blue c urve
¢ fig. 148 must not touch the curb.
Par king system 133
A WARNING
- The rearview camera does not show the
entire area behind the vehicle
¢ page 129, fig. 141 . Watch out espe­
cially fo r small children and anima ls . The
rea rv iew camera cannot always detect
them, posing r is k of an a ccident!
- P lease note that objects not touching the
g rou nd can appear to be further away
than they really are (for example, the
bumper of a parked vehicle, a trai ler
hitch, or the rea r of a truck) . In this case,
you shou ld not use the help lines to help
with parking, wh ich poses danger of an
accident!
(D Note
In the MMI display, the direction of travel
of the vehicle rear is represented depend­
i ng on the steering wheel angle . The vehi­
cle front swings out more than the vehicle rear. Maintain ple nty of d istance so that
your outside mirror or a corner of your ve­
hicle does not col lide with any obstacles.
T his can damage to your ve hicle.
(0 Tips
The left o r right orientation lines and su r­
faces will be disp layed, depending on the
turn s ignal being used .
Adjusting the display
and warning tones
App lies to v ehicl es: wi th Audi parking sys te m plus wi th
rearv iew camera
The display and warning tones can be adjust ­
ed in the MMI .
~ Select: !CAR ! function button> Parking sys­
tem .
Or
~ Select: ~I C- A- R~I func tion button > Car sy s­
tems *
contro l bu tton > Driver a ssist > Park­
ing aid.
Display
- Off -when the par king system is switched
off, only a udible s ignal s are given .

134 Parking system
- On -when the parking system is switched
on, either the visua l d isplay or the picture
from the rearview camera is disp layed .
Warning tones
-Front volum e -front sensor vol ume
- Front frequ enc y-front sensor frequency
-Re ar volum e -rear sensor volume
- Rear frequenc y -rear sensor frequency
- In -ca r entertainme nt fader /Mu sic volume
w hile pa rking -
when the parking system is
switched on , the volume of the active audio
source is lowered .
The new ly adjusted value is briefly heard from
the signal generator.
@ Tips
- The warning tones can a lso be adjusted
directly by the v is ual disp lay or the p ic­
ture from the rearview camera. Simp ly
press the
Sett ings contro l button.
- Changed settings are activated when
parking system is switched on again.
- The settings are automatically stored
and ass igned to the remote control key.
Trailer hitch
Applies to vehicles: with Audi parking system plus w ith
rea rview camera a nd trailer hitch
For vehi cles with a facto ry installed trai ler
hitch, or a trai ler hitch installed according to
factory specifications, the parking system rear
sensors do not come on whenever you shift in­
to reverse gear or when you press the
P, #J\.
switch. Remember, there is no warning for
d istances to the rear . The front sensors re ­
main activated. The visual display switches to
the trailer towing mode. The picture from the
rearv iew camera will not show the orientation
l ines nor the blue su rfaces.
If you install a hitch yourself, th is function
may not work .
Error messages
Applies to vehicles: wi th Audi parking sys te m plus with
rearv iew camera
T he re is an error in the system if t he LED on
the
p, q~ switch is blinking and you hea r a con­
t in uous alarm for a few se conds after switch­
ing on the parking system or when the park­
ing system is already activated . Have yo ur au­
thorized Audi dea ler correct the error.
(D Tips
If the error is not corrected before you
switch off the ignition, when you switch on
the parking system again, the LED in the
Pw J\. switch will blink.

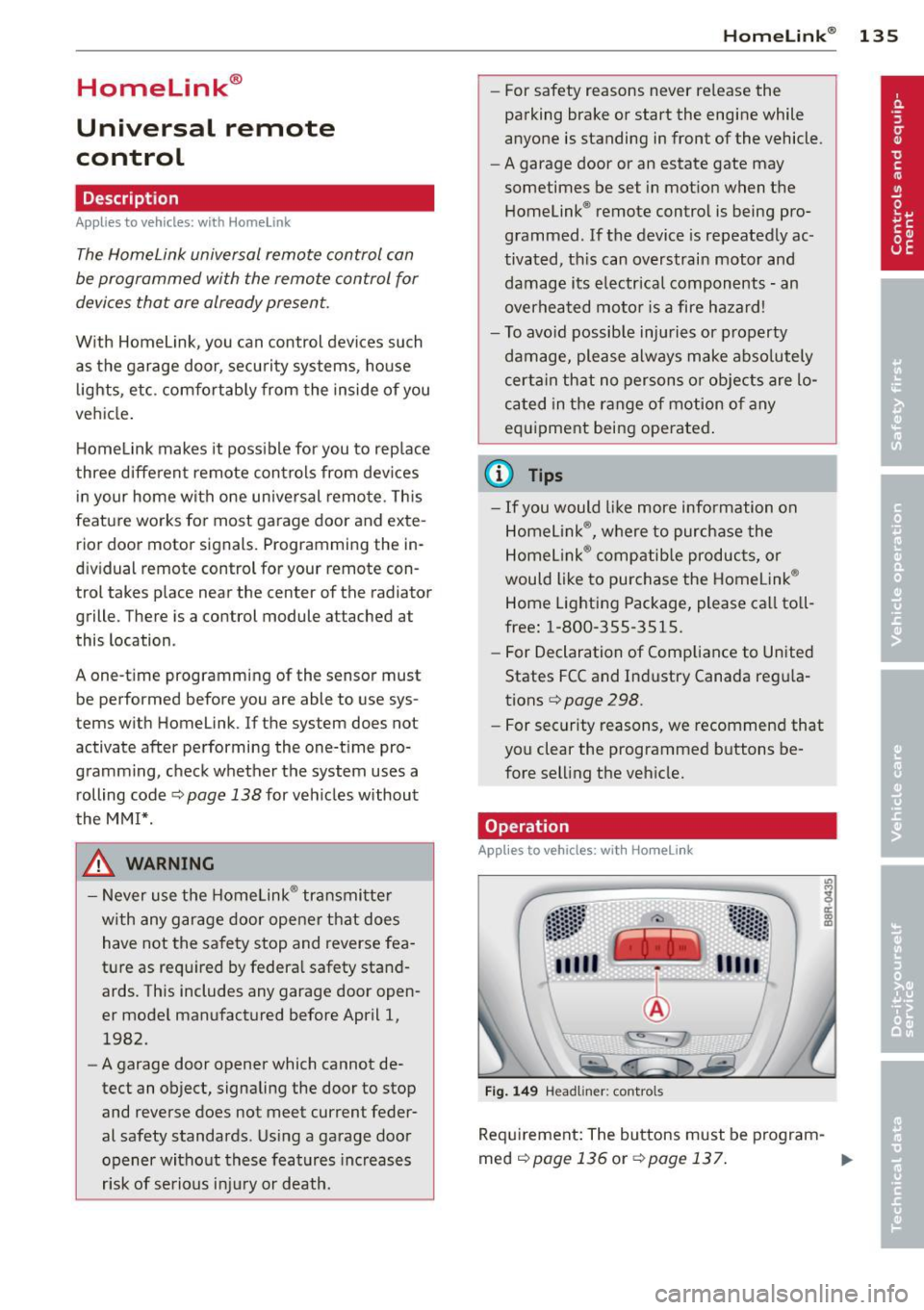

Homelink®
Universal remote
control
Description
Applies to vehicles: with Home link
The HomeLink universal remote control con
be programmed with the remo te control for
devices that ore already present.
With Home Link, you can control devices such
as the garage door, secu rity systems, ho use
lights , etc. comfortably from the inside of you
veh icle .
H omelink makes it poss ible for you to rep lace
t hree different remote controls from dev ices
in your home with one un ive rsal remo te. Th is
featu re works for most garage door and exte­
rior door motor signals. Programming the in­
d ividual remote control for your remote con ­
trol takes p lace near the center of the radiator
grille. There is a control module attached at
this location .
A one-t ime programm ing of the sensor must
be performed before you are able to use sys­
tems with Homelink. If the system does not activate after performing the one-t ime pro­
gramming, check whether the system uses a rolling code ¢
page 138 for vehicles without
the MMI*.
& WARNING
-
- Never use the Homelink ® transmi tter
with any garage door opener that does have not the sa fety stop and reverse fea ­
ture as requ ired by federa l safety stand­
ards. Th is includes any garage door open­
er mode l manufactured before April 1,
1982.
- A garage door opener which cannot de­
tect an object, signaling the door to stop
and reverse does not meet current feder­
al safety standards . Us ing
a garage door
opener without these features increases
r isk of serious inj ury or death.
Homelink ® 135
-For safety reasons never re lease the
parking brake or start the eng ine while
anyone is standing in front of the vehicle .
- A garage door or an estate gate may
sometimes be set in motion when the
Homelink ® remote control is being pro­
grammed. If the device is repeatedly ac­
tivated, th is can overstrain motor and
damage its e lectrical compon ents -an
overheated mo to r i s
a fire hazard!
- To avo id possib le injuries or property
damage, please always make abso lutely
certa in that no person s or objects are lo­
cated in the range of motion of any
equ ipment being operated .
(0 Tips
-If you would like more information on
Homelink ®, where to purchase the
Home link ® compatib le products, or
would like to purchase the Homelink ®
Home Lighting Package, please ca ll toll­
free: l-800-355-3515.
- For Declaration of Compliance to United
States FCC and Industry Canada reg ula­
tions
¢ page 298.
- For security reasons, we recommend that
you clear the programmed b uttons be­
fore selling the veh icle.
Operation
App lies to vehicles : with Homeli nk
Fig . 14 9 Head li ner: controls
Req uirement : The buttons must be program-
med
<:!)page 136 or ¢page 137. ..,_

136 Homelink®
• To open the garage door, press the p ro­
grammed button . The LED @will light up or
flash.
• To close the garage door, press the button
again.
@ Tips
To open the garage door, press the button, but do not press it for longer ten seconds
or the Homelink module w ill switch to
programming mode.

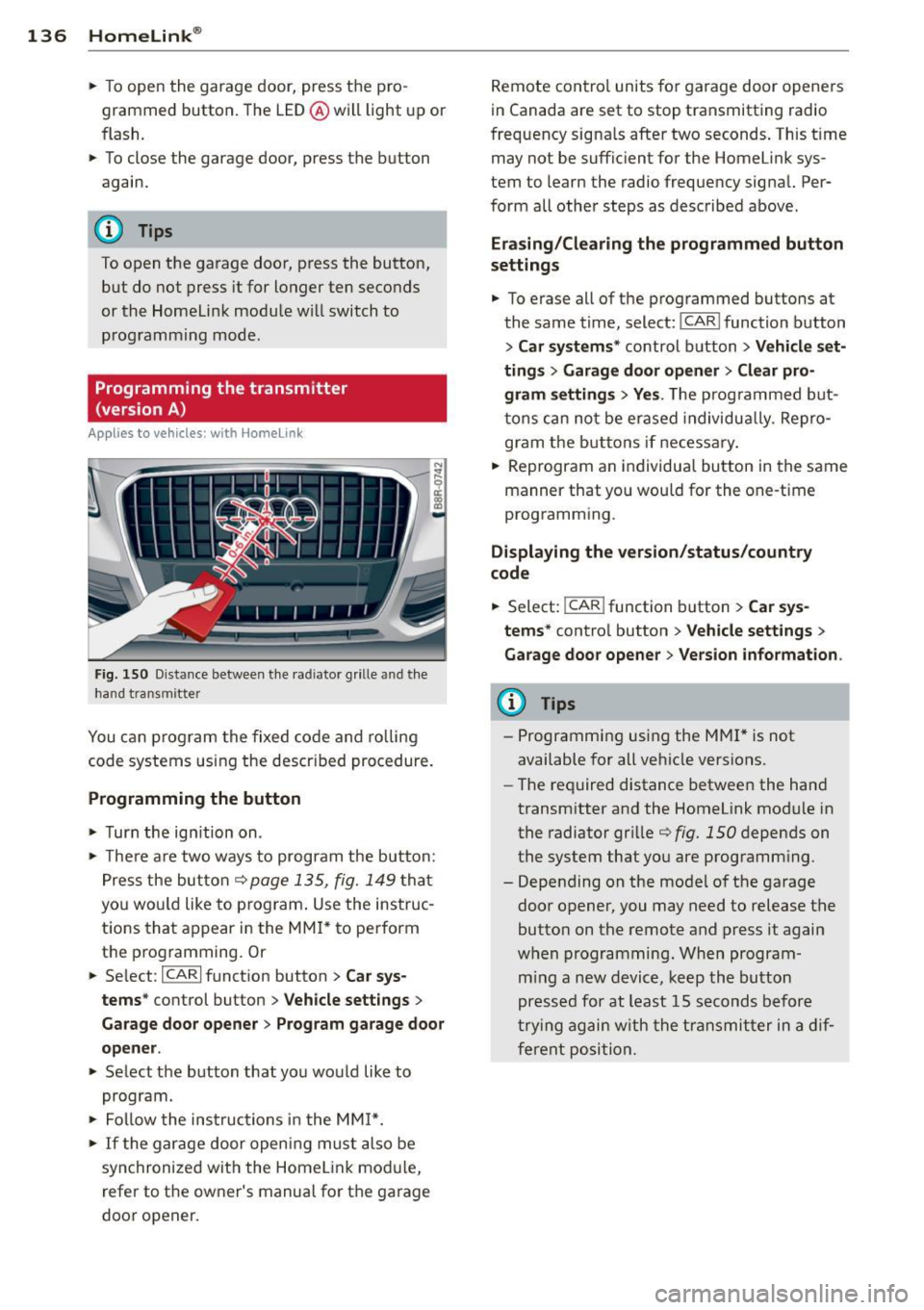

Programming the transmitter (version A)
Appl ies to vehicles: with Home link
Fig. 15 0 Distance between t he rad iator grille and th e
hand transmitter
You can p rogram the fixed code and ro lling
code systems using the descr ibed procedure.
Programming the button
• Turn the ig nition on .
• The re a re two ways to program the but ton:
P res s the but ton¢
page 135, fig. 149 tha t
yo u wou ld like to p rogram . Use the instruc­
t ions tha t appear in the MM I* to perform
the p rogramming. Or
• Se lect:
ICARI function button > Car sys·
terns *
control button > Vehicle settings >
Garage door opener > Program gar age door
opener .
• Select the button that yo u would like to
program.
• Fol low the ins truc tions in the MMI*.
• If the gar age door openi ng mus t also be
syn chronized wit h the Homel ink mod ule,
refer to t he owner's manual for t he garage
door opener. R
emote cont ro l units fo r garage door opene rs
in Canada are set to stop transmitting radio
frequency signa ls after two seconds . This t ime
may not be suffic ient for the Home link sys­
tem to learn the radio frequency signal. Per·
form all other steps as described above .
Erasing/Clearing the programmed button
settings
• To e rase all of t he programmed buttons at
the same t ime, select:
I CAR I function button
> Car systems * control button > Vehicle set·
ting s
> Garage doo r open er > Clear pro·
gram setting s> Yes.
The prog rammed b ut­
t ons can no t be erased individua lly. Re pro­
gram the butt ons if necessa ry .
• Reprogram an individua l bu tton in the same
manner that you wou ld for the one-time
programm ing .
Displaying the version /status/country
code
• Select: I CAR ! function b utton > Car sys·
terns *
contro l button > Vehicle settings >
Garage door opener > Version information .
(D Tips
-Programming using the M MI* is not
available for all ve hicle vers ions.
- The required distance betwee n the hand
transm itter and the Homelink module in
the radiator gr ille ¢
fig. 1 SO depends on
the system that you are prog ramm ing .
- Depending on the mode l of the ga rage
door opener, you may need to release the
butto n on the remote and press it again
w hen programming. When program·
m ing a new device, keep the butto n
presse d for at least 15 s econds before
t ry ing ag ain w ith the tra nsmit ter in a dif­
fere nt posi tion.

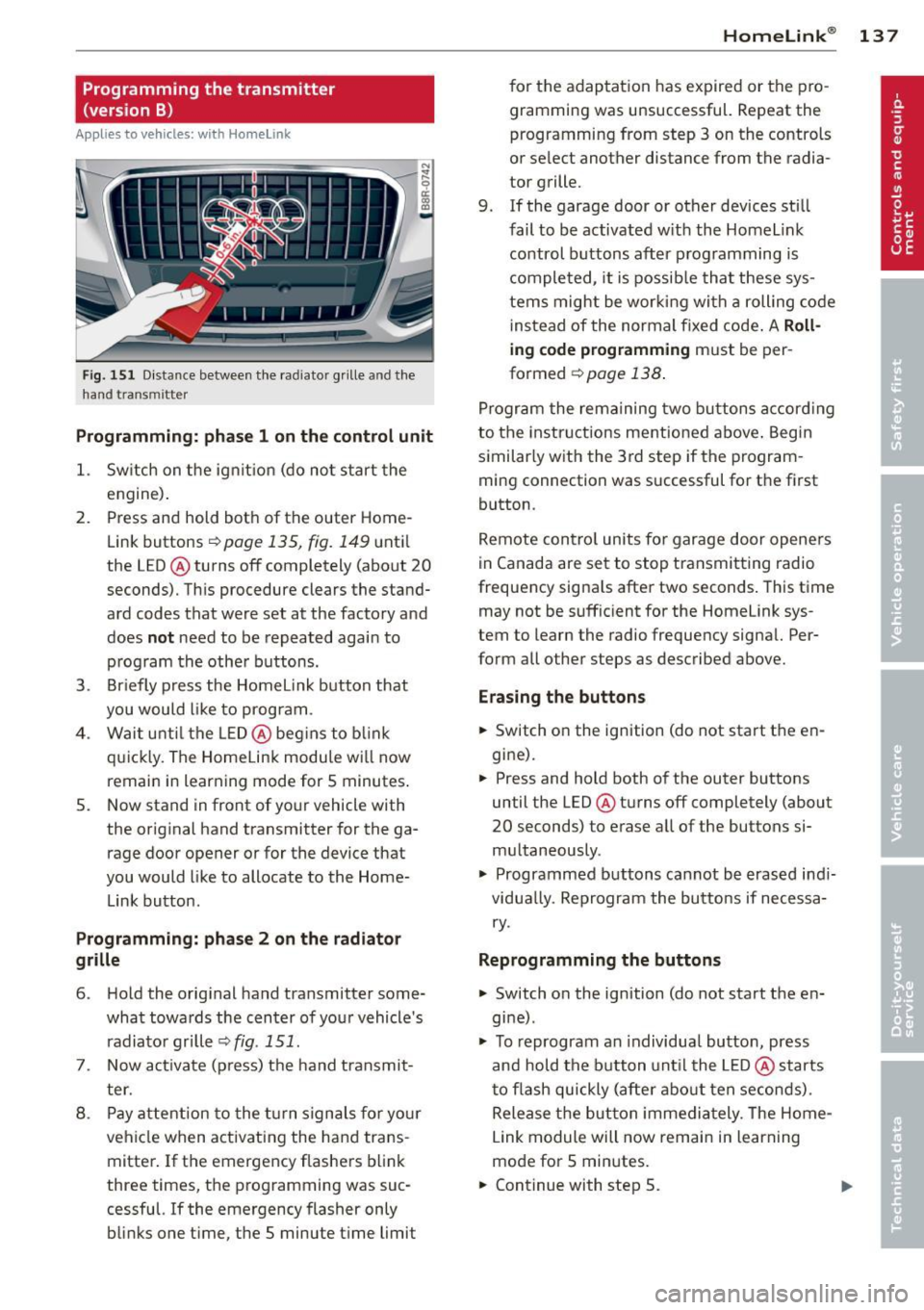

Programming the transmitter (version B)
Applies to vehicles: with Horne link
Fig. 15 1 Distance between the radiator gr ille and the
hand transmitter
P rogrammin g: ph ase 1 on the control unit
1. Sw itch on the ig nit ion (do no t start the
engine) .
2. Press and hold both of the outer Home­
Link buttons
r=>page 135, fig. 149 until
the LED @ turns off completely (about
20
seconds). Th is procedure clears the stand­
ard codes that were set at the factory and
does
n ot need to be repeated agai n to
p rog ram the other buttons.
3. Briefly press the Homelink button that
you would li ke to prog ram .
4 . Wai t unti l the LED @ beg ins to b link
q ui ckly. The Home Link modu le wi ll now
remai n in learning mode for
5 minutes .
5. Now stand in front of your vehicle with
the original hand transmitter for the ga­ rage door opener or for the device that
you would like to allocate to the Home­
Link button.
Programming: pha se 2 on th e radiator
grille
6 . Hold the orig inal hand transmitter some­
what towa rds the center of your vehicle 's
radiato r grille r=>
fig. 151.
7. Now act ivate (p ress) t he hand transmit­
ter.
8 . Pay a ttention to the tu rn signals for you r
vehicle when activating the ha nd trans­
mitter . If t he emergency flashers blink
three times, the programming was suc­
cessful. If the emergency flasher only
bli nks one t ime, the 5 minute t ime limit
Homelink ® 13 7
for the adaptation has expired or the pro ­
gram ming was unsuccessful. Repeat the
programming from step 3 on the controls
or select another distance from the radia­
tor grille.
9. If the garage door or other devices sti ll
fail to be activated w it h the Homelink
control buttons after p rogramming is
comple ted, it is possib le tha t these sys­
tems might be working with a rolling code
ins tead of the normal fixed code .
A Roll­
ing code programming must be per ­
formed
r=> page 138 .
Program the rema ining two buttons a ccord ing
to the instructions mentioned above . Beg in
similar ly w ith the 3rd step if the program ­
ming connection was successful for t he first
button.
Remote con tro l units fo r garage door opene rs
in Canada are set to stop transmitting radio
frequency signa ls after two seconds . This time
may not be suffic ient for the Homelink sys­
tem to learn the radio frequency signa l. Per­
form all other steps as described above.
Erasing the buttons
.,. Switch o n the ignition (do not start the en­
gi ne).
.,. Press and hold both of the outer buttons
until the LED @ turns off completely (about
20 seconds) to erase all of the buttons si­
m ultaneously .
.,. Programmed buttons cannot be erased ind i­
vidua lly. Reprogram the buttons if necessa­
ry .
Reprogramming the buttons
.,. Switch on the ignition (do not start the en­
gine) .
.,. To reprogram an individua l butto n, press
and hold the button unt il the LE D @ starts
to f lash quickly (after abo ut ten seconds) .
Release t he but ton imme dia tely. The Home­
L ink module will now remain in learning
mo de for 5 minutes.
.,. Continue with step 5.

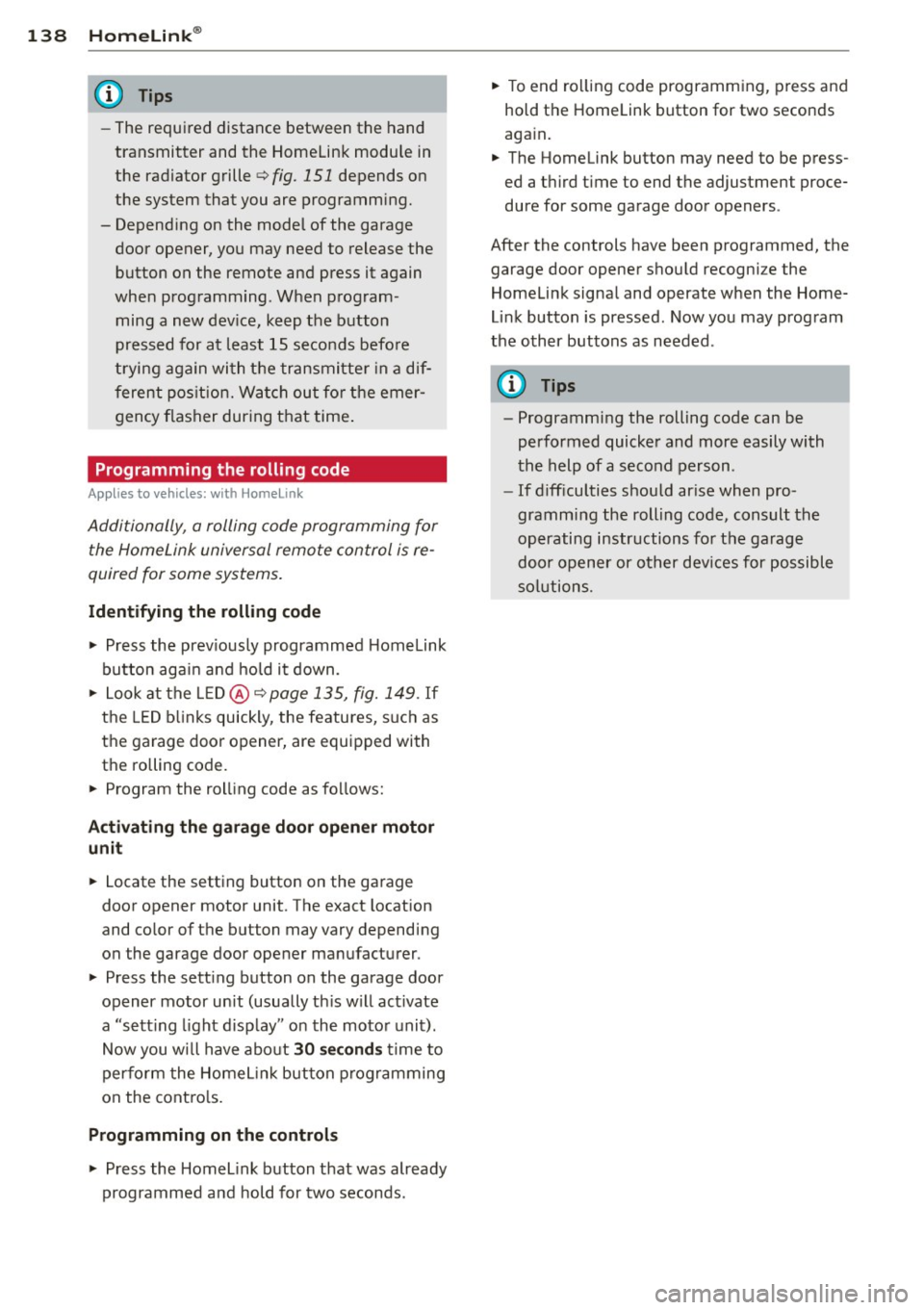

138 Homelink®
-The required dista nce between the hand
transmitter and the HomeLink module in
the radiator grille
c:> fig. 151 depends on
the system that you are programming.
- Depend ing on the model of the garage
door opener, you may need to release the
button on the remote and press it again
when programming . When p rogram­
ming a new dev ice, keep the button
pressed for a t least 15 seconds befo re
trying again wi th the transmitte r in a dif­
ferent pos it ion. W atch out fo r the emer­
gency flasher during that time .
Programming the rolling code
Applies to vehicles: with Home link
Additionally, a rolling code programming for
the HomeLink universal remote control is re­
quired for some systems .
Identifying the rolling code
.. Press the prev ious ly programmed Homelink
button aga in and hold i t down .
.. Look at the LED@ c:>
page 135, fig. 149 . If
the LED blinks quickly , the features, s uch as
the garage door o pener, are equipped with
the rolling code .
.. Program the roll ing code as fo llows:
Act ivating the garage door opener motor
unit
.. Locate the sett ing button on the garage
door opener motor unit . The exact location
and co lor of the b utton may vary depending
on the garage door opener ma nufacturer .
.. Press the sett ing button on the garage door
opener motor unit (usually th is w ill act ivate
a "se tt ing light d isp lay" on the moto r unit).
Now you w ill have abo ut
30 se conds ti me to
p erfo rm the Home Link bu tton programming
on the cont ro ls.
Programming on the controls
.. Press the Home L ink button that was already
programmed and hold for two seconds . ..
To end ro lling code programm ing, p ress and
hold t he Home link button for two seconds
aga in .
.. The Homelink button may need to be press­
ed a t hird t ime to end the adjus tment proce­
dure for some garage door openers .
After the controls have been programmed, the
garage door opener s hou ld recogni ze the
Homelink signa l and operate when the Home­
Li nk button is pressed . N ow you may program
the o ther buttons as needed .
(D Tips
-Programmi ng the rolling code can be
performed quicke r and more easily with
the help of a second person .
- If d iff iculties should ar ise when pro­
gramming the rolling code, consult the
op erating instructions fo r th e garage
door opener or o ther dev ices for po ssible
s o lu tions.
