-Never rely only on side assist when chang­
ing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles under
all conditions- danger of accident!
- Please note that side assist indicates there
are approaching vehicles, or vehicles in your
blind spot, only after your vehicle has
reached a driving speed of at least 19 mph
(30 km/h).
- In certain situations, the system may not function or its function may be limited. For
example:
- if vehicles are approaching or being left
behind very quickly. The display may not
turn on in time.
- in poor weather conditions such as heavy
rain, snow or heavy mist.
- on very wide lanes, in tight curves or if
there is a rise in the road surface. Vehicles
in the adjacent lane may not be detected
because they are outside of the sensor
range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system. Have
your authorized Audi dealer or authorized
Audi Service Facility check their function.
(!j) Tips
- If the window glass in the driver's door or
front passenger's door has been tinted, the
display in the exterior mirror may be misin­
terpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢ page 239.
Audi side assist
Activating and deactivating
App lies to vehic les : wi th Audi s ide ass ist
Fig. 105 Driver 's door : Side ass ist button
" Press the button ¢ A in General information
on page 98 to switch the system on/off. The
LED in the button turns on when side assist is
switched on .
Adjusting the display brightness
App lies to vehicles: wi th Audi s ide ass ist
The signal brightness can be set in the radio or
MM!*.
.,. Select: !CARI function button> Audi side assist.
.,. Select: !CARI function button> Car systems*
control button > Driver assist> Audi side as­
sist.
The display brightness adjusts automatically to
the brightness of the surroundings, both in the information and in the warning stage . In very
dark or very bright surroundings, the display is al­
ready set to the minimum or maximum level by
the automatic adjustment. In such cases, you
may notice no change when adjusting the bright­
ness, or the change may only be noticeable once
the surroundings change.
Adjust the brightness to a level where the display
in the information stage will not disrupt your
view forward. If you change the brightness, the display in the exterior mirror will briefly show the
brightness level in the information stage. The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment . ..,_
99

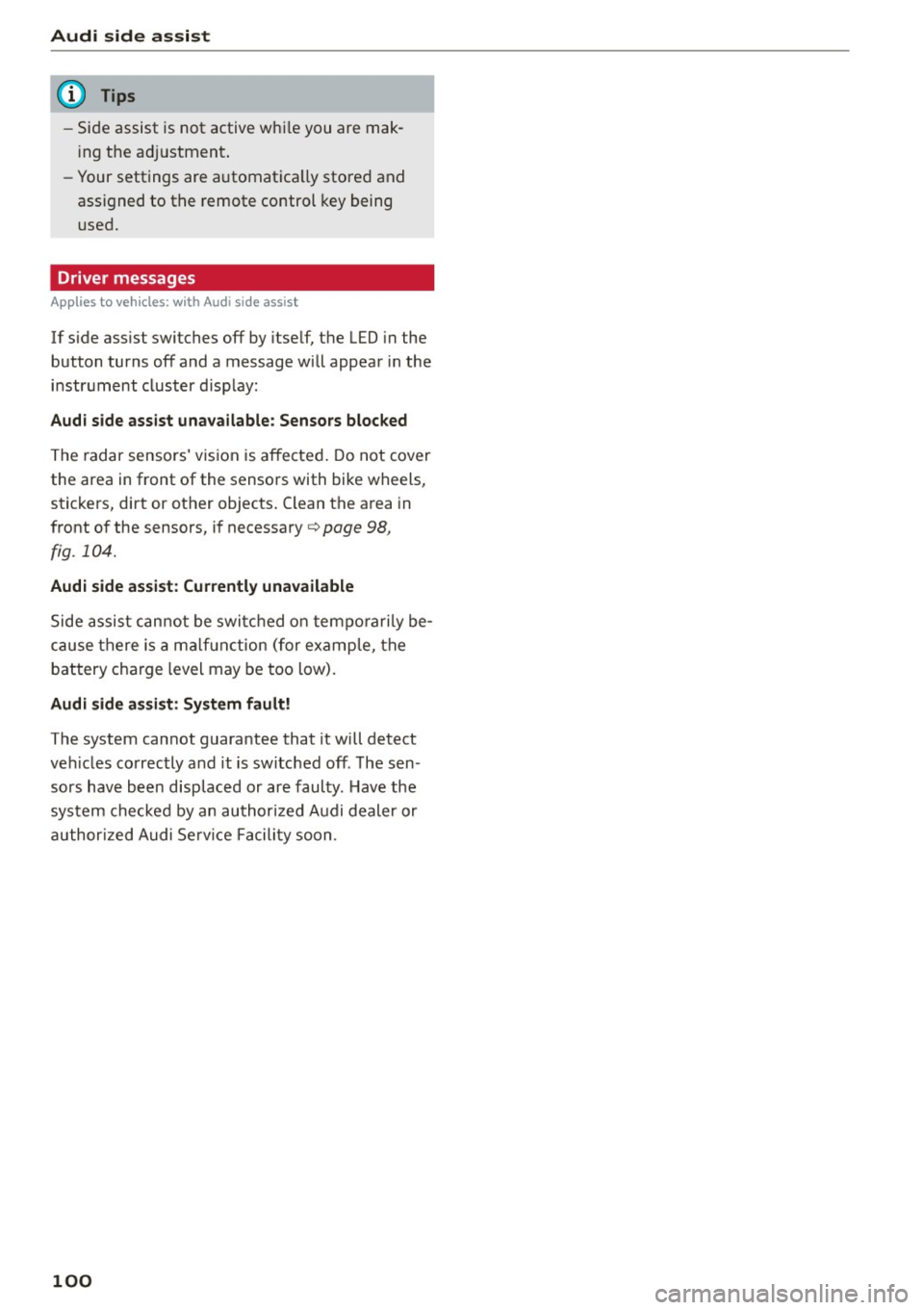

Audi side assist
(D Tips
-Side assist is not active while you are mak­
ing the adjustment.
- Your settings are automatically stored and
assigned to the remote control key being
used.
Driver messages
Applies to veh icles: w ith Aud i side ass ist
If side assist switches off by itself, the LED in the
button turns
off and a message will appear in the
instrument cluster display:
Audi side assist unavailable: Sensors blocked
The radar sensors' vision is affected. Do not cover
the area in front of the sensors with bike wheels,
stickers, dirt or other objects. Clean the area in
front of the sensors, if necessary ¢
page 98,
fig. 104.
Audi side assist: Currently unavailable
Side assist cannot be switched on temporarily be­
cause there is a malfunction (for example, the
battery charge level may be too low).
Audi side assist: System fault!
The system cannot guarantee that it will detect
vehicles correctly and it is switched off . The sen­
sors have been displaced or are faulty. Have the
system checked by an authorized Audi dealer or
authorized Audi Service Facility soon.
100

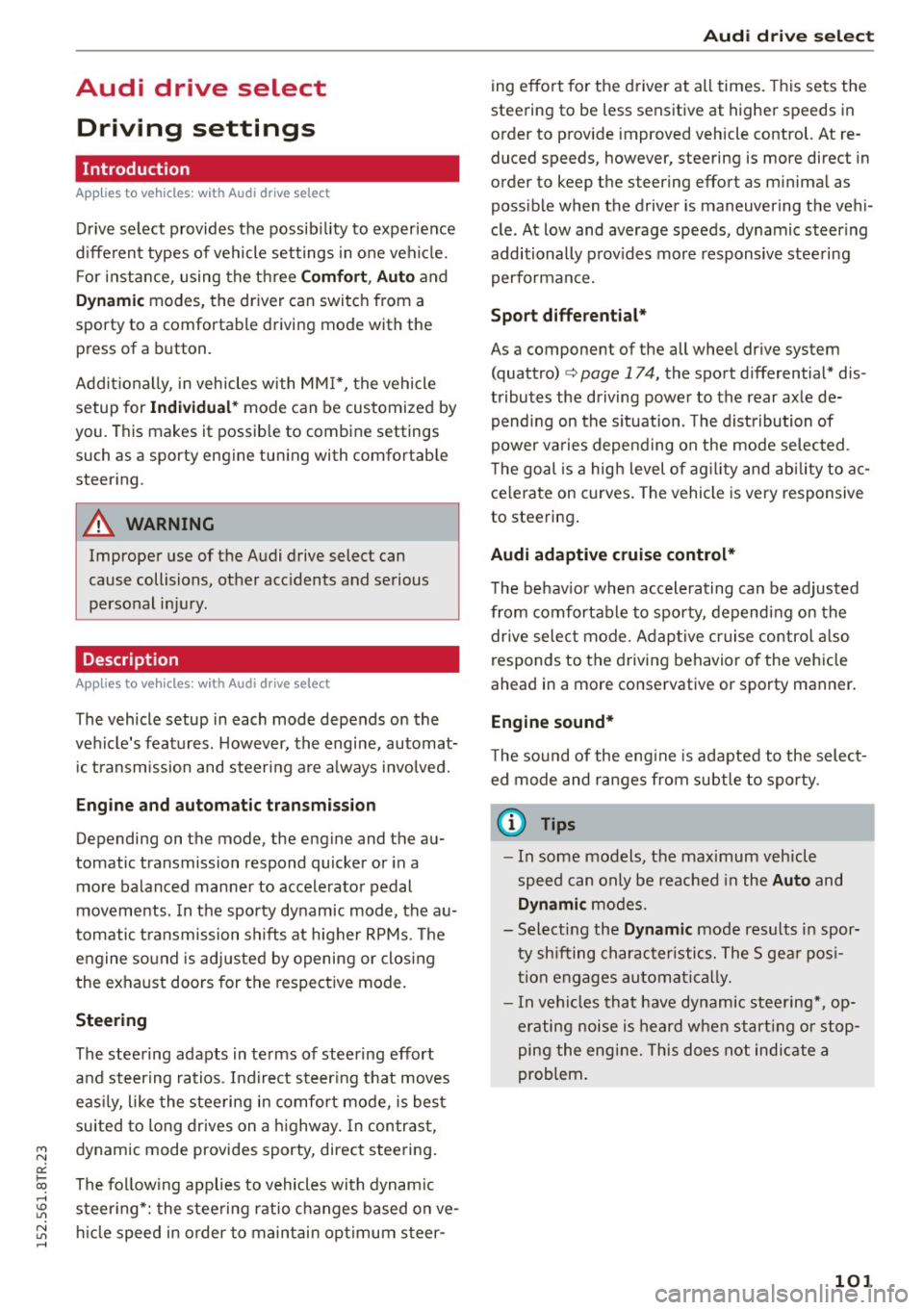

Audi drive select Driving settings
Introduction
App lies to vehicles: with Audi drive select
Drive select provides the possibi lity to experience
d ifferent types of vehicle settings in one vehicle.
F or instance, using the three
Comfort, Auto and
Dynamic modes, the driver can switch from a
sporty to a comfortable driving mode with the
press of a button.
Addit ionally, in vehicles with
MM I*, the vehicle
setup for
Individual* mode can be customized by
you. This makes it possib le to combine settings
such as a sporty engine tuning with comfortab le
steering .
A WARNING
-
Improper use of the Audi drive select can
cause collisions, other acc idents and serious
personal injury.
Description
App lies to vehicles: with Audi drive select
The vehicle setup in each mode depends on the
veh icle's featu res . However, the engine, automat­
ic transmission and steering are always involved.
Engine and automatic transmission
Depending on the mode, the engine and the au­
tomatic transmission respond quicker or in a
more balanced manner to accelerator pedal
movements. In the sporty dynamic mode, the au­
tomatic transmission shifts at higher RPMs . Th e
engine sound is adjusted by opening or clos ing
the exhaust doors for the respective mode.
Steering
The steering adapts in te rms of steering effort
and steering ratios . Indirect steering that moves
eas ily, like the steering in comfort mode, is best
suited to long drives on a highway. In contrast,
~ dynamic mode provides sporty, direct steering.
0::
~ The follow ing applies to vehicles with dynamic ,....,
~ steering*: the steering ratio changes based on ve-
~ hicle speed in order to maintain optimum steer -,....,
Audi drive select
ing effort for the driver at all times. This sets the
steering to be less sensitive at higher speeds in
order to provide improved vehicle control. At re ­
duced speeds, however, steering is more direct in
order to keep the steering effort as minimal as
possible when the driver is maneuvering the vehi ­
cle. At low and average speeds, dynamic steer ing
additionally provides more responsive steering
performan ce.
Sport differential*
As a component of the all wheel drive system
(quattro)
<=> page 174, the sport differential* dis ­
tributes the driving power to the rear axle de­
pend ing on the s ituation . The distribution of
power varies depending on the mode selected.
T he goal is a high level of agility and ability to ac­
ce lerate on curves. The vehicle is very responsive
to steering .
Audi adaptive cruise control*
The behav ior when accelerating can be adjusted
from comfortable to sporty, depending on the
drive select mode. Adaptive cruise control also
responds to the driving behavior of the vehicle
ahead in a more conservative or sporty manner.
Engine sound*
T he sound of the eng ine is adapted to the select­
ed mode and ranges from subtle to sporty.
(D Tips
-In some models, the maximum vehicle
speed can only be reached in the
Auto and
Dynamic modes.
- Selecting the
Dynamic mode results in spor­
ty shifting characteristics. The S gear posi­
tion engages automatically.
- In vehicles that have dynamic steering*, op­
erating noise is heard when starting or stop­
ping the engine. This does not indicate a
problem .
101

Audi drive select
Selecting the driving mode
Applies to vehicles: with Audi drive select
You can choose between Comfort, Auto, Dynam­
ic
and Individual * modes.
N
N
0
0
c:====::::· ~ ID
Fig. 106 Cente r console : Con trol fo r Aud i drive se lect
F ig . 107 MM!*: Audi dr ive se lec t
... To set the mode , press the ~:i:r. 1 button
¢fig. 106 multiple times until the desired
mode is displayed in the instrument cluster. Or
Adjusting the Individual mode
Applies to vehicles: with MMI and Audi drive select
.,. In the MMI*, select: ICARI function button >
Comfort, Auto, Dynamic or Individual *.
In vehicles withou t the MMI*, the ~:i:r.1 button is
f o und underneath the selecto r lever.
You can c hange the driving mode when the vehi­
cl e is stationary or while dr iving . If traffic per­
mits, after changing modes, briefly take your
foot
off the acce lerator pedal so that the recently
selected mode is also activated for the engine
and transmission.
Comfort -pro vides a comfort-oriented vehicle
setup and is suited for long drives on highways.
Auto -provides an overall comfortable yet dy­
namic driv in g feel and is suited for every day use.
Dynamic -gives the driver a sporty driving feel
and is suited to a sporty driv ing style .
Individual * -<=> page 102.
A WARNING
Pay attention to traffic when operating drive
select to prevent potential risk of an accident.
You can personally specify the vehicle setup in the MMI" .
.,. Se lect the ICAR I function button > Set individu­
al
control button. Once you select the menu ,
you w ill automatically drive in the
individual
mode.
Systems Comfort
Eng i ne/Tra nsm ission
ba lan ced
Steering comfortable
Dynamic steering* comfortable/ indirect
Sport differential * balanced
Adaptive cruise control* comfortable
Engine sound* subtle
102
The equipment in your vehicle will determine
wh ich sett ings you can adjust. The following ta­
ble provides an overview of the characteristics of
ea ch driving mode.
Auto Dynamic
balanced sporty
balanced sporty
balanced/direct sporty/direct
agile sporty
balanced sporty
subt le sporty

M N
0:: l­oo ,...., \!) ..,.,
N ..,., ,....,
@ Tips
Your Individual* mode settings are automati­
cally stored and assigne d to the remote con­
trol key being used.
Audi drive select
103

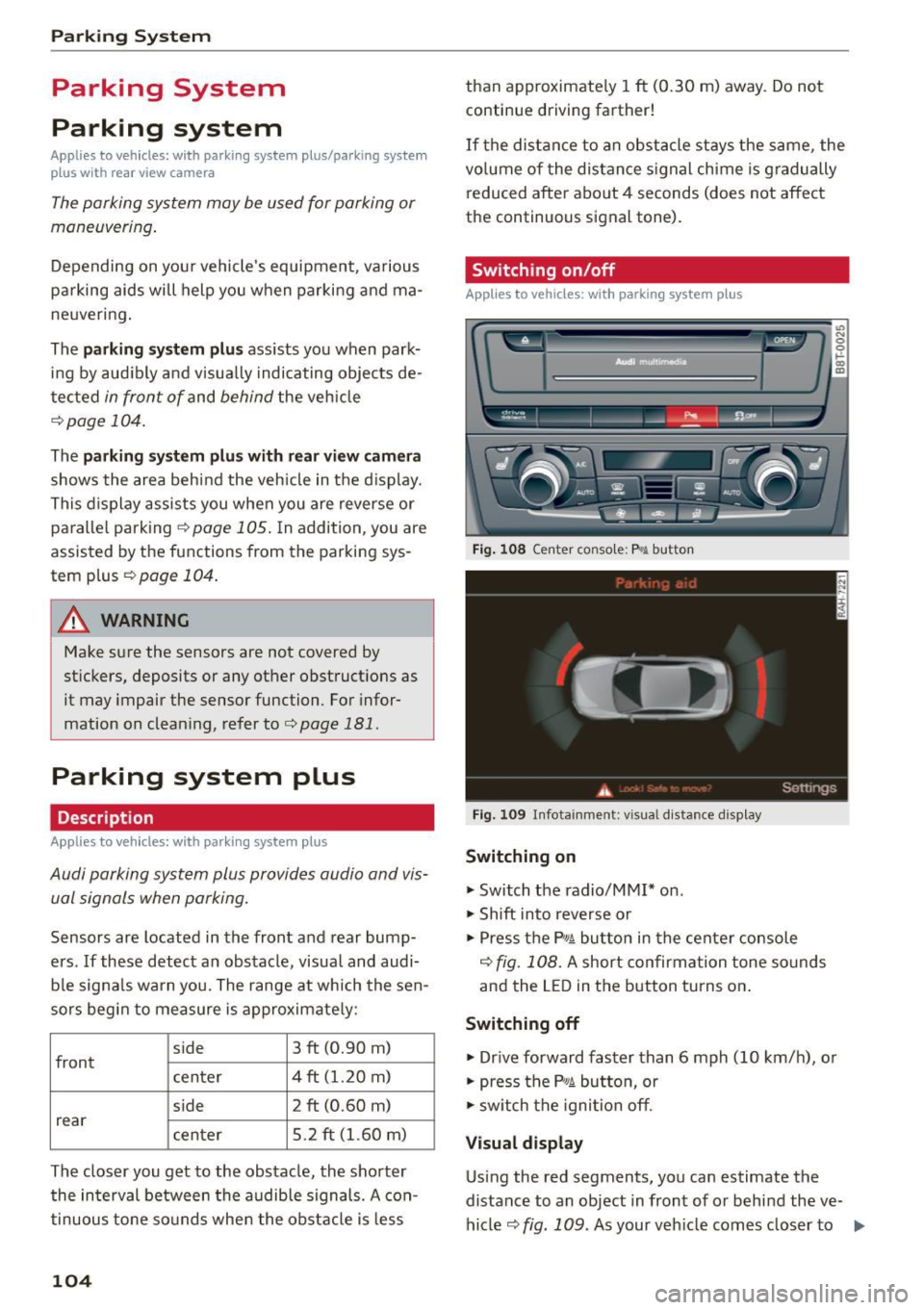

Parking Sy stem
Parking System
Parking system
Applies to veh icles: with parking system plus/parking system
p lus with rear view camera
The parking system may be used for parking or
maneuvering .
Dependi ng on you r vehicle's equipment , various
p ar king aids will help you when parki ng and ma­
ne uvering .
The
parking sys tem plu s assists you when park­
i n g by aud ibly and visually indicating objects de­
tected
in fron t of and behind the veh icle
c::> page 104.
The parking system plu s with rear view camera
shows the area beh ind the veh icle in the d isp lay.
This d is p lay assis ts you when you are reverse or
paralle l parking
c::> page 105. In addition , you are
assisted by the functions from the parking sys­
tem p lus
r::!;, page 104.
8_ WARNING
-
Make s ure the sensors are not covered by
st ickers , deposits or any other obst ructions as
it may impair the sens or function . For infor­
mation on clean ing, refer to
c::> page 181 .
Parking system plus
Description
Applies to vehicles: with parking system plus
Audi parking system plus provides audio and vis­
ual signals when parking.
Sensors are located in the fron t and rear bump­
ers . If these detect a n obstacle , visua l and audi­
b le signa ls warn yo u. The range at wh ich the sen­
sors begi n to me asure is approximate ly :
side 3 ft (0.90 m)
fron t
cen ter 4 ft (1.
20 m)
side 2 ft (0.60 m)
rear center 5
.2 ft (1.60 m)
The closer you get to the obstacle, the sho rter
the in terval between the a udible signals. A con­
t inuous tone so unds when the ob stacl e is less
104
than approximate ly 1 ft (0.30 m) away . Do not
continue driving farther!
If t he distan ce to an obst acle st ays the same, the
vo lume of the dis tance signal chime is g radually
r educed after abo ut 4 seconds (does not affect
the continuous signal tone) .
Switching on/off
Applies to vehicles: with parking system plus
Fig. 108 Center co nso le : P t! but ton
Fig . 109 Infota inment : vi su al d is t ance d is play
Switching on
.,.. Switch the radio/M M!* on.
.,.. Shift into rever se or
.,.. Press t he
P, qA bu tton in the cente r console
c::> fig. 10 8. A short confirma tion tone so unds
and the LED in the button turns on .
Switching off
N 0
0 ..,. co a)
.,.. Dr ive forward fas ter than 6 mph (10 km/ h), o r
.,.. press the
p,,; A bu tton, or
.,.. sw itch the igni tion off.
Visual display
Us ing the red segments, you ca n estimate the
distance to an object in fron t of or behind the ve­
hicle
c::> fig. 109 . As your veh icle comes closer to ..,.

"' N
0:: l­oo
rl I.O
"' N
"' rl
the obstacle, the segments move closer to the
vehicle. At the latest the collision area has been
reached when the next to last segment is dis­
p layed. Do not continue driving farther forward
or in reverse
c:> & !
A WARNING
-The parking system cannot rep lace the driv­
er's attention . The driver is always responsi­
ble fo r safety du ring parking and for all oth­
er maneuvers .
- Senso rs and cam eras have blind spots in
wh ich peop le and objects can not be detect­
ed. Be especia lly caut ious of small children
and animals.
- Always keep your eyes on the veh icle's sur­
ro undings, using t he rear view m irror as
we ll.
@ Note
L ow obstacl es al ready signaled by a warning
can disappear from the system's de te ct ion
ra nge as they are approache d and will no t
cont inue to be s ignaled. Objects such as barri­
er cha ins , trailer draw ba rs, thin painte d ver ti­
cal po les or fences may not be detected by the
system, posing risk of damage.
(D Tips
- You can change t he volume a nd p itch o f the
s ignals as we ll as the disp lay
c:>page 110 .
-What appears in the display is t ime -de layed .
Parking Sy stem
Parking system plus with
rearview camera
Introduction
Applies to vehicles : wi th parking sy ste m plus with rea r view
came ra
F ig. 110 Park ing mode 1: reverse pa rk ing
Fi g. 11 1 Park ing mode 2: parallel park in g
In add ition to parking system plus c:>page 104,
th is parking system also has a rear view camera .
You can choose between two modes to assist you
with parking. For example, you can use "parking
mode
l" when parking in a parking space or ga­
rage
c:> fig . 110. When you want to park para llel
to the edge of the st reet, select "parking mode
2 " c:> fig. 111.
The rea r acoustic park assist system is integrated
i n the rear of the vehicle and the rear view cam ­
era is integ rated in the rear lid
c:>page 107 .
A WARNING
-
- The rear view camera has blind spots, i n
which obje cts cannot be detec ted. Be espe­
cially c areful to check for sm all ch ildren and
a ni mals before backing up . Small c hildren
a nd ani mals will not always be detecte d by
the sensors .
105

Parking Sy stem
General Information
App lies to veh icles: w ith pa rk in g system (rear, w ith rear v iew
camera)
F ig . 112 Covered area(!) and uncovered a rea @ of the rear
v iew came ra
• 0
F ig. 1 13 Tru nk lid: Locat io n of the rear v iew camera
Sens ors i n the bumper
Sensors are located in the front and rear bump ­
ers . If these detect an obstacle, aud ible and v isu­
al signals warn you. The range at which the sen­
sors beg in to measure is approximate ly:
side 3 ft (0.90 m)
front center 4 ft (1.20 m)
side 2 ft (0.60 m)
rear center 5.2 ft (1.60 m)
Distance warning when reversing starts when an
obstacle is detected in the range of the parking
assist sys tem. As the d istance decreases, the
time interva l between the audib le tones becomes
shorter.
When the d istance is less than 1 ft (0 .30 m), the
tone becomes contin uous . At th is point you
should stop backing up.
If the d istance to an obstacle stays the same , the
volume of the d istance signa l chime is gradua lly
red uced after about 4 se conds (does no t affect
106
the continuous signal tone) . Approach ing anoth ­
er obstacle wi ll ca use the distance signal to
sound again at the norma l volume .
Rear view cam era coverage area
The M MI display shows the area covered by the
rear view camera
r=> fig. 112 @ . Objects that are
not in the a rea covered @are not shown on the
MMI display .
We recommend tha t you pract ice pa rking with
the rear view came ra in a traffic-free location or
parking lot to become familiar with the system,
the or ientation lines , and their function. When
doing this, there sho uld be good light and weath­
er condit ions.
In the MMI display, objects or vehicles appear
closer or further away if:
- you are driving i n reverse gear from a level sur­
face on to an incline, or a downwa rd s lope,
- you a re driving i n reverse gear towa rd p rotr ud­
ing objects ,
- the vehicle is carrying too mu ch load in the
rea r.
The acc uracy of the o rientation l ines and blue
su rfaces dim inishes if:
- the rear view camera does not provide a reliable
image, for example, in poor visib ility condit ions
or if the lens is dirty,
- the image on the screen is not visib le due to
sun glare and reflection .
Caring for the rear v iew camera lens
The rear view camera is located above the rear li ­
cense p late bracket. For the parking assist to op­
erate, the lens
r=> fig . 113 must be kept clean :
- Dampen t he lens with a household a lcohol-
based g lass cleaner, and clean the lens with a
dry cloth
<=> @) .
-Remove snow with a hand brus h and ice pref­
erab ly w ith a de-icing spray
q Q) _
A WARNING
-The parking aid cannot replace the driver's
attention. The driver alone is respons ible for
parking and simi lar driving maneuvers .
~

M N
0:: l­oo ,...., \!) 1./'1
N 1./'1 ,....,
-Always keep your eyes on the vehicle's sur­
roundings, us ing the rear view m irror as
well.
- Do not a llow yourse lf to be distracted from
traffic by the rear view camera pictures.
- If the position and the installation ang le of
the camera has changed, for example, after
a rear end collision, do not continue to use
the system for safety reasons. Have it
checked by a qualified dealership.
(D Note
- Low obstacles already signaled by a warning
can d isappear from the system's detection
range as they are approached and will not
continue to be signaled. Objects such as barrier chains, tra ile r draw bars, thin paint­
ed ve rtical po les or fences may not be de­
tected by the sys tem, posing r isk of dam­
age.
- Never use warm or hot water to remove
snow or ice from the rear view c amera lens -
danger of crack fo rmation on the lens!
- When cleaning the lens, never use p roducts
t h at are abr asive.
Switching on/off
Applies to vehicles: with pa rk in g system plus w it h rear view
camera
The rear view camera switches on automatically
together with the acoustic park assist when you
put the vehicle in reverse.
Sw itching on
"' Switch the MMI on and sh ift into reverse or
"' press the
Pw A button in the center console
<=> page 104, fig. 108. A short confirmation
tone sounds and the LED in the button turns
on.
Switching between the rear v iew camera and
optical display
"' Press the G raphic control button®
<=>page 108, fig . 114 to see the opt ica l display .
"' Press the
Rear view control button to see the
rear view camera image.
Parking Syste m
Switching off
"' Dr ive faste r than 6 mp h (10 km/h) , or
"' press the
P111A but ton, or
"' switch off the ignition.
If you press a function bu tton on the MMI con tro l
console, the rear view camera pictu re d isappears .
The rear view camera picture reappears the next
time you park .
A WARNING ,=-
-The MMI d isplay cannot show, or cannot ad­
equate ly show, certa in objects (such as
small posts or grating), recesses in the
ground and p rotruding parts on another car.
- Only use the rearview camera to assist you if
it shows a good, clear picture. For examp le,
the image may be affected by t he su n shi n­
i n g into the lens, dirt on the lens o r if the re
is a defect.
- Use the rearv iew camera only with the rear
lid compl etely closed . Make sure any objects
you may have mounted on the rear lid do
no t block the re arv iew came ra.
(0 Tips
- The rear view came ra picture is available as
soon as the MMI Disp lay or t he M MI is
sw itched on, o r the start- up phase is com­
ple ted .
- T he se nsors m ust be kept clean and free of
snow and ice fo r the pa rk ass ist to operate .
- Yo u can change the volum e and pitch of the
signa ls as well as the d isplay
<=> page 110.
-What appea rs in the display is time-delayed.
107

Parking System
Reverse Parking
Applies to vehicles: with parking system plus with rear view
camera
Parking mode 1 can be used when parking in a
garage or parking space.
Fig. 114 MMI Display: Aiming at a parking spot
Fig. 115 MMI Display: Align ing the vehicle
.,. Switch the MMI on and select the reverse gear.
.,. Turn the steering wheel until the orange orien­
tation lines
(D appear in the parking spot
c::> fig. 114. Use the markings @to help you es­
timate the distance from an obstacle. Each
marking corresponds to 3
ft (1 m). The blue
area represents an extension of the vehicle's
outline by approximately 16
ft (5 m) to the
rear .
.,. While driving in reverse gear, adjust the steer­
ing wheel angle to fit the parking space with
the aid of the orange orientation lines
c::>@. @
marks the rear bumper. You should stop driving
in reverse as soon as and no later than when
the red orientation line@) abuts an object
c::> .&. !
108
A WARNING
- The rear view camera does not show the en­
tire area behind the vehicle
c::> page 106,
fig . 112.
Watch out especially for small chil­
dren and animals. The rear view camera can­
not always detect them, posing risk of an
accident!
- Please note that objects not touching the
ground can appear to be further away than
they really are (for example, the bumper of
a parked vehicle, a trailer hitch, or the rear
of a truck). In this case, you should not use
the help lines to help with parking, which poses danger of an accident!
cg) Note
- Low obstacles already signaled by a warning can disappear from the system's detection
range as they are approached and will not
continue to be signaled. Objects such as
barrier chains, trailer draw bars, thin paint­
ed vertical poles or fences may not be de­
tected by the system, posing risk of dam­ age.
- In the MMI display, the direction of travel of the vehicle rear is represented depending on
the steering wheel angle. The vehicle front
swings out more than the vehicle rear. Main­
tain plenty of distance from an obstacle so
that your outside mirror or a corner of your
vehicle does not collide with any obstacles -
danger of accident!
