AUDI S6 2008 Workshop Manual

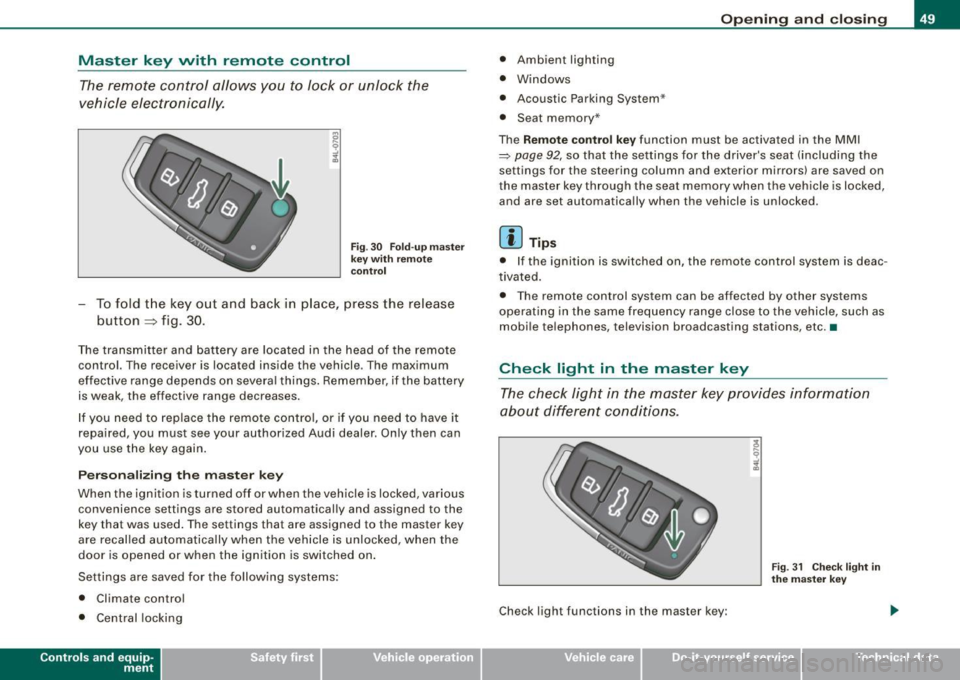

Master key with remote control The remote c ontrol allows you to lock or unlock the
vehicle electronically.
F ig . 3 0 Fold -u p m as ter
k ey wit h re mo te
co ntrol
- To fold t he key out and back in place, press the release
button
=> fig. 30.
The transmitter and battery are located in the head of the remote
control. The r eceiver is locat ed inside the vehicle . The maximum
effective range depends on severa l things . Remember, if the battery
is weak, the effect ive range decreases.
I f you need to replace the remote co ntro l, or if you need to have it
repaired , you must see your authorized Audi dealer. Only then can
you use the key again .
Person alizing the m ast er key
When the ignition is tu rned off or when the vehicle is locked, various
convenience settings are stored automatical ly and assigned to the
key that was used . The settings that are assigned to the master key
are recalled automatically when the veh icle is unlocked, when the
door is opened or when the ignition is switched on .
Settings are saved for the fo llowing systems:
• Climate contro l
• Central locki ng
Con tro ls and eq uip­
ment
Op ening and clo sing
• Ambient lighting
• Windows
• Acoustic Parking System*
• Seat memory *
The
Remot e control ke y function must be activated in the MMI
~ page 92, so that the se ttings for the driver's seat (including the
settings for the ste ering column and exterior mirrors) are saved on
t he master key through the sea t memory when the vehicle is locked,
and are set automatica lly when the vehicle is unlocked .
[ i ] Tips
• I f the ignition is switched on, the remote control system is deac­
t ivated.
• The remote control syst em can be affected by other syst ems
operating in the same frequency range close t o the vehicle, such as
mobi le te lephones, television broadcasting stations, etc. •
Check light in the master key
The chec k lig ht in the maste r key pr ovides informa tion
ab out diffe ren t condi tio ns.
Check light func tions in the master k ey:
Vehicle care I I
Fig . 3 1 C heck ligh t in
the m aster k ey
Technical data

Opening and closing
Vehicle within range of the key
If the vehicle is within range of the key, the check light comes on
briefly once when a button is pressed .
Vehicle outside the range of the key
If the vehicle is outside the range of the key, the check light comes
on briefly once and then shows the status of the vehicle door locks:
• If the light is flashing quickly , the vehicle is not locked .
• If the light is flashing slowly, the vehicle is locked .
State of master key battery
If the check light does not come on, the battery is dead and has to
be replaced . In addition, when the battery is dead the symbol
appears in the instrument cluster display as well as the message:
Please replace master key battery
Battery replacement ~ page 50.
[ i J Tips
Please note that the current state of the vehicle door locks can only
be recalled with the master key that was last used to lock the
vehicle . It is possible that a different state is shown for the door
locks on the other master key which is not the same as that of the
vehicle .•

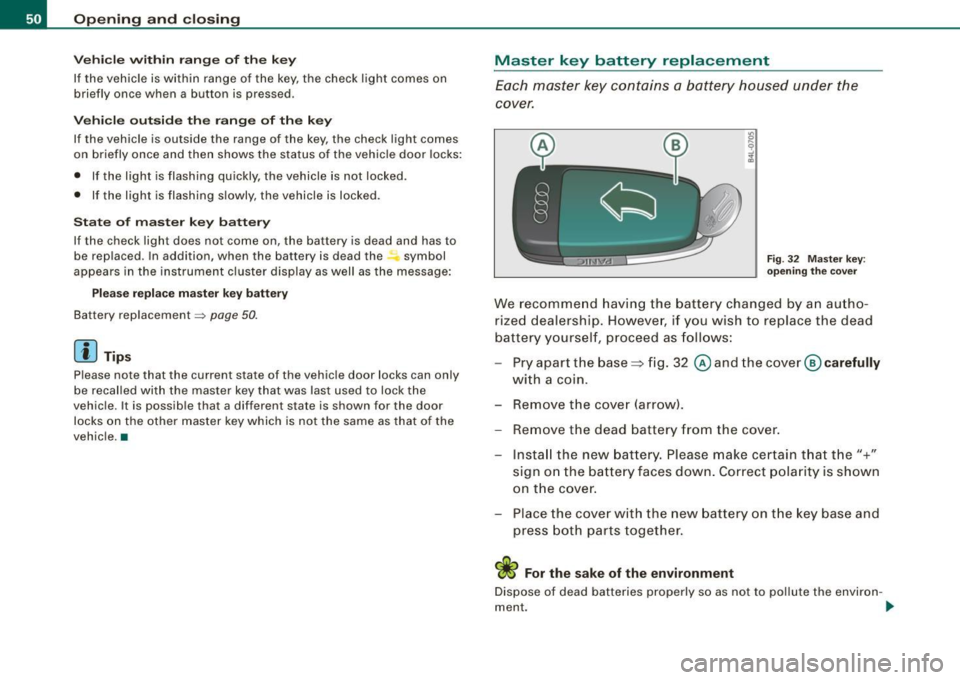

Master key battery replacement
Each master key contains a battery housed under the
cover.
Fig . 32 Master key :
opening the cover
We recommend having the battery changed by an autho­
rized dealership. However, if you w ish to replace the dead
battery yourself, proceed as follows:
- Pry apart the base~ fig. 32 @and the
cover @carefully
with a coin.
- Remove the cover (arrow).
- Remove the dead battery from the cover.
- Install the new battery. Please make certain that the"+"
sign on the battery faces down. Correct polarity is shown
on the cover.
- Place the cover with the new battery on the key base and
press both parts together.
ci> For the sake of the environment
Dispose of dead batteries properly so as not to pollute the environ -
ment . _,,,

[ i] Tips

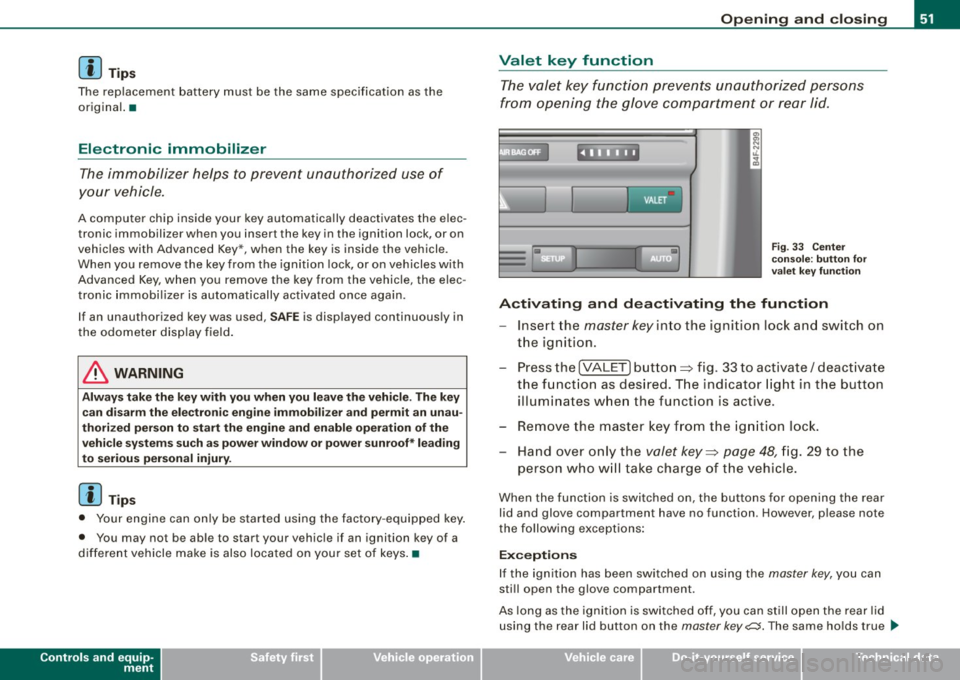

The replacement battery must be the same specification as the original. •
Electronic immobilizer
The immobilizer helps to prevent unauthorized use of
your vehicle.
A computer chip inside your key automatically deactivates the elec ­
tronic immobilizer when you insert the key in the ignition lock, or on
vehicles with Advanced Key *, when the key is inside the vehicle.
When you remove the key from the ignition lock, or on vehicles with
Advanced Key, when you remove the key from the vehicle, the elec ­
tronic immobilizer is automatically activated once again .
If an unauthorized key was used , SAFE is displayed continuously in
the odometer display field.
& WARNING
Always take the key with you when you leave the vehicle. The key
can disarm the electronic engine immobilizer and permit an unau­
thorized person to start the engine and enable operation of the
vehicle systems such as power window or power sunroof* leading
to serious personal injury.
[ i] Tips
• Your engine can only be started using the factory -equipped key.
• You may no t be able to start your vehicle if an ignition key of a
different vehicle make is also located on your set of keys. •
Controls and equip ­
ment
Opening and closing
Valet key function
The valet key function prevents unauthorized persons
from opening the glove comportment or rear lid.
•
Fig . 33 Center
console: button for
valet key function
Activating and deactivating the function
Insert the master key into the ignition lock and switch on
the ignition.
Press the [VALET) button~ fig. 33 to activate/ deactivate
the function as desired. The indicator light in the button
illuminates when the function is active.
- Remove the master key from the ignition lock.
Hand over only the
valet key~ page 48, fig. 29 to the
person who will take charge of the vehicle.
When the function is switched on, the buttons for opening the rear
lid and glove compartment have no function . However, please note
the following exceptions:
Exceptions
If the ignition has been switched on using the master key, you can
still open the glove compartment .
As long as the ignition is switched off, you can still open the rear lid
using the rear lid button on the master key
.c::5. The same holds true .,,
I • •

Openin g a nd clo sin g

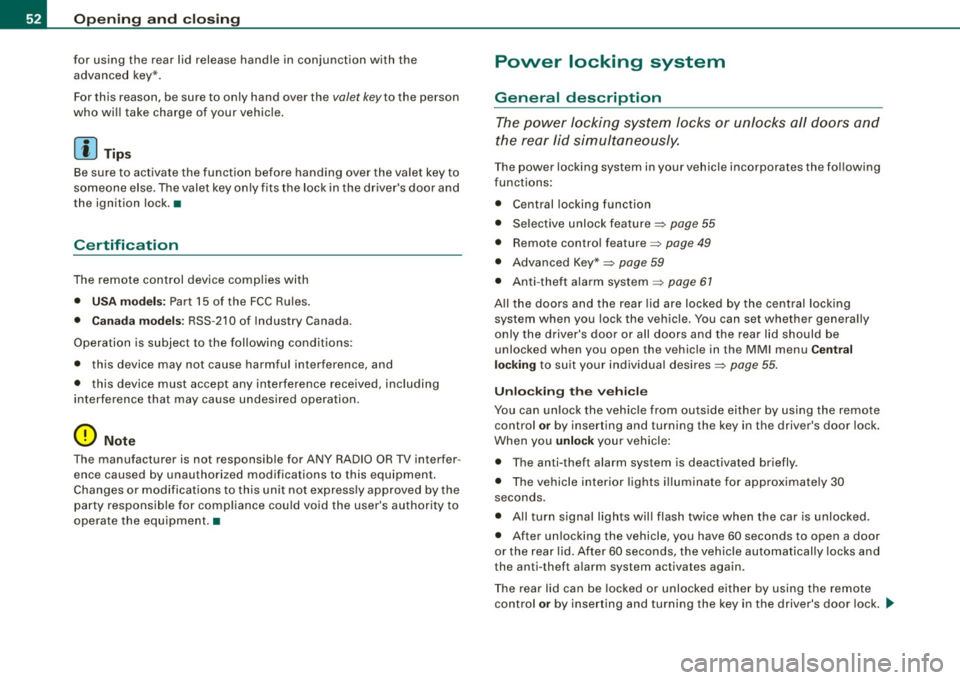

for using the rear lid release handle in conjunction with the
advanced key*.
For this reason, be sure to only hand over the
valet key to the person
who wil l take charge of your vehicle.
[ i ] Tip s
Be sure to activate the function before handing over the valet key to
someone else. The valet key only fits the lock in the driver's door and
the ignition lock. •
Certification
The remote control device comp lies with
• USA model s: Part 15 of the FCC Rules.
• Cana da mo dels: RSS -210 of Industry Canada.
Operation is subject to the following conditions:
• this device may not cause harmful interference, and
• this device must accept any interference received, inc luding
interference that may cause undesired operation .
0 Note
The manufacturer is not responsible for ANY RADIO OR TV interfer­
ence caused by unauthor ized modifications to th is equipment .
Changes or modifications to this unit not express ly approved by the
party responsib le for comp liance could void the user's authority to
operate the equipment. •
Power locking system
General description
The power locking system locks or unlocks all doors and
the rear lid simultaneously.
T he power locking system in your vehic le incorporates the fol lowing
functions :
• Central locking function
• Selective unlock feature~
page 55
• Remote contro l feature ~ page 49
• Advanced Key*~ page 59
• Anti -theft alarm system ~ page 61
All the doors and the rear lid are locked by the central locking
system when you lock the vehicle . You can set whether genera lly
only the driver's door or all doors and the rear lid should be
unlocked when you open the v ehicle in th e MMI menu
Central
lo cking
to suit your individual desires~ page 55 .
Un loc king t he vehicle
You can un lock the vehic le from outside either by using the remo te
control
or by inserting and turning the key in th e driver's door lock.
When you
unlock your vehicle :
• The anti-theft alarm system is deactivated briefly.
• The vehicle interior lights illuminate for approximate ly 30
seconds .
• All turn signal lights will flash twice when the car is unlocked.
• After un locking the vehicle, you have 60 seconds to open a door
or the rear lid. After 60 seconds, the vehicle automatically loc ks and
the anti-theft a larm system activates again .
The rear lid can be locked or unlocked either by using the remote
control
o r by inserting and turning the key in the driver's door lock . _,,

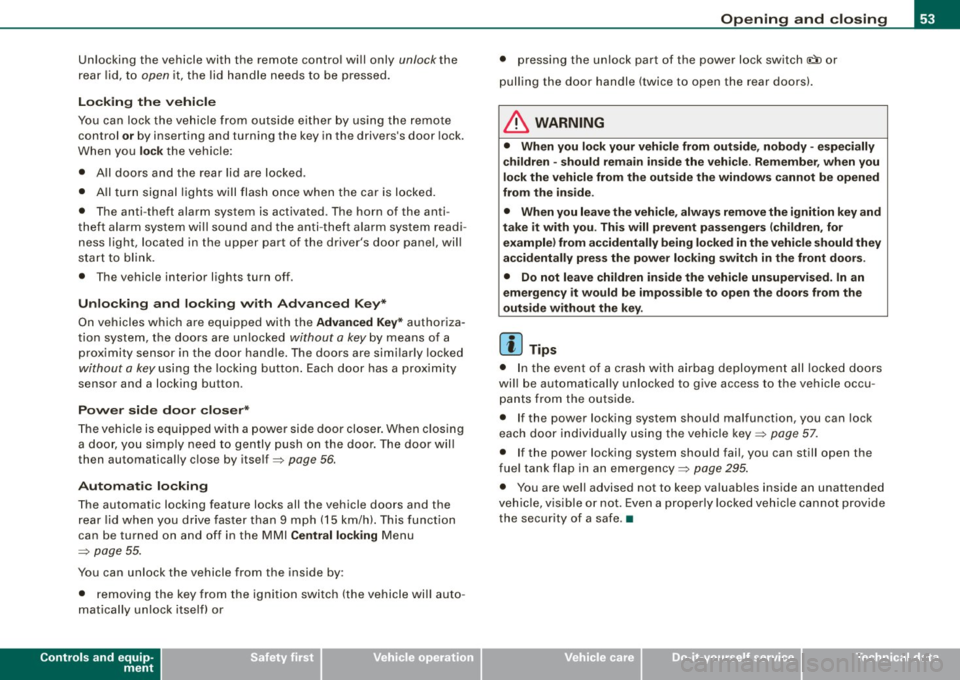

Unlocking the vehicle with the remote control wi ll only unlock the
rear lid, t o
open it, the lid handle needs to be pressed .
Locking the vehi cle
You can lock the vehicle from outside e ither by using the re mote
control
or by inserting and turning the key in the drivers 's door lock.
When you
l oc k th e vehicle:
• All doors and the rear lid are locked .
• All turn signal lights w ill flash once when the car i s locked.
• T he anti -theft alarm system is activated . The horn of the anti ­
t hef t alarm syste m wi ll sound and the an ti-the ft alarm sys tem readi ­
ness light, located in the upper part of the driver's door panel, wil l
sta rt to bl ink.
• T he vehicle interior lights turn off .
Unlocking and lo cking with Ad van ced Key *
On vehicles which a re equipped with the Advan ced Key * authoriza­
tion system, the doors are unlocked
wi thout a key by means o f a
proximity sensor in the door hand le. The doors are simi lar ly locked
without a key usi ng t he locking button . Each door has a prox imity
sensor and a locking button .
Power side door closer*
The vehic le is equipped with a power side door closer. When c losing
a door, you simply need to gently push on the doo r. The door wil l
then automatica lly c lose by itself~
page 56.
Automatic lo cking
The automatic locking feature locks all the vehicle doors and the
rear lid when you drive fas ter than 9 mph (15 km/h) . This funct ion
can be turned on and off in the
MMI Central lo cking Menu
~ p age 55.
You can unlock the vehicle from the inside by :
• removing the key from the ignition switch (the vehicle will auto ­
matica lly un lock itself) or
Controls and equip ­
ment
Opening and clo sing
• pressing the unlock part of the power lock sw itch rw or
pull ing the door handle (twice to open the rear doo rs) .
& WARNING
• When you lock your veh icle from outside , nobody -especially
c hildren -should remain in side the vehi cle . Re membe r, when you
lock the vehicle from the out side the windows cannot be opened
from the in side .
• When you leave the vehicle, alway s remove the ignition key and
t ak e it with you . Th is will prevent passengers (children , for
example ) from accidentally being locked in the vehicle should they
accidentally p ress the po wer lock ing s witch in the front doors .
• Do not leave children ins ide the vehicle unsupervised. In an
emergen cy it would be impo ssible to open the doors from the
outside without the key.
[ i ] Tips
• I n the eve nt of a crash with airbag deploymen t all locked do ors
wi ll be automatically un locked to give access to the vehicle occu ­
pan ts from the ou tside.
• I f the power lock ing system should malfunction, you can lock
each door individua lly using the vehicle key~
page 57.
• If the power locking system should fail, you can still open the
fu el t ank flap in an emerg ency ~
pag e 295.
• You are well advised not to keep va luables inside an unattended
vehic le, visible o r not. Even a properly locke d veh ic le can not provide
the security of a safe .•
I • •

Opening and closing

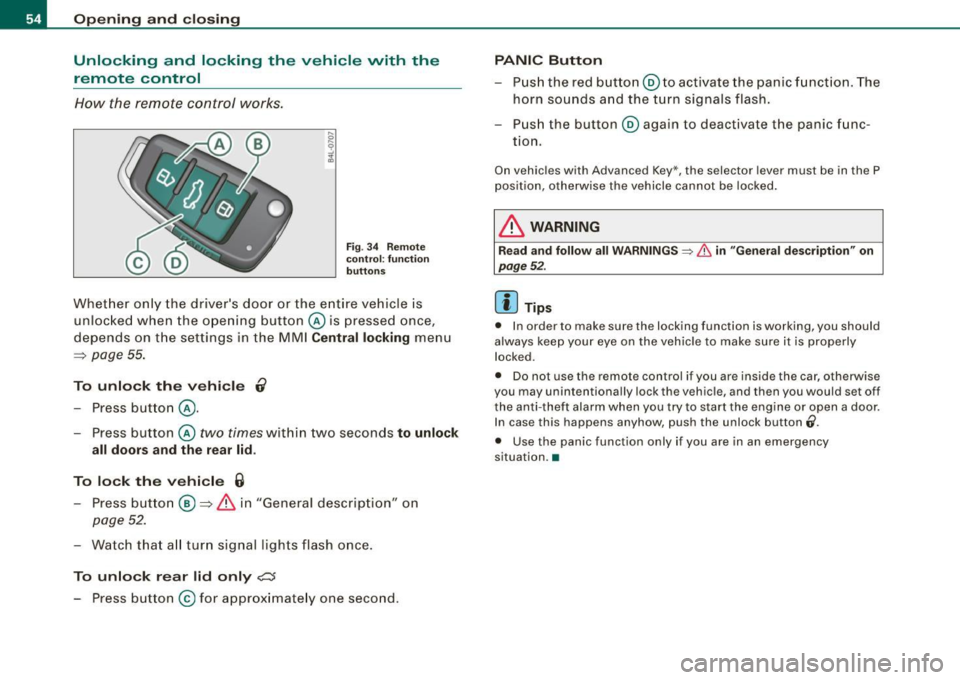

Unlocking and locking the vehicle with the
remote control
How t he remote control works .
Fig . 3 4 Remote
co ntr ol: func tion
bu tton s
Whet her only the driver's door or the e ntire vehicle is
unl ocke d when the ope ning button @ is pressed once,
d epends on t he settings in the MMI Central locking menu
=> page 55.
To unlock the vehicl e 0
Press button @.
- Press button @
two times within two seconds to unlock
all doors and the rear lid.
To lock th e vehi cle 6
- Press button@ => & in "General descrip tion" on
page 52.
-Watch tha t all tur n signal lig hts flash once .
To unlock r ear lid only c:::::5
- Press button @for ap prox imate ly one second.
PANIC Button
- Pus h the red button@ to activate the panic f unct ion. The
horn sounds and the turn signals flash.
- Pus h the button ® again to deactivate the panic func­
tion.
On vehic les with Advanced Key*, the selector lever must be in the P
pos ition, otherwise the vehicle cannot be locked.
& WARNING
R ead and follow all WARNINGS => & in "General de scriptio n" on
page 5 2.
[ i ] Tips
• In order to make sure the locking function is working, you should
always keep your eye on the veh ic le to make sure it is properly
locked.
• Do not use the remote control if you are inside the car, otherwise
you may unintentionally lock the vehicle, and then you would set off
the anti -theft alarm when you try to s tart the engine or open a door.
In case this happens anyhow, push the unlock button
0.
• Use the panic function only if you are in an emergency
situation. •

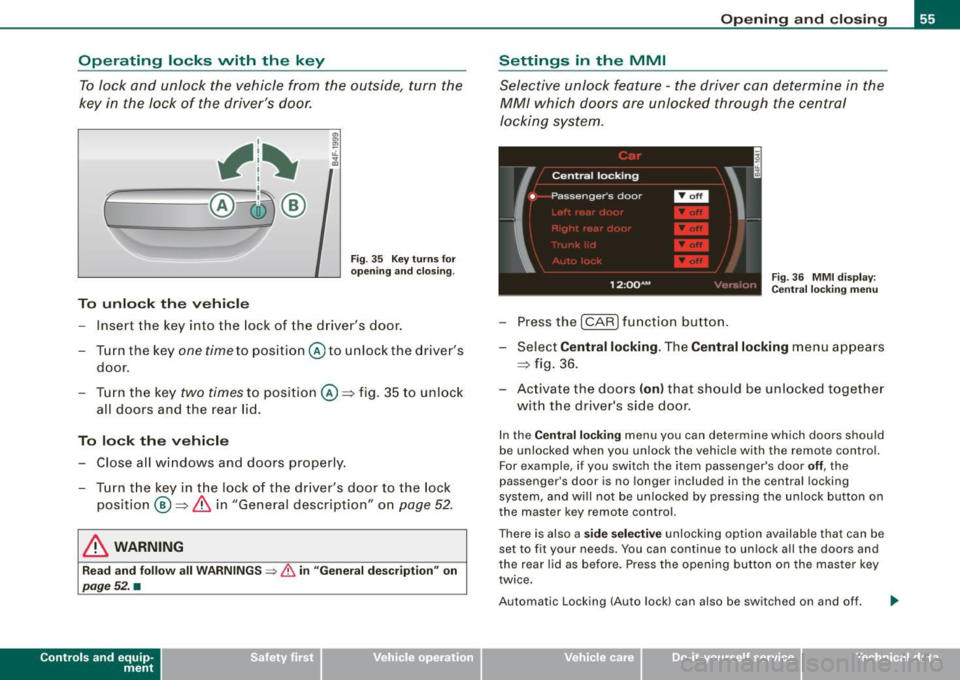

Operating locks vvith the key
To lock and unlock the vehicle from the outside, turn the
key in the lock of the driver's door.
, 1~
~ ===--- oo~~ ®
To unlock th e vehicle
Fig . 35 Key turn s for
o penin g and clos ing.
Inse rt the key into the lock of the driver's door.
T u rn the key
one time to pos ition @to unlock the d river 's
door.
T u rn the key
two times to position @:::::, fig. 35 to unlock
all doors and the rear lid.
To lo ck the vehi cle
- Close all windows and doors properly .
- Tu rn t he key in t he lock of the dr iver's door to the lock
position @:::::,
& in "General description" on page 52.
& WARNING
Read and fo llow all WARNINGS ~ & in "Gener al description " on
page 5 2. •
Con tro ls and eq uip­
ment
Op ening and clo sing
Settings in the MMI
Sele ctive unlock feature -the driver can determine in the
MM/ which do ors are unlocked through the central
locking sys tem.
Fig . 3 6 MM I d isp lay:
Ce ntra l l oc kin g men u
-Press the I CAR I function bu tton.
- Select
Central locking . The Central locking menu appea rs
=> fig . 36.
- Activate the doors
(on ) that should be unlocked togethe r
with the driver's side door .
In the Central lo cking menu you can dete rmine which doors should
be unlocked when you unlock the vehicle with the remote control.
For example , if you switch the i tem passenger's doo r
off, the
passenger 's door is no longer included in the central locking
system , and will not be unlocked by pressing the unlock button on
the master key remote control.
Th ere is also a
s ide selective unlocking option ava ilable tha t can be
set to fit your needs. You can continue to un lock all the doors and
the rear lid as before. Press the opening button on the master key
twice.
Automatic Locking (Auto lock) can also be switched on and off. .,,_
Vehicle care I I Technical data

Opening and closing
[ i J Tip s
When locking, all doors and the trunk lid are locked automatically .•
A pplies to veh icles: w ith pow er s id e doo r clo ser

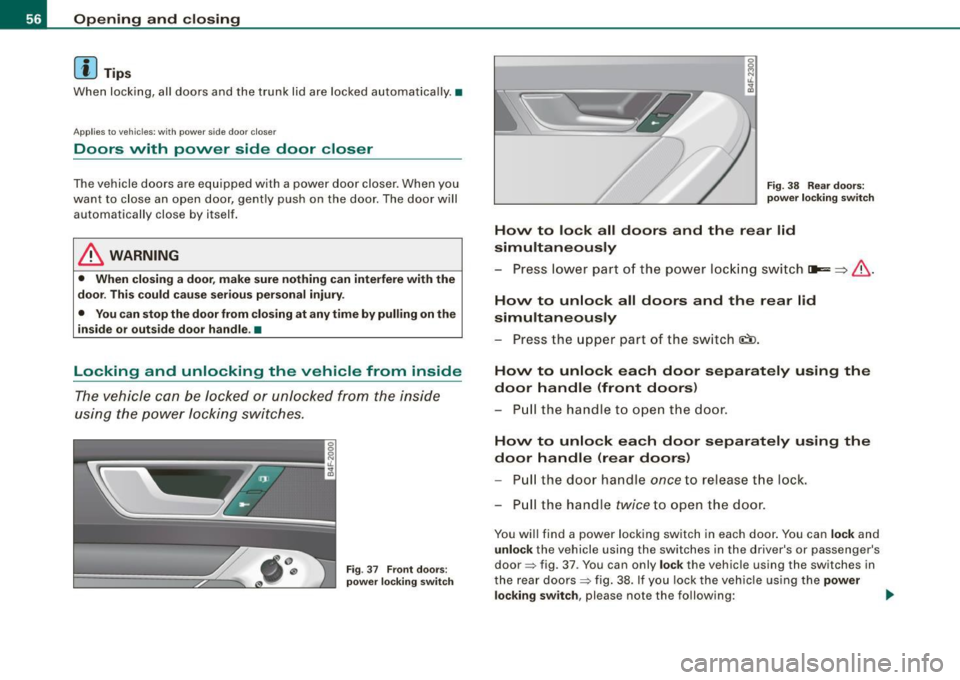

Doors with power side door closer
The vehicle doors are equipped with a power door closer. When you
want to close an open doo r, gent ly push on the door. The door w ill
automatically close by itself .
& WARNING
• When closing a door , make sure nothing can interfere with the
door . This could caus e serious per sonal injury .
• You can s top the door from closing at any time by pulling on the
in side o r outs ide door h andle .•
Locking and unlocking the vehicle from inside
The veh;cle ca n be locke d or unlocked from the ;ns;de
us;ng the po wer lock;ng sw;tches .
Fig. 37 Fro nt doo rs:
po wer l ockin g switch F
ig . 38 Rea r d oo rs :
pow er lo ckin g swit ch
How to lo ck all doors and the rear lid
simultaneously
- Press lower part of the power locking switch Cit= =>& .
How to unlock all doors and the rear lid
simultaneously
- Press the u pper part of the sw itch a> .
How to unlo ck each door separately using the
door handl e (front doors )
-Pull the handle t o open the do or.
How to unlock each door separately using the
door handle (rear doors )
-Pull the door hand le once to release t he lock.
- Pull the hand l e
twice to open the door .
You will find a power locking switch in each door . You can lo ck and
unlock the vehicle using the switches in the driver's or passenger's
door ~ fig . 37 . You can only
lo ck the vehicle using the switches in
the rear doors ~ fig . 38. If you lock the vehic le using the
power
loc king switch ,
please note the follow ing: ..,.

• You cannot open the doors or the rear lid from the outside
(increased security, for example when you are stopped at a red
light).
• The diodes in the power locking switches illuminate when all the
doors and the rear lid are closed and locked.
• All diodes turn dark as soon as one of the doors has been
unlocked .
• You can unlock and open the doors from the inside by pulling on
the door handle.
• If the driver's door is opened (after you have locked the vehicle
from the inside using the power locking switch), the door will
remain unlocked to prevent you from locking yourself out of your
vehicle. After you close the door, you have to lock the driver's door
again.
• If you have a crash and the airbag is activated, the doors auto ­
matically unlock.
& WARNING
• If you use the power locking switch with the doors closed,
remember that all the vehicle doors will lock.
• Locking doors from the inside can help prevent inadvertent
door opening during an accident and can also prevent unwanted
entry from the outside . Locked doors can, however, delay assis­
tance to vehicle occupants and hold up rescue efforts from the outside in an accident or other emergency. •
Con tro ls and eq uip­
ment
Opening and closing

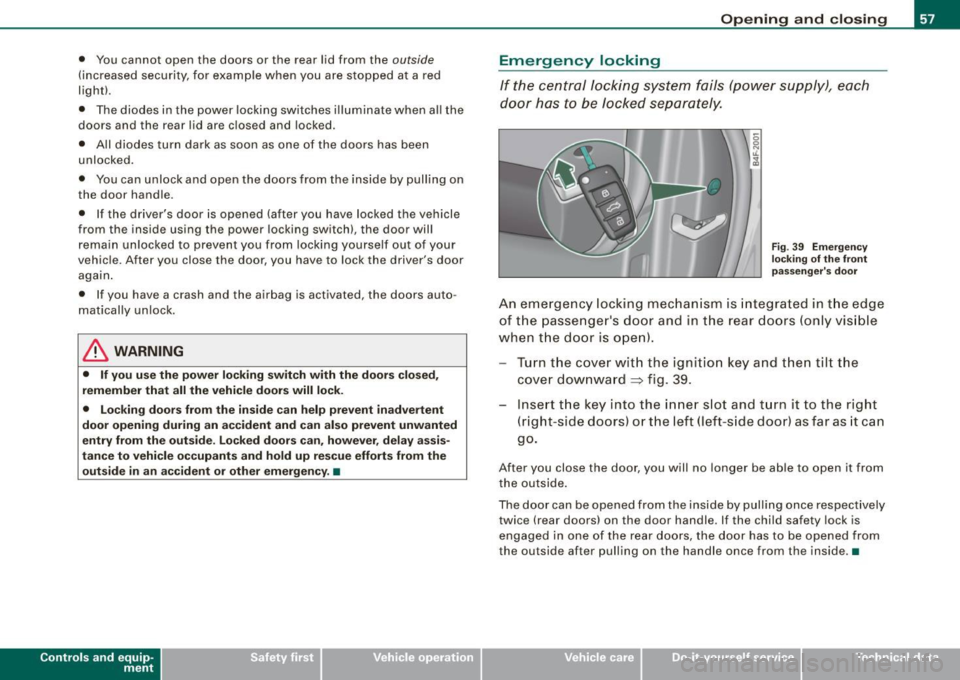

Emergency locking
If the central locking system fails (power supply), each
door has to be locked separately.
Fig . 39 Emergency
locking of the front
passenger's door
An emergency locking mechanism is integrated in the edge
of the passenger 's door and in the rear doors (only visible
when the door is open).
Turn the cover with the ignition key and then tilt the
cover downward
=> fig. 39.
Insert the key into the inner slot and turn it to the right
(right-side doors) or the left (left -side door) as far as it can
go.
After you close the door, you will no longer be able to open it from
the outside.
The door can be opened from the inside by pulling once respectively
twice (rear doors) on the door handle. If the child safety lock is
engaged in one of the rear doors, the door has to be opened from
the outside after pulling on the handle once from the inside .•
Vehicle care I I irechnical data

Opening and closing

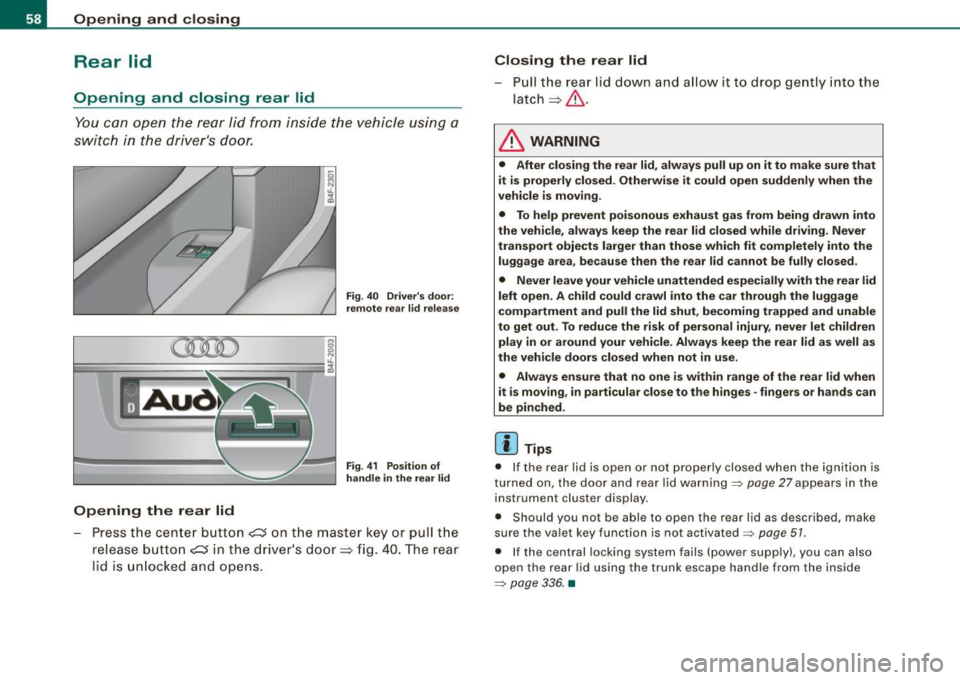

Rear lid
Opening and closing rear lid
You can open the r ea r lid from ins ide the v ehicle using a
sw itc h in the dr iver 's door.
Opening the rear lid
Fig. 40 Driver's door :
remote rea r lid relea se
Fig . 41 Position of
handle in the re ar lid
- Pre ss the ce nte r butto n ~ on t he ma ste r key o r pull the
release butt on
~ in t he d river's door => fig. 40. T he rear
l id is unl ocked a nd opens.
Closing the rear lid
- Pull th e r ear lid dow n a nd a llow i t to drop gently into t he
latch=> &.
& WARNING
• After closing the rear lid , always pull up on it to make sure that
it is properly closed. Otherwise it could open suddenly when the
vehicle is moving.
• To help prevent poisonous exhaust gas from being drawn into
the vehicle, always keep the rear lid closed while driving . Never
transport objects larger than those which fit completely into the
luggage area, because then the rear lid cannot be fully closed.
• Never leave your vehicle unattended especially with the rear lid
left open . A child could crawl into the car through the luggage
compartment and pull the lid shut, becoming trapped and unable
to get out. To reduce the risk of personal injury , never let children
play in or around your vehicle. Always keep the rear lid as well as
the vehicle doors closed when not in use.
• Always ensure that no one is within range of the rear lid when
it is moving , in particular close to the hinges -fingers or hands can
be pinched.
[ i ] Tips
• I f the rear lid is open or not proper ly closed when the ignition is
t urne d on, t he doo r and r ear l id wa rning =>
pag e 27 appea rs in the
instrument cluster display .
• S hould you not be a ble to open t he rear l id as desc ribed, ma ke
s u re the va let key f unction is not activated~
page 51 .
• If the central lock ing syst em fa ils (power supp ly ), you can a lso
o pen the rea r lid usin g th e t runk es cape ha ndle fr om the ins ide
=>
pa ge 33 6. •
