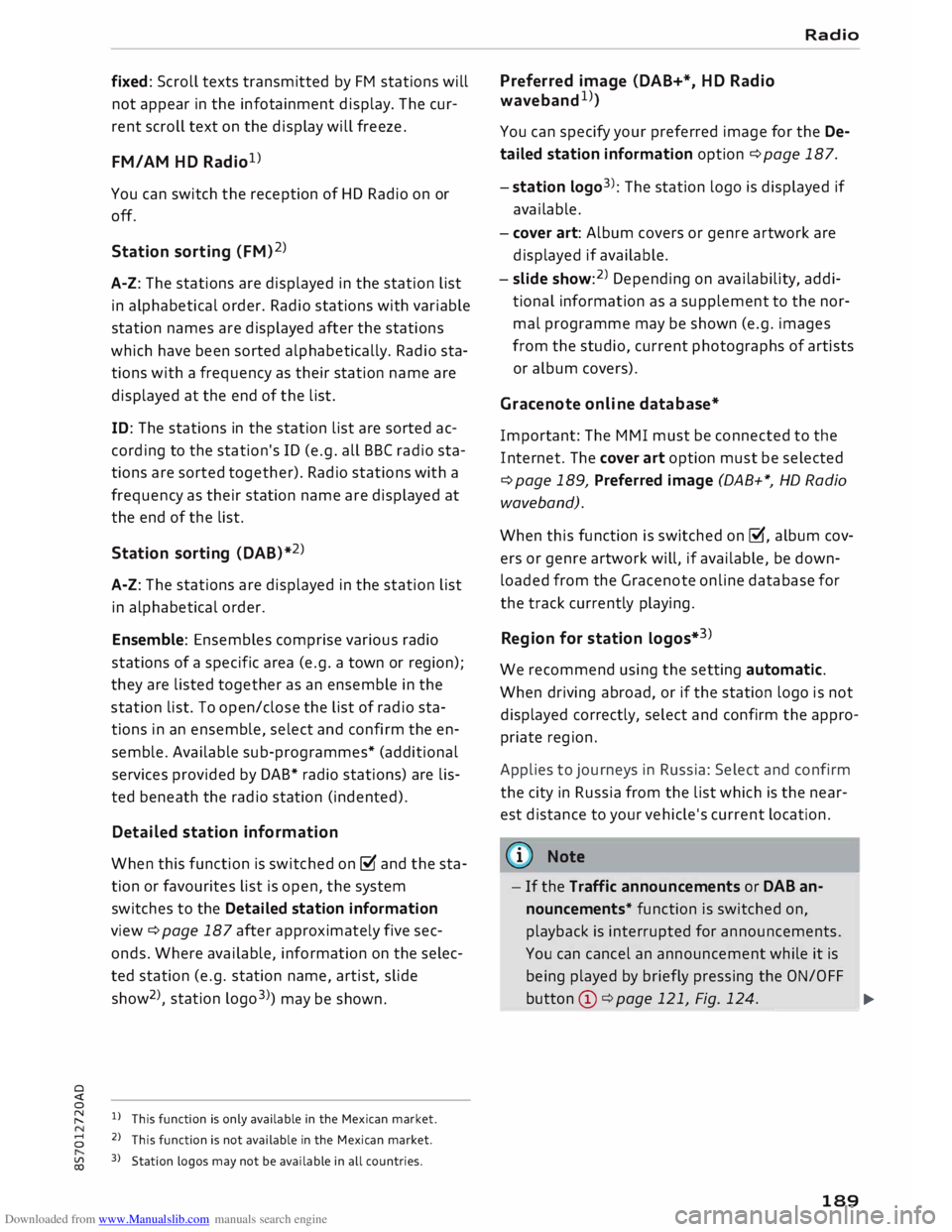

0 fixed:
Scroll texts transmitted by FM stations will
not appear in the infotainment display. The cur­
rent scroll text on the display will freeze.
FM/AM HD Radio l
)
You can switch the reception of HD Radio on or
off.
Station sorting (FM)2
)
A-Z: The stations are displayed in the station list
in alphabetical order. Radio stations with variable
station names are displayed after the stations
which have been sorted alphabetically. Radio sta­
tions with a frequency as their station name are
dis played at the end of the list.
ID: The stations in the station list are sorted ac­
cording to the station's ID (e.g. all BBC radio sta­
tions are sorted together). Radio stations with a
frequency as their station name are displayed at
the end of the list.
Station sorting (DAB)*2
)
A-Z: The stations are displayed in the station list
in alphabetical order.
Ensemble: Ensembles comprise various radio
stations of a specific area (e.g. a town or region);
they are listed together as an ensemble in the
station list. To open/close the list of radio sta­
tions in an ensemble, select and confirm the en­
semble. Available sub-programmes* (additional
services provided by DAB* radio stations) are lis­
ted beneath the radio station (indented).
Detailed station information
When this function is switched on� and the sta­
tion or favourites list is open, the system
switches to the Detailed station information
view ¢ page 187 after approximately five sec­
onds. Where available, information on the selec­
ted station (e.g. station name, artist, slide
show 2
)
, station logo3
)
) may be shown.
� l)
This function is only available in the Mexican market.
8 2
> This function is not available in the Mexican market.
� 3
> Station logos may not be available in all countries. Preferred
image (DAB+*, HD Radio
waveba nd1
)) Radio
You can specify your preferred image for the De­
tailed station information option¢ page 187.
- station logo3
)
: The station logo is displayed if
available.
- cover art: Album covers or genre artwork are
displayed if available.
- slide show: 2
)
Depending on availability, addi­
tional information as a supplement to the nor­
mal programme may be shown (e.g. images
from the studio, current photographs of artists
or album covers).
Grace note online database*
Important: The MMI must be connected to the
Internet. The cover art option must be selected
¢page 189, Preferred image (DAB+*, HD Radio
waveband).
When this function is switched on�, album cov­
ers or genre artwork will, if available, be down­
loaded from the Gracenote on line database for
the track currently playing.
Region for station logos•3
)
We recommend using the setting automatic.
When driving abroad, or if the station logo is not
displayed correctly, select and confirm the appro­
priate region.
Applies to journeys in Russia: Select and confirm
the city in Russia from the list which is the near­
est distance to your vehicle's current location.
{(D Note
- If the Traffic announcements or DAB an­
nouncements* function is switched on,
playback is interrupted for announcements.
You can cancel an announcement while it is
being played by briefly pressing the ON/OFF
button ©¢ page 121, Fig. 124. ____ IIJJ-
189

Downloaded from www.Manualslib.com manuals search engine Radio
- Not all radio settings for the FM and DAB*
wavebands are available in the mixed sta­
tion list FM/DAB*.

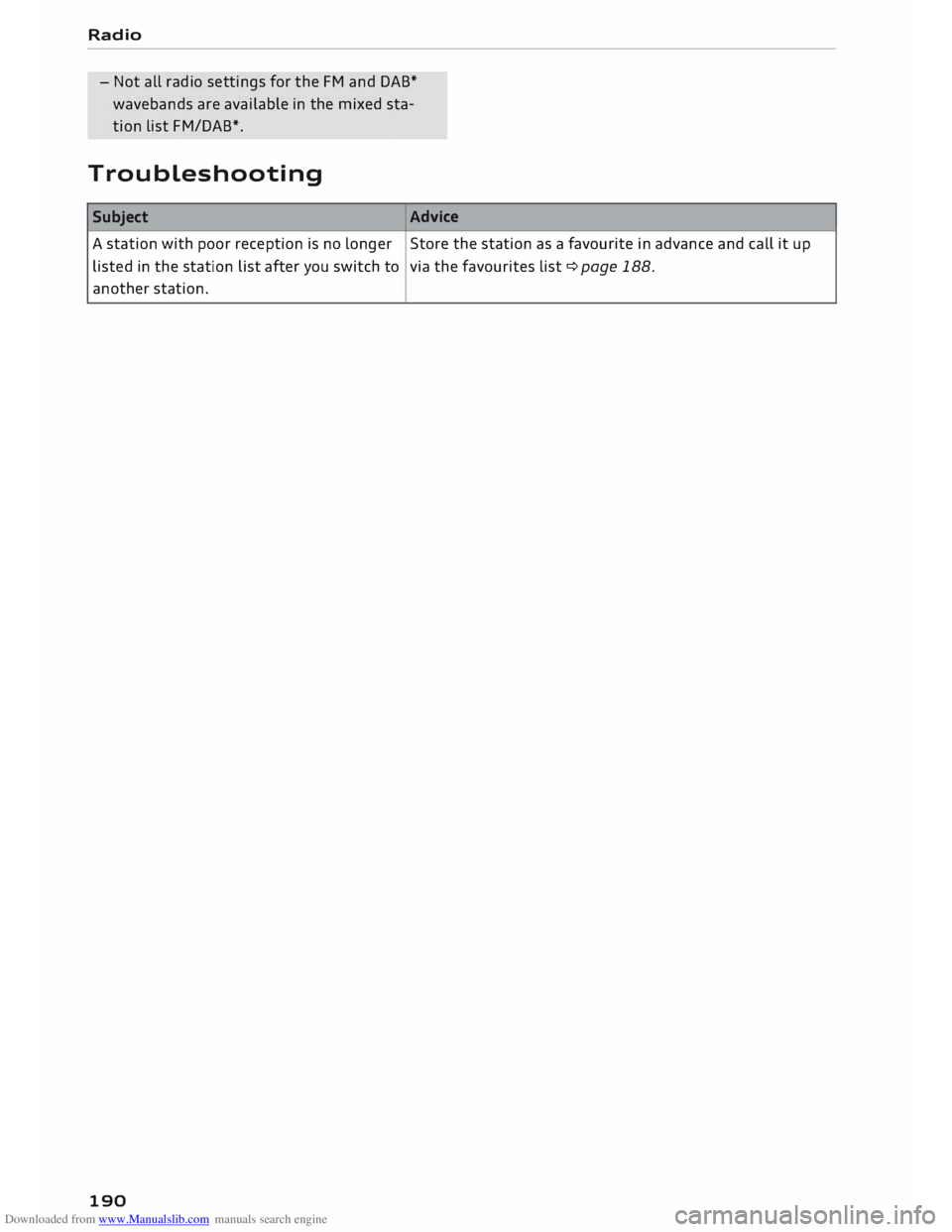

Troubleshooting Subject Advice
A station with poor reception is no longer Store the station as a favourite in advance and call it up
listed in the station list after you switch to via
the favourites list ¢ page 188.
another station.
190

Downloaded from www.Manualslib.com manuals search engine Media
Introduction
The MMI system includes various media drives
and provides various options for connecting devi­
ces. For example, you can play audio/video* files
from the jukebox or connect a mobile device to
the Audi music interface* and operate it via the
MMI.
Notes General
Media and format limitations: The MMI system
(including the SD card reader and the connection
for the USB mass storage device*) has been tes­
ted for use with many of the products and media
currently available on the market. However,
there may be some devices/media and audio/vid­
eo* files that are not supported or cannot be
played, or the functionality may be limited under
certain circumstances.
Digital rights management: Please note that
copyright law applies to audio/video files.
The MMI media drives do not support ORM-pro­
tected files; these files are marked with the sym­
bol rn.
Data storage: Never store important data on SD
cards, the jukebox*, CDs/DVDs or mobile devices.
AUDI AG shall not accept any liability whatsoever
for the loss of files and media.
Loading times: The more files, folders or play­
lists are stored on a storage device, the longer it
will take to load the audio files/video* files. We
recommend using a storage device which con­
tains only audio/video* files. If you want to re­
duce the time it takes to load the audio/video*
files, you can create subfolders (e.g. for an artist
or album). The loading time will be extended ad­
ditionally if you are importing data.
Metadata: Metadata stored on audio files (e.g.
artists, tracks, album covers) will be displayed
� automatically
when the files are played. If this
� information is not stored on the relevant medi-
8 um,
the MMI system will use the database of
"
Vl Media
metadata from Gracenote. Nevertheless, meta­
data may not be displayed in some cases.
Restricted performance: If you experience re­
stricted performance, reset the Media settings
to the factory defaults ¢page 213.
If you experience restricted performance from
the Jukebox*, reset it to the factory settings
¢page 213.
For information on the characteristics of the sup­
ported media and file formats, please refer to
¢page 206 onwards.
CD CAUTION
Please always observe the information ¢(Din
Wi-Fi hotspot on page 166.
CD/DVD mode
CD/DVD and format limitations: In view of the
variety of CDs/DVDs and the difference in memo­
ry capacities, the functionality may be restricted
in the case of some storage devices. Under cer­
tain circumstances, audio CDs/video DVDs that
are copy-protected or CDs/DVDs that do not com­
ply with the standard audio format, and multi­
session CDs cannot be played at all, or the func­
tionality may be limited. We recommend always
finalising the burning process when creating
multisession CDs. Multisession is not supported
for DVDs.
Handling CDs/DVDs, the CD drive or the DVD
drive: To ensure perfect, high-quality playback
and avoid scanning errors or damage to the me­
dia drive, always store CDs/DVDs in a suitable
case and do not expose them to direct sunlight.
Do not use:
- Damaged, dirty or scratched CDs/DVDs
- Single CDs/DVDs (diameter 8 cm)
- Non-circular CDs/DVDs (shape CDs)
- CDs/DVDs with stickers
- Protective rings
- Cleaning discs
Thermal cut-out: In the case of unusually hot or
cold outside temperatures, it is possible that CD/
DVD playback will temporarily not be possible. A
IJll,,
191

Downloaded from www.Manualslib.com manuals search engine Media
thermal cut-out is installed to protect the CD/
DVD and the reading Laser.
Laser devices: Laser devices are divided into the
safety classes 1 to 4, as specified by DIN IEC 76
(CO) 6/VDE 0837. The optical readers installed in
your vehicle are classified as safety class 1. La­
sers used in devices that fall into this category
are very weak and well screened, so there is no
danger if used correctly.

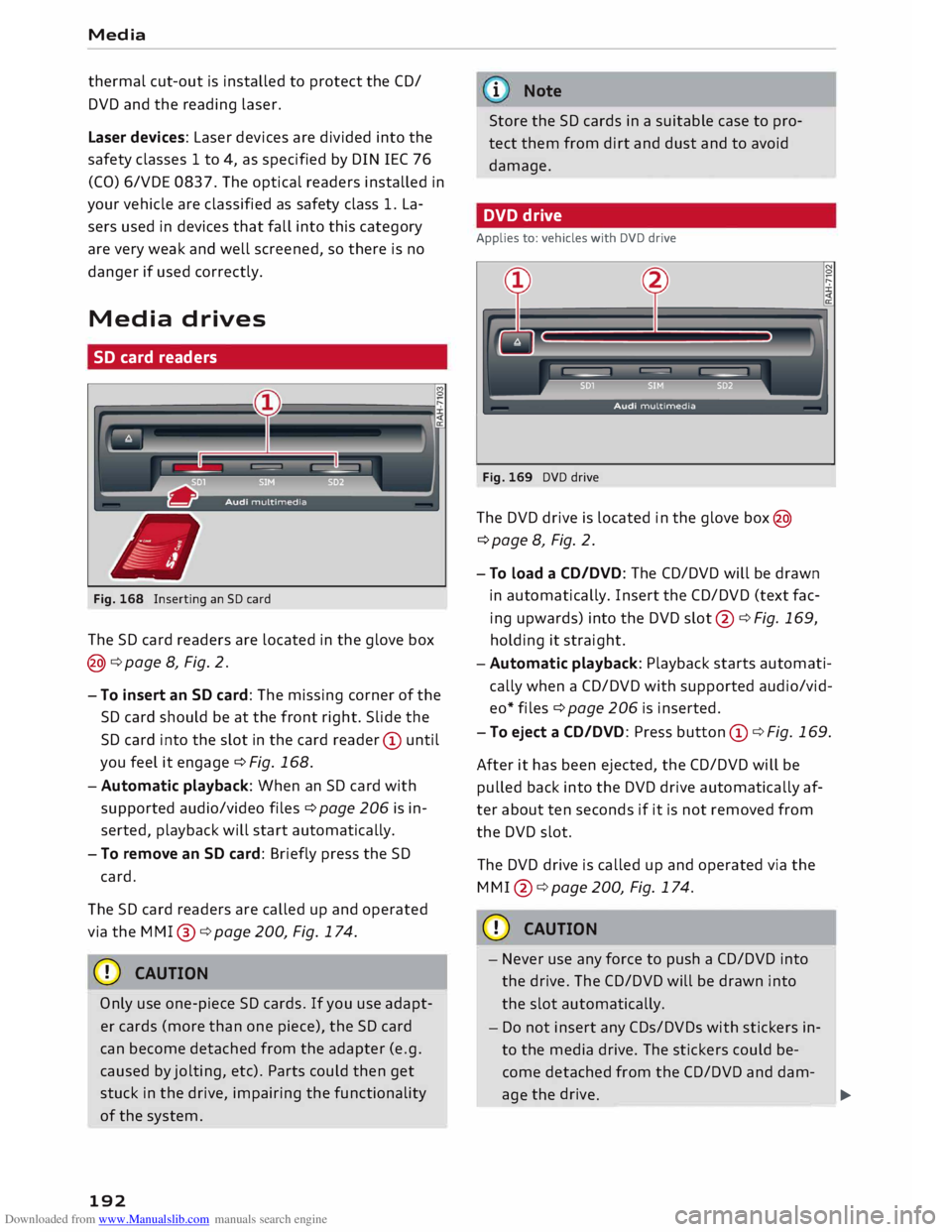

Media drives
SD card readers
Fig. 168 Inserting an SD card
The SD card readers are Located in the glove box
@¢ page 8, Fig. 2.
- To insert an SD card: The missing corner of the
SD card should be at the front right. Slide the
SD card into the slot in the card reader CD until
you feel it engage ¢ Fig. 168.
-Automatic playback: When an SD card with
supported audio/video files¢ page 206 is in­
serted, playback will start automatically.
- To remove an SD card: Briefly press the SD
card.
The SD card readers are called up and operated
via the MMl @
¢ page200, Fig.174.
CD CAUTION
Only use one-piece SD cards. If you use adapt­
er cards (more than one piece), the SD card
can become detached from the adapter (e.g.
caused by jolting, etc). Parts could then get
stuck in the drive, impairing the functionality
of the system.
192 i
Note
Store the SD cards in a suitable case to pro­
tect them from dirt and dust and to avoid
damage.
DVD drive
Applies to: vehicles with DVD drive
Fig. 169 DVD drive
The DVD drive is Located in the glove box@
¢page 8, Fig. 2.
- To load a CD/DVD: The CD/DVD will be drawn
in automatically. Insert the CD/DVD (text fac­
ing upwards) into the DVD slot@¢ Fig. 169,
holding it straight.
-Automatic playback: Playback starts automati­
cally when a CD/DVD with supported audio/vid­
eo* files ¢ page 206 is inserted.
- To eject a CD/DVD: Press button CD¢ Fig. 169.
After it has been ejected, the CD/DVD will be
pulled back into the DVD drive automatically af­
ter about ten seconds if it is not removed from
the DVD slot.
The DVD drive is called up and operated via the
MMl @¢page200, Fig.174.
CD CAUTION
- Never use any force to push a CD/DVD into
the drive. The CD/DVD will be drawn into
the slot automatically.
- Do not insert any CDs/DVDs with stickers in­
to the media drive. The stickers could be­
come detached from the CD/DVD and dam-age the drive
.
-- - -
-- -
- --
� �

Downloaded from www.Manualslib.com manuals search engine Note
Playback cannot be guaranteed if the CD/DVD
contains audio/video files with a high data
rate.

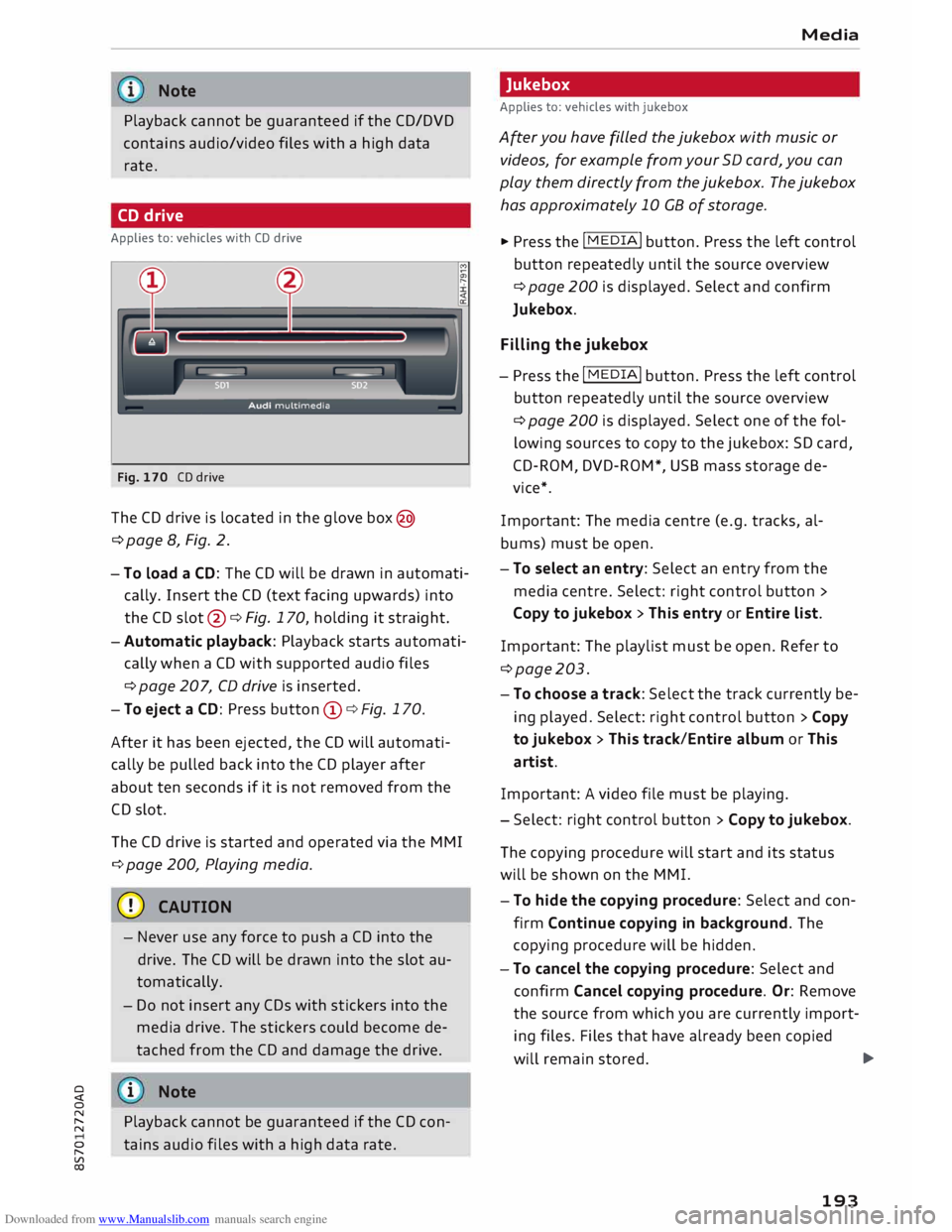

CD drive
Applies to: vehicles with CD drive
Fig. 170 CD drive
The CD drive is located in the glove box@
¢page 8, Fig. 2.
- To Load a CD: The CD will be drawn in automati­
cally. Insert the CD (text facing upwards) into
the CD slot @¢ Fig. 170, holding it straight.
- Automatic playback: Playback starts automati­
cally when a CD with supported audio files
¢ page 207, CD drive is inserted.
- To eject a CD: Press button (D ¢ Fig. 170.
After it has been ejected, the CD will automati­
cally be pulled back into the CD player after
about ten seconds if it is not removed from the
CD slot.
The CD drive is started and operated via the MMI
¢ page 200, Playing media.
CD CAUTION
- Never use any force to push a CD into the
drive. The CD will be drawn into the slot au­
tomatically.
- Do not insert any CDs with stickers into the
media drive. The stickers could become de­
tached from the CD and damage the drive.
� i
Note
0
N
� Playback
cannot be guaranteed if the CD con-
::2 tains
audio files with a high data rate.
Vl
CX) Media
Jukebox
Applies to: vehicles with jukebox
After you have filled the jukebox with music or
videos, for example from your SD card, you can
play them directly from the jukebox. The jukebox
has approximately 10 CB of storage.
� Press the I MEDIA i
button. Press the left control
button repeatedly until the source overview
¢ page 200 is displayed. Select and confirm
Jukebox.
Filling the jukebox
- Press the I MEDIA i
button. Press the left control
button repeatedly until the source overview
¢page 200 is displayed. Select one of the fol­
lowing sources to copy to the jukebox: SD card,
CD-ROM, DVD-ROM*, USB mass storage de­
vice*.
Important: The media centre (e.g. tracks, al­
bums) must be open.
- To select an entry: Select an entry from the
media centre. Select: right control button >
Copy to jukebox > This entry or Entire List.
Important: The playlist must be open. Refer to
¢page 203.
- To choose a track: Select the track currently be­
ing played. Select: right control button> Copy
to jukebox > This track/Entire album or This
artist.
Important: A video file must be playing.
- Select: right control button> Copy to jukebox.
The copying procedure will start and its status
will be shown on the MMI.
- To hide the copying procedure: Select and con­
firm Continue copying in background. The
copying procedure will be hidden.
- To cancel the copying procedure: Select and
confirm Cancel copying procedure. Or: Remove
the source from which you are currently import­
ing files. Files that have already been copied
will remain stored. .,..
193

Downloaded from www.Manualslib.com manuals search engine Media

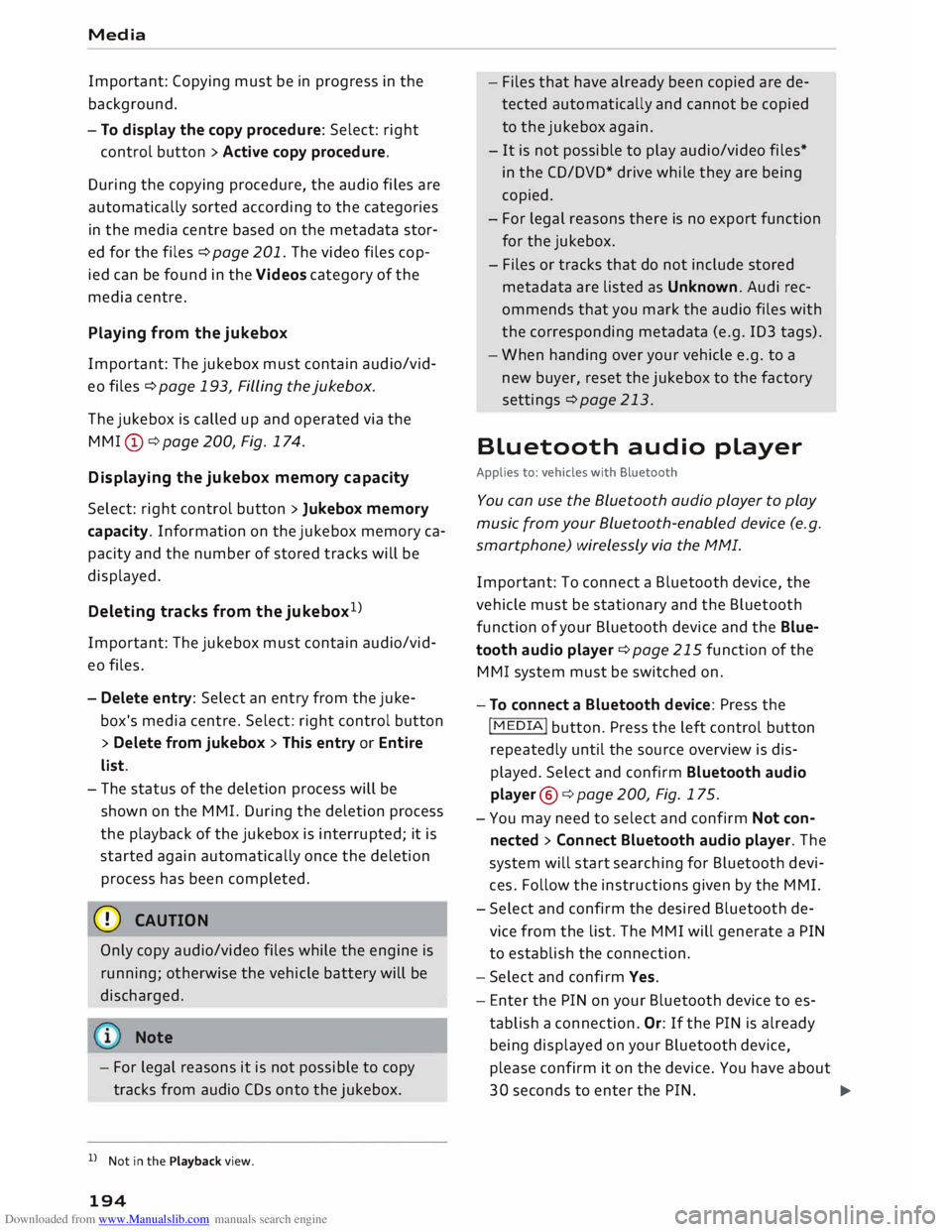

Important: Copying must be in progress in the
background.
- To display the copy procedure: Select: right
control button > Active copy procedure.
During the copying procedure, the audio files are
automatically sorted according to the categories
in the media centre based on the metadata stor­
ed for the files ¢ page 201. The video files cop­
ied can be found in the Videos category of the
media centre.
Playing from the jukebox
Important: The jukebox must contain audio/vid­
eo files ¢ page 193, Filling the Jukebox.
The jukebox is called up and operated via the
MMI (D¢page200, Fig.174.
Di splaying the jukebox memory capacity
Select: right control button> Jukebox memory
capacity. Information on the jukebox memory ca­
pacity and the number of stored tracks will be
displayed.
Deleting tracks from the jukebox 1
)
Important: The jukebox must contain audio/vid­
eo files.
- Delete entry: Select an entry from the juke­
box's media centre. Select: right control button
> Delete from jukebox > This entry or Entire
list.
- The status of the deletion process will be
shown on the MMI. During the deletion process
the playback of the jukebox is interrupted; it is
started again automatically once the deletion
process has been completed.
CD CAUTION
Only copy audio/video files while the engine is
running; otherwise the vehicle battery will be
discharged.
Note
- For legal reasons it is not possible to copy
tracks from audio CDs onto the jukebox.
l l
Not in the Playback view.
194 -
Files that have already been copied are de­
tected automatically and cannot be copied
to the jukebox again.
- It is not possible to play audio/video files*
in the CD/DVD* drive while they are being
copied.
- For legal reasons there is no export function
for the jukebox.
- Files or tracks that do not include stored
metadata are listed as Unknown. Audi rec­
ommends that you mark the audio files with
the corresponding metadata (e.g. ID3 tags).
- When handing over your vehicle e.g. to a
new buyer, reset the jukebox to the factory
settings ¢ page 213.
Bluetooth audio player
Applies to: vehicles with Bluetooth
You can use the Bluetooth audio player to play
music from your Bluetooth-enabled device (e.g.
smartphone) wirelessly via the MMI.
Important: To connect a Bluetooth device, the
vehicle must be stationary and the Bluetooth
function of your Bluetooth device and the Blue­
tooth audio player ¢ page 215 function of the
MMI system must be switched on.
- To connect a Bluetooth device: Press the
I MEDIA!
button. Press the left control button
repeatedly until the source overview is dis­
played. Select and confirm Bluetooth audio
player @¢page200, Fig. 175.
- You may need to select and confirm Not con­
nected > Connect Bluetooth audio player. The
system will start searching for Bluetooth devi­
ces. Follow the instructions given by the MMI.
- Select and confirm the desired Bluetooth de­
vice from the list. The MMI will generate a PIN
to establish the connection.
- Select and confirm Yes.
- Enter the PIN on your Bluetooth device to es-
tablish a connection. Or: If the PIN is already
being displayed on your Bluetooth device,
please confirm it on the device. You have about
30 seconds to enter the PIN.
�

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Depending
on the device you are using, the me­
dia are started and operated using the mobile de­
vice or the MMI.
Note
- Pay attention to any connection queries on
your Bluetooth device.
- You can bond several Bluetooth audio play­
ers to the MMI system; however only one
connection can be active at a time.
- The system supports the Bluetooth proto­
cols AVRCP (1.0/1.3/1.4) and A2DP.
- Please consider the volume control on your
Bluetooth device. Audi recommends setting
the volume of mobile devices to maximum
when they are being used as Bluetooth au­
dio players.
- Which media functions (e.g. random play­
back) are supported depends on the Blue­
tooth device you are using.
- For more information on which devices are
supported, please go online (e.g.
www.audi.com/bluetooth) or contact an
Audi dealer.
Wi-Fi audio players
Applies to: vehicles with Wi-Fi
The MMI's Wi-Fi audio player media source al­
lows you to connect and operate your Wi-Fi me­
dia player (e.g. smartphone) to play music wire­
Lessly from your player's media centre. The me­
dia player is connected via the vehicle's Wi-Fi
hotspot. A UPnP server opp or an integrated
UPnPIDLNA server on the media player is re­
quired to access the media centre of your media
player.
Important: The Wi-Fi
function of
the media play­
er must be switched on. The Audi MMI connect
app or a UPnP server app must be installed on
your media player. Or: You must be using a
UPnP/DLNA server integrated in the media play­
er.
- To connect a media player: Select the I MEDIAi
button. Press the left control button repeatedly
until the source overview ¢page 200 is dis- Media
played. Select and confirm Wi-Fi audio player
0 ¢ page 200, Fig. 175.
- You may need to select and confirm Wi-Fi off>
Activate Wi-Fi to switch Wi-Fi on in the MMI.
Select Wi-Fi settings if necessary. Use the set­
tings of the Wi-Fi hotspot for the media player
you are using.
- To start the Wi-Fi audio player: Start the Audi
MMI connect app or a UPnP server app, or ena­
ble media sharing on your media player.
To use the media player: The media player is op­
erated using the MMI.
- Press the left control button repeatedly until
the menu item Folders appears. Select and con­
firm Folders.
- To play music from a media player: Select and
confirm Media centre.
Internet radio: See ¢page 196.
& WARNING
-
- Do not allow the features of the Wi-Fi hot­
spot to distract you from watching the traf­
fic -taking your eyes off the road can cause
an accident.
- Mobile devices, tablet and laptop computers
and devices of a similar weight can only be
operated safely when the vehicle is station­
ary. Like any loose object, they can be cata­
pulted through the vehicle in an accident
and cause serious injuries. Always make sure
that such devices are securely stowed while
you are driving.
- No Wi-Fi devices may be used in the areas
around the airbags while the vehicle is being
driven. Please also observe the safety warn­
ings in the chapter on¢ page 235.
CD CAUTION
Please always observe the information ¢0 in
Wi-Fi hotspot on page 166.
@ Note
- Inserting or removing the mini SIM card
from the SIM card reader* causes the Wi-Fi
connection to be reconfigured. This may
cause a short interruption in the audio play-
back of some media players.
_____ _ ...,.
195

Downloaded from www.Manualslib.com manuals search engine Media

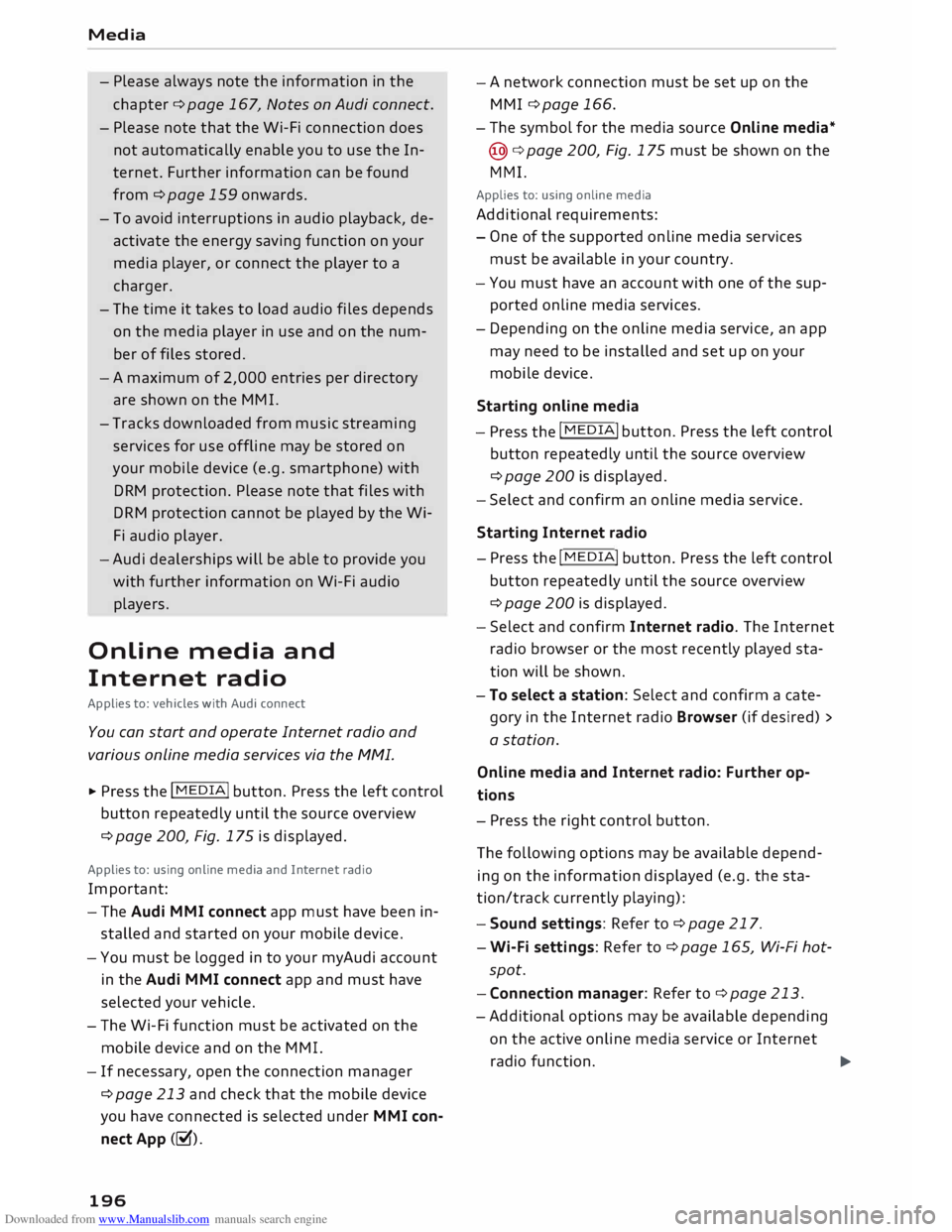

- Please always note the information in the
chapter ¢page 167, Notes on Audi connect.
- Please note that the Wi-Fi connection does
not automatically enable you to use the In­
ternet. Further information can be found
from ¢ page 159 onwards.
- To avoid interruptions in audio playback, de­
activate the energy saving function on your
media player, or connect the player to a
charger.
- The time it takes to load audio files depends
on the media player in use and on the num­
ber of files stored.
-A maximum of 2,000 entries per directory
are shown on the MMI.
- Tracks downloaded from music streaming
services for use offline may be stored on
your mobile device (e.g. smartphone) with
DRM protection. Please note that files with
DRM protection cannot be played by the Wi­
Fi audio player.
-Audi dealerships will be able to provide you
with further information on Wi-Fi audio
players.
Online media and
Internet radio
Applies to: vehicles with Audi connect
You can start and operate Internet radio and
various online media services via the MMI.
.,. Press the I MEDIAi button. Press the left control
button repeatedly until the source overview
¢ page 200, Fig. 175 is displayed.
Applies to: using on line media and Internet radio
Important:
- The Audi MMI connect app must have been in­
stalled and started on your mobile device.
- You must be logged in to your myAudi account
in the Audi MMI connect app and must have
selected your vehicle.
- The Wi-Fi function must be activated on the
mobile device and on the MMI.
- If necessary, open the connection manager
¢ page 213 and check that the mobile device
you have connected is selected under MMI con­
nect App (�).
196 -
A
network connection must be set up on the
MMI ¢page 166.
- The symbol for the media source Online media*
@ ¢page 200, Fig. 175 must be shown on the
MMI.
Applies to: using on line media
Additional requirements:
- One of the supported on line media services
must be available in your country.
- You must have an account with one of the sup­
ported online media services.
- Depending on the online media service, an app
may need to be installed and set up on your
mobile device.
Starting online media
- Press the I
MEDIAi button. Press the left control
button repeatedly until the source overview
¢ page 200 is displayed.
- Select and confirm an on line media service.
Starting
Internet
radio
- Press the I MEDIAi button. Press the left control
button repeatedly until the source overview
¢ page 200 is displayed.
- Select and confirm Internet radio. The Internet
radio browser or the most recently played sta­
tion will be shown.
- To select a station: Select and confirm a cate­
gory in the Internet radio Browser (if desired) >
a station.
Online media and Internet radio: Further op­
tions
- Press the right control button.
The following options may be available depend­
ing on the information displayed (e.g. the sta­
tion/track currently playing):
- Sound settings: Refer to¢ page 217.
- Wi-Fi settings: Refer to ¢ page 165, Wi-Fi hot-
spot.
- Connection manager: Refer to ¢page 213.
-Additional options may be available depending
on the active online media service or Internet
radio function.
�

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) &,
WARNING
- Mobile devices, tablet and laptop computers
and devices of a similar weight can only be
operated safely when the vehicle is station­
ary. Like any loose object, they can be cata­
pulted through the vehicle in an accident
and cause serious injuries. Always make sure
that such devices are securely stowed while
you are driving.
- No Wi-Fi devices may be used in the areas
around the airbags while the vehicle is being
driven. Please also observe the safety warn­
ings in the chapter on¢ page 235.
CD CAUTION
Please always observe the information ¢(Din
Wi-Fi hotspot on page 166.
ijj) Note
- Depending on the Internet connection and
network load, playback of the on line media
services may be interrupted.
- Whether online media and Internet radio
can be used depends on the availability of
services provided by third parties.
- AUDI AG only enables you to access online
media services via the MMI system and ac­
cepts no responsibility for the content of
online media services.
- Please always note the information in the
chapter ¢ page 167, Notes on Audi connect.
- Depending on the mobile device you are us­
ing, you may experience interruptions in
media playback when using the Audi MMI
connect app. To avoid interruptions, keep
the Audi MMI connect app running in the
foreground and do not lock the screen on
your mobile device.
- Audi dealerships will be able to provide you
with further information on online media. Media
Multimedia connections
USB adapters for Audi music interface or
USB charging socket
Depending on the vehicle equipment, you may be
able to connect your mobile devices (e.g. smart­
phones, MP3 players) to the Audi music interface
or the USB charging socket using the special USB
adapters.

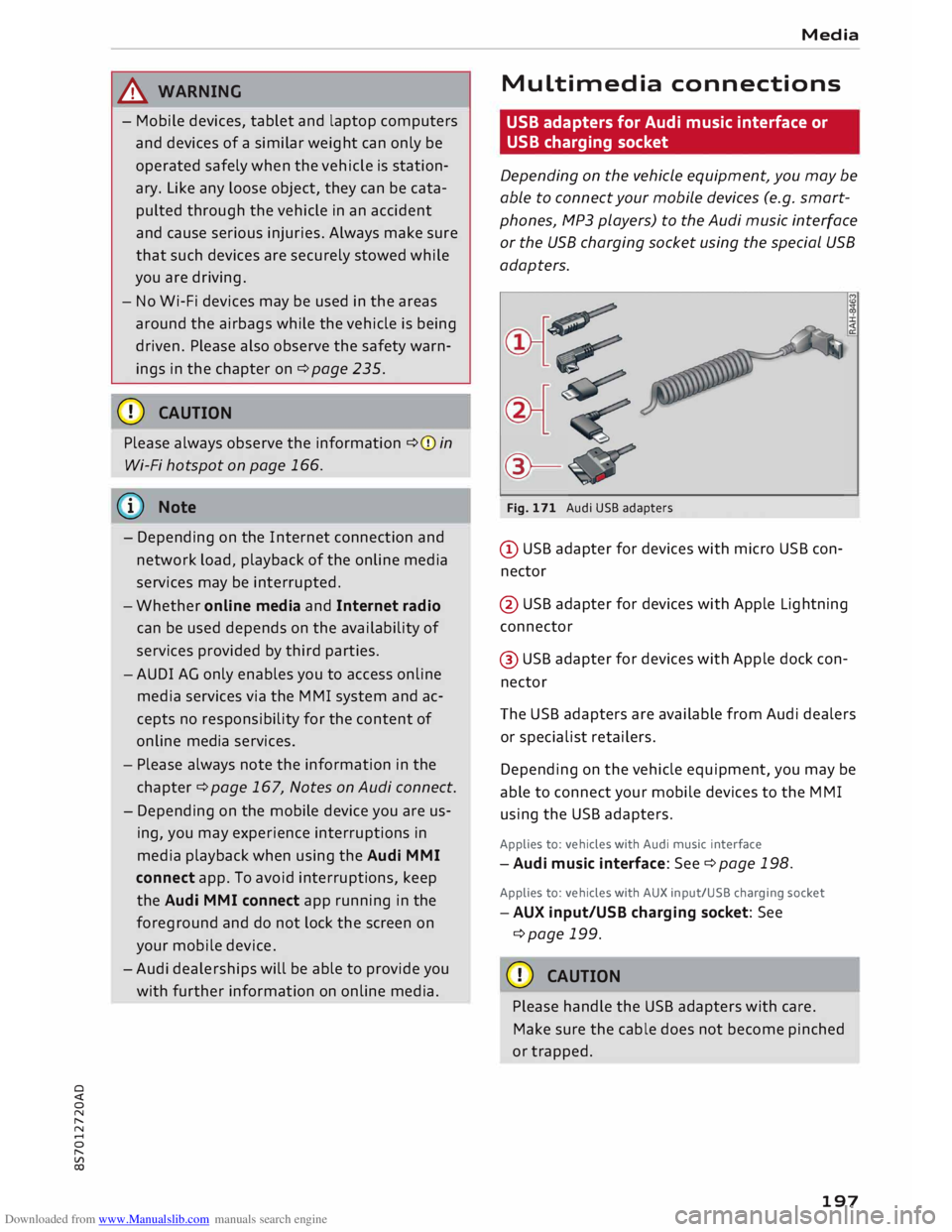

@-Fig. 171 Audi USB adapters
@ USB adapter for devices with micro USB con­
nector
@ USB adapter for devices with Apple Lightning
connector
@ USB adapter for devices with Apple dock con­
nector
The USB adapters are available from Audi dealers
or specialist retailers.
Depending on the vehicle equipment, you may be
able to connect your mobile devices to the MMI
using the USB adapters.
Applies to: vehicles with Audi music interface
-Audi music interface: See¢ page 198.
Applies to: vehicles with AUX input/USB charging socket
- AUX input/USB charging socket: See
¢page 199.
CD CAUTION
Please handle the USB adapters with care.
Make sure the cable does not become pinched
or trapped.
197

Downloaded from www.Manualslib.com manuals search engine Media
Audi music interface
Applies to: vehicles with Audi music interface
You can connect your mobile devices via the Audi
music interface in order to charge the battery
and operate the devices via the MMI.

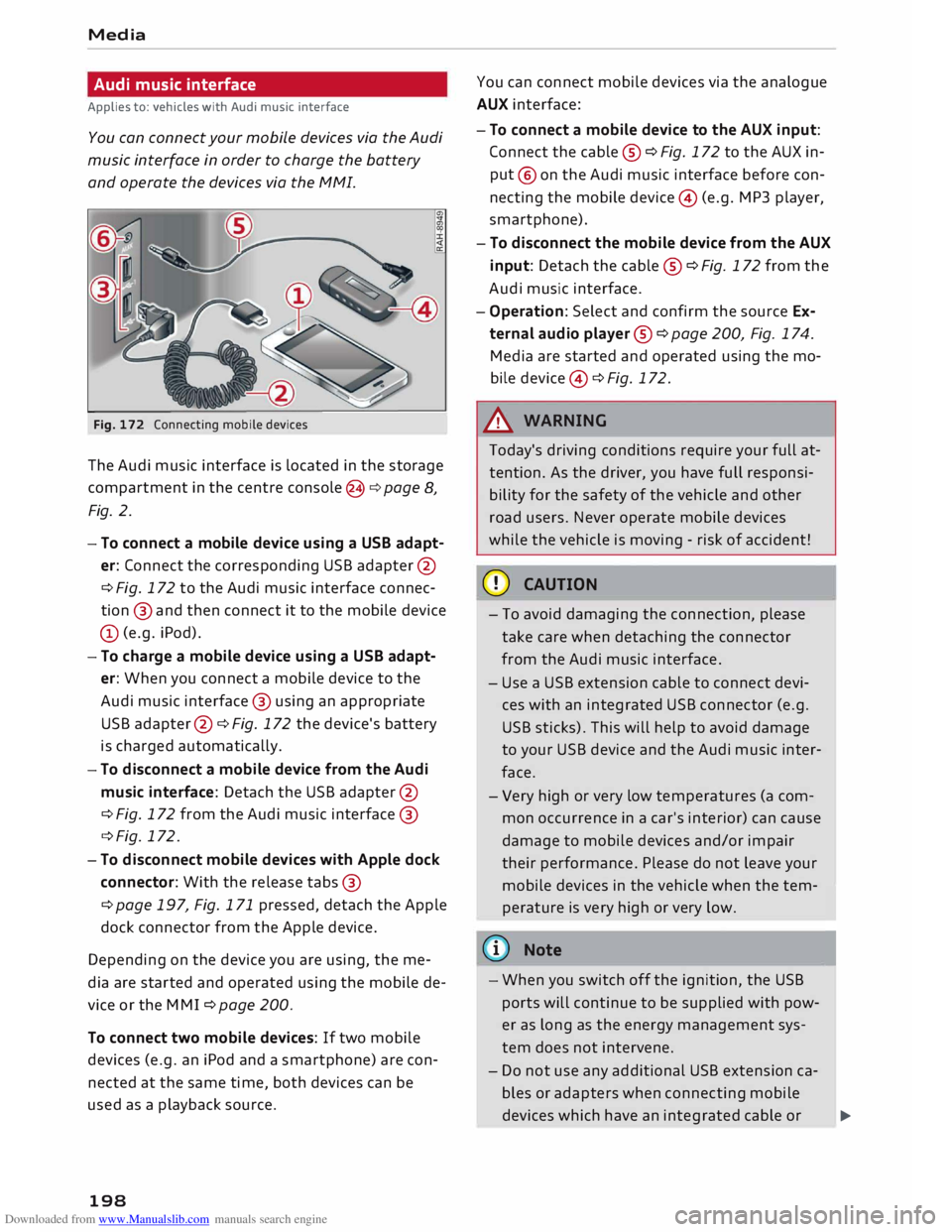

Fig. 172 Connecting mobile devices
The Audi music interface is Located in the storage
compartment in the centre console @c:> page 8,
Fig. 2.
- To connect a mobile device using a USB adapt­
er: Connect the corresponding USB adapter @
c> Fig. 172 to the Audi music interface connec­
tion @ and then connect it to the mobile device
(D (e.g. iPod).
- To charge a mobile device using a USB adapt­
er: When you connect a mobile device to the
Audi music interface @ using an appropriate
USB adapter @ c:> Fig. 172 the device's battery
is charged automatically.
- To disconnect a mobile device from the Audi
music interface: Detach the USB adapter @
c> Fig. 172 from the Audi music interface @
c> Fig. 172.
- To disconnect mobile devices with Apple dock
connector: With the release tabs@
c> page 197, Fig. 171 pressed, detach the Apple
dock connector from the Apple device.
Depending on the device you are using, the me­
dia are started and operated using the mobile de­
vice or the MM I c:> page 200.
To connect two mobile devices: If two mobile
devices (e.g. an iPod and a smartphone) are con­
nected at the same time, both devices can be
used as a playback source.
198 You
can connect mobile devices via the analogue
AUX interface:
- To connect a mobile device to the AUX input:
Connect the cable ® c:> Fig. 172 to the AUX in­
put @ on the Audi music interface before con­
necting the mobile device@ (e.g. MP3 player,
smartphone).
- To disconnect the mobile device from the AUX
input: Detach the cable ® c:> Fig. 172 from the
Audi music interface.
- Operation: Select and confirm the source Ex­
ternal audio player @ c:> page 200, Fig. 174.
Media are started and operated using the mo­
bile device @ c:> Fig. 172.
A WARNING
Today's driving conditions require your full at­
tention. As the driver, you have full responsi­
bility for the safety of the vehicle and other
road users. Never operate mobile devices
while the vehicle is moving -risk of accident!
CD CAUTION
- To avoid damaging the connection, please
take care when detaching the connector
from the Audi music interface.
- Use a USB extension cable to connect devi­
ces with an integrated USB connector (e.g.
USB sticks). This will help to avoid damage
to your USB device and the Audi music inter­
face.
- Very high or very Low temperatures (a com­
mon occurrence in a car's interior) can cause
damage to mobile devices and/or impair
their performance. Please do not Leave your
mobile devices in the vehicle when the tem­
perature is very high or very Low.
@ Note
-When you switch off the ignition, the USB
ports will continue to be supplied with pow-
er as long as the energy management sys-
tem does not intervene.
- Do not use any additional USB extension ca­
bles or adapters when connecting mobile
devices which have an integrated cable or
�
