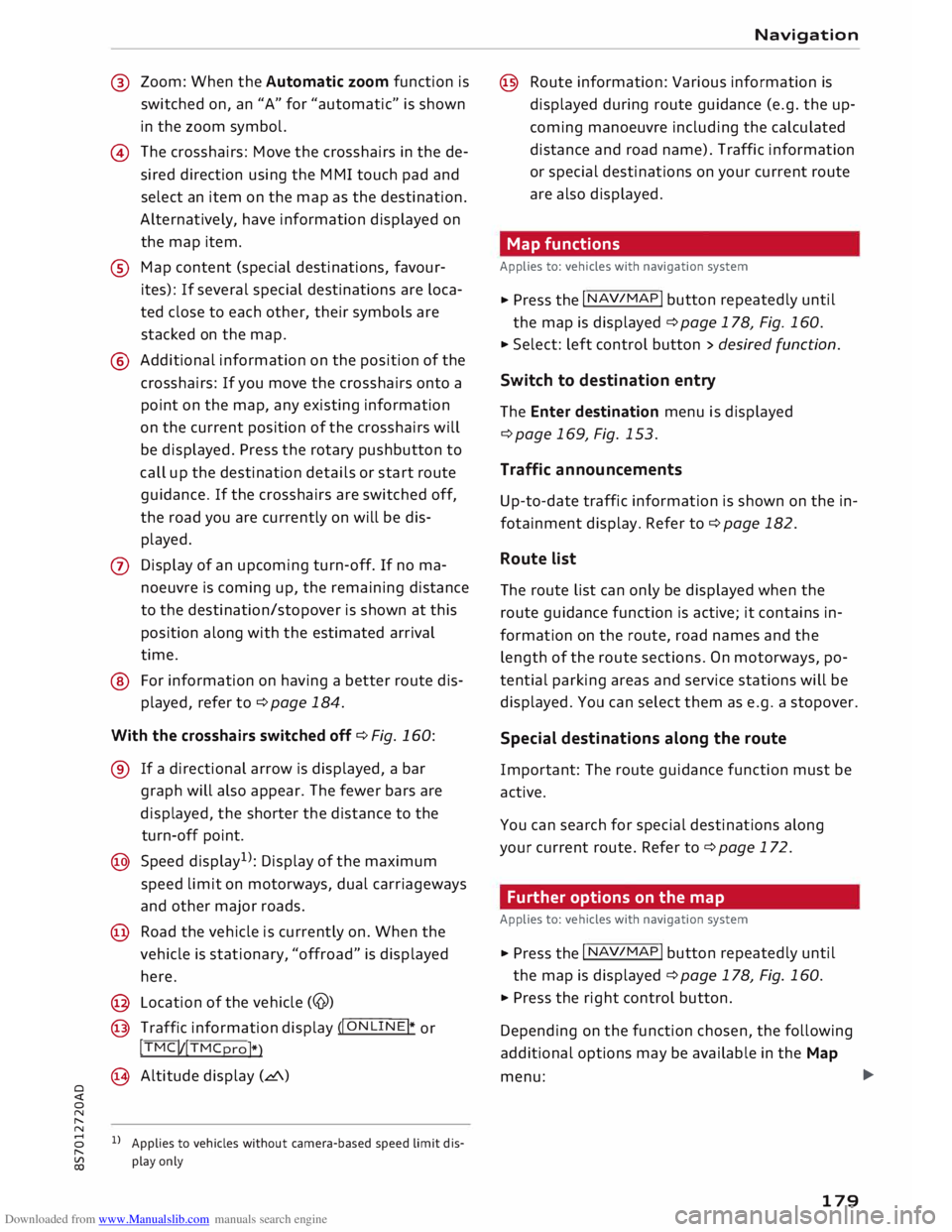

Zoom: When the Automatic zoom function is
switched on, an "A" for "automatic" is shown
in the zoom symbol.
@ The crosshairs: Move the crosshairs in the de­
sired direction using the MMI touch pad and
select an item on the map as the destination.
Alternatively, have information displayed on
the map item.
® Map content (special destinations, favour­
ites): If several special destinations are loca­
ted close to each other, their symbols are
stacked on the map.
@ Additional information on the position of the
crosshairs: If you move the crosshairs onto a
point on the map, any existing information
on the current position of the crosshairs will
be displayed. Press the rotary pushbutton to
call up the destination details or start route
guidance. If the crosshairs are switched off,
the road you are currently on will be dis­
played.
0 Display of an upcoming turn-off. If no ma­
noeuvre is coming up, the remaining distance
to the destination /
stopover is shown at this
position along with the estimated arrival
time.
@ For information on having a better route dis­
played, refer to¢ page 184.
With the crosshairs switched off¢ Fig. 160:
® If a directional arrow is displayed, a bar
graph will also appear. The fewer bars are
displayed, the shorter the distance to the
turn-off point.
@ Speed display 1
>: Display of the maximum
speed limit on motorways, dual carriageways
and other major roads.
@ Road the vehicle is currently on. When the
vehicle is stationary, "offroad" is displayed
here.
@ Location of the vehicle (@)
@ Traffic information display (�I O_ N
_L_I_ N
_E�I* or
!TMC! /!TMCpro!*
)
@ Altitude display (L!'.\)
1} Applies to vehicles without camera-based speed limit dis­
play only Navigation
@ Route information: Various information is
displayed during route guidance (e.g. the up­
coming manoeuvre including the calculated
distance and road name). Traffic information
or special destinations on your current route
are also displayed.
Map functions
Applies to: vehicles with navigation system
� Press the I N
AV/MAP
! button repeatedly until
the map is displayed ¢page 178, Fig. 160.
� Select: left control button> desired function.
Switch to destination entry
The Enter destination menu is displayed
¢ page 169, Fig. 153.
Traffic announcements
Up-to-date traffic information is shown on the in­
fotainment display. Refer to¢ page 182.
Route list
The route list can only be displayed when the
route guidance function is active; it contains in­
formation on the route, road names and the
length of the route sections. On motorways, po­
tential parking areas and service stations will be
displayed. You can select them as e.g. a stopover.
Special destinations along the route
Important: The route guidance function must be
active.
You can search for special destinations along
your current route. Refer to ¢page 172.
Further options on the map
Applies to: vehicles with navigation system
� Press the I N
AV/MAP
! button repeatedly until
the map is displayed ¢page 178, Fig. 160.
� Press the right control button.
Depending on the function chosen, the following
additional options may be available in the Map
menu: .,.
179

Downloaded from www.Manualslib.com manuals search engine Navigation

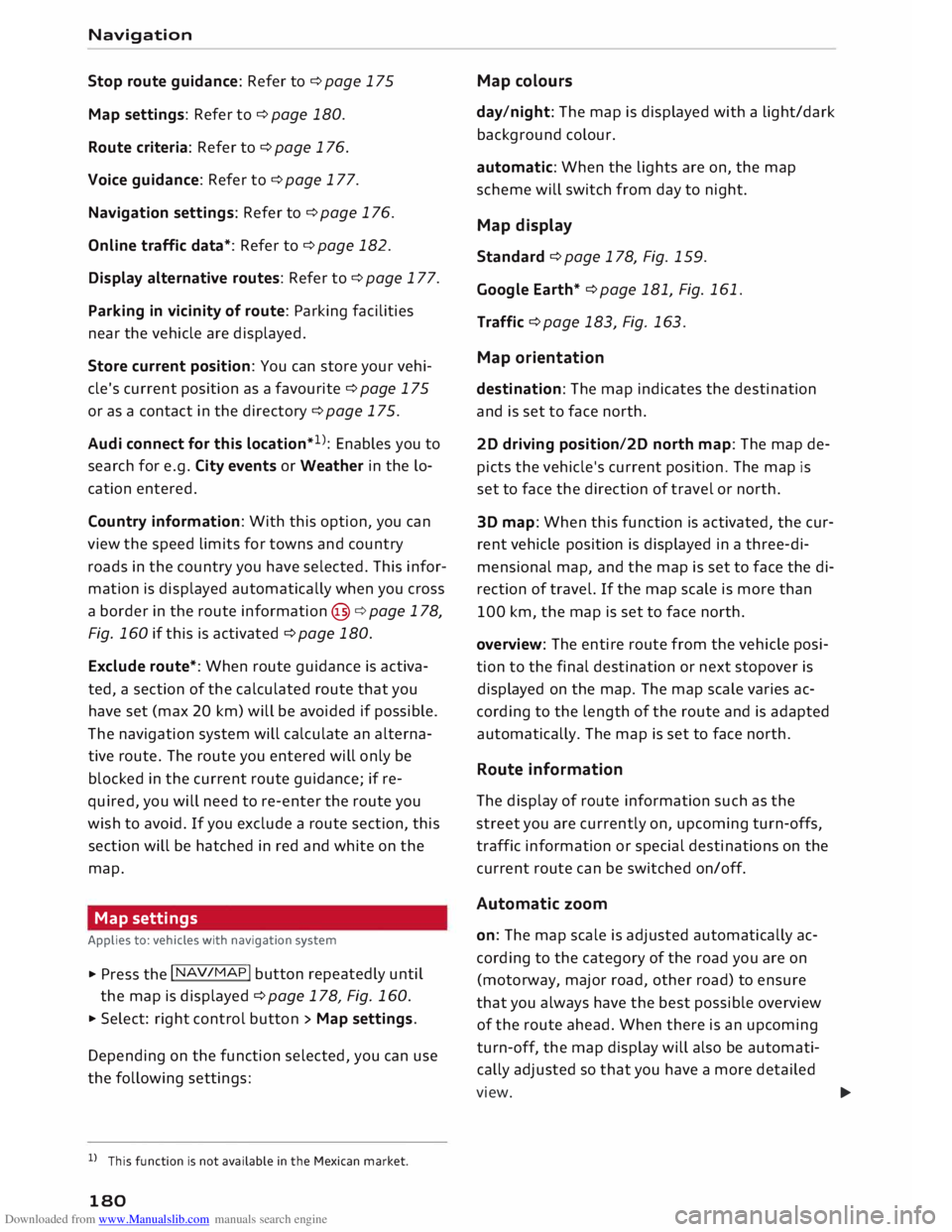

Stop route guidance: Refer to ¢ page 175
Map settings: Refer to¢ page 180.
Route criteria: Refer to ¢page 176.
Voice guidance: Refer to ¢ page 177.
Navigation settings: Refer to ¢ page 176.
Online traffic data*: Refer to¢ page 182.
Display alternative routes: Refer to ¢ page 177.
Parking in vicinity of route: Parking facilities
near the vehicle are displayed.
Store current position: You can store your vehi­
cle's current position as a favourite ¢ page 175
or as a contact in the directory ¢ page 175.
Audi connect for this location* 1
): Enables you to
search for e.g. City events or Weather in the lo­
cation entered.
Country information: With this option, you can
view the speed Limits for towns and country
roads in the country you have selected. This infor­
mation is displayed automatically when you cross
a border in the route information @)¢ page 178,
Fig. 160 if this is activated ¢page 180.
Exclude route*: When route guidance is activa­
ted, a section of the calculated route that you
have set (max 20 km) will be avoided if possible.
The navigation system will calculate an alterna­
tive route. The route you entered will only be
blocked in the current route guidance; if re­
quired, you will need to re-enter the route you
wish to avoid. If you exclude a route section, this
section will be hatched in red and white on the
map.
Map settings
Applies to: vehicles with navigation system
� Press the I NAV
/MAP
I button
repeatedly until
the map is displayed ¢page 178, Fig. 160.
� Select: right control button > Map settings.
Depending on the function selected, you can use
the following settings:
l l
This function is not available in the Mexican market.
180 Map
colours
day/night: The map is displayed with a Light/dark
background colour.
automatic: When the Lights are on, the map
scheme will switch from day to night.
Map display
Standard ¢page 178, Fig. 159.
Google Earth* ¢page 181, Fig. 161.
Traffic ¢page 183, Fig. 163.
Map orientation
destination: The map indicates the destination
and is set to face north.
2D driving position/2D north map: The map de­
picts the vehicle's current position. The map is
set to face the direction of travel or north.
3D map: When this function is activated, the cur­
rent vehicle position is displayed in a three-di­
mensional map, and the map is set to face the di­
rection of travel. If the map scale is more than
100 km, the map is set to face north.
overview: The entire route from the vehicle posi­
tion to the final destination or next stopover is
displayed on the map. The map scale varies ac­
cording to the length of the route and is adapted
automatically. The map is set to face north.
Route information
The display of route information such as the
street you are currently on, upcoming turn-offs,
traffic information or special destinations on the
current route can be switched on/off.
Automatic zoom
on: The map scale is adjusted automatically ac­
cording to the category of the road you are on
(motorway, major road, other road) to ensure
that you always have the best possible overview
of the route ahead. When there is an upcoming
turn-off, the map display will also be automati­
cally adjusted so that you have a more detailed
view. ..,.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) off:
The map scale you have set will remain unal­
tered.
Map content
The display of map content such as traffic infor­
mation, favourite destinations or restaurants can
be switched on (�) and off.

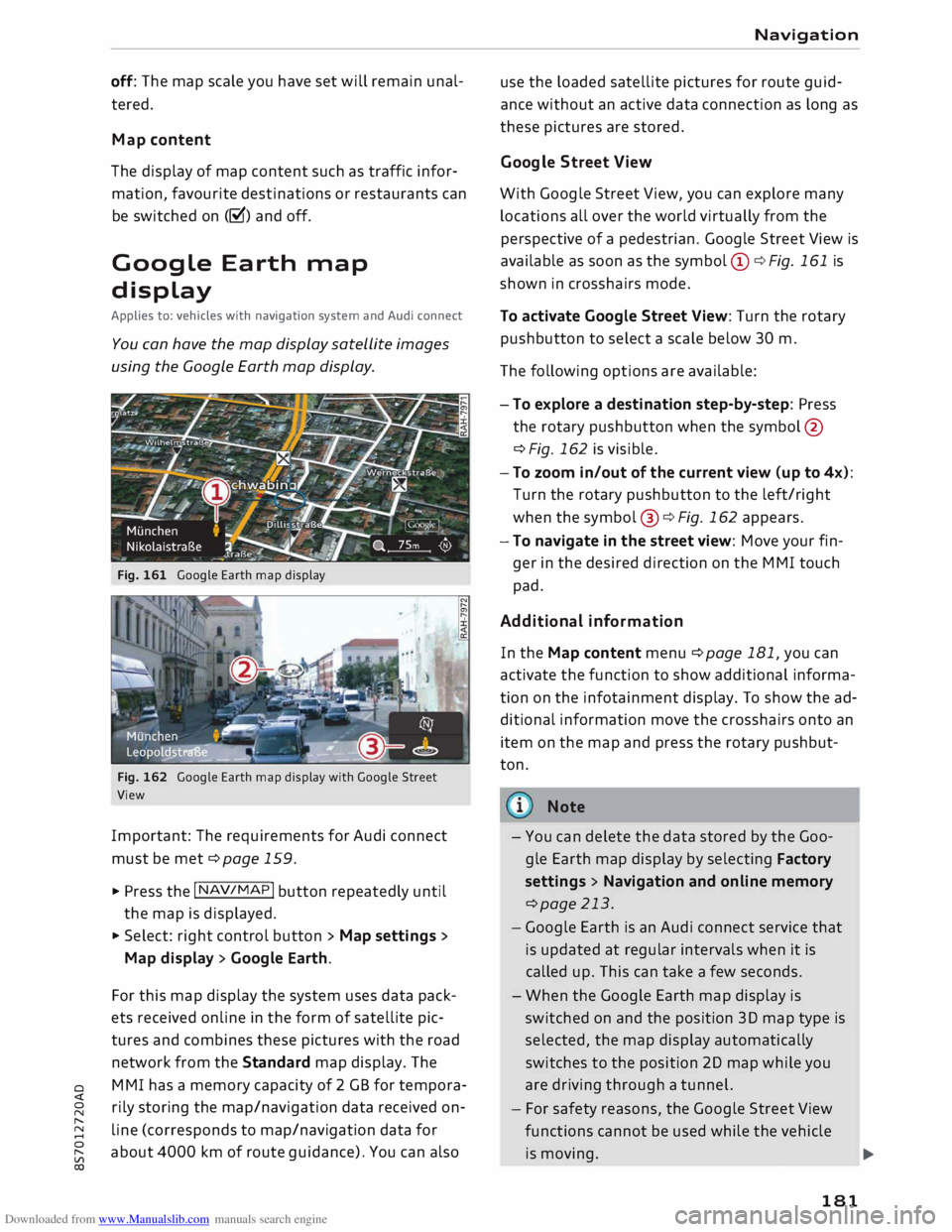

Google Earth map
display
Applies to: vehicles with navigation system and Audi connect
You can have the map display satellite images
using the Google Earth map display.
Fig. 161 Google Earth map display
Fig. 162 Google Earth map display with Google Street
View
Important: The requirements for Audi connect
must be met ¢page 159.
.., Press the I NAV/MAP! button repeatedly until
the map is displayed.
.., Select: right control button > Map settings >
Map display > Google Earth.
For this map display the system uses data pack­
ets received on line in the form of satellite pic­
tures and combines these pictures with the road
network from the Standard map display. The
MMI has a memory capacity of 2 GB for tempora­
rily storing the map/navigation data received on­
line (corresponds to map/navigation data for
about 4000 km of route guidance). You can also Navigation
use the loaded satellite pictures for route guid­
ance without an active data connection as long as
these pictures are stored.
Google Street View
With Google Street View, you can explore many
locations all over the world virtually from the
perspective of a pedestrian. Google Street View is
available as soon as the symbol (D ¢ Fig. 161 is
shown in crosshairs mode.
To activate Google Street View: Turn the rotary
pushbutton to select a scale below 30 m.
The following options are available:
- To explore a destination step-by-step: Press
the rotary pushbutton when the symbol @
¢Fig. 162 is visible.
- To zoom in/out of the current view (up to 4x):
Turn the rotary pushbutton to the left/right
when the symbol @¢ Fig. 162 appears.
-To navigate in the street view: Move your fin­
ger in the desired direction on the MMI touch
pad.
Additional informat ion
In the Map content menu¢ page 181, you can
activate the function to show additional informa­
tion on the infotainment display. To show the ad­
ditional information move the crosshairs onto an
item on the map and press the rotary pushbut­
ton.
Note
- You can delete the data stored by the Goo­
gle Earth map display by selecting Factory
settings > Navigation and online memory
¢page 213.
- Google Earth is an Audi connect service that
is updated at regular intervals when it is
called up. This can take a few seconds.
- When the Google Earth map display is
switched on and the position 30 map type is
selected, the map display automatically
switches to the position 20 map while you
are driving through a tunnel.
- For safety reasons, the Google Street View
functions cannot be used while the vehicle
is moving.
..,.
181

Downloaded from www.Manualslib.com manuals search engine Navigation
- Please always note the information in the
chapter ¢page 167, Notes on Audi connect.
- Further information can be found on the In­
ternet at www.audi.com.

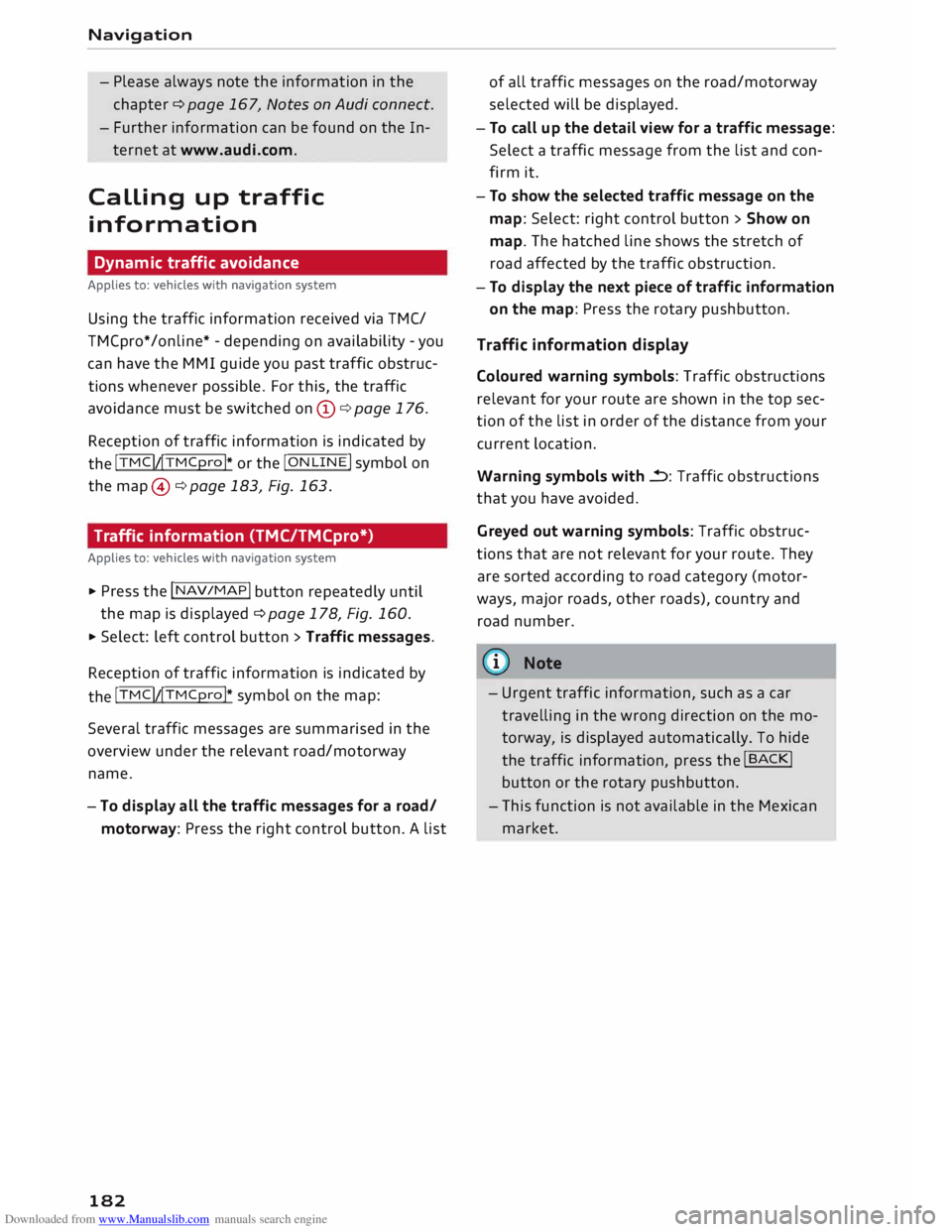

Calling up traffic
information
Dynamic traffic avoidance
Applies to: vehicles with navigation system
Using the traffic information received via TMC/
TMCpro*/online* -depending on availability -you
can have the MMI guide you past traffic obstruc­
tions whenever possible. For this, the traffic
avoidance must be switched on (D ¢ page 176.
Reception of traffic information is indicated by
the !TMC!�TMCprol
* or the !ONLINE!
symbol on
the map @¢page 183, Fig. 163.
Traffic information (TMC/TMCpro*)
Applies to: vehicles with navigation system
� Press the I N AV
/
M AP
I button repeatedly
until
the map is displayed ¢page 178, Fig. 160.
� Select: left control button > Traffic messages.
Reception of traffic information is indicated by
the !TMC!�TMCpro!*
symbol on the map:
Several traffic messages are summarised in the
overview under the relevant road/motorway
name.
- To display all the traffic messages for a road/
motorway: Press the right control button. A list
182 of
all traffic messages on the road/motorway
selected will be displayed.
- To call up the detail view for a traffic message:
Select a traffic message from the list and con­
firm it.
- To show the selected traffic message on the
map: Select: right control button > Show on
map. The hatched line shows the stretch of
road affected by the traffic obstruction.
- To display the next piece of traffic information
on the map: Press the rotary pushbutton.
Traffic information display
Coloured warning symbols: Traffic obstructions
relevant for your route are shown in the top sec­
tion of the list in order of the distance from your
current location.
Warning symbols with �: Traffic obstructions
that you have avoided.
Greyed out warning symbols: Traffic obstruc­
tions that are not relevant for your route. They
are sorted according to road category (motor­
ways, major roads, other roads), country and
road number.
(1') Note
- Urgent traffic information, such as a car
travelling in the wrong direction on the mo­
torway, is displayed automatically. To hide
the traffic information, press the I BA
CK!
button or the rotary pushbutton.
- This function is not available in the Mexican
market.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Navigation
Online traffic information
Applies to: vehicles with navigation system and Audi connect
The MMI system can receive real-time information from the Internet regarding traffic congestion, ac­
cidents, roadworks and other incidents.
WurmtalstraBe
traBe Fig. 163 Illustration: Online traffic information on the map
Important: The requirements for Audi connect
must be met ¢page 159.
11- Press the I NAV/
M
AP !
button repeatedly until
the map is displayed.
- To switch on online traffic information: Press
the right control button and turn Online traffic
data on(�).
-To switch on the traffic map display: To have
the traffic information displayed in the best
possible way, select the
I NAV/
MAP
! button >
right control button> Map settings > Map dis­
play > Traffic.
You can also have the online traffic information
displayed on the Google Earth map display
¢ page 181 or the standard map¢ page 178,
Fig. 159.
If Online traffic information cannot be received,
the traffic information will automatically be re­
ceived via TMC/TMCpro* ¢page 182.
Traffic information display
CD Green: no obstructions
@ Red : traffic jam
1} The prayer compass function is only available for the mar­
kets of the Gulf Cooperation Council (GCC) member
states. Harlac
@ Orange: slow-moving traffic
Hatched markings show the stretch of road affec­
ted by the traffic obstruction.
Coloured warning symbols: A traffic obstruction
is ahead (when route guidance is active).
Greyed out warning symbols: Traffic obstruc­
tions that are not relevant for your route.
Red warning symbols: If route guidance is not
active, all warning symbols are shown in red.
You can adjust the settings for the display of the
coloured markings, warning symbols etc. in the
Map content menu ¢ page 181.
The traffic information is activated when the ve­
hicle leaves the factory. You can switch off the re­
ception of on line traffic information at any time.
Prayer compass 1
)
Important: The display must be set to the map
view ¢page 178.
- Select: left control button> Mecca. The direc­
tion of prayer in relation to the current vehicle
..,.
183

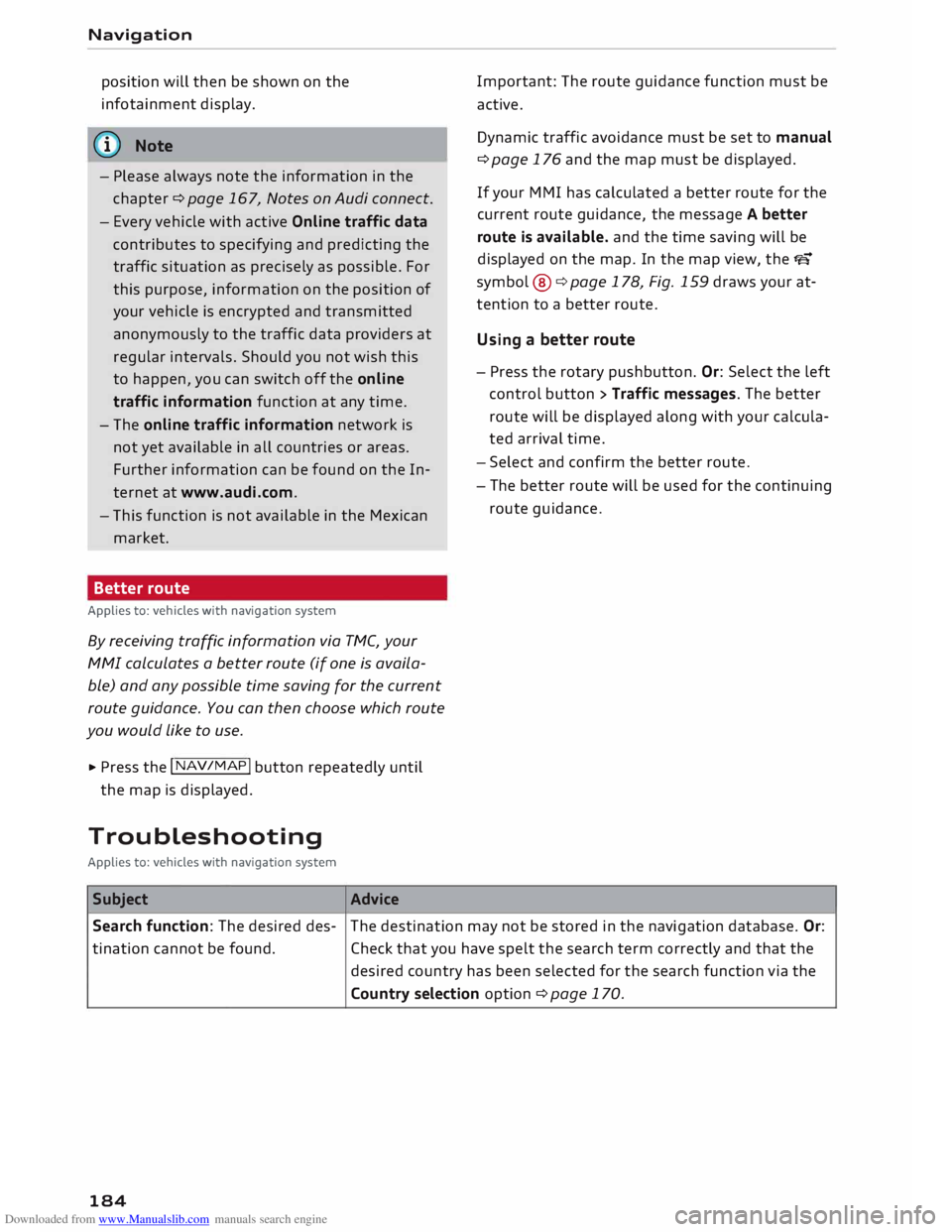

Downloaded from www.Manualslib.com manuals search engine Navigation
position will then be shown on the
infotainment display.
(© Note
- Please always note the information in the
chapter ¢ page 167, Notes on Audi connect.
- Every vehicle with active Online traffic data
contributes to specifying and predicting the
traffic situation as precisely as possible. For
this purpose, information on the position of
your vehicle is encrypted and transmitted
anonymously to the traffic data providers at
regular intervals. Should you not wish this
to happen, you can switch off the on line
traffic information function at any time.
- The online traffic information network is
not yet available in all countries or areas.
Further information can be found on the In­
ternet at www.audi.com.
- This function is not available in the Mexican
market.
Better route
Applies to: vehicles with navigation system
By receiv ing traffic information via TMC, your
MMI calculates a better route (if one is availa­
ble) and any possible time saving for the current
route guidance. You can then choose which route
you would like to use.
• Press the I NAV /MAP I button repeatedly until
the map is displayed.
Troubleshooting
Applies to: vehicles with navigation system
Subject Advice Important:
The route guidance function must be
active.
Dynamic traffic avoidance must be set to manual
¢ page 176 and the map must be displayed.
If your MMI has calculated a better route for the
current route guidance, the message A better
route is available. and the time saving will be
displayed on the map. In the map view, the 1'S
symbol @¢ page 178, Fig. 159 draws your at­
tention to a better route.
Using a better route
- Press the rotary pushbutton. Or: Select the left
control button > Traffic messages. The better
route will be displayed along with your calcula­
ted arrival time.
- Select and confirm the better route.
- The better route will be used for the continuing
route guidance.
Search function: The desired des-The
destination may not be stored in the navigation database. Or:
tination cannot be found. Check that you have spelt the search term correctly and that the
desired country has been selected for the search function via the
Country selection option ¢ page 170.
184

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....

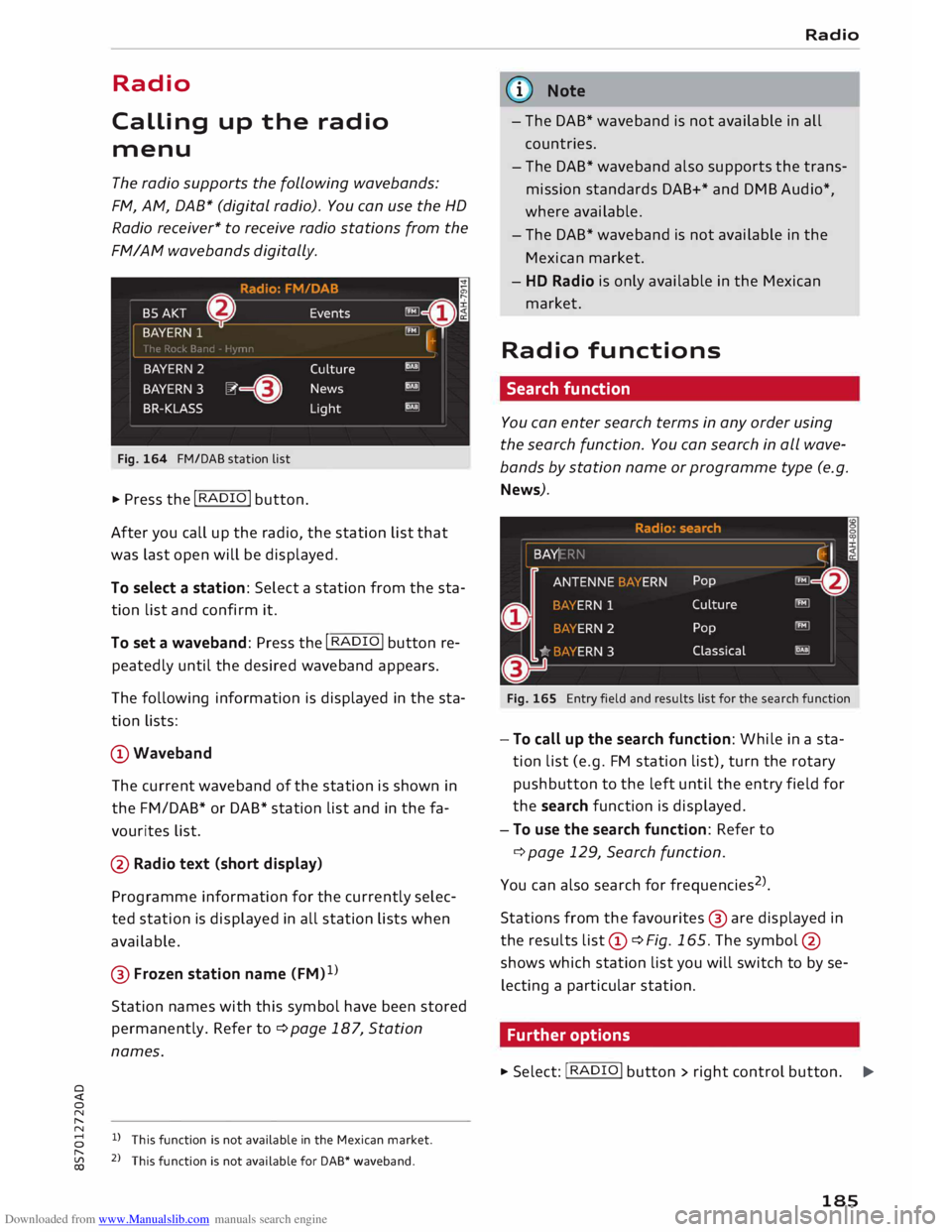

N Radio
Calling up the radio
menu
The radio supports the following wavebands:
FM, AM, DAB* (digital radio). You can use the HD
Radio receiver* to receive radio stations from the
FM/AM wavebands digitally.
Fig. 164 FM/DAB station list
� Press the I RADIO I button.
After you call up the radio, the station list that
was last open will be displayed.
To select a station: Select a station from the sta­
tion list and confirm it.
To set a waveband: Press the I RADIO! button re­
peatedly until the desired waveband appears.
The following information is displayed in the sta­
tion lists:
CD Waveband
The current waveband of the station is shown in
the FM/DAB* or DAB* station list and in the fa­
vourites list.
@ Radio text (short display)
Programme information for the currently selec­
ted station is displayed in all station lists when
available.
@ Frozen station name (FM)1
)
Station names with this symbol have been stored
permanently. Refer to¢ page 187, Station
names.
8 l)
This function is not available in the Mexican market.
[;:j 2
> This function is not available for DAB* waveband.
CX) Radio
G}) Note
- The DAB* waveband is not available in all
countries.
- The DAB* waveband also supports the trans­
mission standards DAB+* and DMB Audio*,
where available.
- The DAB* waveband is not available in the
Mexican market.
- HD Radio is only available in the Mexican
market.
Radio functions
Search function
You can enter search terms in any order using
the search function. You can search in all wave­
bands by station name or programme type (e.g.
News).
Fig. 165 Entry field and results list for the search function
- To call up the search function: While in a sta­
tion list (e.g. FM station list), turn the rotary
pushbutton to the left until the entry field for
the search function is displayed.
- To use the search function: Refer to
¢ page 129, Search function.
You can also search forfrequencies 2
>
.
Stations from the favourites @ are displayed in
the results list(D ¢Fig. 165. The symbol @
shows which station list you will switch to by se­
lecting a particular station.
Further options
� Select: I RADIO! button> right control button.
..,.
185

Downloaded from www.Manualslib.com manuals search engine Radio

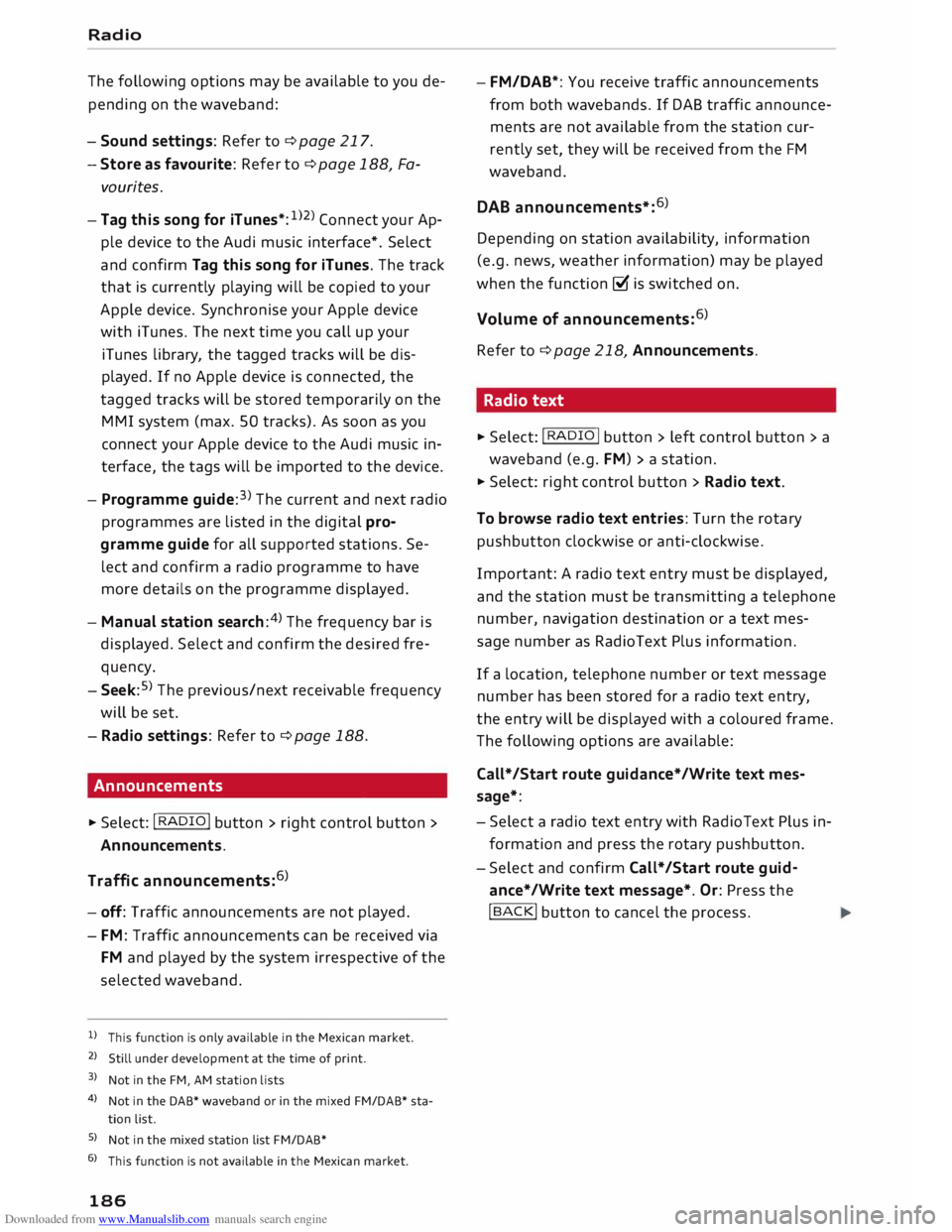

The following options may be available to you de­
pending on the waveband:
- Sound settings: Refer to ¢ page 217.
- Store as favourite: Refer to¢ page 188, Fa-
vourites.
- Tag this song for iTunes*: 1
>2
> Connect your Ap­
ple device to the Audi music interface*. Select
and confirm Tag this song for iTunes. The track
that is currently playing will be copied to your
Apple device. Synchronise your Apple device
with iTunes. The next time you call up your
iTunes library, the tagged tracks will be dis­
played. If no Apple device is connected, the
tagged tracks will be stored temporarily on the
MMI system (max. 50 tracks). As soon as you
connect your Apple device to the Audi music in­
terface, the tags will be imported to the device.
- Programme guide:3
>
The current and next radio
programmes are listed in the digital pro­
gramme guide for all supported stations. Se­
lect and confirm a radio programme to have
more details on the programme displayed.
- Manual station search:4
>
The frequency bar is
displayed. Select and confirm the desired fre­
quency.
- Seek: 5
>
The previous/next receivable frequency
will be set.
- Radio settings: Refer to¢ page 188.
Announcements
"" Select: I RADIO! button> right control button>
Announcements.
Traffic announcements: 6
)
- off: Traffic announcements are not played.
- FM: Traffic announcements can be received via
FM and played by the system irrespective of the
selected waveband.
l l
This function is only available in the Mexican market.
2 l
Still under development at the time of print.
3 l
Not in the FM, AM station lists
4 l
Not in the DAB* waveband or in the mixed FM/DAB* sta­
tion list.
S l
Not in the mixed station list FM/DAB*
6 l
This function is not available in the Mexican market.
186 -
FM/DAB*: You receive traffic announcements
from both wavebands. If DAB traffic announce­
ments are not available from the station cur­
rently set, they will be received from the FM
waveband.
DAB announcements*: 6
)
Depending on station availability, information
(e.g. news, weather information) may be played
when the function � is switched on.
Volume of announcements: 6
)
Refer to¢ page 218, Announcements.
Radio text
"" Select: I RADIO I
button > left control button > a
waveband (e.g. FM)> a station.
""Select: right control button > Radio text.
To browse radio text entries: Turn the rotary
pushbutton clockwise or anti-clockwise.
Important: A radio text entry must be displayed,
and the station must be transmitting a telephone
number, navigation destination or a text mes­
sage number as RadioText Plus information.
If a location, telephone number or text message
number has been stored for a radio text entry,
the entry will be displayed with a coloured frame.
The following options are available:
Call*/Start route guidance*/Write text mes­
sage*:
- Select a radio text entry with Radio Text Plus in­
formation and press the rotary pushbutton.
- Select and confirm Call*/Start route guid­
ance*/Write text message*. Or: Press the
I BACK
I button to cancel the process.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N ((1'>
Note
The availability of radio text and Radio Text
Plus depends on the radio station.
-----

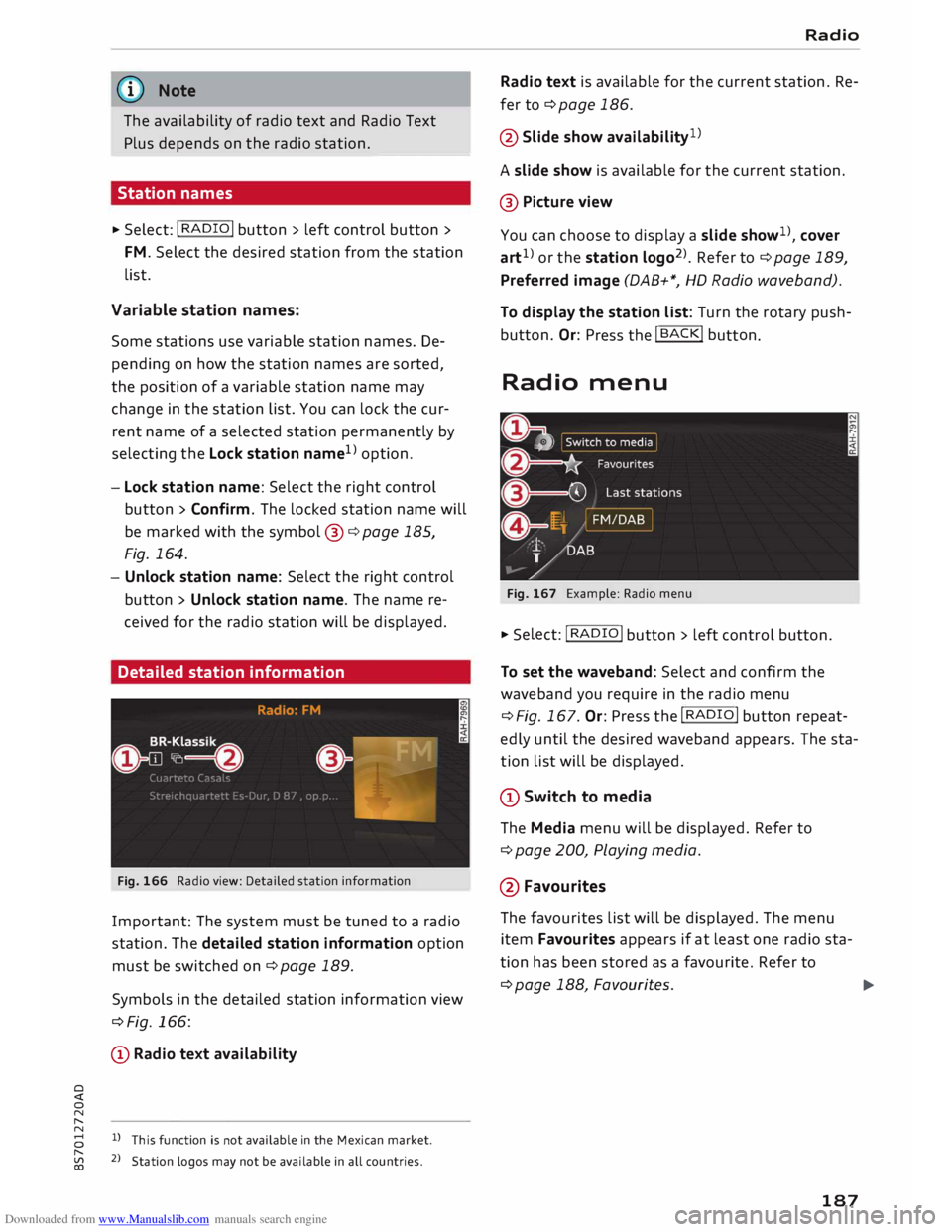

Station names
� Select:
I R A
DIO !
button > left control button>
FM. Select the desired station from the station
list.
Variable station names:
Some stations use variable station names. De­
pending on how the station names are sorted,
the position of a variable station name may
change in the station list. You can lock the cur­
rent name of a selected station permanently by
selecting the Lock station name1
>
option.
- Lock station name: Select the right control
button > Confirm. The locked station name will
be marked with the symbol @¢ page 185,
Fig. 164.
- Unlock station name: Select the right control
button > Unlock station name. The name re­
ceived for the radio station will be displayed.
Detailed station information
Fig. 166 Radio view: Detailed station information
Important: The system must be tuned to a radio
station. The detailed station information option
must be switched on¢ page 189.
Symbols in the detailed station information view
¢Fig. 166:
CD Radio text availability
8 l)
This function is not available in the Mexican market.
,.....
� 2
> Station logos may not be available in all countries. Radio
Radio text is available for the current station. Re­
fer to ¢page 186.
@ Slide show availability 1
>
A slide show is available for the current station.
@ Picture view
You can choose to display a slide show 1
>
, cover
art 1
>
or the station logo2
>
. Refer to ¢ page 189,
Preferred image (DAB+*, HD Radio waveband).
To display the station list: Turn the rotary push­button. Or: Press the I B
A CK!
butt on.
Radio
menu
Fig. 167 Example: Radio menu
� Sele
ct: !
RA
DI
O ! button
> left control button.
To set the waveband: Select and confirm the
waveband you require in the radio menu
¢ Fig. 167. Or: Press the I R A
DI
O I button repeat­
edly until the desired waveband appears. The sta­
tion list will be displayed.
(D Switch to media
The Media menu will be displayed. Refer to
¢ page 200, Playing media.
@Favourites The favourites list will be displayed. The menu
item Favourites appears if at least one radio sta­
tion has been stored as a favourite. Refer to
¢page 188, Favourites.
.,..
187

Downloaded from www.Manualslib.com manuals search engine Radio

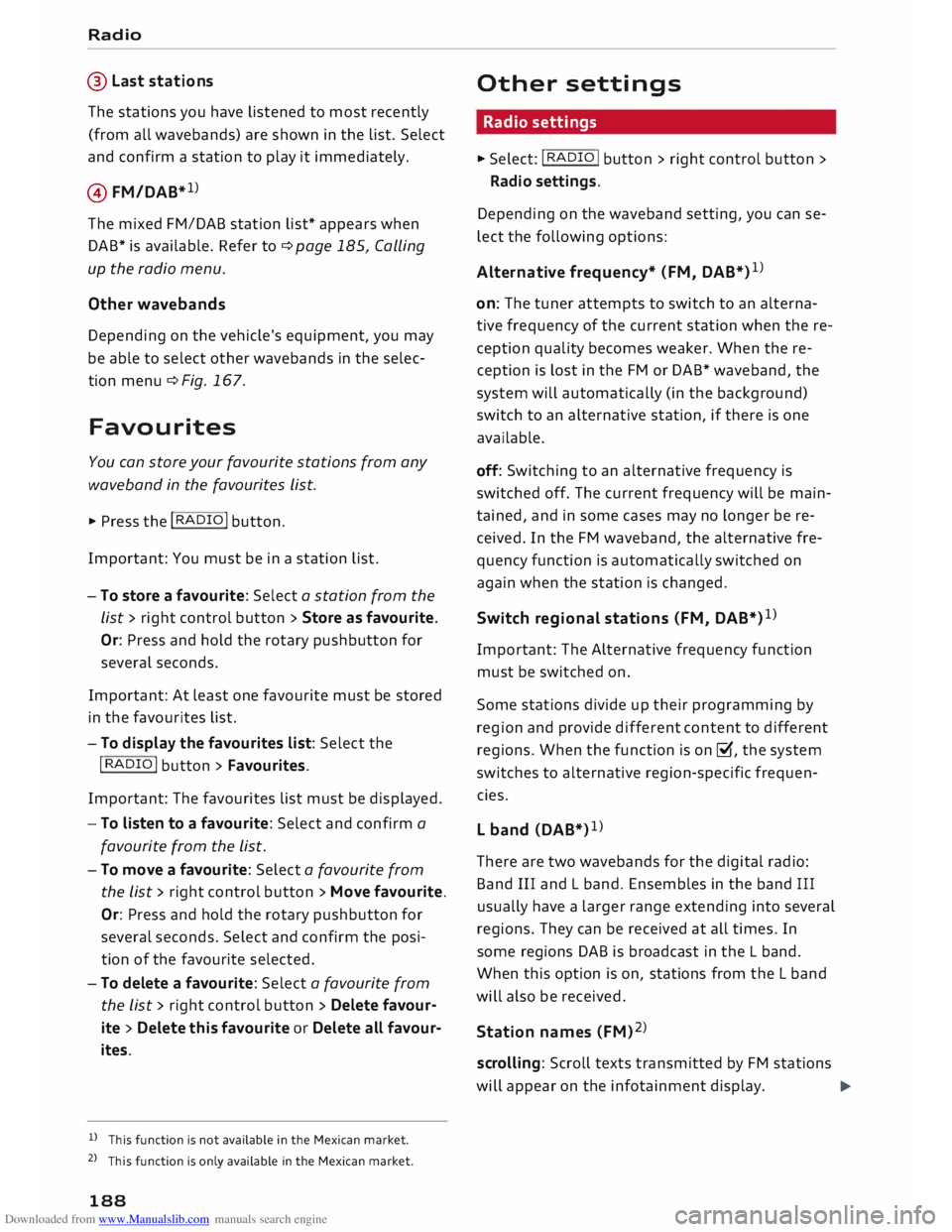

@ Last stations
The stations you have Listened to most recently
(from all wavebands) are shown in the List. Select
and confirm a station to play it immediately.
@ FM/DAB* 1
>
The mixed FM/DAB station List* appears when
DAB* is available. Refer to¢ page 185, Calling
up the radio menu.
Ot her waveba nds
Depending on the vehicle's equipment, you may
be able to select other wavebands in the selec­
tion menu ¢ Fig. 167.
Favourites
You can store your favourite stations from any
waveband in the favourites List.
... Press the I RADIO! button.
Important: You must be in a station List.
- To
store a favourite: Select a station from the
List> right control button > Store as favourite.
Or: Press and hold the rotary pushbutton for
several seconds.
Important: At Least one favourite must be stored
in the favourites List.
- To display the favourites list: Select the
I R
ADIO I
button > Favourites.
Important: The favourites List must be displayed.
- To listen to a favourite: Select and confirm a
favourite from the List.
- To move a favourite: Select a favourite from
the List> right control button > Move favourite.
Or: Press and hold the rotary pushbutton for
several seconds. Select and confirm the posi­
tion of the favourite selected.
- To delete a favourite: Select a favourite from
the List> right control button > Delete favour­
ite > Delete this favourite or Delete all favour­
ites.
l l
This function is not available in the Mexican market.
2 l
This function is only available in the Mexican market.
188 Other
settings
Radio settings
... Select: I
RADIO I
button > right control button >
Radio settings.
Depending on the waveband setting, you can se­
lect the following options:
Alter native frequency* (FM, DAB*) 1
>
on: The tuner attempts to switch to an alterna­
tive frequency of the current station when the re­
ception quality becomes weaker. When the re­
ception is Lost in the FM or DAB* waveband, the
system will automatically (in the background)
switch to an alternative station, if there is one
available.
off: Switching to an alternative frequency is
switched off. The current frequency will be main­
tained, and in some cases may no Longer be re­
ceived. In the FM waveband, the alternative fre­
quency function is automatically switched on
again when the station is changed.
Switch regional stations (FM, DAB*) 1
)
Important: The Alternative frequency function
must be switched on.
Some stations divide up their programming by
region and provide different content to different
regions. When the function is on �, the system
switches to alternative region-specific frequen­
cies.
L band (DAB*) 1
)
There are two wavebands for the digital radio:
Band III and L band. Ensembles in the band III
usually have a Larger range extending into several
regions. They can be received at all times. In
some regions DAB is broadcast in the L band.
When this option is on, stations from the L band
will also be received.
Station names (FM)2
>
scrol ling: Scroll texts transmitted by FM stations
will appear on the infotainment display.
�
