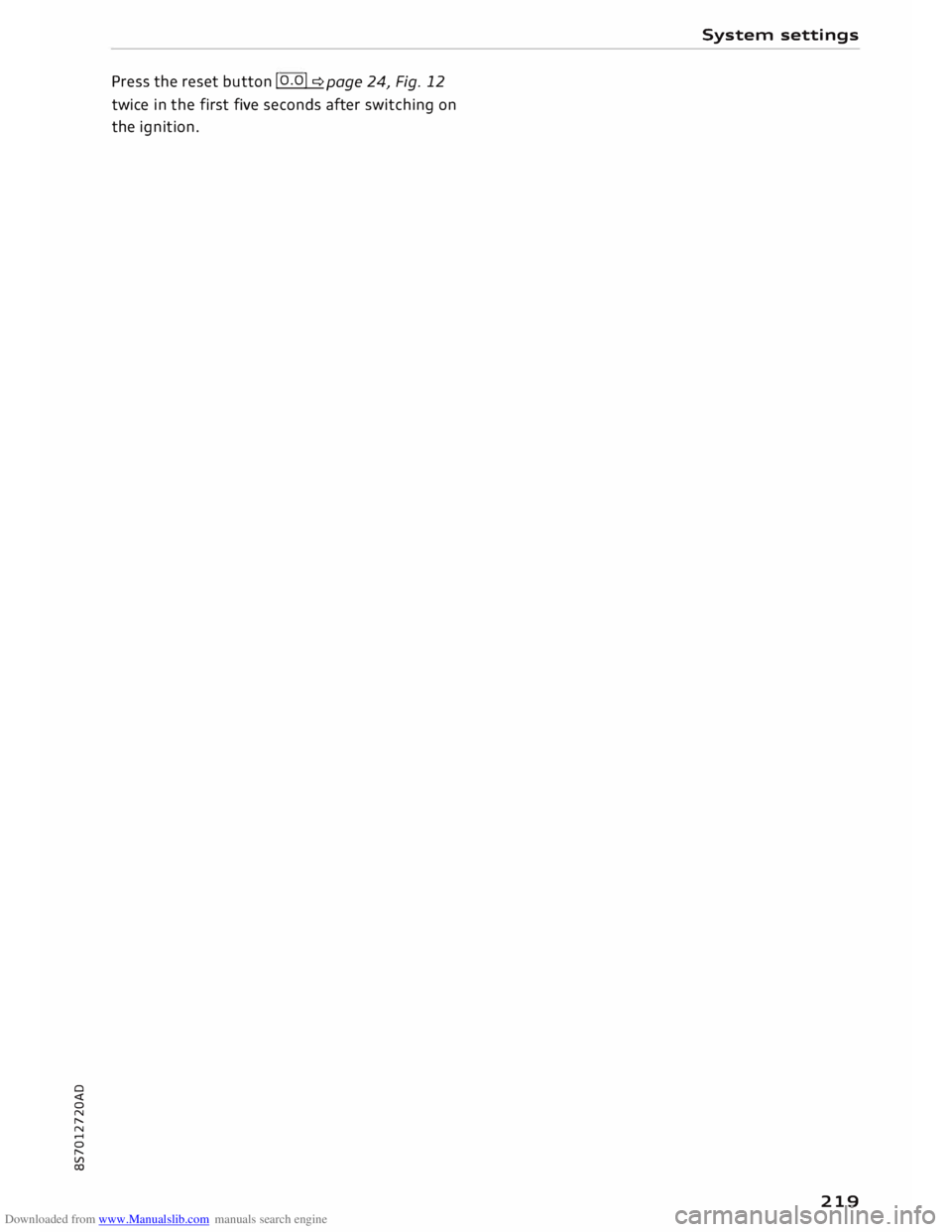

the reset button I o.o I� page 24, Fig. 12
twice in the first five seconds after switching on
the ignition. System
settings
219

Downloaded from www.Manualslib.com manuals search engine Safe
driving

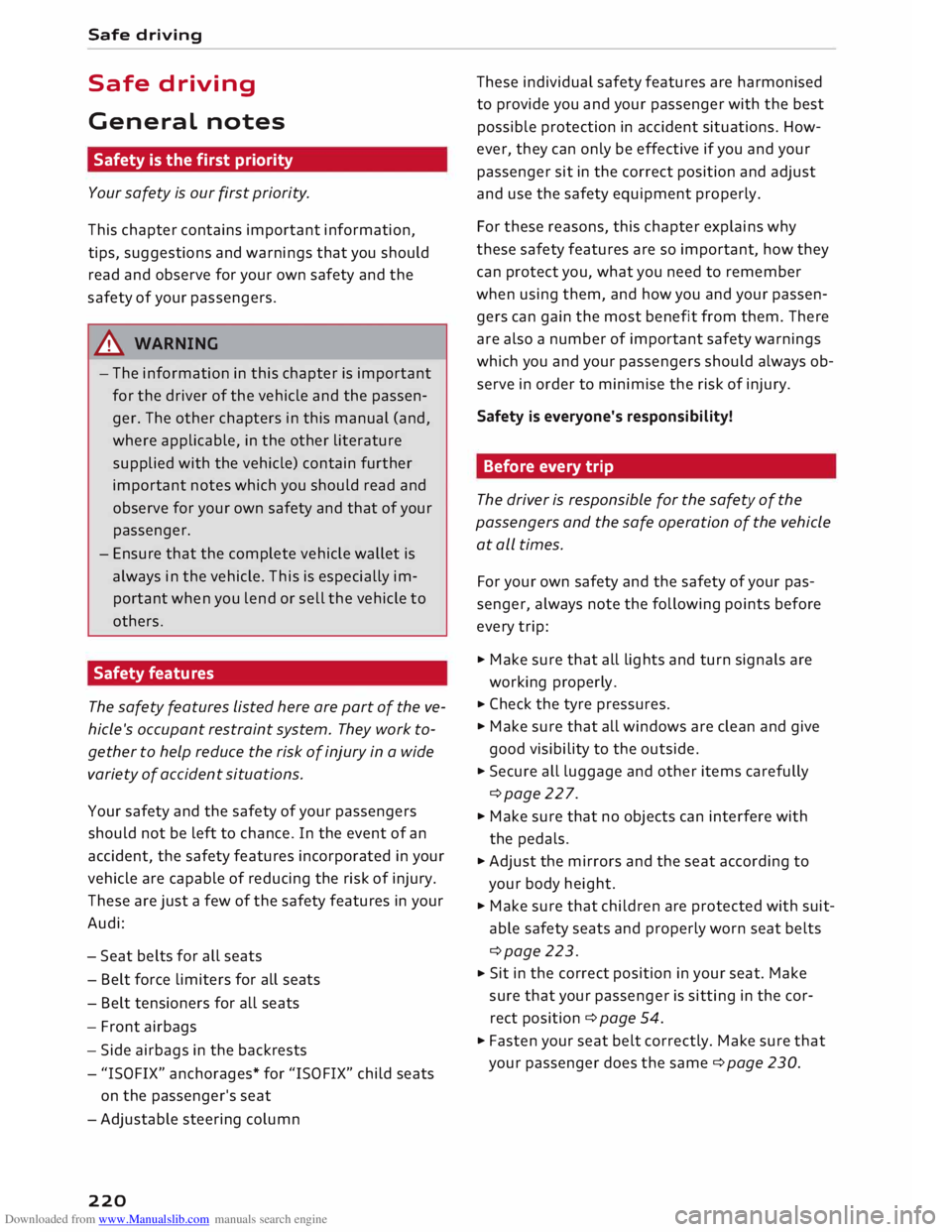

Safe driving
General notes
Safety is the first priority
Your safety is our first priority.
This chapter contains important information,
tips, suggestions and warnings that you should
read and observe for your own safety and the
safety of your passengers.
A WARNING
- The information in this chapter is important
for the driver of the vehicle and the passen­
ger. The other chapters in this manual (and,
where applicable, in the other literature
supplied with the vehicle) contain further
important notes which you should read and
observe for your own safety and that of your
passenger.
- Ensure that the complete vehicle wallet is
always in the vehicle. This is especially im­
portant when you lend or sell the vehicle to
others.
Safety features
The safety features Listed here are part of the ve­
hicle's occupant restraint system. They work to­
gether to help reduce the risk of injury in a wide
variety of accident situations.
Your safety and the safety of your passengers
should not be left to chance. In the event of an
accident, the safety features incorporated in your
vehicle are capable of reducing the risk of injury.
These are just a few of the safety features in your
Audi:
- Seat belts for all seats
- Belt force limiters for all seats
- Belt tensioners for all seats
- Front airbags
- Side airbags in the backrests
- "ISOFIX" anchorages* for "ISO FIX" child seats
on the passenger's seat
-Adjustable steering column
220 These
individual safety features are harmonised
to provide you and your passenger with the best
possible protection in accident situations. How­
ever, they can only be effective if you and your
passenger sit in the correct position and adjust
and use the safety equipment properly.
For these reasons, this chapter explains why
these safety features are so important, how they
can protect you, what you need to remember
when using them, and how you and your passen­
gers can gain the most benefit from them. There
are also a number of important safety warnings
which you and your passengers should always ob­
serve in order to minimise the risk of injury.
Safety is everyone's responsibility!
Before every trip
The driver is responsible for the safety of the
passengers and the safe operation of the vehicle
at all times.
For your own safety and the safety of your pas­
senger, always note the following points before
every trip:
.,. Make sure that all lights and turn signals are
working properly .
... Check
the tyre pressures.
... Make sure that all windows are clean and give
good visibility to the outside.
... Secure all luggage and other items carefully
¢page 227.
... Make sure that no objects can interfere with
the pedals.
... Adjust the mirrors and the seat according to
your body height.
.,. Make sure that children are protected with suit­
able safety seats and properly worn seat belts
¢page 223.
... Sit
in the correct position in your seat. Make
sure that your passenger is sitting in the cor­
rect position ¢ page 54.
... Fasten your seat belt correctly. Make sure that
your passenger does the same¢ page 230.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) What
factors can impair your safety?
Safety on the road is directly related to how you
drive, and can also be affected by the passengers
in the vehicle.
The driver is responsible for the safety of the ve­
hicle and all its occupants. If your ability to drive
is impaired in any way, you endanger yourself and
other road users ¢ ,A. Therefore:
""Do not let yourself be distracted by passengers
or by using a mobile phone, etc.
"" Never drive when your driving ability is im­
paired (by medication, alcohol, drugs, etc.).
"" Obey all traffic regulations and speed limits
and always maintain a safe distance to the vehi­
cle in front.
"" Always adjust your speed to suit the road, traf­
fic and weather conditions.
"" Take frequent breaks on long trips. Do not drive
for more than two hours without a stop.
""If possible, avoid driving when you are tired or
stressed.
A WARNING
- Distractions while driving or any kind of im­
pairment to your driving ability increase the
risk of accident and injury.
- Do not place loose objects on the dash pan­
el. These objects could fly around the interi­
or when the vehicle is moving (under accel­
eration or whilst cornering) and distract the
driver -risk of accident! Safe
driving

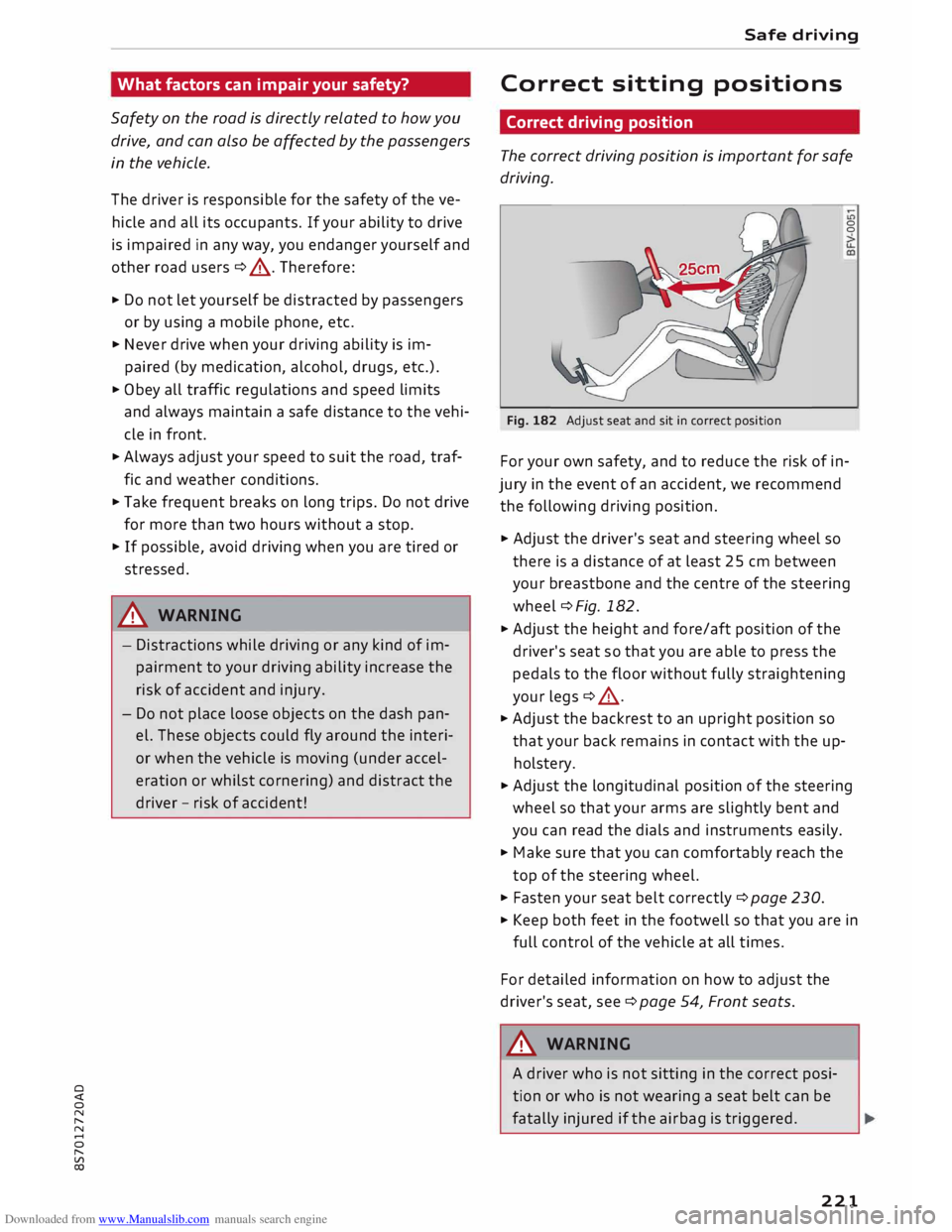

Correct sitting positions
Correct driving position
The correct driving position is important for safe
driving.
Fig. 182 Adjust seat and sit in correct position 0
0
For your own safety, and to reduce the risk of in­
jury in the event of an accident, we recommend
the following driving position.
"" Adjust the driver's seat and steering wheel so
there is a distance of at least 25 cm between
your breastbone and the centre of the steering
wheel¢ Fig. 182.
"" Adjust the height and fore/aft position of the
driver's seat so that you are able to press the
pedals to the floor without fully straightening
your legs¢ A.
"" Adjust the backrest to an upright position so
that your back remains in contact with the up­
holstery.
""Adjust the longitudinal position of the steering
wheel so that your arms are slightly bent and
you can read the dials and instruments easily.
"" Make sure that you can comfortably reach the
top of the steering wheel.
"" Fasten your seat belt correctly ¢ page 230.
"" Keep both feet in the footwell so that you are in
full control of the vehicle at all times.
For detailed information on how to adjust the
driver's seat, see¢ page 54, Front seats.
A WARNING
A driver who is not sitting in the correct posi­
tion or who is not wearing a seat belt can be
fatally injured if the airbag is triggered.
221

Downloaded from www.Manualslib.com manuals search engine Safe
driving
-Adjust the driver's seat and steering wheel
so there is a distance of at least 25 cm be­
tween your breastbone and the centre of the
steering wheel¢ Fig. 182.
- While driving, always hold the steering
wheel with both hands on the outside of the
rim at about the 9 o'clock and 3 o'clock posi­
tion. This reduces the risk of injury if the
driver's airbag inflates.
- Never hold the steering wheel at the 12
o'clock position, or with your hands inside
the rim or on the steering wheel hub. This
could result in serious injuries to the arms,
hands and head if the driver's airbag in­
flates.
- To reduce any risk of injury to the driver dur­
ing a sudden brake application or in an acci­
dent, never drive with the backrest tilted
too far back. The airbag system and seat
belts can only provide proper protection
when the backrest is in an upright position
and the driver is wearing the seat belt in the
correct position. The further the backrest is
tilted back, the greater the risk of injury due
to incorrect positioning of the belt webbing
or an incorrect sitting position.
Correct position for the passenger
The front seat passenger must sit at least 25 cm
away from the dash panel so that the airbag has
enough room to inflate and give maximum pro­
tection in an accident.
For your own safety and to reduce the risk of in­
jury in the event of an accident, we recommend
adjusting the passenger's seat as follows:
"" Adjust the backrest to an upright position so
that your back remains in contact with the up­
holstery.
"" Keep both feet in the footwell in front of the
seat.
"" Fasten your seat belt correctly ¢ page 232.
In exceptional cases you can disable the pas­
senger's airbag via the key-operated switch*
¢page 237.
222 For
detailed information on how to adjust the
passenger's seat, see ¢ page 54, Front seats.
A WARNING
A passenger who is not sitting in the correct
position or who is not wearing a seat belt can
be fatally injured if the airbag is triggered.
-Adjust the passenger's seat so there is a dis-
tance of at least 25 cm between your
breastbone and the dash panel.
- Always keep your feet on the floor when the
vehicle is moving; never rest them on the in­
strument panel, out of the window or on the
seat. If you sit in an incorrect position, you
increase your risk of injury in the event of
sudden braking or an accident. If the airbag
is triggered, you could sustain potentially
fatal injuries by sitting out of position.
- To reduce the risk of injury to the passenger
in the case of sudden braking or an accident,
the passenger should never travel in a mov­
ing vehicle with the backrest reclined. The
airbag system and seat belt can only provide
proper protection when the backrest is in an
upright position and the passenger is wear­
ing the seat belt in the correct position. The
further the backrest is tilted back, the
greater the risk of injury due to incorrect po­
sitioning of the belt webbing or an incorrect
sitting position.
Examples of incorrect seating positions
Occupants can suffer severe or fatal injuries if
they sit in an incorrect position while the vehicle
is moving.
Seat belts can only provide maximum protection
if the belt webbing is positioned correctly. Sitting
out of position greatly reduces the effectiveness
of the seat belts and increases the risk of injury
since the belt webbing is not worn in the position
for which it is designed. The driver is responsible
for the safety of all vehicle occupants, especially
for children.
"" Never allow anyone to sit out of position while
the vehicle is moving ¢,&. . ..,.

Downloaded from www.Manualslib.com manuals search engine 0

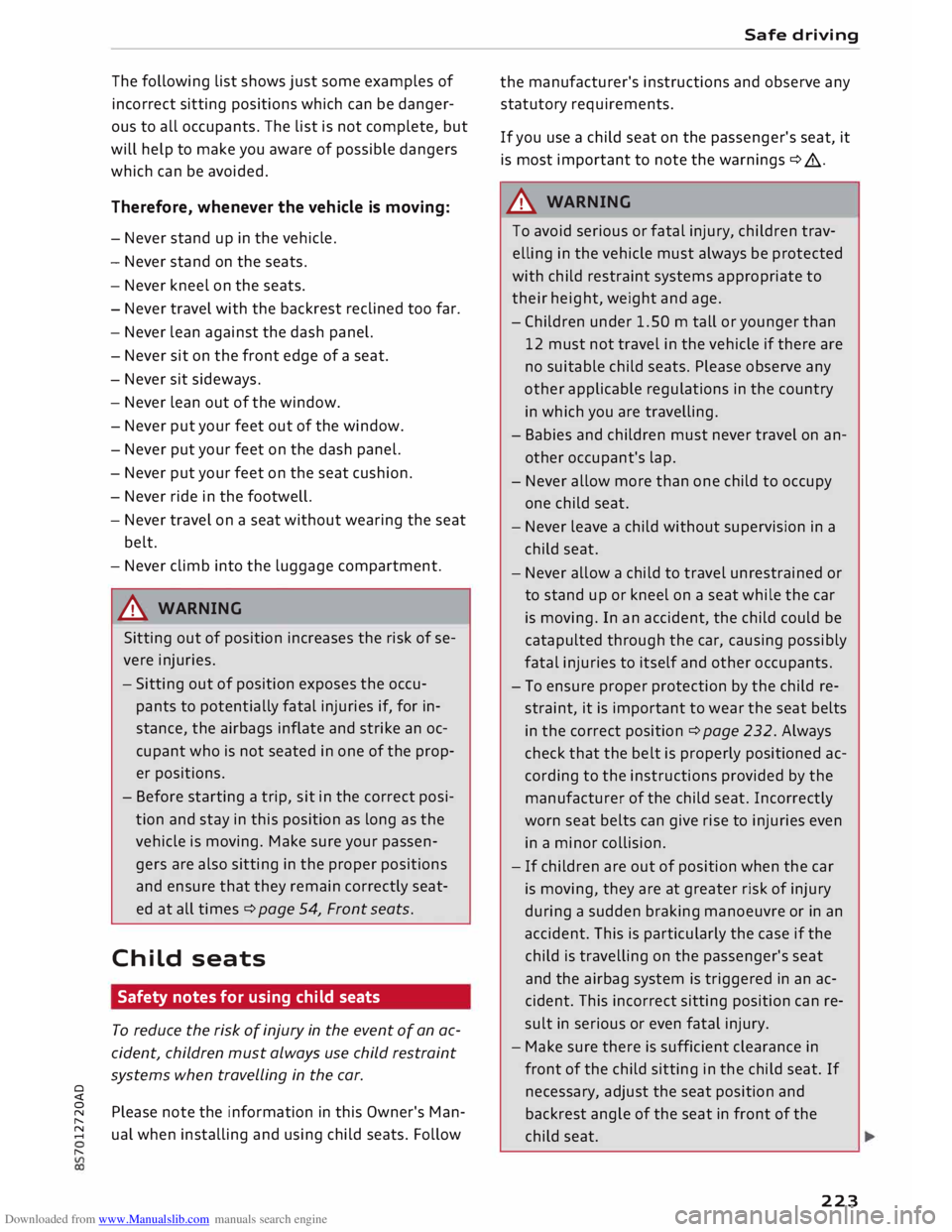

following list shows just some examples of
incorrect sitting positions which can be danger­
ous to all occupants. The list is not complete, but
will help to make you aware of possible dangers
which can be avoided.
Therefore, whenever the vehicle is moving:
- Never stand up in the vehicle.
- Never stand on the seats.
- Never kneel on the seats.
- Never travel with the backrest reclined too far.
- Never lean against the dash panel.
- Never sit on the
front
edge of a seat.
- Never sit sideways.
- Never lean out of the window.
- Never put your feet out of the window.
- Never put your feet on the dash panel.
- Never put your feet on the seat cushion.
- Never ride in the footwell.
- Never travel on a seat without wearing the seat
belt.
- Never climb into the luggage compartment.
A WARNING
Sitting out of position increases the risk of se­
vere injuries.
- Sitting out of position exposes the occu­
pants to potentially fatal injuries if, for in­
stance, the airbags inflate and strike an oc­
cupant who is not seated in one of the prop­
er positions.
- Before starting a trip, sit in the correct posi­
tion and stay in this position as long as the
vehicle is moving. Make sure your passen­
gers are also sitting in the proper positions
and ensure that they remain correctly seat­
ed at all times ¢ page 54, Front seats.
Child seats
Safety notes for using child seats
To reduce the risk of injury in the event of an ac­
cident, children must always use child restraint
systems when travelling in the car.
� Please note the information in this Owner's Man-
,.....
� ual when installing and using child seats. Follow
,..... Safe
driving
the manufacturer's instructions and observe any
statutory requirements.
If you use a child seat on the passenger's seat, it
is most important to note the warnings ¢.&..
A WARNING
To avoid serious or fatal injury, children trav­
elling in the vehicle must always be protected
with child restraint systems appropriate to
their height, weight and age.
- Children under 1.50 m tall or younger than
12 must not travel in the vehicle if there are
no suitable child seats. Please observe any
other applicable regulations in the country
in which you are
travelling.
- Babies and children must never travel on an­
other occupant's lap.
- Never allow more than one child to occupy
one child seat.
- Never leave a child without supervision in a
child seat.
- Never allow a child to travel unrestrained or
to stand up or kneel on a seat while the car
is moving. In an accident, the child could be
catapulted through the car, causing possibly
fatal
injuries
to itself and other occupants.
- To ensure proper protection by the child re­
straint, it is important to wear the seat belts
in the correct position ¢ page 232. Always
check that the belt is properly positioned ac­
cording to the instructions provided by the
manufacturer of the child seat. Incorrectly
worn seat belts can give rise to injuries even
in a minor collision.
- If children are out of position when the car
is moving, they are at greater risk of injury
during a sudden braking manoeuvre or in an
accident. This is particularly the case if the
child is travelling on the passenger's seat
and the airbag system is triggered in an ac­
cident. This incorrect sitting position can re­
sult in serious or even fatal injury.
- Make sure there is sufficient clearance in
front of the child sitting in the child seat. If
necessary, adjust the seat position and
backrest angle of the seat in front of the
child seat.
223

Downloaded from www.Manualslib.com manuals search engine Safe
driving
- If you are using a child seat on the passen­
ger seat in which the child faces the direc­
tion of travel, you should move the passen­
ger seat as far back as possible.
- Child seats in which the child faces the rear
of the car are located directly in the path of
the passenger's airbag if it inflates. In this
case, the child could sustain serious or fatal
injuries if the airbag were to be deployed.
- Applies to vehicles on which the passeng­
er's airbag cannot be deactivated: Do NOT
use a rearward-facing child seat on the
passenger's seat.
- Applies to vehicles with key-operated
switch for deactivating the passenger's
airbag: Do NOT use a rearward-facing child
seat on the passenger's seat while the
passenger's airbag is active. If you have no
alternative but to use a rearward-facing
child seat on the passenger's seat, the
passenger's airbag must be deactivated
beforehand via the key-operated switch*
¢ page 237. Make sure that the passeng­
er's airbag is reactivated by means of the
key-operated switch* as soon as the child
seat is no longer needed on the passeng­
er's seat.
- Always replace the child seat with a new one
after an accident as damage not externally
visible may have occurred.
Child safety and side airbags
Applies to: vehicles with side airbags
_/N
-
:::::
==: =::--
1�
Fig. 183 Illustration of a dangerous sitting position near
the opening for the side airbag
Make sure that children do not lean out of the
child seat towards the door trim. If the side air-
224 V
CD bag
were to inflate in an accident, it could strike
the child on the head and cause serious injury.
A WARNING
- To avoid injury, the child's head must always
be well away from the opening for the side
airbag.
- Do not leave or place any objects in the area
of inflation for the side airbag -risk of in­
jury!
Child seat categories
Only use child restraint systems that are official­
ly approved and suitable for the child.
0/0+ 1
Fig. 184 Child seat categories
Child restraint systems are covered by the Euro­
pean standard ECE-R 44. An orange label is usu­
ally attached to child seats which have been tes­
ted in accordance with this standard. Informa­
tion on weight categories, ISO FIX size class and
the approval category of the child seat can be
found on this label.
Child seats are divided into five weight catego­
ries:
Child seats: categories O and O+
Rearward-facing carry cots are most appropriate
for these categories (up to 13 kg). Our recom­
mendation: Audi carry cot with optional ISOFIX
base.
Child seats: category 1
In this category (9 to 18 kg), rearward or for­
ward-facing child seats with an integrated seat
belt system are most appropriate. Rearward-fac-
ing child seats should be used for as long as
.,..

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) safely
possible. Our recommendation: Audi child
seat with ISOFIX base.
Child seats: categories 2 and 3
Child seats with backrests used in conjunction
with seat belts are most appropriate for these
categories (15 to 36 kg). Our recommendation:
Audi child seat "youngster plus".
A WARNING
- Categories 0, O+ and 1 (rearward-facing):
Never install a rearward-facing child seat on
the passenger's seat unless the passenger's
airbag has been deactivated -this can result
in potentially fatal injuries to the child. If
you have no alternative but to let a child
travel on the passenger's seat, the passeng­
er's airbag must be deactivated* beforehand
¢page 237.
- Categories 1 (forward-facing), 2 and 3: The
back of the child seat should be flush with
the backrest of the vehicle seat.
- Categories 2 and 3: The shoulder section of
the belt must be fitted across the centre of
the child's collar bone close to the torso. It
must never run against or across the neck.
The lap belt must be worn tightly across the
hips, and not over the stomach or abdomen.
Pull the belt tight if necessary to take up
any slack.
- Wait for as long as possible before changing
up to the next child seat group.
¢1) Note
We recommend child seats from the range of
Audi Genuine Accessories: www.audi.com/
child seats . Safe
driving
Securing a child seat
Securing child seats with ISOFIX
Applies to: vehicles with ISOFIX
Fig. 185 Passenger's seat: Securing child seat with ISOFIX
Child seats of the categories 0, O+ and 1 with
ISOFIX can be secured without seat belts using
the ISOFIX anchorages on the passenger's seat*.
� Push the mountings on the child seat into the
ISO FIX anchorages until they engage audibly
¢Fig. 185.
� Pull on the child seat to check whether both
sides have engaged properly.
If you wish to attach an ISO FIX child seat to the
ISOFIX anchorages in your vehicle, please ensure
that it is approved for the seat in your vehicle.
The following table¢ table on page 225 shows
the installation options. The necessary informa­
tion can be found on the orange label on the
child seat.
An ISOFIX child seat categorised as "vehicle-spe­
cific", "restricted" or "semi-universal" (IL) is suit­
able for a seat if:
-your vehicle is listed in the model list provided
by the child seat manufacturer and
-your child seat is marked with IL in the follow­
ing table.
Weight class ISOFIX
size
Passenger's
category seata>
Category 0: E
IL
up to 10 kg
E
Category O+:
D IL
up to 13 kg
225

Downloaded from www.Manualslib.com manuals search engine Safe
driving
Weight class ISOFIX size Passenger's
category seata
>
D C
Category 1:
B IL
9 to 18 kg
Bl
A
Category 2/3: -
15 to 36 kg IL
b)
al This function is not available for all export versions.
bl It may be necessary to adjust the backrest angle in order
to fit the child seat correctly.
A WARNING
- Please refer to the important safety notes
¢ A in Safety notes for using child seats on
page 223, � A in Child seat categories on
page 225 and the instructions provided by
the child seat manufacturer.
- Never install a rearward-facing child seat on
the passenger's seat unless the passenger's
airbag has been deactivated -this can result
in potentially fatal injuries to the child.
- The anchorages in the vehicle are designed
only for child seats with ISO FIX. Do not at­
tempt to secure other types of child seat,
seat belts or other objects to these ancho­
rages -this could result in serious or possi­
bly fatal injury.
Securing child seats with seat belt
If you wish to use a child seat in the approval cat­
egory "universal" (u), please ensure that it is ap­
proved for the passenger seat in your vehicle. The
following table shows the installation options.
The necessary information can be found on the
orange label on the child seat.
Weight class
Passenger's seat
Category 0
u
up to 10 kg
Category O+ u
up to 13 kg
Category 1
u
9 to 18 kg
226 Weight
class
Passenger's seat
Category 2
u
15 to 25 kg
Category 3
u
22 to 36 kg
To adjust the passenger's seat to the child seat
and to achieve the best possible seat belt posi­
tioning, move the passenger's seat as far up­
wards as possible using the seat's height adjust­
ment. After installing the child seat on the pas­
senger's seat, move the passenger's backrest for­
ward until it makes contact with the child seat.
A WARNING
- Please refer to the important safety notes
¢ A in Safety notes for using child seats on
page 223, ¢ A in Child seat categories on
page 225 and the instructions provided by
the child seat manufacturer.
- Never install a rearward-facing child seat on
the passenger's seat unless the passenger's
airbag has been deactivated -this can result
in potentially fatal injuries to the child.
Pedal area
Pedals
The pedals must always be free to move and
must never be obstructed by floor mats or any
objects in the footwell.
.,. Make sure that none of the pedals is obstructed
and all of the pedals can be pressed all the way
down to the floor.
... Make sure that all pedals are able to return
freely to their original positions.
Only use floor mats which leave the pedal area
free and can be securely fastened in the footwell.
If one of the brake circuits should fail, increased
brake pedal travel will be required to bring the
vehicle safely to a stop.
A WARNING
Any obstructions that restrict pedal travel can
cause loss of vehicle control and lead to criti-
cal traffic situations.
�

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) -
Never place objects in the driver's footwell.
Such objects could move under the pedals
and interfere with their proper function. In
the event of sudden braking or a change of
direction, you would not be able to use the
pedals. This could result in a loss of control
and possibly cause an accident.
Floor mats on the driver's side
Use only floor mats which can be securely fas­
tened in the footwell and do not obstruct the
pedals.
... Make sure that floor mats are securely fastened
and cannot interfere with the pedals ¢,&. .
Use only floor mats that leave the pedal area un­
obstructed and are firmly secured to prevent
them from slipping. You can obtain suitable floor
mats from your dealer or a specialist retailer.
A WARNING
Any obstructions that restrict pedal travel can
cause loss of vehicle control and increase the
risk of serious personal injury.
- Always make sure that floor mats are prop­
erly secured.
- Never lay or install additional floor mats or
other floor coverings over the existing floor
mats; this would restrict the pedal area and
possibly obstruct the pedals, which could
cause an accident.
Stowing luggage safely
Luggage compartment
All luggage and other objects must be safely se­
cured in the luggage compartment. To maintain
safe handling on the road, please observe the fol­
lowing points:
.,.. Distribute the load evenly in the luggage com­
partment.
.,.. Place heavy items as far forward as possible in
the Luggage compartment and secure them
properly. Safe
driving
... Secure the load with the luggage net* or with
non-elastic straps secured to the fastening
rings* ¢ page 228.
A WARNING
- Loose items in the luggage compartment
are a safety hazard: they can move suddenly
and impair the handling of the vehicle as a
result of the change in weight distribution.
- In an accident or a sudden manoeuvre, loose
objects in the passenger compartment can
be flung forward -risk of injury! Always
stow objects safely in the luggage compart­
ment and secure them on the fastening
rings*. Use suitable securing straps, particu­
larly when transporting heavy objects.
- Always stow objects in the luggage com­
partment.
- Transporting heavy objects may affect the
vehicle's handling by shifting the centre of
gravity -this could cause an accident. Take
extra care when driving and adjust your
speed accordingly.
- Never exceed the maximum axle loads or
the maximum gross weight for the vehicle
¢ page 287. Exceeding the permitted axle
loads or gross weight limit can affect the ve­
hicle's handling characteristics, and increase
the risk of accidents, personal injuries or
damage to the vehicle.
- Never leave your vehicle unattended when
the boot lid is open. Children could climb in­
to the boot and close the boot lid from the
inside. In this case the child would be un­
able to get out of the
vehicle
without help.
This could have fatal consequences.
- Never allow children to play in or around the
vehicle. Always close and lock the boot lid
and all the doors when you leave the vehi­
cle.
- Never let passengers ride in the luggage
compartment. All occupants must be prop­
erly restrained by the seat belts at all times
¢page 230. .,._
227

Downloaded from www.Manualslib.com manuals search engine Safe
driving
� Note
- The tyre pressure must be adjusted accord­
ing to the Load the vehicle is carrying
¢page 256.
-Air circulation in the vehicle helps reduce
fogging of the windows. Used air escapes
through ventilation slots in the rear of the
vehicle. Make sure that these ventilation
slots are not obstructed.
- Suitable belts for securing Loads to the fas­
tening rings* are commercially available.
Fastening rings
Unsecured Loads are a hazard to all vehicle occu­
pants.
AUDI
Fig. 186 Luggage compartment: Location of fastening
rings
� Use the fastening rings to secure items safely
in the Luggage compartment ¢.&. in Luggage
compartment on page 22 7.
During a collision or an accident, even small and
Light objects can possess so much energy that
they can cause very severe injuries. The amount
of this "kinetic energy" depends on the speed of
the vehicle and the weight of the object. The
most significant factor, however, is the speed of
the vehicle.
For example: an object weighing 4.5 kg is Lying
unsecured in the vehicle. During a frontal colli­
sion at a speed of 50 km/h, this object generates
a force corresponding to 20 times its weight.
That means that the effective weight of the ob­
ject increases to about 90 kg. You can imagine
the severity of the injuries which might be sus-
228 tained
if this "projectile" strikes an occupant as it
flies through the passenger compartment.
A WARNING
If items of Luggage or other objects are se­
cured to the fastening rings with inappropri­
ate or damaged tensioning straps, injuries
could result in the event of sudden braking or
a collision.
- To prevent pieces of Luggage or other ob­
jects from flying forward, always use appro­
priate tensioning straps which are properly
secured to the fastening rings.
- Never secure a child seat on the fastening
rings.
Pedestrian protection
system
Description
Applies to: vehicles with pedestrian protection system
The pedestrian protection system is automatical­
ly activated in the event that the front of the ve­
hicle collides with a pedestrian. The bonnet is
raised slightly to create an additional crush zone
above the engine.
The sensors of the pedestrian protection system
are Located in the front bumper. In rare cases,
the system can be triggered because the possibil­
ity that a pedestrian has been hit cannot be ruled
out by the sensors, for example:
- in a collision with a signpost,
- in a collision with an animal, or
- if you drive into a pile of snow, or
- in the event of ground contact, e.g. when driv-
ing on extremely poor road surfaces.
If the system has been activated, press the bon­
net back into its original position ¢.&. in Servic­
ing the pedestrian protection system on
page 229 and have the system serviced by a
qualified workshop.
A WARNING
- Do not use an additional or replacement
number plate holder other than the original
one fitted at the front of the vehicle.
