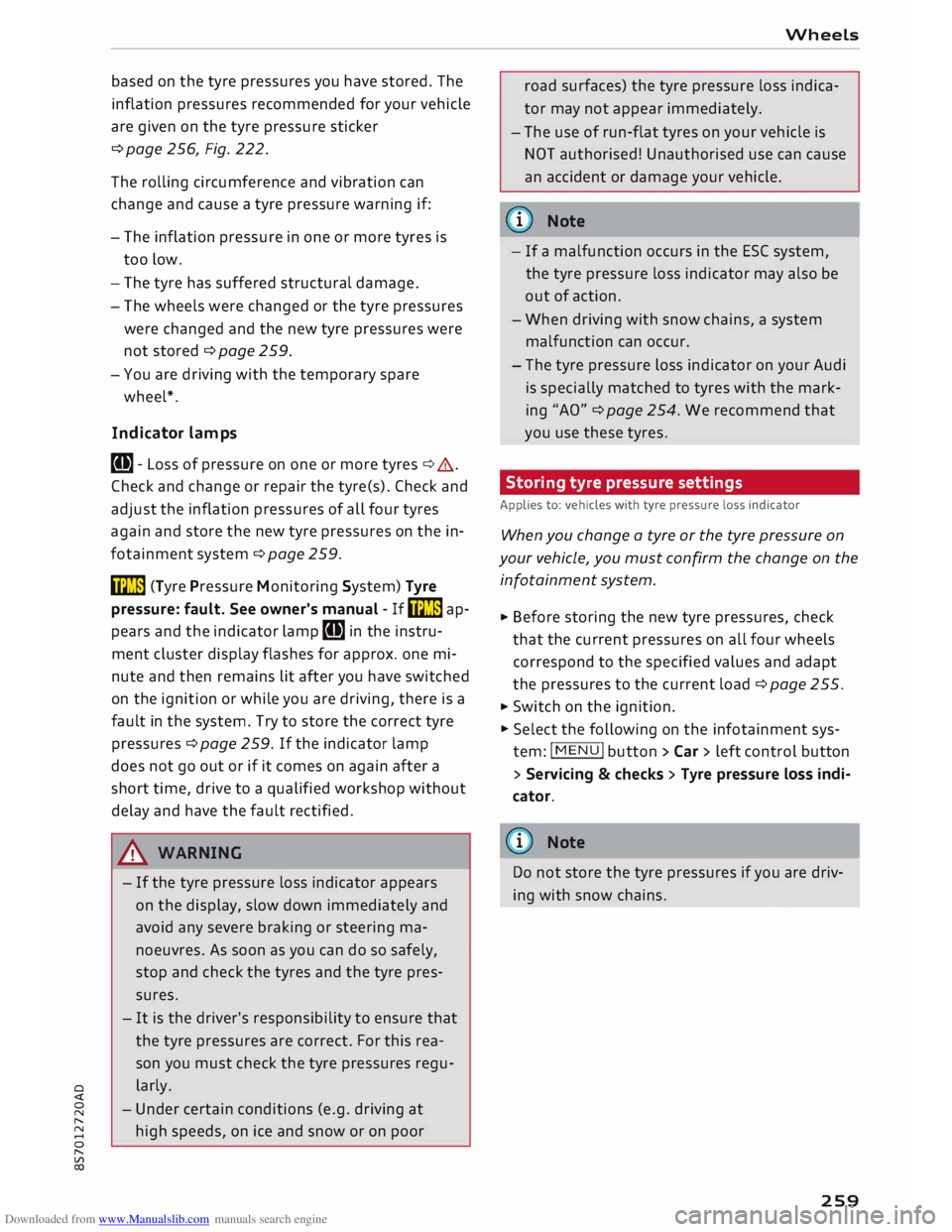

on the tyre pressures you have stored. The
inflation pressures recommended for your vehicle
are given on the tyre pressure sticker
¢page 256, Fig. 222.
The rolling circumference and vibration can
change and cause a tyre pressure warning if:
- The inflation pressure in one or more tyres is
too low.
- The tyre has suffered structural damage.
- The wheels were changed or the tyre pressures
were changed and the new tyre pressures were
not stored ¢ page 259.
- You are driving with the temporary spare
wheel*.
Indicator lamps
RE- Loss of pressure on one or more tyres¢.&,.
Check and change or repair the tyre(s). Check and
adjust the inflation pressures of all four tyres
again and store the new tyre pressures on the in­
fotainment system¢ page 259.
@m (Tyre Pressure Monitoring System) Tyre
pressure: fault. See owner's manual -If @m
ap­
pears and the indicator lamp RE in the instru­
ment cluster display flashes for approx. one mi­
nute and then remains lit after you have switched
on the ignition or while you are driving, there is a
fault in the system. Try to store the correct tyre
pressures ¢ page 259. If the indicator lamp
does not go out or if it comes on again after a
short time, drive to a qualified workshop without
delay and have the fault rectified.
& WARNING
- If the tyre pressure loss indicator appears
on the display, slow down immediately and
avoid any severe braking or steering ma­
noeuvres. As soon as you can do so safely,
stop and check the tyres and the tyre pres­
sures.
- It is the driver's responsibility to ensure that
the tyre pressures are correct. For this rea­
son you must check the tyre pressures regu­
larly.
- Under certain conditions (e.g. driving at
high speeds, on ice and snow or on poor Wheels
road surfaces) the tyre pressure loss indica­
tor may not appear immediately.
- The use of run-flat tyres on your vehicle is
NOT authorised! Unauthorised use can cause
an accident or damage your vehicle.
((D) Note
- If a malfunction occurs in the ESC system,
the tyre pressure loss indicator may also be
out of action.
- When driving with snow chains, a system
malfunction can occur.
- The tyre pressure loss indicator on your Audi
is specially matched to tyres with the mark­
ing "AO"¢ page 254. We recommend that
you use these tyres.
Storing tyre pressure settings
Applies to: vehicles with tyre pressure loss indicator
When you change a tyre or the tyre pressure on
your vehicle, you must confirm the change on the
infotainment system.
.., Before storing the new tyre pressures, check
that the current pressures on all four wheels
correspond to the specified values and adapt
the pressures to the current load ¢ page 255.
.., Switch on the ignition.
.., Select the following on the infotainment sys­
tem: I MENU I button >Car> left control button
> Servicing & checks > Tyre pressure loss indi­
cator.
(D} Note
Do not store the tyre pressures if you are driv­
ing with snow chains.
259

Downloaded from www.Manualslib.com manuals search engine Wheels
Tyre pressure
monitoring system
General notes
Applies to: vehicles with tyre pressure monitoring system
The tyre pressure monitoring system keeps a
check on the tyre pressures of the four road
wheels while you are driving.
The system uses sensors to measure tempera­
tures and pressures in the tyres. The sensors
transmit the data to the control unit by radio.
The tyre pressure monitoring system displays the
current pressures and temperatures of the tyres
on the infotainment system while the vehicle is
moving ¢ page 260. In addition, it compares the
current tyre pressures with the stored tyre pres­
sures and warns you if it detects a discrepancy
¢page 261.
The system cannot check if the stored tyre pres­
sures correspond to the recommended tyre pres­
sures for your vehicle. You must store the new
tyre pressures ¢ page 261:
- after every adjustment to the tyre pressures,
e.g. after changing the laden weight of your ve­
hicle,
- after changing a wheel, or
- when using wheels with new wheel sensors.
.&_ WARNING
- The tyre pressure monitoring system helps
the driver to monitor the tyre pressures.
However, it is always the driver's responsi­
bility to ensure that the tyres are at the cor­
rect pressure.
- Never re-adjust the tyre inflation pressure
when the tyre is hot. This can cause serious
damage to the tyre or even a blow-out,
which could result in an accident.
- Under-inflated tyres flex more than they
should. This causes them to overheat. This
can cause tread separation and tyre blow­
out, which could result in an accident.
- The tyre pressure monitoring system cannot
warn you of tyre damage or defects that
could lead, for example, to a tyre blow-out.
Perform a regular visual check of your tyres.
260 (I))
Note
- The sensors and valves do not have to be de­
tached or changed round when fitting new
tyres. Only the valve core needs to be re­
placed, and if necessary the valve and the
electronic components in the wheel. Please
contact a qualified workshop if you have any
questions.
-After using the tyre repair kit, the tyre pres­
sure monitoring system may malfunction.
Have the sensors renewed by a qualified
workshop.
Displaying tyre pressures and temperatures
Applies to: vehicles with tyre pressure monitoring system
Important: The vehicle must be moving.
.. Select the following on the infotainment sys­
tem: !MENU! button> Servicing & checks >
Tyre pressure loss indicator > Display tyre
pressures.
The current tyre pressures are displayed in green,
yellow or red on the infotainment system:
- Green: The tyre pressure is roughly the same as
the reference value.
- Yellow: The tyre pressure is too low compared
with the reference value.
- Red: The tyre pressure is much too low com-
pared with the reference value.
The reference value is the last stored tyre pres­
sure value ¢ page 261.
Bear in mind that the tyre inflation pressure is al­
so influenced by the temperature of the tyre. The
tyre heats up while the vehicle is being driven
and the tyre pressure will rise accordingly.
.&_ WARNING
Please observe the important safety informa-
tion and notes ¢ page 260.
�

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) (D)

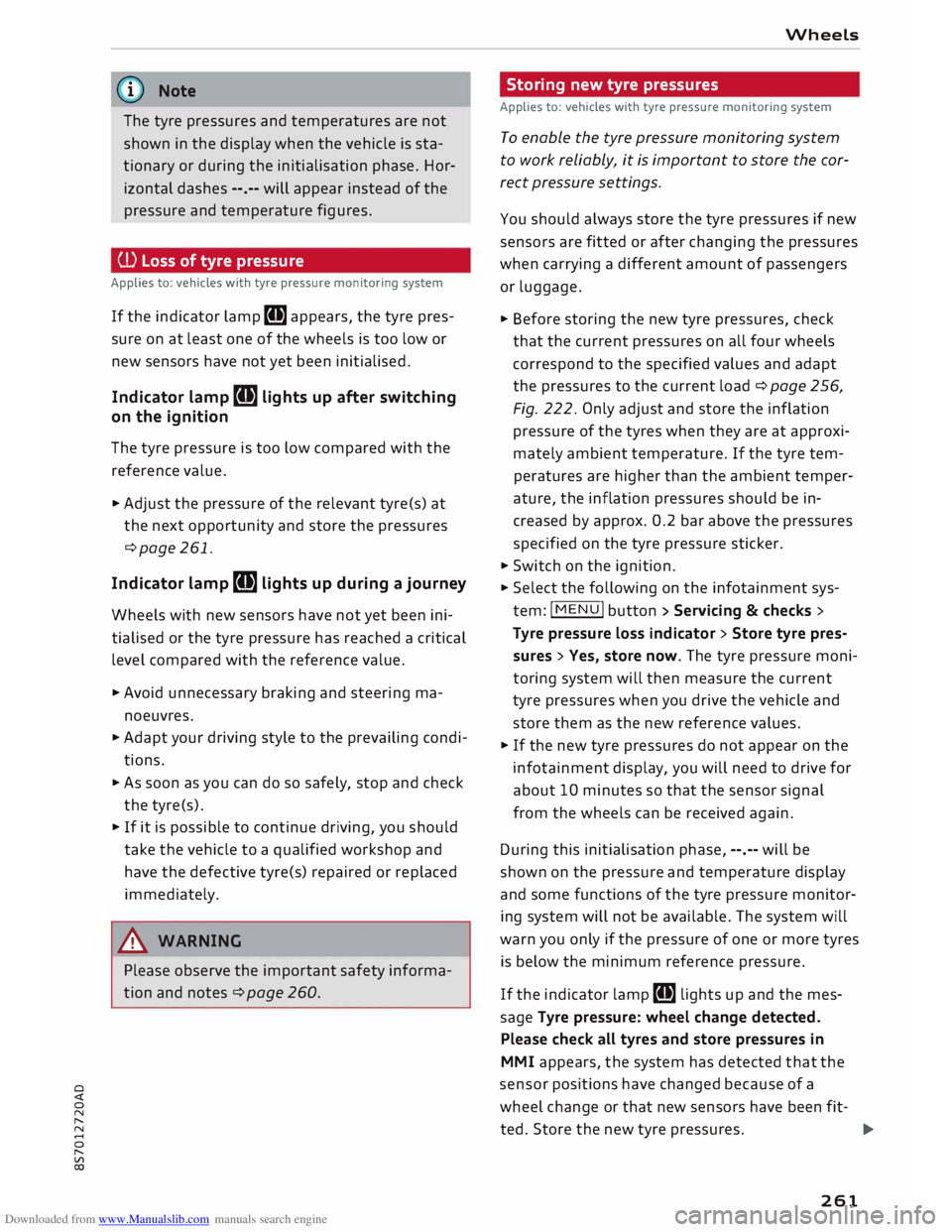

Note
The tyre pressures and temperatures are not
shown in the display when the vehicle is sta­
tionary or during the initialisation phase. Hor­
izontal dashes--.--will appear instead of the
pressure and temperature figures.
(1) Loss of tyre pressure
Applies to: vehicles with tyre pressure monitoring system
If the indicator lamp RE appears, the tyre pres­
sure on at least one of the wheels is too low or
new sensors have not yet been initialised.
Indicator lamp [Bl lights up after switching
on the ignition
The tyre pressure is too low compared with the
reference value.
... Adjust the pressure of the relevant tyre(s) at
the next opportunity and store the pressures
¢page 261.
Indicator lamp [Bl lights up during a journey
Wheels with new sensors have not yet been ini­
tialised or the tyre pressure has reached a critical
level compared with the reference value.
... Avoid unnecessary braking and steering ma­
noeuvres.
... Adapt your driving style to the prevailing condi­
tions.
... As soon as you can do so safely, stop and check
the tyre(s).
... If it is possible to continue driving, you should
take the vehicle to a qualified workshop and
have the defective tyre(s) repaired or replaced
immediately.
A WARNING
Please observe the important safety informa­
tion and notes ¢page 260. Wheels
Storing new tyre pressures
Applies to: vehicles with tyre pressure monitoring system
To enable the tyre pressure monitoring system
to work reliably, it is important to store the cor­
rect pressure settings.
You should always store the tyre pressures if new
sensors are fitted or after changing the pressures
when carrying a different amount of passengers
or luggage.
... Before storing the new tyre pressures, check
that the current pressures on all four wheels
correspond to the specified values and adapt
the pressures to the current load ¢ page 256,
Fig. 222. Only adjust and store the inflation
pressure of the tyres when they are at approxi­
mately ambient temperature. If the tyre tem­
peratures are higher than the ambient temper­
ature, the inflation pressures should be in­
creased by approx. 0.2 bar above the pressures
specified on the tyre pressure sticker.
... Switch on the ignition.
... Select the following on the infotainment sys­
tem: I MENU I button > Servicing & checks >
Tyre pressure loss indicator > Store tyre pres­
sures > Yes, store now. The tyre pressure moni­
toring system will then measure the current
tyre pressures when you drive the vehicle and
store them as the new reference values .
... If the new tyre pressures do not appear on the
infotainment display, you will need to drive for
about 10 minutes so that the sensor signal
from the wheels can be received again .
During this initialisation phase,--.--will be
shown on the pressure and temperature display
and some functions of the tyre pressure monitor­
ing system will not be available. The system will
warn you only if the pressure of one or more tyres
is below the minimum reference pressure.
If the indicator lamp RE lights up and the mes­
sage Tyre pressure: wheel change detected.
Please check all tyres and store pressures in
MMI appears, the system has detected that the
sensor positions have changed because of a
wheel change or that new sensors have been fit-
ted. Store the new tyre pressures.
llll-
261

Downloaded from www.Manualslib.com manuals search engine Wheels

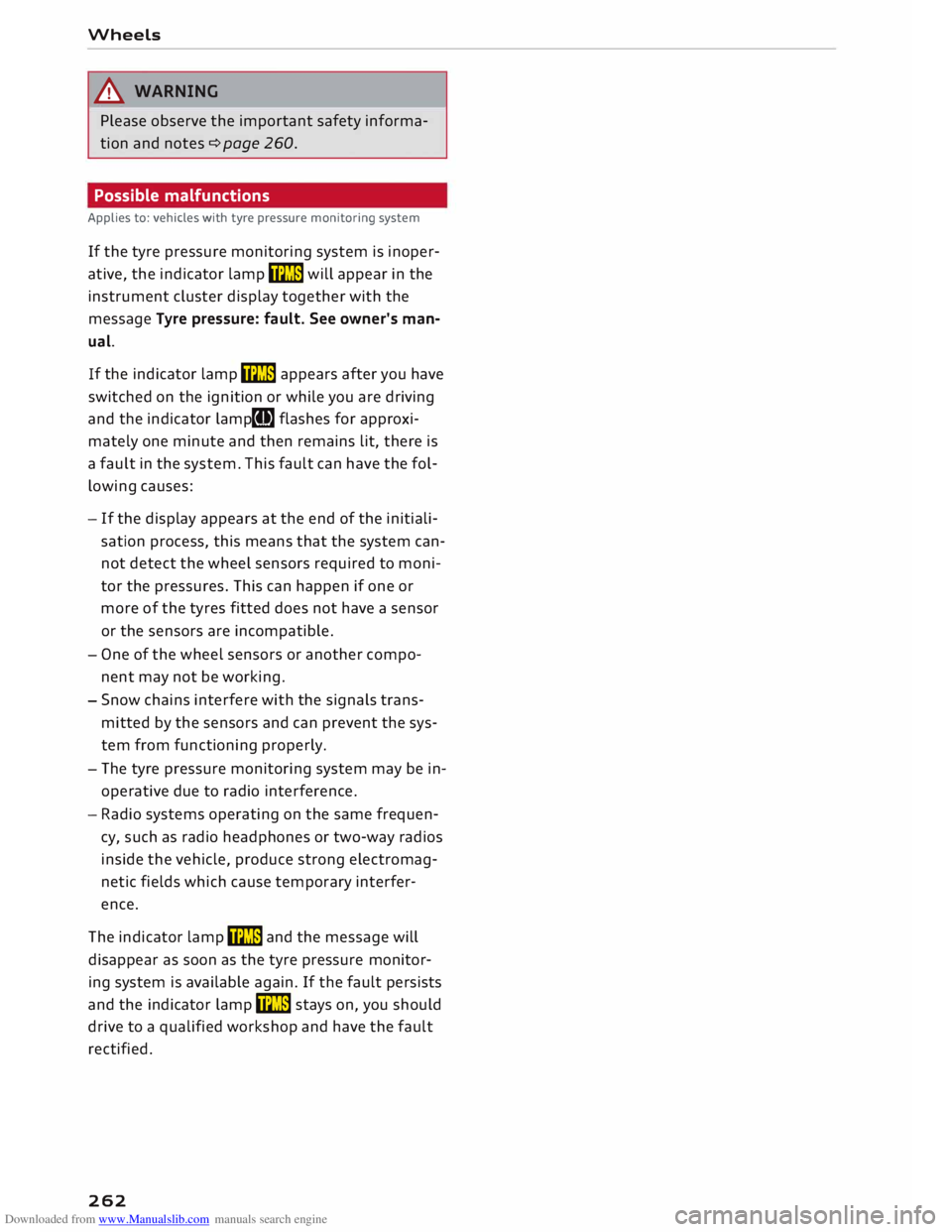

A WARNING
Please observe the important safety informa­
tion and notes <=> page 260.
Possible malfunctions
Applies to: vehicles with tyre pressure monitoring system
If the tyre pressure monitoring system is inoper­
ative, the indicator lamp mm will appear in the
instrument cluster display together with the
message Tyre pressure: fault. See owner's man­
ual.
If the indicator lamp mm appears after you have
switched on the ignition or while you are driving
and the indicator lamp[I] flashes for approxi­
mately one minute and then remains lit, there is
a fault in the system. This fault can have the fol­
lowing causes:
- If the display appears at the end of the initiali­
sation process, this means that the system can­
not detect the wheel sensors required to moni­
tor the pressures. This can happen if one or
more of the tyres fitted does not have a sensor
or the sensors are incompatible.
- One of the wheel sensors or another compo­
nent may not be working.
- Snow chains interfere with the signals trans­
mitted by the sensors and can prevent the sys­
tem from functioning properly.
- The tyre pressure monitoring system may be in­
operative due to radio interference.
- Radio systems operating on the same frequen­
cy, such as radio headphones or two-way radios
inside the vehicle, produce strong electromag­
netic fields which cause temporary interfer­
ence.
The indicator lamp mm and the message will
disappear as soon as the tyre pressure monitor­
ing system is available again. If the fault persists
and the indicator lamp mm stays on, you should
drive to a qualified workshop and have the fault
rectified.
262

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Care
of vehicle and
cleaning
General notes
Regular and careful care helps to maintain the
value of the vehicle. This may also be one of the
requirements for upholding any warranty claims
in the event of corrosion or paint defects.
Qualified workshops carry stocks of suitable car
care materials. Please follow the instructions for
use on the packaging.
A WARNING
- Cleaning products and other materials used
for car care can damage health if misused.
- Car care products can contain toxic substan­
ces and must always be kept in a safe place
out of reach of children.
@ For the sake of the environment
- Please choose care products that are not
harmful to the environment.
- Surplus cleaning materials should not be
disposed of together with ordinary house­
hold waste.
Washing the vehicle
The longer residues are allowed to remain on the
vehicle, the more damage they can do to the
paintwork. High temperatures (for instance in di­
rect sunlight) further intensify the damage.
Before washing, soak heavy dirt with plenty of
water.
Stubborn dirt, such as bird droppings or resinous
tree sap, is best removed with plenty of water
and a micro-fibre cloth.
After the period when salt is put on the roads,
have the underside of the vehicle washed thor­
oughly.
High-pressure cleaners
When cleaning the vehicle with a high-pressure
cleaner, always follow the operating instructions
for the equipment. This applies particularly to Care
of vehicle and cleaning
the operating pressure and the spraying dis­
tance. Do not point the spray jet directly at the
seals on the windows, doors, bonnet or boot lid,
or at the tyres, rubber hoses, insulating material,
sensors* or camera lenses*. Maintain a distance
of at least 40 cm.
Do not use a high-pressure cleaner to remove
snow and ice.
Never use high-pressure cleaners with a round­
jet nozzle or "dirt blasters".
The water must not be hotter than 60 °C.
Automatic car washes
Spray the vehicle with water before washing.
Ensure that the windows are closed and that the
windscreen wipers are switched off. Follow the
car wash operator's rules and recommendations,
especially if any accessories are attached to your
vehicle.
If possible use a brush less car wash.
Washing by hand
Clean the car with a soft sponge or brush, start­
ing on the roof and working down. Use solvent­
free cleaning agents.
Washing matt-painted vehicles by hand
To avoid damaging the paintwork when washing
the car, first remove any dust, sand and grit. In­
sects, grease stains and fingerprints are best re­
moved using a special cleaning agent for matt­
painted surfaces.
Apply the product with a micro-fibre cloth. Do
not apply too much pressure to avoid damaging
the paintwork.
Rinse the car thoroughly with water. Then clean
the car with a neutral shampoo and a soft micro­
fibre cloth.
Rinse the car with Lots of water again and then
let it dry in the air. Remove any water stains with
a chamois.
263

Downloaded from www.Manualslib.com manuals search engine Care
of vehicle and cleaning

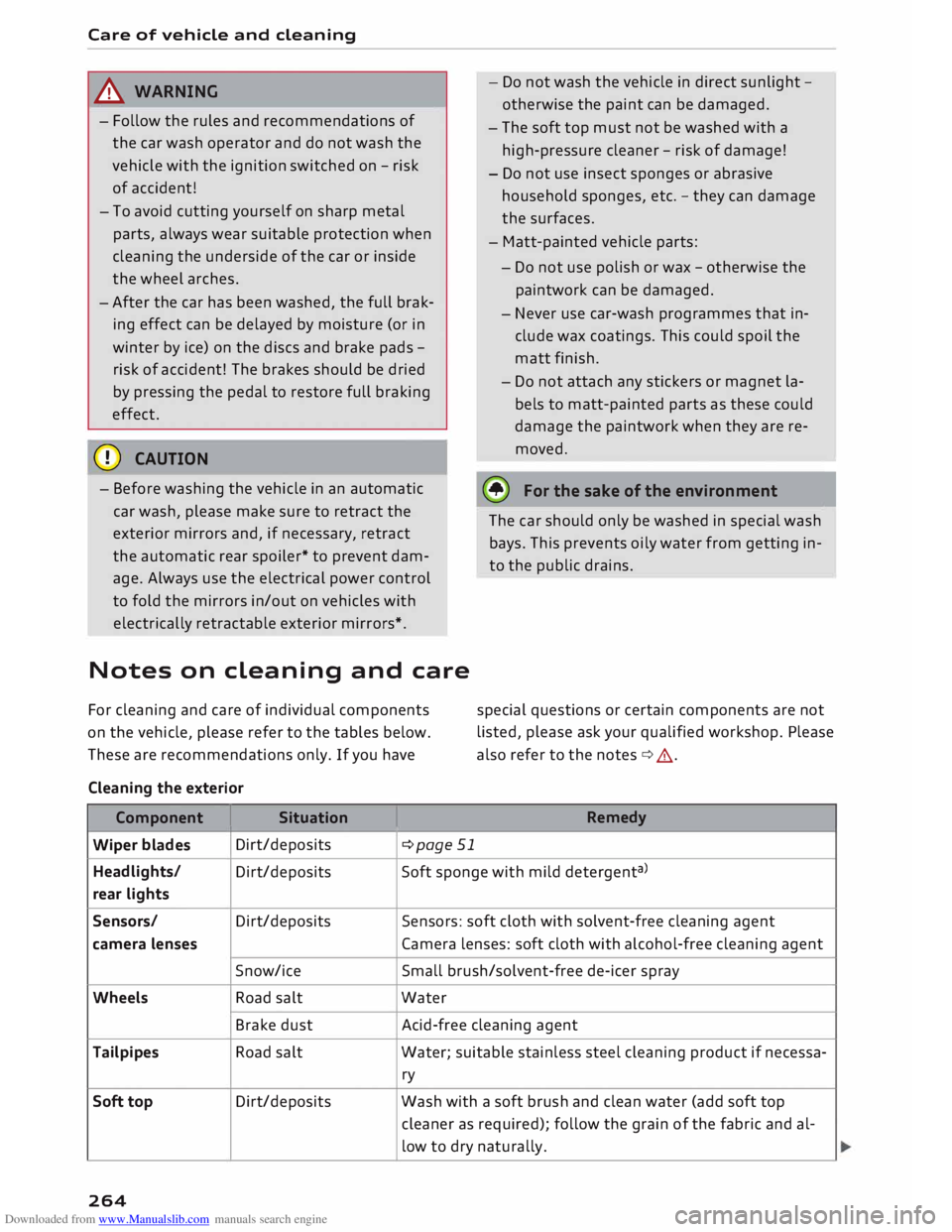

.&_ WARNING
- Follow the rules and recommendations of
the car wash operator and do not wash the
vehicle with the ignition switched on -risk
of accident!
- To avoid cutting yourself on sharp metal
parts, always wear suitable protection when
cleaning the underside of the car or inside
the wheel arches.
-After the car has been washed, the full brak­
ing effect can be delayed by moisture (or in
winter by ice) on the discs and brake pads -
risk of accident! The brakes should be dried
by pressing the pedal to restore full braking
effect.
CD CAUTION
- Before washing the vehicle in an automatic
car wash, please make sure to retract the
exterior mirrors and, if necessary, retract
the automatic rear spoiler* to prevent dam­
age. Always use the electrical power control
to fold the mirrors in/out on vehicles with
electrically retractable exterior mirrors*.-
Notes on cleaning and care
For cleaning and care of individual components
on the vehicle, please refer to the tables below.
These are recommendations only. If you have
Cleaning the exterior
Component I Situation
Wiper blades Dirt/deposits
¢page 51 -
Do not wash the vehicle in direct sunlight -
otherwise the paint can be damaged.
- The soft top must not be washed with a
high-pressure cleaner -risk of damage!
- Do not use insect sponges or abrasive
household sponges, etc. -they can damage
the surfaces.
- Matt-painted vehicle parts:
- Do not use polish or wax -otherwise the
paintwork can be damaged.
- Never use car-wash programmes that in­
clude wax coatings. This could spoil the
matt finish.
- Do not attach any stickers or magnet la­
bels to matt-painted parts as these could
damage the paintwork when they are re­
moved.
@ For
the sake of the environment
The car should only be washed in special wash
bays. This prevents oily water from getting in­
to the public drains.
special questions or certain components are not
listed, please ask your qualified workshop. Please
also refer to the notes ¢,&.
Remedy
Headlights/ Dirt/deposits Soft
sponge with mild detergent a
>
rear lights
Sensors/ Dirt/deposits Sensors:
soft cloth with solvent-free cleaning agent
camera lenses Camera lenses: soft cloth with alcohol-free cleaning agent
Snow/ice Small brush/solvent-free de-icer spray
Wheels Road salt Water
Brake dust Acid-free
cleaning agent
Tailpipes Road salt Water;
suitable stainless steel cleaning product if necessa-
ry
Soft top Dirt/deposits
Wash with a soft brush and clean water (add soft top
cleaner as required); follow the grain of the fabric and al-
low to dry naturally.
264

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) Care
of vehicle and cleaning

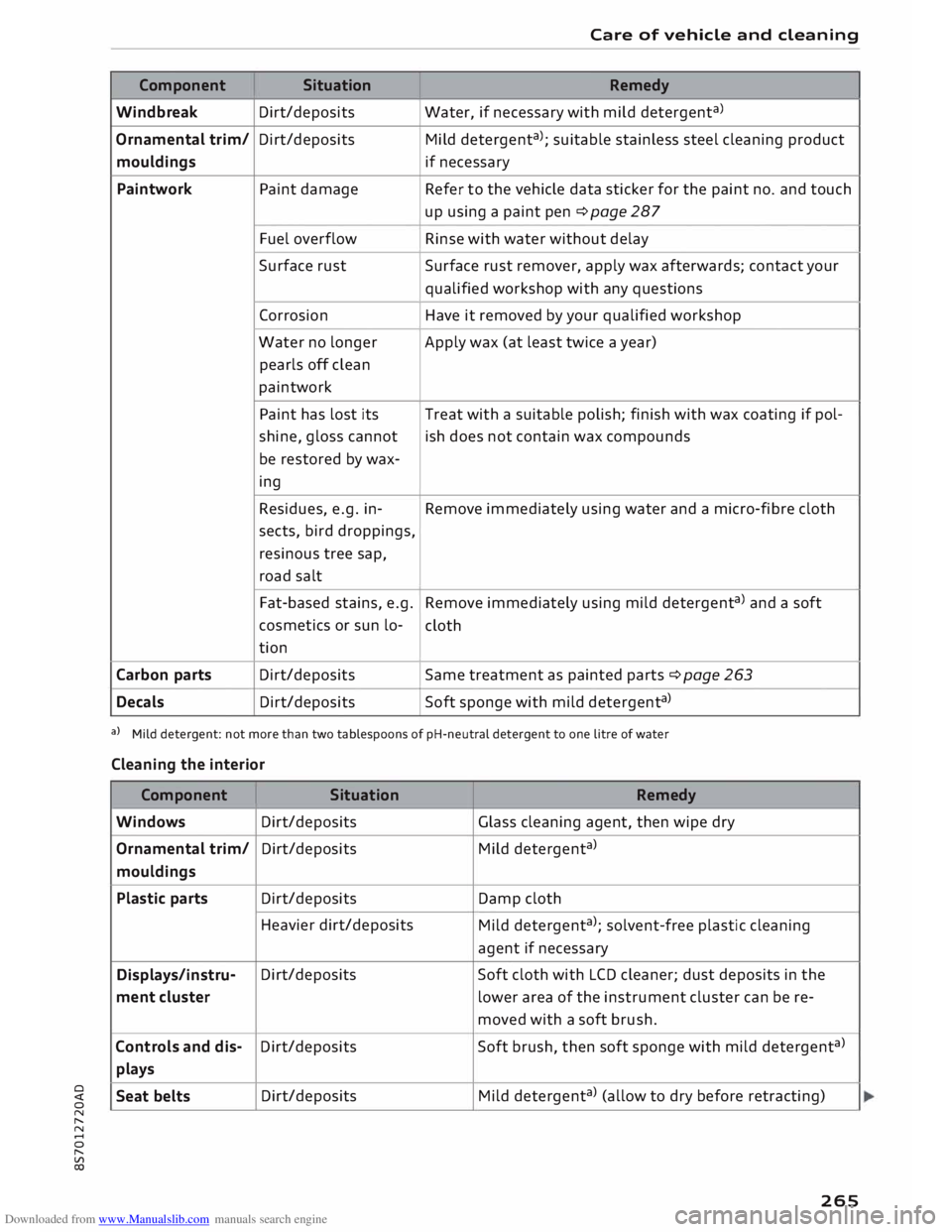

Component Situation Remedy
Windbreak Dirt/deposits Water,
if necessary with mild detergent a
>
Ornamental trim/ Dirt/deposits
Mild detergent a
>; suitable stainless steel cleaning product
mouldings if necessary
Paintwork Paint damage Refer to
the vehicle data sticker for the paint no. and touch
up using a paint pen � page 287
Fuel overflow
Rinse with water without delay
Surface rust
Surface rust remover, apply wax afterwards; contact your
qualified workshop with any questions
Corrosion Have it removed by your qualified workshop
Water no longer
Apply wax (at least twice a year)
pearls off clean
paintwork
Paint has lost its Treat
with a suitable polish; finish with wax coating if pol-
shine, gloss cannot ish does not contain wax compounds
be restored by wax-
ing
Residues, e.g. in- Remove immediately using water and a micro-fibre cloth
sects, bird droppings,
resinous tree sap,
road salt
Fat-based stains, e.g.
Remove immediately using mild detergent a
> and a soft
cosmetics or sun lo-
cloth
tion
Carbon parts Dirt/deposits
Same treatment as painted parts �page 263
Decals Dirt/deposits Soft
sponge with mild detergent a
>
al Mild detergent: not more than two tablespoons of pH-neutral detergent to one litre of water
Cleaning the interior
Component Situation Remedy
Windows Dirt/deposits Glass
cleaning agent, then wipe dry
Ornamental trim/ Dirt/deposits
Mild detergent a
>
mouldings
Plastic parts Dirt/deposits Damp
cloth
Heavier dirt/deposits
Mild detergent a
>
; solvent-free plastic cleaning
agent if necessary
Displays/instru- Dirt/deposits
Soft cloth with LCD cleaner; dust deposits in the
ment cluster lower
area of the instrument cluster can be re-
moved with a soft brush.
Controls and dis- Dirt/deposits
Soft brush, then soft sponge with mild detergent a
>
plays
Seat belts Dirt/deposits
Mild
detergent a
>
(allow to dry before retracting)
265

Downloaded from www.Manualslib.com manuals search engine Care
of vehicle and cleaning

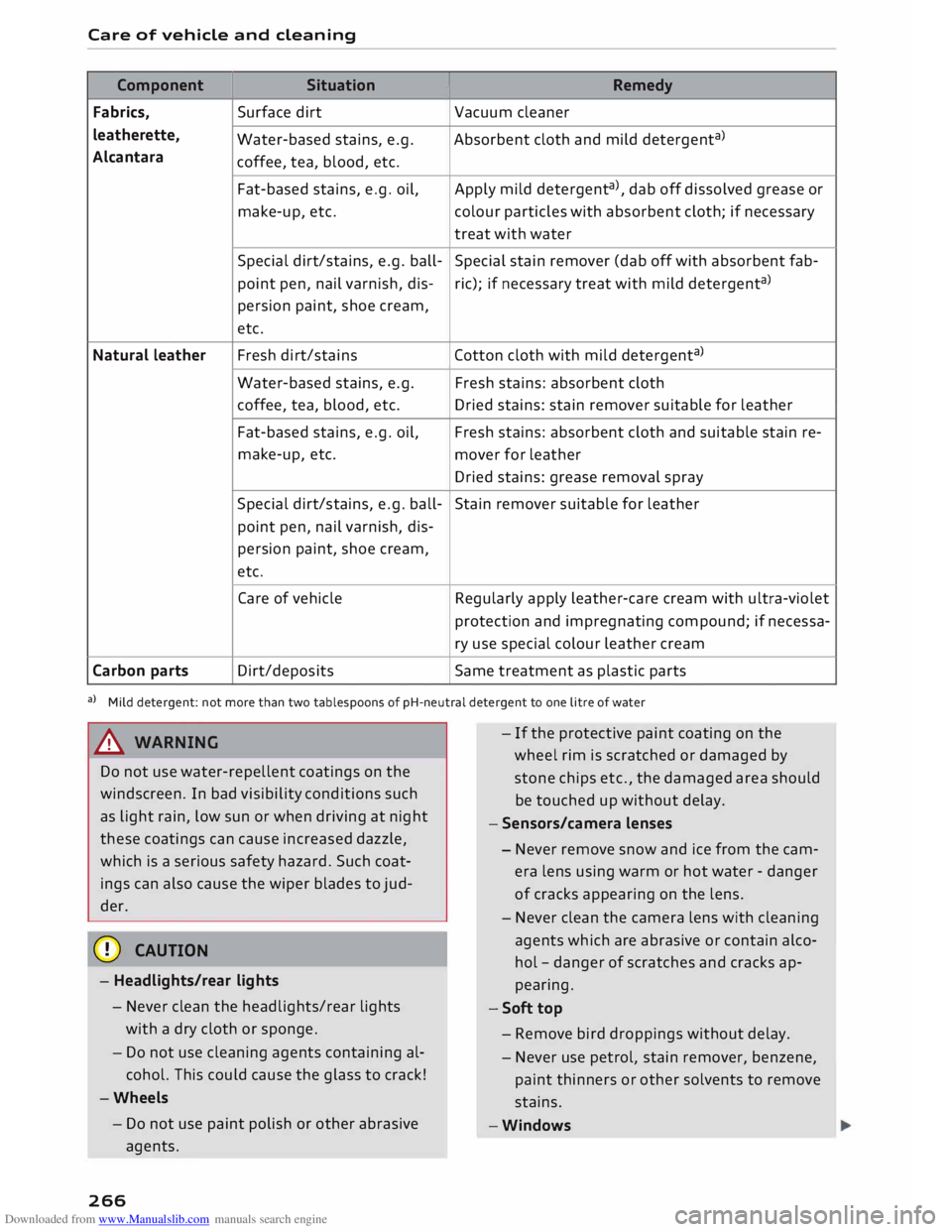

Component Situation I
Remedy
Fabrics, Surface
dirt Vacuum
cleaner
leatherette, Water-based stains, e.g. Absorbent cloth and mild detergent a
>
Alcantara coffee, tea, blood, etc.
Fat-based stains, e.g. oil,
Apply mild detergent a
>, dab off dissolved grease or
make-up, etc. colour particles
with absorbent cloth; if necessary
treat with water
Special dirt/stains, e.g. ball- Special stain remover (dab off with absorbent fab-
point pen, nail varnish, dis-ric);
if necessary treat with mild detergent a
>
persion paint, shoe cream,
etc.
Natural leather Fresh
dirt/stains Cotton cloth with mild detergent a
>
Water-based stains, e.g. Fresh
stains: absorbent cloth
coffee, tea, blood, etc. Dried
stains: stain remover suitable for leather
Fat-based stains, e.g. oil, Fresh stains: absorbent cloth and suitable stain re-
make-up, etc. mover for leather
Dried stains: grease removal spray
Special dirt/stains, e.g. ball- Stain remover suitable for leather
point pen, nail varnish, dis-
persion paint, shoe cream,
etc.
Care of vehicle Regularly apply leather-care cream with ultra-violet
protection and impregnating compound; if necessa-
ry use special colour leather cream
Carbon parts Dirt/deposits
Same treatment as plastic parts
al Mild detergent: not more than two tablespoons of pH-neutral detergent to one litre of water
.&_ WARNING
Do not use water-repellent coatings on the
windscreen. In bad visibility conditions such
as light rain, low sun or when driving at night
these coatings can cause increased dazzle,
which is a serious safety hazard. Such coat­
ings can also cause the wiper blades to jud­
der.
CD CAUTION
- Headlights/rear lights
- Never clean the headlights/rear lights
with a dry cloth or sponge.
- Do not use cleaning agents containing al­
cohol. This could cause the glass to crack!
-Wheels
- Do not use paint polish or other abrasive
agents.
266 -
If the protective paint coating on the
wheel rim is scratched or damaged by
stone chips etc., the damaged
area
should
be touched up without delay.
- Sensors/camera lenses
- Never remove snow and ice from the cam-
era lens using warm or hot water -danger
of cracks appearing on the lens.
- Never clean the camera lens with cleaning
agents which are abrasive or contain alco­
hol -danger of scratches and cracks ap­
pearing.
- Soft top
- Remove bird droppings without delay.
- Never use petrol, stain remover, benzene,
paint thinners or other solvents to remove
stains.
-
Windows

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) -
Remove snow and ice from windows and
exterior mirrors with a plastic scraper on­
ly. To avoid scratches, the scraper should
only be pushed in one direction and not
moved to and fro.
- Never use warm or hot water to remove
snow and ice from windows and mirrors.
This could cause the glass to crack!
- To avoid damaging the heating element,
do not put stickers on the inner side of the
rear window.
- Ornamental trim/mouldings
- Do not use chrome cleaning agents.
- Paintwork
- The vehicle must be free of dirt and dust
before applying polish/wax -otherwise
the paintwork may be damaged.
- Do not polish/wax the vehicle in direct
sunlight -this can damage the paint!
- Do not attempt to polish out surface rust
deposits -this can damage the paint!
- Remove cosmetics and sun lotion immedi­
ately -otherwise the paintwork may be
damaged.
- Instrument cluster
- Before cleaning, ensure that the instru-
ment cluster is switched off and cool.
- The instrument cluster and the surround­
ing trim must not be cleaned with a dry
cloth -this can scratch the surfaces!
- Do not let any liquid get between the in­
strument cluster and the trim -risk of
damage!
- Control consoles
- Do not let any liquid get inside the control
consoles -risk of damage!
-Seat belts
- Do not remove the seat belts to clean
them.
- Do not use chemical cleaning agents, cor­
rosive liquids, solvents or sharp instru­
ments to clean the seat belts or their com­
ponents -this can damage the belt web­
bing!
- If you find any damage to the belt web­
bing, the belt fittings, the belt retractor or Care
of vehicle and cleaning
the buckle, have the belt in question re­
placed by a qualified workshop.
- Fabrics/leatherette/ Alcantara
- Do not use leather care products, sol-
vents, wax polish, shoe cream, stain re­
movers, or any similar products on leath­
erette/ Alcantara fabrics.
- To avoid damage, stubborn stains should
be removed by a qualified workshop.
- Never use steam cleaners, brushes, hard
sponges or similar utensils.
- Do not use the seat heating* to dry the
seats.
- Sharp-edged objects on clothing, such as
zip fasteners, rivets or belts, can also
damage the surface of the fabric.
- Please make sure you close any velcro fas­
teners, e.g. on your clothing, as these
could otherwise damage the upholstery.
- Natural leather
- Do not use solvents, wax polish, shoe
cream, stain removers, or any similar
products on leather fabrics.
- Sharp-edged objects on clothing, such as
zip fasteners, rivets or belts, can also
damage the surface of the fabric.
- Never use steam cleaners, brushes, hard
sponges or similar utensils.
- Do not use the seat heating* to dry the
seats.
- Avoid exposing leather to direct sunlight
for long periods, otherwise it may tend to
lose some of its colour. If the car is left for
a prolonged period in the bright sun, it is
best to cover the leather.
@ Note
- It is much easier to remove dead insects if
the car has been waxed recently.
- Regular waxing can help protect against
surface rust.
267

Downloaded from www.Manualslib.com manuals search engine Care
of vehicle and cleaning

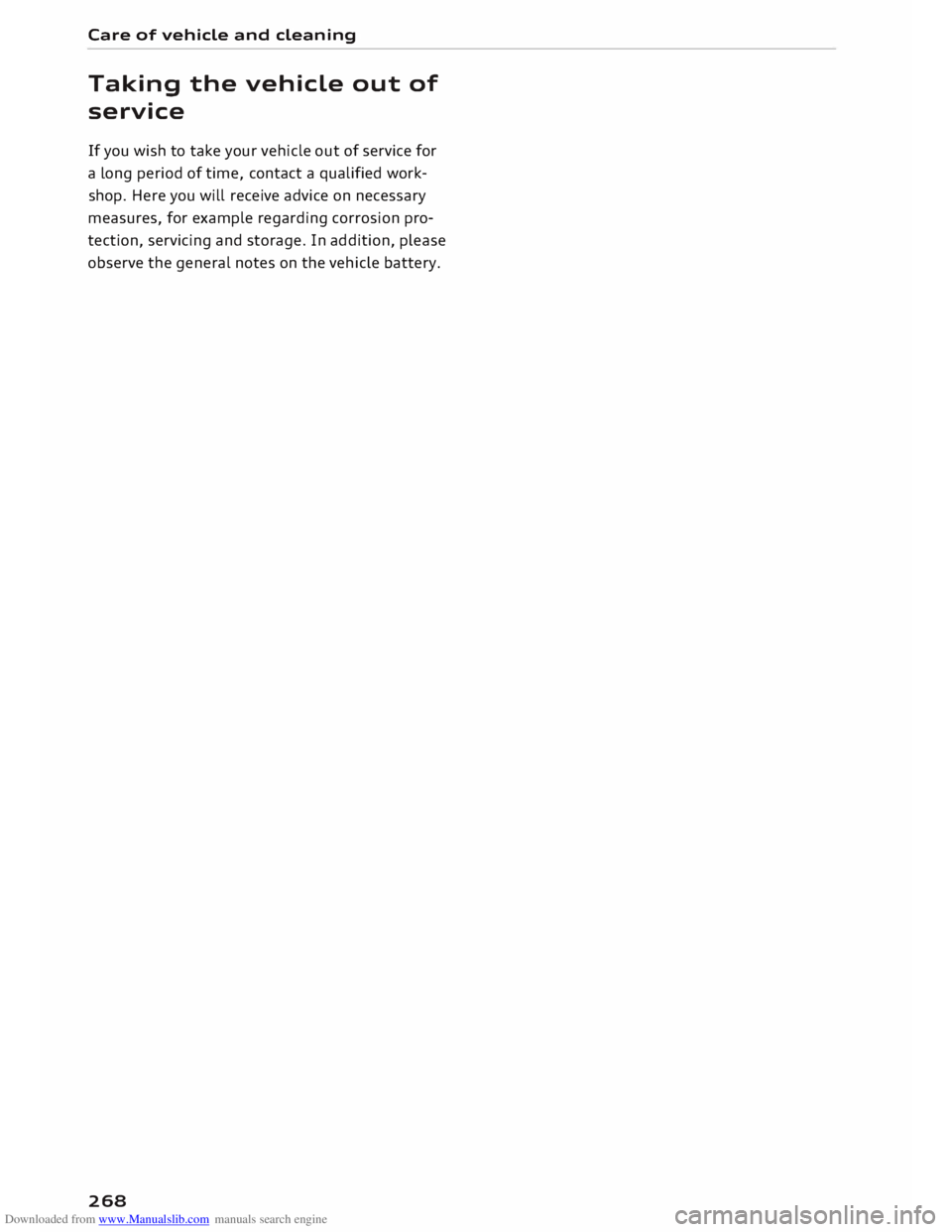

Taking the vehicle out of
service
If you wish to take your vehicle out of service for
a Long period of time, contact a qualified work­
shop. Here you will receive advice on necessary
measures, for example regarding corrosion pro­
tection, servicing and storage. In addition, please
observe the general notes on the vehicle battery.
268
