General information and controls
1
1Case, right (b32) with
–CD changerOE (b Supple-
mentary Rider's Manual)
2 Controls for audio system
for passenger
OE (b Supple-
mentary Rider's Manual)
3 Brake-fluid reservoir, rear
brakes (
b52)
4 Fuse box (
b Maintenance
Instructions, Chapter 2) 5
Brake-fluid reservoir, front
brakes (
b52)
6 Fin, manually adjustable
(
b17)
7 Windscreen, electrically
adjustable
8 Engine oil filler neck (
b43)
9 Oil level sight glass, engine
(
b43)
( ) Number in parentheses
bpage number for description
OEOptional extra
General view, right side
213468975
10LTbkg6.book Seite 6 Freitag, 1. Juli 2005 8:53 08

24
General information and controls
1
Cruise controlOE
Decelerating Press and hold down button2
in RES direction (arrow)
– The motorcycle decelerates steadily, even though you do
not manually close the throttle
L Note:
Each time you push the button
in the RES direction, road
speed decreases by a further
approx. 2 km/h (1 mph).
Deactivating the system Move switch 1 to OFF
– The cruise control system switches off immediately
– Red telltale light and
yellow telltale light for
cruise control (
b11) OFF 6Temporary override
When you actuate the:
–brakes
–clutch
– throttle twistgrip (close the throttle)
the cruise control system is
briefly switched off
– Yellow telltale light for
cruise control (
b11) OFF
– Red telltale light ON
 Push button 2 in the RES
direction
– The motorcycle returns to and maintains the cruising speed
stored in memory
– Telltale light, cruise control
yellow (
b11) ON.
OEOptional extra
1
2
10LTbkg6.book Seite 24 Freitag, 1. Juli 2005 8:53 08

22
41
Safety check
Checklist
Use the safety checklist –
before every journey
Please perform the safety
check accurately. If your motor-
cycle needs any routine mainte-
nance, you can then attend to it
before the journey starts
(
bMaintenance Instructions),
or have it carried out by a spe-
cialist workshop, preferably an
authorised BMW motorcycle
dealer. This is to ensure that
your motorcycle complies with
road-vehicle use and safety
laws.
Your vehicle must be in perfect
technical order: this is a basic
prerequisite for your safety and
the safety of other road users. For this reason, check the
details in the following sections
before you start the journey:
– Fuel level
– Positions of the handlebar
levers
–Brake fluid level
– Clutch fluid level
–Brakes
– Warning lights and telltale lights
– Spring preload
– Wheel rim and tyre condition, tread depth and tyre pres-
sures
– Load, gross weight
–Lights
– Coolant level
– Check regularly (every time you stop for fuel), on the basis
of the following section:
– Engine oil level
(every second/third stop for
fuel)
– Brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
motorcycle dealer.
He will provide the necessary
advice and assistance.
10LTbkg6.book Seite 41 Freitag, 1. Juli 2005 8:53 08

48
Safety check
2
Brake system - general
Work on the brake system
d Warning:
To ensure reliability have all
work on the brake systems
carried out by a specialist
workshop, preferably an au-
thorised BMW motorcycle
dealer.
Brake system, checking
d Warning:
Sudden changes in play or
spongy action of the brake le-
ver indicate a fault in the
brake system.
Before riding off, therefore,
always check the resistance
of the front and rear brake le-
vers and test operation of the
brakes.
Do not ride the motorcycle if
you have any doubts about
the safety of the brake sys-
tem.
Immediately seek the advice
of a specialist workshop,
preferably an authorised
BMW motorcycle dealer.
10LTbkg6.book Seite 48 Freitag, 1. Juli 2005 8:53 08

22
51
Safety check
Brake system - with BMW Integral ABS
RESIDUAL BRAKING
FUNCTION
d Warning:
When the ignition is switched
off, before and during self-
diagnosis (
b88), or if the
BMW Integral ABS fails, only a
RESIDUAL BRAKING FUNC-
TION (
b87) remains available
for slowing the motorcycle.
When the RESIDUAL BRAK-
ING FUNCTION is active, you
must apply CONSIDERABLY
higher pressure to the brake
levers in question in order to
apply the brakes, and lever
travel is longer.
When the RESIDUAL BRAK-
ING FUNCTION is active, the
ABS function is unavailable in
the brake systems in ques-
tion.
d Warning:
When the RESIDUAL BRAK-
ING FUNCTION is active,
maintain a defensive riding
style and proceed immediate-
ly to the nearest specialist
workshop, preferably an au-
thorised BMW motorcycle
dealer.
L Note:
When the RESIDUAL BRAKING
FUNCTION for the front brake is
active, it is advisable to set ad-
juster A (
b47) of the hand-
brake lever to position 4.
10LTbkg6.book Seite 51 Freitag, 1. Juli 2005 8:53 08

62
Safety check
2
Lights
Checking lights
e Attention:
Check that all lights are opera-
tional at the start of each jour-
ney.
L Note:
If turn indicator repeater flashes
at twice the usual speed:
A turn indicator bulb is defec-
tive.
For instructions on changing
bulbs in parking light, headlight
(low beam and high beam), rear
light, brake light and turn indi-
cators:
(
bMaintenance Instructions,
Chapter 2).
Rear lightGeneral warning light 1 (b78)
ON:
Brake light or rear light defec-
tive. If the rear light is defective
the brake light is dimmed and
acts as a rear light. When you
apply the brakes the brake light
shines at full brightness.
Adjusting beam throw
e Attention:
Do not attempt to adjust head-
light beam throw to suit load
unless the motorcycle is at a
standstill
Have the headlight basic set-
ting adjusted by a specialist
workshop, preferably an
authorised BMW motorcycle
dealer.
1
10LTbkg6.book Seite 62 Freitag, 1. Juli 2005 8:53 08

66
Starting – Riding – Parking
3
Important notes
Risk of fatal accidentYour motorcycle is equipped
with a digital electronic engine
management system and a
high-power ignition system.
d Warning:
When the engine is running or
the ignition switched on, nev-
er touch electrically live parts
of the ignition system or the
digital engine electronics.
BMW Integral ABS
d Warning:
When the ignition is switched
off or if the BMW Integral ABS
fails, only a RESIDUAL BRAK-
ING FUNCTION remains avail-
able for slowing the
motorcycle (
b87).
Under these circumstances
you must apply CONSIDERA-
BLY higher pressure to the
brake levers in order to apply
the brakes, and lever travel is
longer
Risk of poisoningExhaust fumes contain carbon
monoxide, which is colourless
and odourless but highly toxic.
d Warning:
Inhaling the exhaust fumes
therefore represents a health
hazard and can even cause
loss of consciousness with
fatal consequences.
Do not run the engine in an
enclosed space.
10LTbkg6.book Seite 66 Freitag, 1. Juli 2005 8:53 08

82
Starting – Riding – Parking
3
Brake system - general

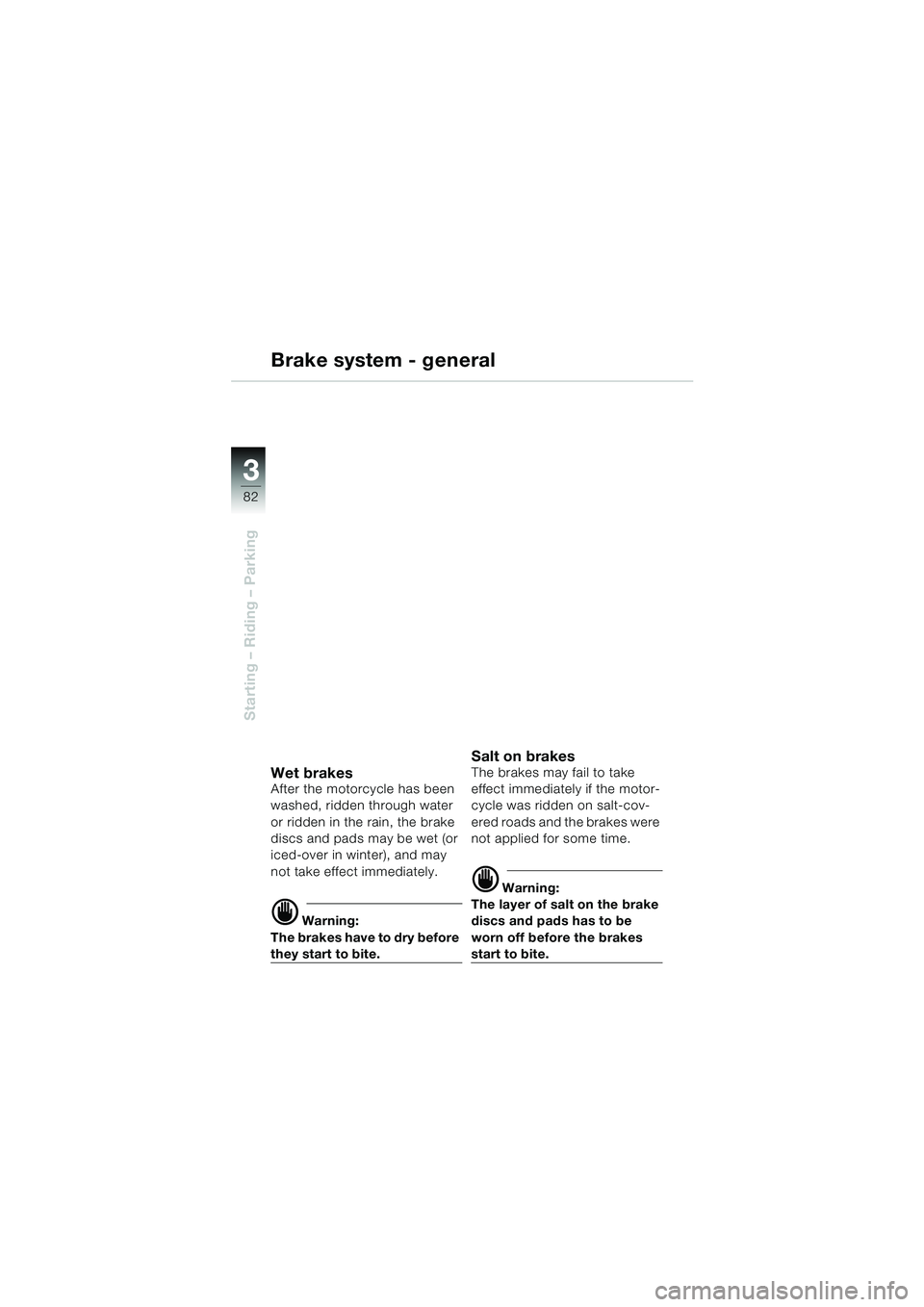

Wet brakesAfter the motorcycle has been
washed, ridden through water
or ridden in the rain, the brake
discs and pads may be wet (or
iced-over in winter), and may
not take effect immediately.
d Warning:
The brakes have to dry before
they start to bite.
Salt on brakesThe brakes may fail to take
effect immediately if the motor-
cycle was ridden on salt-cov-
ered roads and the brakes were
not applied for some time.
d Warning:
The layer of salt on the brake
discs and pads has to be
worn off before the brakes
start to bite.
10LTbkg6.book Seite 82 Freitag, 1. Juli 2005 8:53 08

3
83
Starting – Riding – Parking
Brake system - general

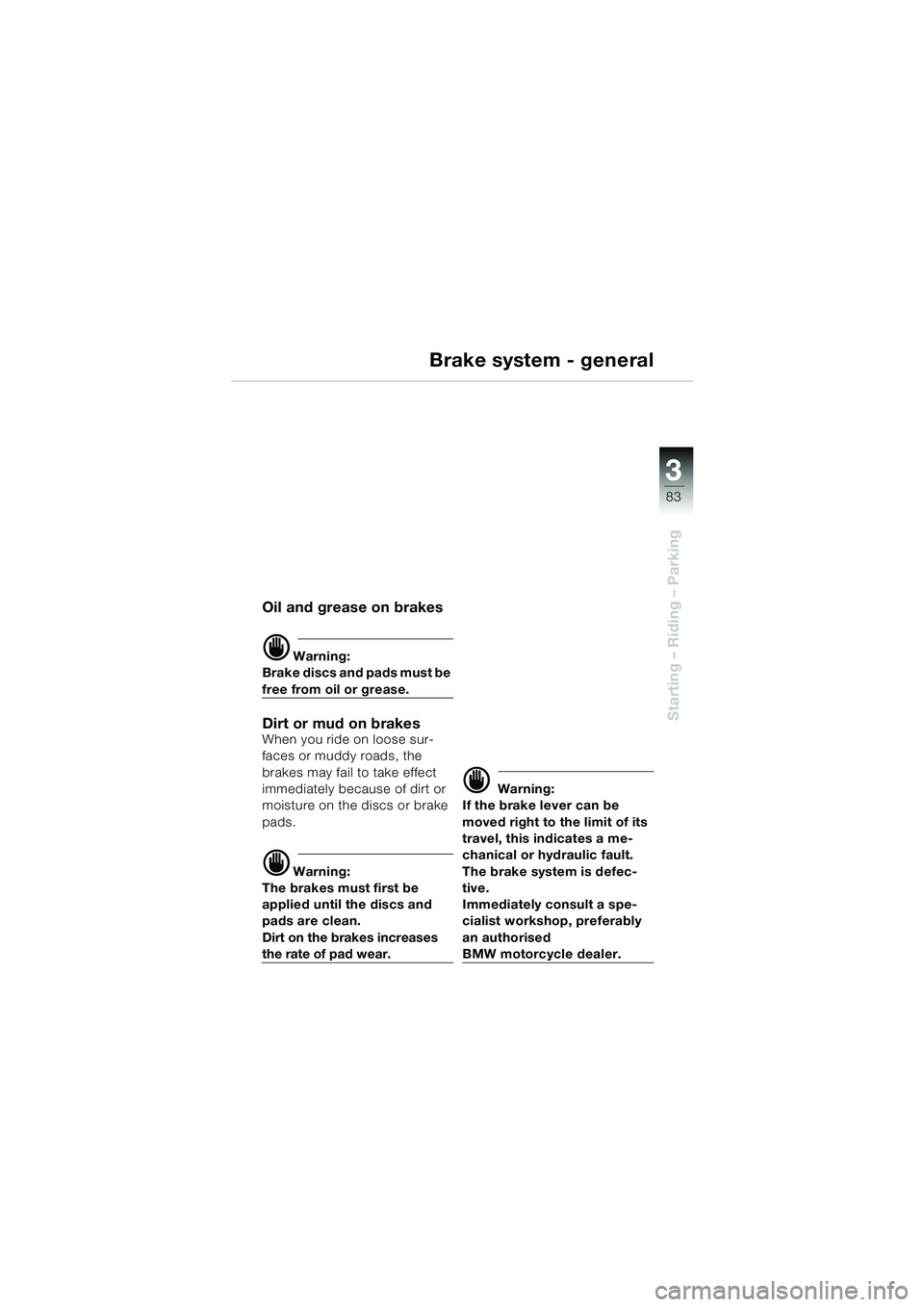

Oil and grease on brakes
d Warning:
Brake discs and pads must be
free from oil or grease.
Dirt or mud on brakesWhen you ride on loose sur-
faces or muddy roads, the
brakes may fail to take effect
immediately because of dirt or
moisture on the discs or brake
pads.
d Warning:
The brakes must first be
applied until the discs and
pads are clean.
Dirt on the brakes increases
the rate of pad wear.
d Warning:
If the brake lever can be
moved right to the limit of its
travel, this indicates a me-
chanical or hydraulic fault.
The brake system is defec-
tive.
Immediately consult a spe-
cialist workshop, preferably
an authorised
BMW motorcycle dealer.
10LTbkg6.book Seite 83 Freitag, 1. Juli 2005 8:53 08

84
Starting – Riding – Parking
3
Brake system - with BMW Integral ABS

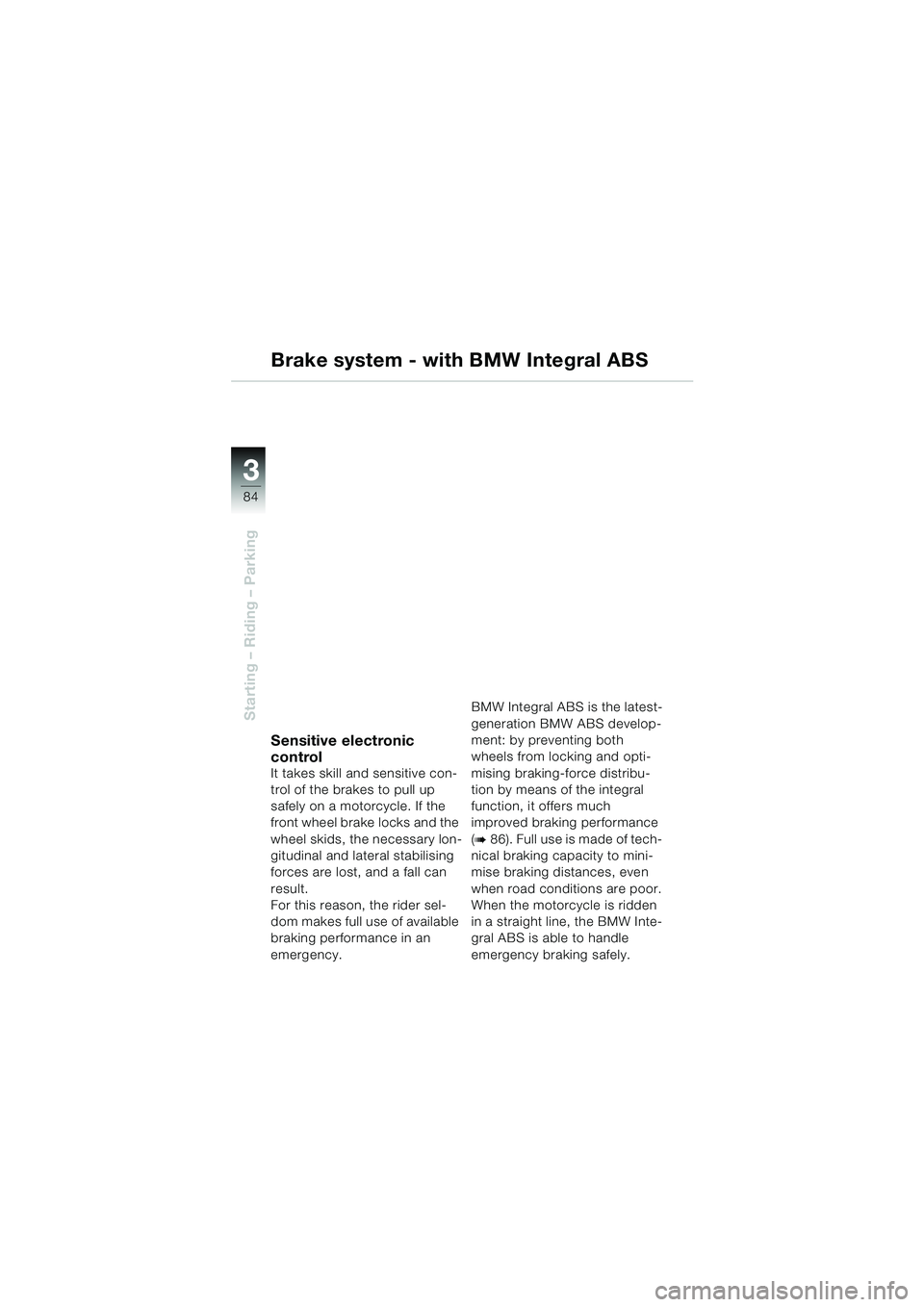

Sensitive electronic
control
It takes skill and sensitive con-
trol of the brakes to pull up
safely on a motorcycle. If the
front wheel brake locks and the
wheel skids, the necessary lon-
gitudinal and lateral stabilising
forces are lost, and a fall can
result.
For this reason, the rider sel-
dom makes full use of available
braking performance in an
emergency. BMW Integral ABS is the latest-
generation BMW ABS develop-
ment: by preventing both
wheels from locking and opti-
mising braking-force distribu-
tion by means of the integral
function, it offers much
improved braking performance
(
b86). Full use is made of tech-
nical braking capacity to mini-
mise braking distances, even
when road conditions are poor.
When the motorcycle is ridden
in a straight line, the BMW Inte-
gral ABS is able to handle
emergency braking safely.
