BMW MOTORRAD K 1200 S 2004 Rider's Manual (in English)

19Overview

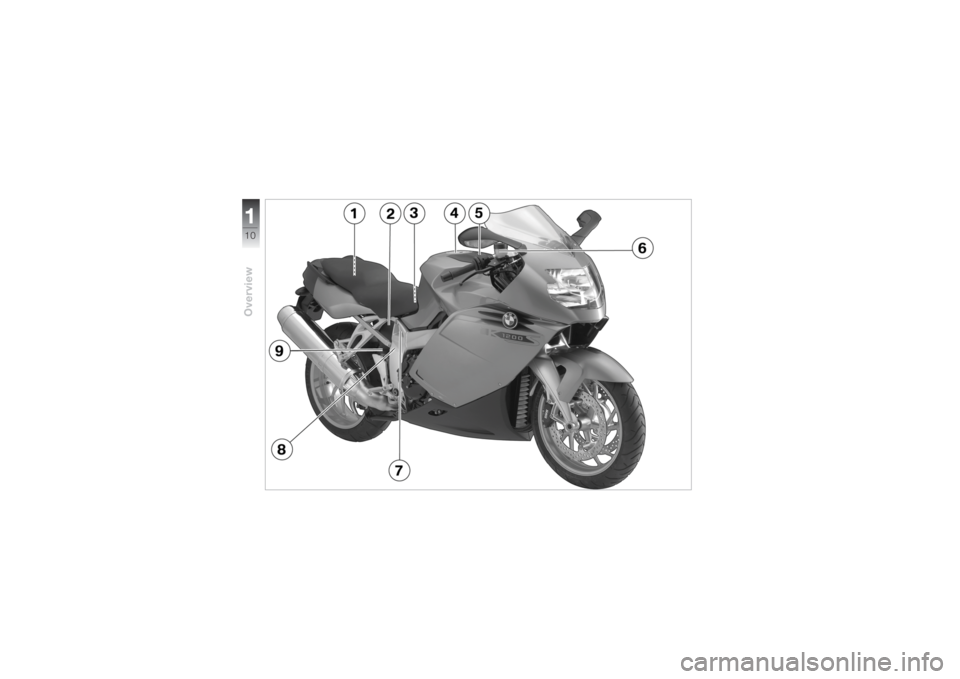

General view, left side1Vertical aim adjustment
(
b 38) beneath instrument
cluster
2Clutch fluid reservoir
(b 93)
3Adjusting the rear spring
preload (
b 43)
4Helmet holder (
b 41)
under seat
5Seat lock (
b 40)
beneath rear light
6Rear shock absorber
adjustment (b 44)
7Power socket (b 74)
8Coolant filler aperture
(
b 88)

Overview110

111Overview
General view, right
side1Toolkit (
b 85) under
the seat
2Display for engine oil level
(
b 86)
3Filler aperture
Engine oil (
b 87), under
seat
4Filler aperture, fuel tank
(
b 67)
5Battery compartment
(b 115)
6Front brake-fluid reservoir
(
b 91)
7Type plate on rear cross
pipe
8Vehicle identification
number on front right side
panel
9Rear brake-fluid reservoir
(b 92)

Overview112

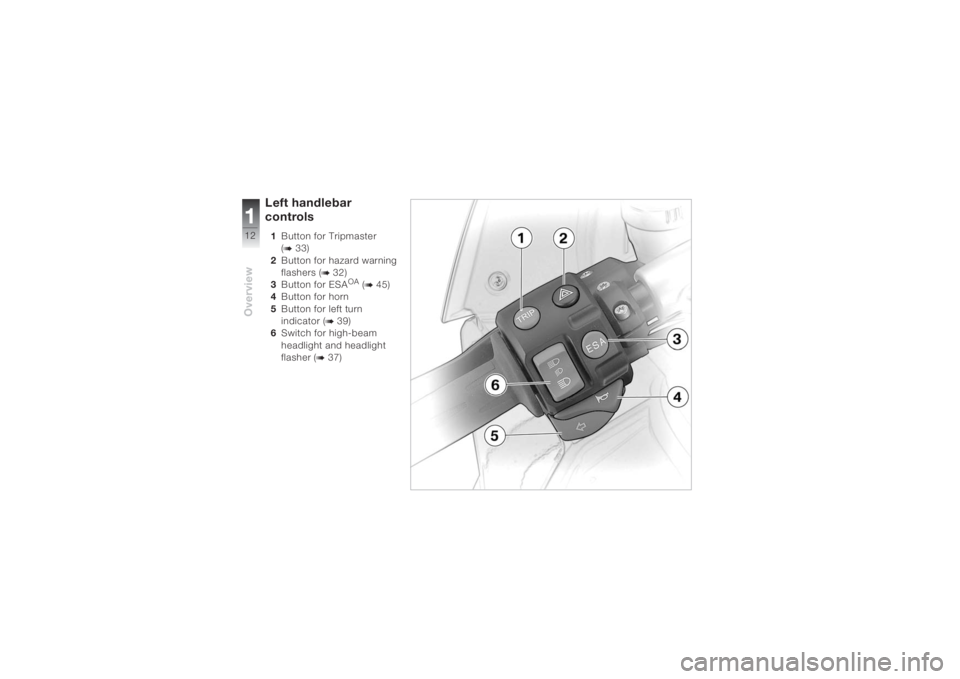

Left handlebar
controls1Button for Tripmaster
(
b 33)
2Button for hazard warning
flashers (
b 32)
3Button for ESA
OA (b 45)
4Button for horn
5Button for left turn
indicator (
b 39)
6Switch for high-beam
headlight and headlight
flasher (
b 37)

113Overview

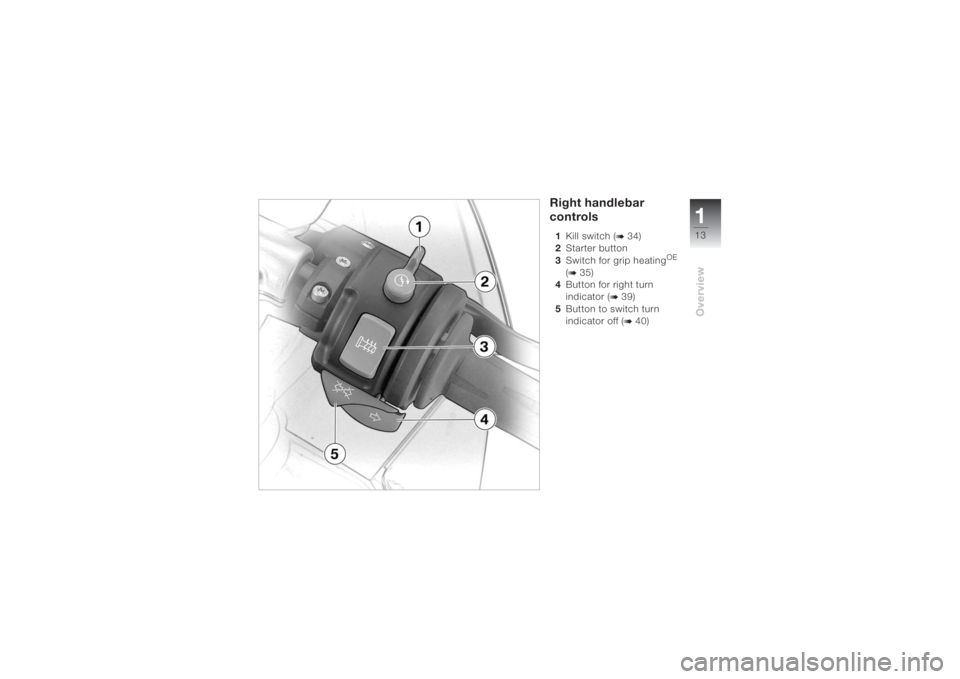

Right handlebar
controls1Kill switch (
b 34)
2Starter button
3Switch for grip heating
OE
(
b 35)
4Button for right turn
indicator (
b 39)
5Button to switch turn
indicator off (b 40)

Overview114

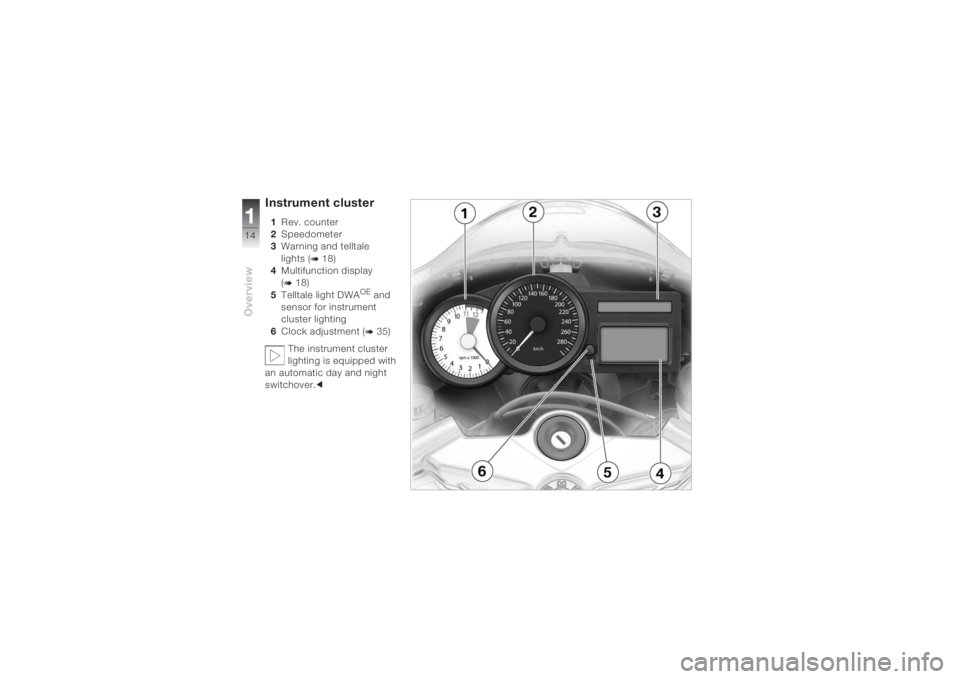

Instrument cluster1Rev. counter
2Speedometer
3Warning and telltale
lights (
b 18)
4Multifunction display
(
b 18)
5Telltale light DWA
OE and
sensor for instrument
cluster lighting
6Clock adjustment (b 35)
The instrument cluster
lighting is equipped with
an automatic day and night
switchover.c

115Overview
Headlights1High-beam headlight
2Low-beam headlight
3Parking light

Overview116

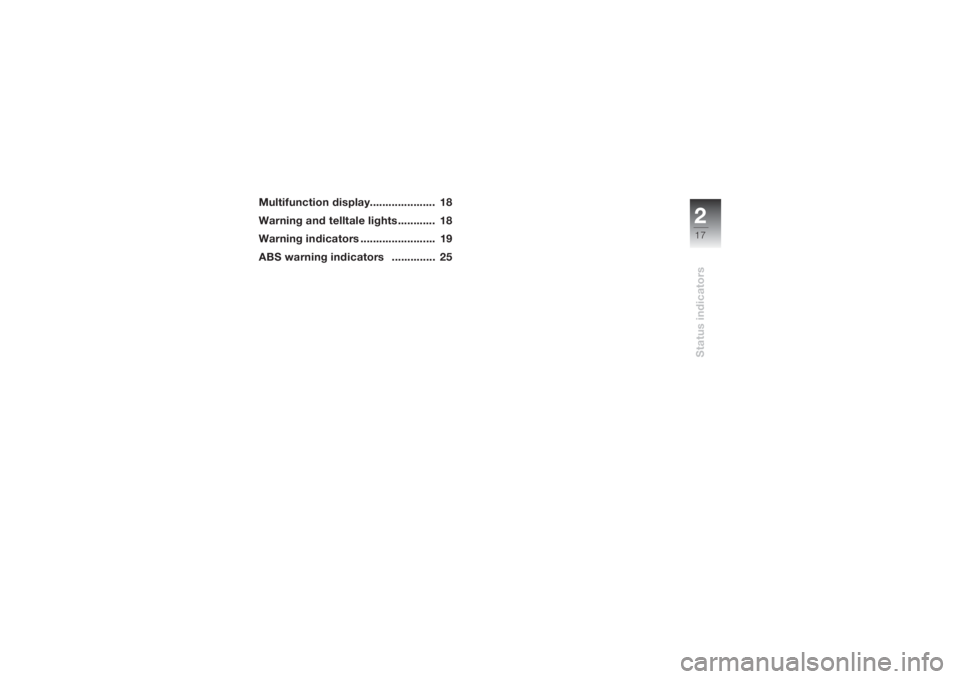

217Status indicators
Multifunction display..................... 18
Warning and telltale lights............ 18
Warning indicators ........................ 19
ABS warning indicators .............. 25

Status indicators218

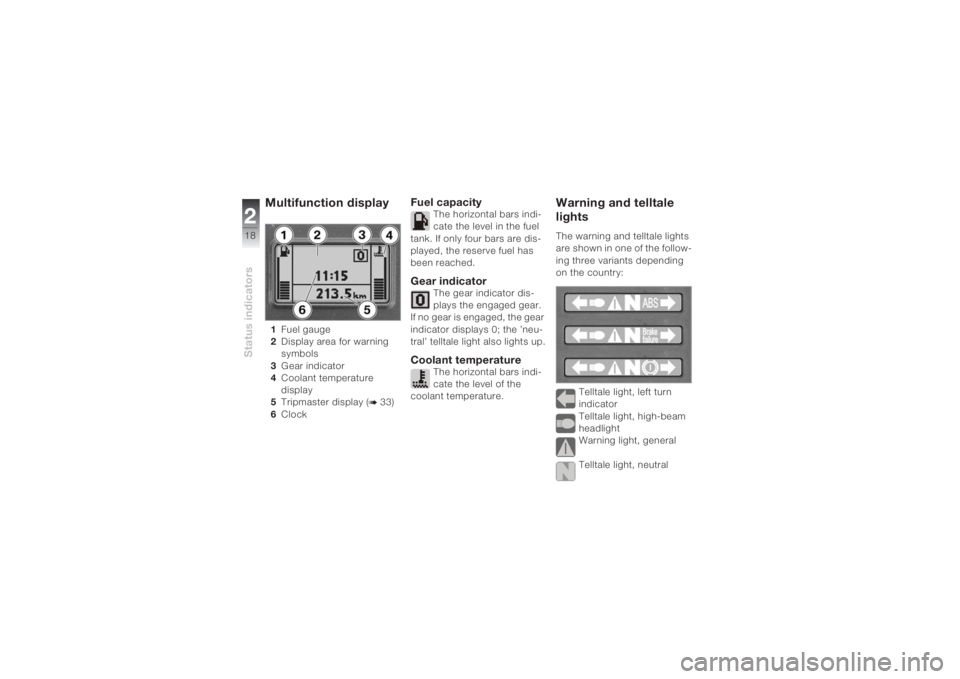

Multifunction display 1Fuel gauge
2Display area for warning
symbols
3Gear indicator
4Coolant temperature
display
5Tripmaster display (
b 33)
6Clock
Fuel capacity
The horizontal bars indi-
cate the level in the fuel
tank. If only four bars are dis-
played, the reserve fuel has
been reached.
Gear indicator
The gear indicator dis-
plays the engaged gear.
If no gear is engaged, the gear
indicator displays 0; the ’neu-
tral’ telltale light also lights up.
Coolant temperature
The horizontal bars indi-
cate the level of the
coolant temperature.
Warning and telltale
lightsThe warning and telltale lights
are shown in one of the follow-
ing three variants depending
on the country:
Telltale light, left turn
indicator
Telltale light, high-beam
headlight
Warning light, general
Telltale light, neutral
