CADILLAC FLEETWOOD 1994 Owners Manual

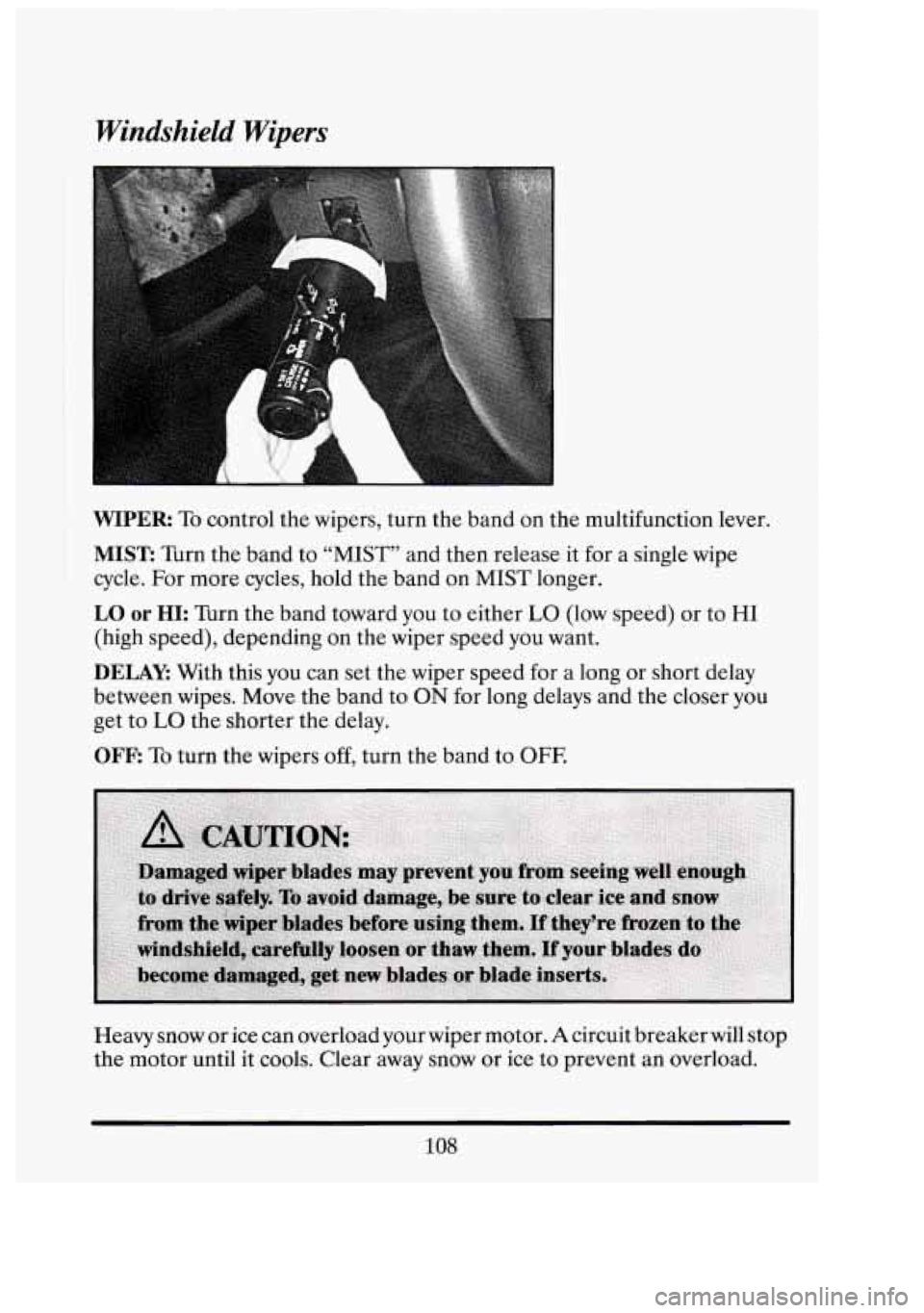

Windshield Wipers
g:
WIPER To control the wipers, turn the band on the multifunction lever.
MIST: Turn the band to “MIST” and then release it for a single wipe
cycle. For more cycles, hold the band on MIST longer.
LO or HI: Turn the band toward you to either LO (low speed) or to HI
(high speed), depending on the wiper speed you want.
DELAY: With this you can set the wiper speed for a long or short delay
between wipes. Move the band to
ON for long delays and the closer you
get to
LO the shorter the delay.
OFF: To turn the wipers off, turn the band to OFF.
Heavy snow
or ice can overload your wiper motor. A circuit breaker will stop
the motor until it cools. Clear away snow or ice to prevent an overload.
108
LJ
n,
i

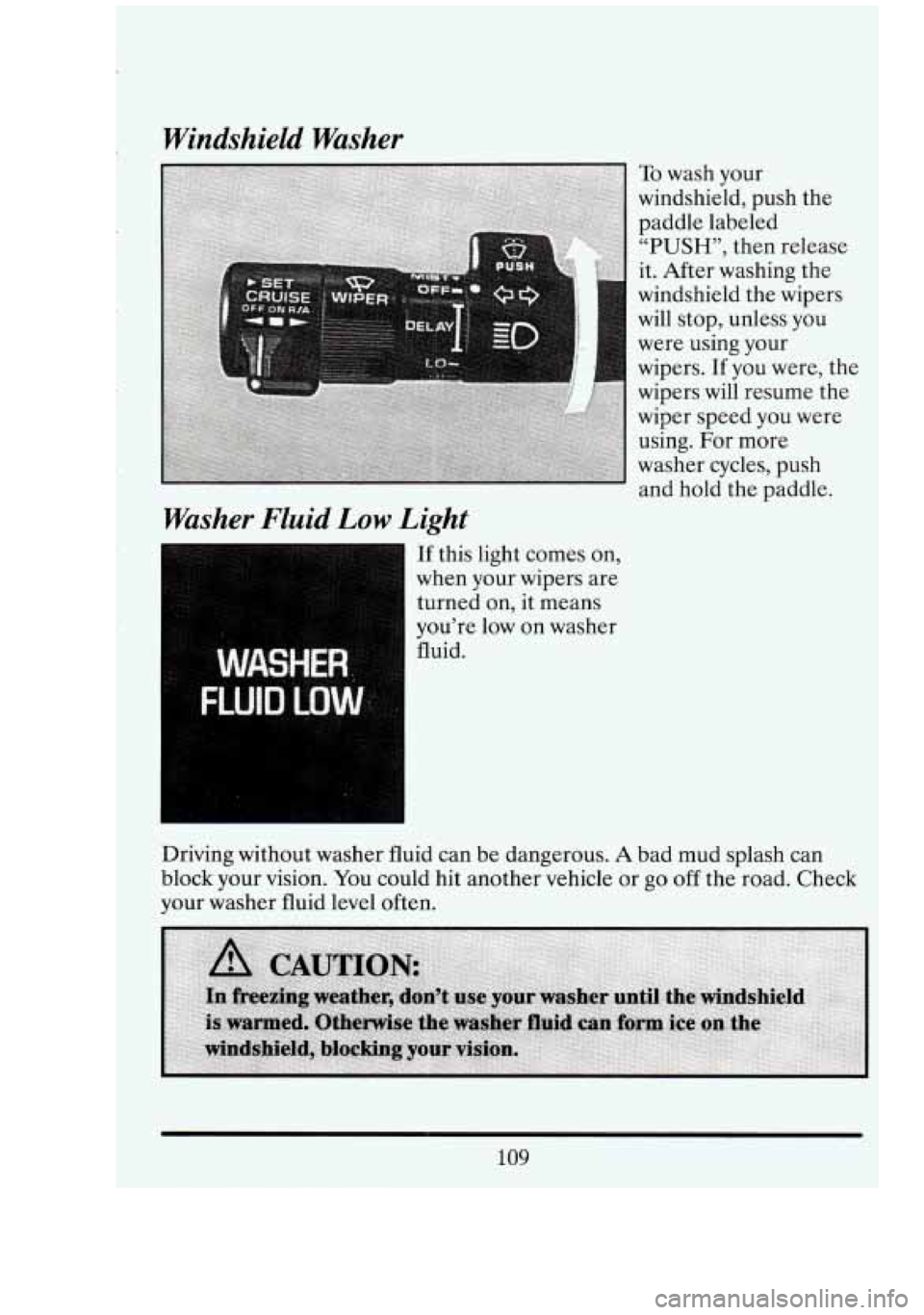

Windshield Washer Washer Fluid
Low Light
If this light comes on,
when your wipers are
turned on, it means
you’re low on washer
To wash your
windshield, push the
paddle labeled
“PUSH”, then release
it. After washing the
windshield the wipers
will stop, unless you
were using your
wipers.
If you were, the
wipers will resume the
wiper speed you were
using. For more
washer cycles, push
and hold the paddle.
Driving without washer fluid can be dangerous.
A bad mud splash can
block your vision. You could hit another vehicle or
go off the road. Check
your washer fluid level often.
109

I
II
3

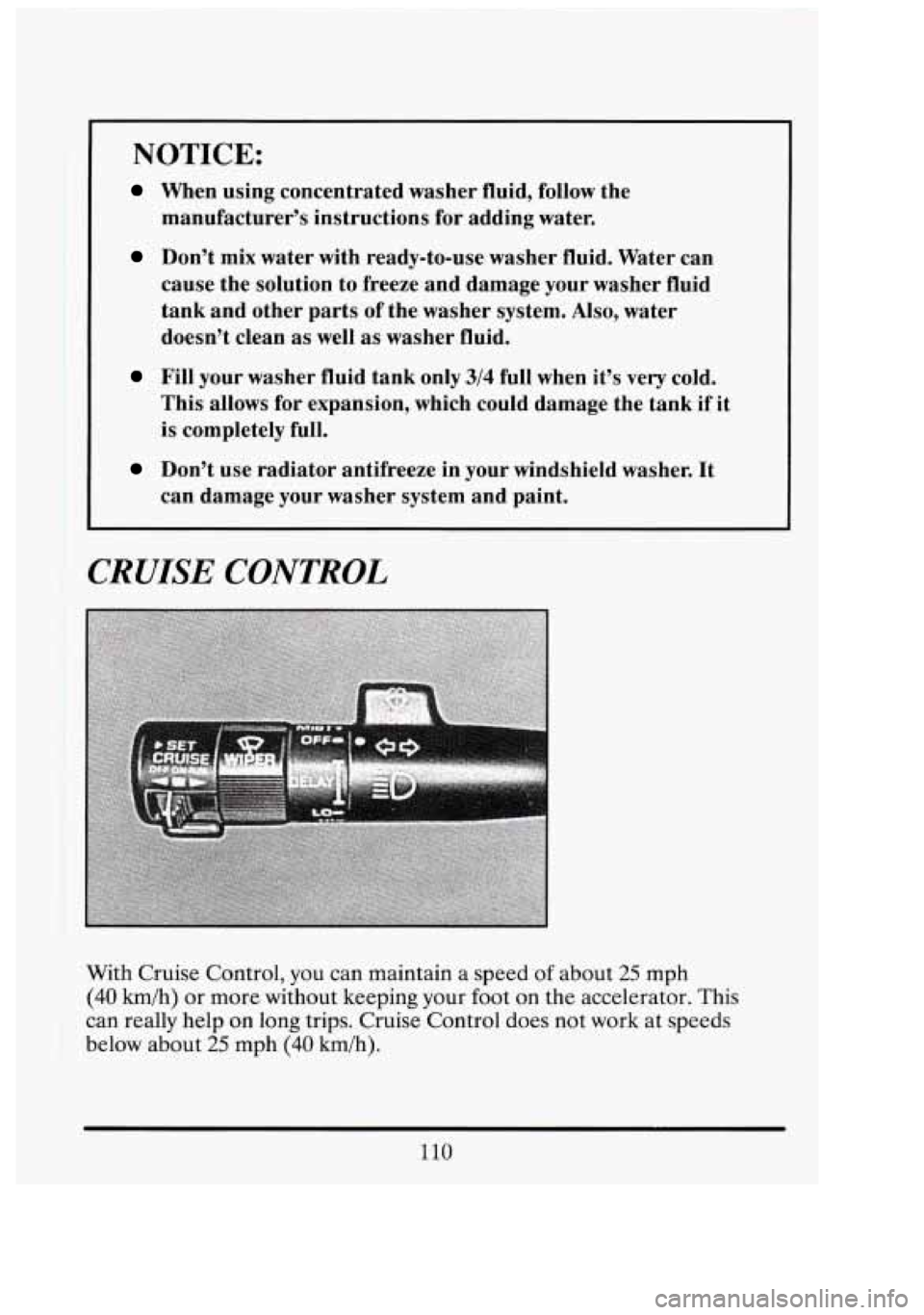

NOTICE:
When using concentrated washer fluid, follow the
manufacturer’s instructions for adding water.
Don’t mix water with ready-to-use washer fluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts
of the washer system. Also, water
doesn’t clean as well as washer fluid.
Fill your washer fluid tank only 3/4 full when it’s very cold.
This allows for expansion, which could damage the tank if it
is completely full.
Don’t use radiator antifreeze in your windshield washer. It
can damage your washer system and paint.
CRUISE CONTROL
With Cruise Control, you can maintain a speed of about 25 mph
(40 km/h) or more without keeping your foot on the accelerator. This
can really help on long trips. Cruise Control does not work at speeds
below about
25 mph (40 kmh).
110
ill
C I
E
I
I
-
J

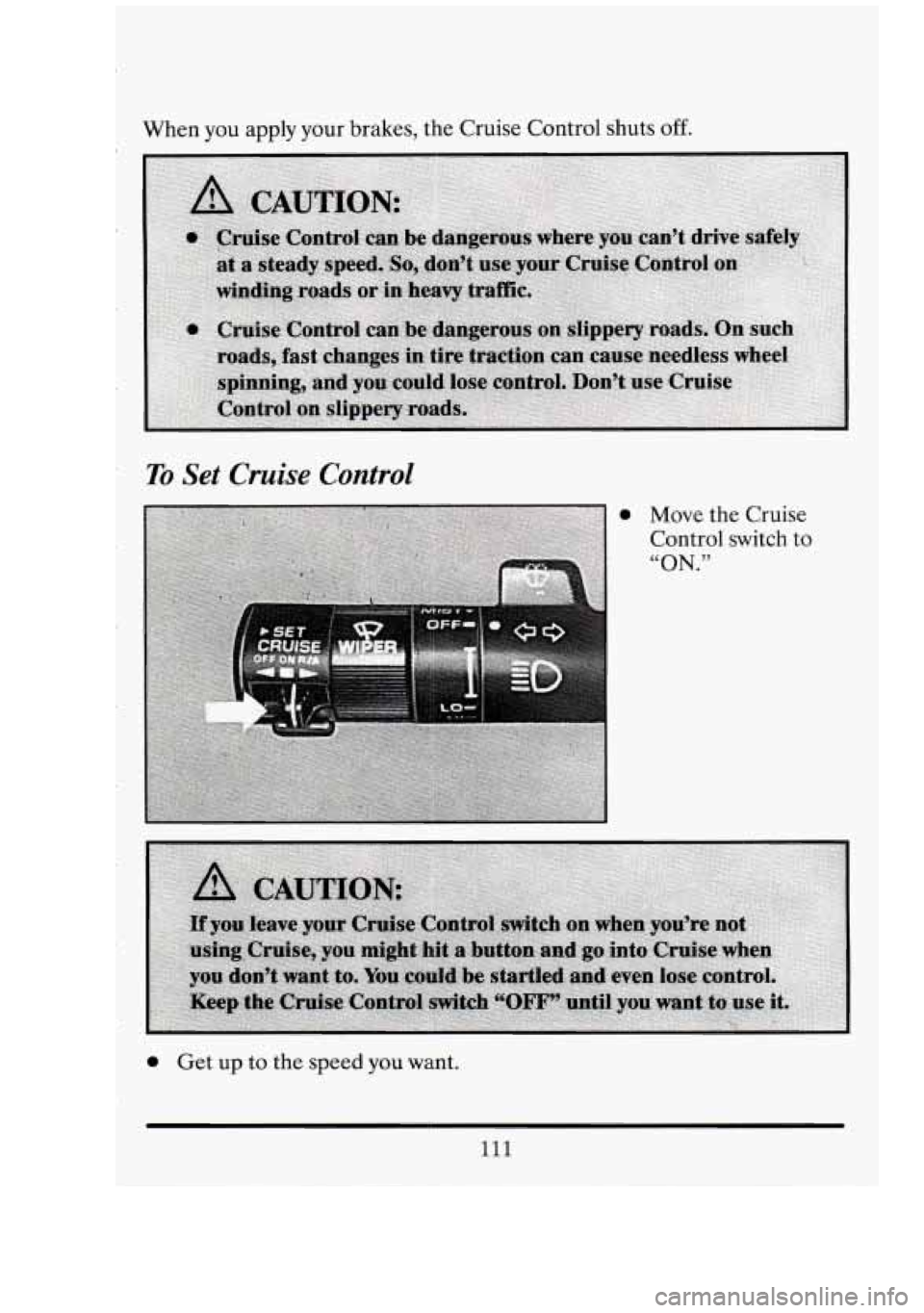

When you apply your brakes, the Cruise Control shuts off.
To Set Cruise Control
Move the Cruise
Control switch to
“ON.”
0 Get up to the speed you want.
111

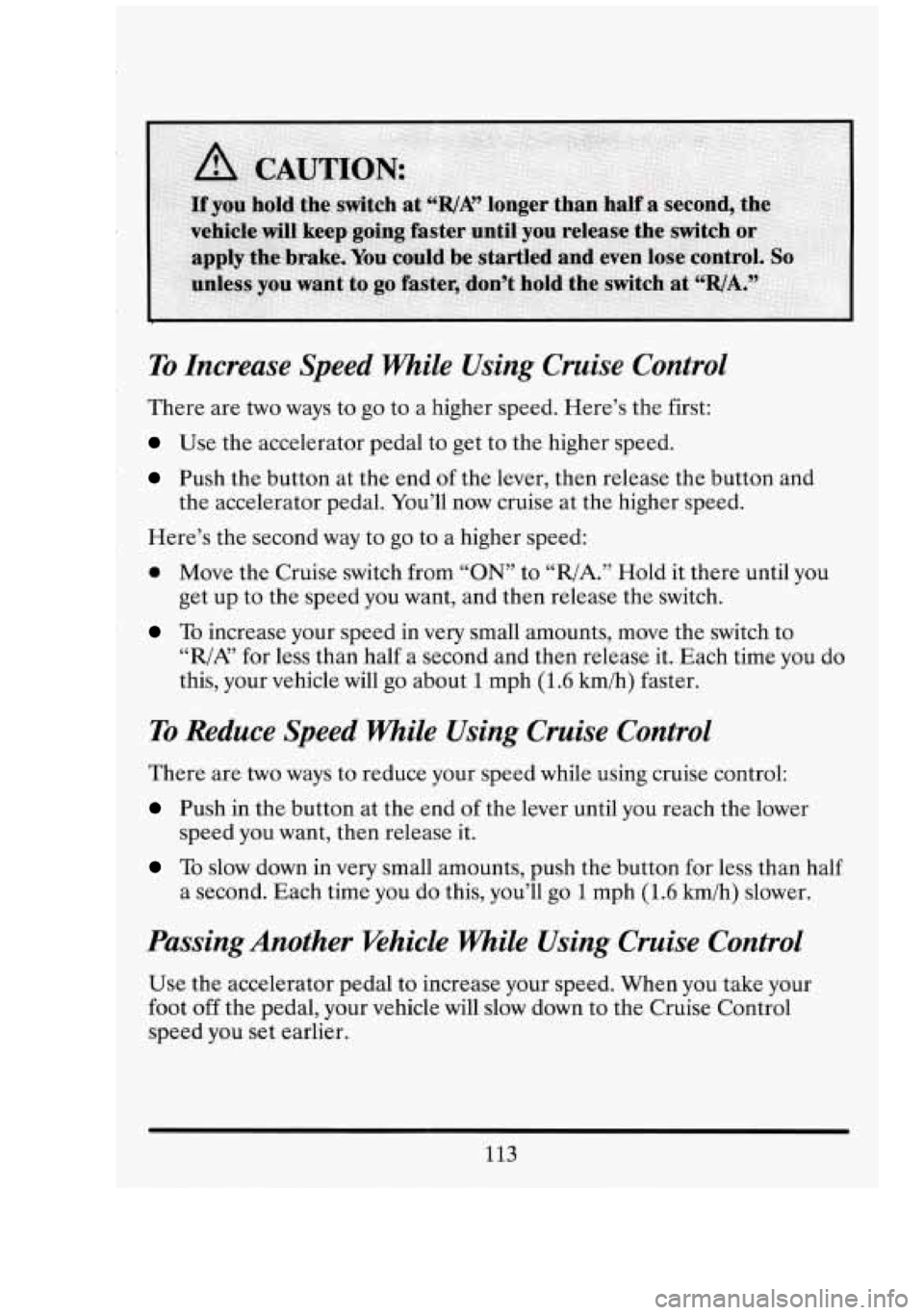

To Increase Speed While Using Cruise Control
There are two ways to go to a higher speed. Here’s the first:
Use the accelerator pedal to get to the higher speed.
Push the button at the end of the lever, then release the button and
Here’s the second way to go to a higher speed:
0 Move the Cruise switch from “ON” to “R/A.” Hold it there until you
To increase your speed in very small amounts, move the switch to
the
accelerator pedal. You’ll now cruise at the higher speed.
get up to the speed you want, and then release the switch.
“R/A’ for less than half a second and then release it. Each time you do
this, your vehicle will go about
1 mph (1.6 km/h) faster.
To Reduce Speed While Using Cruise Control
There are two ways to reduce your speed while using cruise control:
Push in the button at the end of the lever until you reach the lower
speed you want, then release it.
To slow down in very small amounts, push the button for less than half
a second. Each time you do this, you’ll
go 1 mph (1.6 km/h) slower.
Passing Another Whicle while Using Cruise Control
Use the accelerator pedal to increase your speed. When you take your
foot
off the pedal, your vehicle will slow down to the Cruise Control
speed you set earlier.
113

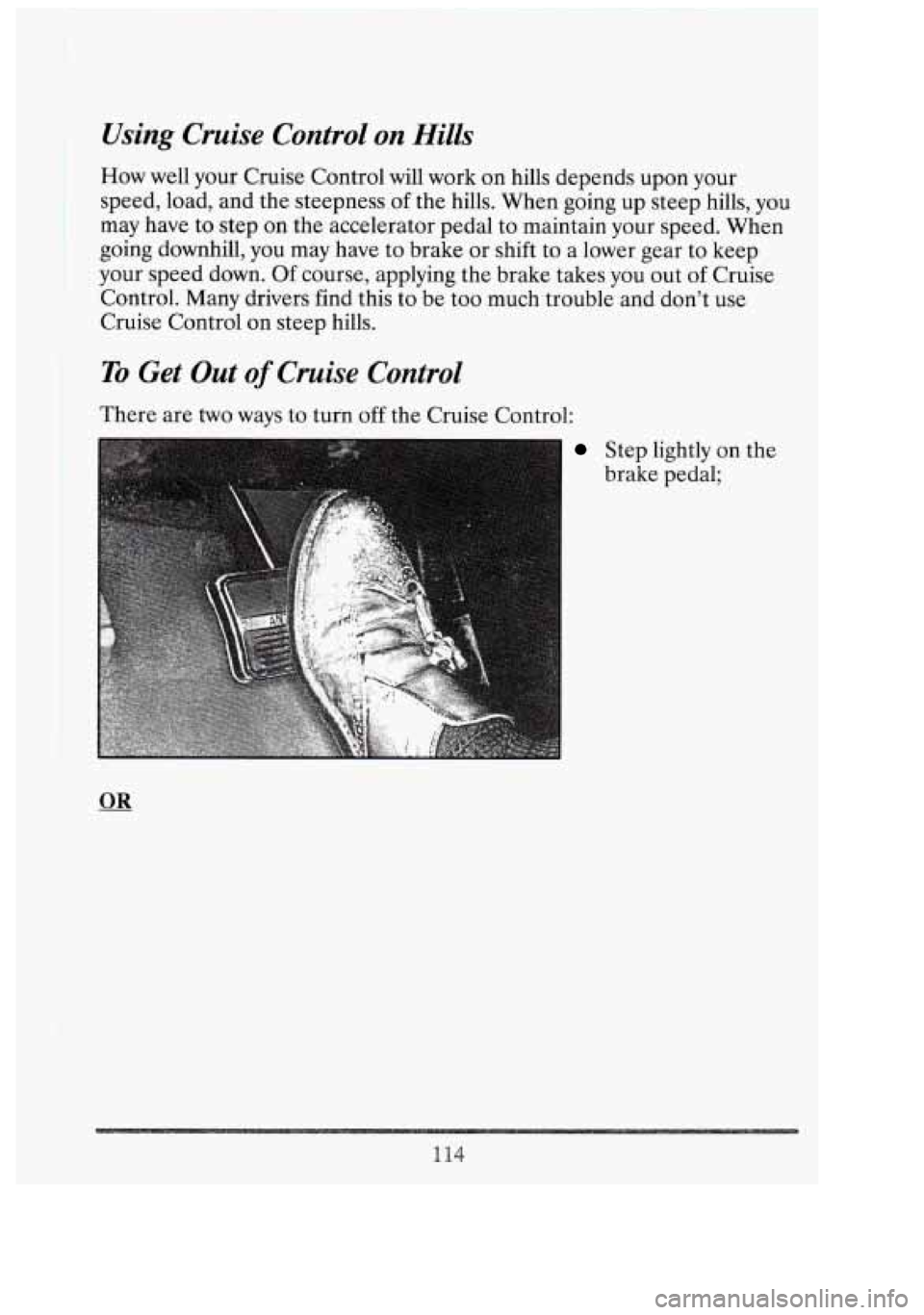

Using Cruise Control on Hills
How well your Cruise Control will work on hills depends upon your
speed, load, and the steepness of the hills. When going up steep hills, you
may have to step
on the accelerator pedal to maintain your speed. When
going downhill, you may have to brake or shift to a lower gear to keep
your speed down.
Of course, applying the brake takes you out of Cruise
Control. Many drivers find this
to be too much trouble and don’t use
Cruise Control on steep hills.
To Get Out of Cruise Control
There are two ways to turn off the Cruise Control:
Step lightly on the
brake pedal;
114
Di

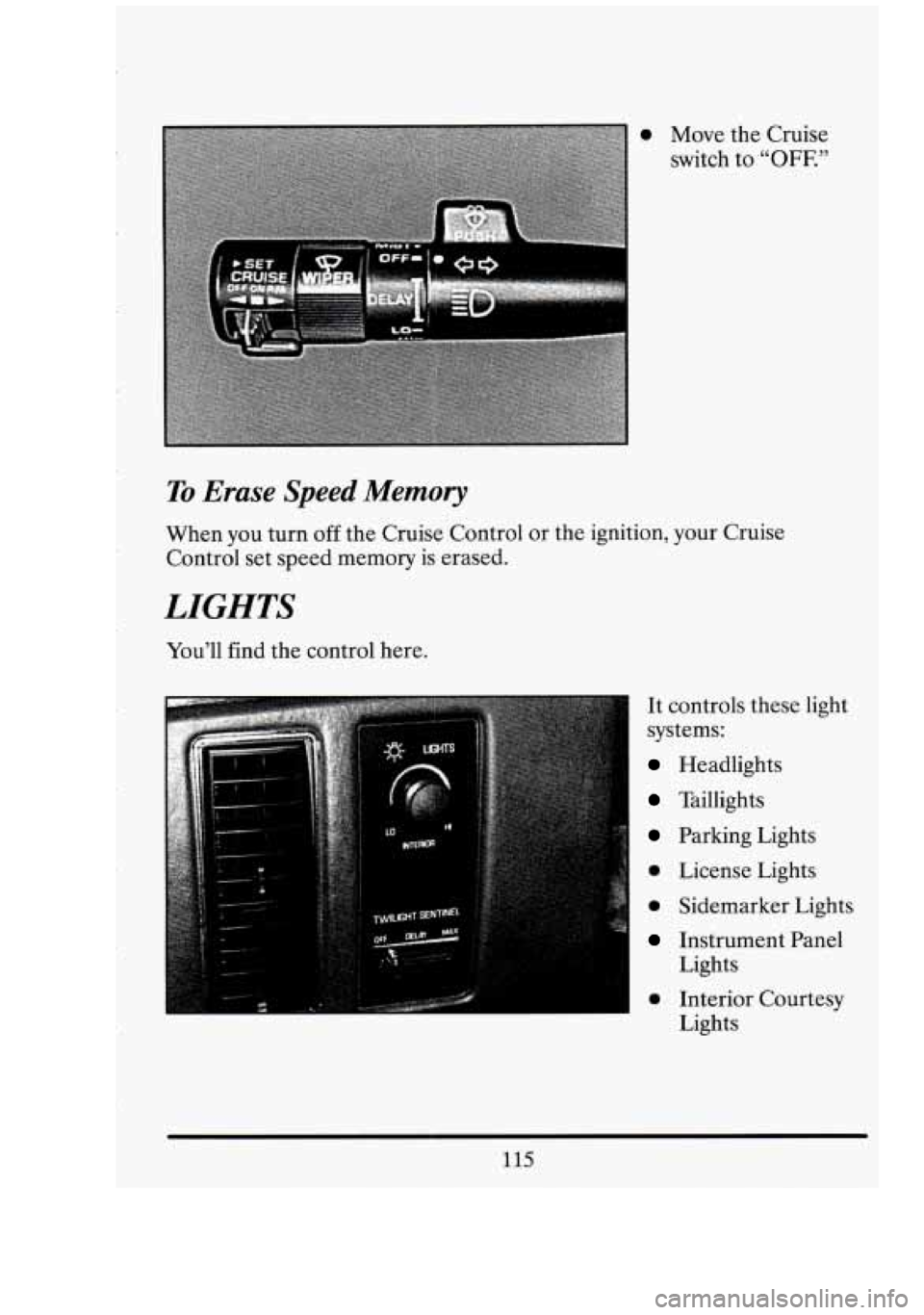

0 Move the Cruise
switch to
"OFF."
To Erase Speed Memory
When you turn off the Cruise Control or the ignition, your Cruise
Control set speed memory is erased.
LIGHTS
You'll find the control here.
It controls these light
systems:
Headlights
Taillights
Parking Lights
0 License Lights
0 Sidemarker Lights
Instrument Panel
I Lights
I 0 Interior Courtesy
Lights
115

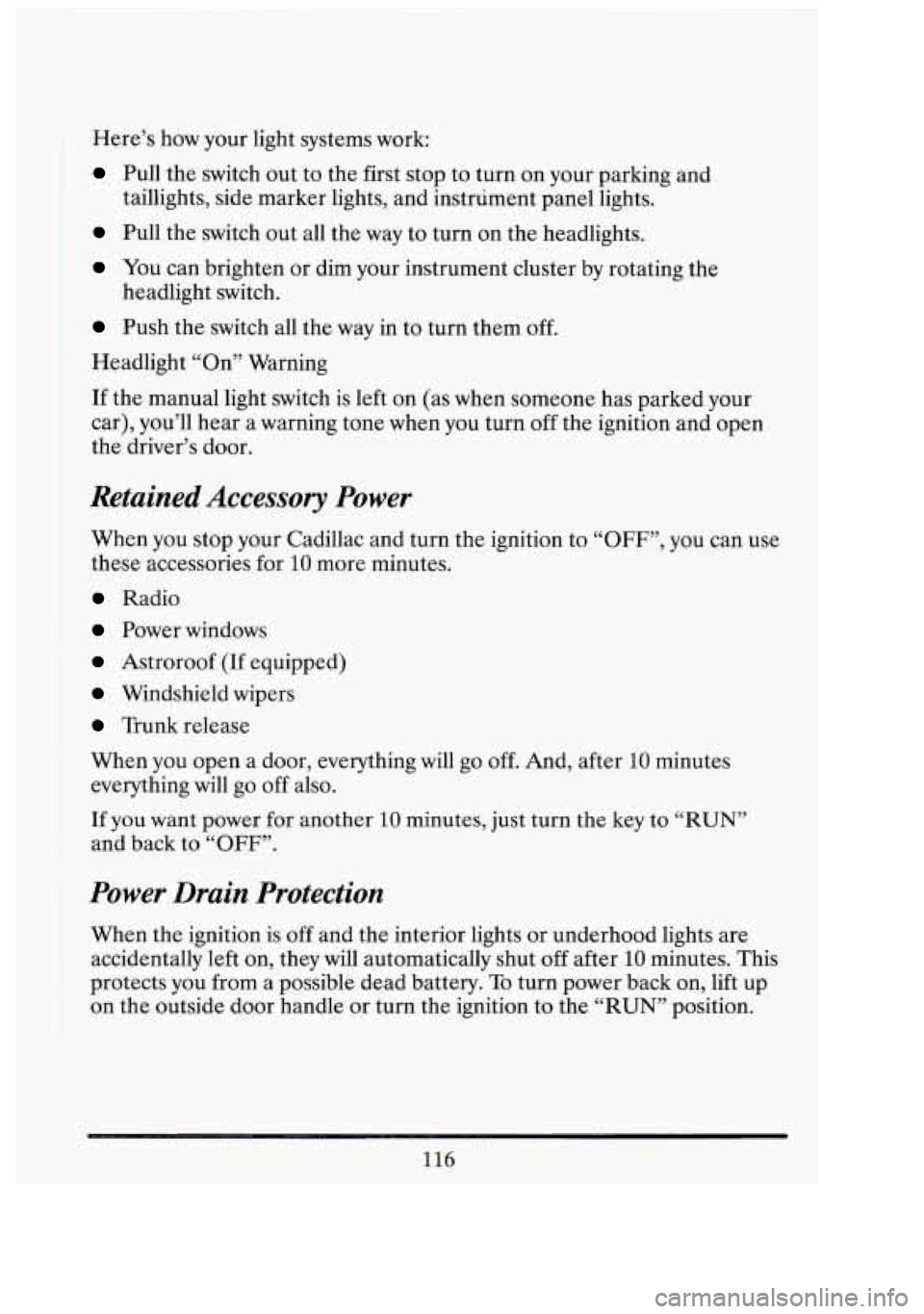

Here’s how your light systems work:
Pull the switch out to the first stop to turn on your parking and
Pull the switch out all the way to turn on the headlights.
You can brighten or dim your instrument cluster by rotating the
Push the switch all the way in to turn them off.
Headlight “On” Warning
taillights, side
marker lights, and instrument panel lights.
headlight switch.
If the manual light switch is left on (as when someone has parked your
car), you’ll hear a warning tone when you turn
off the ignition and open
the driver’s door.
Retained Accessory Power
When you stop your Cadillac and turn the ignition to “OFF”, you can use
these accessories for
10 more minutes.
Radio
Power windows
Astroroof (If equipped)
Windshield wipers
Trunk release
When you open
a door, everything will go off. And, after 10 minutes
everything will go off also.
If you want power for another 10 minutes, just turn the key to “RUN”
and back to “OFF”.
Power Drain Protection
When the ignition is off and the interior lights or underhood lights are
accidentally left on, they will automatically shut
off after 10 minutes. This
protects you from a possible dead battery.
To turn power back on, lift up
on the outside door handle or turn the ignition to the “RUN” position.
116
C‘
!
I
El
I
E
ci
e

.- y_ I-

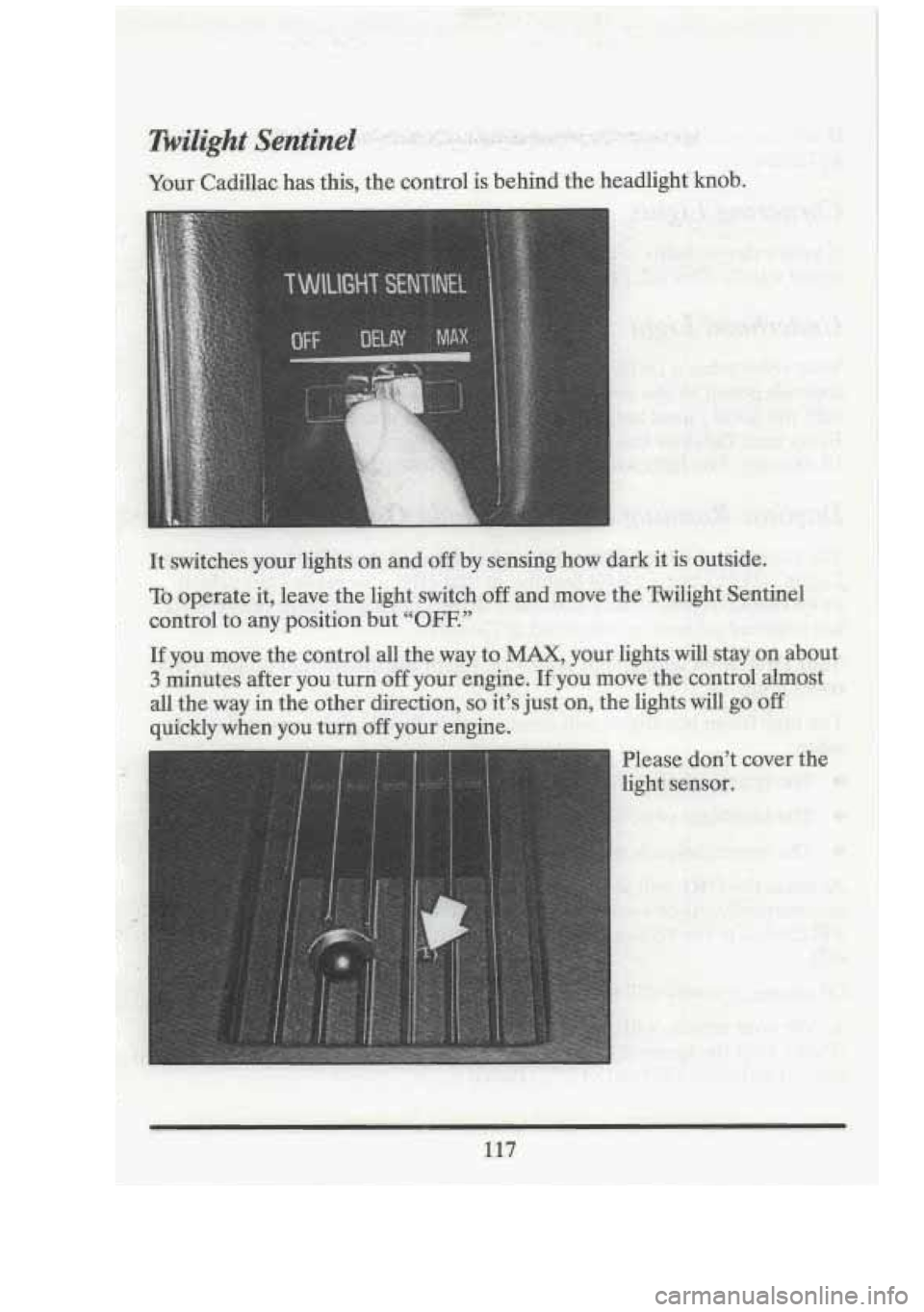

Please don't cover the
light sensor.
