CADILLAC FLEETWOOD 1994 Owners Manual

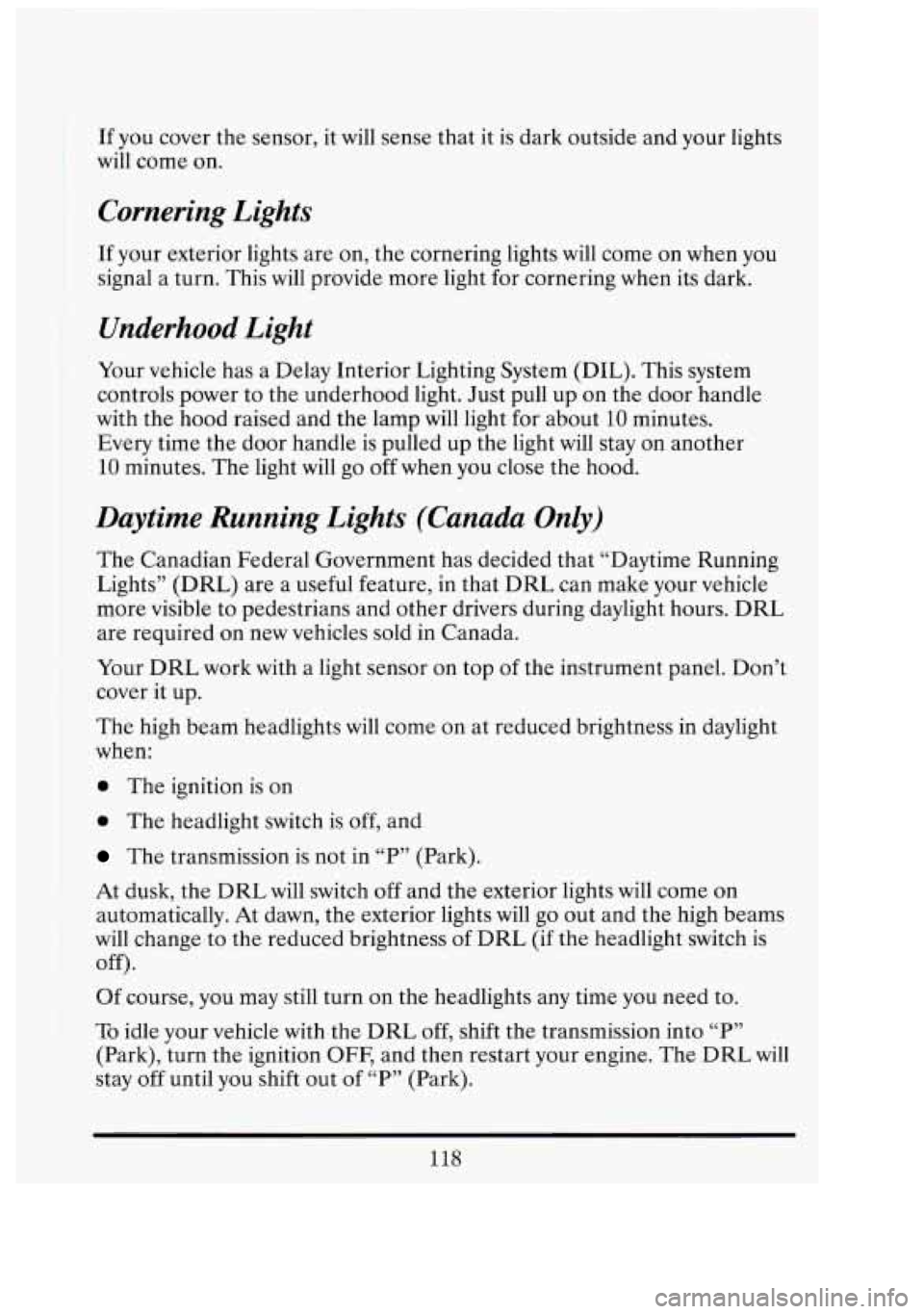

If you cover the sensor, it will sense that it is dark outside and your lights
will come on.
Cornering Lights
If your exterior lights are on, the cornering lights will come on when you
signal a turn. This will provide more light for cornering when its dark.
Underhood Light
Your vehicle has a Delay Interior Lighting System (DIL). This system
controls power to the underhood light. Just pull up on the door handle
,with the hood raised and the lamp will light for about
10 minutes.
Every time the door handle is pulled up the light will stay on another
10 minutes. The light will go off when you close the hood.
Daytime Running Lights (Canada Only)
The Canadian Federal Government has decided that “Daytime Running
Lights’’ (DRL) are a useful feature, in that DRL can make your vehicle
more visible to pedestrians and other drivers during daylight hours. DRL
are required on new vehicles sold in Canada.
Your DRL work with a light sensor on top of the instrument panel. Don’t
cover it up.
The high beam headlights will come on at reduced brightness in daylight
when:
0 The ignition is on
0 The headlight switch is off, and
The transmission is not in “P” (Park).
At dusk, the DRL will switch
off and the exterior lights will come on
automatically. At dawn, the exterior lights will go out and the high beams
will change to the reduced brightness of DRL (if the headlight switch is
Of course, you may still turn
on the headlights any time you need to.
To idle your vehicle with the DRL off, shift the transmission into “P”
(Park), turn the ignition OFF, and then restart your engine. The DRL will
stay off until you shift out of “P” (Park).
off).
01
I
l
I
i
118

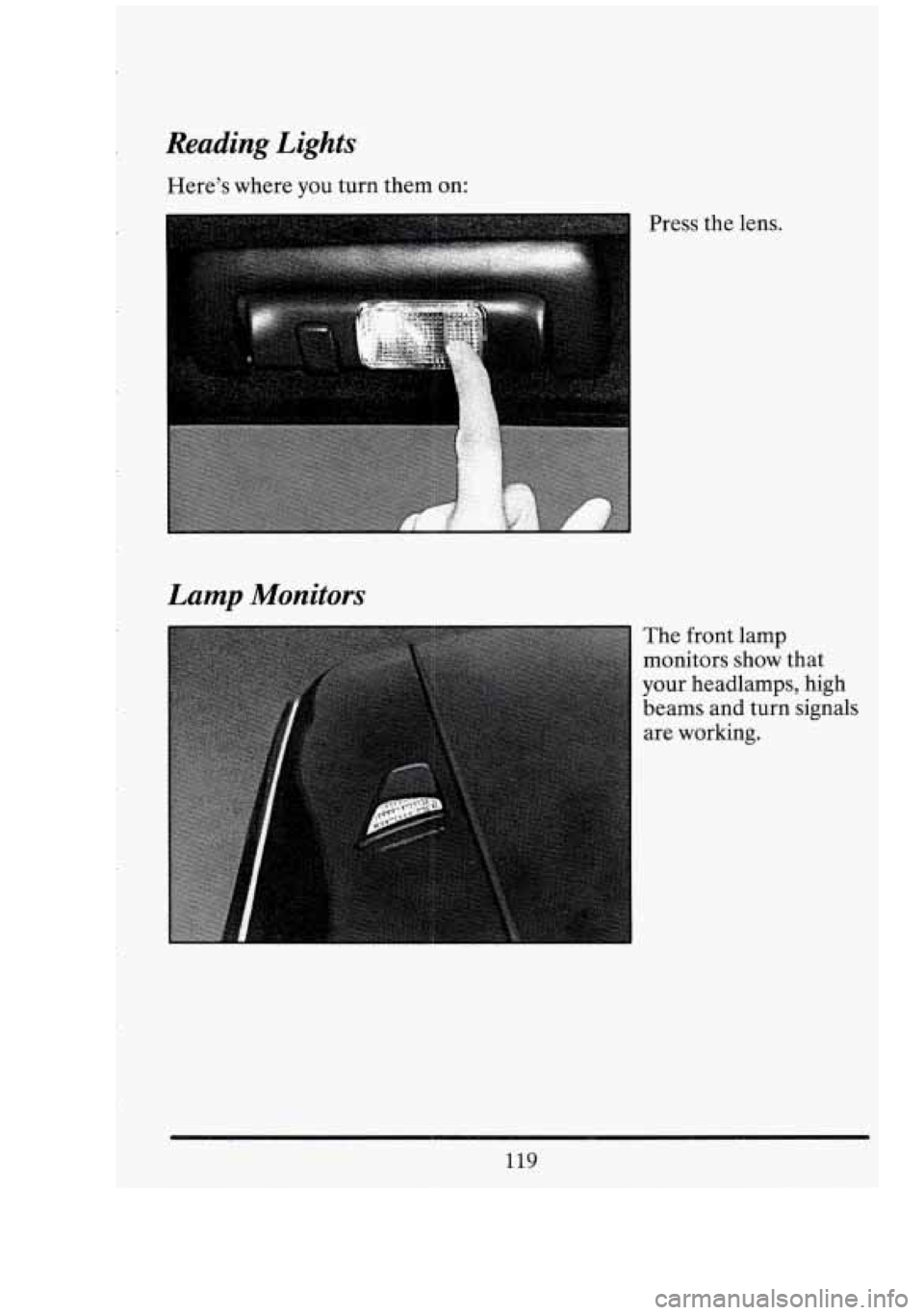

Reading Lights
Here's where you turn them on:
Lamp Monitors
The front lamp
monitors show that
your headlamps, high
beams and turn signals
are working.
119

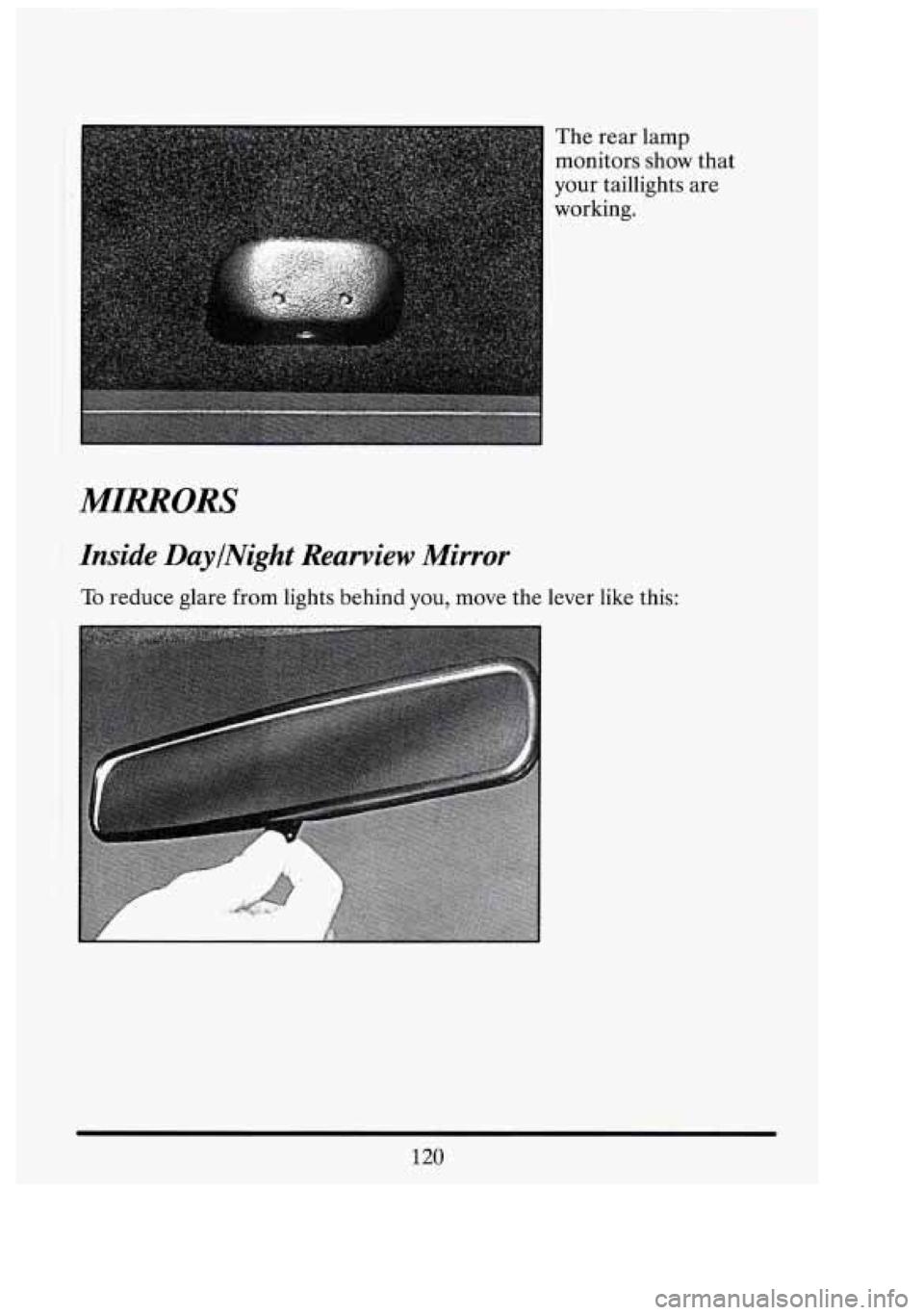

The rear lamp
monitors show that
your taillights
are
working.
MIRRORS
Inside DaylNight Rearview Mirror
To reduce glare from lights behind you, move the lever like this: I' I ral
4
120

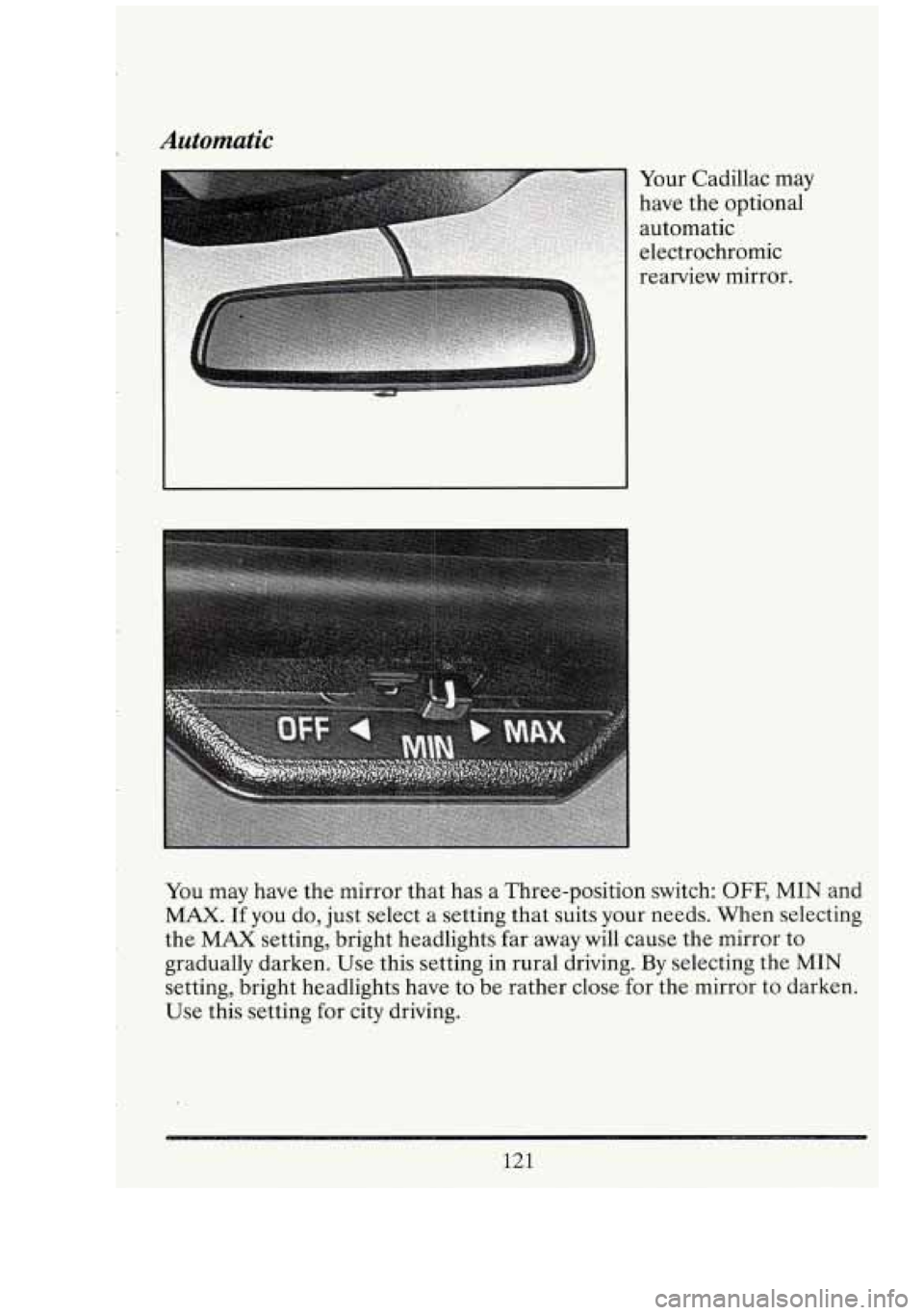

Automatic
Your Cadillac may
have the optional
automatic
electrochromic
rearview mirror.
You may have the mirror that has a Three-position switch:
OFF, MIN and
MAX. If you do, just select a setting that suits your needs. When selecting
the
MAX setting, bright headlights far away will cause the mirror to
gradually darken. Use this setting in rural driving. By selecting the
MIN
setting, bright headlights have to be rather close for the mirror to darken.
Use this setting
for city driving.

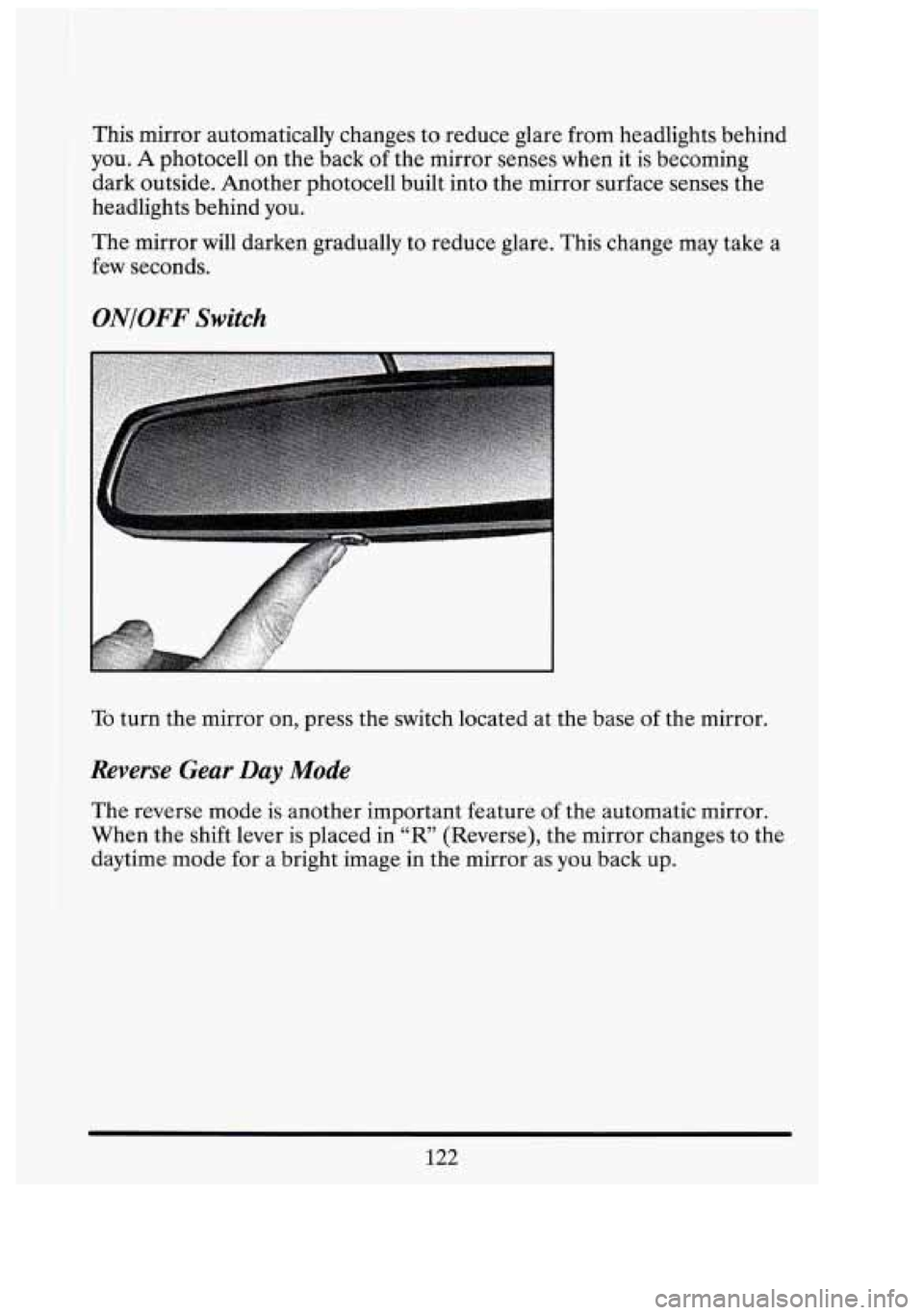

This mirror automatically changes to reduce glare from headlights behind
you.
A photocell on the back of the mirror senses when it is becoming
dark outside. Another photocell built into the mirror surface senses the
headlights behind you.
The mirror will darken gradually to reduce glare. This change may take a
few seconds.
ONIOFF Switch
I
To turn the mirror on, press the switch located at the base of the mirror.
Reverse Gear Day Mode
The reverse mode is another important feature of the automatic mirror.
When the shift lever is placed in
"R' (Reverse), the mirror changes to the
daytime mode for a bright image
in the mirror as you back up.
I
i,' I
0' I
';i
1
I
I
122

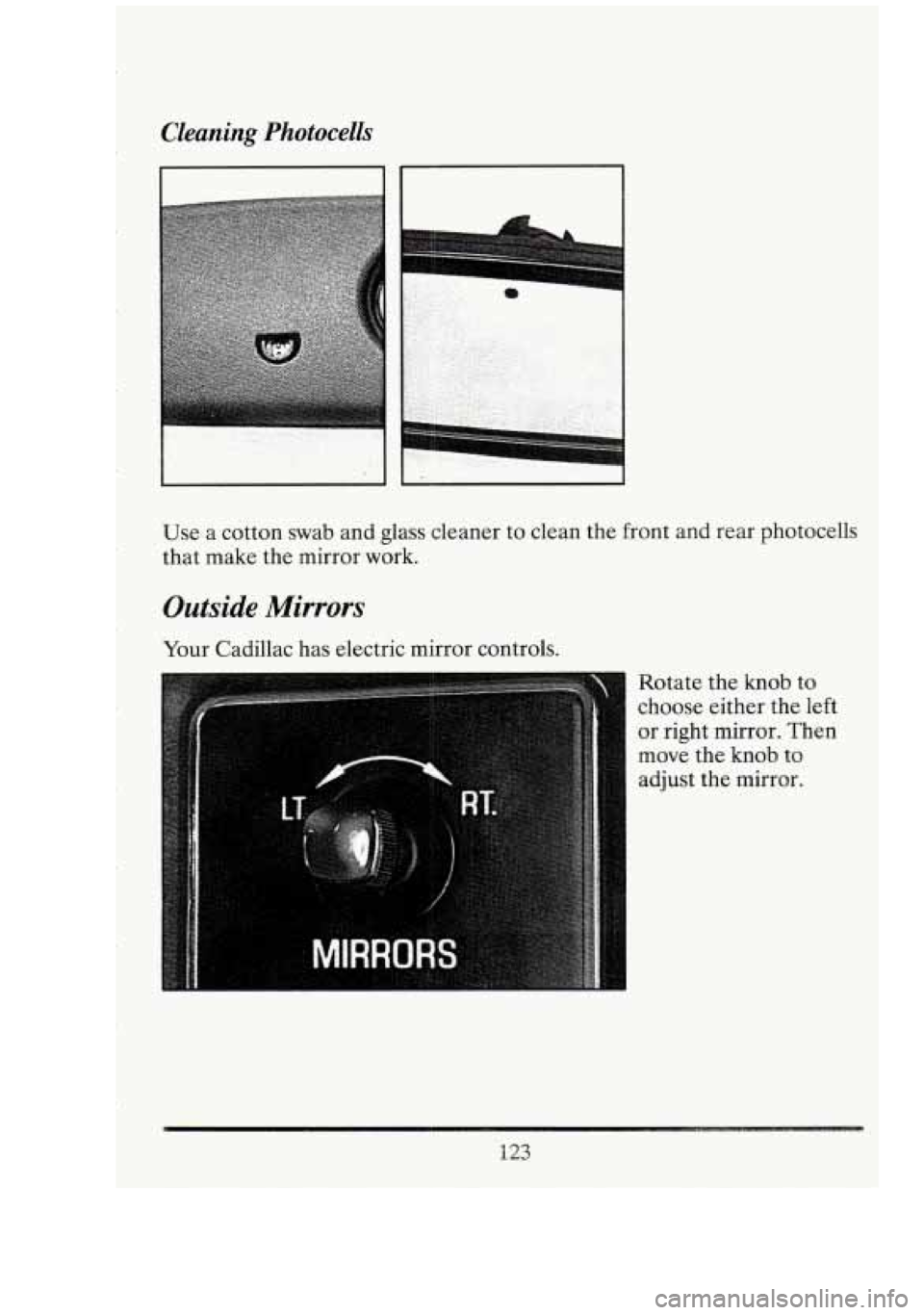

Cleaning Photocells
7
Use a cotton swab and glass cleaner to clean the front and rear photocells
that make the mirror work.
Outside Mirrors
Your Cadillac has electric mirror controls.
Rotate the knob to
choose either the left
or right mirror. Then
move the
knob to
adjust the mirror.
123

7:

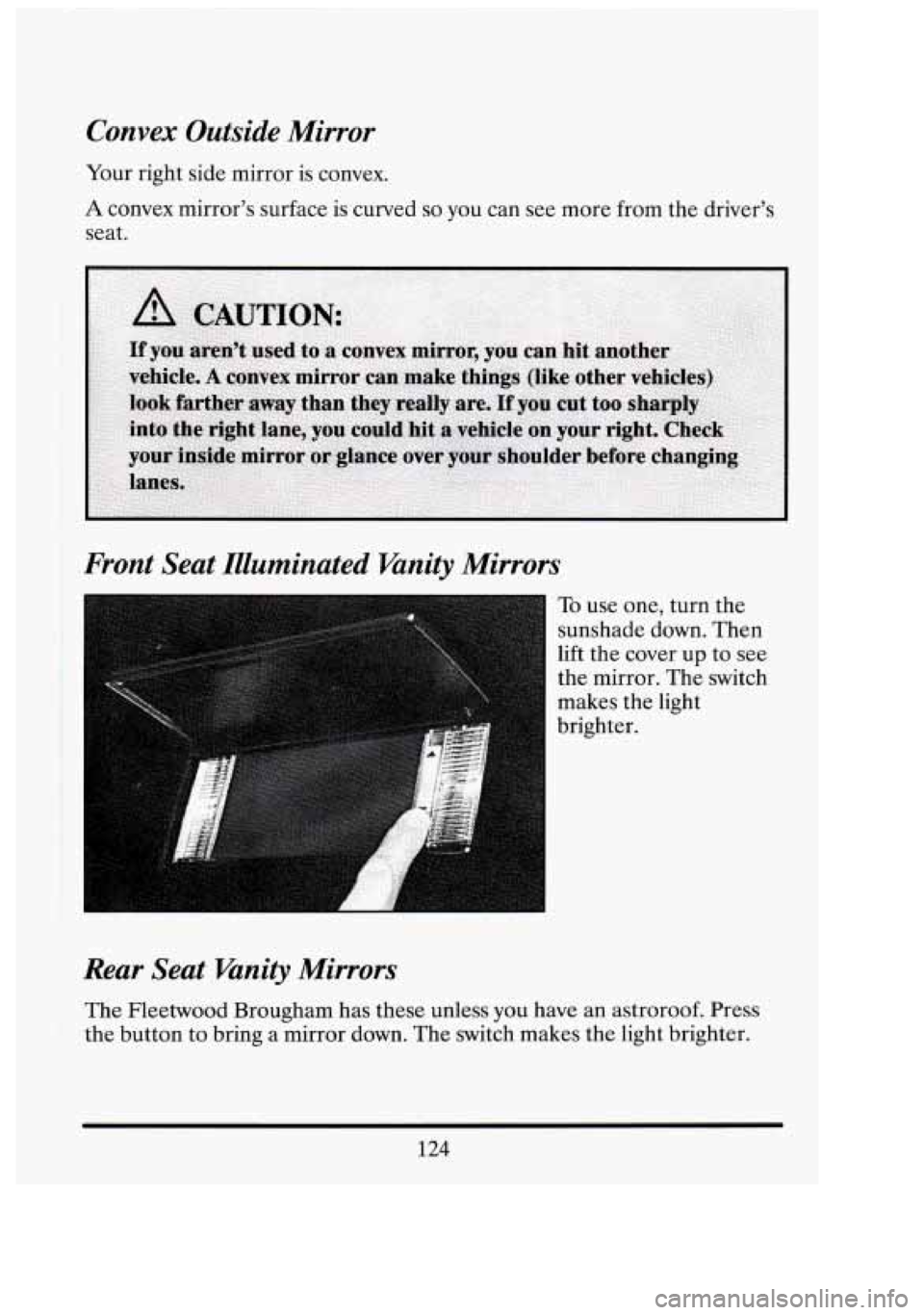

Convex Outside Mirror
Your right side mirror is convex.
A convex mirror's surface is curved so you can see more from the driver's
seat.
Front Seat Illuminated Vanity Mirrors
To use one, turn the
sunshade down. Then
lift the cover up to see
the mirror. The switch
makes the light
brighter.
Rear Seat Vanity Mirrors
The Fleetwood Brougham has these unless you have an astroroof. Press
the button to bring
a mirror down. The switch makes the light brighter.
124
1 n
-I
-1 I
i i

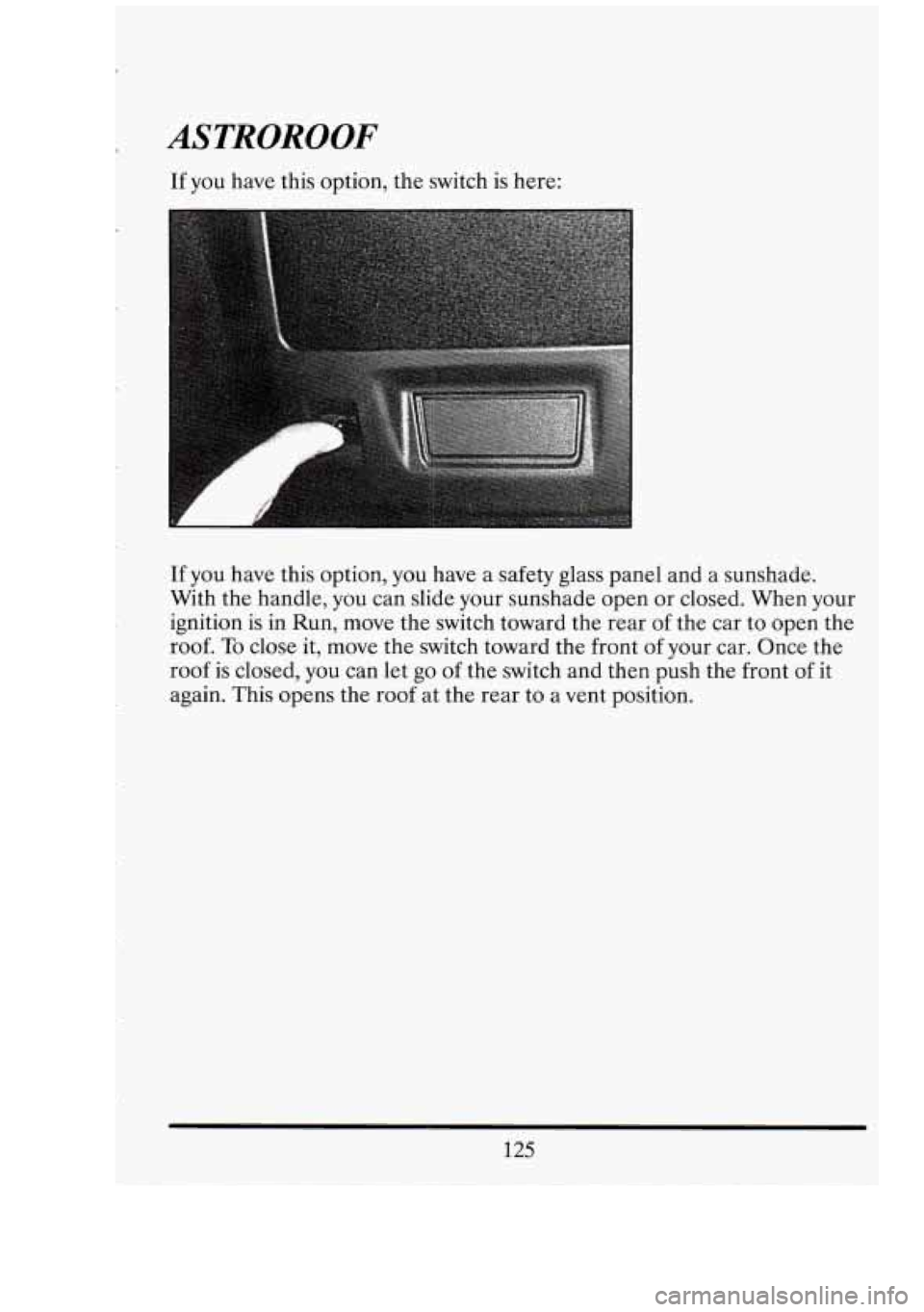

ASTROROOF
If you have this option, the switch is here:
If you have this option, you have a safety glass panel and a sunshade.
With the handle, you can slide your sunshade open or closed. When your
ignition
is in Run, move the switch toward the rear of the car to open the
roof.
To close it, move the switch toward the front of your car. Once the
roof is closed, you can let go of the switch and then push the front of it
again. This opens the roof at the rear to a vent position.
125

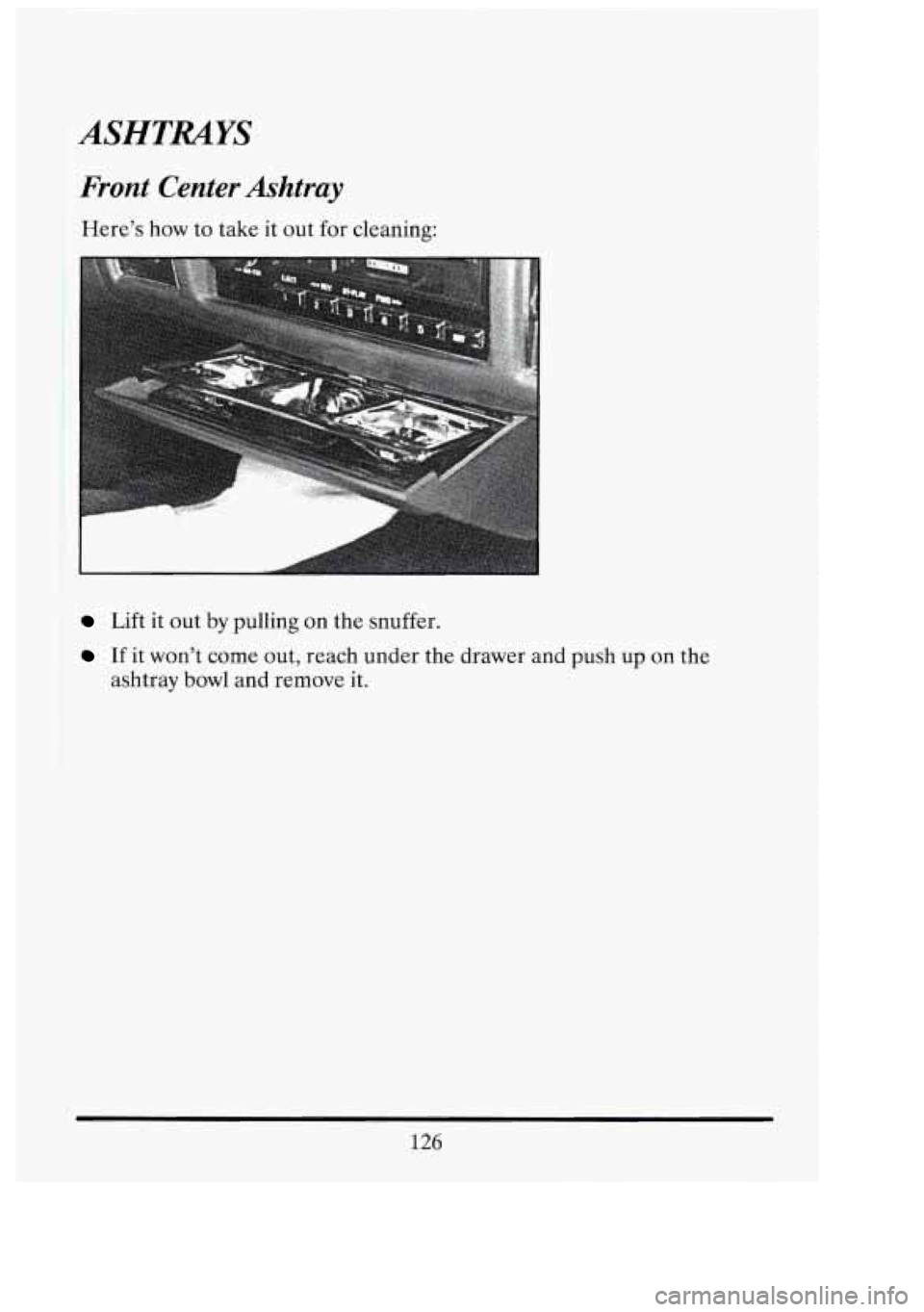

ASHTRAYS
Front Center Ashtray
Here’s how to take it out for cleaning:
ii
Lift it out by pulling on the snuffer.
If it won’t come out, reach under the drawer and push up on the
ashtray bowl and remove it.
126
--! J,

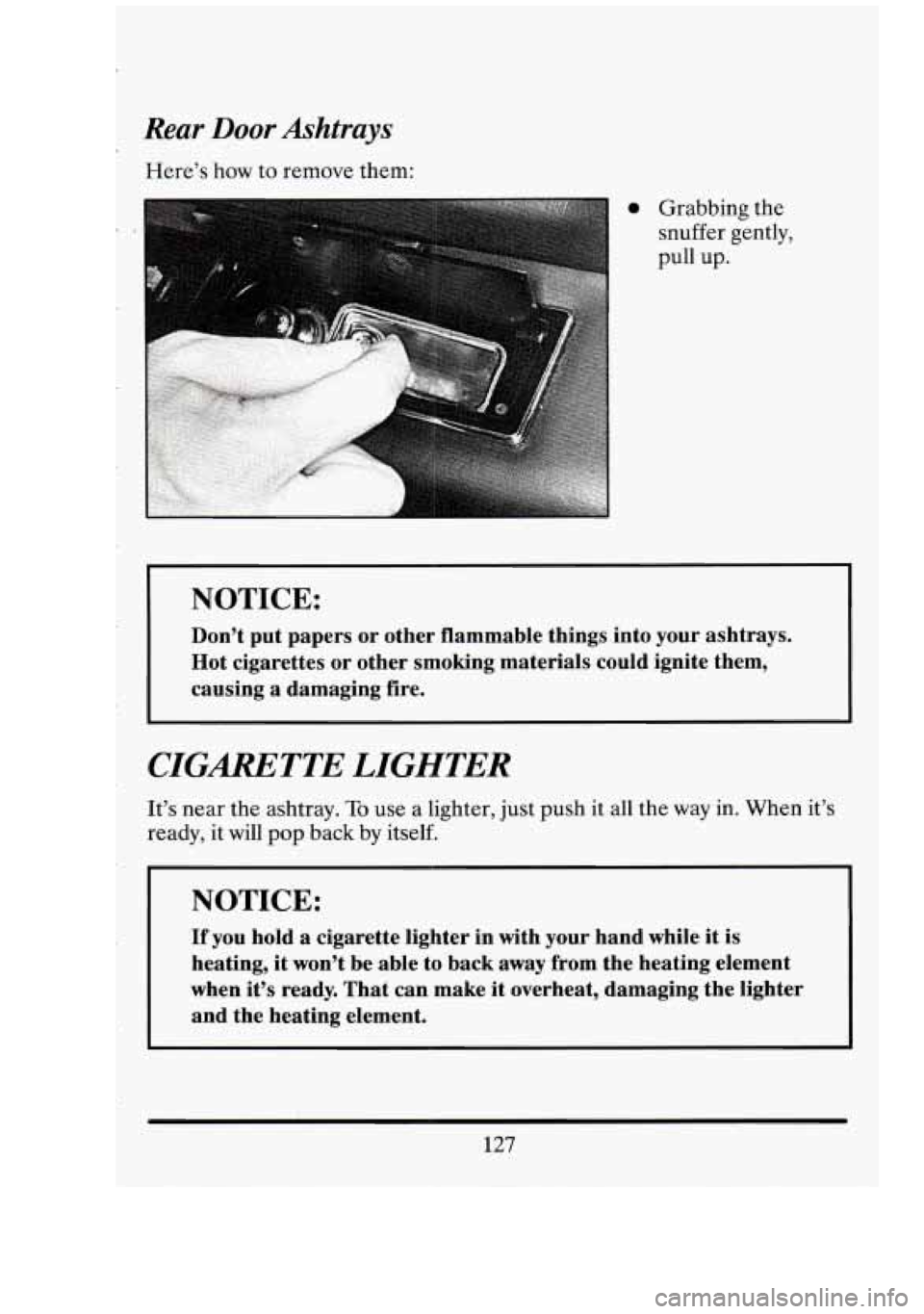

Rear Door Ashtrays -
Here’s how to remove them:
0 Grabbing the
snuffer gently,
pull up.
NOTICE:
Don’t put papers or other flammable things into your ashtrays.
Hot cigarettes or other smoking materials could ignite them,
causing
a damaging fire.
CIGARETTE LIGHTER
It’s near the ashtray. To use a lighter, just push it all the way in. When it’s
ready, it will pop back by itself.
7
NOTICE:
If you hold a cigarette lighter in with your hand while it is
heating, it won’t be able to back
away from the heating element
when
it’s ready. That can make it overheat, damaging the lighter
and the heating element.
127
