CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine Engine Timing Belt
Removal & Installation
NOTE :
The following special tools are required to perform the repair procedure:
•CH-20001 - Right Engine Mount Bolt Remover
• CH-20003 - Crankshaft Holder
• CH-20010 - Camshaft Holder
• Engine Hoist
1. Release the coolant system pressure.
WARNING!
Always allow the engine to cool before opening the cooling system. Do not loosen the coolant pressure relief
cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and
hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may
result in serious personal injury.
1 - Timing Belt Upper Cover Bolt
2 - Timing Belt Upper Cover
3 - Timing Belt Cover Gasket
4 - Timing Belt
5 - Timing Belt Touch Pulley
6 - Camshaft Bolt
7 - Camshaft
8 - Rear Timing Cover Bolt9 - Rear Timing Cover
10 - Idler Pulley
11 - Tensioner Pulley
12 - Tensioner Pulley Bolt
13 - Timing Belt Lower Cover
14 - Timing Belt Lower Cover Bolt
15 - Timing Belt Upper Cover Bolt
ON-VEHICLE SERVICE
LTSM020162
02
02–11 2Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 2. Remove the coolant reservoir (1) and set aside.
3. Attach an engine hoist and support the engine using an engine hoist.
4. Using special tool CH-20001 (2), remove theengine right mount bolts (1) and bracket.
(Tighten: Engine right mount bolts to 70 N·m)
5. Remove the accessory drive belt (See Accessory Drive Belt Removal & Installation in Section 02 Engine).
6. Remove the crankshaft vibration damper bolts (1). (Tighten: Crankshaft vibration damper bolts to
25 N·m)
ON-VEHICLE SERVICE
LTSM020190
LTSM020218
BESM020055
02–11 3Chery Automobile Co., Ltd.

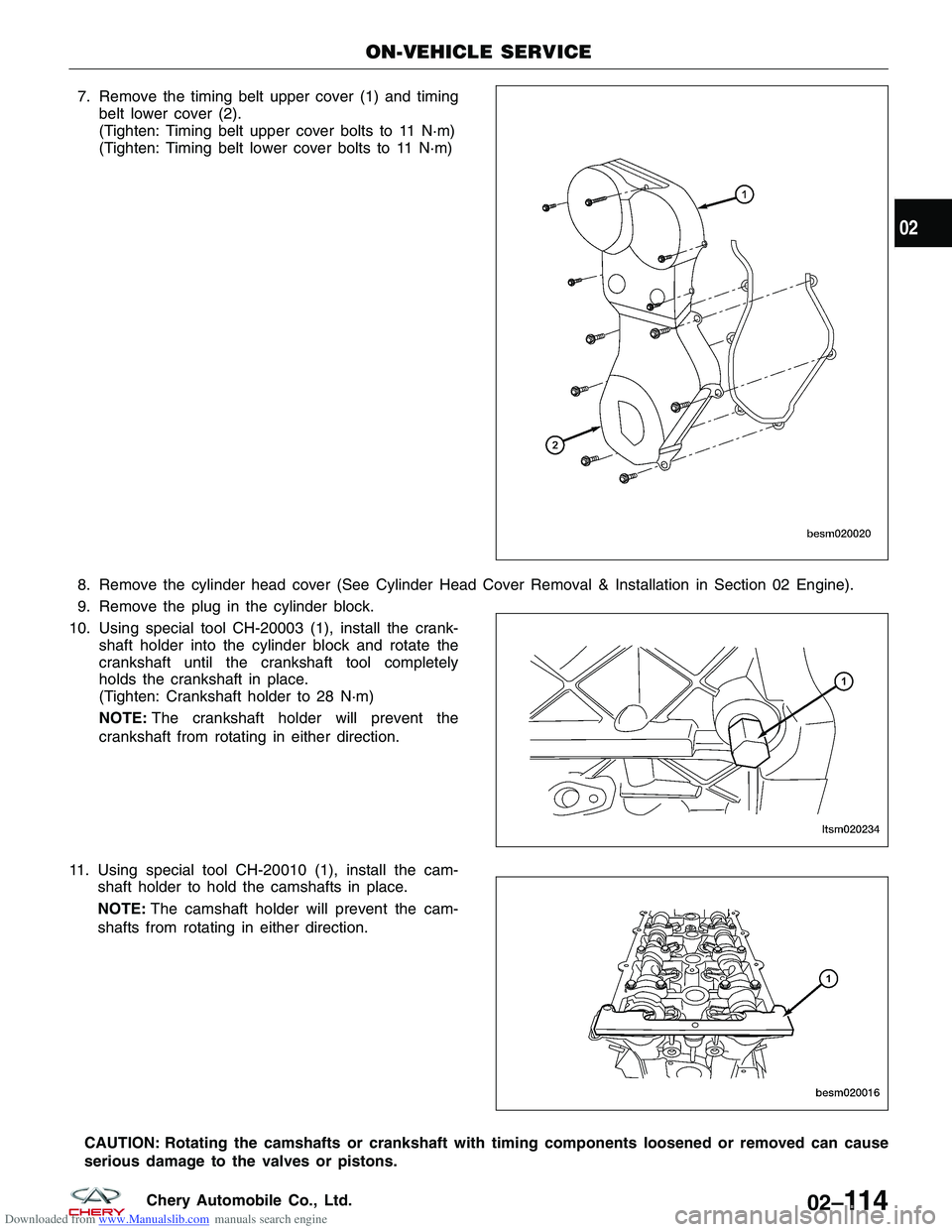

Downloaded from www.Manualslib.com manuals search engine 7. Remove the timing belt upper cover (1) and timingbelt lower cover (2).
(Tighten: Timing belt upper cover bolts to 11 N·m)
(Tighten: Timing belt lower cover bolts to 11 N·m)
8. Remove the cylinder head cover (See Cylinder Head Cover Removal & Installation in Section 02 Engine).
9. Remove the plug in the cylinder block.
10. Using special tool CH-20003 (1), install the crank- shaft holder into the cylinder block and rotate the
crankshaft until the crankshaft tool completely
holds the crankshaft in place.
(Tighten: Crankshaft holder to 28 N·m)
NOTE: The crankshaft holder will prevent the
crankshaft from rotating in either direction.
11. Using special tool CH-20010 (1), install the cam- shaft holder to hold the camshafts in place.
NOTE: The camshaft holder will prevent the cam-
shafts from rotating in either direction.
CAUTION: Rotating the camshafts or crankshaft with timing components loosened or removed can cause
serious damage to the valves or pistons.
ON-VEHICLE SERVICE
BESM020020
LTSM020234
BESM020016
02
02–11 4Chery Automobile Co., Ltd.

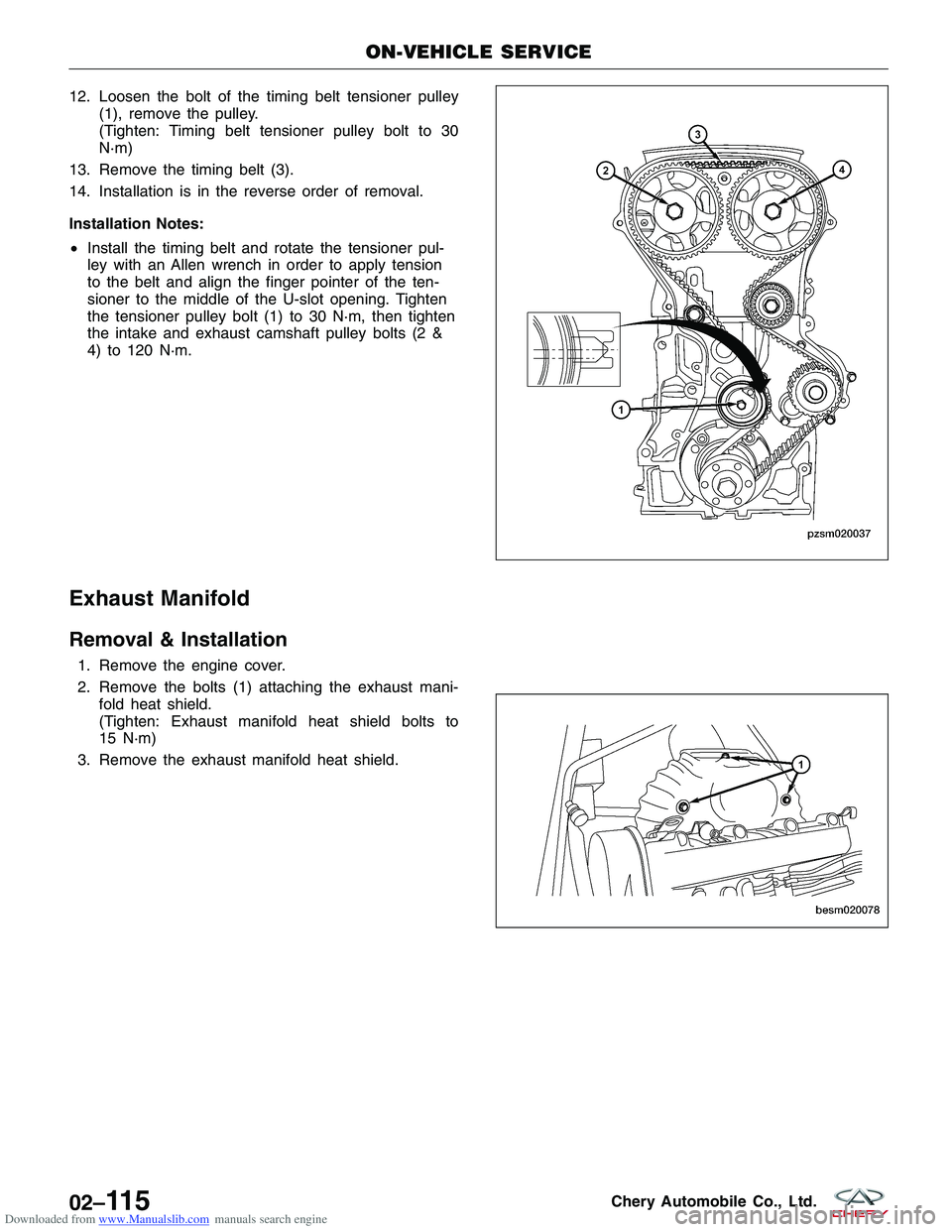

Downloaded from www.Manualslib.com manuals search engine 12. Loosen the bolt of the timing belt tensioner pulley(1), remove the pulley.
(Tighten: Timing belt tensioner pulley bolt to 30
N·m)
13. Remove the timing belt (3).
14. Installation is in the reverse order of removal.
Installation Notes:
• Install the timing belt and rotate the tensioner pul-
ley with an Allen wrench in order to apply tension
to the belt and align the finger pointer of the ten-
sioner to the middle of the U-slot opening. Tighten
the tensioner pulley bolt (1) to 30 N·m, then tighten
the intake and exhaust camshaft pulley bolts (2 &
4) to 120 N·m.
Exhaust Manifold
Removal & Installation
1. Remove the engine cover.
2. Remove the bolts (1) attaching the exhaust mani-
fold heat shield.
(Tighten: Exhaust manifold heat shield bolts to
15 N·m)
3. Remove the exhaust manifold heat shield.
ON-VEHICLE SERVICE
PZSM020037
BESM020078
02–11 5Chery Automobile Co., Ltd.

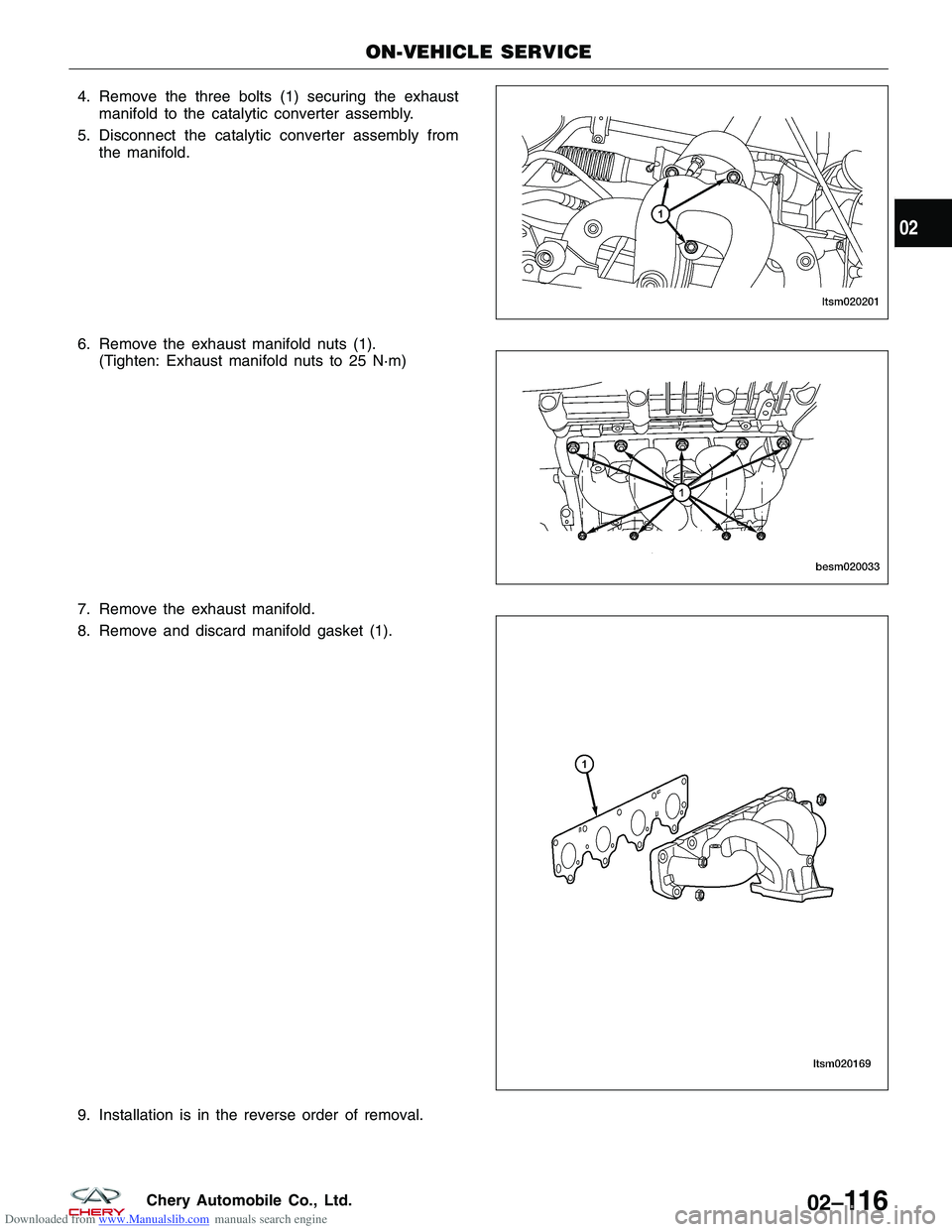

Downloaded from www.Manualslib.com manuals search engine 4. Remove the three bolts (1) securing the exhaustmanifold to the catalytic converter assembly.
5. Disconnect the catalytic converter assembly from the manifold.
6. Remove the exhaust manifold nuts (1). (Tighten: Exhaust manifold nuts to 25 N·m)
7. Remove the exhaust manifold.
8. Remove and discard manifold gasket (1).
9. Installation is in the reverse order of removal.
ON-VEHICLE SERVICE
LTSM020201
BESM020033
LTSM020169
02
02–11 6Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Installation Notes:
•Clean all surfaces of manifold and cylinder head.
• Install a new exhaust manifold gasket during installation.
Intake Manifold
Removal & Installation
1. Disconnect the negative battery cable.
2. Remove the engine cover.
3. Drain the cooling system (See Cooling System Draining and Filling in Section 06 Cooling).
WARNING!
Always allow the engine to cool before opening the cooling system. Do not loosen the coolant pressure relief
cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and
hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may
result in serious personal injury.
1 - Fuel Rail Bolt
2 - Fuel Rail
3 - Electronic Throttle Control Actuator Bolt
4 - Electronic Throttle Control Actuator
5 - Electronic Throttle Control Actuator Gasket
6 - Air Intake Pressure Temperature Sensor Bolt7 - Air Intake Pressure Temperature Sensor
8 - Intake Manifold Bolt
9 - Intake Manifold
10 - Intake Manifold Bracket
11 - Intake Manifold Gasket
ON-VEHICLE SERVICE
LTSM020164
02–11 7Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4. Disconnect the four fuel injector electrical connec-tors (1).
5. Disconnect the throttle body control electrical con- nector (2).
6. Disconnect the air flow sensor electrical connector (1).
7. Loosen the clamp between the air intake hose and the air cleaner.
8. Loosen the clamp between the air intake hose and the throttle body and then remove the intake pipe.
9. Loosen the clamp on the PCV hose and then disconnect the PCV hose.
10. Remove the fuel rail bracket bolts (1). (Tighten: Fuel rail bracket bolts to 11 N·m)
11. Remove the fuel rail with the fuel injectors and set aside.
12. Remove the fuel injector O-rings.
NOTE :
Install new O-rings on the fuel injectors.
13. Remove the screws securing the vacuum valve bracket to the intake manifold.
14. Set aside the vacuum valve and pipe.
15. Disconnect intake manifold electrical harness, and vacuum hose.
ON-VEHICLE SERVICE
LTSM020221
LTSM020204
LTSM020222
02
02–11 8Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 16. Remove the bolts (2) & (3) securing the engine oildipstick to intake manifold. Remove the dipstick.
(Tighten: Dipstick bracket bolts to 11 N·m)
17. Disconnect the oil pressure switch connector (4).
18. Remove the nuts (1) securing the intake manifold to cylinder head.
(Tighten: Intake manifold nuts to 11 N·m)
NOTE: Replace the manifold gasket.
19. Installation is in the reverse order of removal.
Installation Notes:
• Clean all surfaces of manifold and cylinder head.
• Install a new intake manifold gasket during installation.
• Install new O-rings on the fuel injectors.
Idler Pulley
Removal & Installation
1. While using a suitable tool and securely holding the hexagonal portion of the drive belt tensioner, rotate the
pulley counterclockwise to loosen the drive belt.
WARNING!
Avoid placing hands near the drive belt tensioner while it is being held.
2. Remove the drive belt.
Upper Accessory Drive Belt Idler Pulley (1)
• Remove the bolt and the upper accessory drive
belt idler pulley.
(Tighten: Upper idler pulley bolt to 45 N·m)
Lower Accessory Drive Belt Idler Pulley (2)
• Remove the bolt and the lower accessory drive belt
idler pulley.
(Tighten: Lower idler pulley bolt to 45 N·m) 3. Installation is in the reverse order of removal.
Oil Filter
Removal & Installation
NOTE :
The following special tools are required to perform the repair procedure:
• CH-10003 - Oil Filter Remover
CAUTION:
When servicing the oil filter, avoid deforming the filter by installing the special tool against the
base of the filter.
ON-VEHICLE SERVICE
LTSM020223
LTSM020203
02–11 9Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine WARNING!
Prolonged and repeated contact with engine oil will harm your skin. If engine oil is spilled on your skin, wash it
off immediately with water. In addition, used engine oil contains potentially harmful contaminants which may
cause skin cancer. Always use adequate skin protection when performing vehicle service.

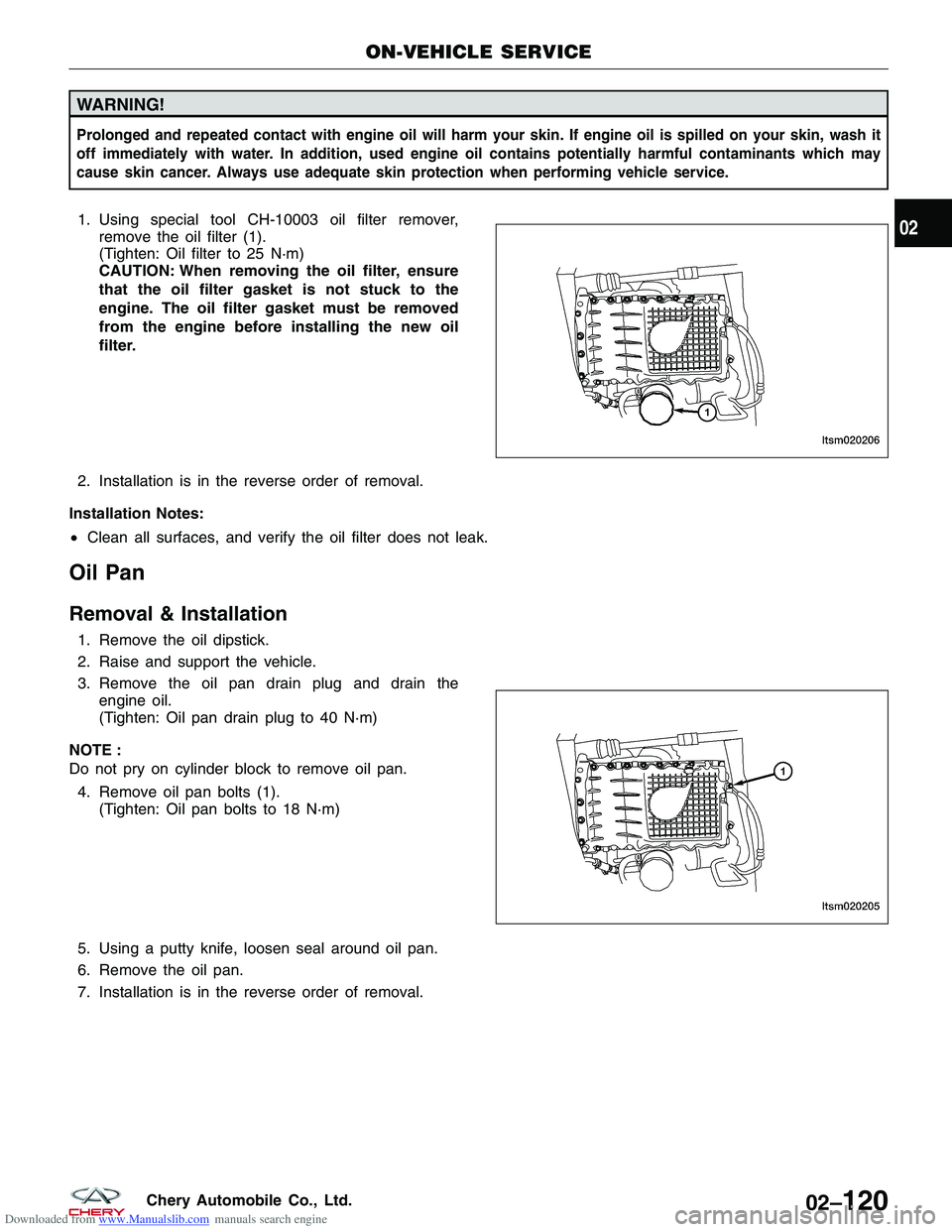

1. Using special tool CH-10003 oil filter remover,remove the oil filter (1).
(Tighten: Oil filter to 25 N·m)
CAUTION: When removing the oil filter, ensure
that the oil filter gasket is not stuck to the
engine. The oil filter gasket must be removed
from the engine before installing the new oil
filter.
2. Installation is in the reverse order of removal.
Installation Notes:
• Clean all surfaces, and verify the oil filter does not leak.
Oil Pan
Removal & Installation
1. Remove the oil dipstick.
2. Raise and support the vehicle.
3. Remove the oil pan drain plug and drain the
engine oil.
(Tighten: Oil pan drain plug to 40 N·m)
NOTE :
Do not pry on cylinder block to remove oil pan. 4. Remove oil pan bolts (1). (Tighten: Oil pan bolts to 18 N·m)
5. Using a putty knife, loosen seal around oil pan.
6. Remove the oil pan.
7. Installation is in the reverse order of removal.
ON-VEHICLE SERVICE
LTSM020206
LTSM020205
02
02–120Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Installation Notes:
•Oil pan sealing surfaces must be free of grease or oil.

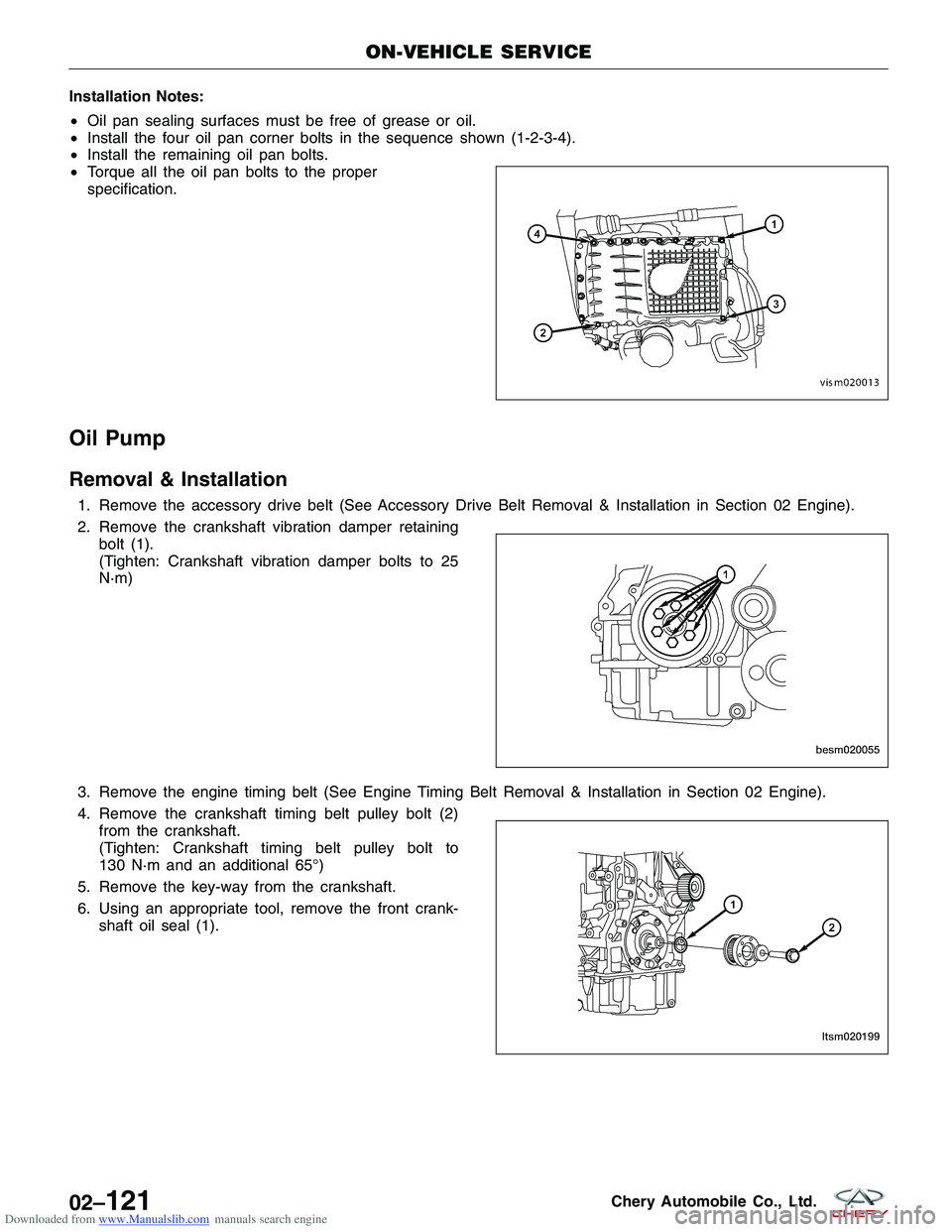

• Install the four oil pan corner bolts in the sequence shown (1-2-3-4).
• Install the remaining oil pan bolts.
• Torque all the oil pan bolts to the proper
specification.
Oil Pump
Removal & Installation
1. Remove the accessory drive belt (See Accessory Drive Belt Removal & Installation in Section 02 Engine).
2. Remove the crankshaft vibration damper retaining
