CHERY TIGGO 2009 Service Repair Manual

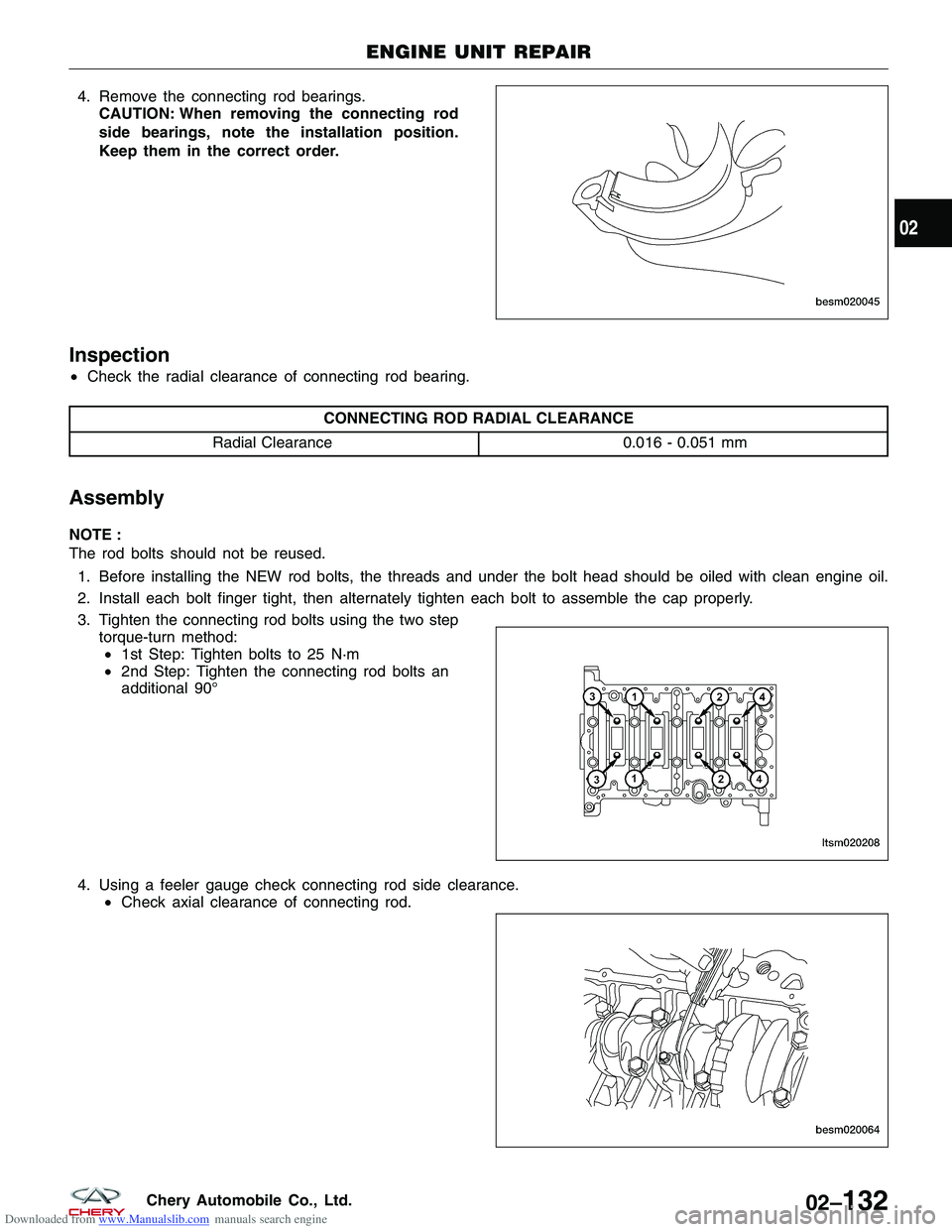

Downloaded from www.Manualslib.com manuals search engine 4. Remove the connecting rod bearings.CAUTION: When removing the connecting rod
side bearings, note the installation position.
Keep them in the correct order.
Inspection
•Check the radial clearance of connecting rod bearing.
CONNECTING ROD RADIAL CLEARANCE
Radial Clearance 0.016 - 0.051 mm
Assembly
NOTE :
The rod bolts should not be reused.
1. Before installing the NEW rod bolts, the threads and under the bolt head should be oiled with clean engine oil.
2. Install each bolt finger tight, then alternately tighten each bolt to assemble the cap properly.
3. Tighten the connecting rod bolts using the two step torque-turn method:• 1st Step: Tighten bolts to 25 N·m
• 2nd Step: Tighten the connecting rod bolts an
additional 90°
4. Using a feeler gauge check connecting rod side clearance. •Check axial clearance of connecting rod.
ENGINE UNIT REPAIR
BESM020045
LTSM020208
BESM020064
02
02–132Chery Automobile Co., Ltd.

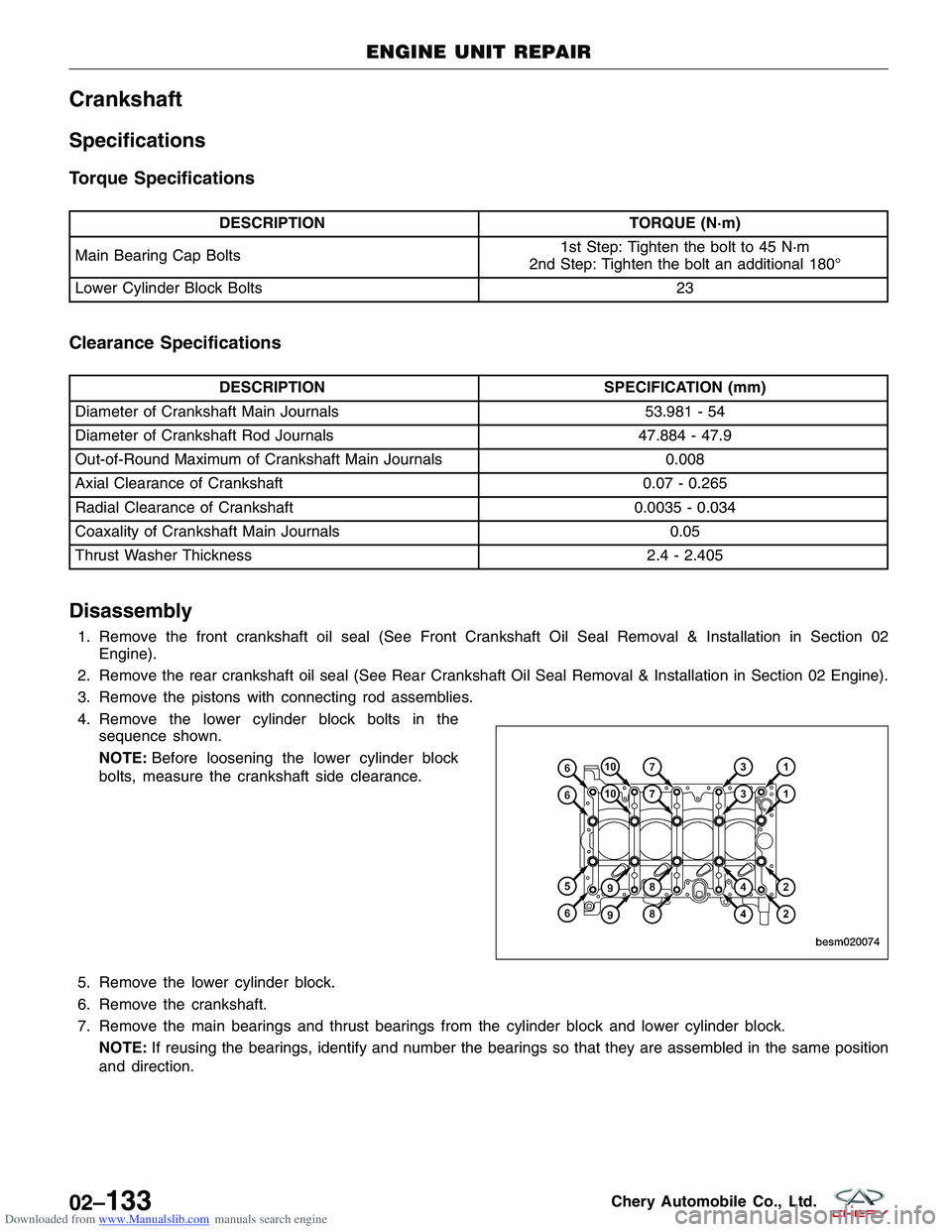

Downloaded from www.Manualslib.com manuals search engine Crankshaft
Specifications
Torque Specifications
DESCRIPTIONTORQUE (N·m)
Main Bearing Cap Bolts 1st Step: Tighten the bolt to 45 N·m
2nd Step: Tighten the bolt an additional 180°
Lower Cylinder Block Bolts 23
Clearance Specifications
DESCRIPTIONSPECIFICATION (mm)
Diameter of Crankshaft Main Journals 53.981 - 54
Diameter of Crankshaft Rod Journals 47.884 - 47.9
Out-of-Round Maximum of Crankshaft Main Journals 0.008
Axial Clearance of Crankshaft 0.07 - 0.265
Radial Clearance of Crankshaft 0.0035 - 0.034
Coaxality of Crankshaft Main Journals 0.05
Thrust Washer Thickness 2.4 - 2.405
Disassembly
1. Remove the front crankshaft oil seal (See Front Crankshaft Oil Seal Removal & Installation in Section 02
Engine).
2. Remove the rear crankshaft oil seal (See Rear Crankshaft Oil Seal Removal & Installation in Section 02 Engine).
3. Remove the pistons with connecting rod assemblies.
4. Remove the lower cylinder block bolts in the sequence shown.
NOTE: Before loosening the lower cylinder block
bolts, measure the crankshaft side clearance.
5. Remove the lower cylinder block.
6. Remove the crankshaft.
7. Remove the main bearings and thrust bearings from the cylinder block and lower cylinder block. NOTE: If reusing the bearings, identify and number the bearings so that they are assembled in the same position
and direction.
ENGINE UNIT REPAIR
BESM020074
02–133Chery Automobile Co., Ltd.

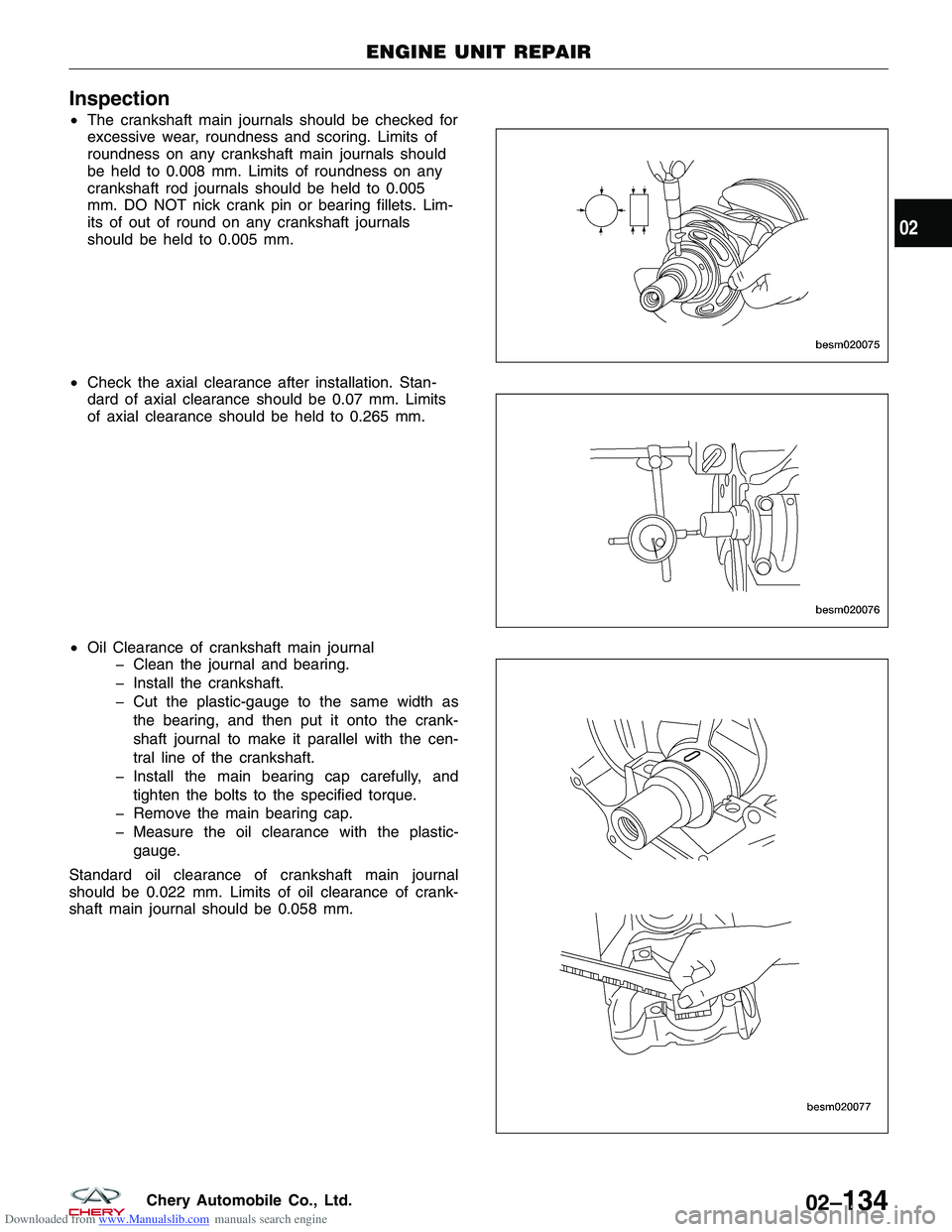

Downloaded from www.Manualslib.com manuals search engine Inspection
•The crankshaft main journals should be checked for
excessive wear, roundness and scoring. Limits of
roundness on any crankshaft main journals should
be held to 0.008 mm. Limits of roundness on any
crankshaft rod journals should be held to 0.005
mm. DO NOT nick crank pin or bearing fillets. Lim-
its of out of round on any crankshaft journals
should be held to 0.005 mm.
• Check the axial clearance after installation. Stan-
dard of axial clearance should be 0.07 mm. Limits
of axial clearance should be held to 0.265 mm.
• Oil Clearance of crankshaft main journal
Clean the journal and bearing.
Install the crankshaft.
Cut the plastic-gauge to the same width as
the bearing, and then put it onto the crank-
shaft journal to make it parallel with the cen-
tral line of the crankshaft.
Install the main bearing cap carefully, and tighten the bolts to the specified torque.
Remove the main bearing cap.
Measure the oil clearance with the plastic- gauge.
Standard oil clearance of crankshaft main journal
should be 0.022 mm. Limits of oil clearance of crank-
shaft main journal should be 0.058 mm.
ENGINE UNIT REPAIR
BESM020075
BESM020076
BESM020077
02
02–134Chery Automobile Co., Ltd.

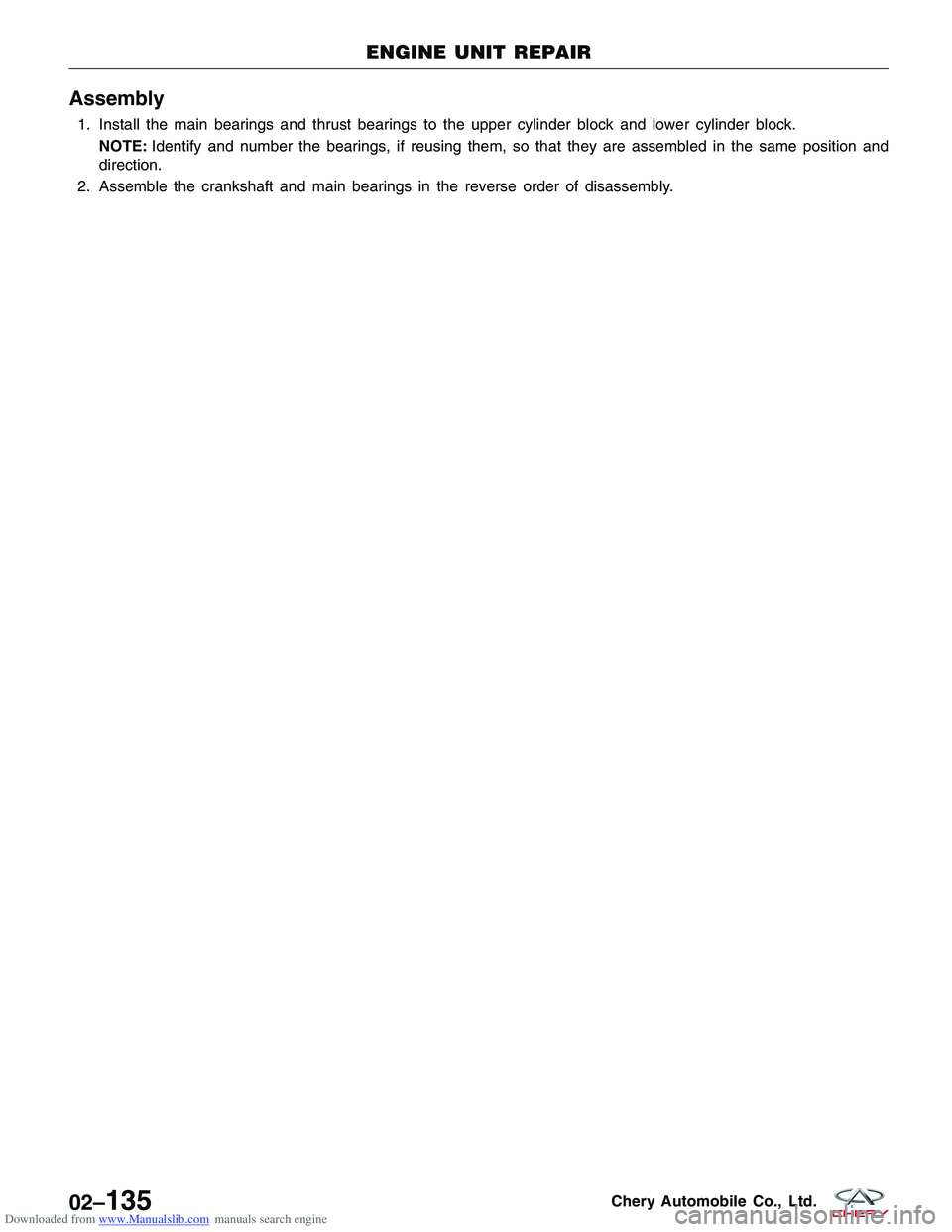

Downloaded from www.Manualslib.com manuals search engine Assembly
1. Install the main bearings and thrust bearings to the upper cylinder block and lower cylinder block.NOTE: Identify and number the bearings, if reusing them, so that they are assembled in the same position and
direction.
2. Assemble the crankshaft and main bearings in the reverse order of disassembly.
ENGINE UNIT REPAIR
02–135Chery Automobile Co., Ltd.

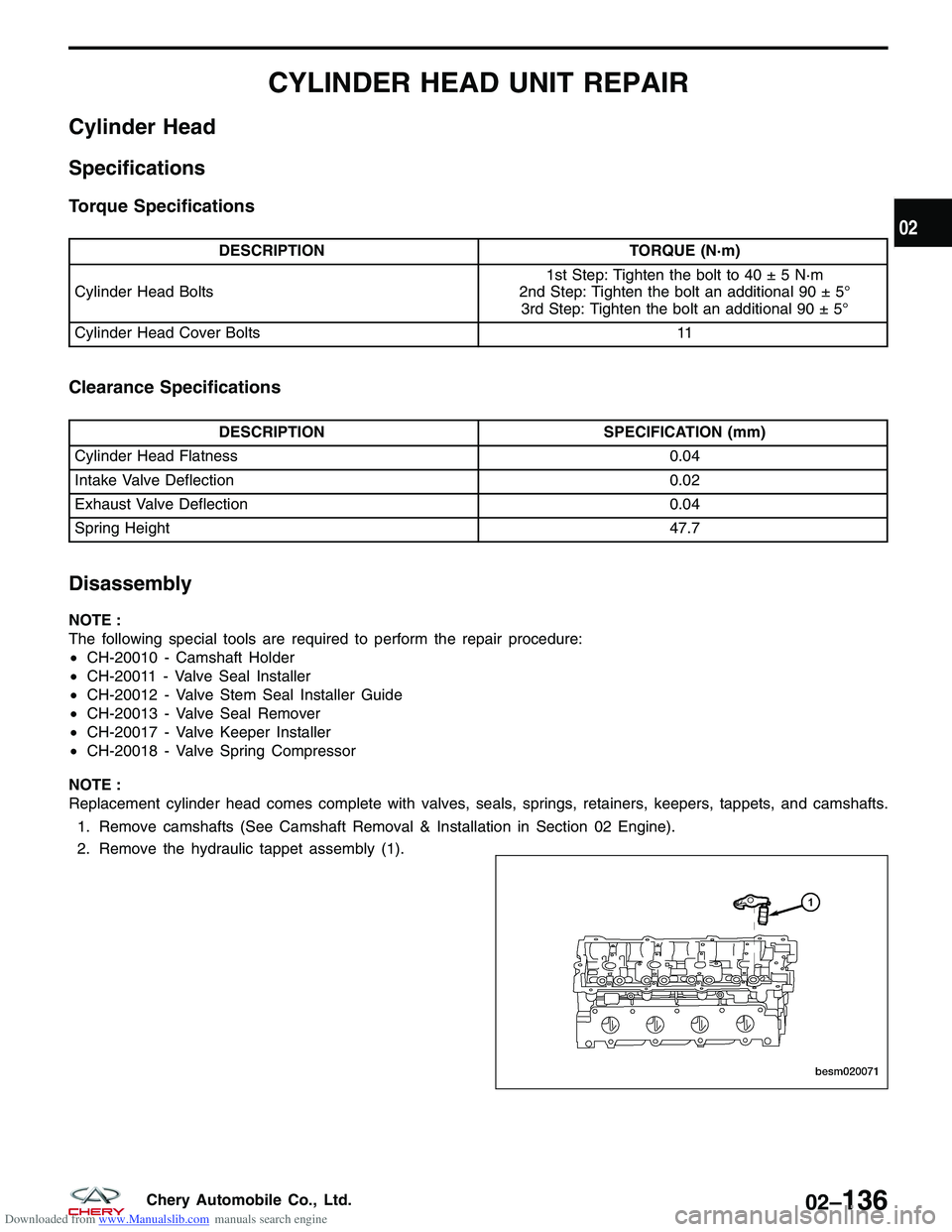

Downloaded from www.Manualslib.com manuals search engine CYLINDER HEAD UNIT REPAIR
Cylinder Head
Specifications
Torque Specifications
DESCRIPTIONTORQUE (N·m)
Cylinder Head Bolts 1st Step: Tighten the bolt to 40 ± 5 N·m
2nd Step: Tighten the bolt an additional 90 ± 5° 3rd Step: Tighten the bolt an additional 90 ± 5°
Cylinder Head Cover Bolts 11
Clearance Specifications
DESCRIPTIONSPECIFICATION (mm)
Cylinder Head Flatness 0.04
Intake Valve Deflection 0.02
Exhaust Valve Deflection 0.04
Spring Height 47.7
Disassembly
NOTE :
The following special tools are required to perform the repair procedure:
•CH-20010 - Camshaft Holder
• CH-20011 - Valve Seal Installer
• CH-20012 - Valve Stem Seal Installer Guide
• CH-20013 - Valve Seal Remover
• CH-20017 - Valve Keeper Installer
• CH-20018 - Valve Spring Compressor
NOTE :
Replacement cylinder head comes complete with valves, seals, springs, retainers, keepers, tappets, and camshafts. 1. Remove camshafts (See Camshaft Removal & Installation in Section 02 Engine).
2. Remove the hydraulic tappet assembly (1).
BESM020071
02
02–136Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3. Using the special tool CH-20018 (1), compress thevalve spring.
4. Remove the valve keeper (1), valve spring retainer (2) and valve spring (3).
5. Push the valve stem from the cylinder head and remove the valve (4).
6. Using special tool CH-20013 (1), remove the valve oil seal.
7. Remove the valve guide.
8. Remove the spark plugs.
CYLINDER HEAD UNIT REPAIR
BESM020067
VISM080041
LTSM020225
02–137Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Inspection
Inspect the cylinder head for the following:
•Cylinder head must be flat within 0.04 mm.
• Inspect camshaft bearing journals for scoring.
• Remove carbon and varnish deposits from inside of
valve guides with a valve guide cleaner.
• Verify the valve tappets move freely in their bores,
and that they have been rotating.
• Check the valve guide height.
Assembly
1. Install new valve guide if necessary.
2. Install new valve seat if necessary.
3. Using special tool CH-20011 (1) and CH-20012 (2),
install the new valve oil seal.
4. Install the valves into the cylinder head (larger diameter on intake side).
5. Install the valve springs.
6. Install the valve spring retainers.
CYLINDER HEAD UNIT REPAIR
BESM020068
LTSM020224
02
02–138Chery Automobile Co., Ltd.

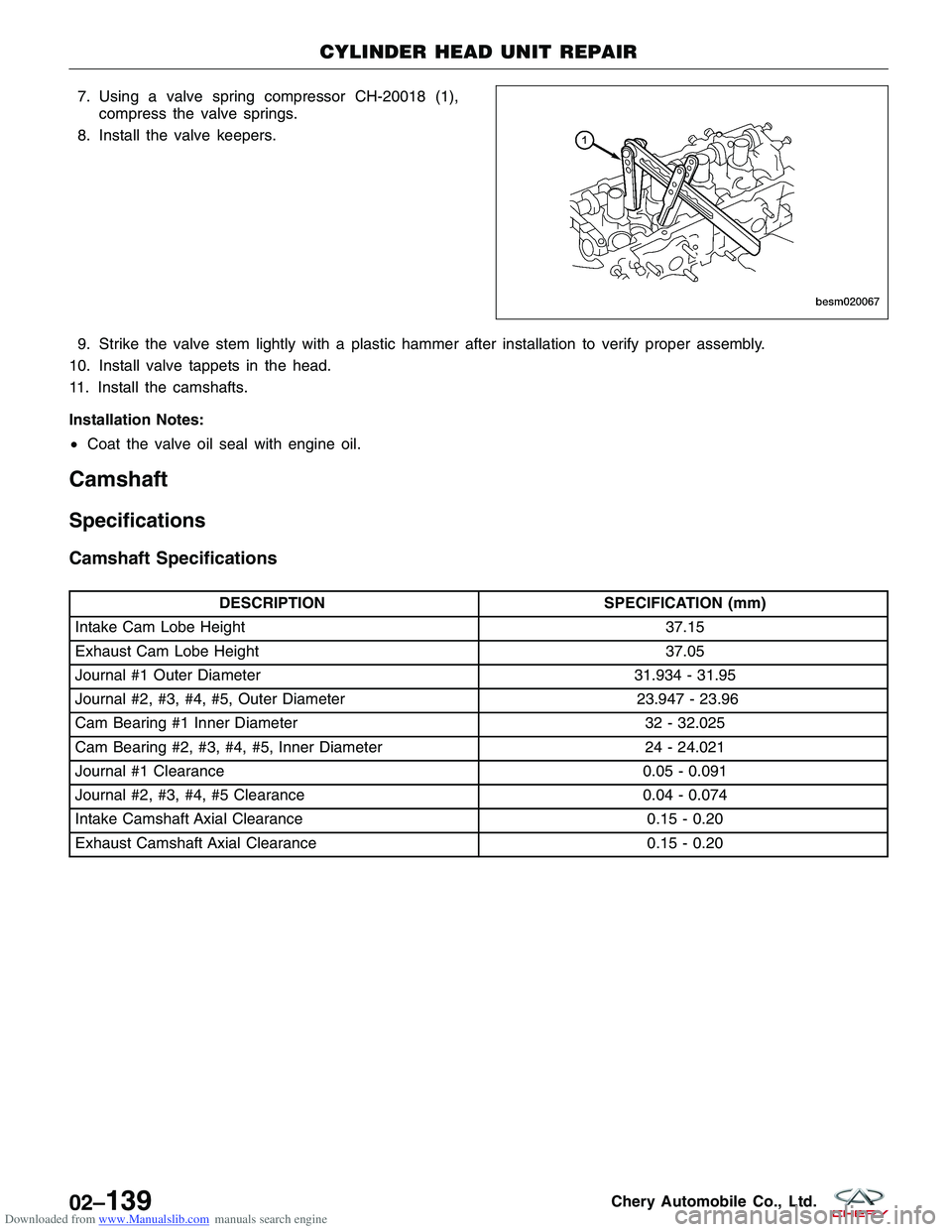

Downloaded from www.Manualslib.com manuals search engine 7. Using a valve spring compressor CH-20018 (1),compress the valve springs.
8. Install the valve keepers.
9. Strike the valve stem lightly with a plastic hammer after installation to verify proper assembly.
10. Install valve tappets in the head.
11. Install the camshafts.
Installation Notes:
• Coat the valve oil seal with engine oil.
Camshaft
Specifications
Camshaft Specifications
DESCRIPTION SPECIFICATION (mm)
Intake Cam Lobe Height 37.15
Exhaust Cam Lobe Height 37.05
Journal #1 Outer Diameter 31.934 - 31.95
Journal #2, #3, #4, #5, Outer Diameter 23.947 - 23.96
Cam Bearing #1 Inner Diameter 32 - 32.025
Cam Bearing #2, #3, #4, #5, Inner Diameter 24 - 24.021
Journal #1 Clearance 0.05 - 0.091
Journal #2, #3, #4, #5 Clearance 0.04 - 0.074
Intake Camshaft Axial Clearance 0.15 - 0.20
Exhaust Camshaft Axial Clearance 0.15 - 0.20
CYLINDER HEAD UNIT REPAIR
BESM020067
02–139Chery Automobile Co., Ltd.

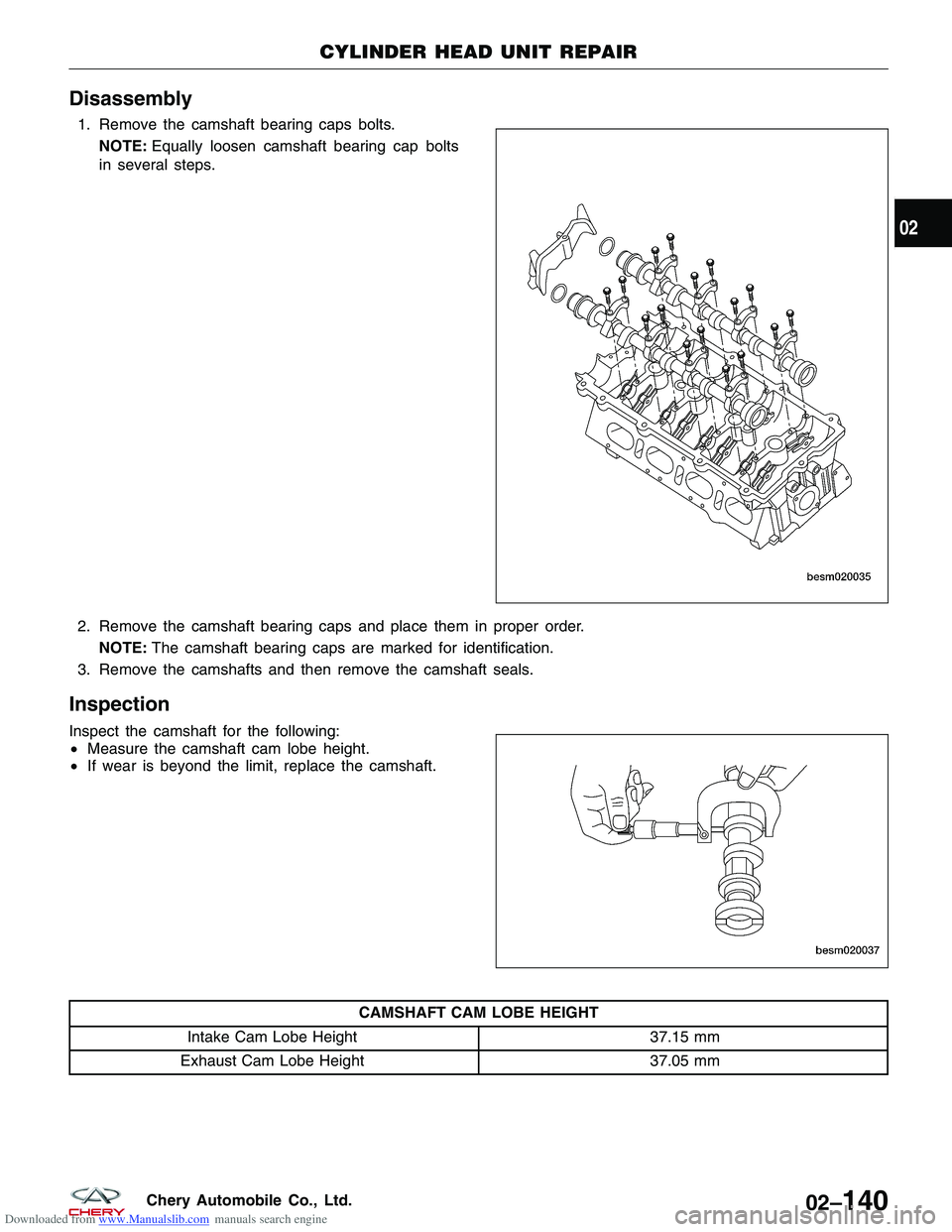

Downloaded from www.Manualslib.com manuals search engine Disassembly
1. Remove the camshaft bearing caps bolts.NOTE: Equally loosen camshaft bearing cap bolts
in several steps.
2. Remove the camshaft bearing caps and place them in proper order. NOTE: The camshaft bearing caps are marked for identification.
3. Remove the camshafts and then remove the camshaft seals.
Inspection
Inspect the camshaft for the following:
• Measure the camshaft cam lobe height.
• If wear is beyond the limit, replace the camshaft.
CAMSHAFT CAM LOBE HEIGHT
Intake Cam Lobe Height 37.15 mm
Exhaust Cam Lobe Height 37.05 mm
CYLINDER HEAD UNIT REPAIR
BESM020035
BESM020037
02
02–140Chery Automobile Co., Ltd.

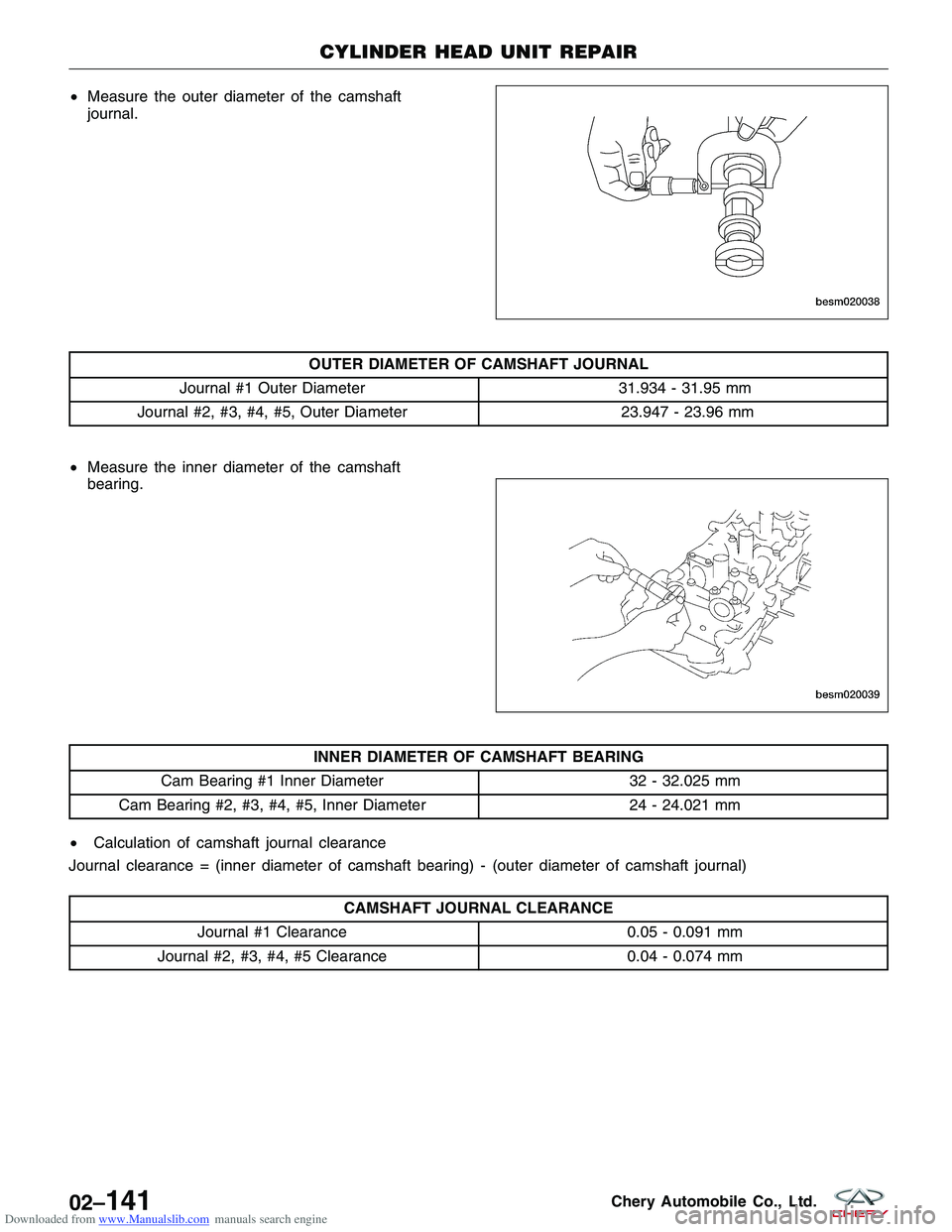

Downloaded from www.Manualslib.com manuals search engine •Measure the outer diameter of the camshaft
journal.
OUTER DIAMETER OF CAMSHAFT JOURNAL
Journal #1 Outer Diameter 31.934 - 31.95 mm
Journal #2, #3, #4, #5, Outer Diameter 23.947 - 23.96 mm
• Measure the inner diameter of the camshaft
bearing.
INNER DIAMETER OF CAMSHAFT BEARING
Cam Bearing #1 Inner Diameter 32 - 32.025 mm
Cam Bearing #2, #3, #4, #5, Inner Diameter 24 - 24.021 mm
• Calculation of camshaft journal clearance
Journal clearance = (inner diameter of camshaft bearing) - (outer diameter of camshaft journal)
CAMSHAFT JOURNAL CLEARANCE
Journal #1 Clearance 0.05 - 0.091 mm
Journal #2, #3, #4, #5 Clearance 0.04 - 0.074 mm
CYLINDER HEAD UNIT REPAIR
BESM020038
BESM020039
02–141Chery Automobile Co., Ltd.
