CHERY TIGGO 2009 Service Repair Manual

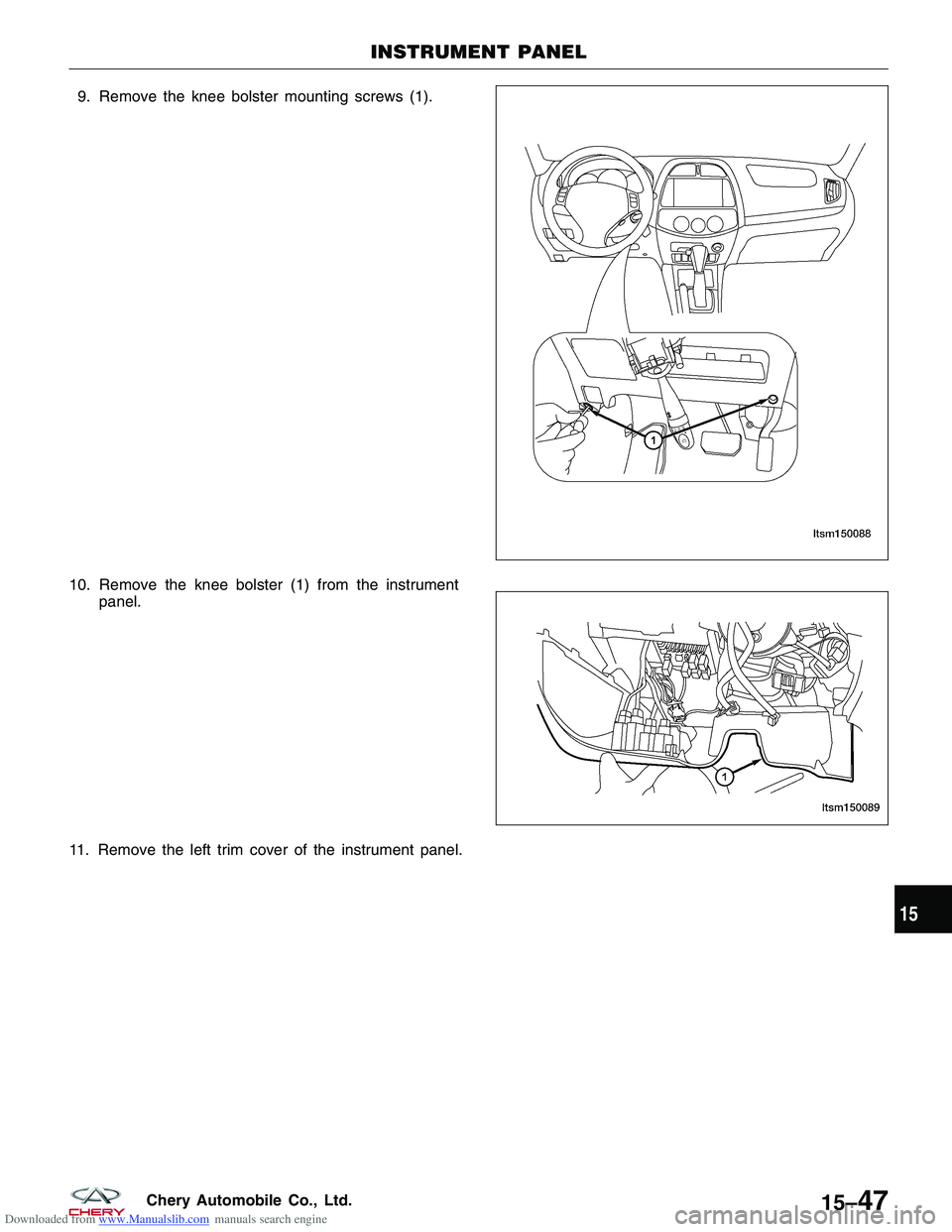

Downloaded from www.Manualslib.com manuals search engine 9. Remove the knee bolster mounting screws (1).
10. Remove the knee bolster (1) from the instrument panel.
11. Remove the left trim cover of the instrument panel.
INSTRUMENT PANEL
LTSM150088
LTSM150089
15
15–47Chery Automobile Co., Ltd.

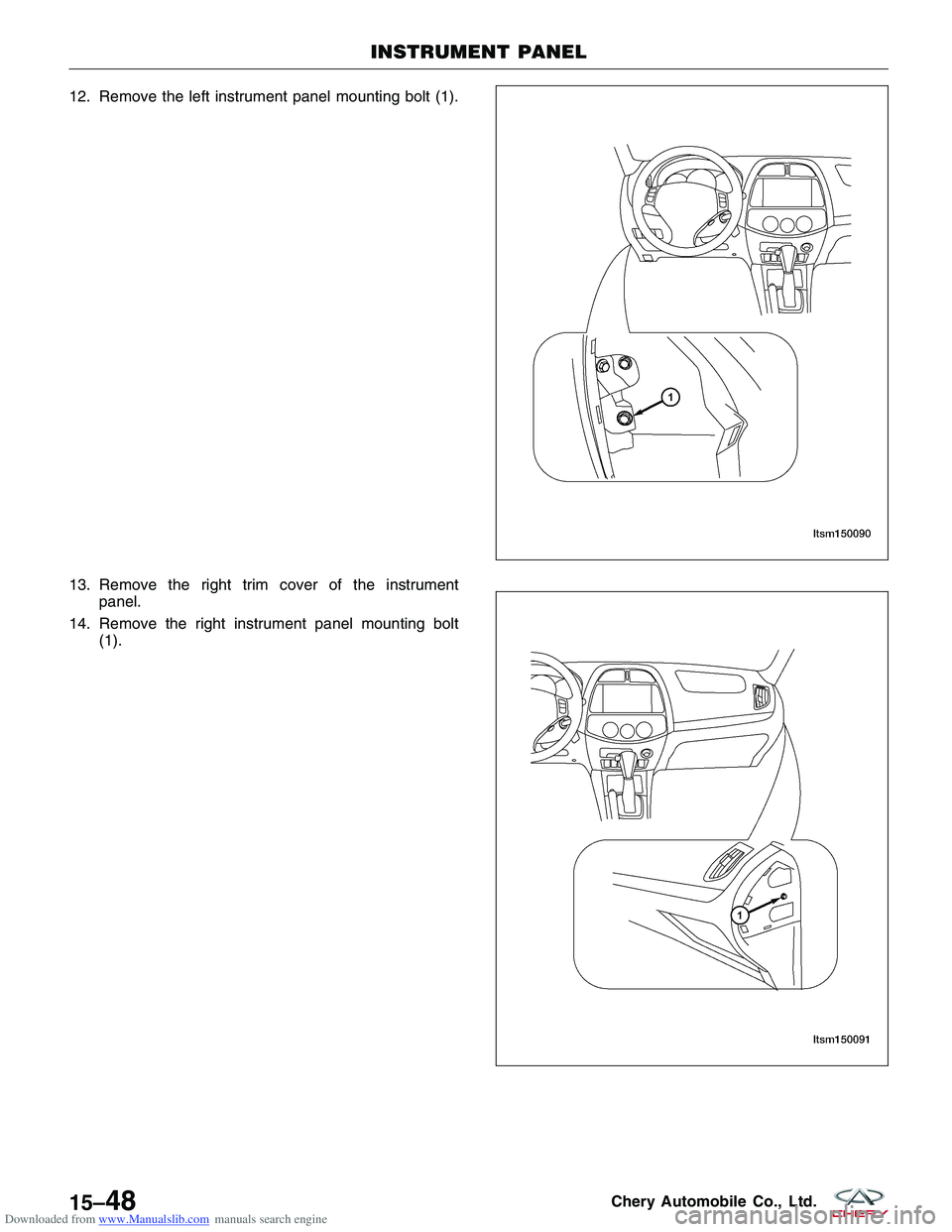

Downloaded from www.Manualslib.com manuals search engine 12. Remove the left instrument panel mounting bolt (1).
13. Remove the right trim cover of the instrumentpanel.
14. Remove the right instrument panel mounting bolt (1).
INSTRUMENT PANEL
LTSM150090
LTSM150091
15–48Chery Automobile Co., Ltd.

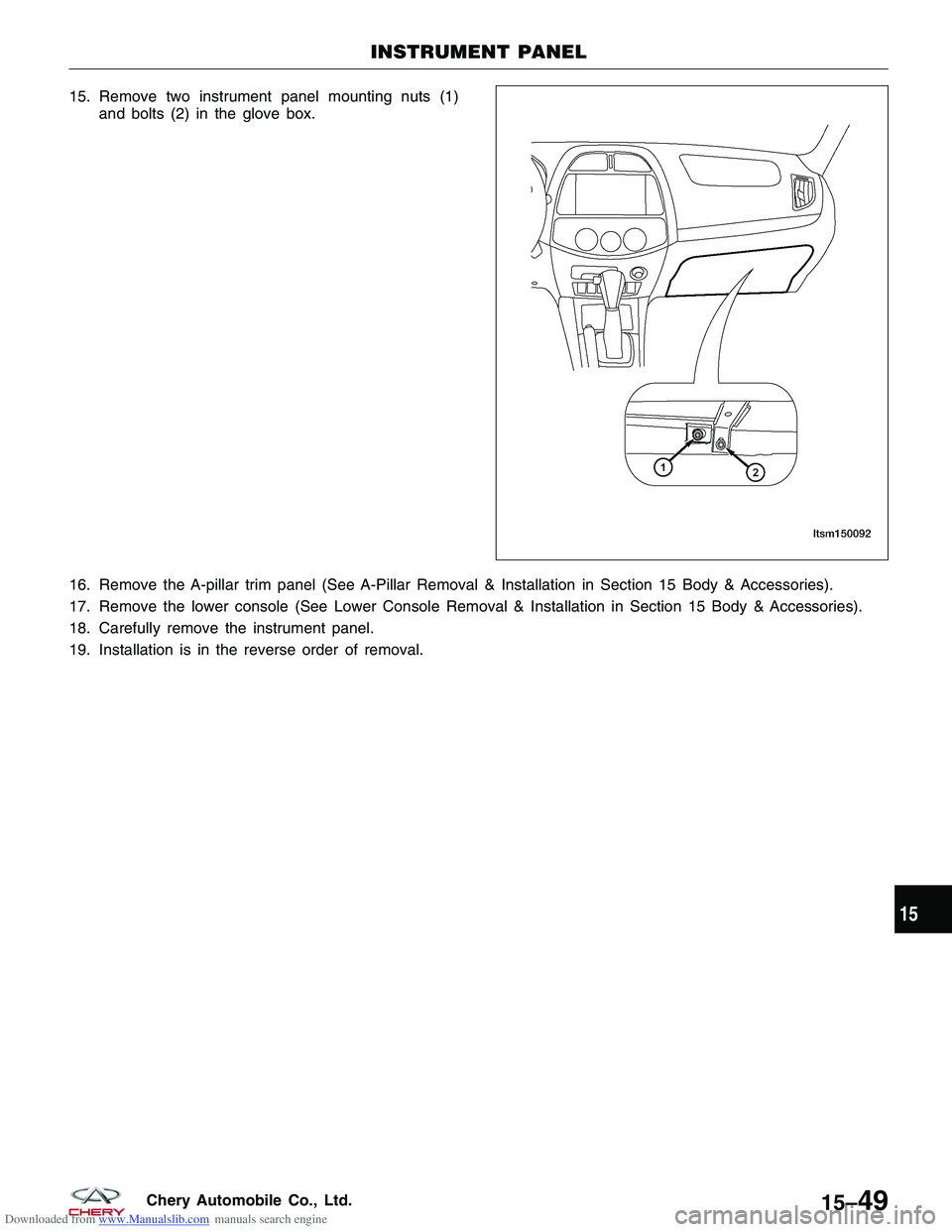

Downloaded from www.Manualslib.com manuals search engine 15. Remove two instrument panel mounting nuts (1)and bolts (2) in the glove box.
16. Remove the A-pillar trim panel (See A-Pillar Removal & Installation in Section 15 Body & Accessories).
17. Remove the lower console (See Lower Console Removal & Installation in Section 15 Body & Accessories).
18. Carefully remove the instrument panel.
19. Installation is in the reverse order of removal.
INSTRUMENT PANEL
LTSM150092
15
15–49Chery Automobile Co., Ltd.

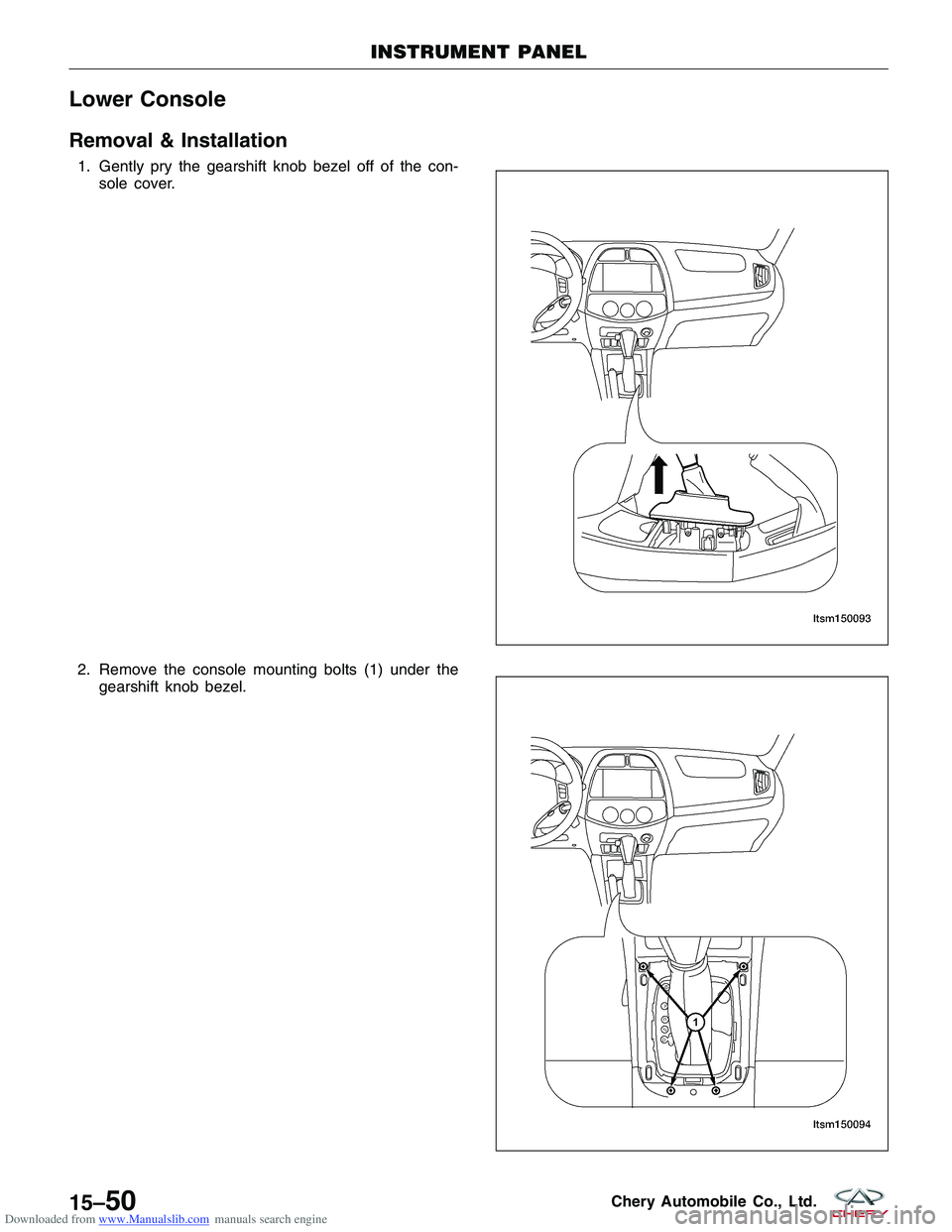

Downloaded from www.Manualslib.com manuals search engine Lower Console
Removal & Installation
1. Gently pry the gearshift knob bezel off of the con-sole cover.
2. Remove the console mounting bolts (1) under the gearshift knob bezel.
INSTRUMENT PANEL
LTSM150093
LTSM150094
15–50Chery Automobile Co., Ltd.

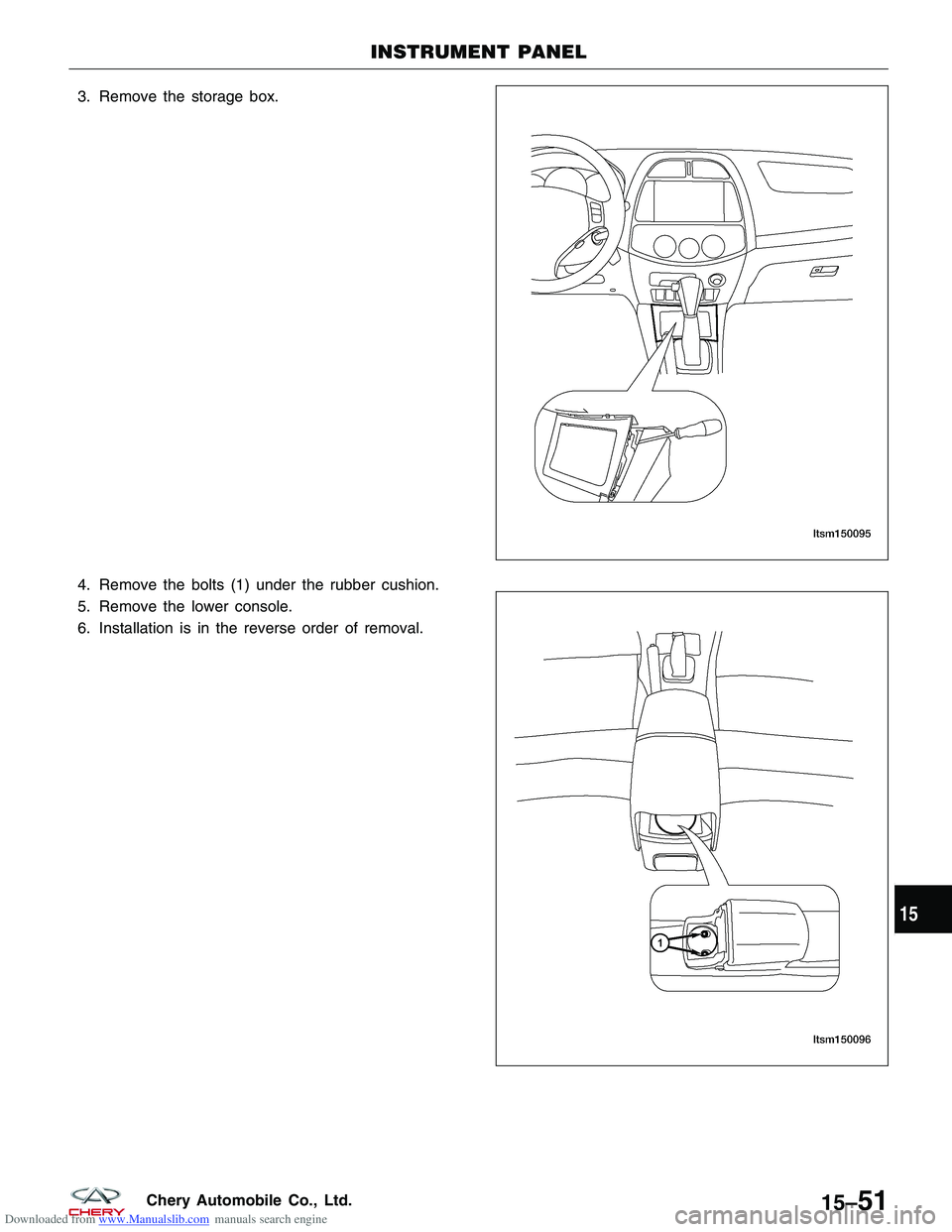

Downloaded from www.Manualslib.com manuals search engine 3. Remove the storage box.
4. Remove the bolts (1) under the rubber cushion.
5. Remove the lower console.
6. Installation is in the reverse order of removal.
INSTRUMENT PANEL
LTSM150095
LTSM150096
15
15–51Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine INSTRUMENT CLUSTER
Description
The Instrument Cluster (IC) is located in the instrument panel directly in front of the driver. The IC is used to inform
the driver of specific vehicle information. The IC uses indicator lamps and gauges to warn the driver of potentially
critical operating conditions.
Operation
The Instrument Cluster (IC) uses hard wired inputs from various sensors and switches. The sensors and switches are
located throughout the vehicle. The IC displays the following gauges:
•Speedometer - The IC displays the vehicle speed as determined by the Engine Control Module (ECM).
• Tachometer - The IC displays the engine speed as determined by the Engine Control Module (ECM).
• Temperature Gauge - The IC displays the engine coolant temperature as determined by the Engine Control
Module (ECM).
• Fuel Gauge - The IC displays the amount of fuel in the fuel tank as determined by the fuel level sensor.
1 - Tachometer
2 - Maintenance Indicator Light
3 - Cruise Indicator Light
4 - Parking Brake System Warning Light
5 - Parking Light
6 - Malfunction Indicator Light
7 - Left-Turn Light
8 - Door/Trunk Lid Open Warning Display
9 - Charging System Light
10 - Front Fog Light Indicator Light
11 - Brake System Warning Light
12 - High Beam Indicator Light
13 - Speedometer
14 - Airbag Light
15 - Rear Fog Light Indicator Light16 - 4WD Warning Light (If Equipped)
17 - Right-Turn Light
18 - Low Fuel Warning Light
19 - ABS Warning Light
20 - Oil Pressure Warning Light
21 - Fuel Gauge
22 - Temperature Gauge
23 - Electronic Throttle Control Indicator Light
24 - Km/h Light
25 - Transaxle Range Indicator (If Equipped)
26 - Odometer/Trip Odometer
27 - Digital Clock
28 - Adjust Button
29 - Seat Belt Reminder Light
30 - Coolant Temperature Warning Light
LTSM150129
15–52Chery Automobile Co., Ltd.

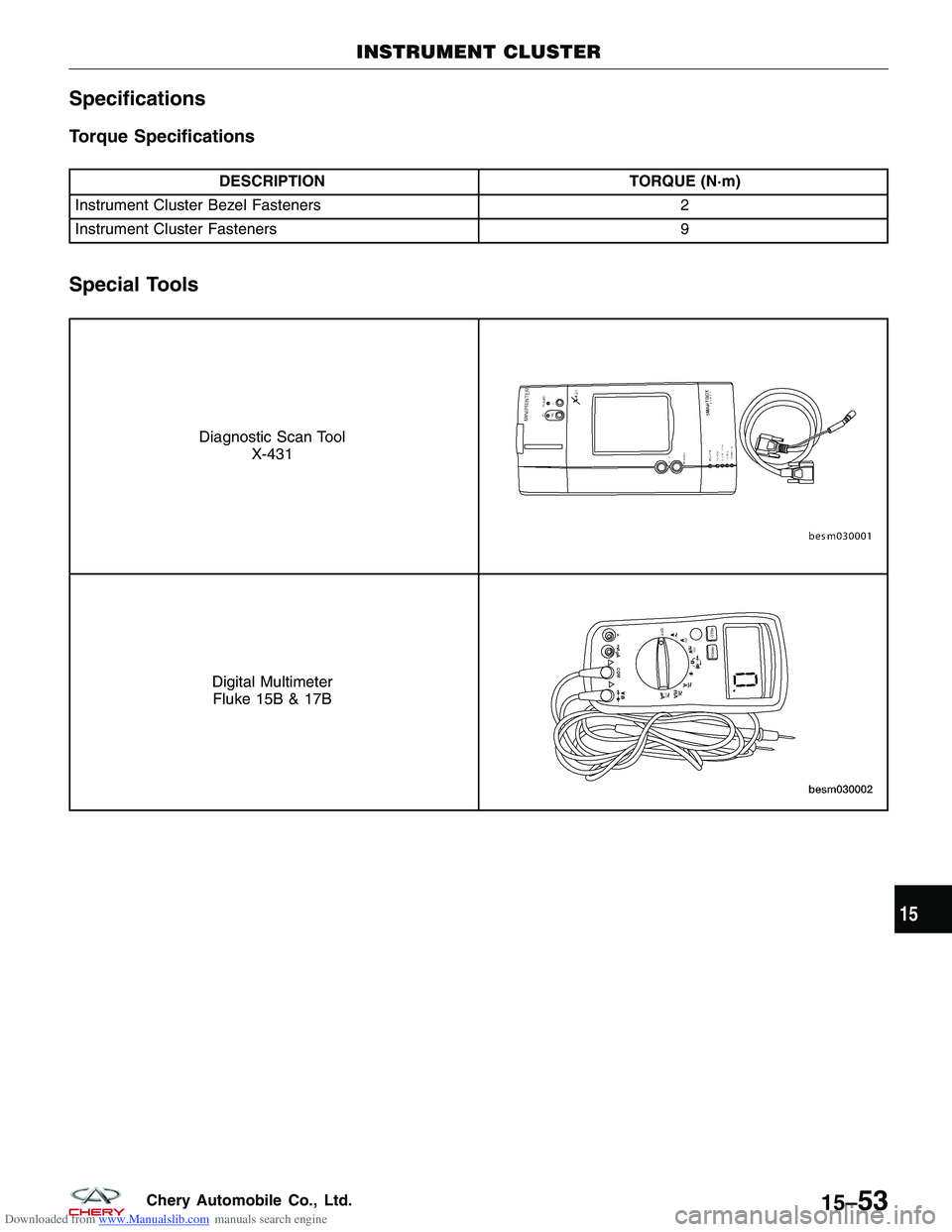

Downloaded from www.Manualslib.com manuals search engine Specifications
Torque Specifications
DESCRIPTIONTORQUE (N·m)
Instrument Cluster Bezel Fasteners 2
Instrument Cluster Fasteners 9
Special Tools
Diagnostic Scan Tool
X-431
Digital MultimeterFluke 15B & 17B
INSTRUMENT CLUSTER
15
15–53Chery Automobile Co., Ltd.

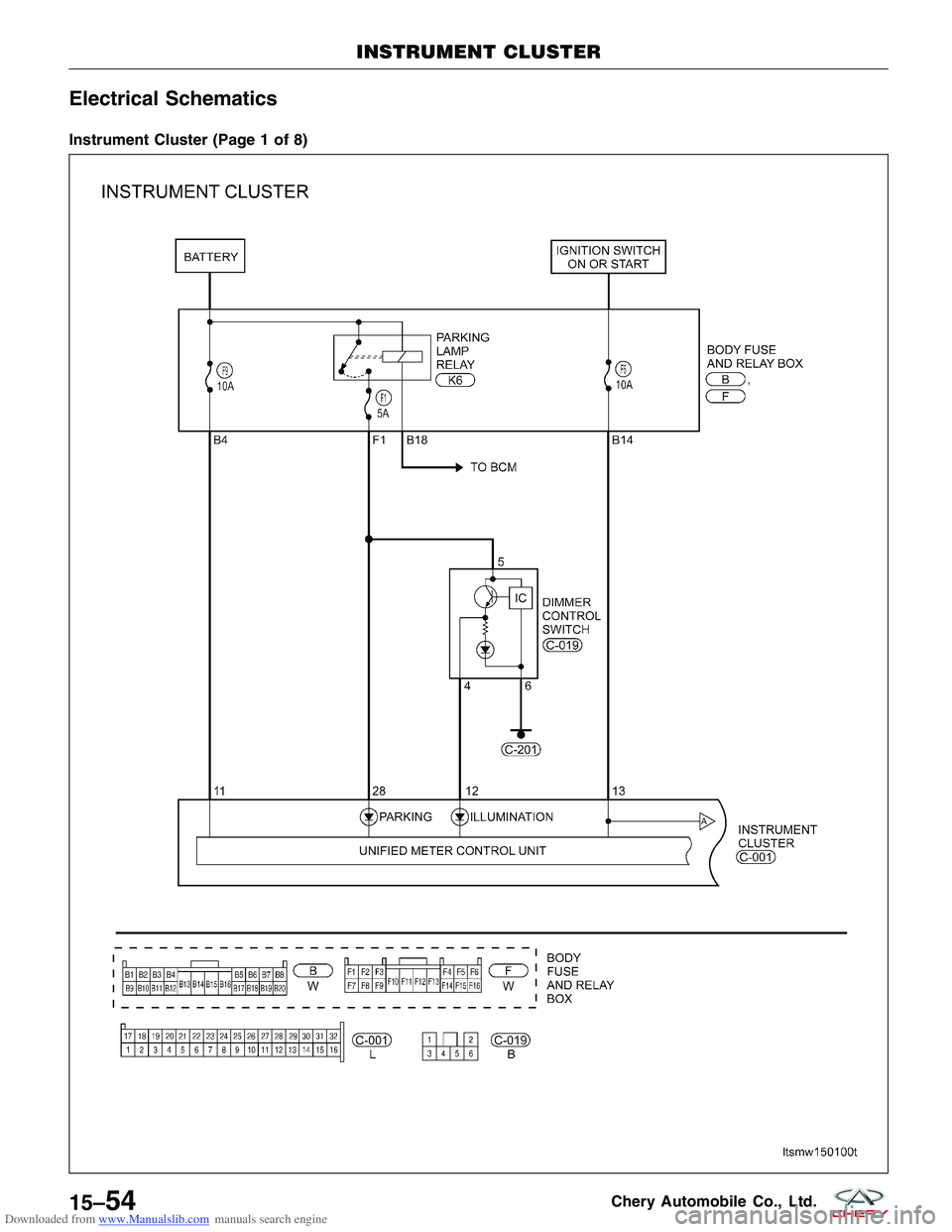

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Instrument Cluster (Page 1 of 8)
INSTRUMENT CLUSTER
LTSMW150100T
15–54Chery Automobile Co., Ltd.

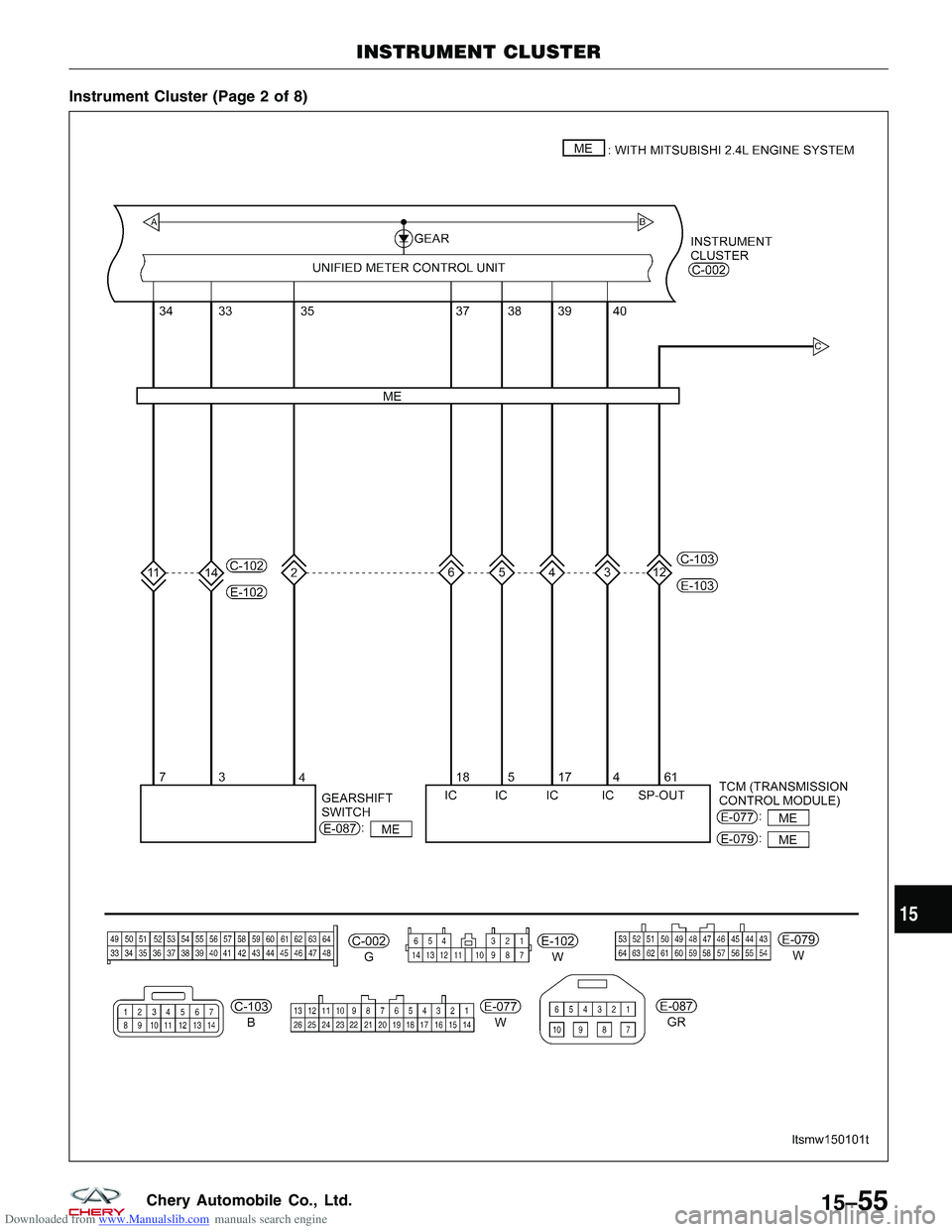

Downloaded from www.Manualslib.com manuals search engine Instrument Cluster (Page 2 of 8)
INSTRUMENT CLUSTER
LTSMW150101T
15
15–55Chery Automobile Co., Ltd.

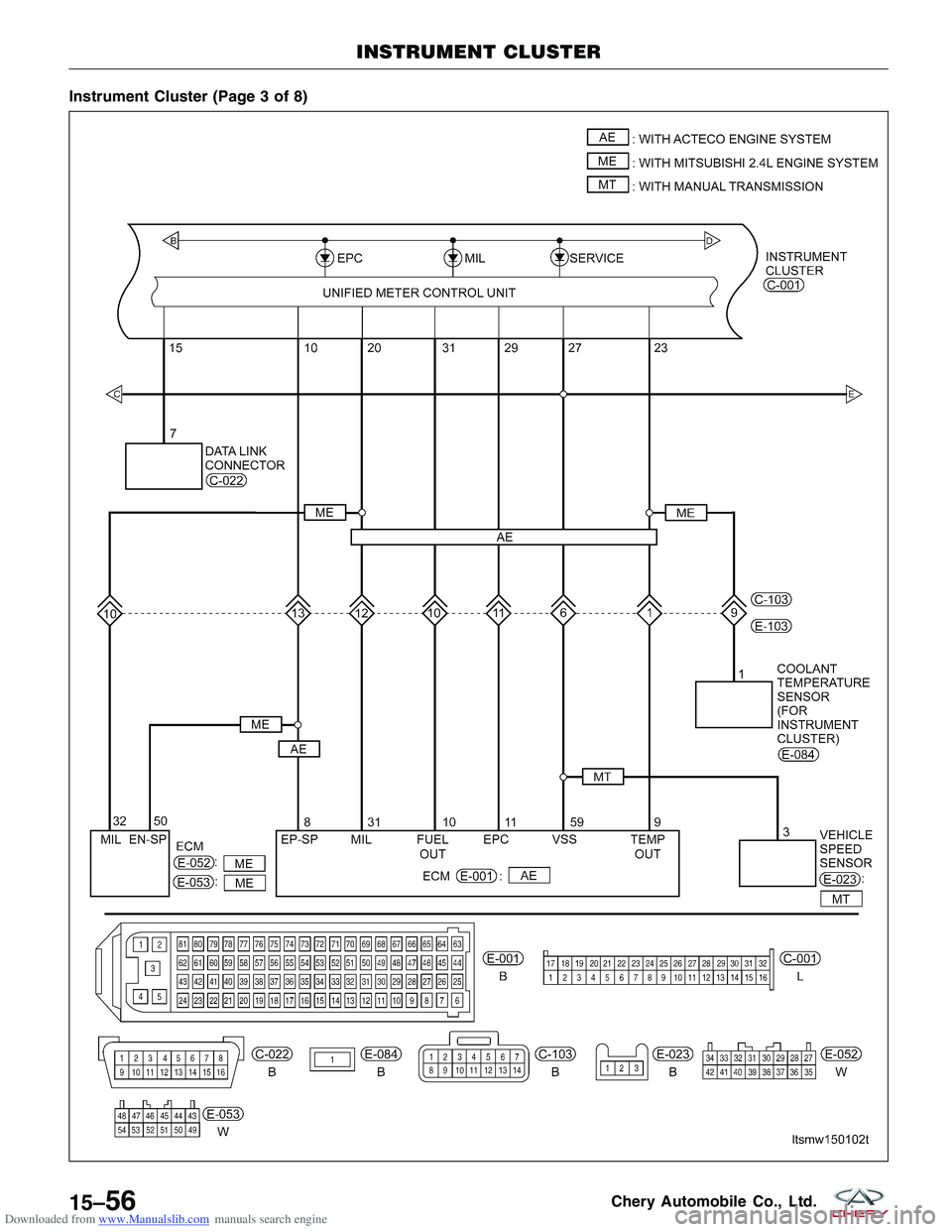

Downloaded from www.Manualslib.com manuals search engine Instrument Cluster (Page 3 of 8)
INSTRUMENT CLUSTER
LTSMW150102T
15–56Chery Automobile Co., Ltd.
