Page 1771 of 1903

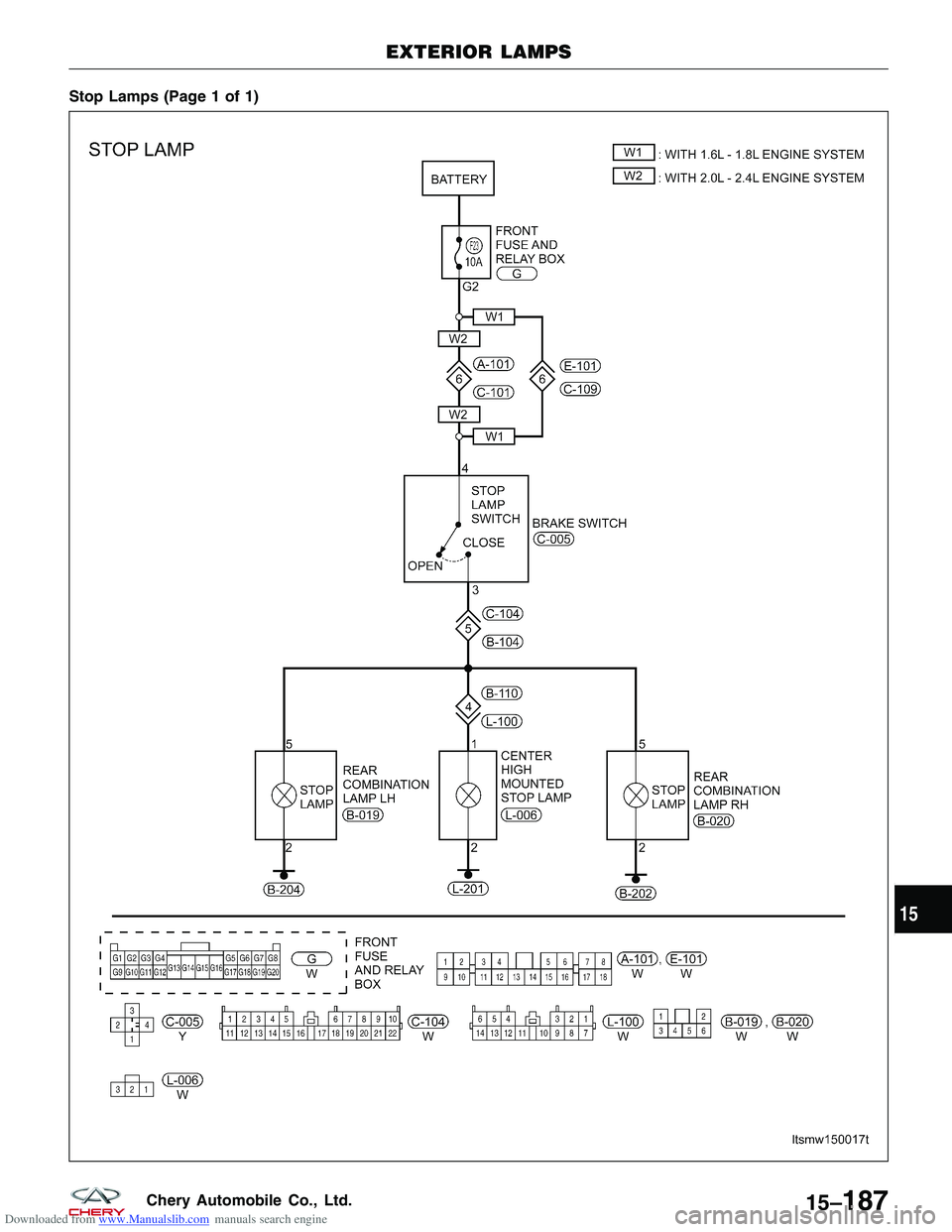

Downloaded from www.Manualslib.com manuals search engine Stop Lamps (Page 1 of 1)
EXTERIOR LAMPS
LTSMW150017T
15
15–187Chery Automobile Co., Ltd.
Page 1772 of 1903

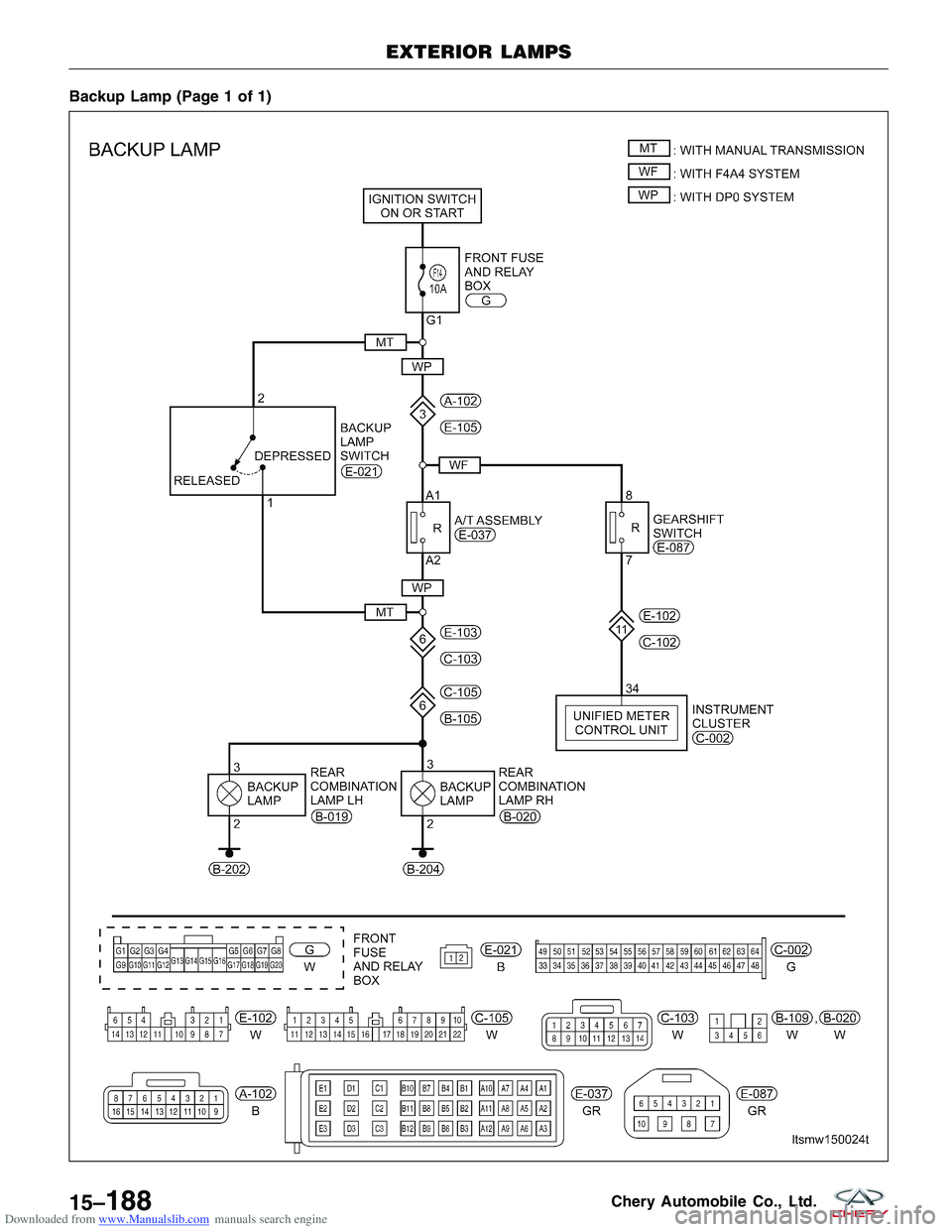

Downloaded from www.Manualslib.com manuals search engine Backup Lamp (Page 1 of 1)
EXTERIOR LAMPS
LTSMW150024T
15–188Chery Automobile Co., Ltd.
Page 1773 of 1903
Downloaded from www.Manualslib.com manuals search engine Front Combination Lamp Assembly
Removal & Installation
1. Open the hood.
2. Disconnect the turn signal lamp.
3. Disconnect the high/low beam front combinationlamp.
4. Remove the three front combination lamp assem- bly mounting bolts (1).
5. Carefully remove the front combination lamp assembly.
6. Installation is in the reverse order of removal.
1 Turn Signal Lamp
Bulb 12 V (21 W)
2 Headlamp Bulb
Front Position Lamp Bulb 12 V (55 W)
12V(5W)
EXTERIOR LAMPS
LTSM150037
LTSM150125
15
15–189Chery Automobile Co., Ltd.
Page 1774 of 1903

Downloaded from www.Manualslib.com manuals search engine Headlamp Adjustment Procedure
NOTE :
Follow all local laws and regulations and verify the following items before adjustment:1. Check the following before starting the headlamp adjustment procedure: •All tires are filled to the proper tire pressure.
• The vehicle is unloaded (except for spare tire and tools, and include driver’s weight for sedan).
• The vehicle should be parked on a level surface.
• The headlights are clean.
• The headlights are working properly.
2. Park the vehicle on a level surface approximately 10 meters from the vertical wall or screen directly in front of it. NOTE: The vertical wall or screen must be a minimum of 2.4 meters wide.
3. Use a screwdriver into the two adjustment holes (1) to adjust the headlamp to proper specifications.
Rear Combination Lamp Assembly
Removal & Installation
1. Open the back cargo door.
2. Remove the lower C-pillar trim (See Lower C-PillarRemoval & Installation in Section 15 Body &
Accessories).
3. Remove three mounting nuts (1) from the body.
EXTERIOR LAMPS
LTSM150149
LTSM150039
15–190Chery Automobile Co., Ltd.
Page 1775 of 1903
Downloaded from www.Manualslib.com manuals search engine 4. Disconnect the rear combination lamp.
5. Carefully remove the rear combination lamp assembly.
6. Installation is in the reverse order of removal.
Headlamp
Removal & Installation
1. Remove the front combination lamp assembly (See Front Combination Lamp Assembly Removal & Installation inSection 15 Body & Accessories).
2. Remove the headlamp bulb cover.
3. Disconnect the headlamp bulb electrical connector.
4. Remove the headlamp bulb clip.
1 Tail Lamp Bulb 12 V (21 W)
2 Backup Lamp
Bulb 12 V (21 W)
3 Rear Turn Signal
Lamp Bulb 12 V (21 W)
4 Stop Lamp Bulb 12 V (21 W)
EXTERIOR LAMPS
LTSM150126
15
15–191Chery Automobile Co., Ltd.
Page 1776 of 1903
Downloaded from www.Manualslib.com manuals search engine 5. Carefully remove the bulb (1) for the high/lowbeam headlamp.
6. Replace the bulb with a new bulb as needed.
7. Installation is in the reverse order of removal.
Front Fog Lamp
Removal & Installation
1. Remove the front bumper (See Front Bumper Removal & Installation in Section 15 Body &
Accessories).
2. Disconnect the fog lamp.
3. Remove three mounting nuts (1).
EXTERIOR LAMPS
LTSM150141
LTSM150038
15–192Chery Automobile Co., Ltd.
Page 1777 of 1903

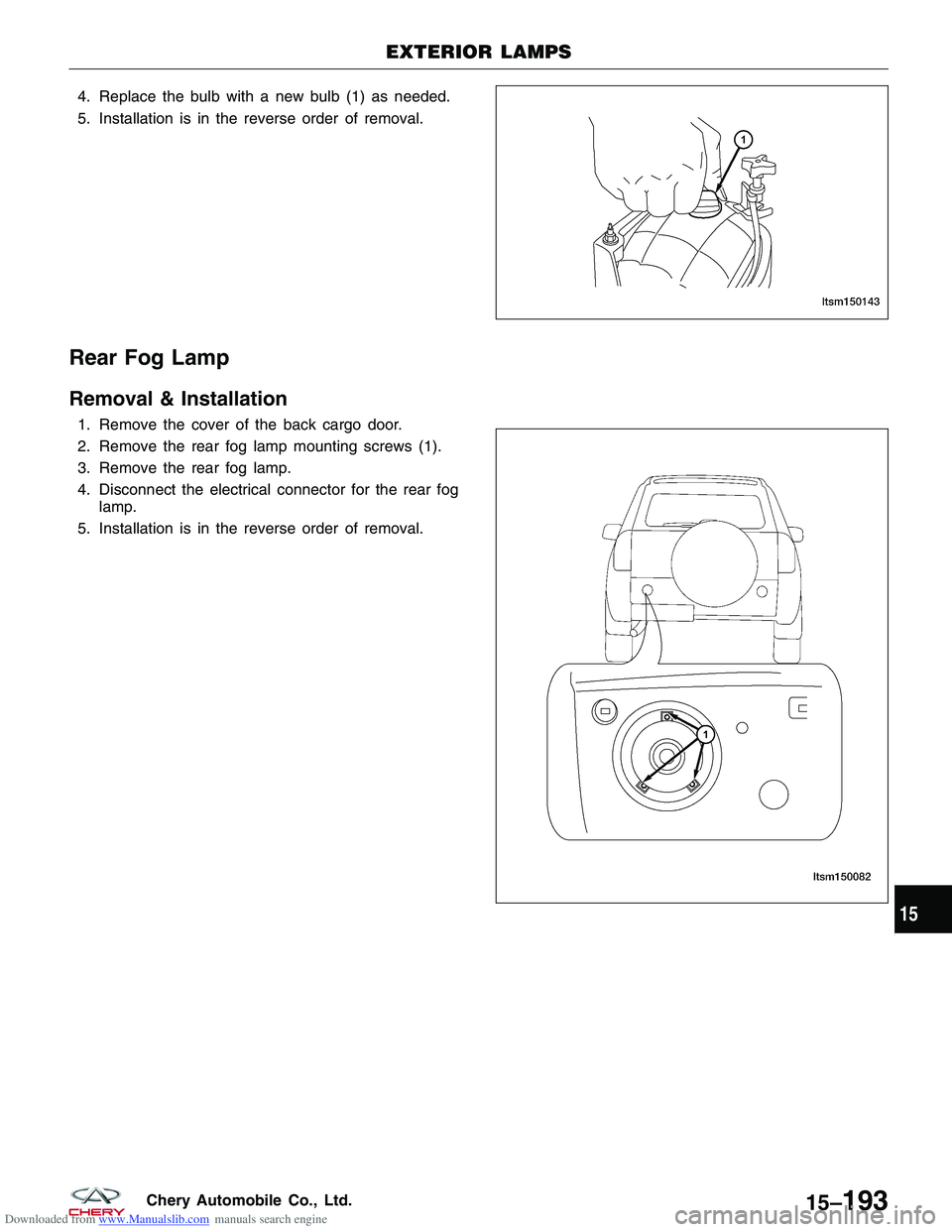

Downloaded from www.Manualslib.com manuals search engine 4. Replace the bulb with a new bulb (1) as needed.
5. Installation is in the reverse order of removal.
Rear Fog Lamp
Removal & Installation
1. Remove the cover of the back cargo door.
2. Remove the rear fog lamp mounting screws (1).
3. Remove the rear fog lamp.
4. Disconnect the electrical connector for the rear foglamp.
5. Installation is in the reverse order of removal.
EXTERIOR LAMPS
LTSM150143
LTSM150082
15
15–193Chery Automobile Co., Ltd.
Page 1778 of 1903

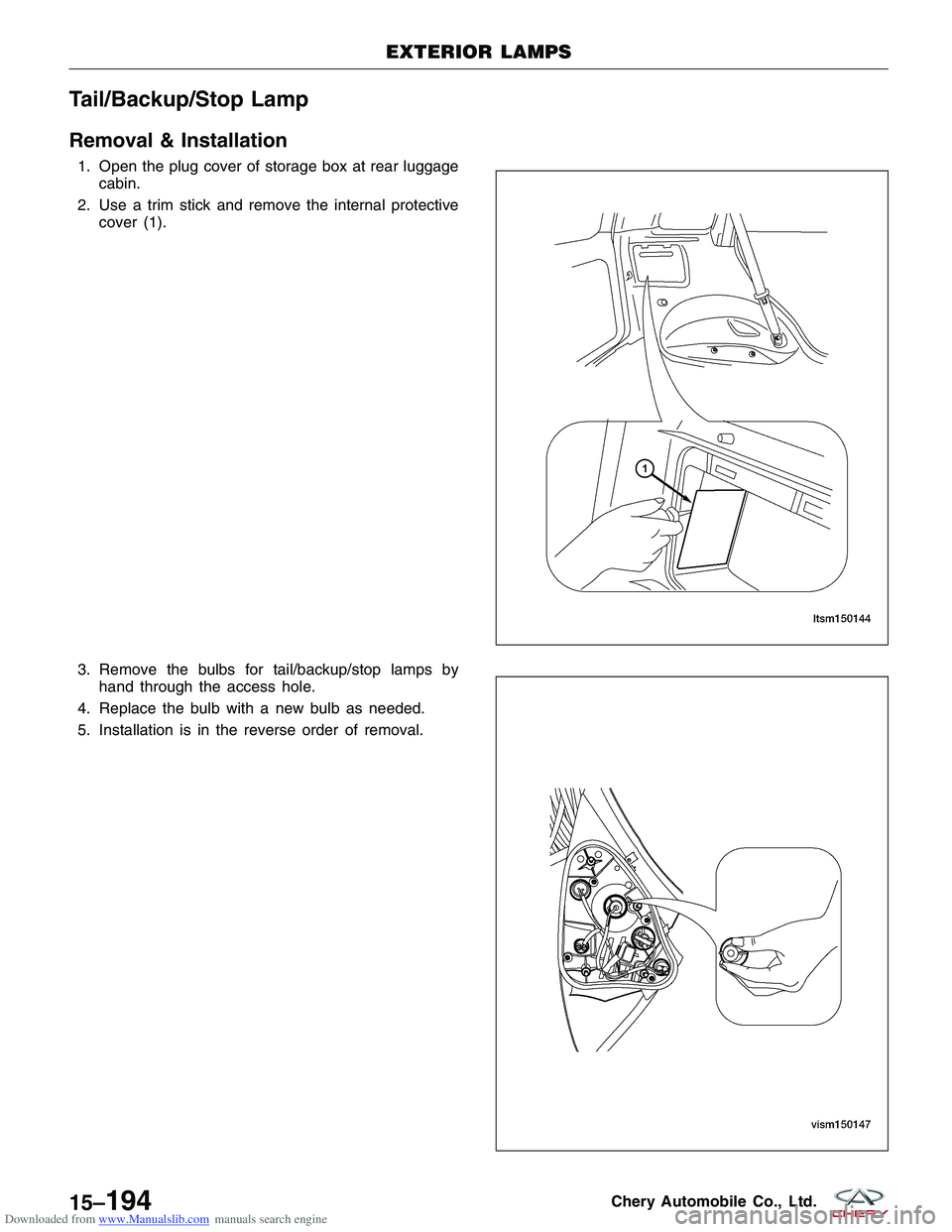

Downloaded from www.Manualslib.com manuals search engine Tail/Backup/Stop Lamp
Removal & Installation
1. Open the plug cover of storage box at rear luggagecabin.
2. Use a trim stick and remove the internal protective cover (1).
3. Remove the bulbs for tail/backup/stop lamps by hand through the access hole.
4. Replace the bulb with a new bulb as needed.
5. Installation is in the reverse order of removal.
EXTERIOR LAMPS
LTSM150144
LTSM150146
15–194Chery Automobile Co., Ltd.
Page 1779 of 1903

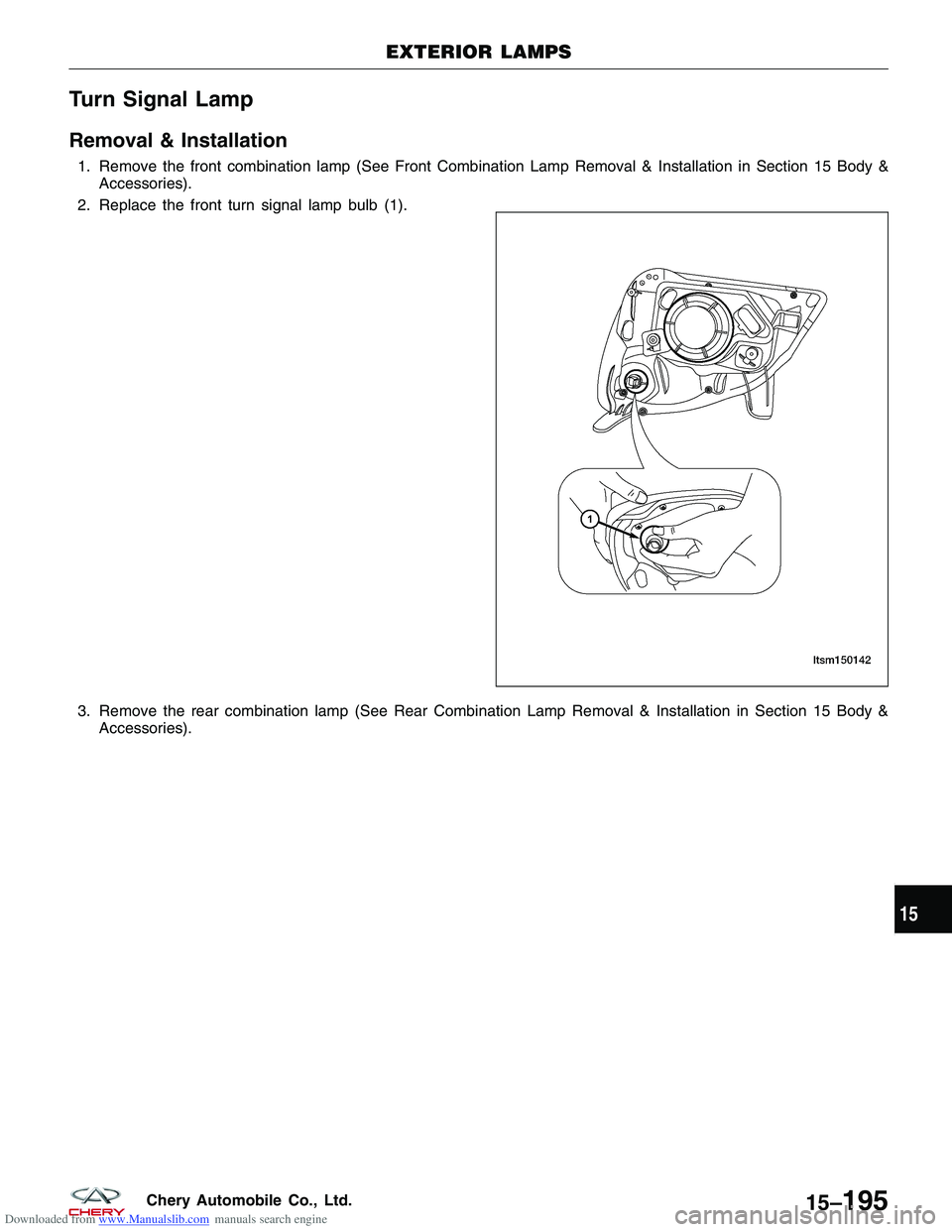

Downloaded from www.Manualslib.com manuals search engine Turn Signal Lamp
Removal & Installation
1. Remove the front combination lamp (See Front Combination Lamp Removal & Installation in Section 15 Body &Accessories).
2. Replace the front turn signal lamp bulb (1).
3. Remove the rear combination lamp (See Rear Combination Lamp Removal & Installation in Section 15 Body & Accessories).
EXTERIOR LAMPS
LTSM150142
15
15–195Chery Automobile Co., Ltd.
Page 1780 of 1903

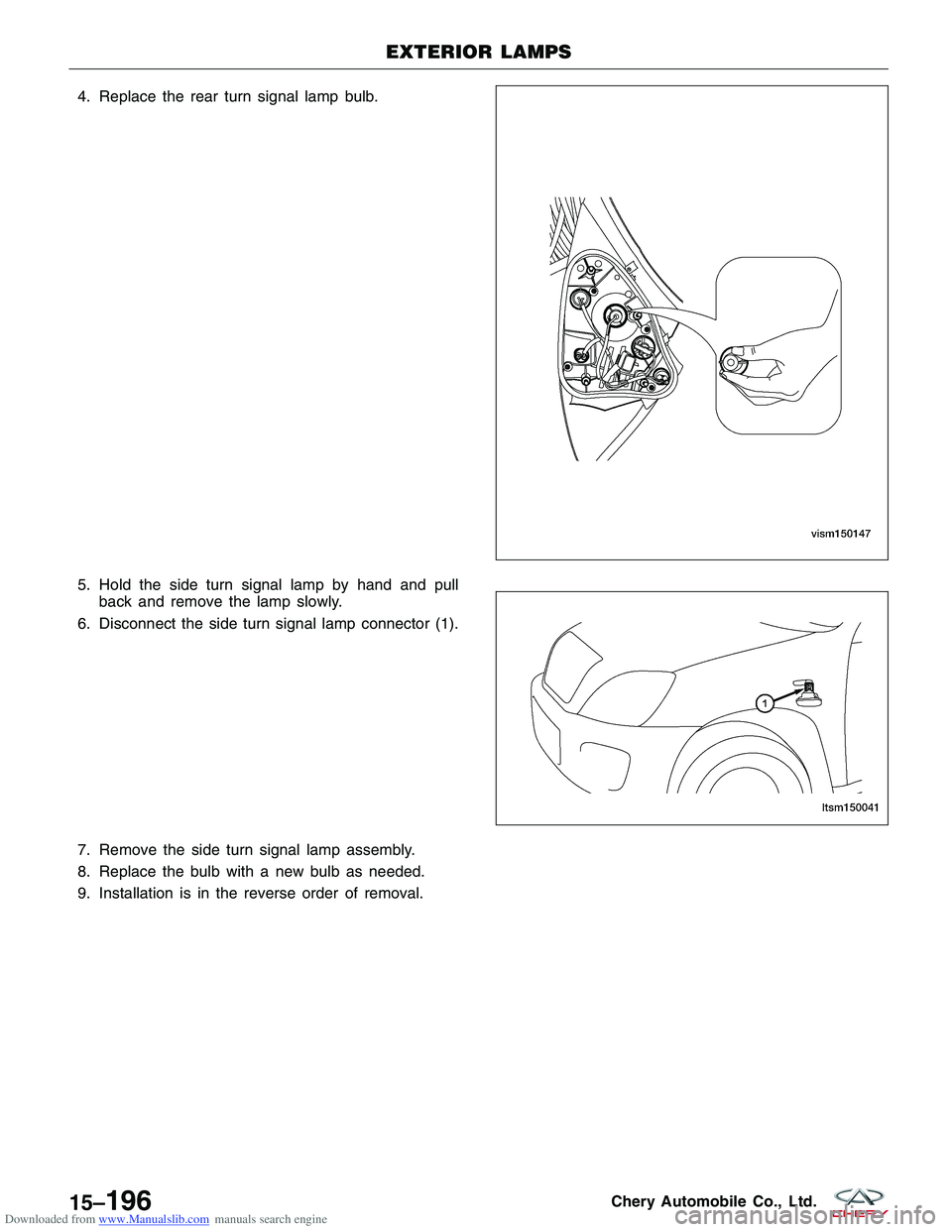

Downloaded from www.Manualslib.com manuals search engine 4. Replace the rear turn signal lamp bulb.
5. Hold the side turn signal lamp by hand and pullback and remove the lamp slowly.
6. Disconnect the side turn signal lamp connector (1).
7. Remove the side turn signal lamp assembly.
8. Replace the bulb with a new bulb as needed.
9. Installation is in the reverse order of removal.
EXTERIOR LAMPS
LTSM150146
LTSM150041
15–196Chery Automobile Co., Ltd.
