Page 951 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Special Tools
Spline SpannerCH-30001
Differential Seal Installer CH-30002
Diagnostic Scan Tool X-431
GENERAL INFORMATION
08–8Chery Automobile

Page 952 of 1903

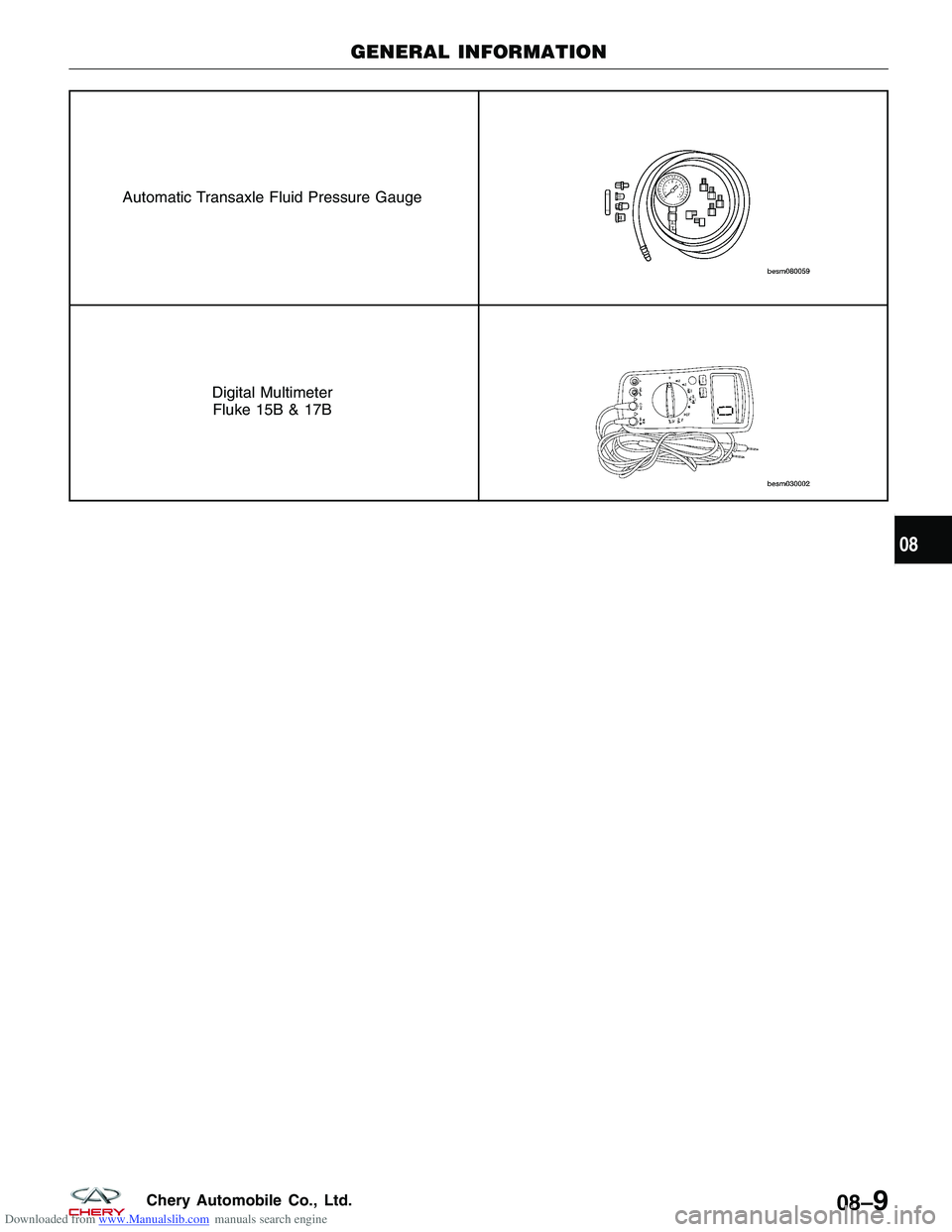

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle Fluid Pressure Gauge
Digital MultimeterFluke 15B & 17B
GENERAL INFORMATION
08
08–9Chery Automobile Co., Ltd.

Page 953 of 1903

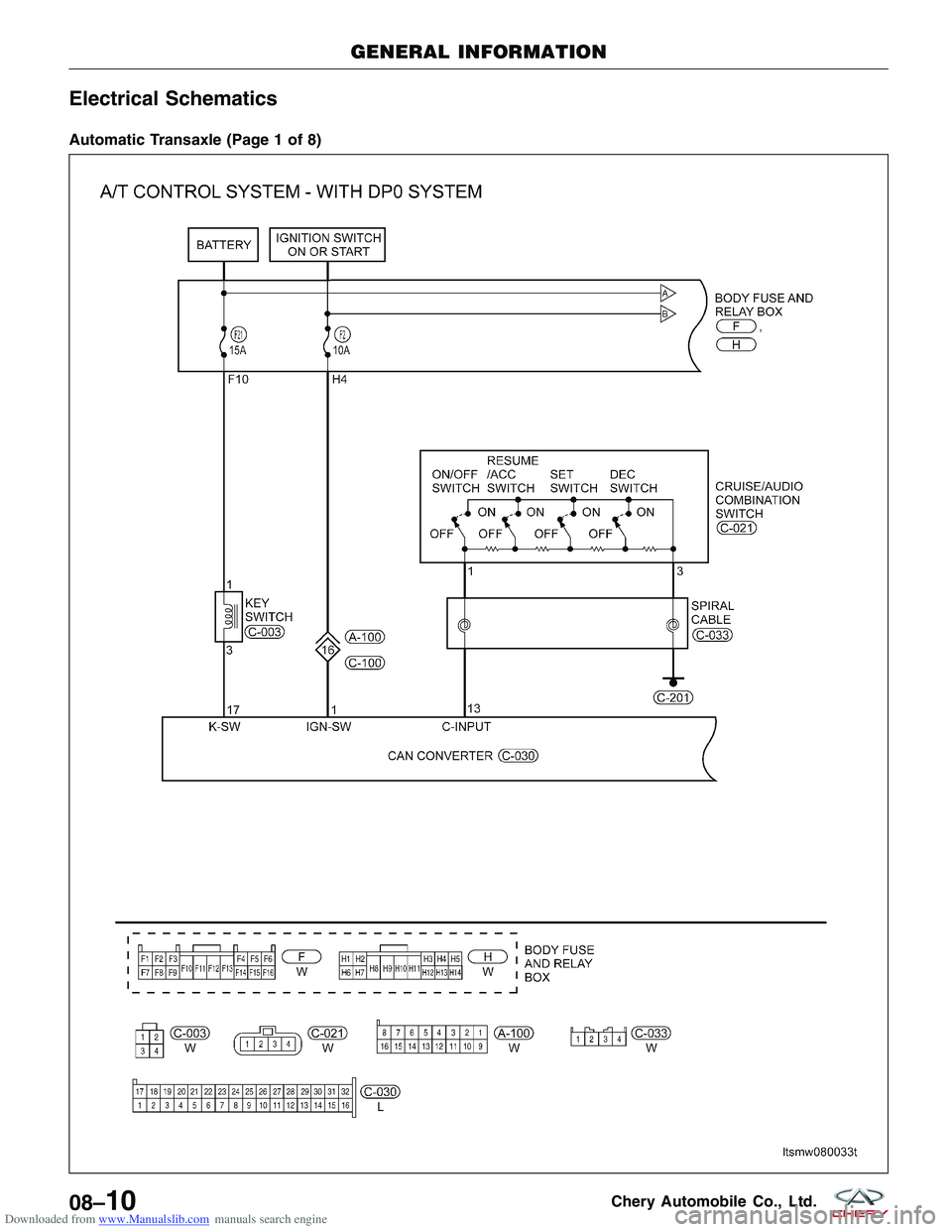

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Electrical Schematics
Automatic Transaxle (Page 1 of 8)
GENERAL INFORMATION
LTSMW080033T
08–10Chery Automobile Co., Ltd.

Page 954 of 1903

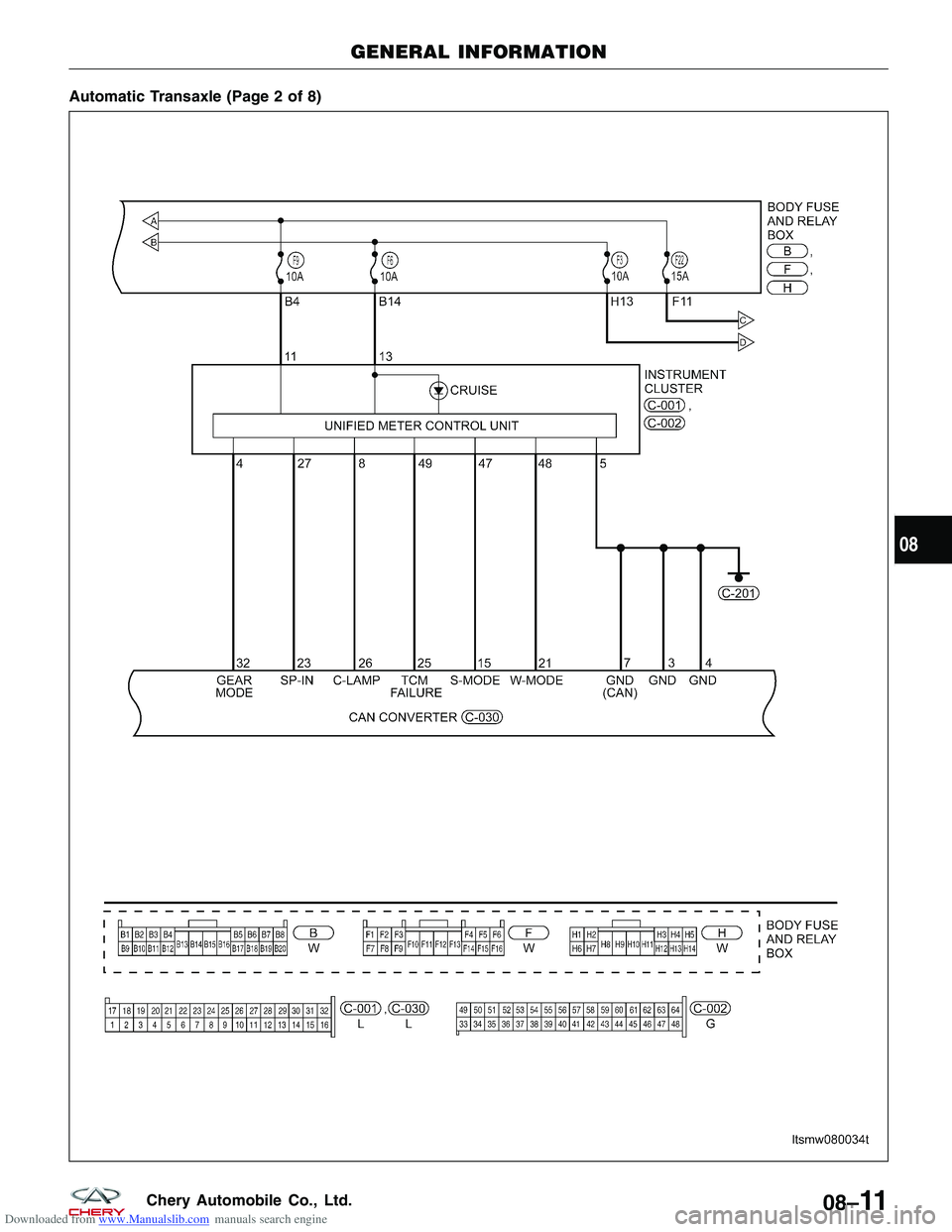

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 2 of 8)
GENERAL INFORMATION
LTSMW080034T
08
08–11Chery Automobile Co., Ltd.

Page 955 of 1903

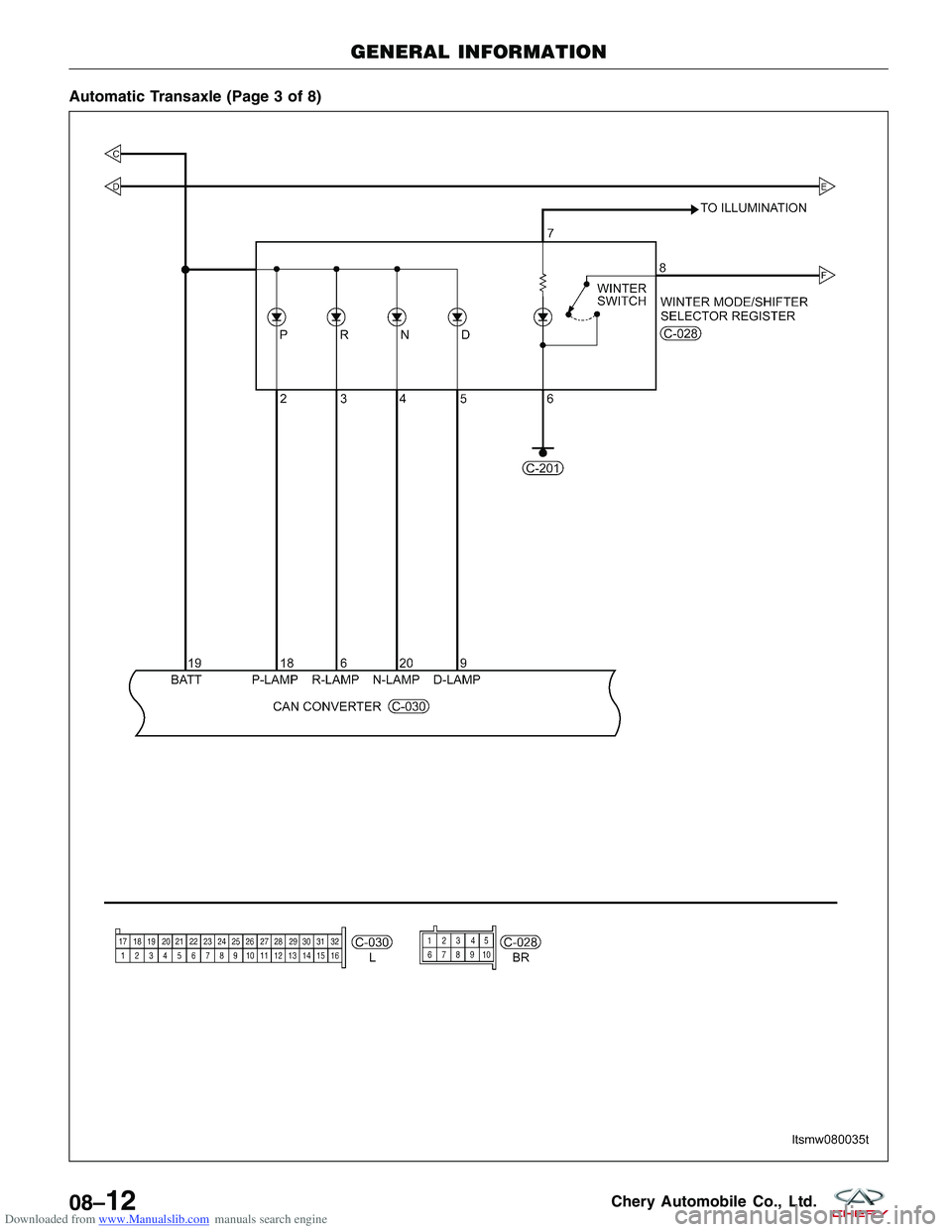

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 3 of 8)
GENERAL INFORMATION
LTSMW080035T
08–12Chery Automobile Co., Ltd.

Page 956 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 4 of 8)
GENERAL INFORMATION
LTSMW080040T
08
08–13Chery Automobile Co., Ltd.

Page 957 of 1903

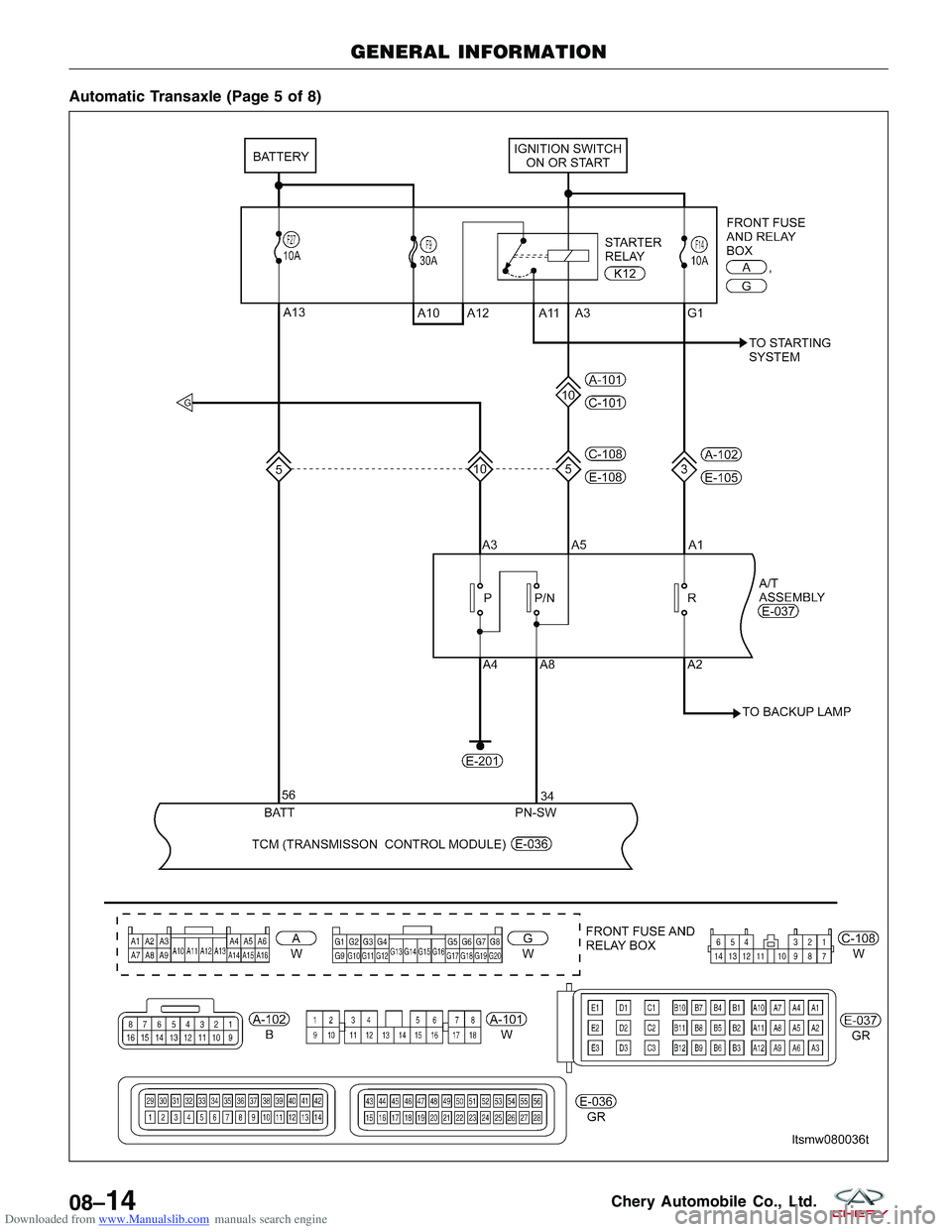

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 5 of 8)
GENERAL INFORMATION
LTSMW080036T
08–14Chery Automobile Co., Ltd.

Page 958 of 1903

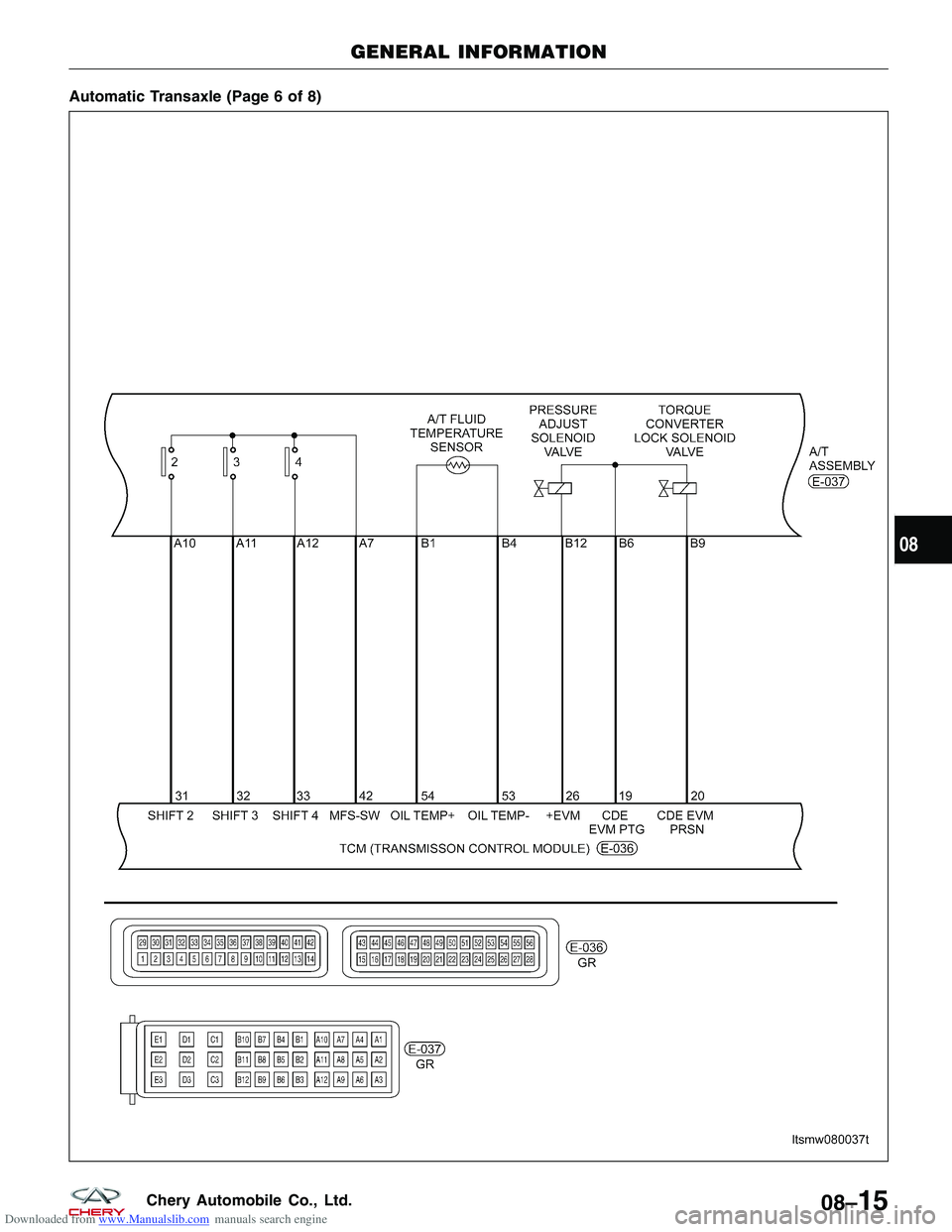

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 6 of 8)
GENERAL INFORMATION
LTSMW080037T
08
08–15Chery Automobile Co., Ltd.

Page 959 of 1903

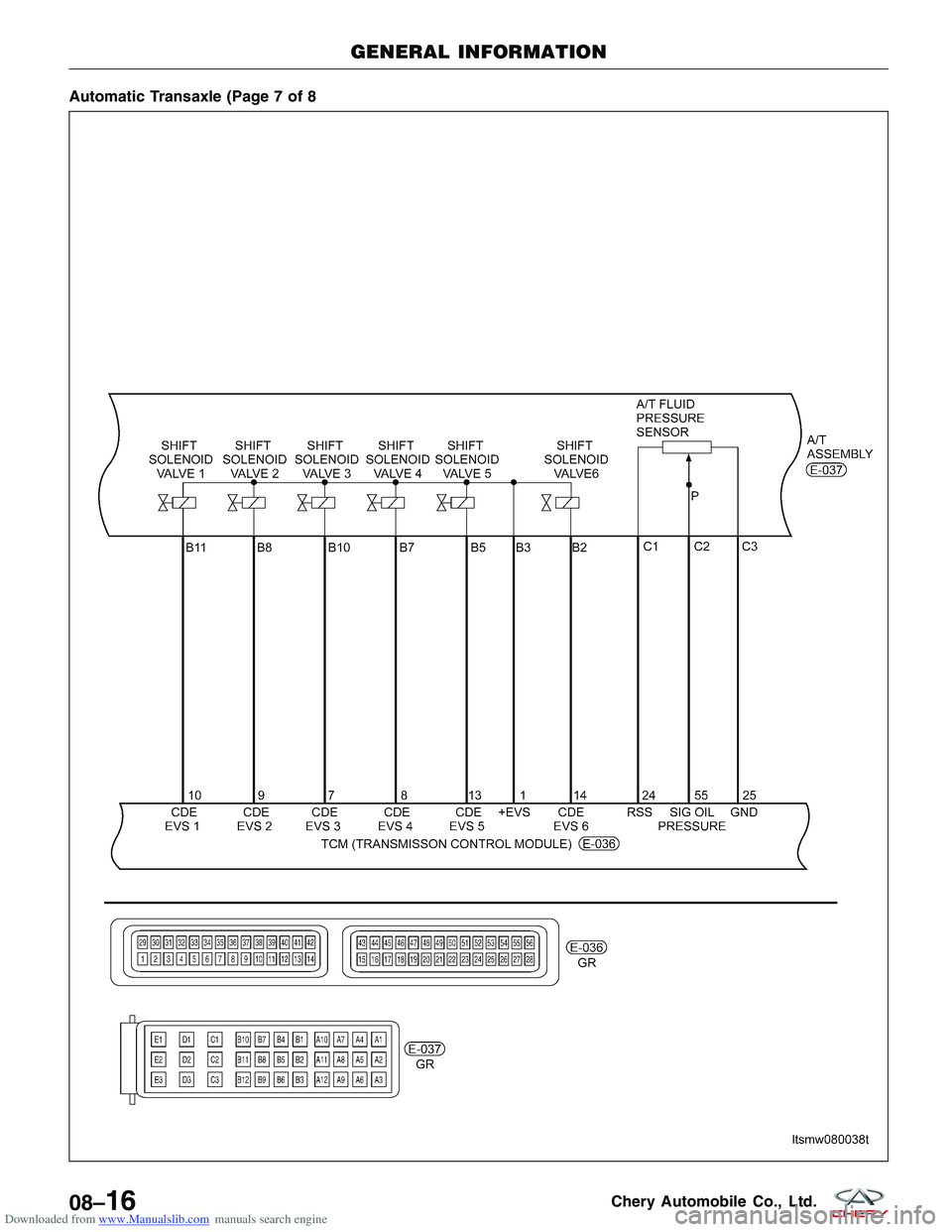

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 7 of 8
GENERAL INFORMATION
LTSMW080038T
08–16Chery Automobile Co., Ltd.

Page 960 of 1903

CHERY TIGGO 2009  Service Repair Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transaxle (Page 8 of 8
GENERAL INFORMATION
LTSMW080039T
08
08–17Chery Automobile Co., Ltd.
