Downloaded from www.Manualslib.com manuals search engine Electrical Schematics

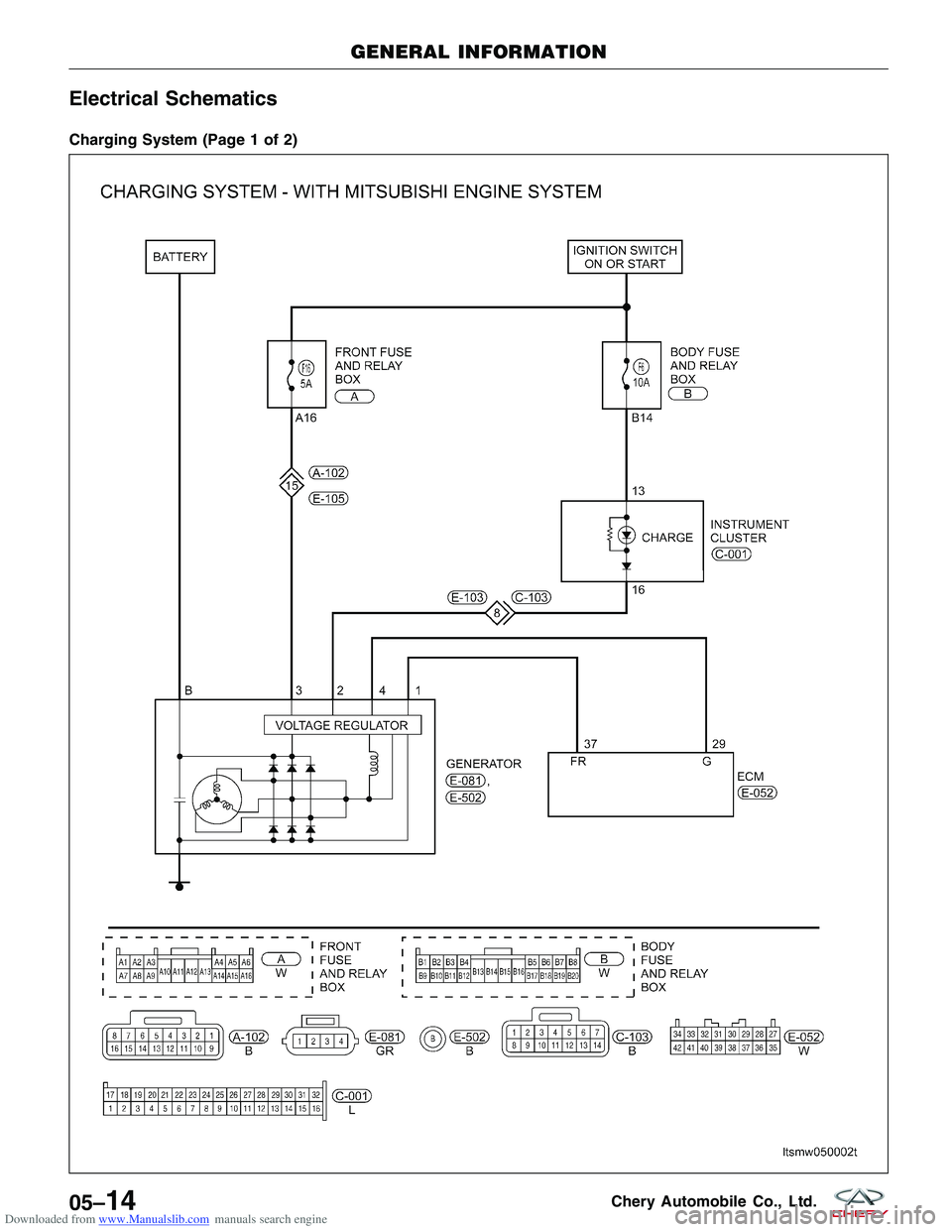

Charging System (Page 1 of 2)
GENERAL INFORMATION
LTSMW050002T
05–14Chery Automobile Co., Ltd.

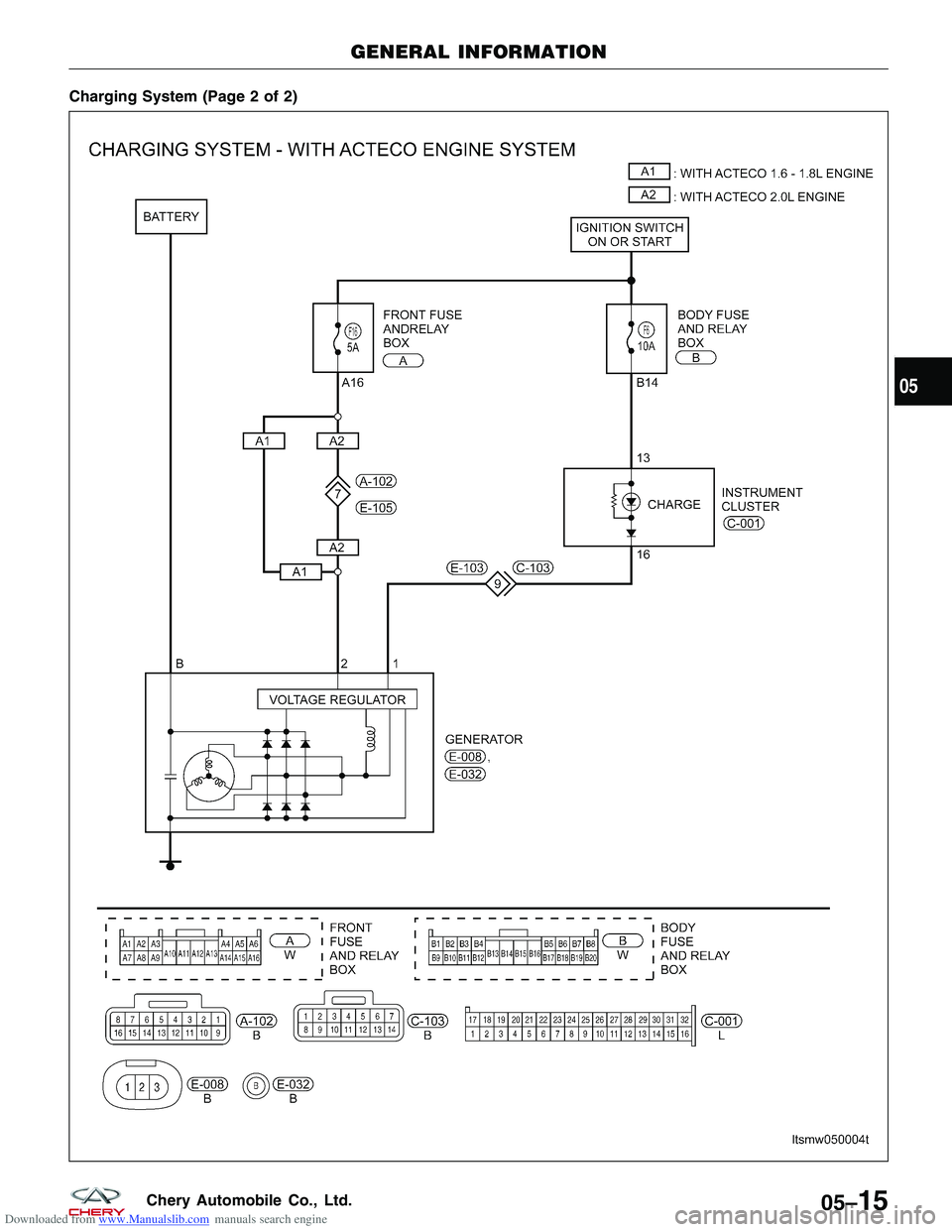

Downloaded from www.Manualslib.com manuals search engine Charging System (Page 2 of 2)
GENERAL INFORMATION
LTSMW050004T
05
05–15Chery Automobile Co., Ltd.

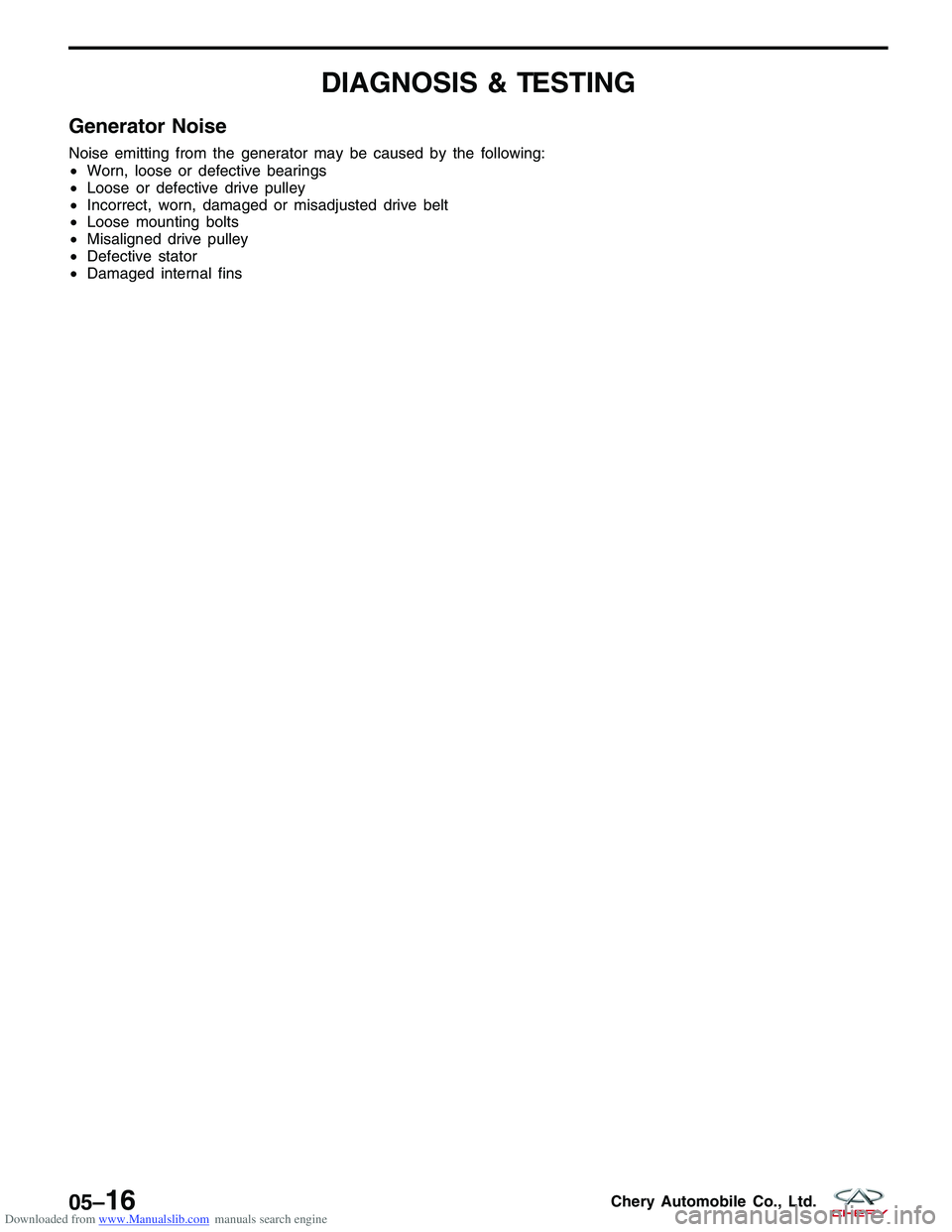

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS & TESTING
Generator Noise
Noise emitting from the generator may be caused by the following:
•Worn, loose or defective bearings
• Loose or defective drive pulley
• Incorrect, worn, damaged or misadjusted drive belt
• Loose mounting bolts
• Misaligned drive pulley
• Defective stator
• Damaged internal fins
05–16Chery Automobile Co., Ltd.

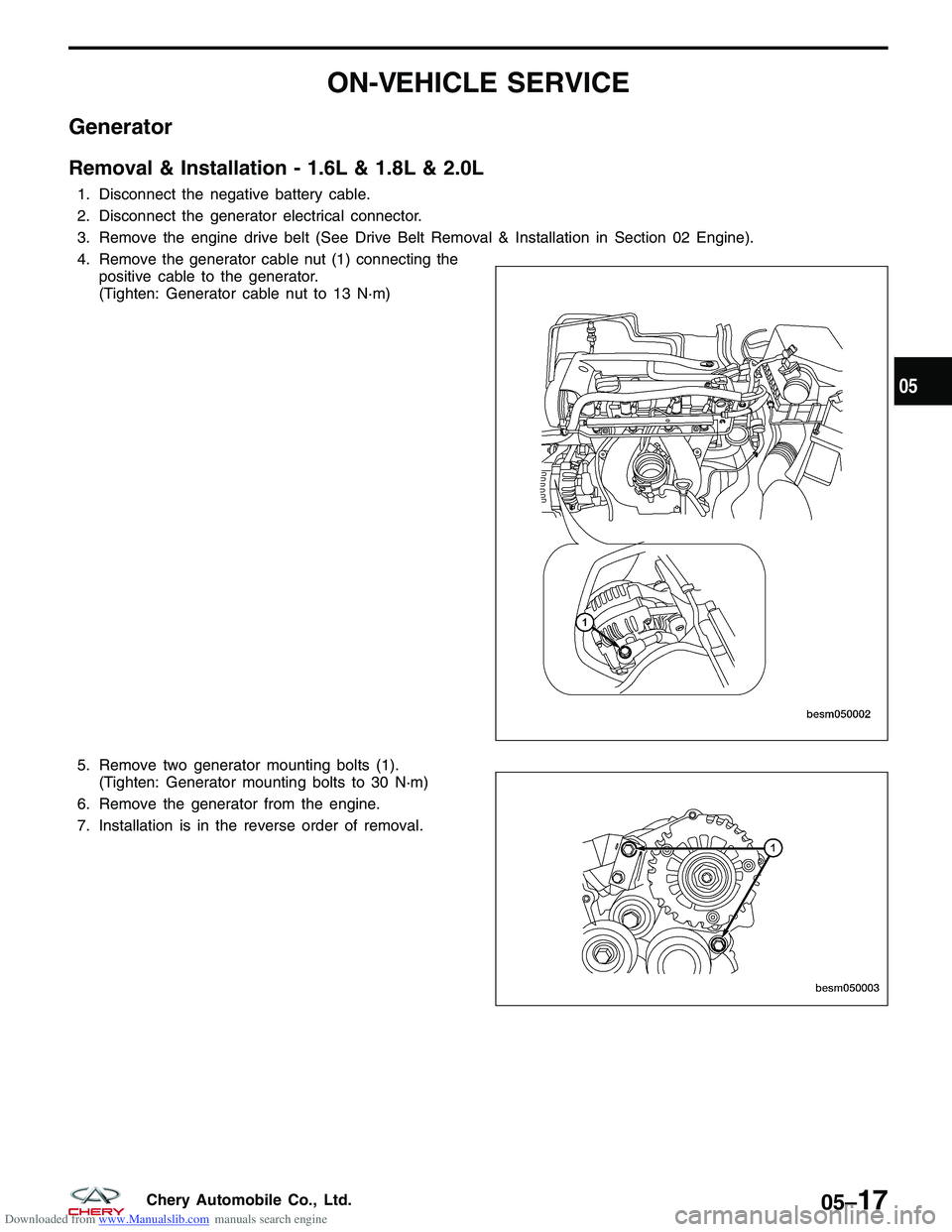

Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE
Generator
Removal & Installation - 1.6L & 1.8L & 2.0L
1. Disconnect the negative battery cable.
2. Disconnect the generator electrical connector.
3. Remove the engine drive belt (See Drive Belt Removal & Installation in Section 02 Engine).
4. Remove the generator cable nut (1) connecting thepositive cable to the generator.
(Tighten: Generator cable nut to 13 N·m)
5. Remove two generator mounting bolts (1). (Tighten: Generator mounting bolts to 30 N·m)
6. Remove the generator from the engine.
7. Installation is in the reverse order of removal.
BESM050002
BESM050003
05
05–17Chery Automobile Co., Ltd.

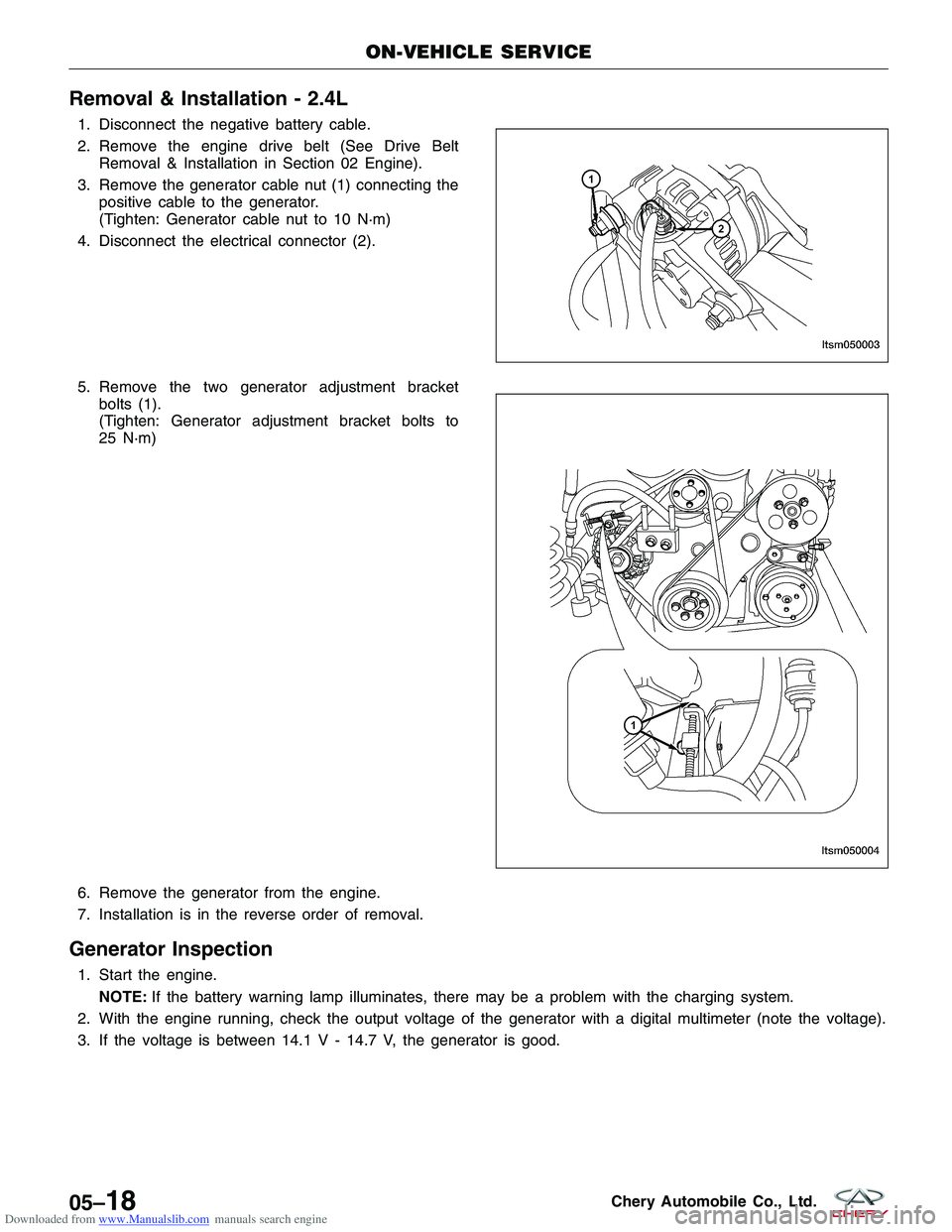

Downloaded from www.Manualslib.com manuals search engine Removal & Installation - 2.4L
1. Disconnect the negative battery cable.
2. Remove the engine drive belt (See Drive BeltRemoval & Installation in Section 02 Engine).
3. Remove the generator cable nut (1) connecting the positive cable to the generator.
(Tighten: Generator cable nut to 10 N·m)
4. Disconnect the electrical connector (2).
5. Remove the two generator adjustment bracket bolts (1).
(Tighten: Generator adjustment bracket bolts to
25 N·m)
6. Remove the generator from the engine.
7. Installation is in the reverse order of removal.
Generator Inspection
1. Start the engine. NOTE: If the battery warning lamp illuminates, there may be a problem with the charging system.
2. With the engine running, check the output voltage of the generator with a digital multimeter (note the voltage).
3. If the voltage is between 14.1 V - 14.7 V, the generator is good.
ON-VEHICLE SERVICE
LTSM050003
LTSM050004
05–18Chery Automobile Co., Ltd.

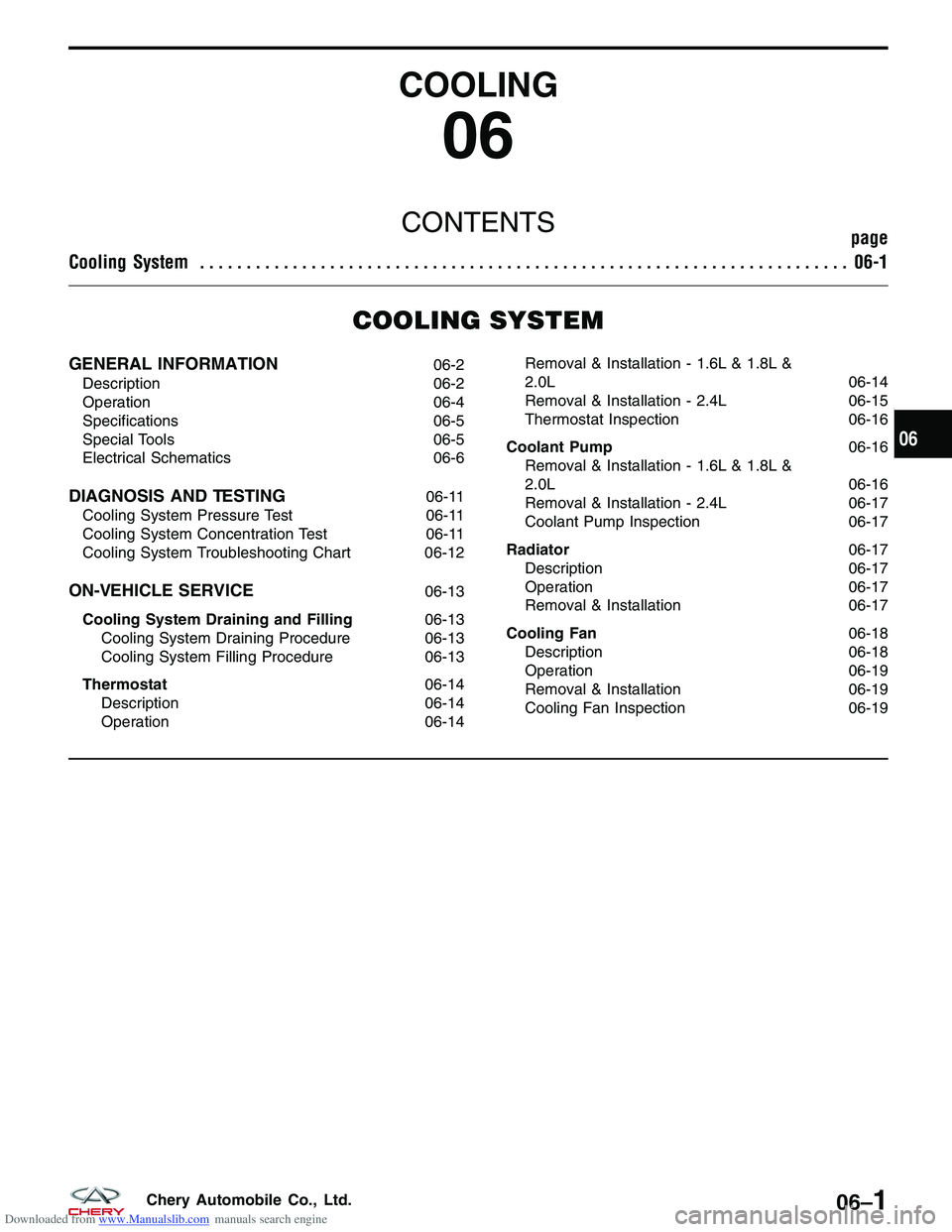

Downloaded from www.Manualslib.com manuals search engine COOLING
06
CONTENTSpage
Cooling System ...................................................................... 06-1
COOLING SYSTEM
GENERAL INFORMATION06-2
Description 06-2
Operation 06-4
Specifications 06-5
Special Tools 06-5
Electrical Schematics 06-6
DIAGNOSIS AND TESTING06-11
Cooling System Pressure Test 06-11
Cooling System Concentration Test 06-11
Cooling System Troubleshooting Chart 06-12
ON-VEHICLE SERVICE06-13
Cooling System Draining and Filling 06-13
Cooling System Draining Procedure 06-13
Cooling System Filling Procedure 06-13
Thermostat 06-14
Description 06-14
Operation 06-14 Removal & Installation - 1.6L & 1.8L &
2.0L 06-14
Removal & Installation - 2.4L 06-15
Thermostat Inspection 06-16
Coolant Pump 06-16
Removal & Installation - 1.6L & 1.8L &
2.0L 06-16
Removal & Installation - 2.4L 06-17
Coolant Pump Inspection 06-17
Radiator 06-17
Description 06-17
Operation 06-17
Removal & Installation 06-17
Cooling Fan 06-18
Description 06-18
Operation 06-19
Removal & Installation 06-19
Cooling Fan Inspection 06-19
06
06–1Chery Automobile Co., Ltd.

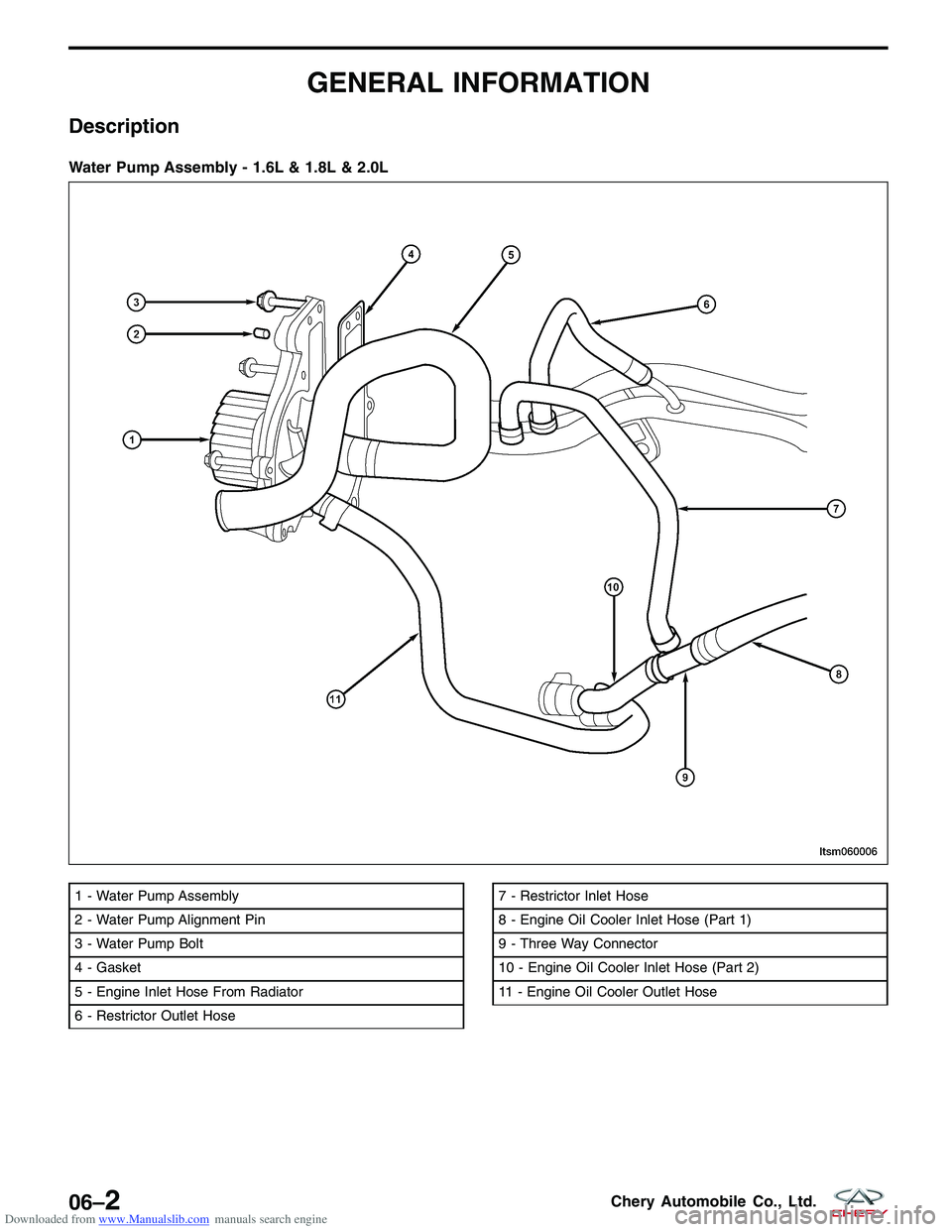

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Description
Water Pump Assembly - 1.6L & 1.8L & 2.0L
1 - Water Pump Assembly
2 - Water Pump Alignment Pin
3 - Water Pump Bolt
4 - Gasket
5 - Engine Inlet Hose From Radiator
6 - Restrictor Outlet Hose7 - Restrictor Inlet Hose
8 - Engine Oil Cooler Inlet Hose (Part 1)
9 - Three Way Connector
10 - Engine Oil Cooler Inlet Hose (Part 2)
11 - Engine Oil Cooler Outlet Hose
LTSM060006
06–2Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine The cooling system regulates engine operating temperature. It allows the engine to reach normal operating temper-
ature as soon as possible, maintains normal operating temperature and prevents overheating.
The cooling system also provides a means of heating the passenger compartment. The cooling system is pressurized
and uses a centrifugal water pump to circulate coolant throughout the system.
The cooling system consists of the following components:
•Radiator
• Coolant
• Coolant pump
• Electric cooling fans
• Electric cooling fans control module
• Thermostat
• Coolant reservoir
Thermostat Housing Assembly - 1.6L & 1.8L & 2.0L
1 - Gasket
2 - Coolant Temperature Sensor
3 - Thermostat Housing Assembly
4 - Thermostat Housing Mounting Bolts5 - Minor Cycle Water Hose
6 - Thermostat Housing Cover
7 - Thermostat Housing Cover Mounting Bolts
8 - Thermostat Assembly
GENERAL INFORMATION
LTSM060007
06
06–3Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine •Hoses and clamps
• Coolant temperature sensor
• Coolant temperature sensor (for instrument cluster) (with 2.4L engine)
• Heater core
Operation
The primary purpose of a cooling system is to maintain engine temperature in a range that will provide satisfactory
engine performance and emission levels under all expected driving conditions. It also provides hot coolant for heater
performance and cooling for automatic transmission oil. This is done by transferring heat from engine metal to cool-
ant, moving the heated coolant to the radiator, and then transferring the heat to the ambient air. Engine Coolant Flow Diagram - 1.6L & 1.8L & 2.0L
1 - To Heater Core
2 - Heater Core Return
3 - To Oil Cooler
4 - Oil Cooler Return
5 - To Restrictor6 - To Engine
7 - Radiator Return
8 - Restrictor Return
9 - Minor Cycle Coolant Hose
10 - To Radiator
GENERAL INFORMATION
LTSM060005
06–4Chery Automobile Co., Ltd.

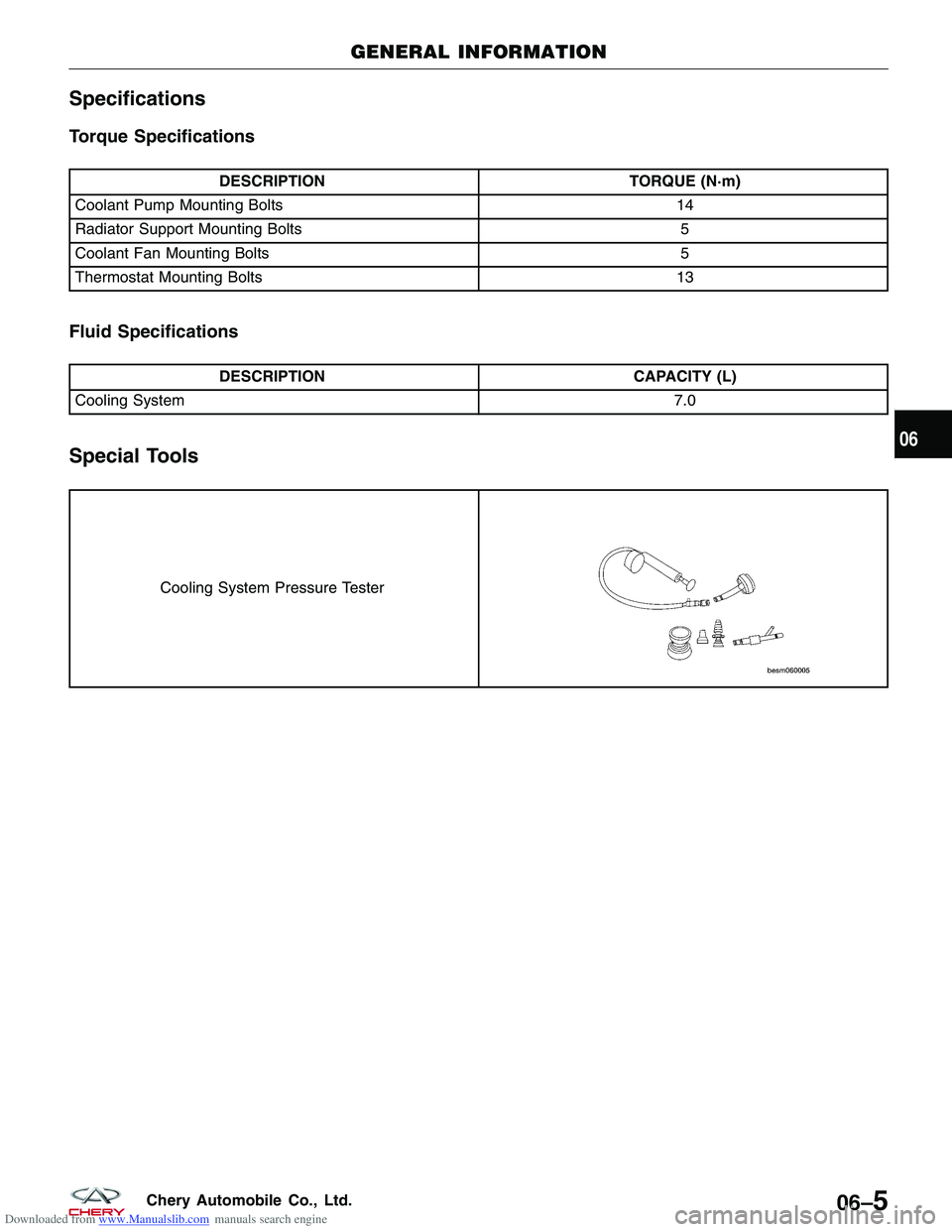

Downloaded from www.Manualslib.com manuals search engine Specifications
Torque Specifications
DESCRIPTIONTORQUE (N·m)
Coolant Pump Mounting Bolts 14
Radiator Support Mounting Bolts 5
Coolant Fan Mounting Bolts 5
Thermostat Mounting Bolts 13
Fluid Specifications
DESCRIPTIONCAPACITY (L)
Cooling System 7.0
Special Tools
Cooling System Pressure Tester
GENERAL INFORMATION
06
06–5Chery Automobile Co., Ltd.
