CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine Electrical Schematics

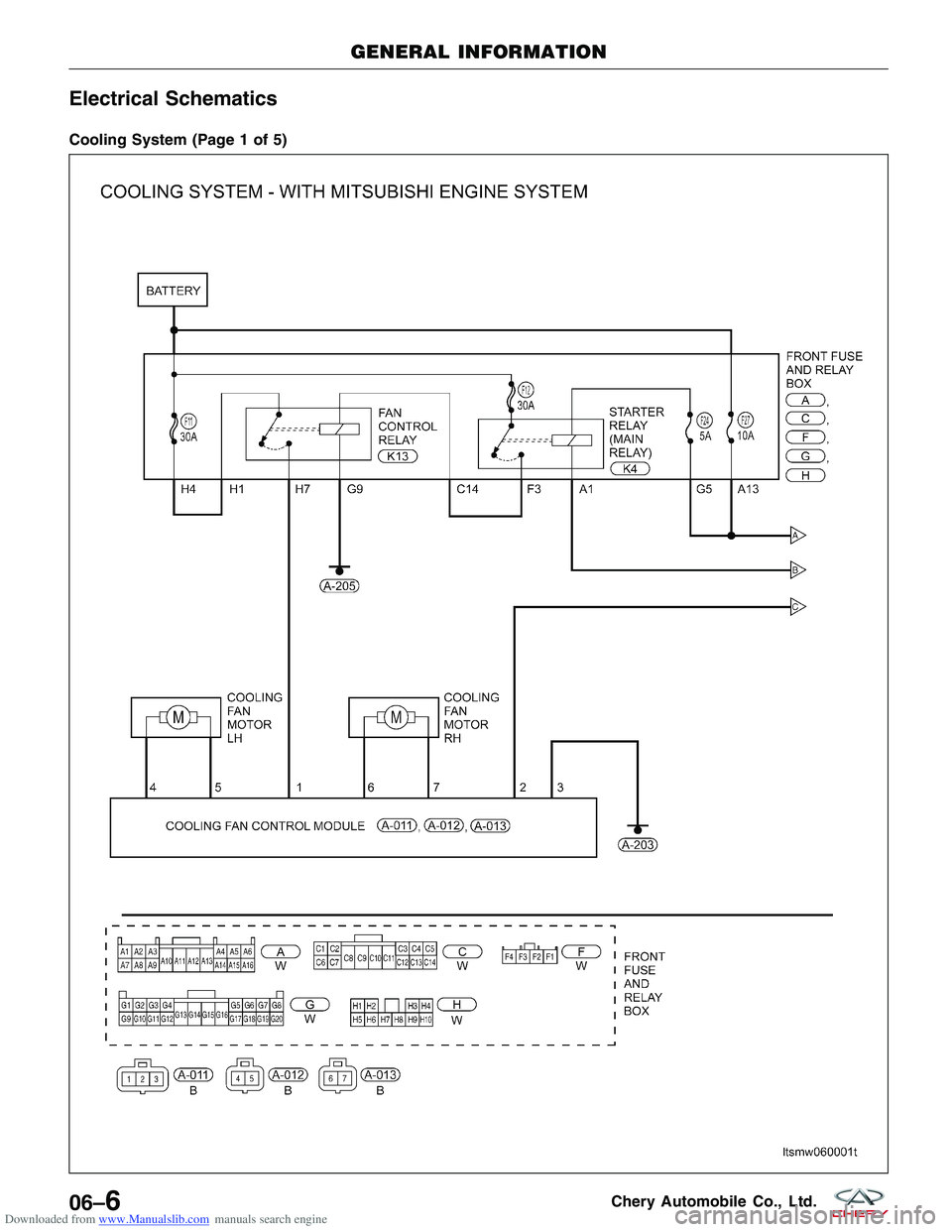

Cooling System (Page 1 of 5)
GENERAL INFORMATION
LTSMW060001T
06–6Chery Automobile Co., Ltd.

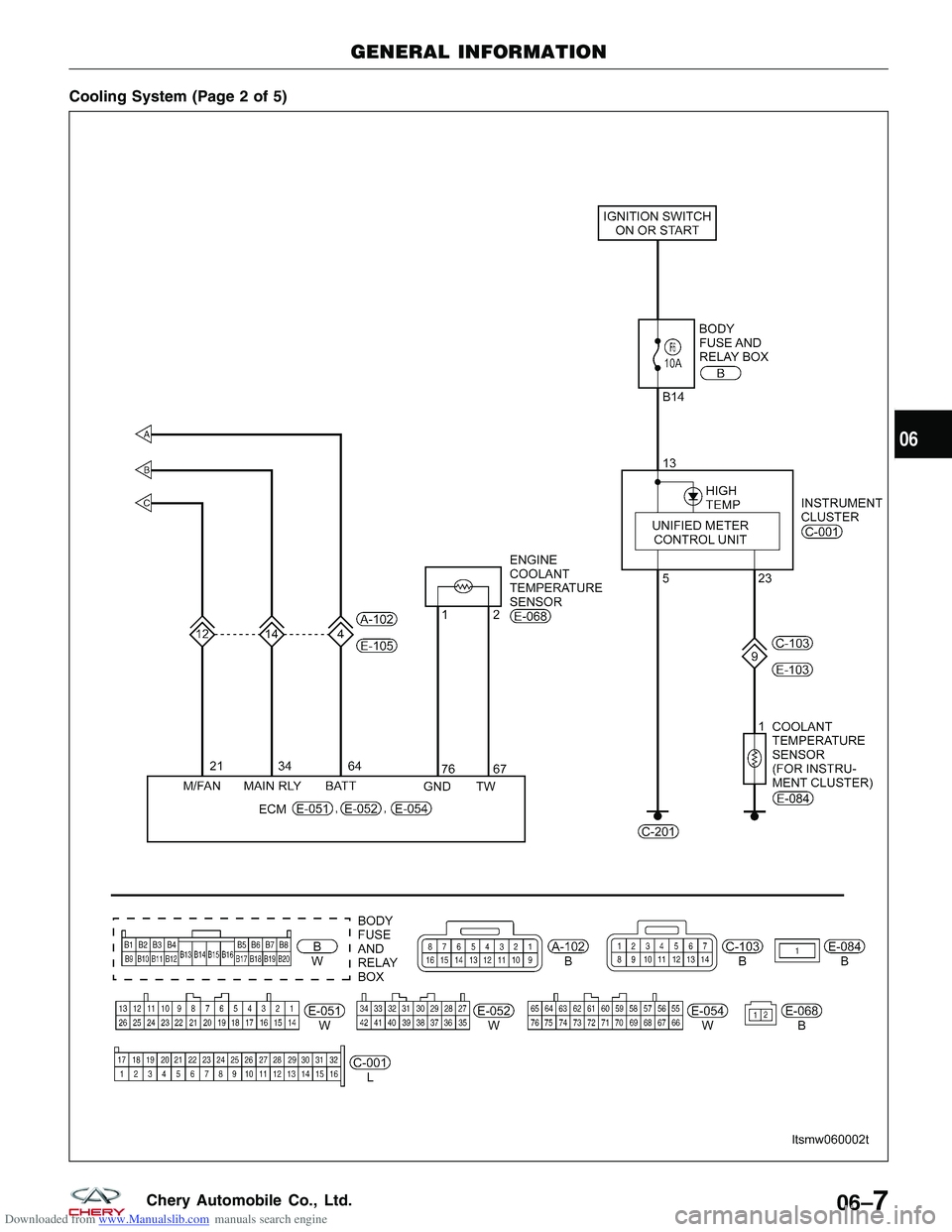

Downloaded from www.Manualslib.com manuals search engine Cooling System (Page 2 of 5)
GENERAL INFORMATION
LTSMW060002T
06
06–7Chery Automobile Co., Ltd.

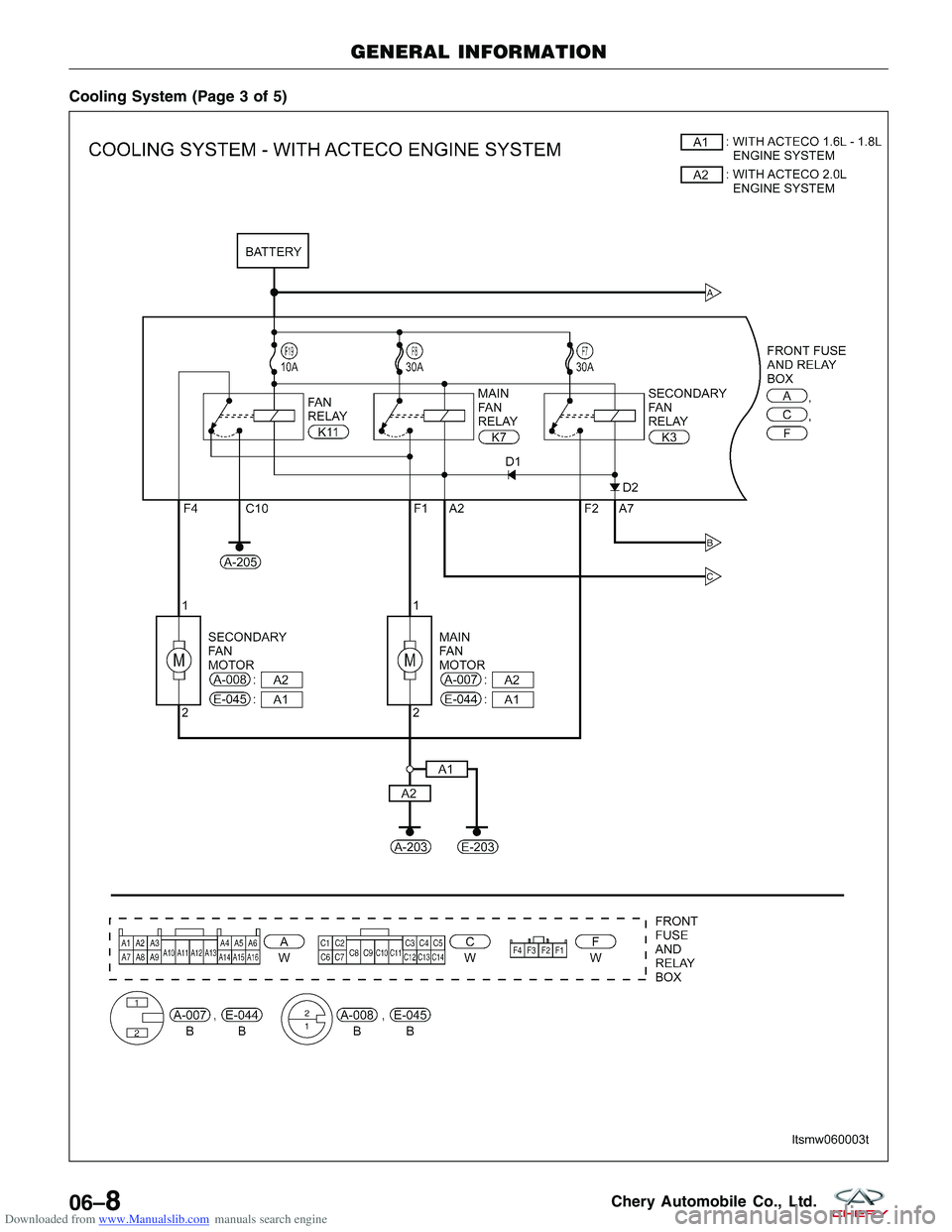

Downloaded from www.Manualslib.com manuals search engine Cooling System (Page 3 of 5)
GENERAL INFORMATION
LTSMW060003T
06–8Chery Automobile Co., Ltd.

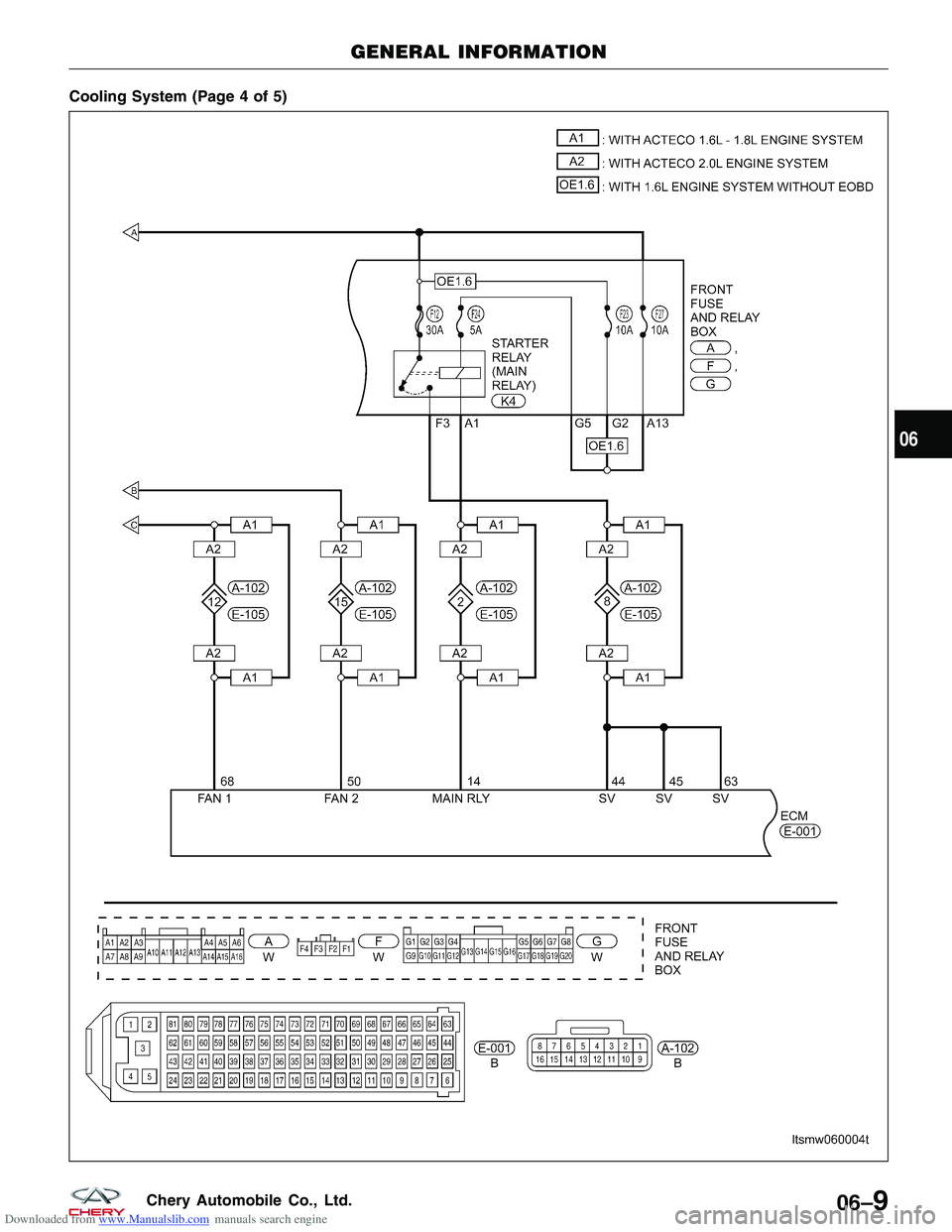

Downloaded from www.Manualslib.com manuals search engine Cooling System (Page 4 of 5)
GENERAL INFORMATION
LTSMW060004T
06
06–9Chery Automobile Co., Ltd.

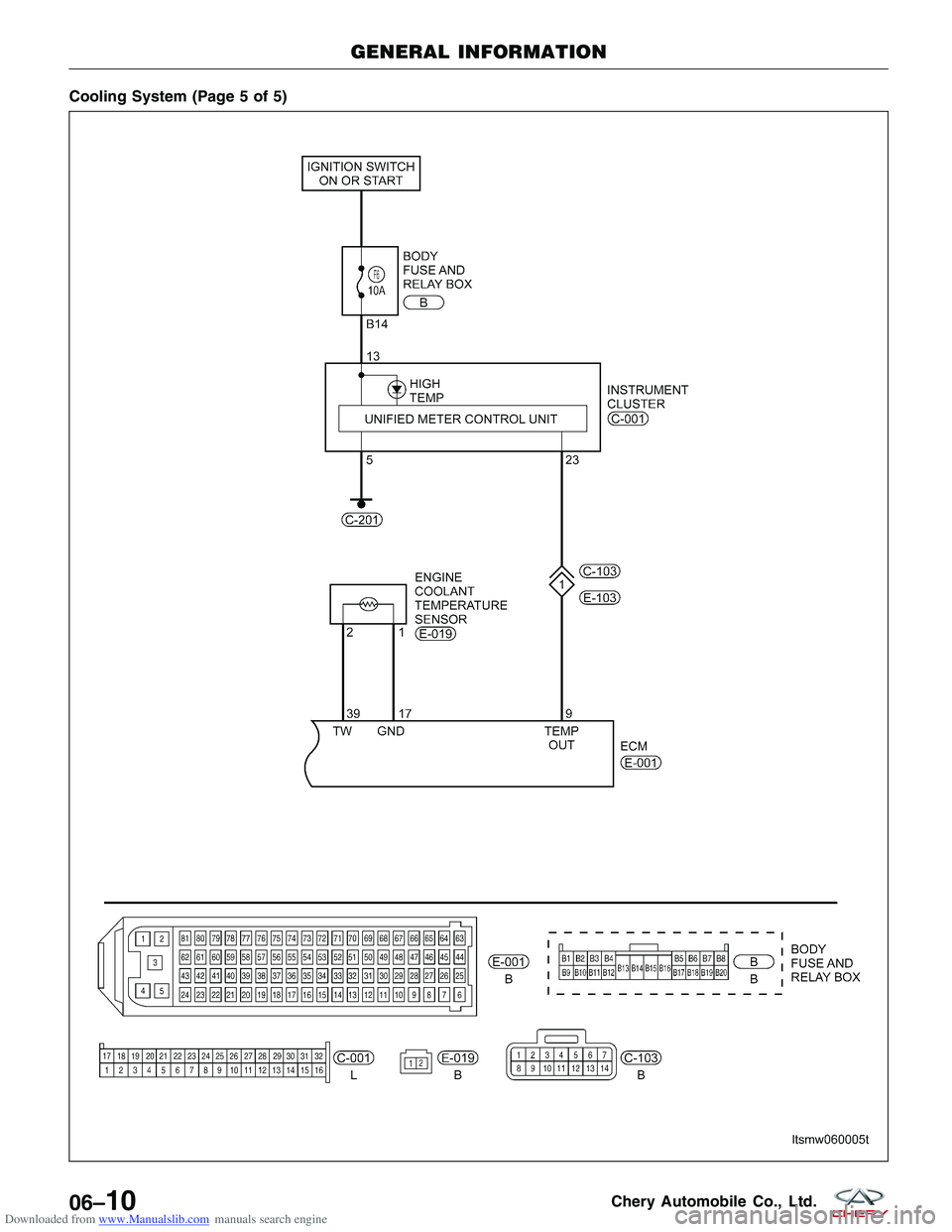

Downloaded from www.Manualslib.com manuals search engine Cooling System (Page 5 of 5)
GENERAL INFORMATION
LTSMW060005T
06–10Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine DIAGNOSIS AND TESTING

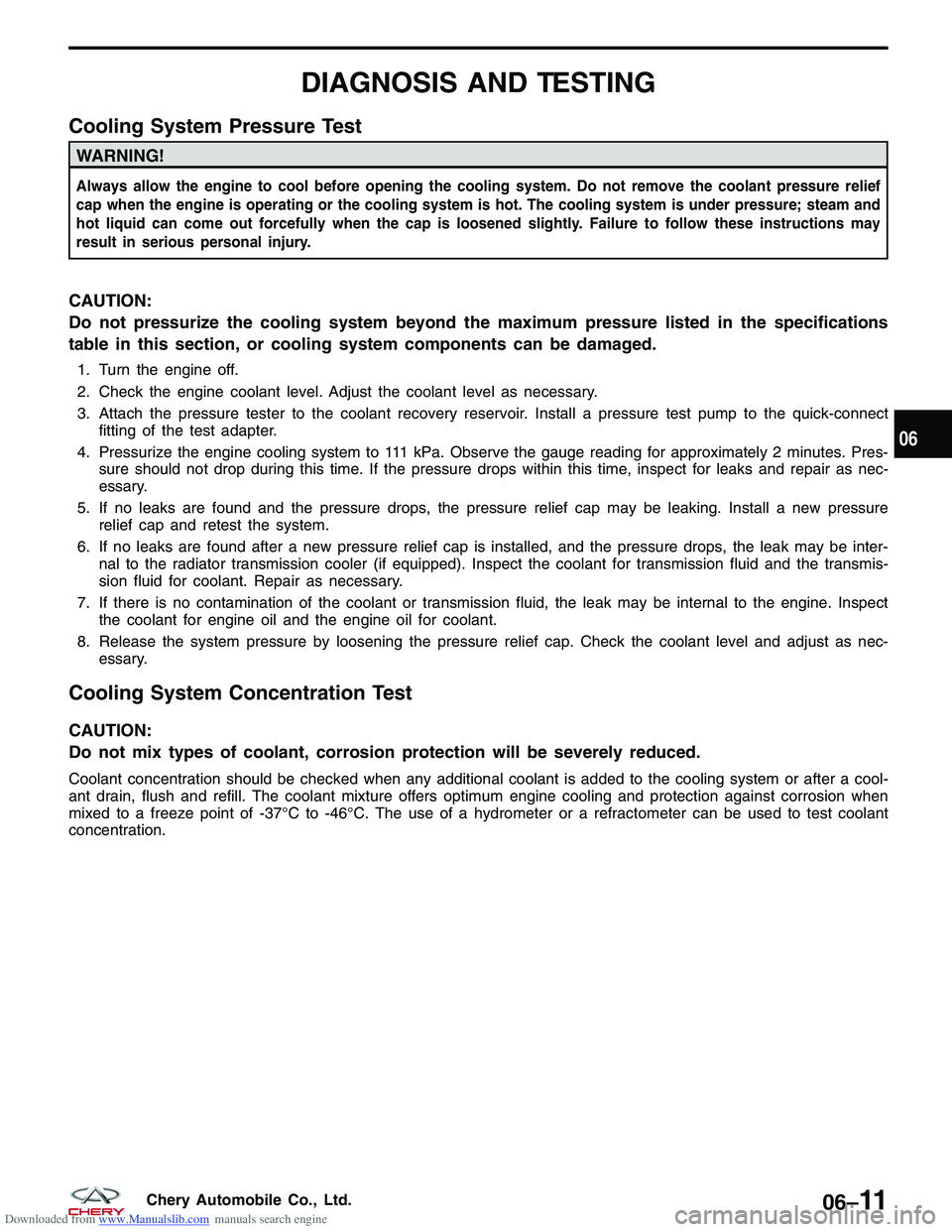

Cooling System Pressure Test
WARNING!
Always allow the engine to cool before opening the cooling system. Do not remove the coolant pressure relief
cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and
hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may
result in serious personal injury.
CAUTION:
Do not pressurize the cooling system beyond the maximum pressure listed in the specifications
table in this section, or cooling system components can be damaged.
1. Turn the engine off.
2. Check the engine coolant level. Adjust the coolant level as necessary.
3. Attach the pressure tester to the coolant recovery reservoir. Install a pressure test pump to the quick-connectfitting of the test adapter.
4. Pressurize the engine cooling system to 111 kPa. Observe the gauge reading for approximately 2 minutes. Pres- sure should not drop during this time. If the pressure drops within this time, inspect for leaks and repair as nec-
essary.
5. If no leaks are found and the pressure drops, the pressure relief cap may be leaking. Install a new pressure relief cap and retest the system.
6. If no leaks are found after a new pressure relief cap is installed, and the pressure drops, the leak may be inter- nal to the radiator transmission cooler (if equipped). Inspect the coolant for transmission fluid and the transmis-
sion fluid for coolant. Repair as necessary.
7. If there is no contamination of the coolant or transmission fluid, the leak may be internal to the engine. Inspect the coolant for engine oil and the engine oil for coolant.
8. Release the system pressure by loosening the pressure relief cap. Check the coolant level and adjust as nec- essary.
Cooling System Concentration Test
CAUTION:
Do not mix types of coolant, corrosion protection will be severely reduced.
Coolant concentration should be checked when any additional coolant is added to the cooling system or after a cool-
ant drain, flush and refill. The coolant mixture offers optimum engine cooling and protection against corrosion when
mixed to a freeze point of -37°C to -46°C. The use of a hydrometer or a refractometer can be used to test coolant
concentration.
06
06–11Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Cooling System Troubleshooting Chart
CONDITIONPOSSIBLE CAUSES CORRECTION
Loss of Coolant · Coolant hoses or tubes
· Hose clamps
· Coolant pump gasket
· Thermostat gasket
· Thermostat housing
· Radiator
· Coolant reservoir
· Pressure relief cap
· Coolant pump leaking
· Heater core
· Engine gaskets (may leak
internally or externally)
· Cylinder block core plugs· Replace coolant hoses or tubes
· Replace hose clamps
· Replace coolant pump gasket
· Replace thermostat gasket
· Repair/replace thermostat housing
· Repair/replace radiator
· Replace coolant reservoir
· Replace pressure relief cap
· Replace coolant pump
· Replace heater core
· Replace engine gaskets
· Replace cylinder block core plugs
Engine Overheats · Low coolant level
· External engine coolant leak
· Air lock in system
· Pressure relief cap installation
· Restricted airflow through the A/C
condenser/radiator
· Internal engine coolant leak
· Coolant condition/concentration
· Electric cooling fan
· Radiator
· Thermostat
· Engine coolant temperature
indicator gauge
· Heater core
· Coolant pump
· Coolant flow restriction· Add coolant as needed
· Repair engine coolant leak
· Bleed air from cooling system
· Ensure pressure relief cap is
installed correctly
· Remove restriction from the A/C
condenser/radiator
· Repair internal engine coolant leak
· Repair coolant condition/
concentration as needed
· Replace electric cooling fan(s)
· Repair/replace radiator
· Replace thermostat
· Verify engine coolant temperature
indicator gauge operation
· Replace heater core
· Replace coolant pump
· Repair cause of coolant flow
restriction
Engine Does Not Reach Normal
Operating Temperature · Thermostat
· Electric cooling fan always on
· Engine coolant temperature
indicator gauge· Replace thermostat
· Repair cause of electric cooling fan
always on
· Verify engine coolant temperature
indicator gauge operation
Electric Cooling Fan(s) Does Not
Operate · Fuse and Relay Box
· Wiring
· Relay(s)
· Fuse(s)
· Engine Control Module (ECM)
· Cooling fan motor(s)· Repair/replace Fuse and Relay
Box
· Repair wiring
· Replace relay(s)
· Replace fuse(s)
· Replace the ECM
· Replace cooling fan motor(s)
Electric Cooling Fan(s) On All The
Time · Wiring
· Relay(s)
· Engine Control Module (ECM)· Repair wiring
· Replace relay(s)
· Replace the ECM
DIAGNOSIS AND TESTING
06–12Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine ON-VEHICLE SERVICE
Cooling System Draining and Filling
Cooling System Draining Procedure
WARNING!
Never remove the pressure relief cap, under any conditions, while the engine is operating or hot. Failure to fol-
low these instructions could result in personal injury or damage to the cooling system or engine. To avoid hav-
ing scalding hot coolant or steam blow out of the cooling system, use extreme care when removing the pressure
relief cap. Wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap and turn it
slowly one turn (counterclockwise). Step back while the pressure is released from the cooling system. When you
are certain all the pressure has been released, using a cloth turn and remove the pressure relief cap. Failure to
follow these instructions may result in serious personal injury.
Perform the following procedure when draining the cooling system.1. Do not remove the pressure cap first.
2. With the engine cold, remove the pressure cap.
3. Raise and support the vehicle and locate the radiator drain plug.
4. Attach one end of a hose to the drain plug (1). Put the other end into a clean container. Open the
drain plug and drain the coolant from the radiator.
5. Tighten the radiator drain plug.
Cooling System Filling Procedure
CAUTION:
Failure to purge air from the cooling system can result in an overheating condition and severe
engine damage.
LTSM060015
06
06–13Chery Automobile Co., Ltd.

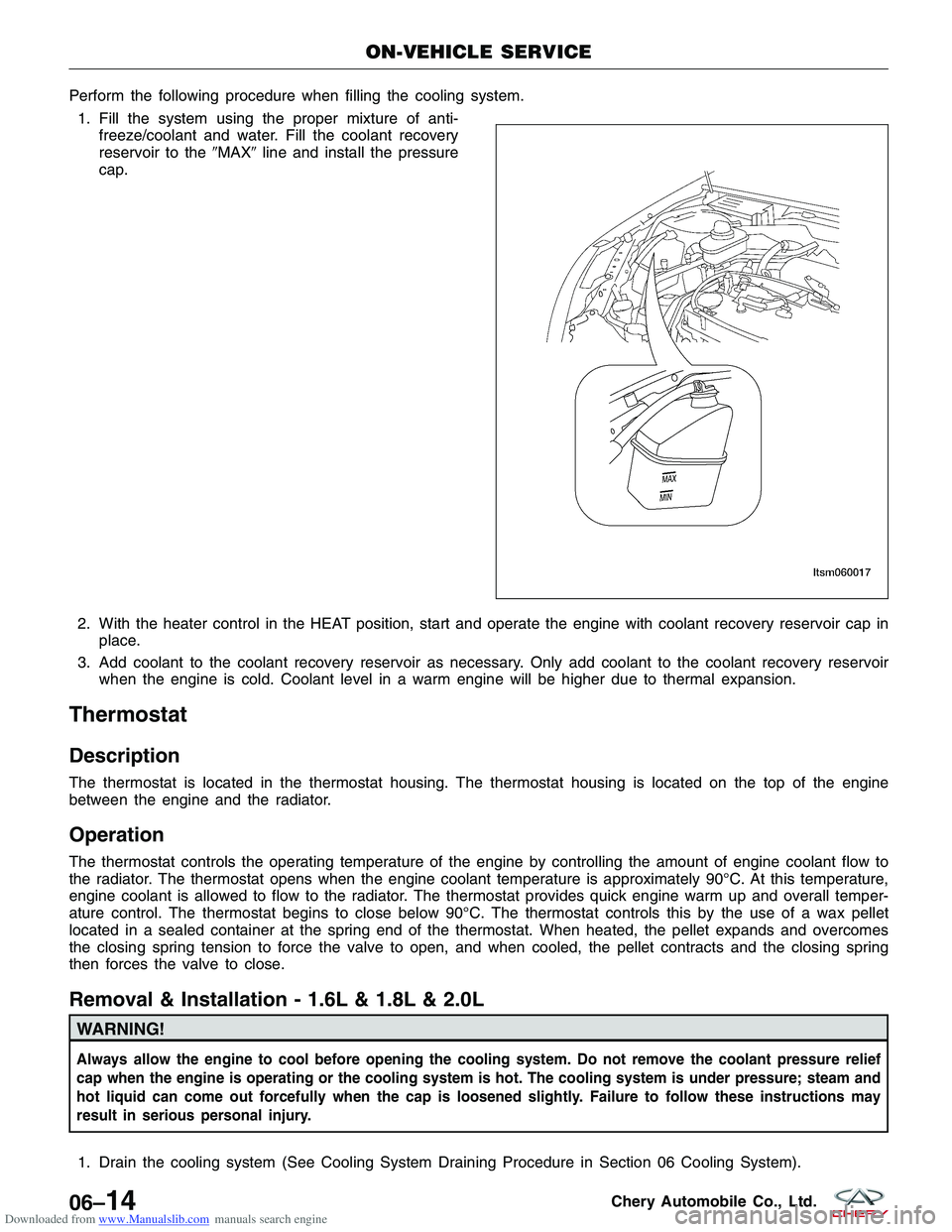

Downloaded from www.Manualslib.com manuals search engine Perform the following procedure when filling the cooling system.1. Fill the system using the proper mixture of anti- freeze/coolant and water. Fill the coolant recovery
reservoir to the MAXline and install the pressure
cap.
2. With the heater control in the HEAT position, start and operate the engine with coolant recovery reservoir cap in place.
3. Add coolant to the coolant recovery reservoir as necessary. Only add coolant to the coolant recovery reservoir when the engine is cold. Coolant level in a warm engine will be higher due to thermal expansion.
Thermostat
Description
The thermostat is located in the thermostat housing. The thermostat housing is located on the top of the engine
between the engine and the radiator.
Operation
The thermostat controls the operating temperature of the engine by controlling the amount of engine coolant flow to
the radiator. The thermostat opens when the engine coolant temperature is approximately 90°C. At this temperature,
engine coolant is allowed to flow to the radiator. The thermostat provides quick engine warm up and overall temper-
ature control. The thermostat begins to close below 90°C. The thermostat controls this by the use of a wax pellet
located in a sealed container at the spring end of the thermostat. When heated, the pellet expands and overcomes
the closing spring tension to force the valve to open, and when cooled, the pellet contracts and the closing spring
then forces the valve to close.
Removal & Installation - 1.6L & 1.8L & 2.0L
WARNING!
Always allow the engine to cool before opening the cooling system. Do not remove the coolant pressure relief
cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and
hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may
result in serious personal injury.
1. Drain the cooling system (See Cooling System Draining Procedure in Section 06 Cooling System).
ON-VEHICLE SERVICE
LTSM060017
06–14Chery Automobile Co., Ltd.

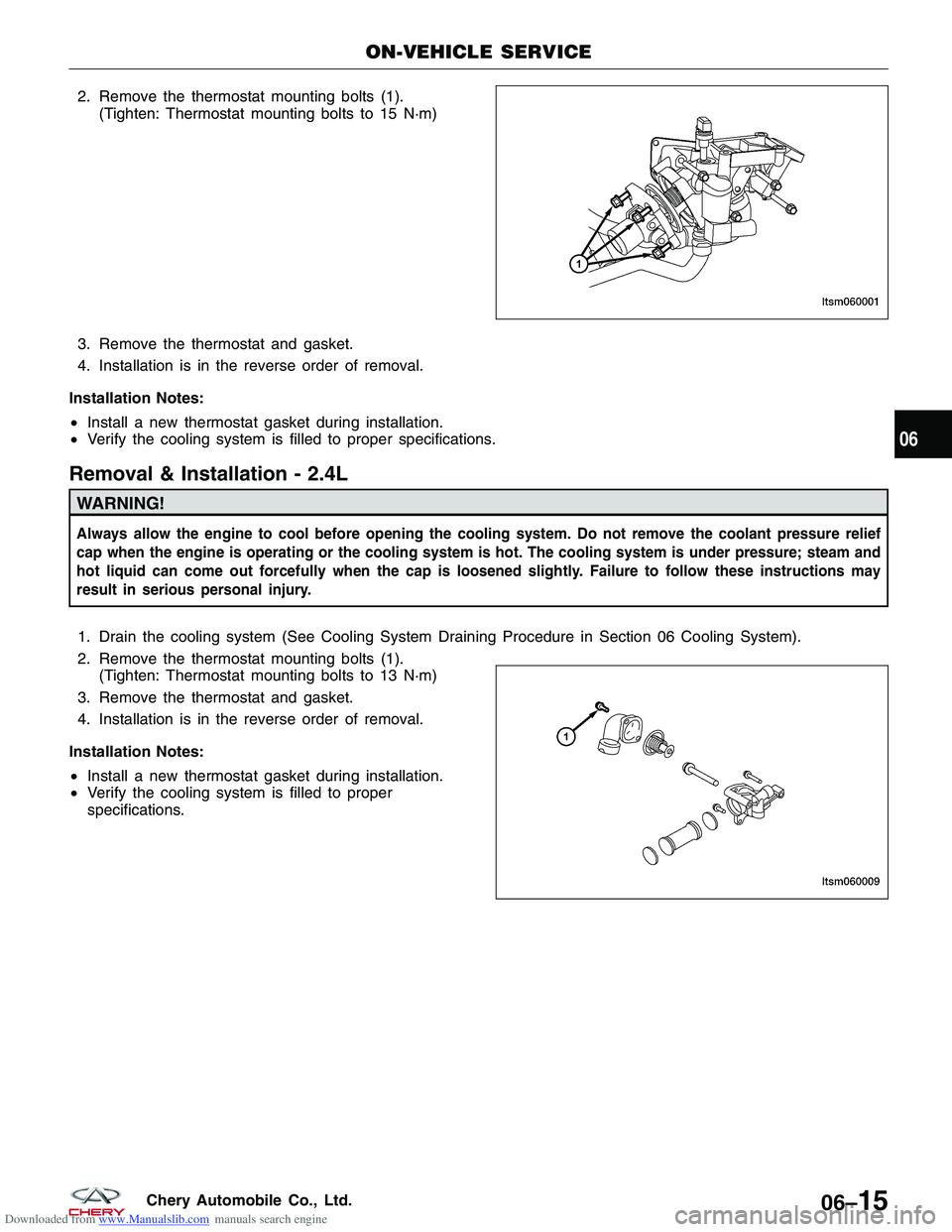

Downloaded from www.Manualslib.com manuals search engine 2. Remove the thermostat mounting bolts (1).(Tighten: Thermostat mounting bolts to 15 N·m)
3. Remove the thermostat and gasket.
4. Installation is in the reverse order of removal.
Installation Notes:
• Install a new thermostat gasket during installation.
• Verify the cooling system is filled to proper specifications.
Removal & Installation - 2.4L
WARNING!
Always allow the engine to cool before opening the cooling system. Do not remove the coolant pressure relief
cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and
hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may
result in serious personal injury.
1. Drain the cooling system (See Cooling System Draining Procedure in Section 06 Cooling System).
2. Remove the thermostat mounting bolts (1).
(Tighten: Thermostat mounting bolts to 13 N·m)
3. Remove the thermostat and gasket.
4. Installation is in the reverse order of removal.
Installation Notes:
• Install a new thermostat gasket during installation.
• Verify the cooling system is filled to proper
specifications.
ON-VEHICLE SERVICE
LTSM060001
LTSM060009
06
