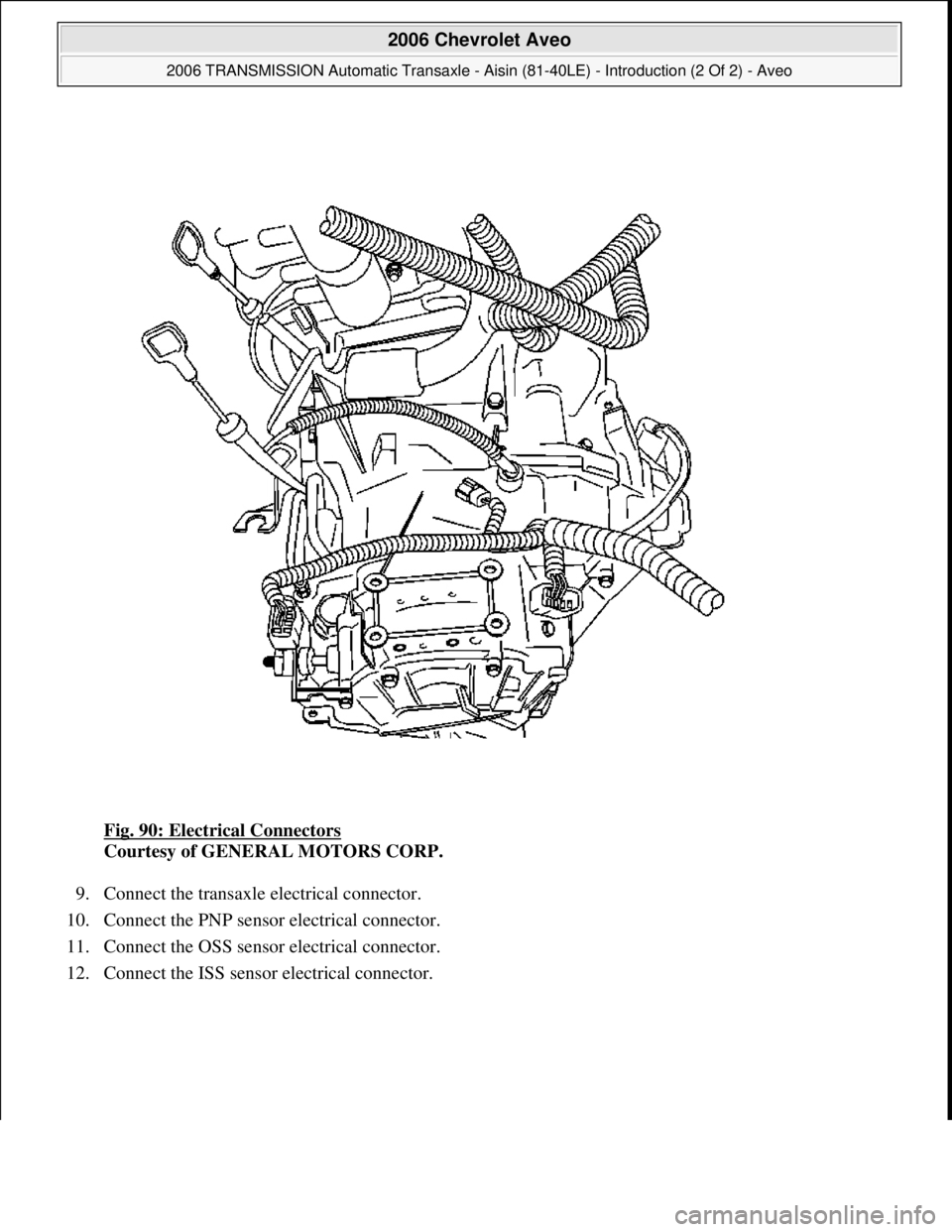

Fig. 90: Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
9. Connect the transaxle electrical connector.
10. Connect the PNP sensor electrical connector.
11. Connect the OSS sensor electrical connector.
12. Connect the ISS sensor electrical connector.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 102 © 2005 Mitchell Repair Information Company, LLC.

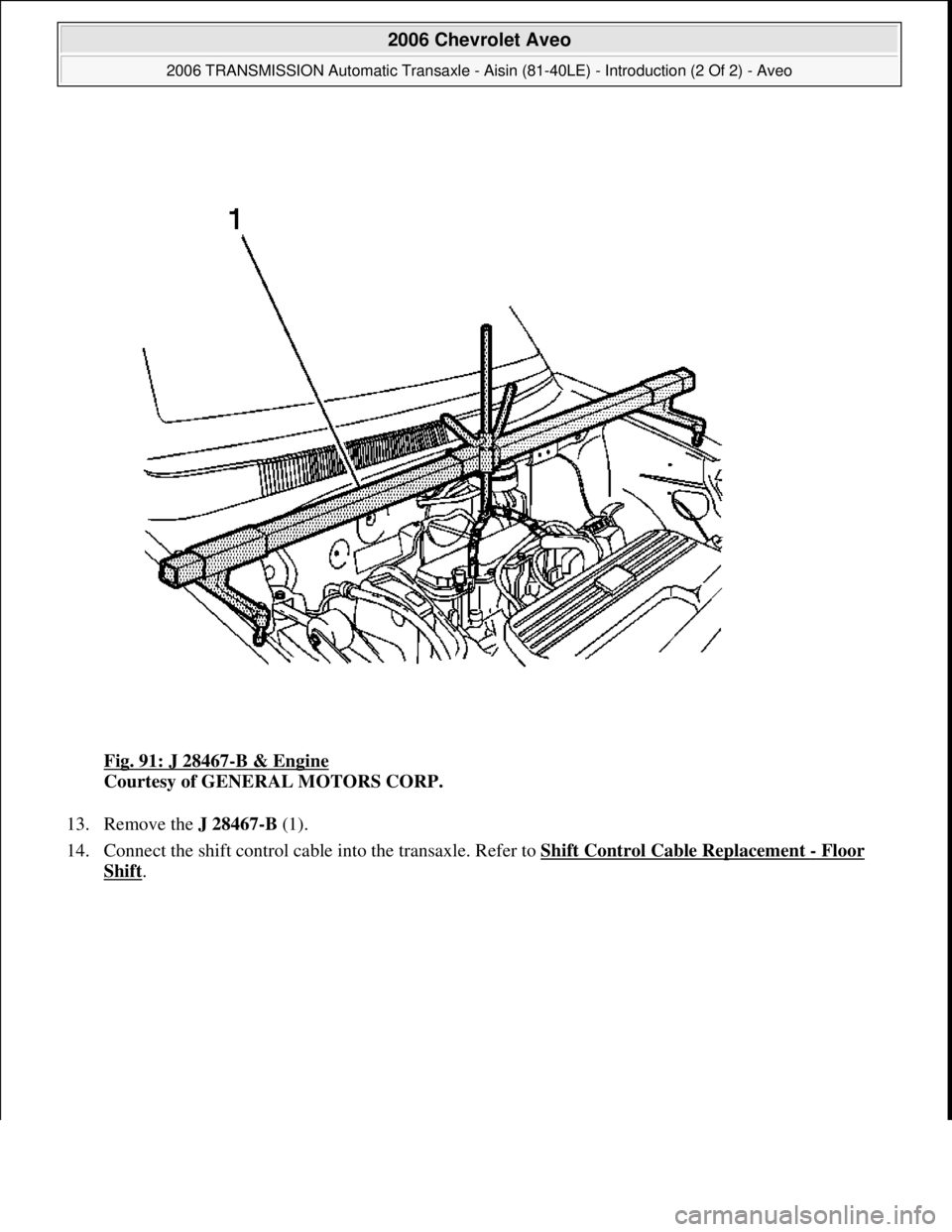

Fig. 91: J 28467-B & Engine
Courtesy of GENERAL MOTORS CORP.
13. Remove the J 28467-B (1).
14. Connect the shift control cable into the transaxle. Refer to Shift Control Cable Replacement
- Floor
Shift.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 103 © 2005 Mitchell Repair Information Company, LLC.

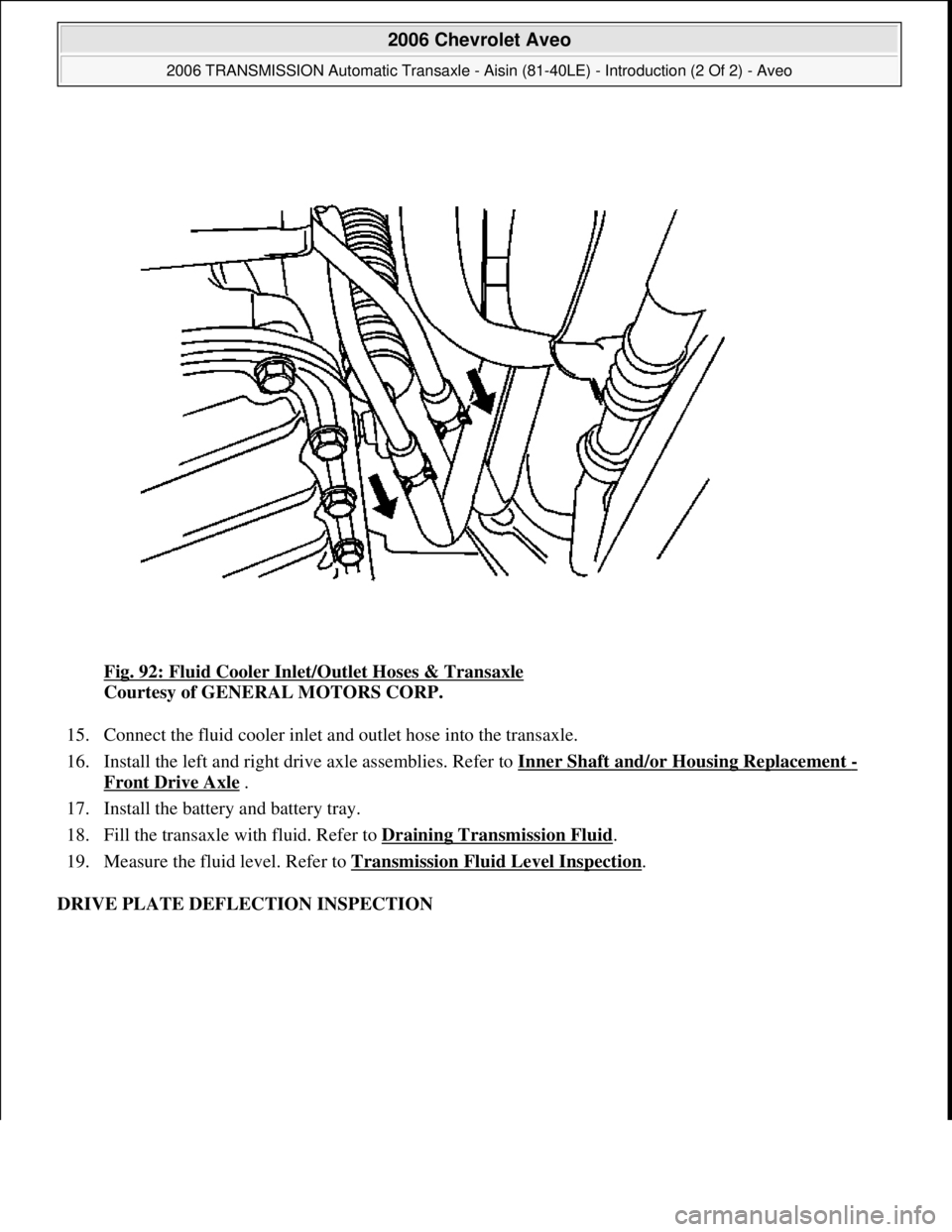

Fig. 92: Fluid Cooler Inlet/Outlet Hoses & Transaxle
Courtesy of GENERAL MOTORS CORP.
15. Connect the fluid cooler inlet and outlet hose into the transaxle.
16. Install the left and right drive axle assemblies. Refer to Inner Shaft and/or Housing Replacement
-
Front Drive Axle
.
17. Install the battery and battery tray.
18. Fill the transaxle with fluid. Refer to Draining Transmission Fluid
.
19. Measure the fluid level. Refer to Transmission Fluid Level Inspection
.
DRIVE PLATE DEFLECTION INSPECTION

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 104 © 2005 Mitchell Repair Information Company, LLC.

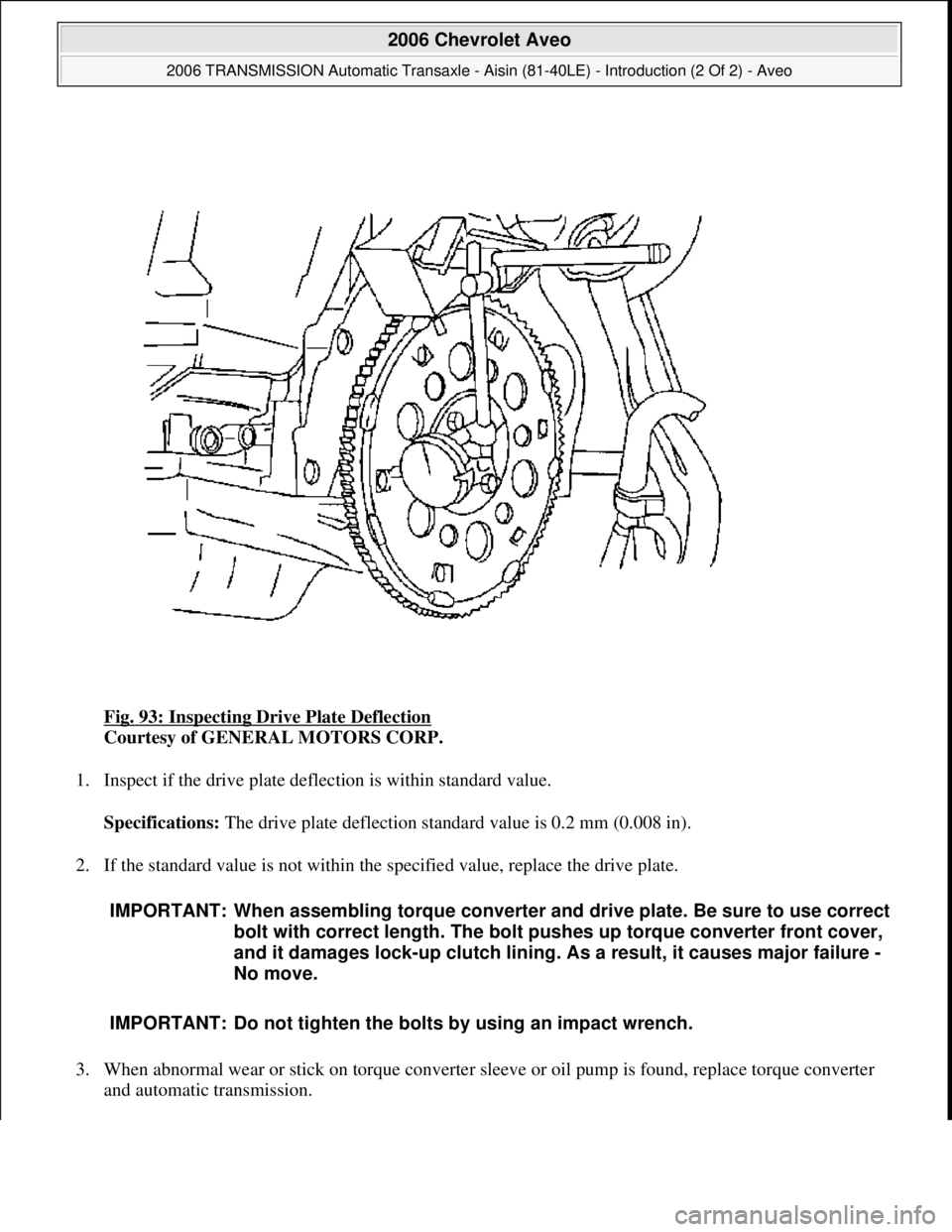

Fig. 93: Inspecting Drive Plate Deflection
Courtesy of GENERAL MOTORS CORP.
1. Inspect if the drive plate deflection is within standard value.
Specifications: The drive plate deflection standard value is 0.2 mm (0.008 in).
2. If the standard value is not within the specified value, replace the drive plate.
3. When abnormal wear or stick on torque converter sleeve or oil pump is found, replace torque converter
and automatic transmission.
IMPORTANT: When assembling torque converter and drive plate. Be sure to use correct
bolt with correct length. The bolt pushes up torque converter front cover,
and it damages lock-up clutch lining. As a result, it causes major failure -
No move.
IMPORTANT: Do not tighten the bolts by using an impact wrench.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 105 © 2005 Mitchell Repair Information Company, LLC.

COOLER PIPE BENDING AND CHOKE INSPECTION

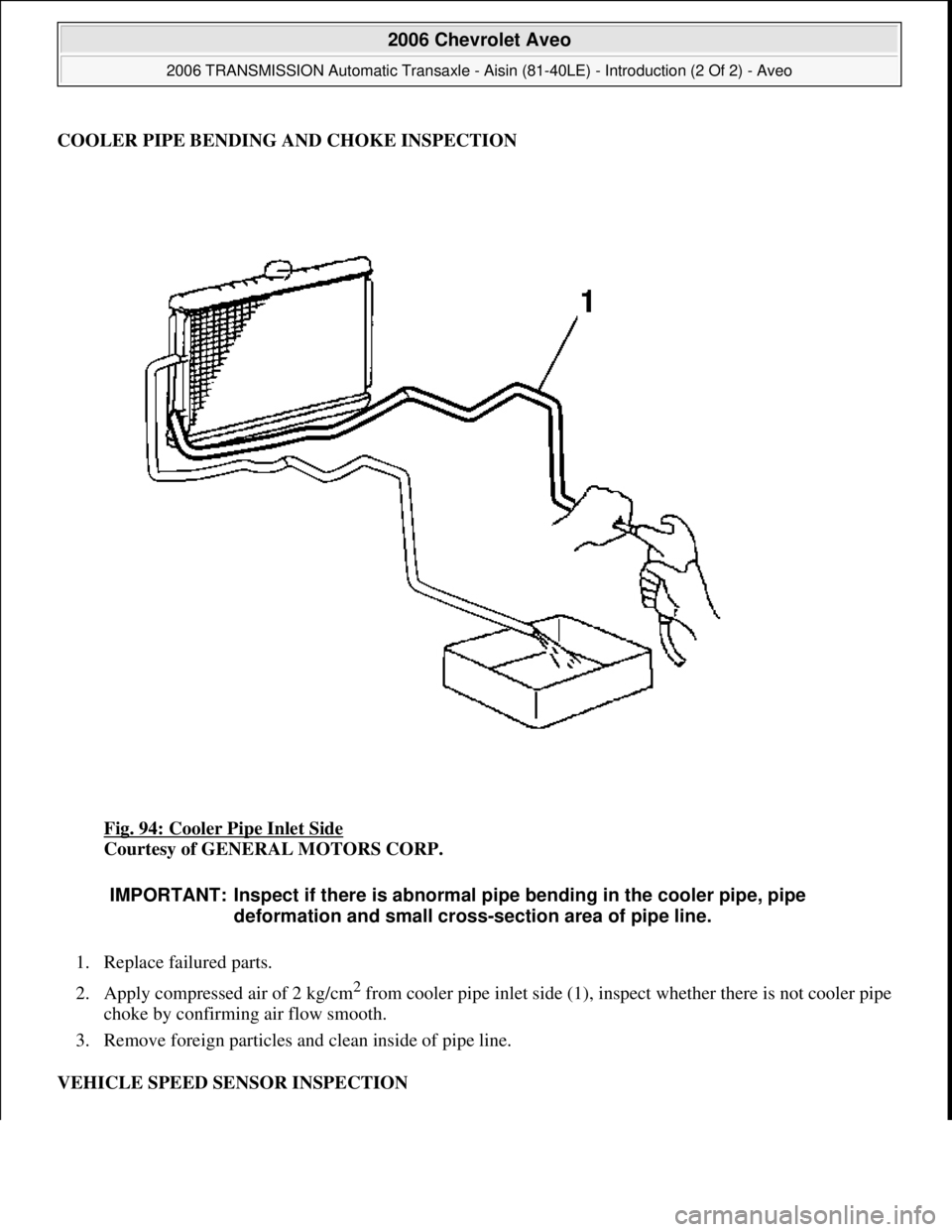

Fig. 94: Cooler Pipe Inlet Side

Courtesy of GENERAL MOTORS CORP.
1. Replace failured parts.
2. Apply compressed air of 2 kg/cm
2 from cooler pipe inlet side (1), inspect whether there is not cooler pipe
choke by confirming air flow smooth.
3. Remove foreign particles and clean inside of pipe line.
VEHICLE SPEED SENSOR INSPECTION
IMPORTANT: Inspect if there is abnormal pipe bending in the cooler pipe, pipe
deformation and small cross-section area of pipe line.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 106 © 2005 Mitchell Repair Information Company, LLC.

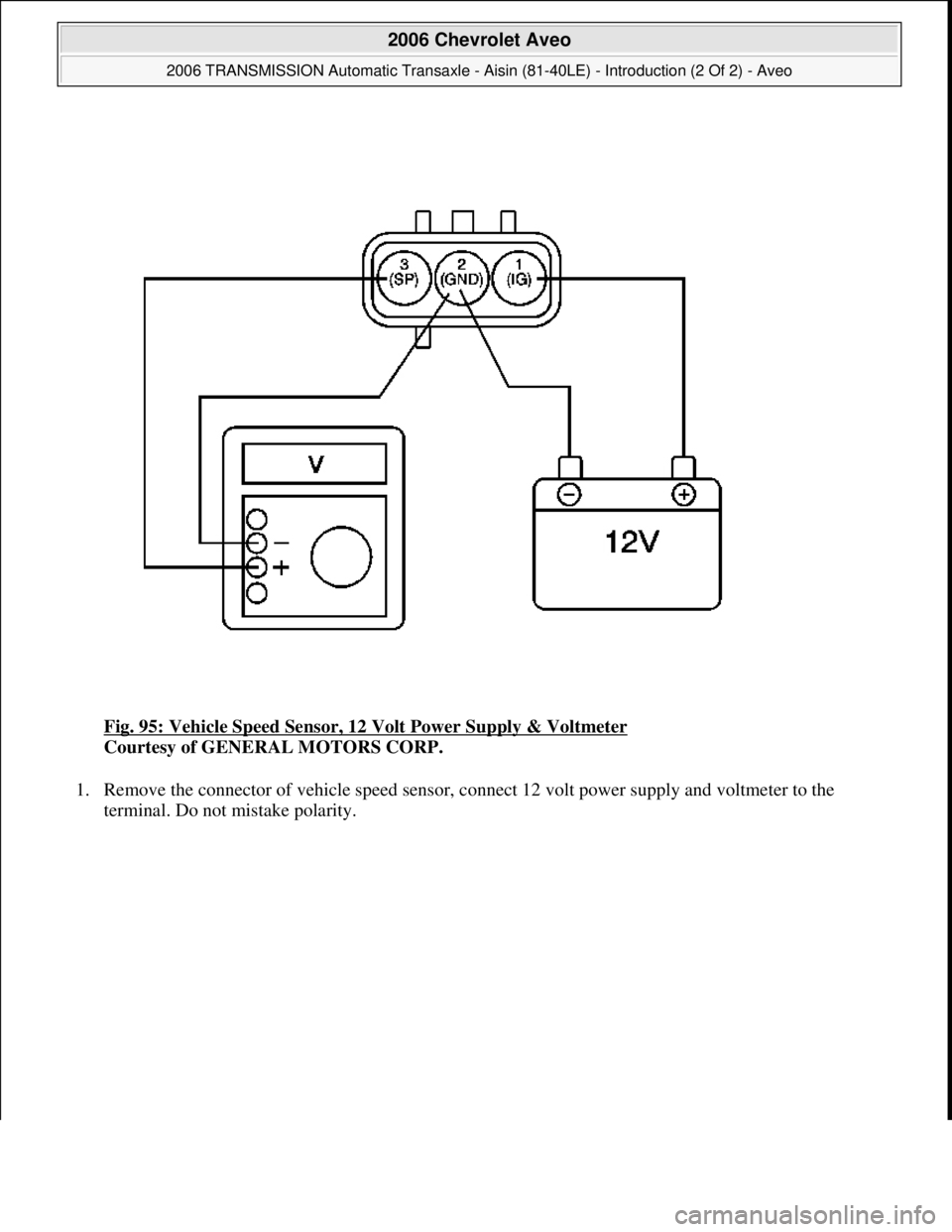

Fig. 95: Vehicle Speed Sensor, 12 Volt Power Supply & Voltmeter
Courtesy of GENERAL MOTORS CORP.
1. Remove the connector of vehicle speed sensor, connect 12 volt power supply and voltmeter to the
terminal. Do not mistake polarit
y.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 107 © 2005 Mitchell Repair Information Company, LLC.

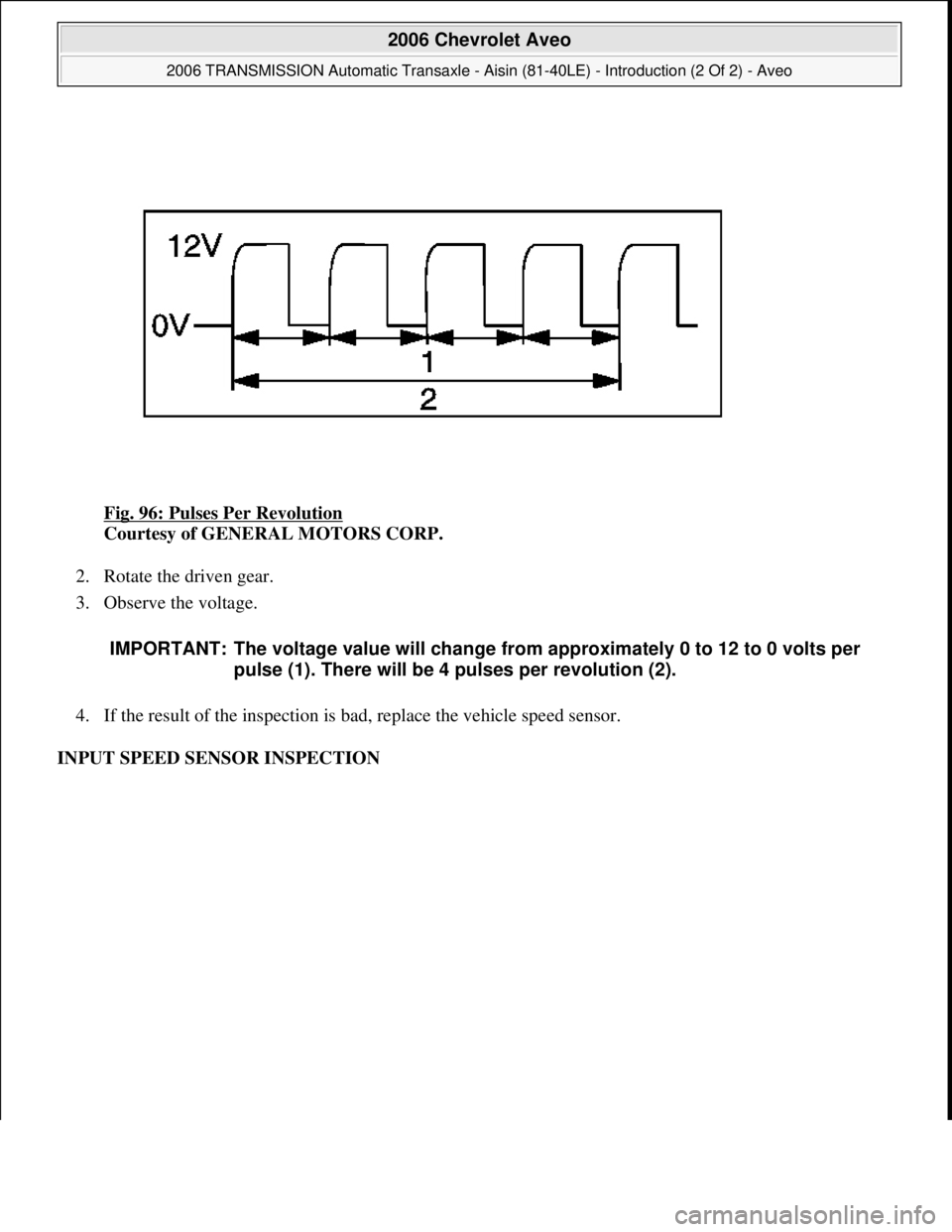

Fig. 96: Pulses Per Revolution
Courtesy of GENERAL MOTORS CORP.
2. Rotate the driven gear.
3. Observe the voltage.
4. If the result of the inspection is bad, replace the vehicle speed sensor.
INPUT SPEED SENSOR INSPECTION
IMPORTANT: The voltage value will change from approximately 0 to 12 to 0 volts per
pulse (1). There will be 4 pulses per revolution (2).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 108 © 2005 Mitchell Repair Information Company, LLC.

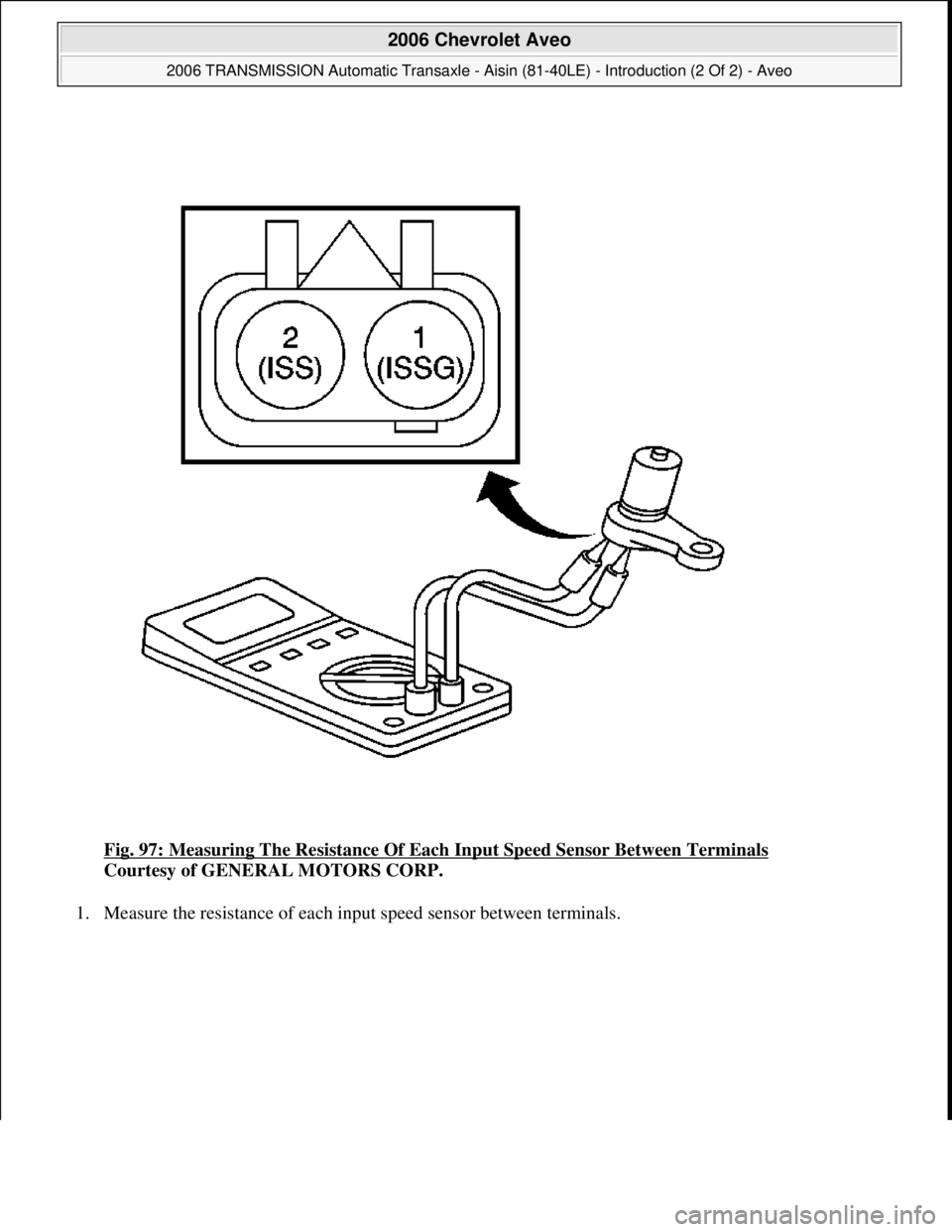

Fig. 97: Measuring The Resistance Of Each Input Speed Sensor Between Terminals
Courtesy of GENERAL MOTORS CORP.
1. Measure the resistance of each input speed sensor between terminals.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 109 © 2005 Mitchell Repair Information Company, LLC.

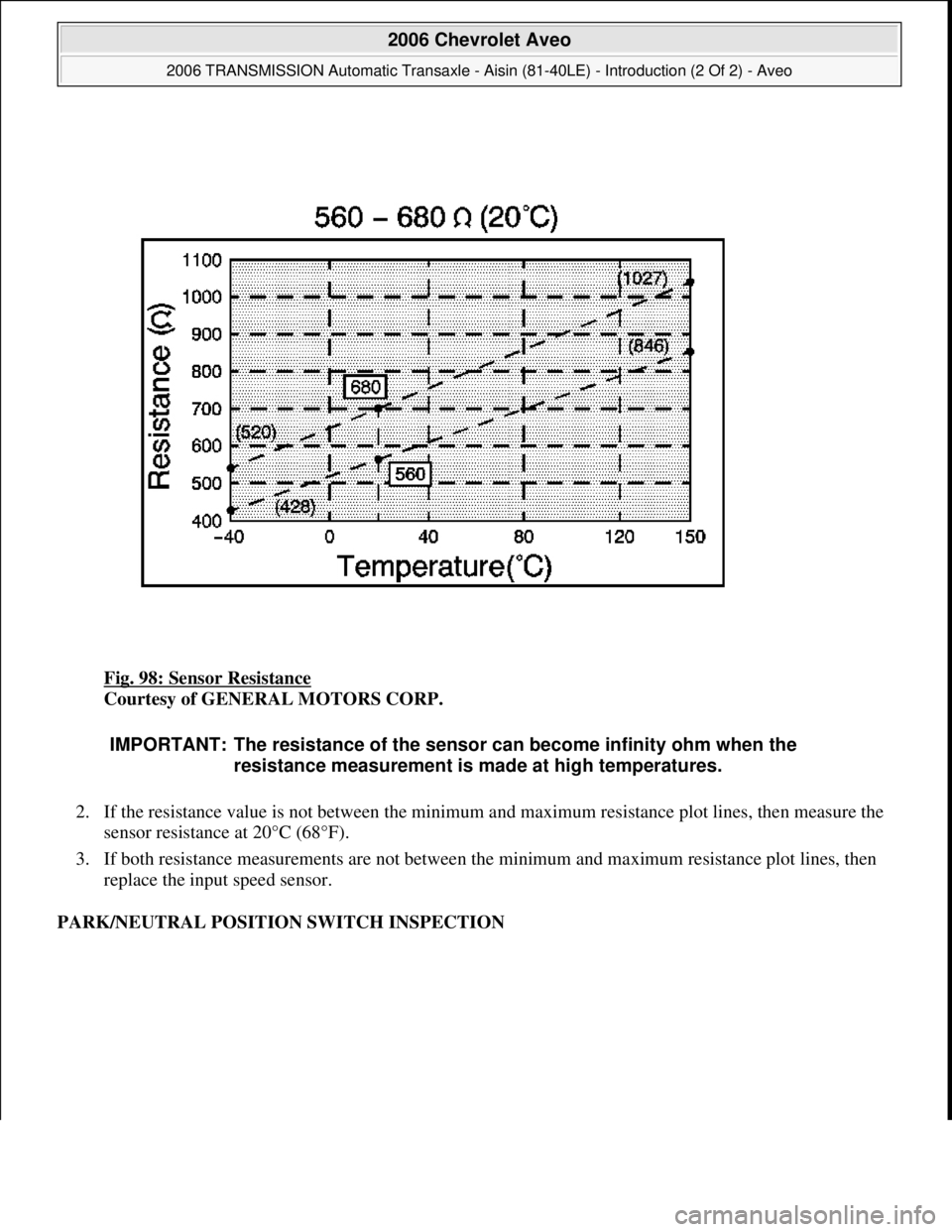

Fig. 98: Sensor Resistance
Courtesy of GENERAL MOTORS CORP.
2. If the resistance value is not between the minimum and maximum resistance plot lines, then measure the
sensor resistance at 20°C (68°F).
3. If both resistance measurements are not between the minimum and maximum resistance plot lines, then
replace the input speed sensor.
PARK/NEUTRAL POSITION SWITCH INSPECTION
IMPORTANT: The resistance of the sensor can become infinity ohm when the
resistance measurement is made at high temperatures.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 110 © 2005 Mitchell Repair Information Company, LLC.

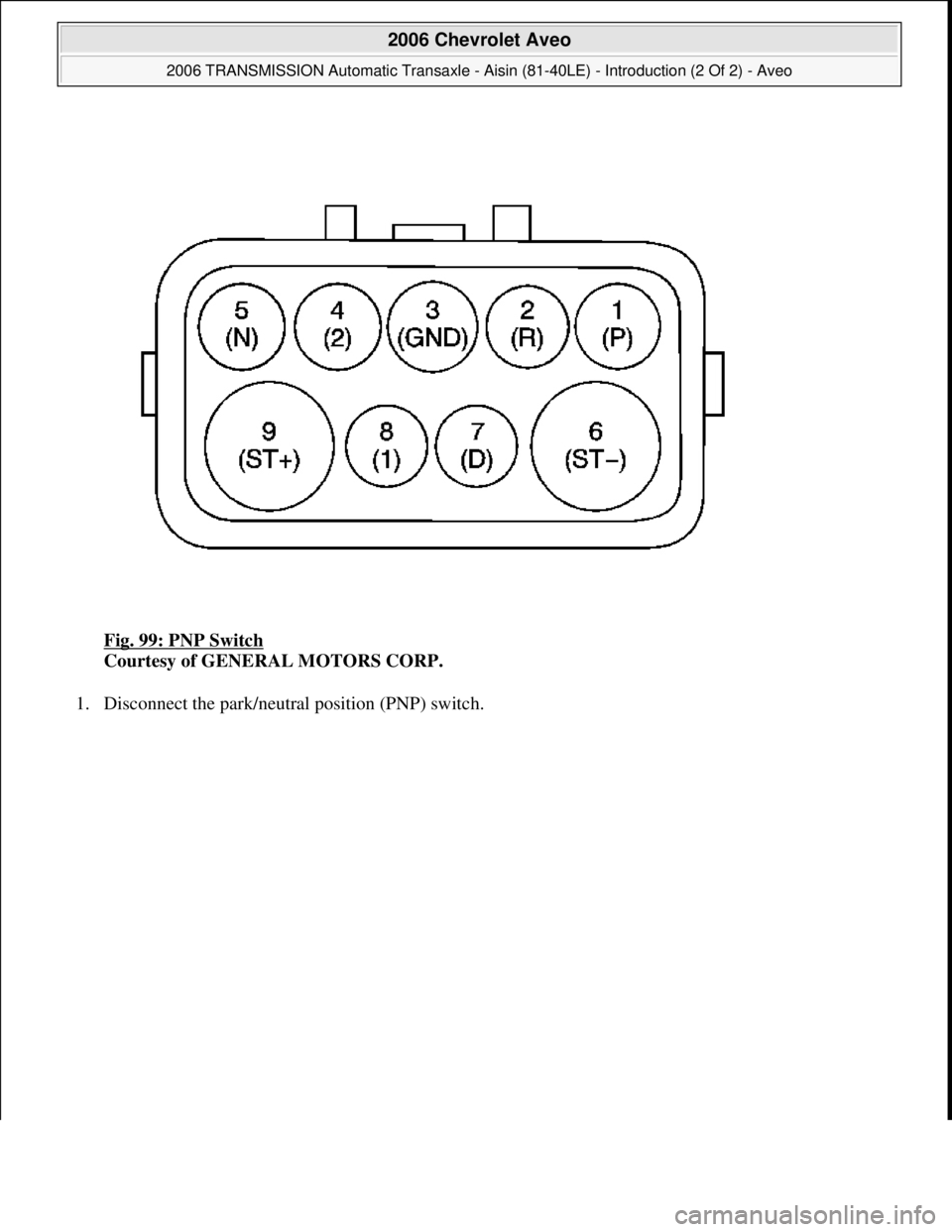

Fig. 99: PNP Switch
