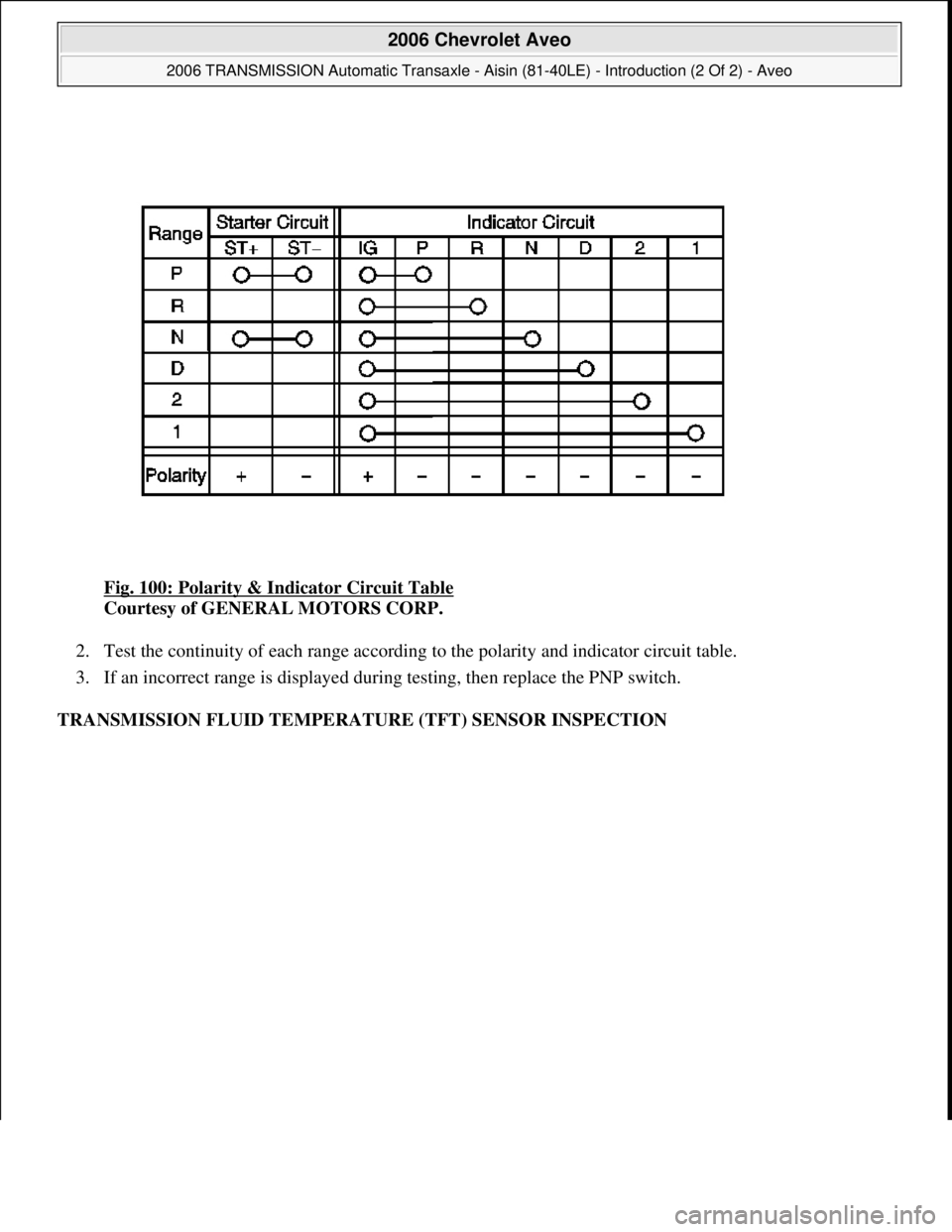

Fig. 100: Polarity & Indicator Circuit Table
Courtesy of GENERAL MOTORS CORP.
2. Test the continuity of each range according to the polarity and indicator circuit table.
3. If an incorrect range is displayed during testing, then replace the PNP switch.
TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR INSPECTION

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 112 © 2005 Mitchell Repair Information Company, LLC.

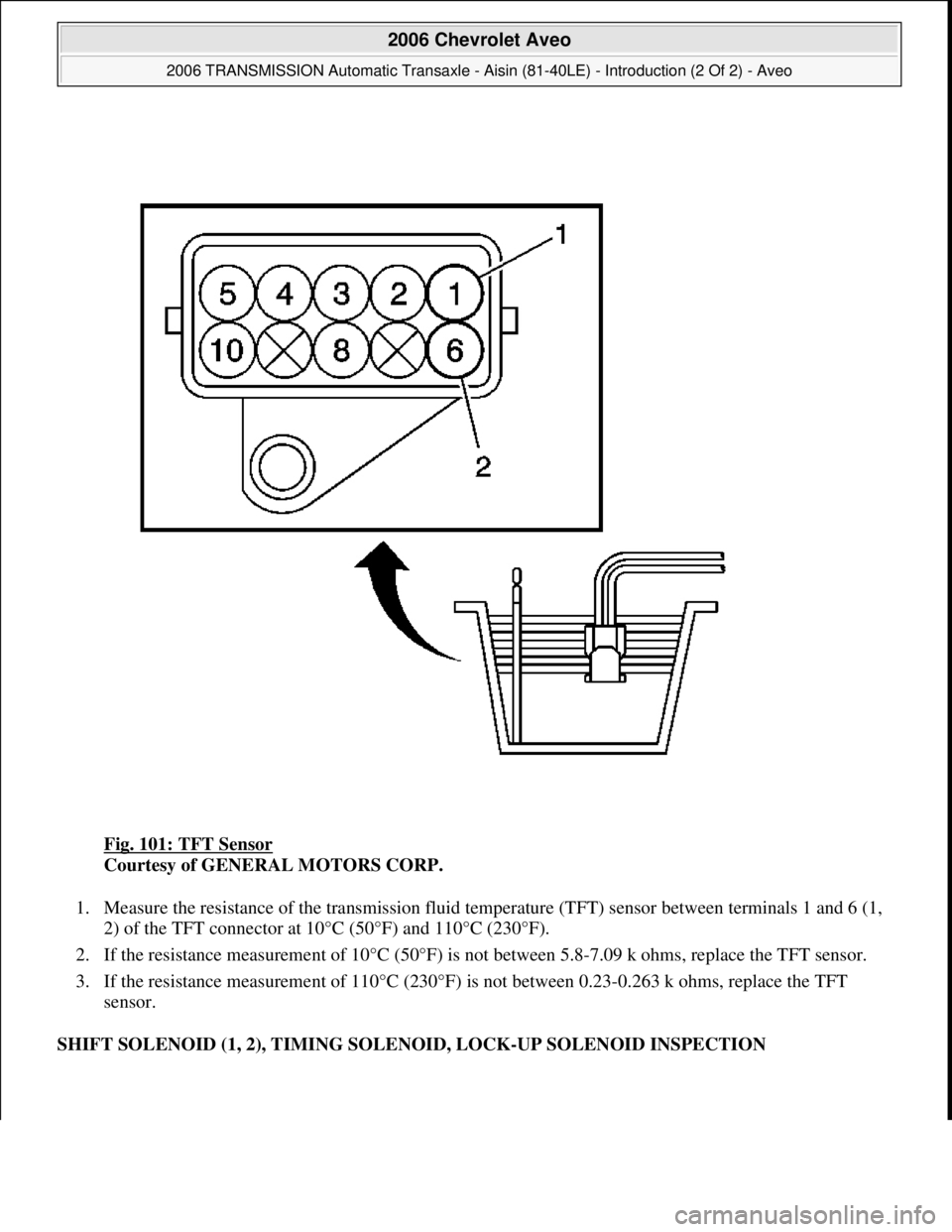

Fig. 101: TFT Sensor
Courtesy of GENERAL MOTORS CORP.
1. Measure the resistance of the transmission fluid temperature (TFT) sensor between terminals 1 and 6 (1,
2) of the TFT connector at 10°C (50°F) and 110°C (230°F).
2. If the resistance measurement of 10°C (50°F) is not between 5.8-7.09 k ohms, replace the TFT sensor.
3. If the resistance measurement of 110°C (230°F) is not between 0.23-0.263 k ohms, replace the TFT
sensor.
SHIFT SOLENOID (1, 2), TIMING SOLENOID, LOCK-UP SOLENOID INSPECTION

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 113 © 2005 Mitchell Repair Information Company, LLC.

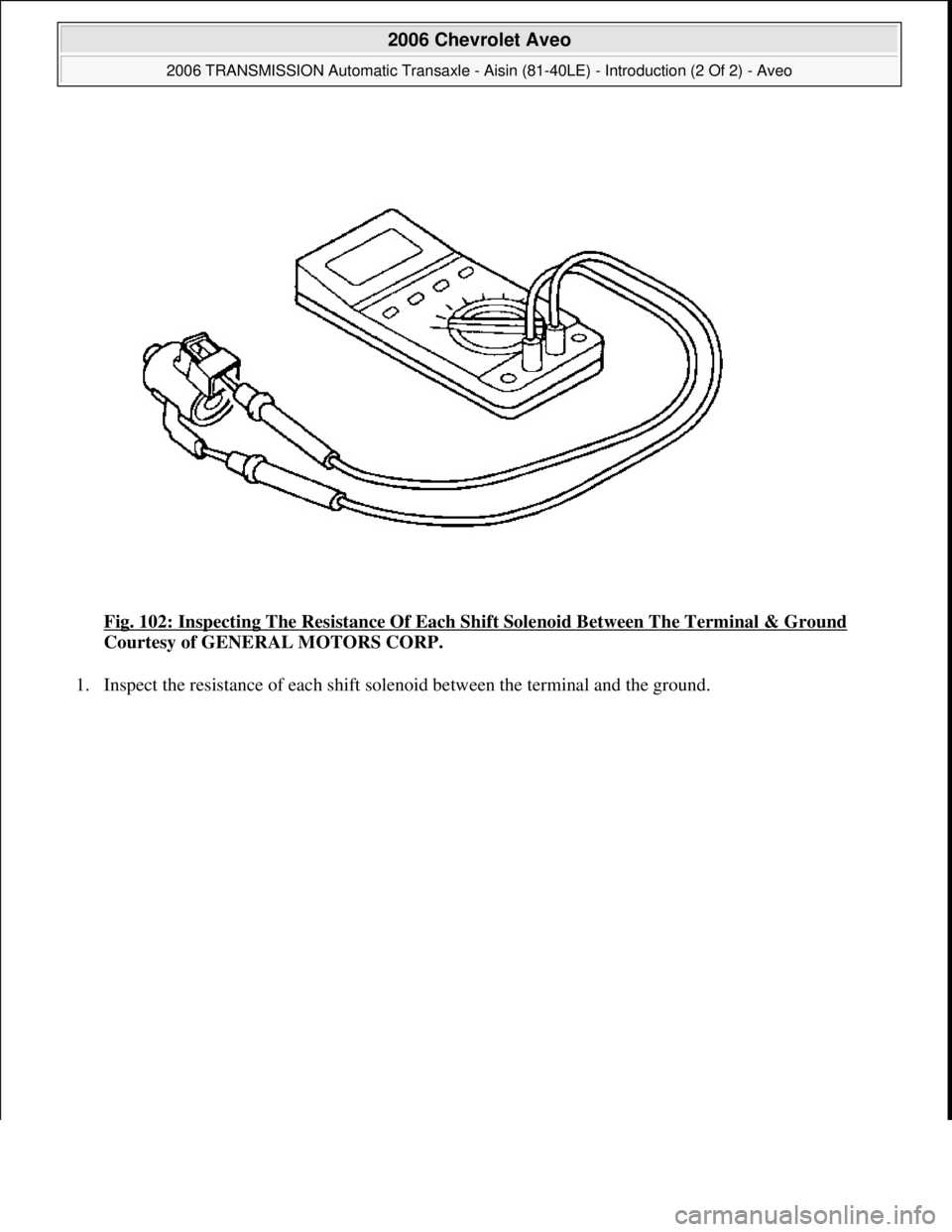

Fig. 102: Inspecting The Resistance Of Each Shift Solenoid Between The Terminal & Ground
Courtesy of GENERAL MOTORS CORP.
1. Inspect the resistance of each shift solenoid between the terminal and the
ground.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 114 © 2005 Mitchell Repair Information Company, LLC.

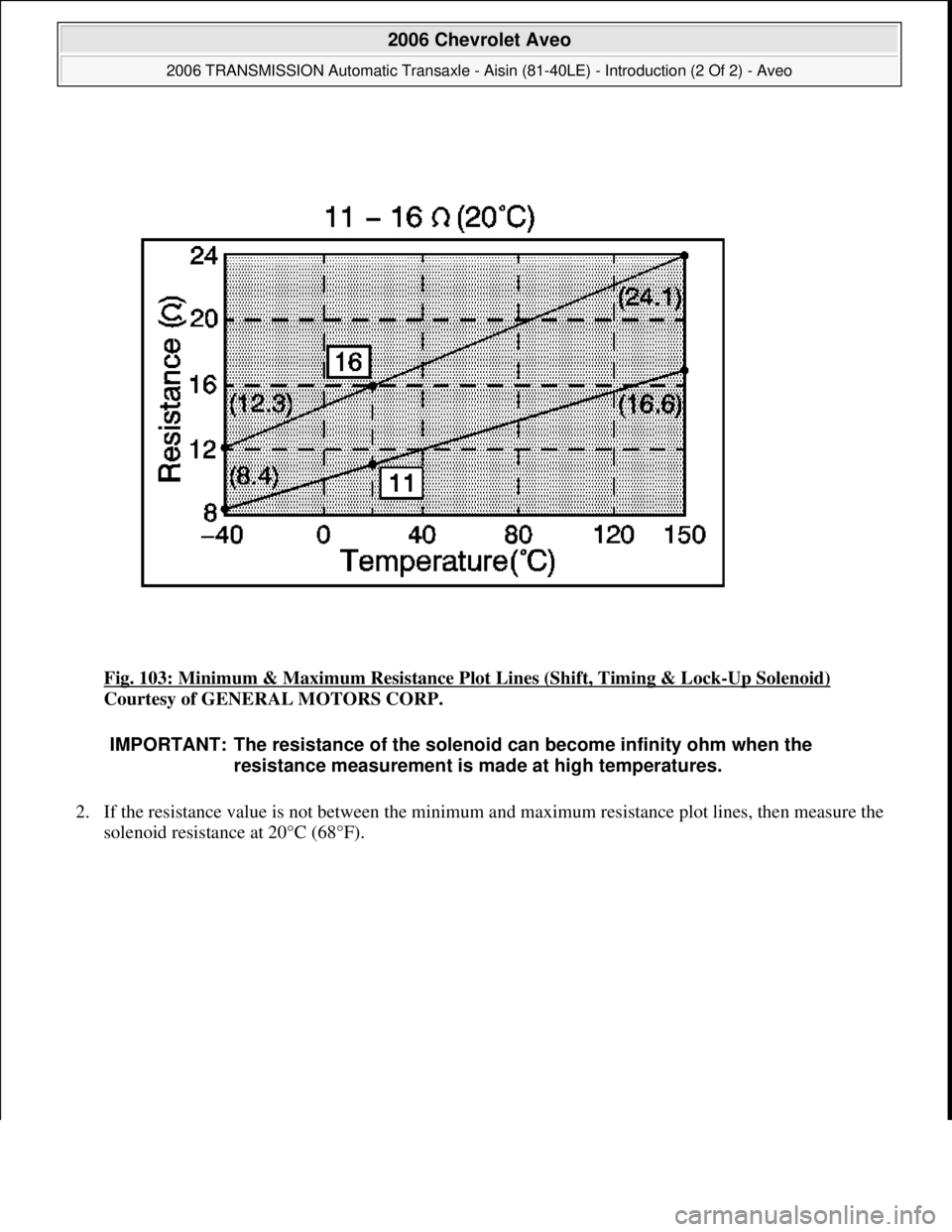

Fig. 103: Minimum & Maximum Resistance Plot Lines (Shift, Timing & Lock-Up Solenoid)
Courtesy of GENERAL MOTORS CORP.
2. If the resistance value is not between the minimum and maximum resistance plot lines, then measure the
solenoid resistance at 20°C (68°F).
IMPORTANT: The resistance of the solenoid can become infinity ohm when the
resistance measurement is made at high temperatures.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 115 © 2005 Mitchell Repair Information Company, LLC.

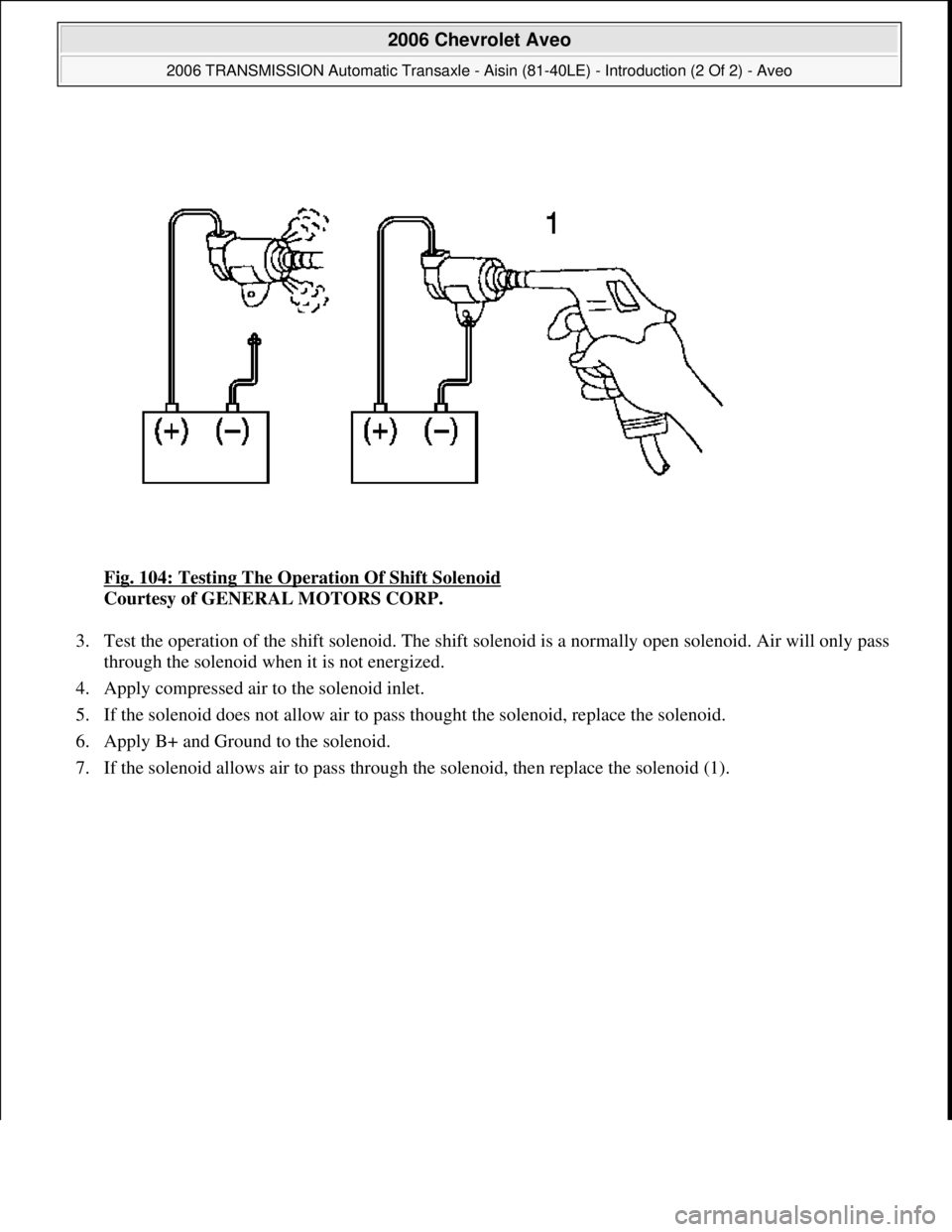

Fig. 104: Testing The Operation Of Shift Solenoid
Courtesy of GENERAL MOTORS CORP.
3. Test the operation of the shift solenoid. The shift solenoid is a normally open solenoid. Air will only pass
through the solenoid when it is not energized.
4. Apply compressed air to the solenoid inlet.
5. If the solenoid does not allow air to pass thought the solenoid, replace the solenoid.
6. Apply B+ and Ground to the solenoid.
7. If the solenoid allows air to pass throu
gh the solenoid, then replace the solenoid (1).

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:20 PMPage 116 © 2005 Mitchell Repair Information Company, LLC.

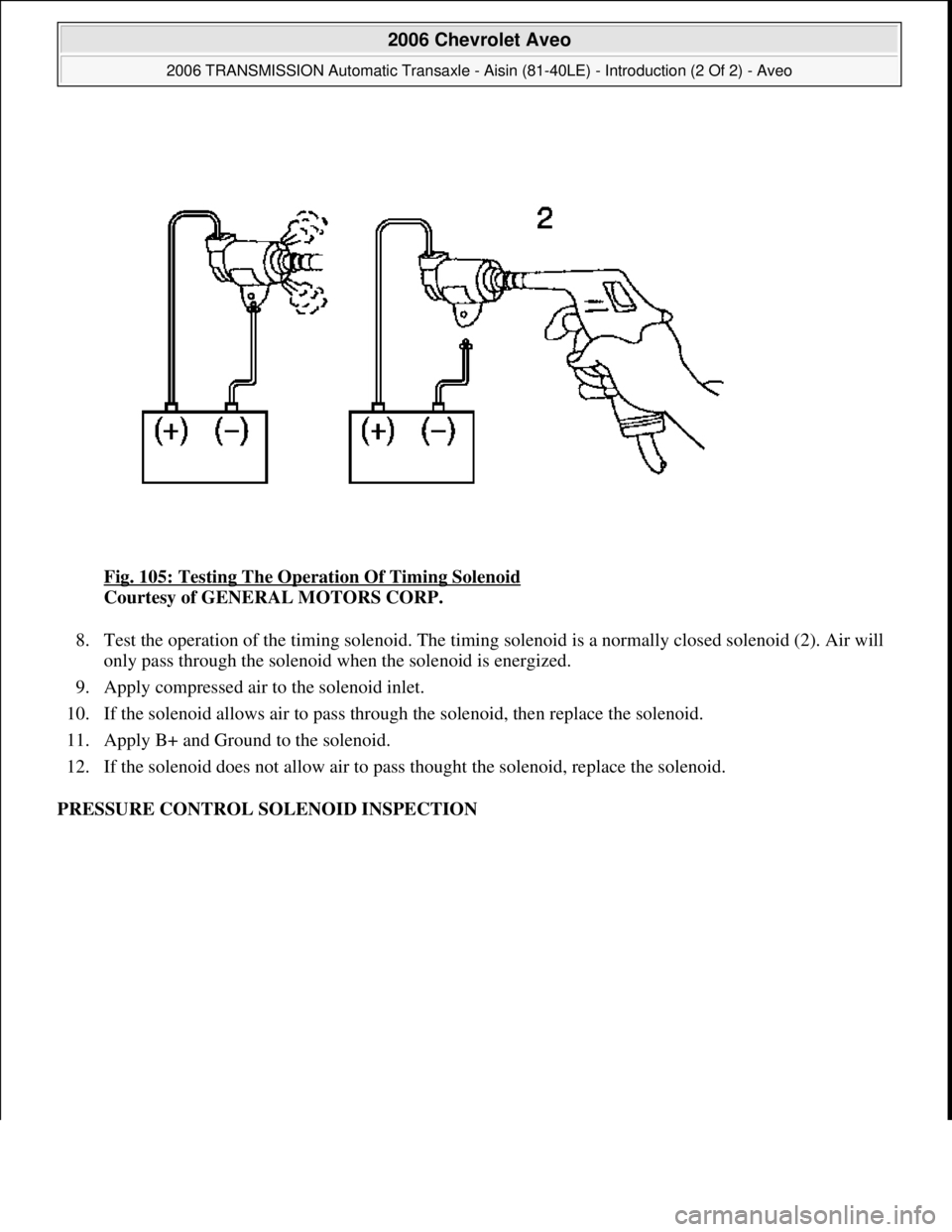

Fig. 105: Testing The Operation Of Timing Solenoid
Courtesy of GENERAL MOTORS CORP.
8. Test the operation of the timing solenoid. The timing solenoid is a normally closed solenoid (2). Air will
only pass through the solenoid when the solenoid is energized.
9. Apply compressed air to the solenoid inlet.
10. If the solenoid allows air to pass through the solenoid, then replace the solenoid.
11. Apply B+ and Ground to the solenoid.
12. If the solenoid does not allow air to pass thought the solenoid, replace the solenoid.
PRESSURE CONTROL SOLENOID INSPECTION

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:21 PMPage 117 © 2005 Mitchell Repair Information Company, LLC.

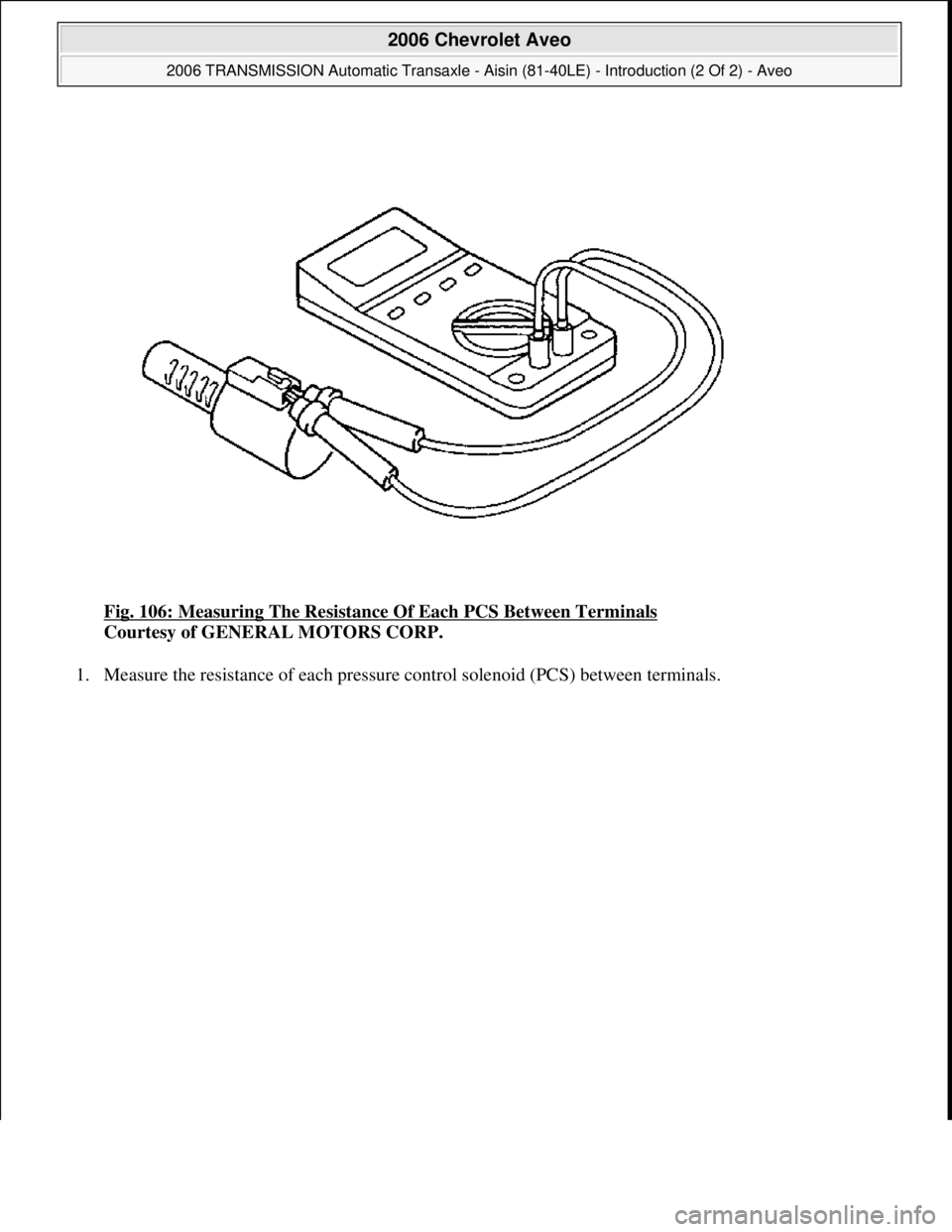

Fig. 106: Measuring The Resistance Of Each PCS Between Terminals
Courtesy of GENERAL MOTORS CORP.
1. Measure the resistance of each pressure control solenoid (PCS) between terminals.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:21 PMPage 118 © 2005 Mitchell Repair Information Company, LLC.

Fig. 107: Minimum & Maximum Resistance Plot Lines (Pressure Control Solenoid)
Courtesy of GENERAL MOTORS CORP.
2. If the resistance value is not between the minimum and maximum resistance plot lines, then measure the
solenoid resistance at 20°C (68°F).
3. If both resistance measurements are not between the minimum and maximum resistance plot lines, then
replace the PCS.
AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT
Adjustment Procedure
The various shift control cable positions must match at the shift control lever in the vehicle and at the selector
lever on the transaxle to provide proper transaxle shifting.
Place the shift control lever in the park (P) position and check the selector lever connection to verify that it is in
the forward most position. If it is not, the following adjustment must be performed:
IMPORTANT: The resistance of the solenoid can become infinity ohm when the
resistance measurement is made at high temperatures.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:21 PMPage 119 © 2005 Mitchell Repair Information Company, LLC.

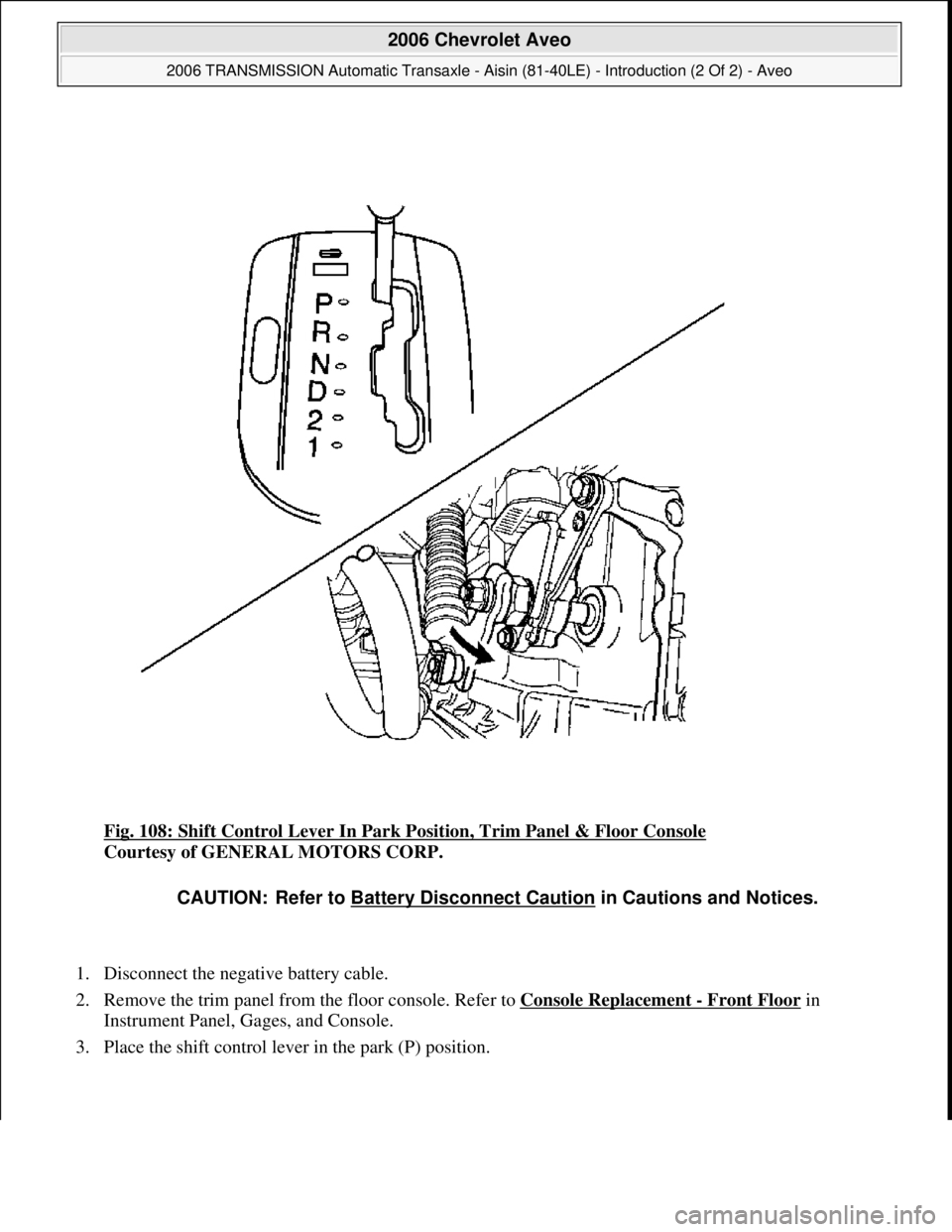

Fig. 108: Shift Control Lever In Park Position, Trim Panel & Floor Console
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable.
2. Remove the trim panel from the floor console. Refer to Console Replacement
- Front Floor in
Instrument Panel, Gages, and Console.
3. Place the shift control lever in the park (P) position.
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:21 PMPage 120 © 2005 Mitchell Repair Information Company, LLC.

Fig. 109: Control Cable Adjusting Nut
Courtesy of GENERAL MOTORS CORP.
4. Loosen the control cable ad
justing nut.
