CHEVROLET CAMARO 1982 Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 271

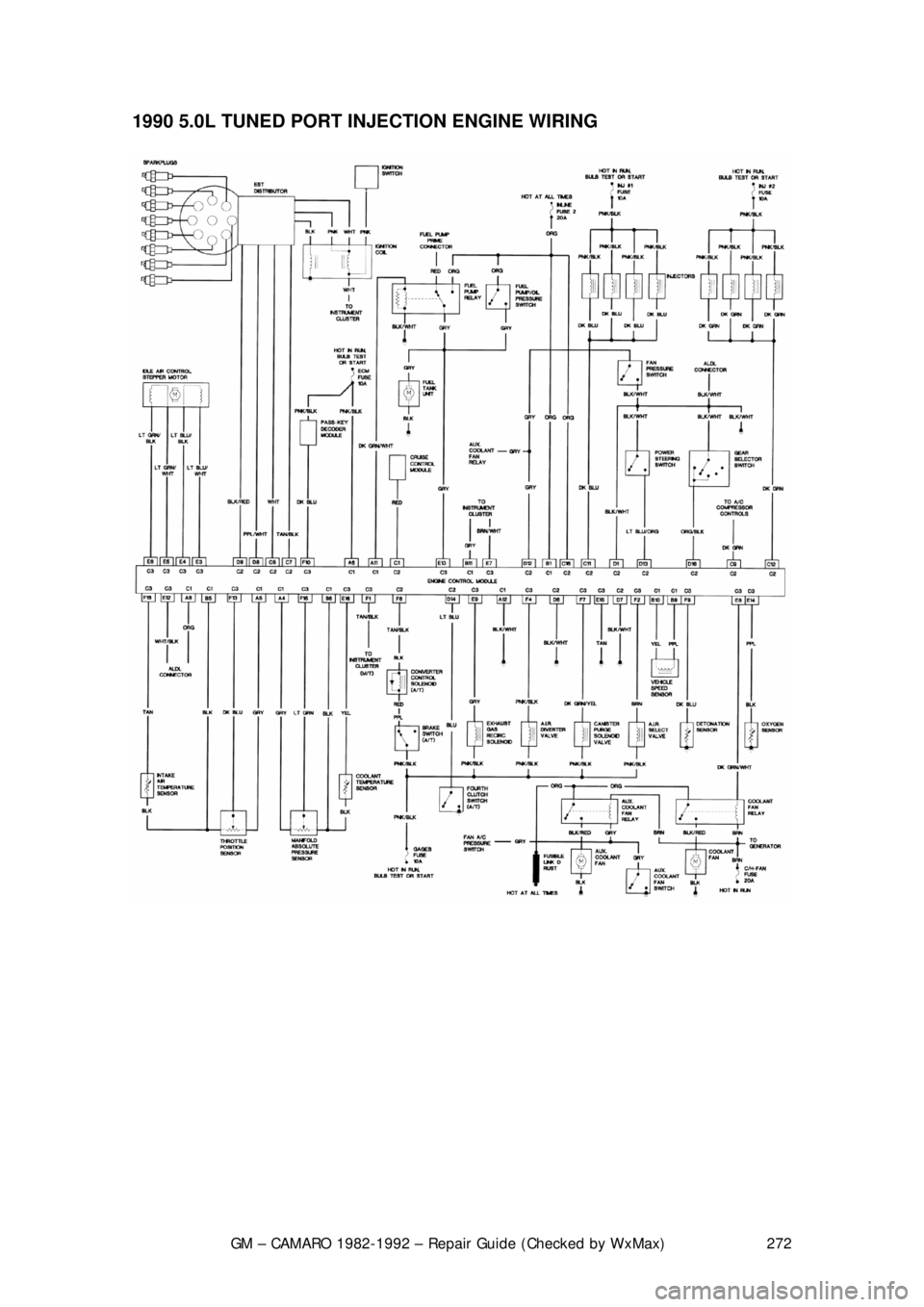

1990 5.0L THROTTLE BODY FUEL INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 272

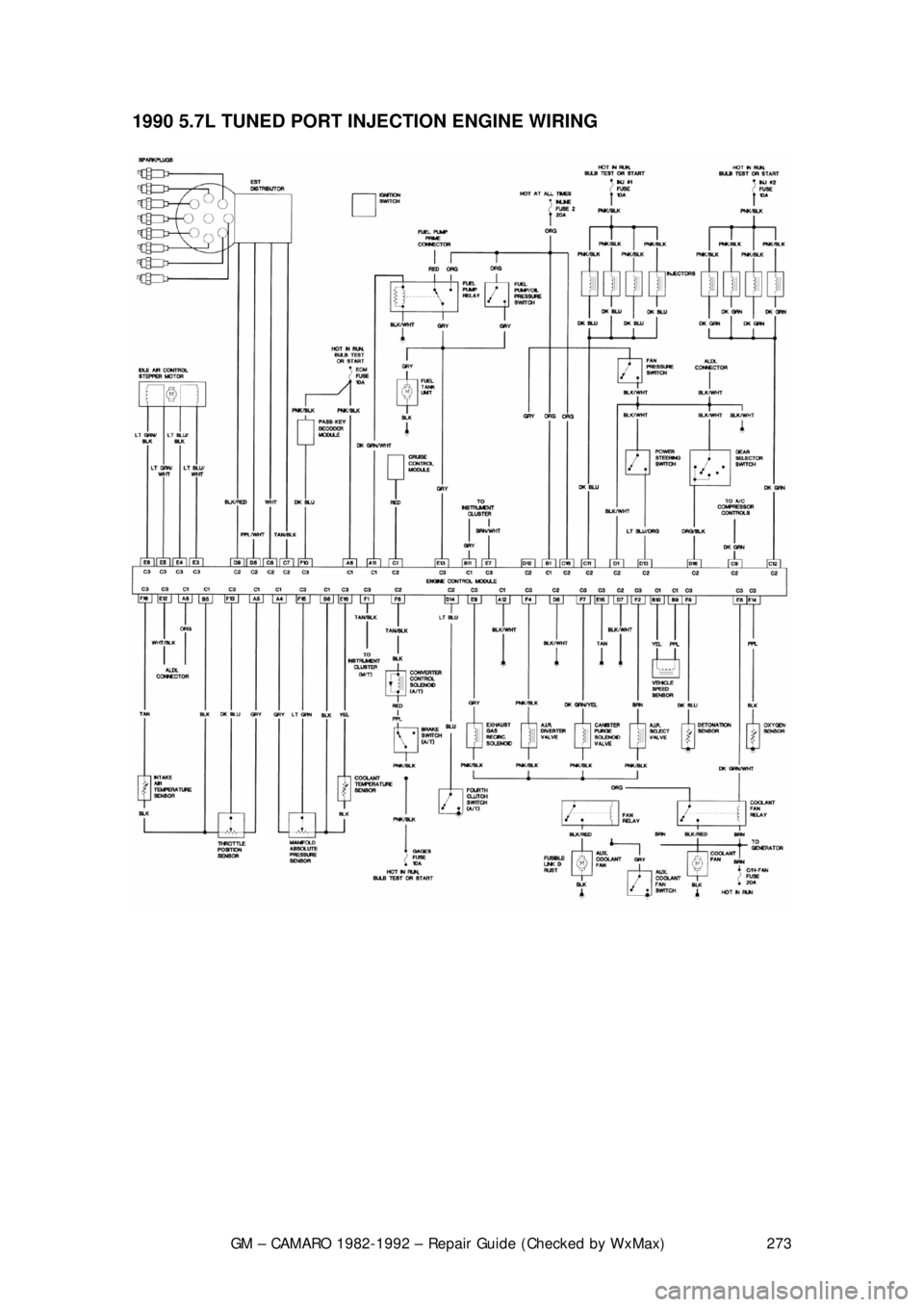

1990 5.0L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 273

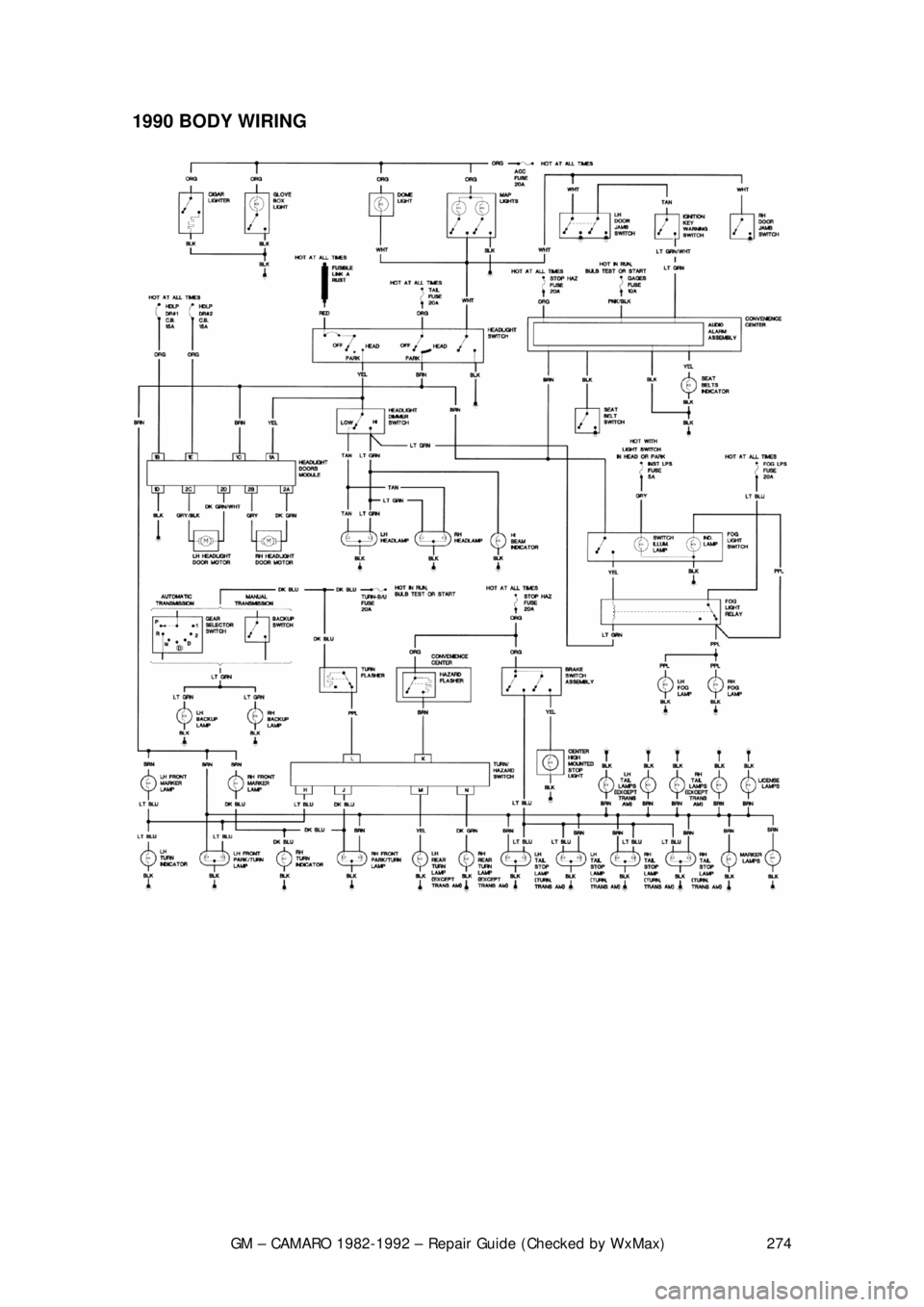

1990 5.7L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 274

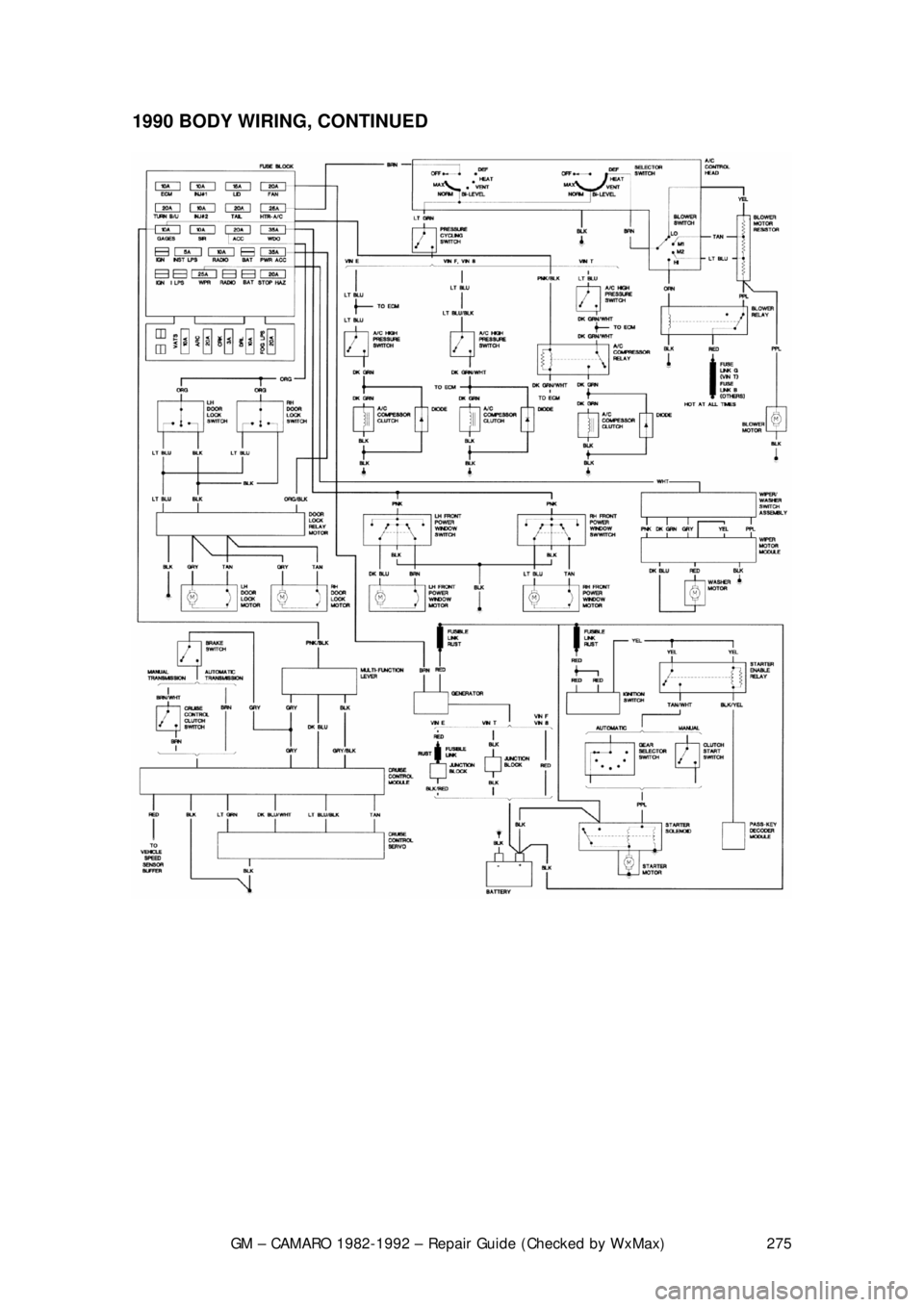

1990 BODY WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 275

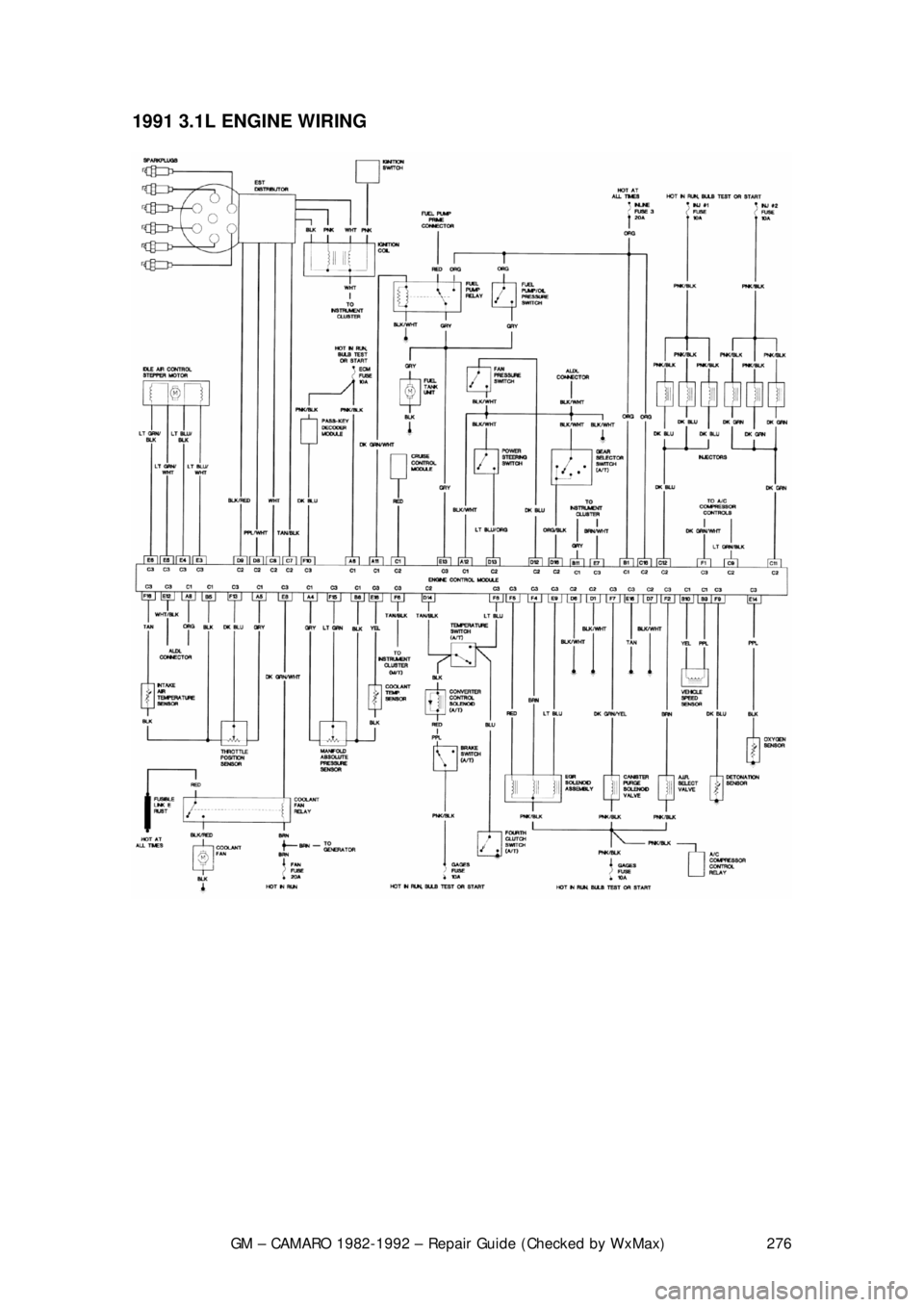

1990 BODY WIRING, CONTINUED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 276

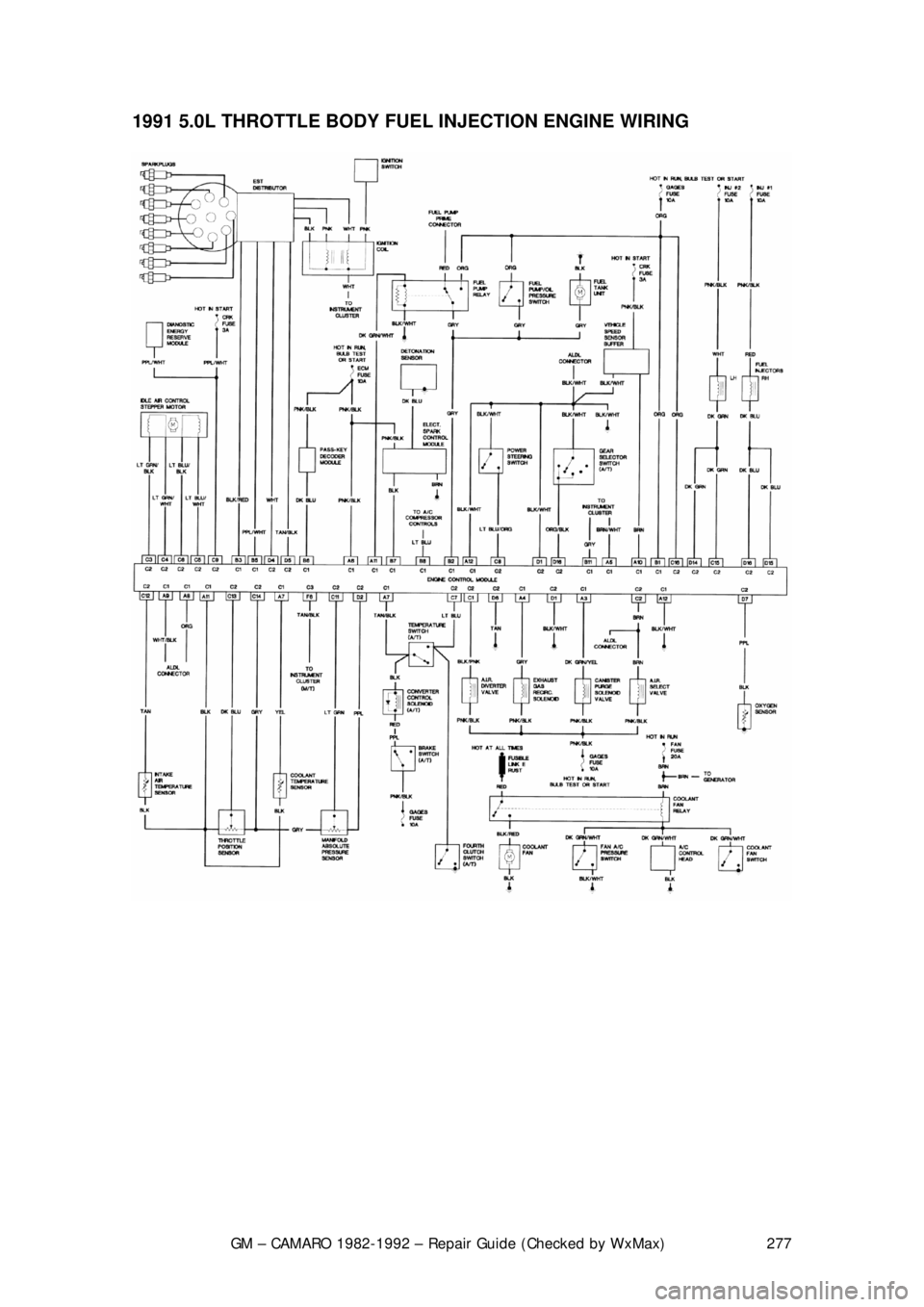

1991 3.1L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 277

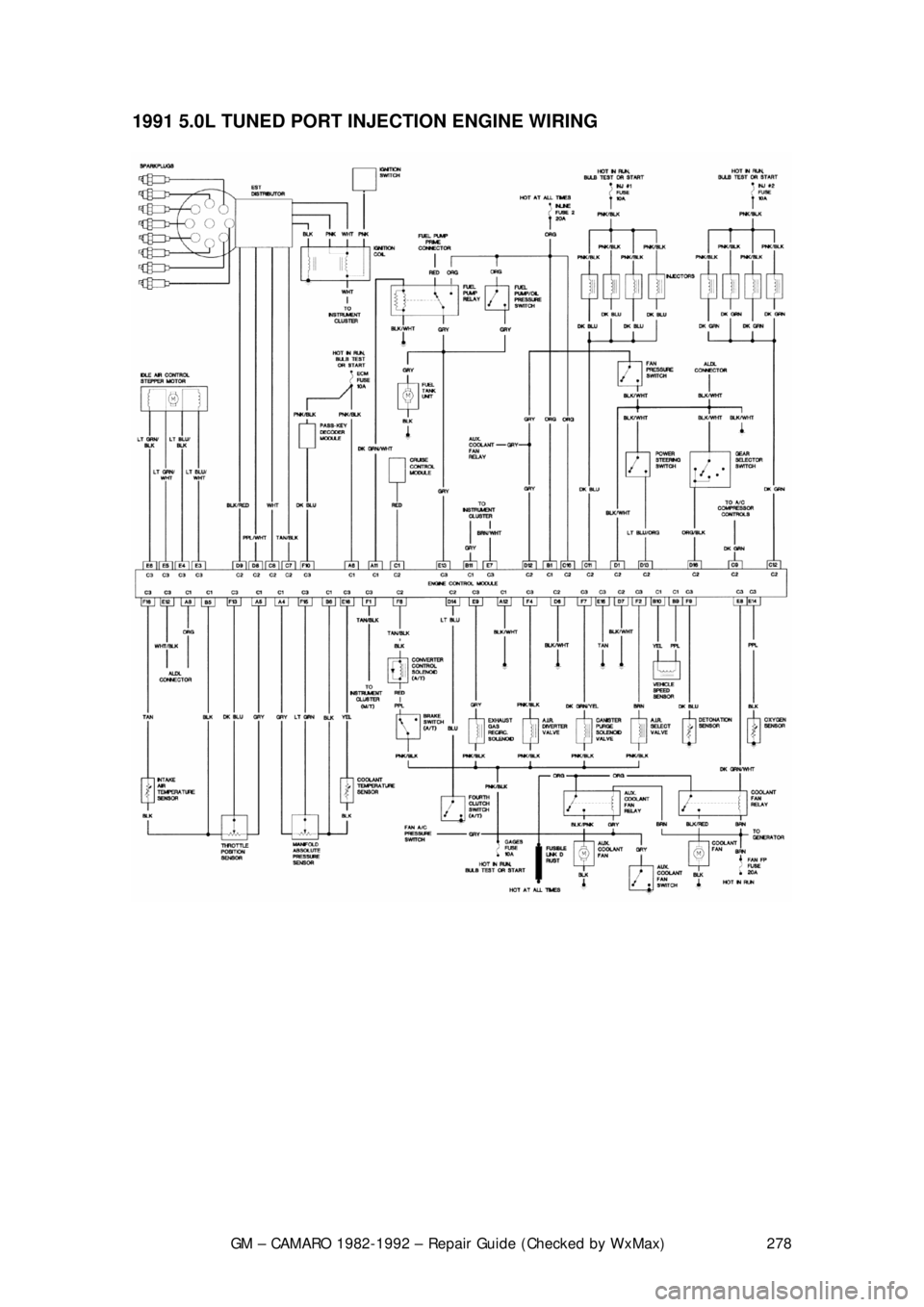

1991 5.0L THROTTLE BODY FUEL INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 278
1991 5.0L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 279

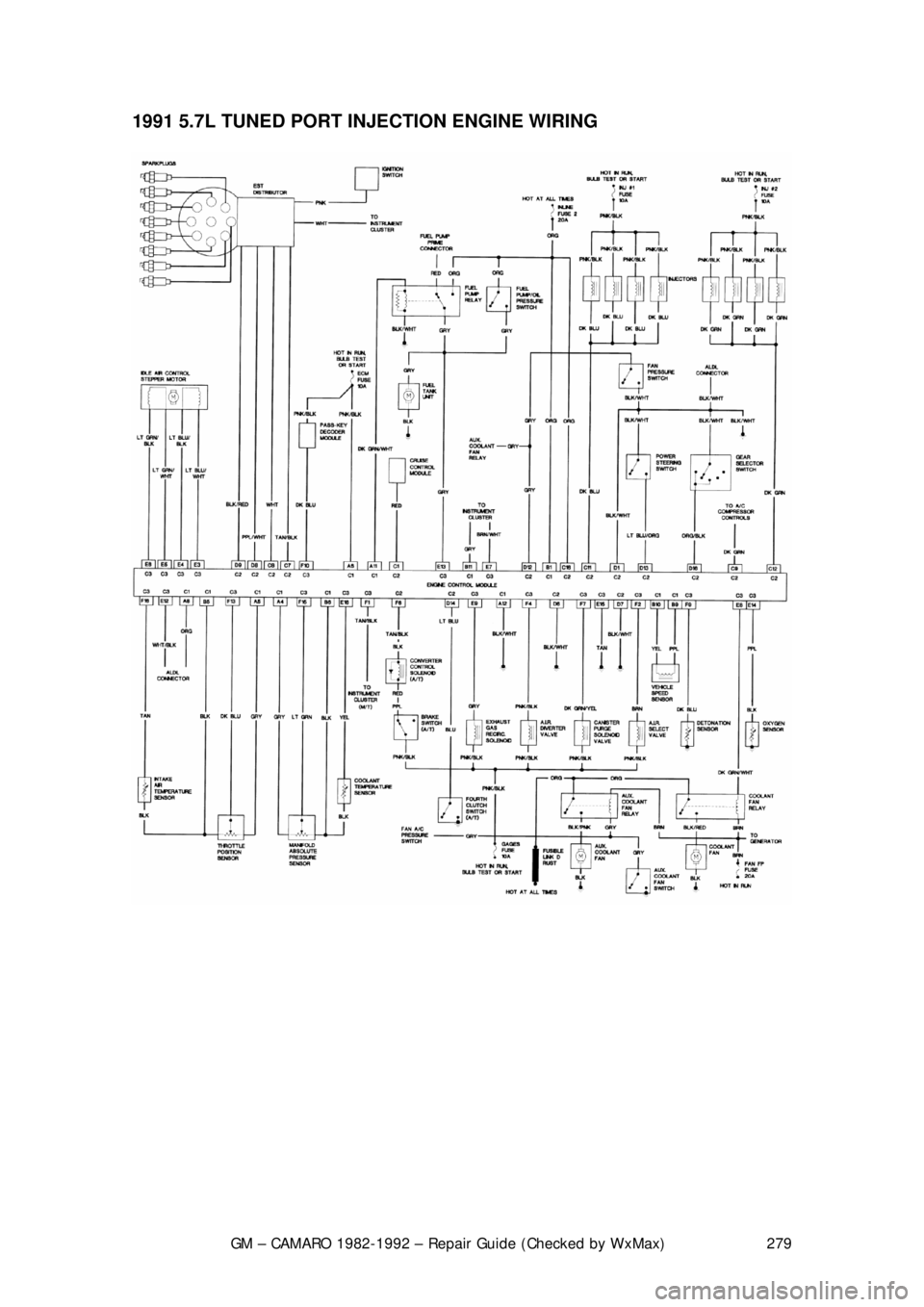

1991 5.7L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 280

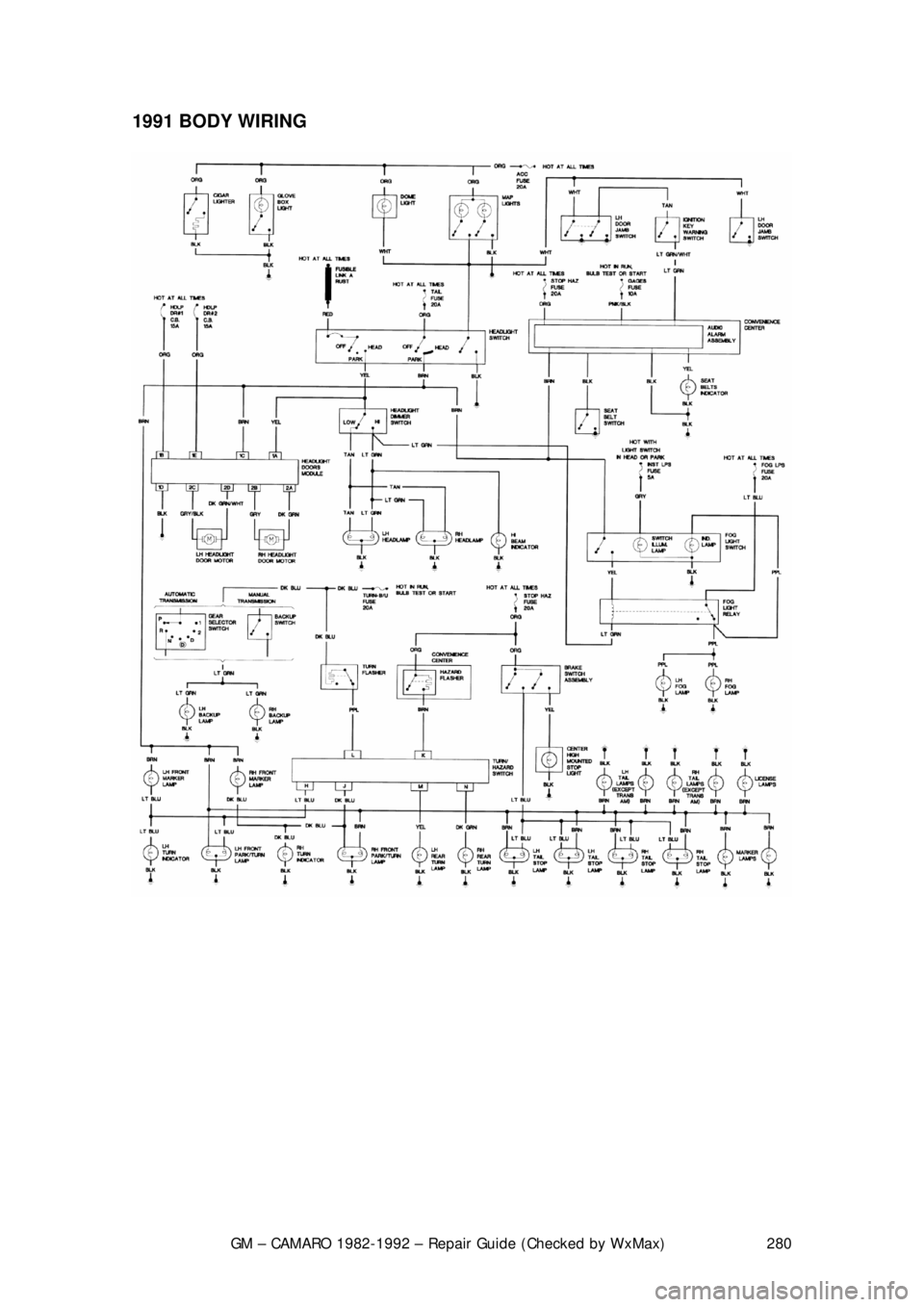

1991 BODY WIRING
