CHEVROLET CAMARO 1982 Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 261

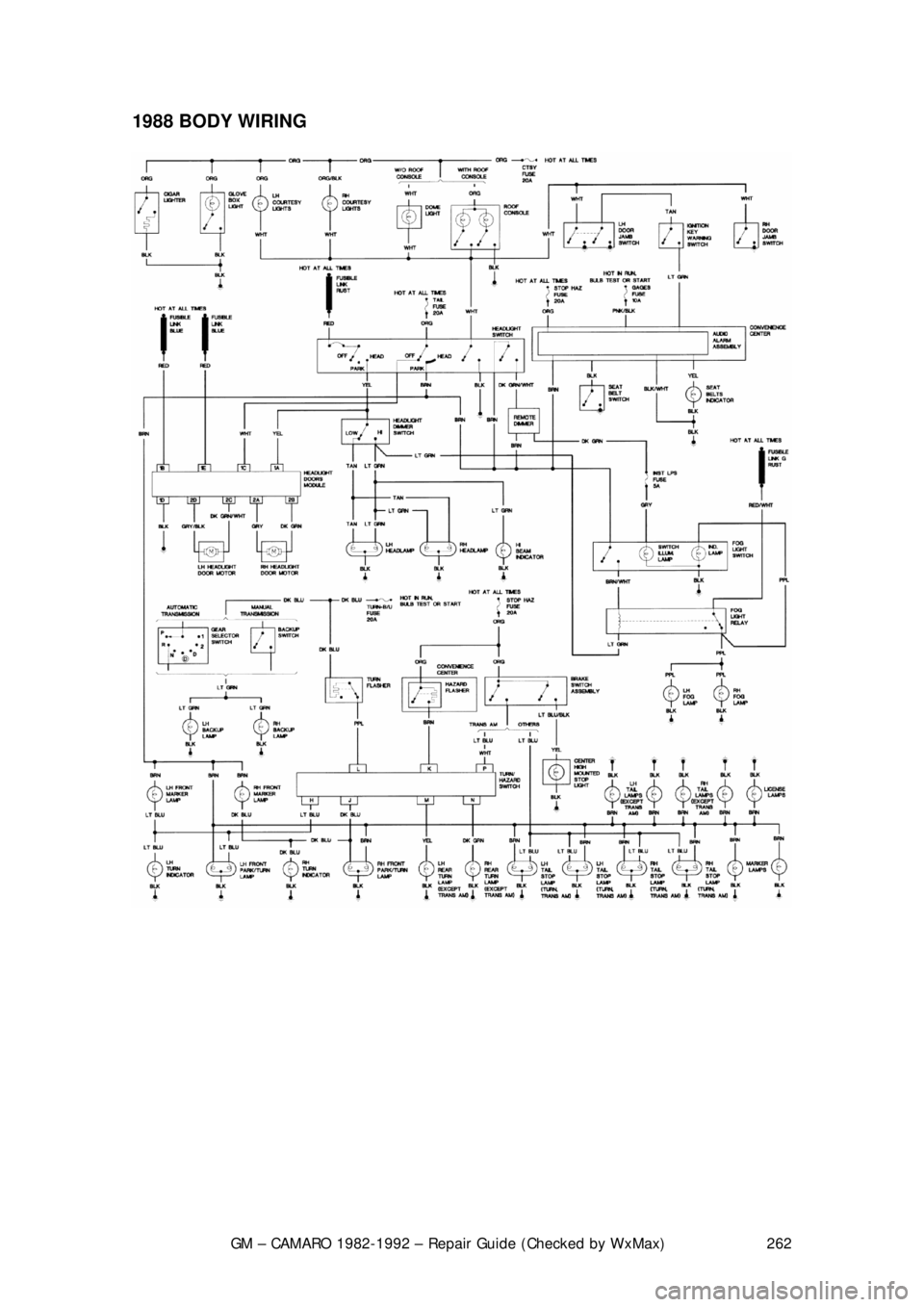

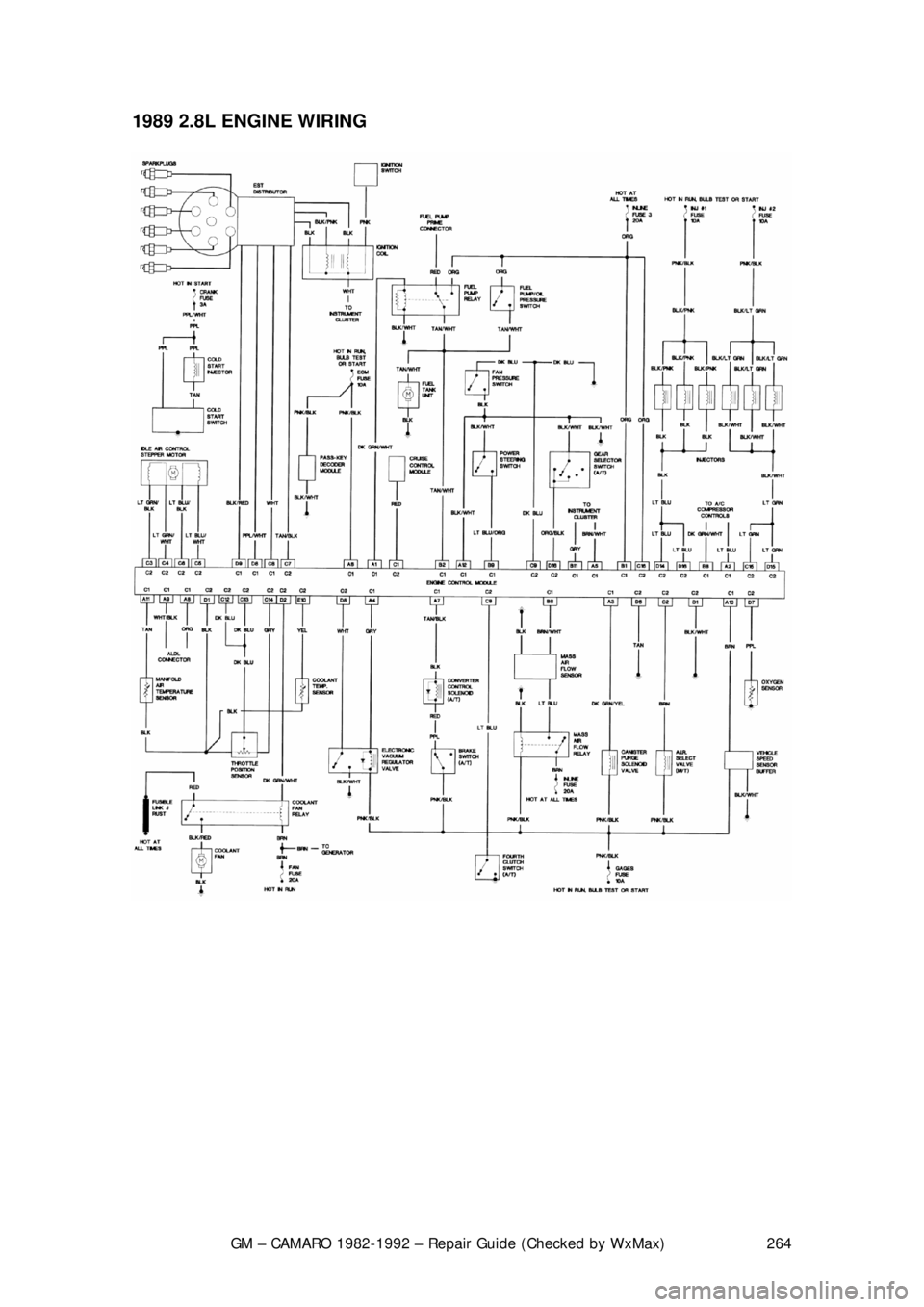

1988 5.7L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 262

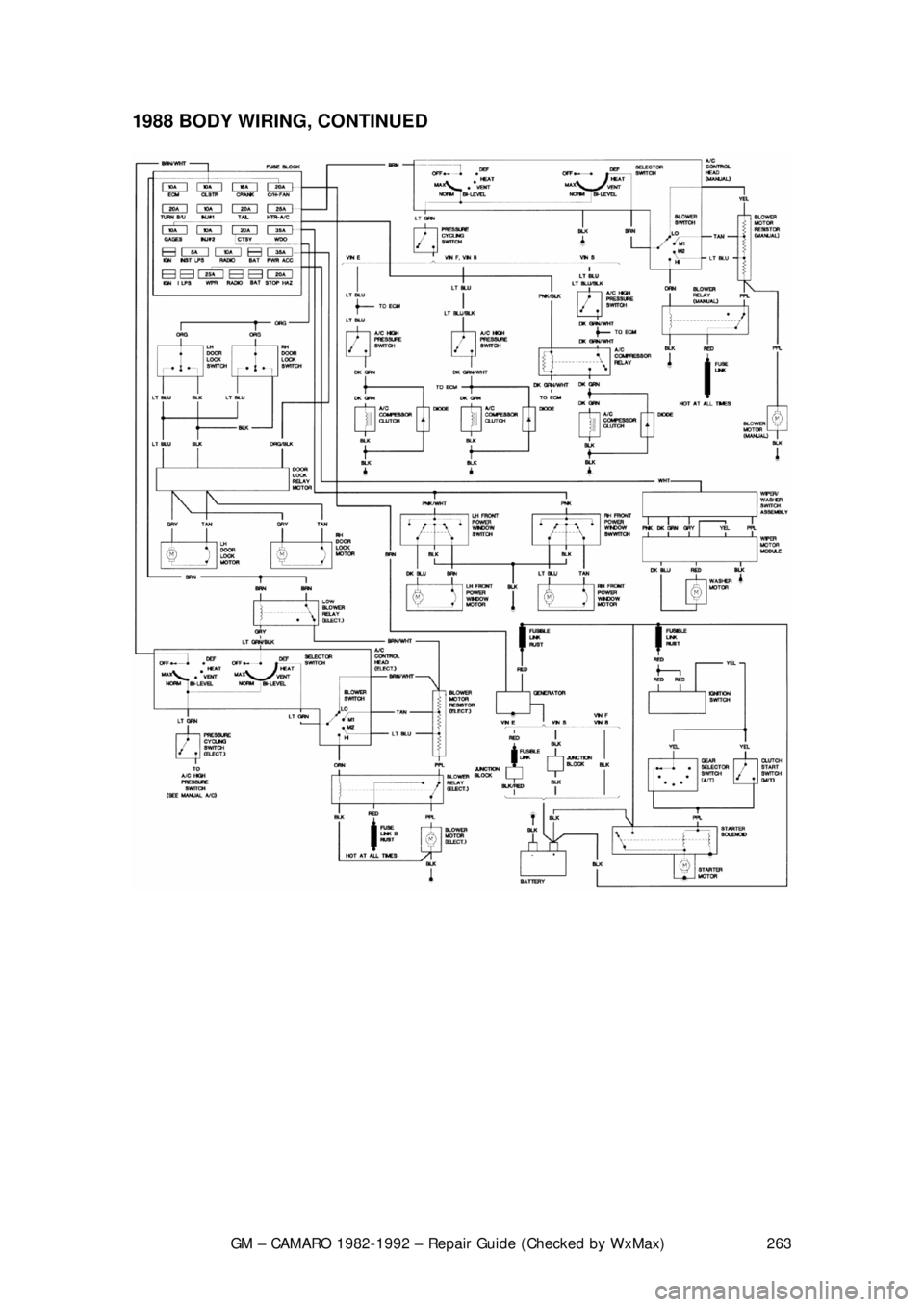

1988 BODY WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 263
1988 BODY WIRING, CONTINUED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 264

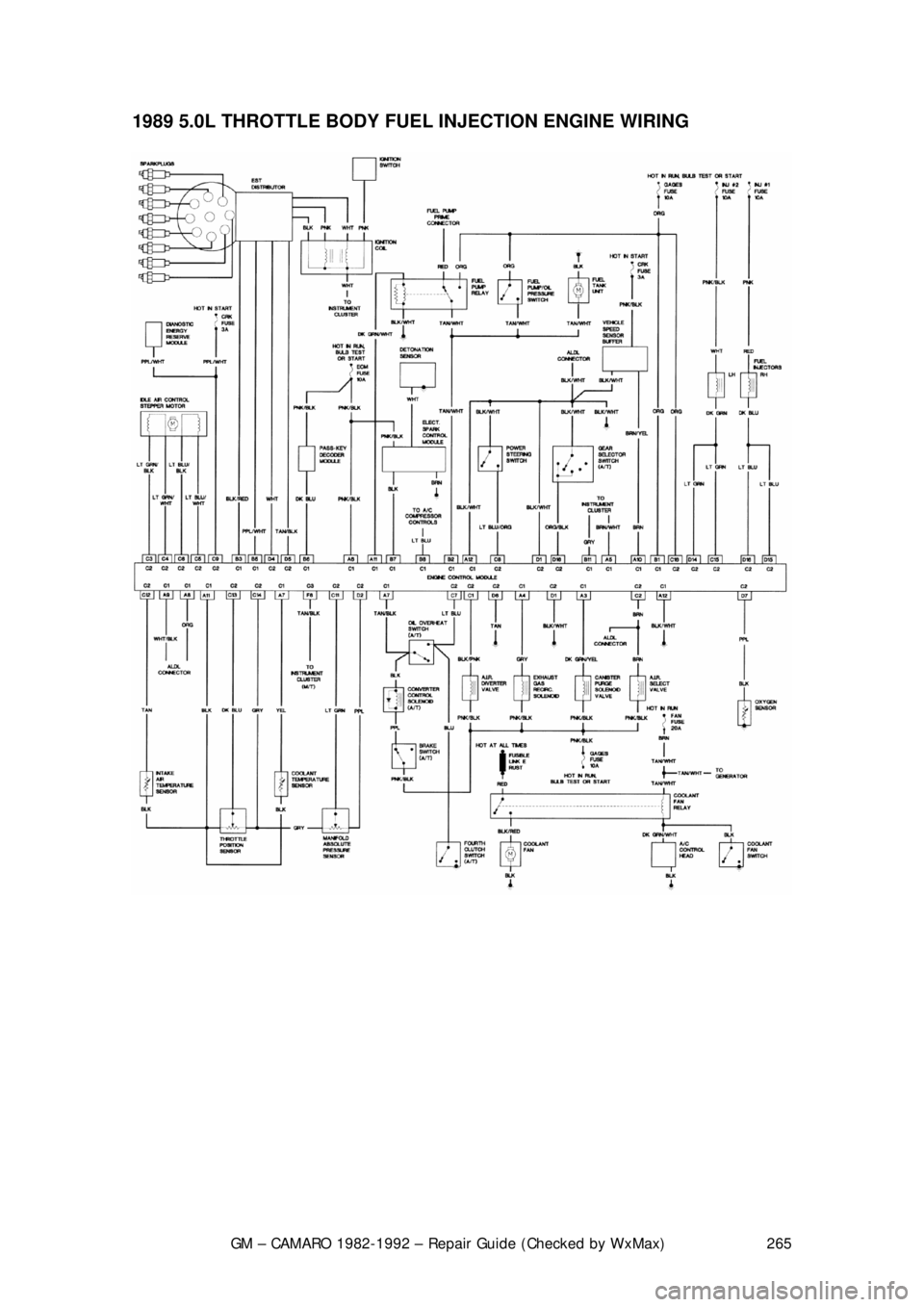

1989 2.8L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 265

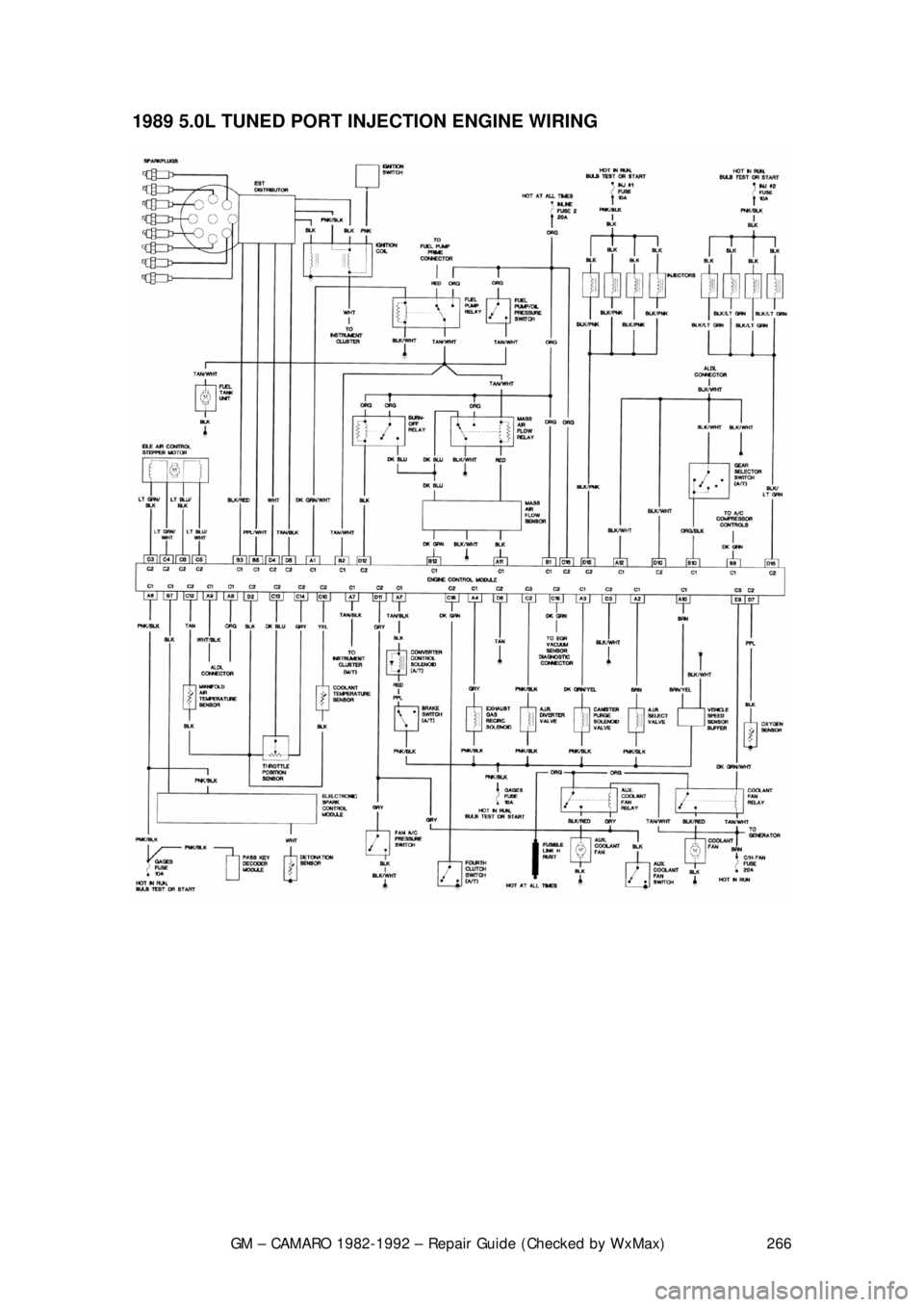

1989 5.0L THROTTLE BODY FUEL INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 266

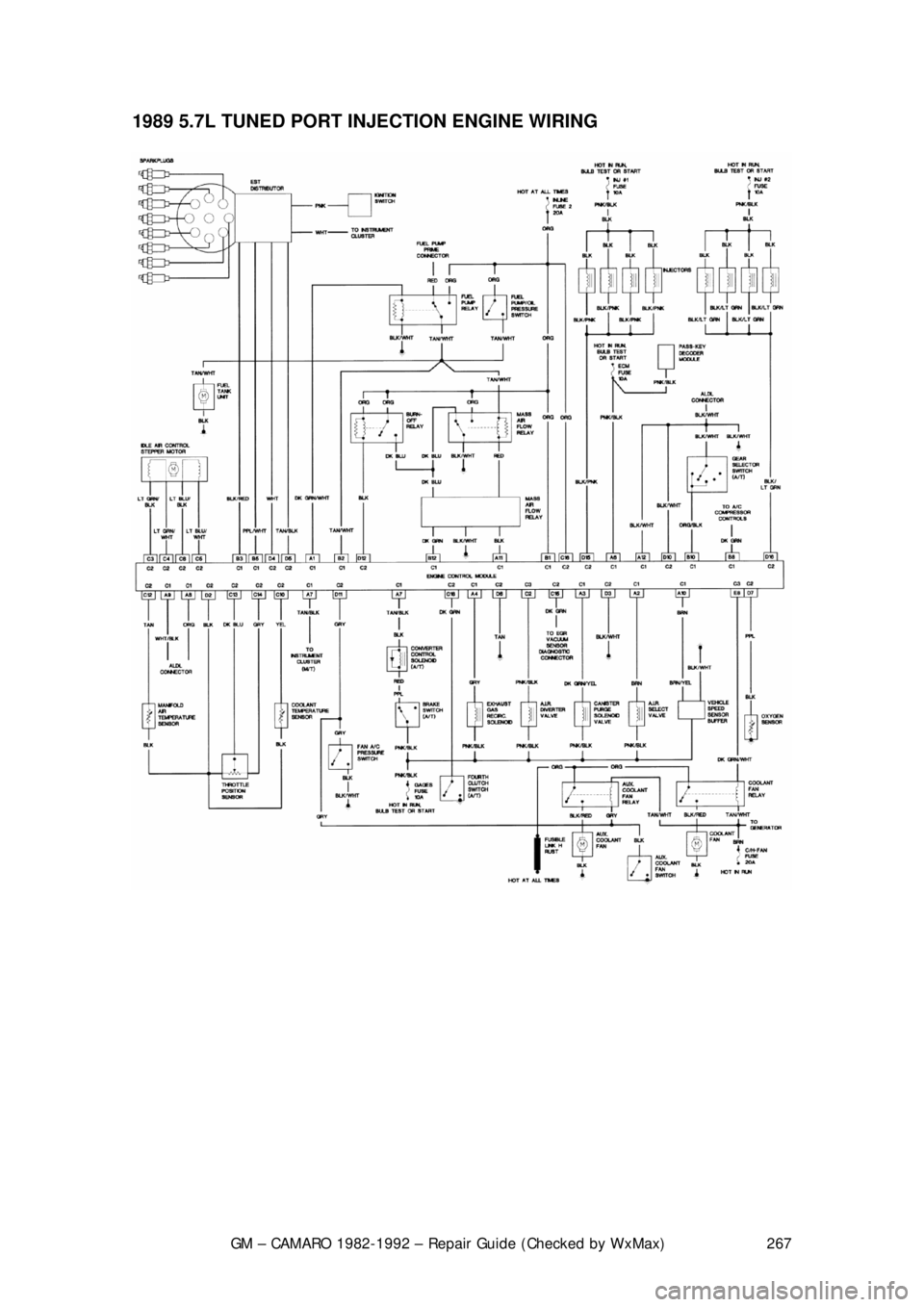

1989 5.0L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 267

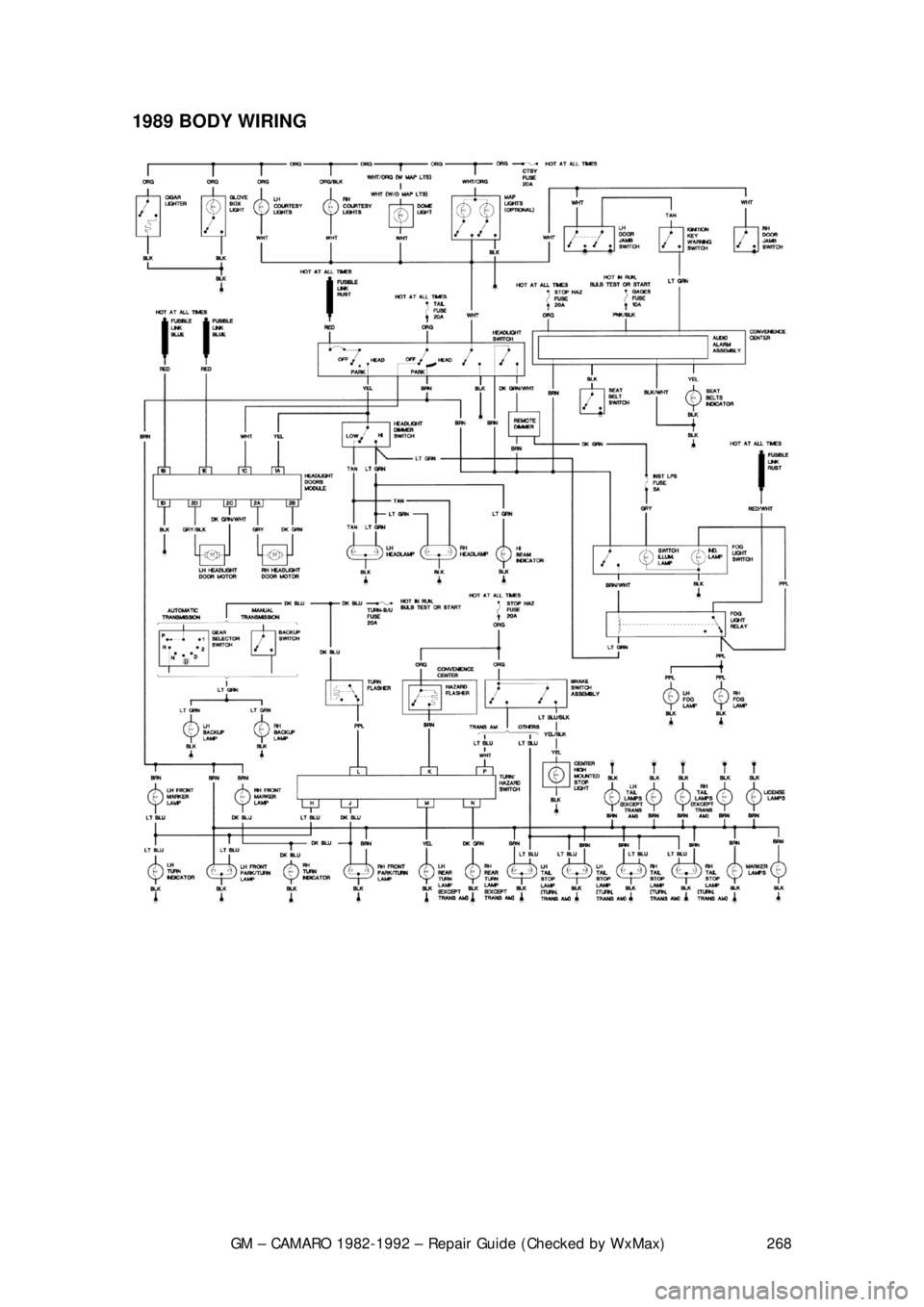

1989 5.7L TUNED PORT INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 268

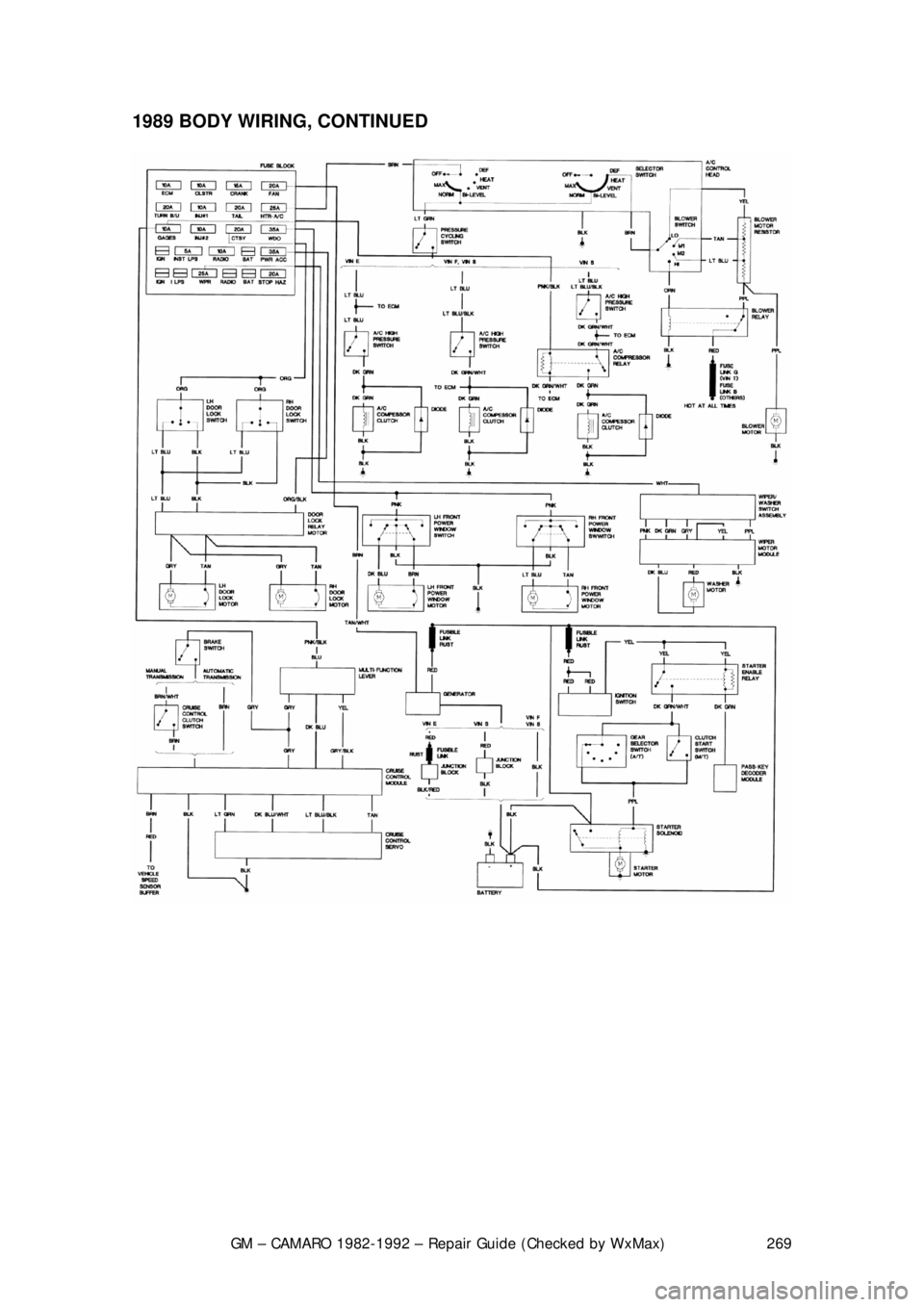

1989 BODY WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 269

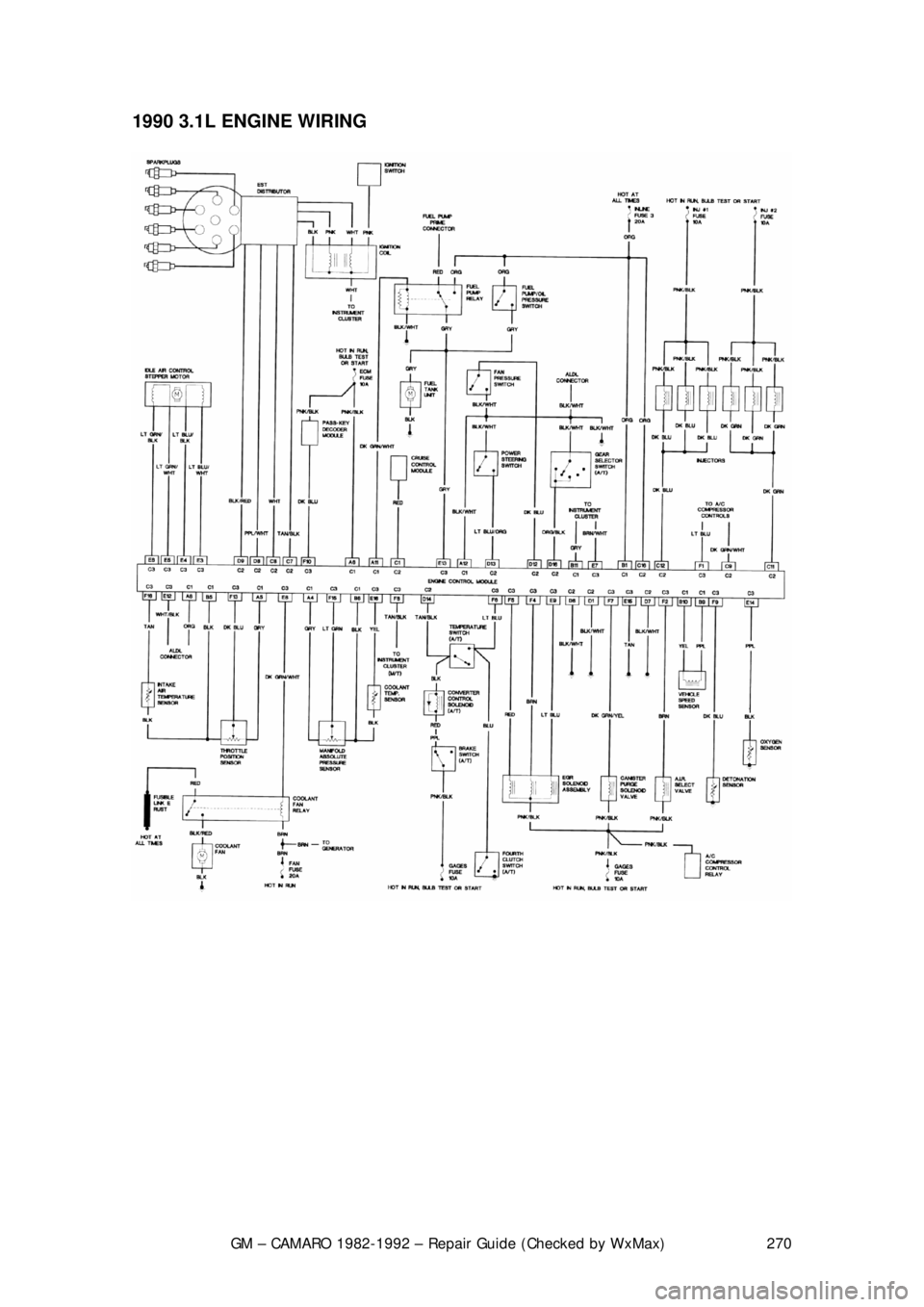

1989 BODY WIRING, CONTINUED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 270
1990 3.1L ENGINE WIRING
