CHEVROLET CAMARO 1996 4.G Owners Manual

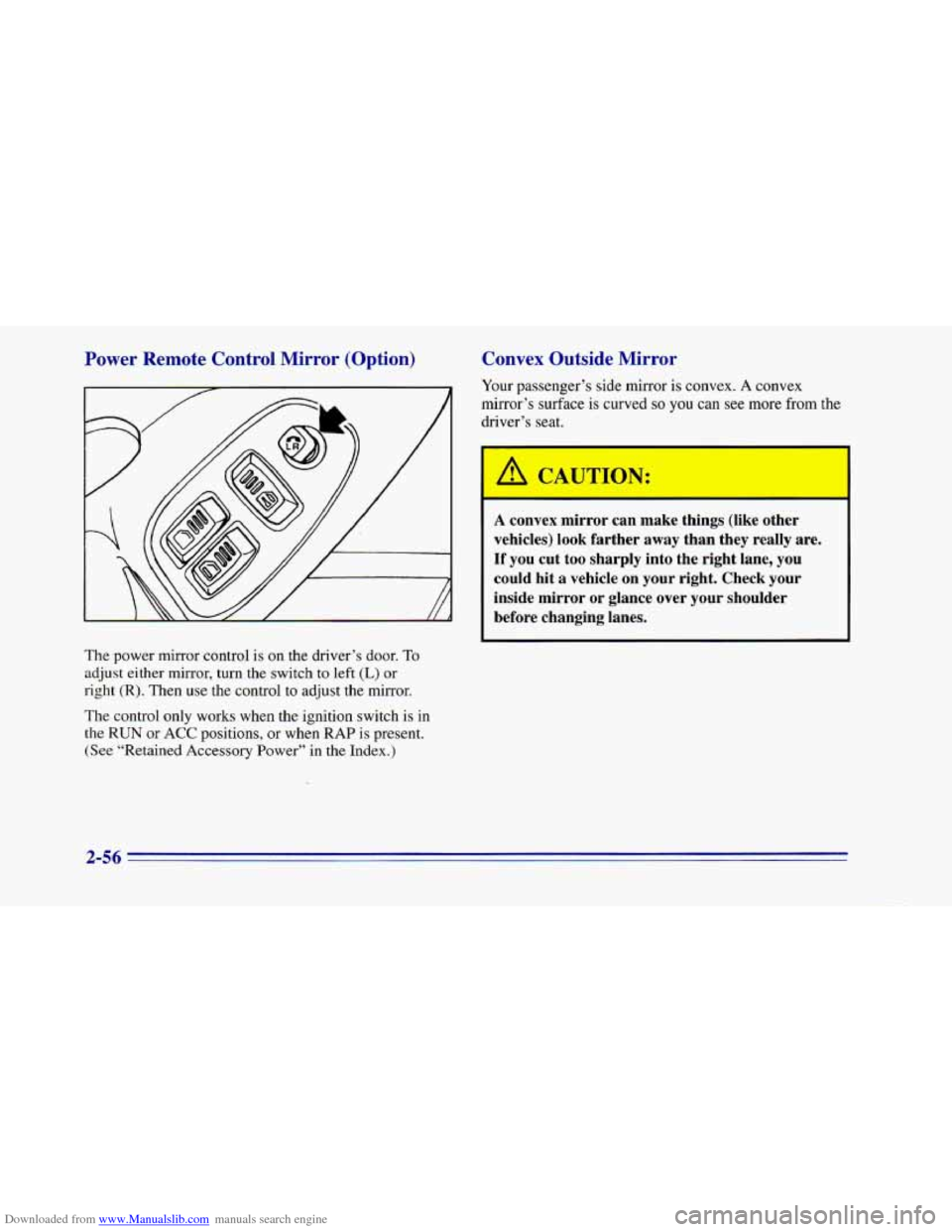

Downloaded from www.Manualslib.com manuals search engine Power Remote Control Mirror (Option) Convex Outside Mirror
Your
passenger’s side mirror is convex. A convex
mirror’s surface
is curved so you can see more from the
driver’s seat.
A convex mirror can make things (like other
vehicles) look farther
away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on
your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The power mirror control is on the driver’s door. To
adjust either mirror, turn the switch to left (L) or
right
(R). Then use the control to adjust the mirror.
The control only works when the ignition switch is in
the
RUN or ACC positions, or when RAP is present.
(See “Retained Accessory Power”
in the Index.)

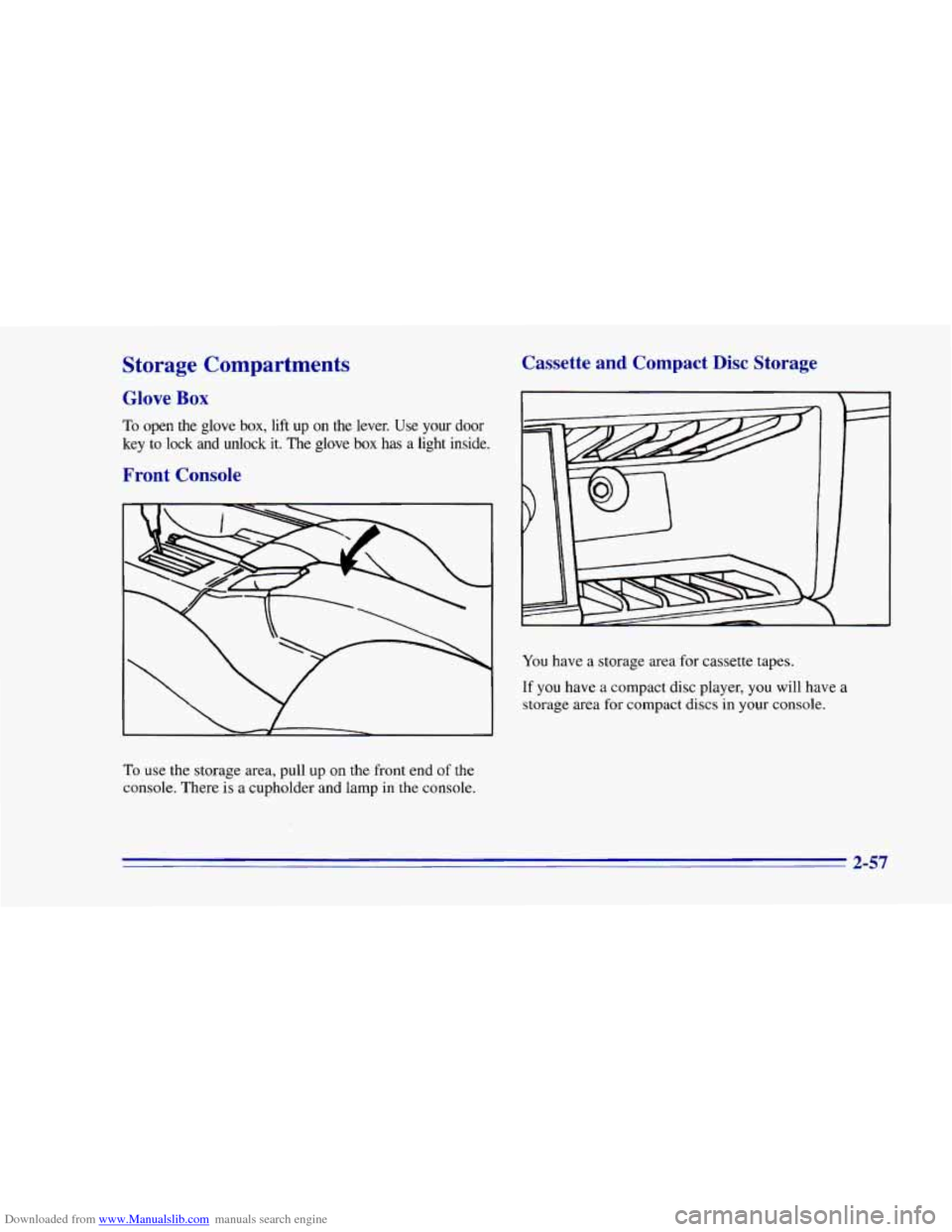

Downloaded from www.Manualslib.com manuals search engine Storage Compartments Cassette and Compact Disc Storage
Glove Box
To open the glove box, lift up on the lever. Use your door
key to lock and unlock it. The glove
box has a light inside.
Front Console
You have a storage area for cassette tapes.
If you have a compact disc player,
you will have a
storage area for compact discs
in your console.
To use the storage area, pull up
on the front end of the
console. There
is a cupholder and lamp in the console.
2-57

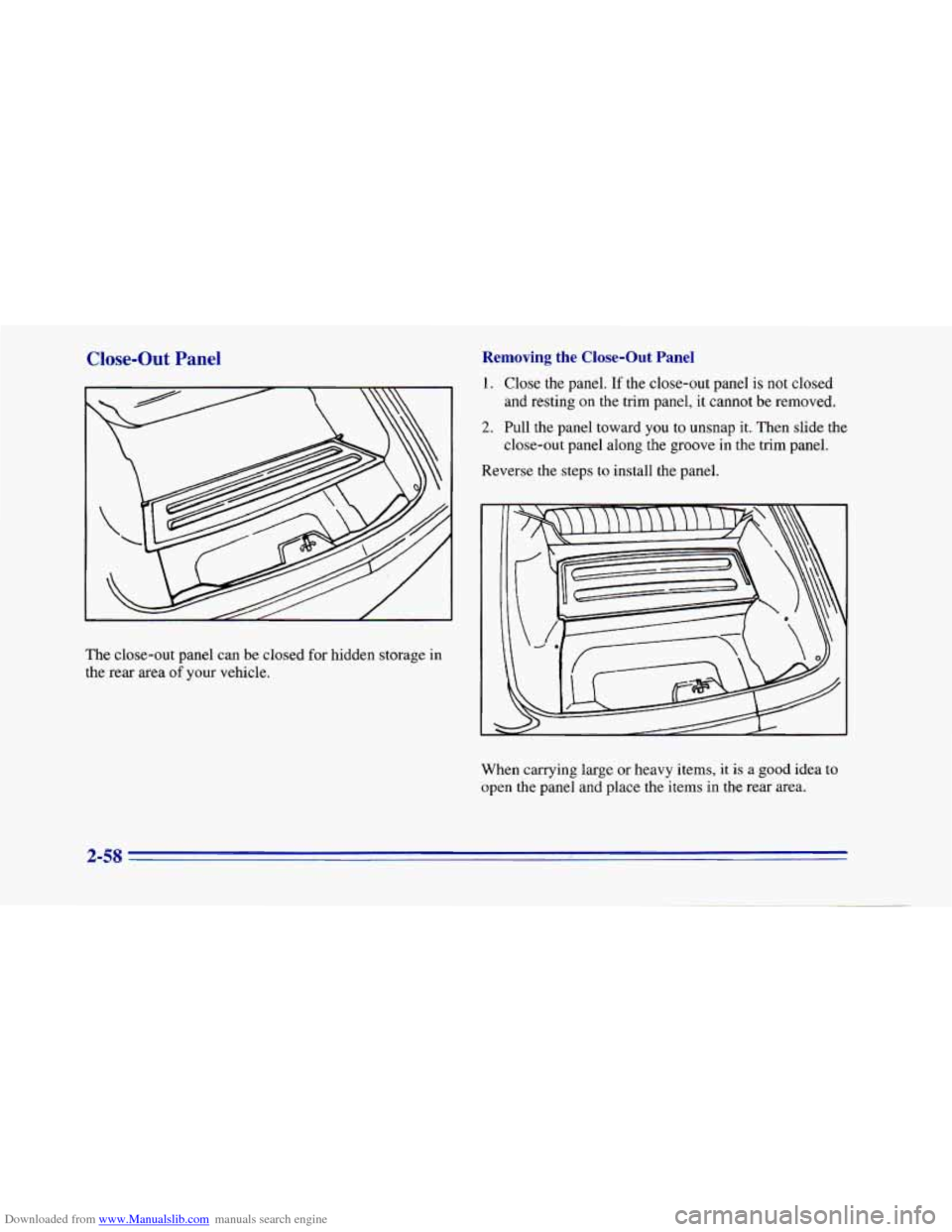

Downloaded from www.Manualslib.com manuals search engine Close-Out Panel Removing the Close-Out Panel
1. Close the panel. If the close-out panel is not closed
and resting on the trim panel, it cannot be removed.
2. Pull the panel toward you to unsnap it. Then slide the
close-out panel along the groove in the trim panel.
Reverse the steps to install the panel.
The close-out panel can be closed for hidden storage in
the rear area
of your vehicle.
When carrying large or heavy items,
it is a good idea to
open the panel and place the items in the rear area.

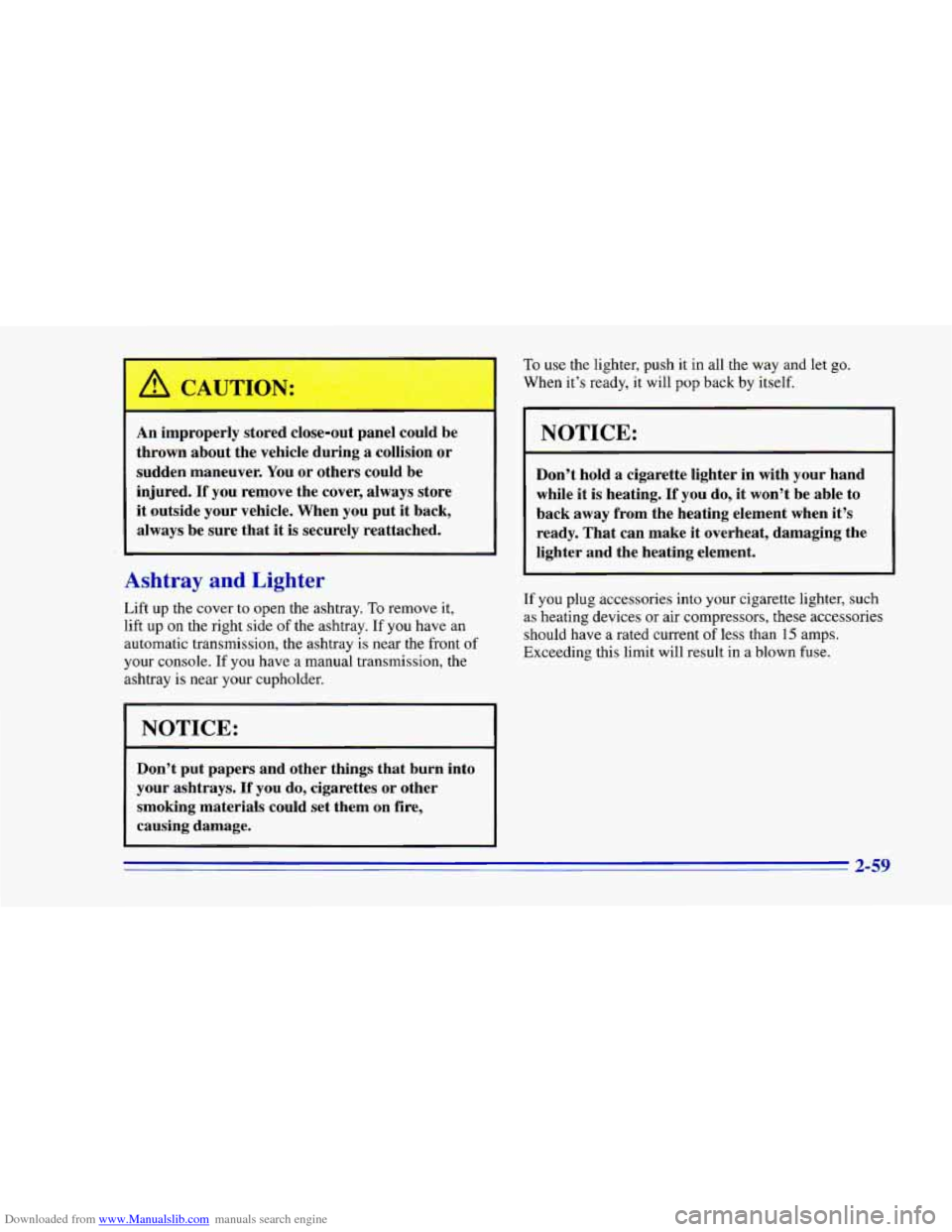

Downloaded from www.Manualslib.com manuals search engine IF
An improperly stored close-out panel could be
thrown about the vehicle during
a collision or
sudden maneuver. You or others could be
injured.
If you remove the cover, always store
it outside your vehicle. When you put it back,
always be sure that
it is securely reattached.
Ashtray and Lighter
Lift up the cover to open the ashtray. To remove it,
lift up on the right side
of the ashtray. If you have an
automatic transmission, the ashtray
is near the front of
your console. If you have a manual transmission, the
ashtray is near your cupholder.
I NOTICE:
Don’t put papers and other things that burn into
your ashtrays.
If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To use the lighter, push it in all the way and let go.
When it’s ready,
it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away from the heating element when
it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
- ~ __~ ~
If you plug accessories into your cigarette lighter, such
as heating devices or air compressors, these accessories
should have a rated current
of less than 15 amps.
Exceeding this limit will result in a blown fuse.
2-59

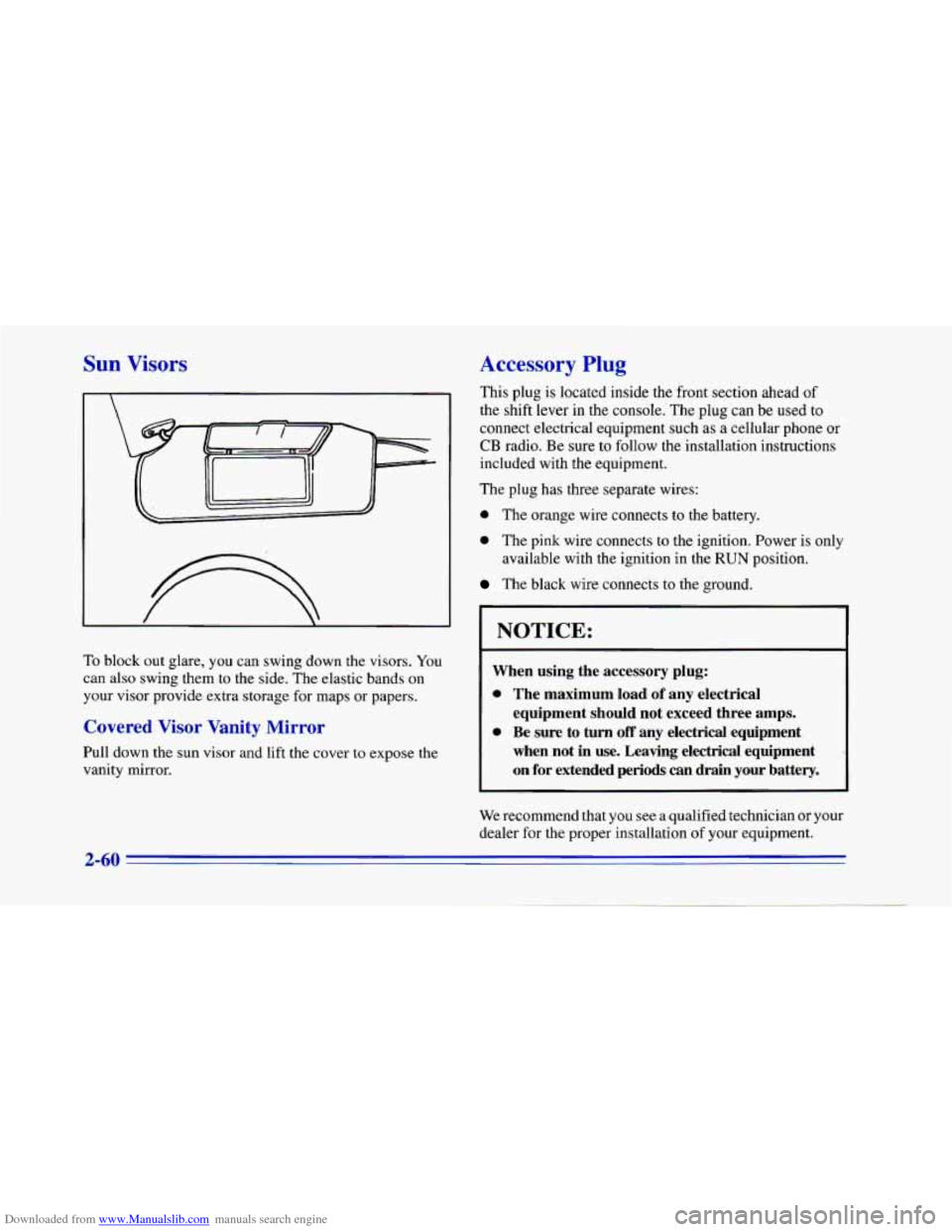

Downloaded from www.Manualslib.com manuals search engine Sun Visors
To block out glare, you can swing down the visors. You
can also swing them to the side. The elastic bands on
your visor provide extra storage for maps or papers.
Covered Visor Vanity Mirror
Pull down the sun visor and lift the cover to expose the
vanity mirror.
Accessory Plug
This plug is located inside the front section ahead of
the shift lever in the console. The plug can be used to
connect electrical equipment such as a cellular phone or
CB radio. Be sure to follow the installation instructions
included with the equipment.
The plug has three separate wires:
0 The orange wire connects to the battery.
0 The pink wire connects to the ignition. Power is only
The black wire connects to the ground.
available
with the ignition in the
RUN position.
NOTICE:
When using the accessory plug:
0 The maximum load of any electrical
equipment
should not exceed three amps.
0 Be sure to turn off any electrical equipment
when not in
use. Leaving electrical equipment
on for extended
periods can drain your battery.
We recommend that you see a qualified technician or your
dealer for the proper installation
of your equipment.
2-60

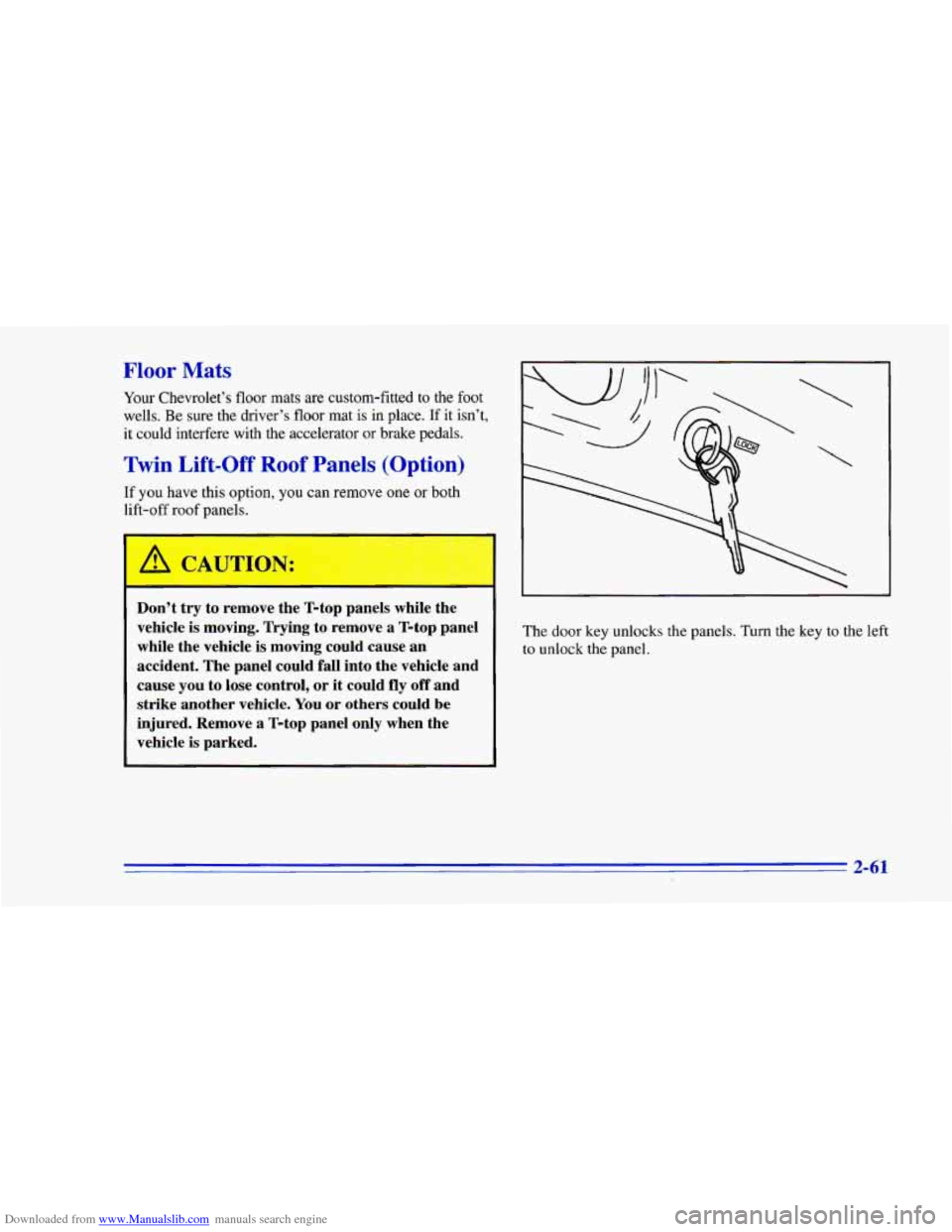

Downloaded from www.Manualslib.com manuals search engine Floor Mats
Your Chevrolet's floor mats are custom-fitted to the foot
wells. Be sure the driver's
floor mat is in place. If it isn't,
it could interfere with the accelerator
or brake pedals.
Twin Lift-off Roof Panels (Option)
If you have this option, you can remove one or both
lift-off roof panels.
-
Don't try to remove the T-top panels while the
vehicle
is moving. Trying to remove a T-top panel
while the vehicle is moving could cause an
accident. The panel could fall into the vehicle and
cause you to lose control, or
it could fly off and
strike another vehicle.
You or others could be
injured. Remove a T-top panel only when the
vehicle
is parked.

The door key unlocks the panels. Turn the key to the left
to unlock the panel.
2-61

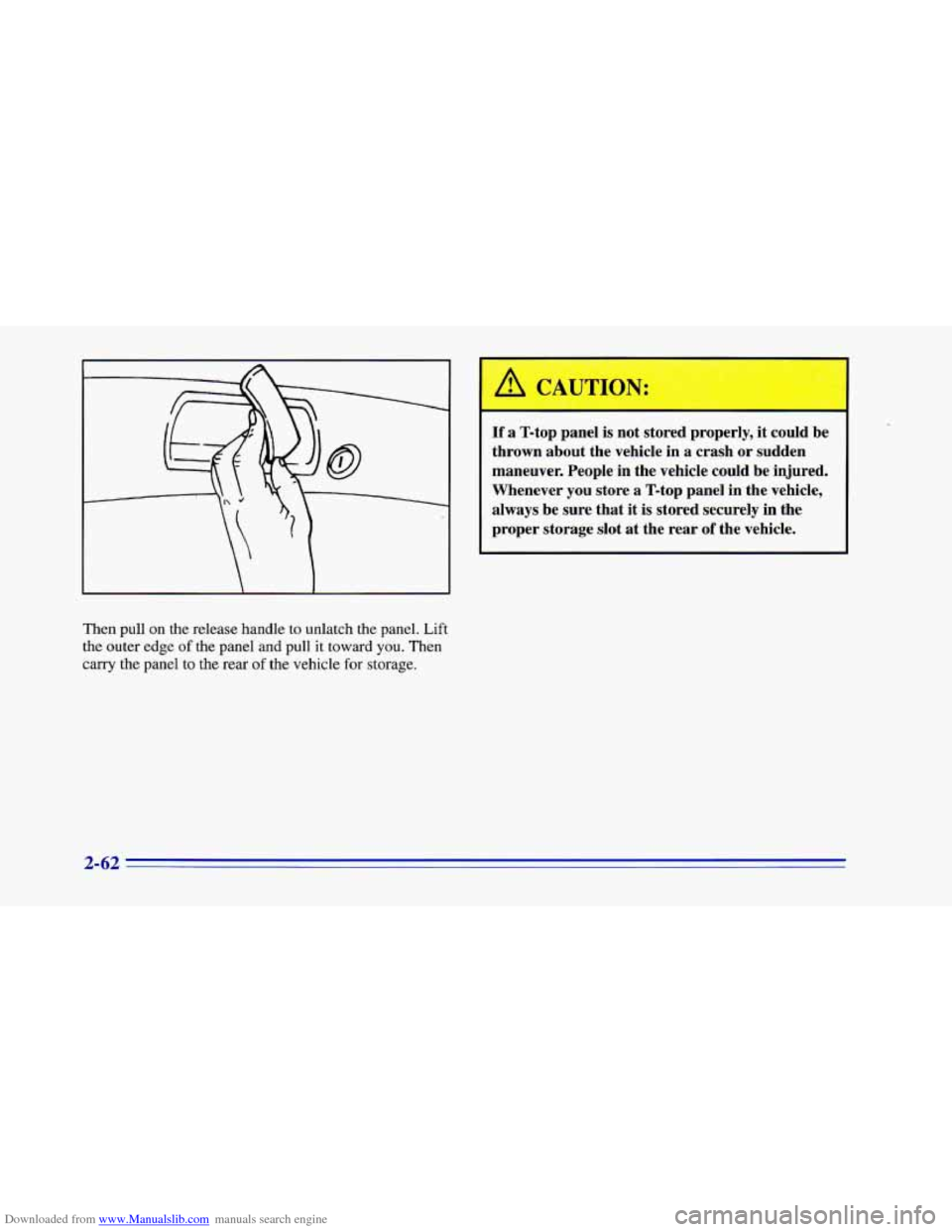

Downloaded from www.Manualslib.com manuals search engine Then pull on the release handle to unlatch the panel. Lift
the outer edge
of the panel and pull it toward you. Then
carry the panel to the rear of the vehicle for storage.
I /d CAU [ON:
If a T-top panel is not stored properly, it could be
thrown about the vehicle in
a crash or sudden
maneuver. People in the vehicle could be injured.
Whenever you store a T-top panel in the vehicle,
always be sure that it is stored securely
in the
proper storage slot
at the rear of the vehicle.
2-62

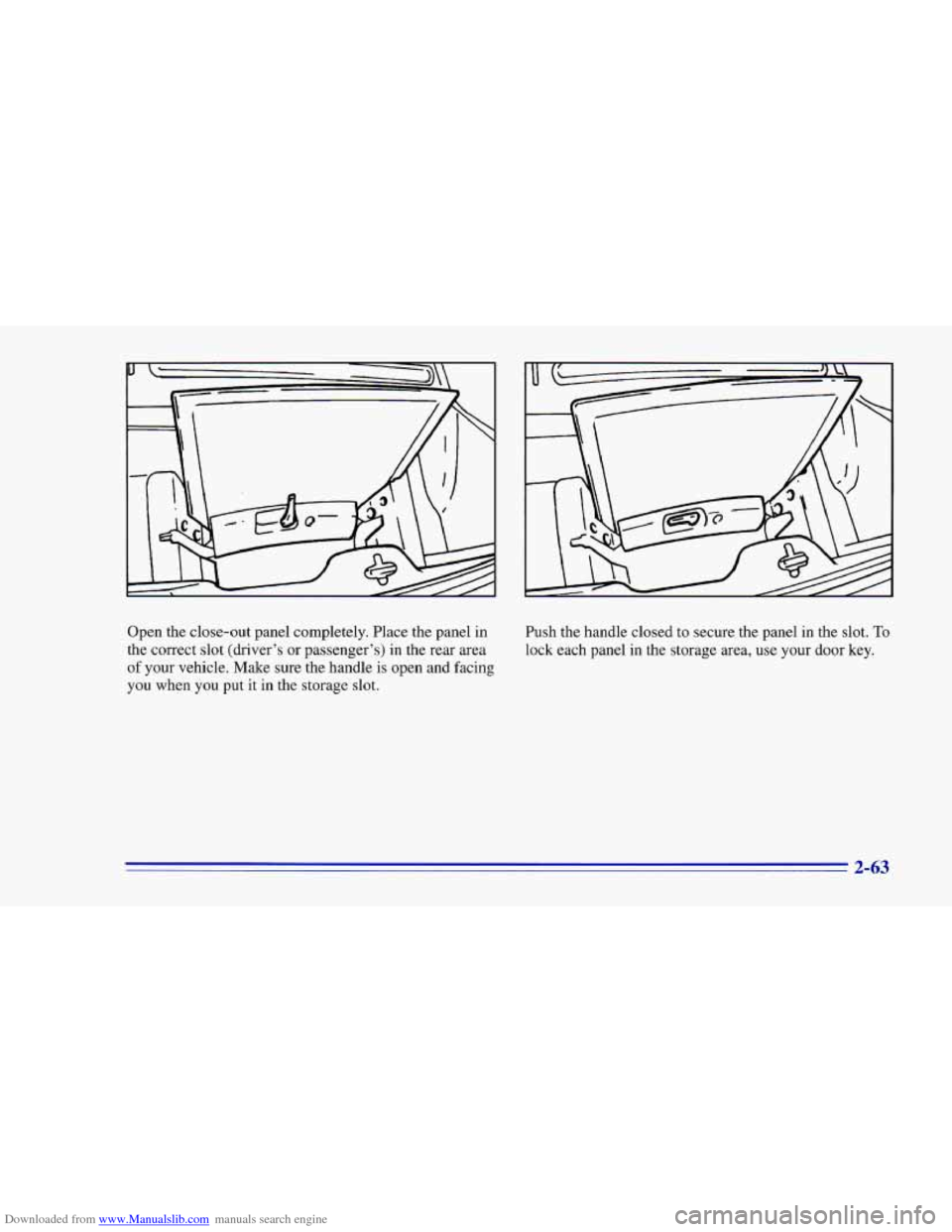

Downloaded from www.Manualslib.com manuals search engine Open the close-out panel completely. Place the panel in
the correct slot (driver’s or passenger’s) in the rear area
of your vehicle. Make sure the handle is open and facing
you when you put
it in the storage slot. Push the
handle closed to secure the panel in the slot.
To
lock each panel in the storage area, use your door key.
2-63

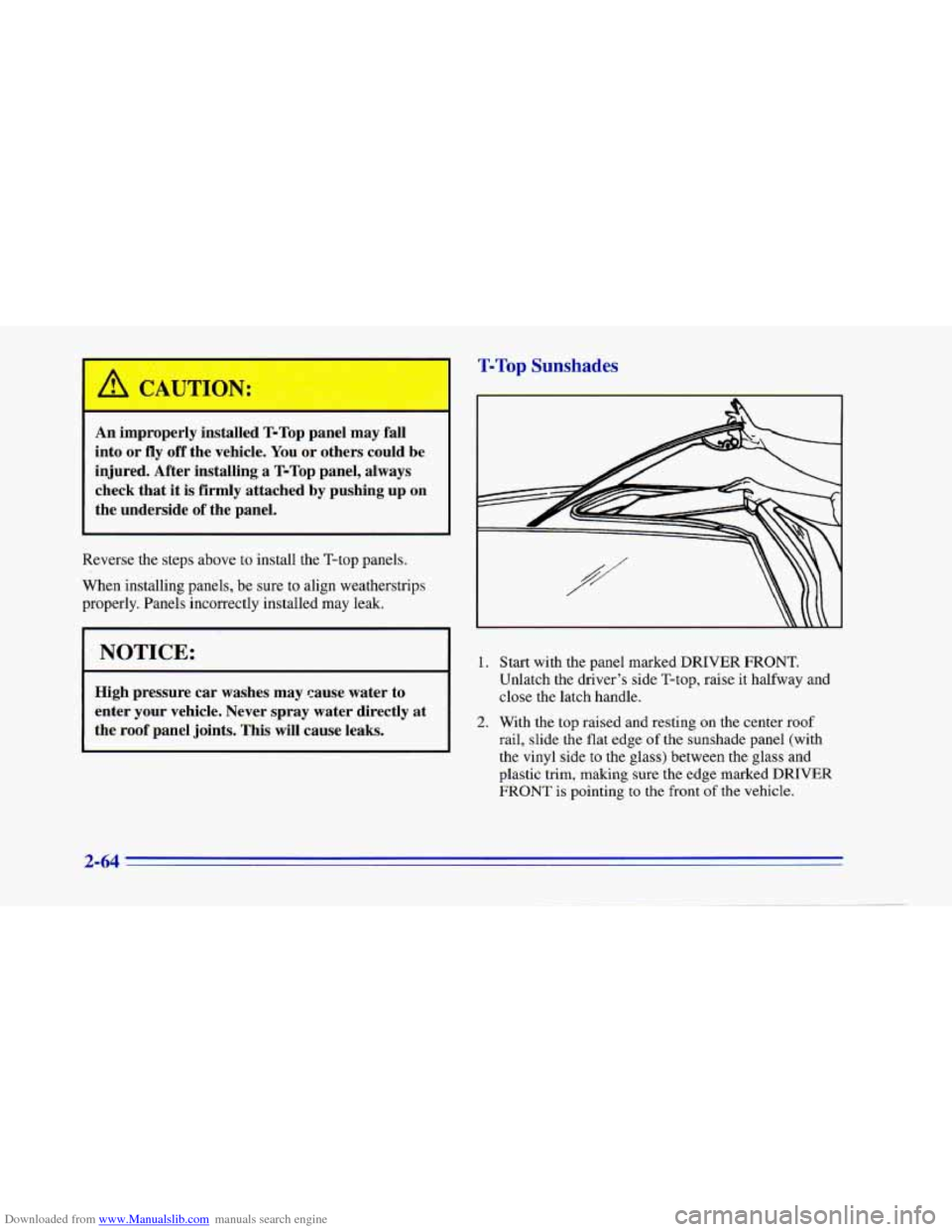

Downloaded from www.Manualslib.com manuals search engine T-Top Sunshades
An improperly installed T-Top panel may fall
into or
fly off the vehicle. You or others could be
injured. After installing a T-Top panel, always
check that it is firmly attached by pushing up on
the underside of the panel.
Reverse the steps above to install the T-top panels.
When installing panels,
be sure to align weatherstrips
properly. Panels incorrectly installed may leak.
I NOTICE:
High pressure car washes may cause water to
enter your vehicle. Never spray water directly
at
the roof panel joints. This will cause leaks.
1. Start with the panel marked DRIVER FRONT.
Unlatch the driver’s side T-top, raise
it halfway and
close the latch handle.
2. With the top raised and resting on the center roof
rail, slide the flat edge of the sunshade panel (with
the vinyl side
to the glass) between the glass and
plastic trim, making
sure the edge marked DRIVER
FRONT is pointing to the front of the vehicle.
3 LA

Downloaded from www.Manualslib.com manuals search engine /'
3. Open the latch and close the T-top. Check to see if
there are any gaps showing. Unlatch the T-top and
adjust the sunshade as required.
4. Once the sunshade is installed properly, you can
stick the Velcro@ buttons
on the glass for a proper fit
every time
you install the sunshades. To do this, first
remove the T-top with the sunshade installed and
place it upside down on a table or bench. Take care
not to scratch the glass.
L
5. Pull the sunshade back a little and remove the
backing paper from the Velcro buttons. Push the
sunshade back into place, sticking the Velcro
to
the glass.
6. Install the T-top, close the latch and lock
the T-top. Repeat the above steps for the
passenger-side sunshade.
2-65
